Etc Selador series User manual

Lustr – Paletta – Vivid – Vivid-R –

Vivid Fire – Vivid Ice – Pearl

User Manual

2010-09

Product information and specifications subject to change.

Part Number: 7400M1200 Rev G

Released: 2013-02

The Selador series of fixtures are intended for professional use only.

Read entire User Manual before using equipment.

Selador Series by ETC

ETC intends this document, whether printed or electronic, to be provided in its entirety.

ETC and Selador are registered trademarks of Electronic Theatre Controls, Inc. in the United

States and other countries.

Other product and company names mentioned herein may be trademarks and/or service marks

of their respective owners.

This product is protected by one or more of the following U.S. Patents: 6,016,038, 6,150,774,

6,788,011, 6,806,659, 6,683,423 and 7,023,543

ACCREDITATIONS AND RECOGNITIONS (from ETL SEMKO: www.usa.etlsemko.com)

ETL SEMKO is recognized by OSHA in the U.S. as a Nationally Recognized Testing Laboratory.

ETL tests to standards developed or approved by the American National Standards Institute

(ANSI), Underwriters Laboratories (UL) and others. Other notable accreditations include the

American Association of Laboratories Accreditations (A2LA), American National Standards

Institute (ANST), International Conference of Building Officials (ICBO), and the International

Electrotechnical Commission of Electrical Equipment (IECEE). ETL also has accreditations and

recognitions from around the globe. Visit www.etlsemko.com/accred.html for a complete listing.

Conforms to UL Std. 1573; Certified to CSA Std. C22.2 No. 166

Table of Contents

Specifications . . . . . . . . . . . . . . . . . . . .1

Maximum Power Consumption at Full Intensity . . . . . . . . . .2

Dimensions and LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Note About LED Fixtures. . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Overview . . . . . . . . . . . . . . . . . . . . . . . .4

Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Installation. . . . . . . . . . . . . . . . . . . . . . .7

Power and Data Cabling Requirements . . . . . . . . . . . . . . . .7

Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Installing Mounting Hardware . . . . . . . . . . . . . . . . . . . . .8

Installation Clearances . . . . . . . . . . . . . . . . . . . . . . . . . .8

Safety Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Fixture Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Installing Secondary Lenses. . . . . . . . . . . . . . . . . . . . 11

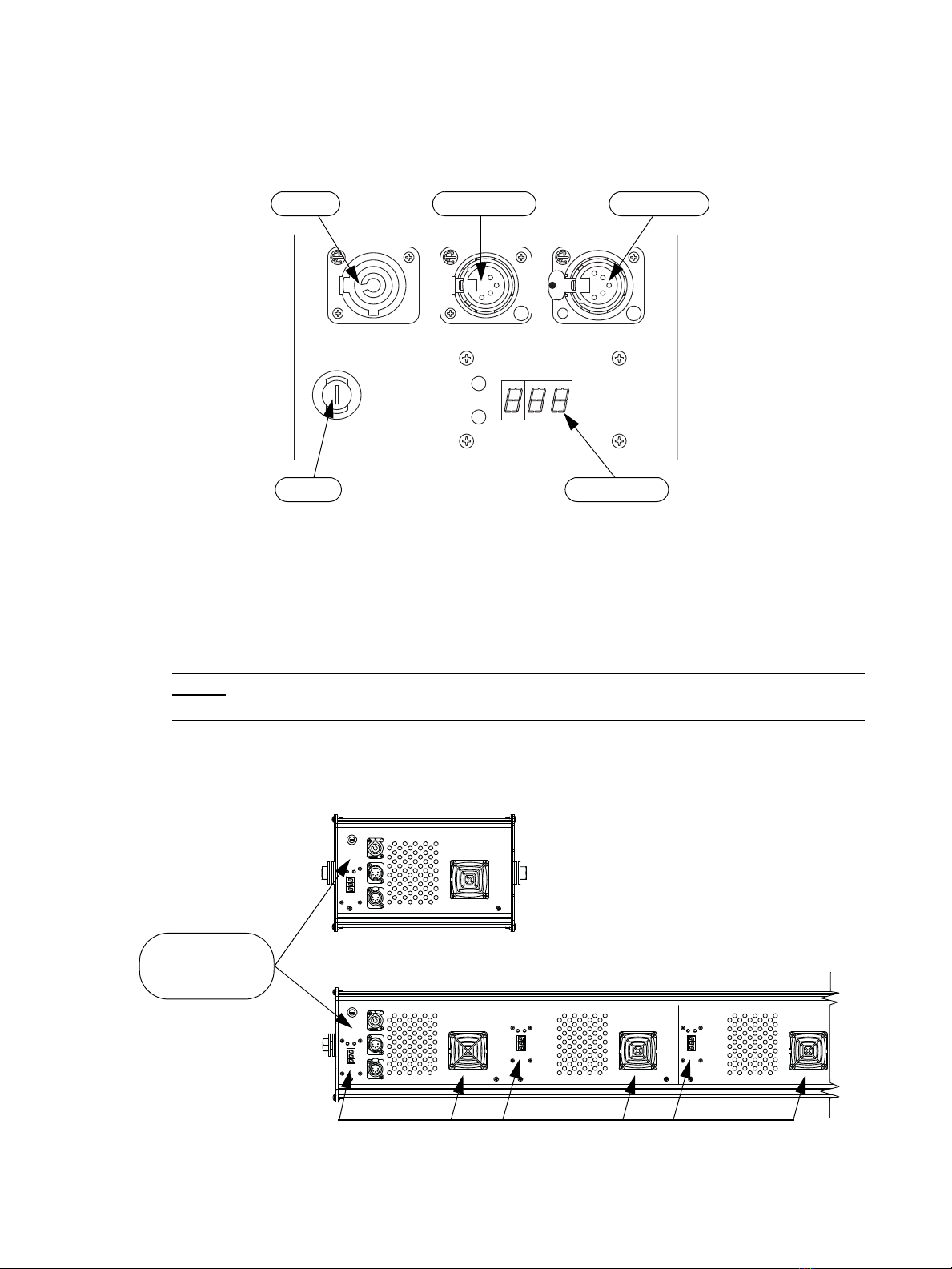

Connections and Addressing . . . . . . . . . . . . . . . . . . . 12

Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Routine Maintenance . . . . . . . . . . . . .15

General Fixture Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . .15

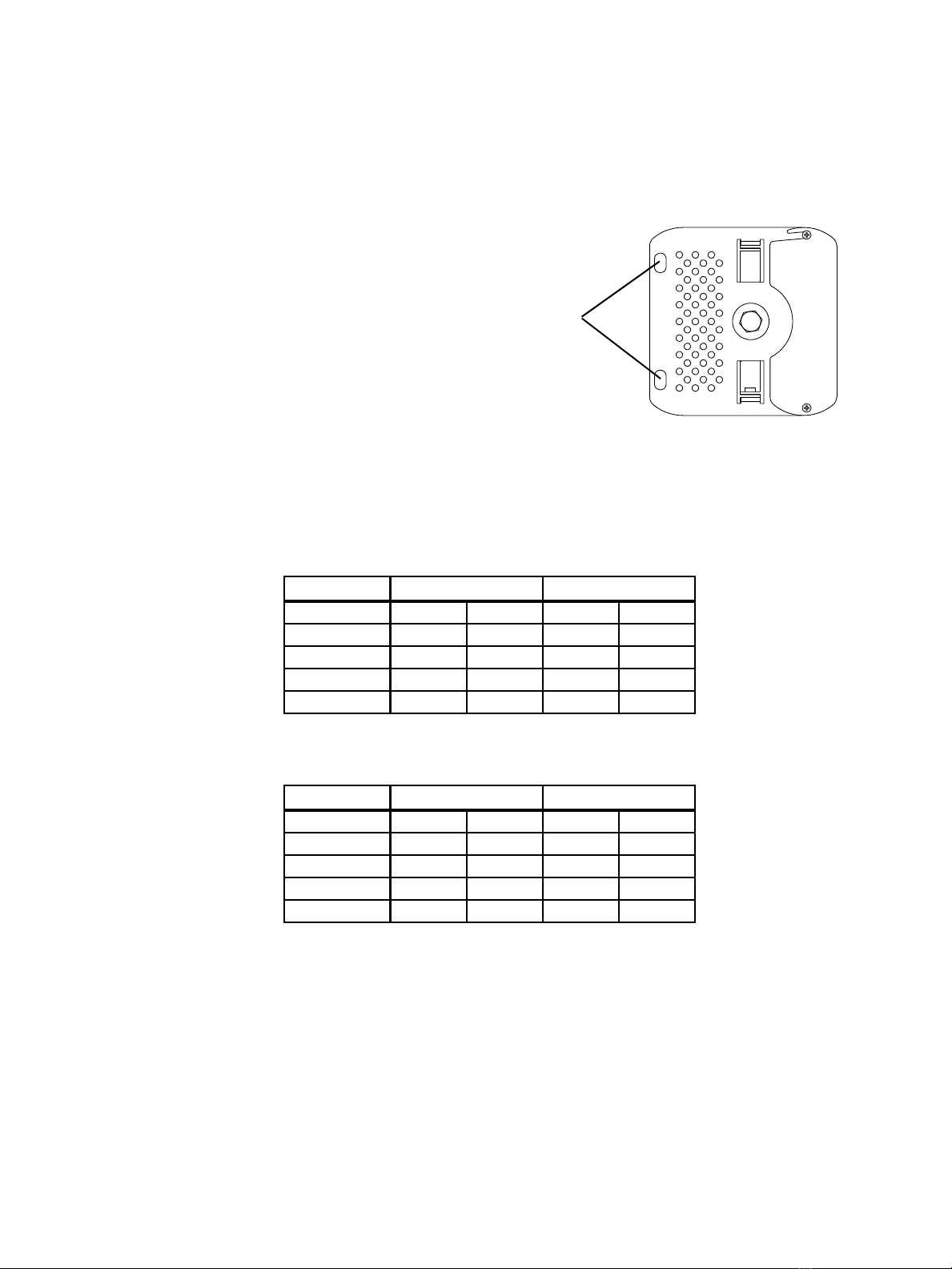

Cooling Fan Filter Cleaning . . . . . . . . . . . . . . . . . . . . . . . .16

Fuse Capacities. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

1Selador Series User Manual

Specifications

Note:

Vivid-R replaces the original Vivid fixture as of February 2010. The manufacturer of the

K2 LED emitter is phasing out these emitters over the next year. Vivid-R maintains

photometrics equivalent to the original Vivid with higher intensity and uses less power.

Physical

• Rugged extruded anodized aluminum construction • Yoke, trunnion (floor stand), or pipe-hanger mounting

options

• Advanced thermal management systems for long LED

life

• Available in black

• 0 to 40 °C (32 to 104 °F) ambient operating

temperature

• See Dimensions and LEDs, page 3

• Available in 11, 21, 42, and 63 in. lengths • See Fixture Weight, page 10

• (Fixtures built January 2010 and after) On-board fan

speed control for no-noise operation unless in high

ambient temperature situations.

Electrical

• 100V to 240V 50/60 Hz internal power supply • 5 ft power lead supplied

•Neutrik

®PowerCon®input connector • Requires power from non-dim source

LEDs

• Luxeon® Rebel™ 2.5W LED emitters (Lustr, Paletta,

Vivid-R, Vivid Fire, Vivid Ice, and Pearl)

• 50,000 hr. LED life

• Luxeon K2 3.5W LED emitters (original Vivid fixtures

manufactured January 2010 or before.)

• See Note About LED Fixtures, page 3

Optical

• Integral 16° field angle optic (Pearl)

• Integral 17° field angle optic (Vivid-R)

Integral 18° field angle optic (original Vivid)

Integral 26° field angle optic (Lustr, Paletta, Vivid Fire

and Vivid Ice)

• Combine secondary lenses for desired beam spread

• Slots for secondary lenses

Color

• Selador Seven-color x7 LED products for superior

broad spectrum color mixing

– Lustr – Optimized for highest output in white and

light tints in a 7-color fixture

– Paletta – Optimized for strong, saturated colors

– Vivid, Vivid-R – Optimized for strong, saturated

colors at maximum brightness

• Interacts seamlessly with conventional sources

• Achieves excellent 3200° or any other Correlated Color

Temperature white light from 800 to 20,000°K (except

Vivid Fire, Vivid Ice, and Pearl)

• Beautifully illuminates skin tones and other objects

• Deeply saturated colors across an exceptionally wide

gamut

• Selador special purpose LED fixtures

– Vivid Fire – Optimized for high-intensity saturated

colors on the red end of the spectrum

– Vivid Ice – Optimized for high-intensity saturated

colors on the blue end of the spectrum

– Pearl – High output warm and cool white LEDs for

variable color temperature white (only) light output

• Color rendering as high as 90 CRI (except Vivid Fire,

Vivid Ice, and Pearl)

Maximum Power Consumption at Full Intensity

Lustr, Vivid-R, Vivid Fire, Vivid Ice, and Pearl

Paletta

Vivid (Manufactured January 2010 or before)

Control

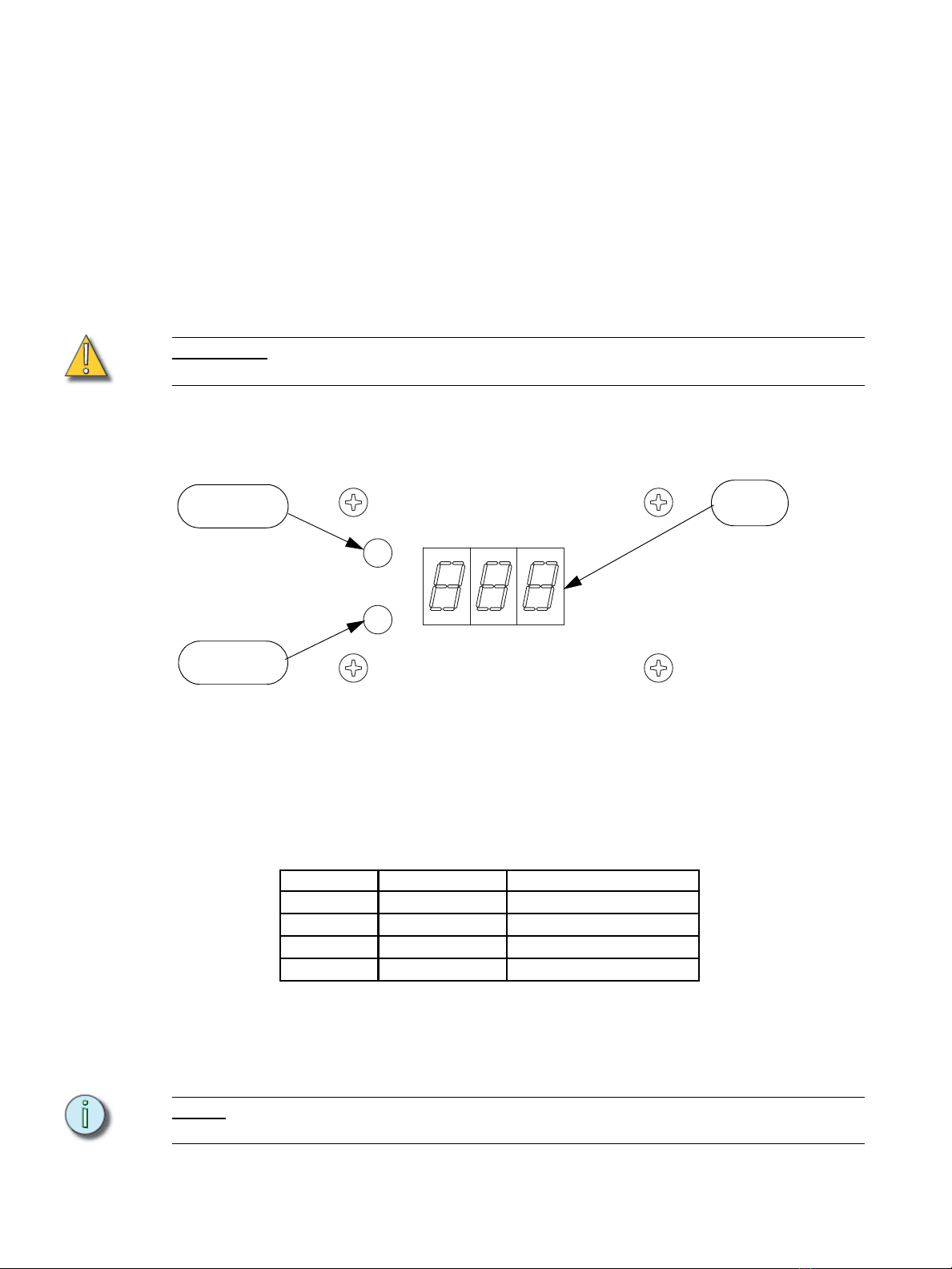

• DMX512-A compliant • Digital LED display for address assignment

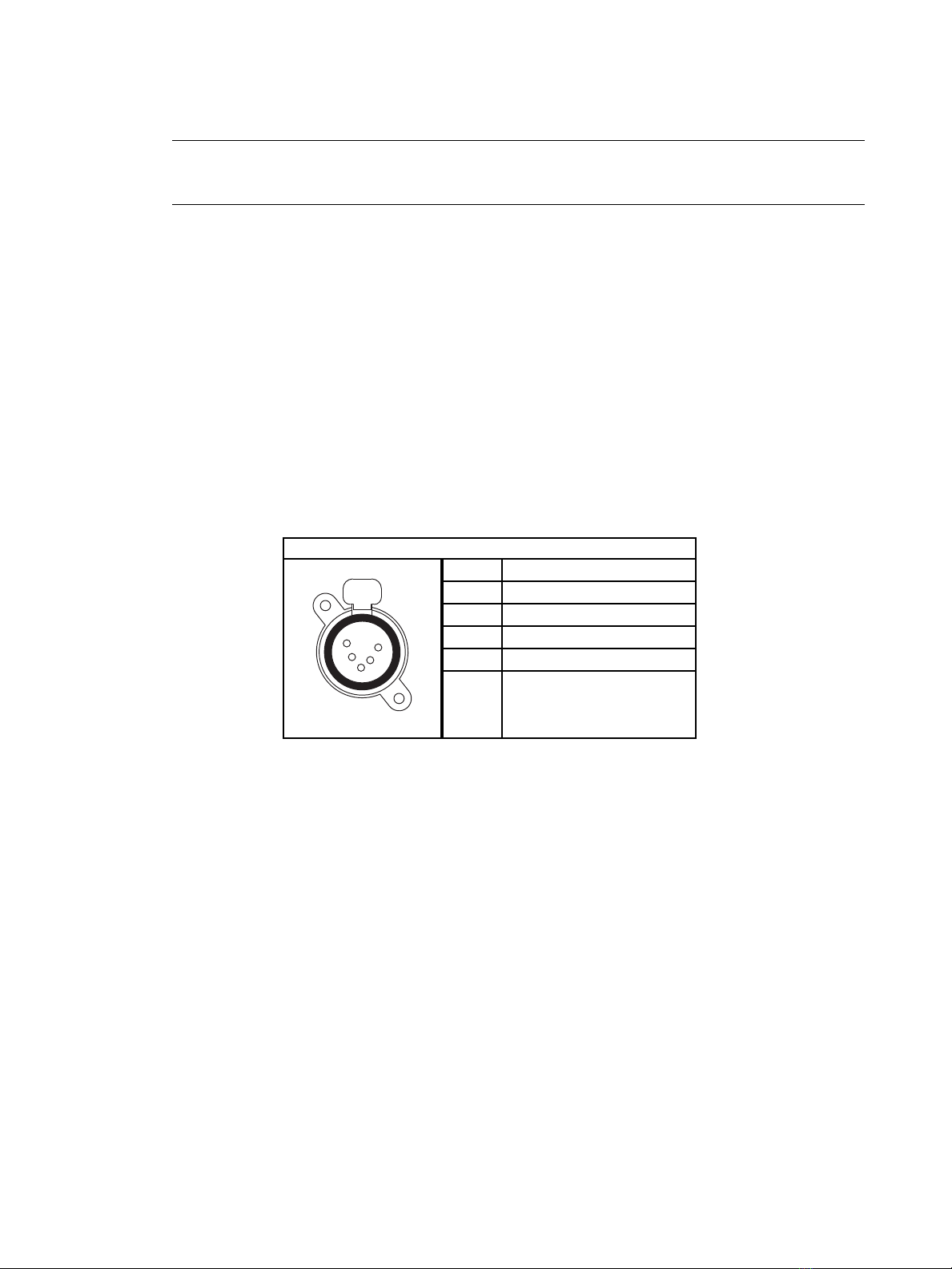

• DMX in and thru via 5-pin XLR connectors • Internal control electronics for smooth low-end dimming

at 15-bit resolution

• 8-channel (7 color plus intensity) • 21 in. fixture provides 2 independently controllable cells

• 3-channel (warm, cool, intensity) for Pearl • 42 in. fixture provides 4 independently controllable cells

• Intensity channel minimizes color shift during dimming • 63 in. fixture provides 6 independently controllable

cellsa

a) Vivid Fire and Vivid Ice are available in 11 in. and 21 in. versions only.

Modela

a) Vivid Fire and Vivid Ice are available in 11 in. and 21 in. versions only.

Voltage (V) Current (A)

(120V/240V)

Watts

(120V/240V)

120/240

1.05/0.60 125W/144W

21 2.10/1.20 250W/288

42 4.20/2.40 500W/576

63 6.30/3.6 750W/864W

Model Voltage (V) Current (A)

(120V/240V)

Watts

(120V/240V)

120/240

0.90/0.50 108W/120W

21 1.80/1.00 216W/240W

42 3.60/2.00 432W/480W

63 5.40/3.00 648W/720W

Model Voltage (V) Current (A)

(120V/240V)

Watts

(120V/240V)

120/240

1.35/0.74 162W/178W

21 2.70/1.48 324W/356W

42 5.40/2.96 648W/715W

63 8.10/4.44 972W/1,068W

3Selador Series User Manual

Dimensions and LEDs

Lustr, Vivid, Vivid-R, Vivid Fire, Vivid Ice, and Pearl

Paletta

Note About LED Fixtures

All LED sources experience some lessening of light output and some color shift over time.

Selador Series fixtures have complex thermal management systems to minimize these

changes. With typical usage, a Selador fixture will still achieve 70% of its initial output after

50,000 hours of use. In individual situations, LEDs will be used for different durations and

different levels. This can eventually lead to minor alterations in color performance,

necessitating slight adjustment to presets, cues, or programs.

All LEDs exhibit a slight color shift as their temperature rises from ambient to operating

temperature. This may or may not be visible to the eye. If this is a concern, a five to ten

minute warm up cue (all color channels at 100%, intensity channels at 50%) prior to

production can minimize this effect.

Modela

a) Vivid Fire and Vivid Ice are available in 11 in. and 21 in. versions only.

Size in inches Number of LEDs

11 11.0 x 7.1 x 7.1 40

21 21.5 x 7.1 x 7.1 80

42 42.5 x 7.1 x 7.1 160

63 63.5 x 7.1 x 7.1 240

Model Size in inches Number of LEDs

11 11.0 x 7.1 x 6.25 40

21 21.5 x 7.1 x 6.25 80

42 42.5 x 7.1x 6.25 160

63 63.5 x 7.1 x 6.25 240

Overview

Congratulations on your purchase of a Selador Series by ETC product.

Selador's x7 Color System™ seven-hue technology produces a light and color quality that

conventional LED systems cannot duplicate. This unique color system produces bright,

broad-spectrum whites and intense colors equally well, rendering pigments, objects, and

skin tones in a natural way. Vivid Fire and Vivid Ice fixtures use elements of the x7 Color

System for superior performance in deep saturated colors.

Each member of the Selador Series product line is unique and optimized for a specific

lighting task:

Lustr
