i30 IP Video Door Phone
User Manual V3.0

[键入文字]
Document VER
Firmware VER
Explanation
Time
V1.0
2.1.1.2545
Initial issue
20161117
V2.0
2.1.1.2909
Add FDMS, video linkage function.
Changed default in passive mode to the electric-lock.
20170726
V3.0
2.1.1.2909
Change company address and add IP scan tool download
address in QIG
20171027

[键入文字]
Safety Notices
1. Please use the specified power adapter. If you need to use the power adapter provided by other
manufacturers under special circumstances, please make sure that the voltage and current provided is
in accordance with the requirements of this product, meanwhile, please use the safety certificated
products, otherwise may cause fire or get an electric shock.
2. When using this product, please do not damage the power cord either by forcefully twist it, stretch
pull, banding or put it under heavy pressure or between items, otherwise it may cause damage to the
power cord, lead to fire or get an electric shock.
3. Before using, please confirm that the temperature and environment is humidity suitable for the
product to work. (Move the product from air conditioning room to natural temperature, which may
cause this product surface or internal components produce condense water vapor, please open power
use it after waiting for this product is natural drying).
4. Please do not let non-technical staff to remove or repair. Improper repair may cause electric shock,
fire, malfunction, etc. It would lead to injury accident or cause damage to your product.
5. Do not use fingers, pins, wire, other metal objects or foreign body into the vents and gaps. It may
cause current through the metal or foreign body, which may even cause electric shock or injury
accident. If any foreign body or objection falls into the product please stop using.
6. Please do not discard the packing bags or store in places where children could reach, if children trap
his head with it, may cause nose and mouth blocked, and even lead to suffocation.
7. Please use this product with normal usage and operating, in bad posture for a long time to use this
product may affect your health.
8. Please read the above safety notices before installing or using this phone. They are crucial for the safe
and reliable operation of the device.

[键入文字]
Directory
I. Product introduction............................................................................................................................ 6
1. Appearance of the product .............................................................................................................. 6
2. Description...................................................................................................................................... 7
II. Start Using .......................................................................................................................................... 8
1. Confirm the connection ................................................................................................................... 8
1) Power, Electric Lock, Indoor switch port........................................................................................ 8
2) Driving mode of electric-lock(Default in passive mode) ................................................................. 8
3) Wiring instructions....................................................................................................................... 9
2. Quick Setting ................................................................................................................................. 10
III. Basic operation ................................................................................................................................ 11
1. Answer a call ................................................................................................................................. 11
2. Call................................................................................................................................................ 11
3. End call.......................................................................................................................................... 11
4. Open the door ............................................................................................................................... 11
IV. Page settings ................................................................................................................................... 12
1. Browser configuration ................................................................................................................... 12
2. Password Configuration................................................................................................................. 12
3. Configuration via WEB ................................................................................................................... 13
(1) System ...................................................................................................................................... 13
a) Information............................................................................................................................. 13
b) Account .................................................................................................................................. 14
c) Configurations......................................................................................................................... 15
d) Upgrade.................................................................................................................................. 15
e) Auto Provision ........................................................................................................................ 16
f) FDMS ...................................................................................................................................... 18
g) Tools ....................................................................................................................................... 19
(2) Network.................................................................................................................................... 20
a) Basic ....................................................................................................................................... 20
b) VPN ........................................................................................................................................ 22
(3) Line........................................................................................................................................... 23
a) SIP .......................................................................................................................................... 23
b) Basic Settings.......................................................................................................................... 28
c) Dial Peer ................................................................................................................................. 30

[键入文字]
(4) EGS Setting ............................................................................................................................... 31
a) Features.................................................................................................................................. 31
a) Audio...................................................................................................................................... 34
b) Video...................................................................................................................................... 35
c) MCAST .................................................................................................................................... 38
d) Action URL.............................................................................................................................. 41
e) Time/Date .............................................................................................................................. 41
(5) EGS Access ................................................................................................................................ 43
(6) EGS Logs ................................................................................................................................... 45
(7) Function Key ............................................................................................................................. 46
V. Appendix .......................................................................................................................................... 49
1. Technical parameters ..................................................................................................................... 49
2. Basic functions .............................................................................................................................. 50
3. Schematic diagram ........................................................................................................................ 50
VI. Other instructions............................................................................................................................ 51
1. Open door modes .......................................................................................................................... 51
2. Management of card ..................................................................................................................... 51

[键入文字]
6/ 54
I. Product introduction
i30 is a full digital network door phone. It uses mature VoIP solution (Broadcom chip), with
stable and reliable performance; it supports hands-free with full-duplex, which voice is loud and clear;
I30 have generous appearance, also solid durable, easy for installation, comfortable keypad and low
power consumption.
I30 video door phone supports entrance guard control, voice intercom, ID card and keypad
remote opening the door.
1. Appearance of the product

[键入文字]
7/ 54
2. Description
Buttons and icons
Description
Function
Numeric keyboard
Input password to open the door or dial for call
Programmable
keys
It can be set with a variety of functions in order
to meet the needs of different occasions
Induction zone
RFID induction area
Camera
Video signal acquisition and transmission
Lock status
Door unlocking: On
Door locking: Off
Call/Ring status
Standby: Off
Talking: On
Ringing: Blink every 1 second
Network/SIP
Registration
Network error: Blink every 1 second
Network running: Off
Registration failed: Blink every 3 second
Registration succeeded: On

[键入文字]
8/ 54
II. Start Using
Before you start to use the equipment, please make the following installation.
1. Confirm the connection
Confirm whether the equipment of the power cord, network cable, electric lock control line
connection and the boot-up is normal. (Check the network state of light)
1) Power, Electric Lock, Indoor switch port
Voice access the power supply ways: 12v/DC or POE.
CN7
1
2
3
4
5
6
7
+12V
VSS
NC
COM
NO
S_IN
S_OUT
12V 1A/DC
Electric-lock switch
Indoor switch
2) Driving mode of electric-lock(Default in passive mode)
【Note】When the device is in active mode, it can drive 12V/650mA switch output maximum(maximally);
if the electric-lock needs power supply over 12V/650mA, it will ask the device in passive mode to get
additional power to drive the lock switch on/off.
When using the active mode, it is 12V DC output.
When using the passive mode, output is short control (normally open mode or normally close mode).
Jumper in passive mode
Jumper in active mode

[键入文字]
9/ 54
3) Wiring instructions
NO: Normally Open Contact.
COM: Common Contact.
NC: Normally Close Contact.
Driving Mode
Electric lock
Jumper port
Connections
Active
Passive
No electricity
when open
When the
power to open
√
√
√
√
√
√
√
√
√

[键入文字]
10 / 54
2. Quick Setting
The product provides a complete function and parameter setting. Users may need to have the
network and SIP protocol knowledge to understand the meaning all parameters represent. In order to
let equipment users enjoy the high quality of voice service and low cost advantage brought by the
device immediately, here we list some basic but necessary setting options in this section to let users
know how to operate I30 without understanding such complex SIP protocols.
In prior to this step, please make sure your broadband Internet can be normally operated, and
you must complete the connection of the network hardware. The product factory default network
mode is DHCP. Thus, only connecting equipment with DHCP network environment would let system
have network access automatically.
Press and hold “#” key for 3 seconds; the door phone would report the IP address by voice. Or you
can also use the "iDoorPhoneNetworkScanner.exe" software to find the IP address of the device.
(Download address http://download.fanvil.com/tool/iDoorPhoneNetworkScanner.exe)
Note: when the I30 is powered on, 30s waiting is needed for device running.
Log on to the WEB device configuration.
In a line configuration page, service account, user name, server address and other parameters are
required for server address registration.
You can set DSS key in the function key page.
You can set Door Phone parameters in the webpage (EGS Settings -> Features).

[键入文字]
11 / 54
III.Basic operation
1. Answer a call
When a call comes in, the device would answer automatically. If you cancel auto answer feature and
set auto answer time, you would hear the ring at the set time and the device would auto answer
after configured timer.
2. Call
Configure shortcut key as hot key and then set up a number; after that you might press the shortcut
key for making call to the configured extension(s).
3. End call
Enable Release(You can enable release)key for hanging up feature to end call.
4. Open the door
You might open doors through the following seven ways:
1) Input password on the keyboard to open the door.
2) Access to call the owner and the owner enter the remote password to open the door.
3) Owner/other equipment call the access control and enter the access code to open the door. (access
code should be included in the list of access configuration, and enabled for remote calls to open the
door)
4) Swipe the RFID cards to open the door.
5) By means of indoor switch to open the door.
6) Private access code to open the door.
Enable for local authentication, and set private access code. Input the access code directly under
standby mode to open the door. In this way, the door log would record corresponding card number
and user name.
7) Active URL control command to open the door.
URL is “http://user:pwd@host/cgi-bin/ConfigManApp.com?key=F_LOCK&code=openCode”
a. User and pwd is the user name and password of logging in web page.
b. “openCode” is the remote control code to open the door.
Example: “http://admin:admin@172.18.3.25/cgi-bin/ConfigManApp.com?key=*”

[键入文字]
12 / 54
If access code has been input correctly, the device would play sirens sound to prompt I30 and the
remote user, while input error by low-frequency short chirp.
Password input successfully followed by high-frequency sirens sound, while input falsely, there would
be high-frequency short chirp.
When door has been opened, the device would play sirens sound to prompt guests.
IV.Page settings
1. Browser configuration
When the device and your computer are successfully connected to the network, you might enter the
IP address of the device in the browser as http://xxx.xxx.xxx.xxx/ and you can see the login interface of the
web page management.
Enter the user name and password and click the Logon button to enter the settings screen.
2. Password Configuration
There are two levels of access: root level and general level. A user with root level can browse and
set all configuration parameters, while a user with general level can set all configuration parameters
except server parameters for SIP.
General level: It is not be set by default, you can add the feature when you need
User uses root level by default:
User name: admin
Password: admin

[键入文字]
13 / 54
3. Configuration via WEB
(1) System
a) Information
Information
Field Name
Explanation
System Information
Display equipment model, hardware version, software version, uptime, last
uptime and meminfo.
Network
Shows the configuration information of WAN port, including connection mode
of WAN port (Static, DHCP, PPPoE), MAC address, IP address of WAN port.
SIP Accounts
Shows the phone numbers and registration status of the 2 SIP LINES.

[键入文字]
14 / 54
b) Account
Through this page, admininstrator can add or remove user accounts depend on their needs, or modify
existed user accounts permission.
Account
Field Name
Explanation
Change Web Authentication Password
You can modify the login password of the account
Add New User
You can add new user
User Accounts
Show the existed user accounts’information

[键入文字]
15 / 54
c) Configurations
Configurations
Field Name
Explanation
Export Configurations
Save the equipment configuration to a txt or xml file. Please right click on
the choice and then choose “Save Link As.”
Import Configurations
Find the config file, and press Update to load it to the equipment.
Reset to factory defaults
I30 would restore to factory default configuration and remove all
configuration information.
d) Upgrade
Upgrade
Field Name
Explanation
Software upgrade
Find the firmware, and press Update to load it to the equipment.

[键入文字]
16 / 54
e) Auto Provision

[键入文字]
17 / 54
Auto Provision
Field Name
Explanation
Common Settings
Current Configuration Version
Show the current config file’s version. If the config file to be
downloaded is higher than current version, the configuration would
be upgraded. If the endpoints confirm the configuration by the
Digest method, the configuration would not be upgraded unless it
differs from the current configuration
General Configuration Version
Show the common config file’s version. If the configuration to be
downloaded and this configuration is the same, the auto provision
would stop. If the endpoints confirm the configuration by the Digest
method, the configuration would not be upgraded unless it differs
from the current configuration.
CPE Serial Number
Serial number of the equipment
Authentication Name
Username for configuration server. It is used for FTP/HTTP/HTTPS. If
this is blank, the phone would use anonymous access
Authentication Password
Password for configuration server. It is used for FTP/HTTP/HTTPS.
Configuration File Encryption Key
Encryption key for the configuration file
General Configuration File
Encryption Key
Encryption key for common configuration file
Save Auto Provision Information
Save the auto provision username and password in the phone until
the server url changed
DHCP Option
Option Value
The equipment supports configuration from Option 43, Option 66,
or a Custom DHCP option. It may also be disabled.
Custom Option Value
Custom option number. It must be from 128 to 254.
SIP Plug and Play (PnP)
Enable SIP PnP
If it is enabled, the equipment would send SIP SUBSCRIBE messages
to the server address when it boots up. Any SIP server compatible
with that message would reply with a SIP NOTIFY message
containing the Auto Provisioning Server URL where the phones can
request their configuration.
Server Address
PnP Server Address
Server Port
PnP Server Port
Transportation Protocol
PnP Transfer protocol –UDP or TCP
Update Interval
Interval time for querying PnP server. Default is 1 hour.

[键入文字]
18 / 54
Static Provisioning Server
Server Address
Set FTP/TFTP/HTTP server IP address for auto update. The address
can be an IP address or domain name with subdirectory.
Configuration File Name
Specify configuration file name. The equipment would use its MAC
ID as the config file name if this is blank.
Protocol Type
Specify the Protocol type FTP, TFTP or HTTP.
Update Interval
Specify the update interval time. Default is 1 hour.
Update Mode
1. Disable –not to update
2. Update after reboot –update only after reboot.
3. Update at time period –update at periodic update period
TR069
Enable TR069
Enable/Disable TR069 configuration
ACS Server Type
Select Common or CTC ACS Server Type.
ACS Server URL
ACS Server URL.
ACS User
User name of ACS.
ACS Password
ACS Password.
TR069 Auto Login
Enable/Disable TR069 Auto Login.
INFORM Sending Period
Time between transmissions of “Inform”; the unit is second.
f) FDMS
FDMS Settings
Enable FDMS
Enable/Disable FDMS configuration
FDMS Interval
The time to send sip Subscribe information to the FDMS server on a regular basis.
Unit seconds
Doorphone Info Settings
Community Name
The name of the community where the device is installed

[键入文字]
19 / 54
Building Number
The name of the building where the equipment is installed
Room Number
The name of the room where the equipment is installed
g) Tools
Syslog is a protocol used to record log messages using a client/server mechanism. The Syslog server
receives the messages from clients, and classifies them based on priority and type. Then these messages
would be written into a log by rules which the administrator has configured.
There are 8 levels of debug information.
Level 0: emergency; System is unusable. This is the highest debug info level.
Level 1: alert; Action must be taken immediately.
Level 2: critical; System is probably working incorrectly.
Level 3: error; System may not work correctly.
Level 4: warning; System may work correctly but needs attention.
Level 5: notice; It is normal but significant condition.
Level 6: Informational; It is normal daily messages.
Level 7: debug; Debug messages normally used by system designer. This level can only be displayed
via telnet.
Tools
Field Name
Explanation
Syslog
Enable Syslog
Enable or disable system log.
Server Address
System log server IP address.
Server Port
System log server port.

[键入文字]
20 / 54
APP Log Level
Set the level of APP log.
SIP Log Level
Set the level of SIP log.
Network Packets Capture
Capture a packet stream from the equipment. This is normally used to troubleshoot problems.
Reboot Phone
Some configuration modifications require a reboot to become effective. Clicking the Reboot button
would lead to reboot immediately.
Note: Be sure to save the configuration before rebooting.
(2) Network
a) Basic
Field Name
Explanation
Network Status
IP
The current IP address of the equipment
Subnet mask
The current Subnet Mask
Default gateway
The current Gateway IP address
MAC
The MAC address of the equipment
MAC Timestamp
Get the MAC address of time.
Settings
Select the appropriate network mode. The equipment supports three network modes:
Other manuals for i30
2
Table of contents
Other Fanvil Intercom System manuals

Fanvil
Fanvil i30 User manual

Fanvil
Fanvil i16S User manual

Fanvil
Fanvil i23 User manual

Fanvil

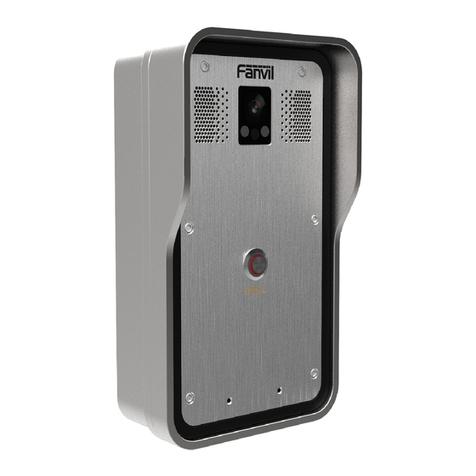

Fanvil i18 User manual

Fanvil
Fanvil i55A User manual

Fanvil

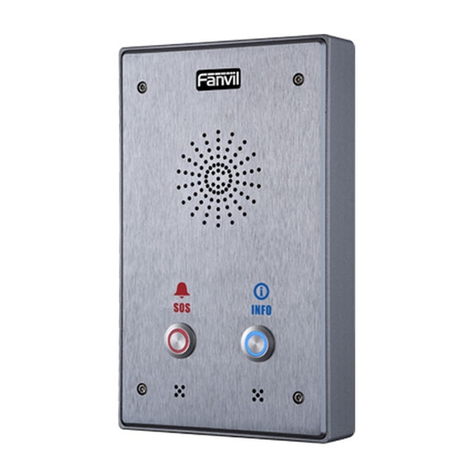

Fanvil i12-01 User manual

Fanvil

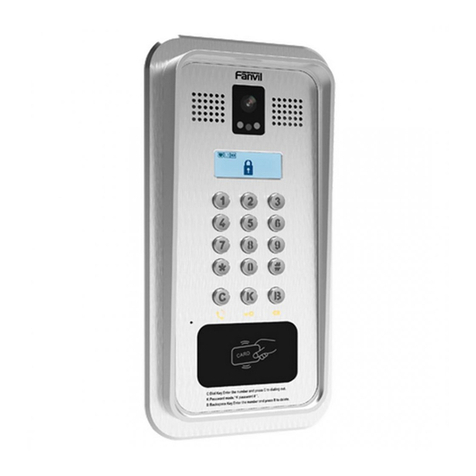

Fanvil i33V User manual

Fanvil
Fanvil i51W User manual

Fanvil
Fanvil i30 User manual

Fanvil

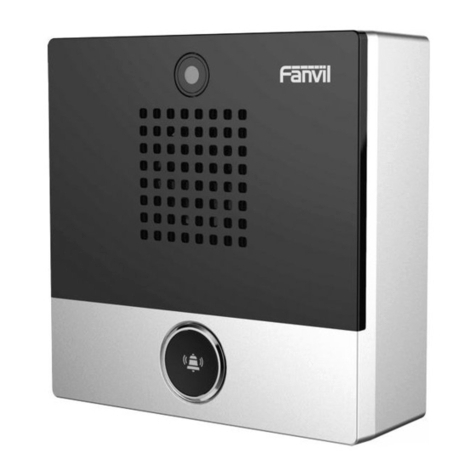

Fanvil i10 Installation and user guide
