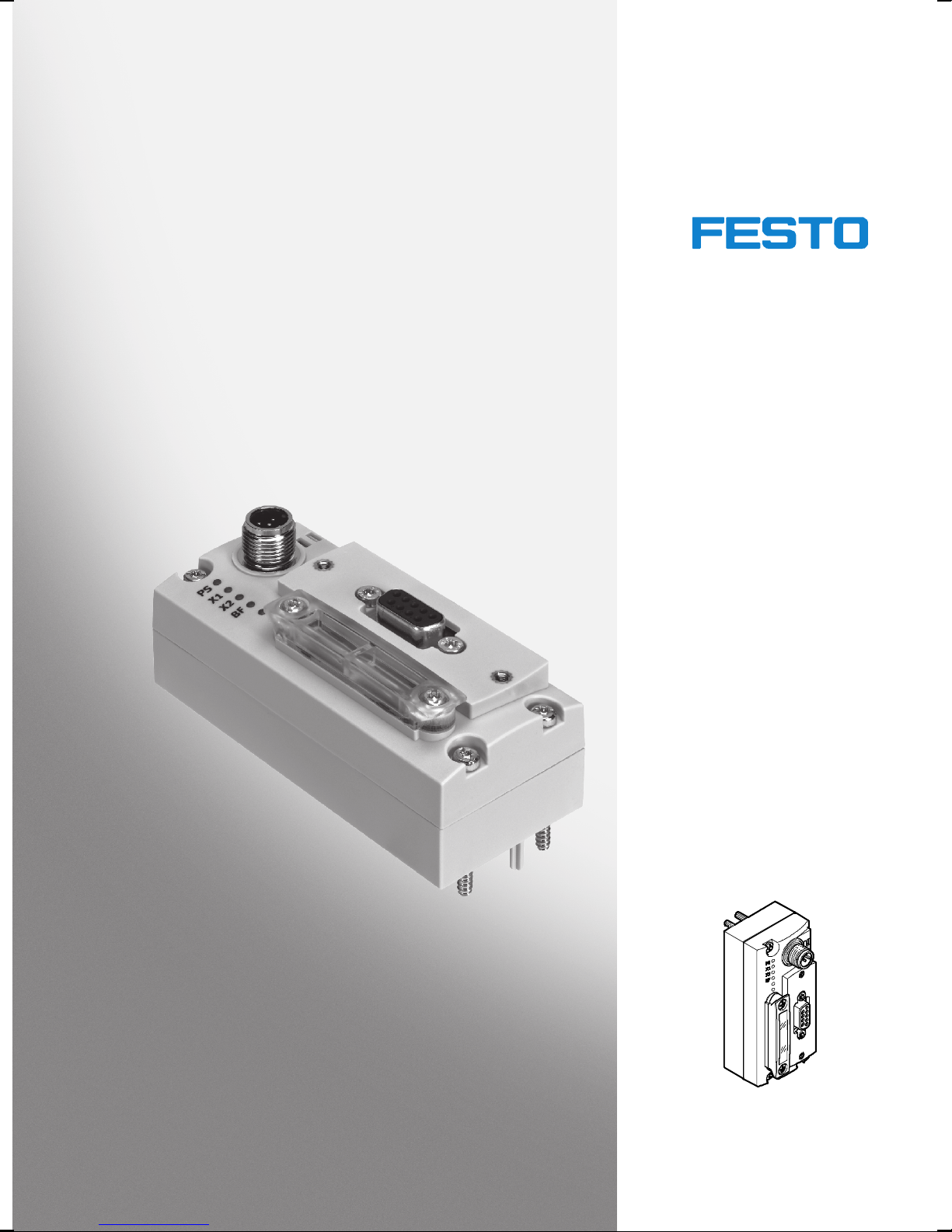

Festo Cteu-pb Operating and installation instructions

Electronics

description

Bus nodes

Type CTEU-PB

Fieldbus protocol

PROFIBUS-DP

Universal bus node

CTEU-PB

Description

575393

en 1208NH

[758863]

Contents and general safety instructions

Festo P.BE-CTEU-PB-OP+MAINT-EN en 1208NH English

Original de.......................................

Edition en 1208NH.................................

Designation P.BE-CTEU-PB-OP+MAINT-EN..............

Order no. 575393..................................

Internet: http://www.festo.com

E-Mail: service_international@festo.com

Reproduction, distribution or sale of this document or com-

munication of its contents to others without express author-

ization is prohibited. Offenders will be liable for damages.

or design patent is registered.

Contents and general safety instructions

Festo P.BE-CTEU-PB-OP+MAINT-EN en 1208NH English

PROFIBUS

,SIMATIC

,TORX

,TÜV

and VDE

are registered trademarks of the respec-

tive trademark owners in certain countries.

Contents and general safety instructions

III

Festo P.BE-CTEU-PB-OP+MAINT-EN en 1208NH English

Ta b l e o f c o n t e n t s

Intended use VII..........................................................

Range of application and certifications VII.....................................

Target group VIII..........................................................

Service VIII...............................................................

Instructions on this description VIII...........................................

Important user instructions IX..............................................

1. Installation 1-1...................................................

1.1 General instructions on installation 1-3................................

1.2 Mounting 1-5......................................................

1.2.1 Connection and display components 1-6........................

1.3 Power supply 1-7..................................................

1.3.1 Power supply connection 1-7.................................

1.4 Setting the DIL switches 1-9..........................................

1.4.1 Removal and mounting of the DIL switch cover 1-9................

1.4.2 Setting the DIL switches 1-10..................................

1.5 Connecting the fieldbus 1-13..........................................

1.5.1 Fieldbus cable 1-13..........................................

1.5.2 Cable specifications 1-13......................................

1.5.3 Fieldbus baud rate and fieldbus length 1-14......................

1.5.4 Fieldbus interface at the bus node 1-15..........................

1.5.5 Connection technology for fieldbus interface 1-16.................

1.5.6 Bus terminal 1-20............................................

1.5.7 Functional test 1-21..........................................

2. Commissioning 2-1................................................

2.1 General remarks on the fieldbus protocol PROFIBUS-DP 2-4...............

2.1.1 Components 2-4............................................

2.1.2 Data exchange with the PROFIBUS-DP fieldbus protocol 2-5........

2.1.3 Brief overview of the function range 2-5........................

2.1.4 Control commands 2-5......................................

Contents and general safety instructions

Festo P.BE-CTEU-PB-OP+MAINT-EN en 1208NH English

2.2 Preparing the bus node for configuration 2-7............................

2.2.1 Addressing the bus node 2-7.................................

2.2.2 Modules/devices at I-Port connection 1 and 2 2-7................

2.3 Installation on a higher-level controller 2-10.............................

2.3.1 Device master file (GSD) and symbol files 2-10....................

2.4 Configuration by using process data 2-12...............................

2.4.1 Configuration examples 2-12..................................

2.4.2 Configuration of a DP master 2-16..............................

2.4.3 Bus start-up 2-16............................................

2.4.4 Configuration using a DP master from Siemens as an example 2-17...

2.5 Identification and maintenance 2-26....................................

2.5.1 Overview of the I&M data structures 2-26........................

2.5.2 Load identification properties into the bus node using Step 7 2-27....

2.5.3 Check identification properties using Step 7 2-28..................

2.6 Parameterisation (DP) 2-31...........................................

2.6.1 Parameterisationwhen being switched on (start behaviour) 2-32.....

2.6.2 Equipment parameters 2-32...................................

2.6.3 Parameterisation of the bus node 2-33..........................

2.6.4 Bus node parameters tool change 2-34..........................

2.6.5 Application example for the parameterisation 2-37................

2.7 Communication 2-38................................................

2.7.1 Statuses when communication is established 2-38.................

2.7.2 Status transitions 2-38.......................................

2.8 Fail state behaviour 2-40.............................................

2.9 Switching on 2-42...................................................

2.9.1 Information concerning the switch-on behaviour of the bus node 2-42.

2.9.2 Checklist before switching on 2-43..............................

2.9.3 Switching on the power supply 2-44............................

2.9.4 Normal operating status 2-44..................................

Contents and general safety instructions

Festo P.BE-CTEU-PB-OP+MAINT-EN en 1208NH English

3. Diagnostics 3-1...................................................

3.1 Summary of diagnostics options 3-3...................................

3.2 Diagnostics via LED display 3-4.......................................

3.2.1 Normal operating status display 3-4...........................

3.2.2 PS-LED status display 3-5....................................

3.2.3 Status display X1-/X2-LEDs 3-6...............................

3.2.4 Status display BF-LED 3-8....................................

3.3 Diagnostics via fieldbus 3-9..........................................

3.3.1 Diagnostic steps 3-9........................................

3.3.2 Overview of diagnostic bytes 3-11..............................

3.3.3 Details for standard diagnostic information 3-13..................

3.3.4 Details of the channel-related diagnostics 3-14....................

3.3.5 Channel-related and extended diagnostic data 3-17................

3.3.6 Event codes of connected equipment 3-17.......................

3.4 Diagnostics via controller or DP master 3-18.............................

3.4.1 Diagnostics for DP masters, general 3-18........................

3.4.2 Diagnostics with Siemens SIMATIC S7 3-18.......................

3.5 Online diagnostics with STEP 7 3-20....................................

3.5.1 Read out diagnostic buffer with STEP 7 (up to V 5.5) 3-20...........

3.5.2 Device-specific diagnostics with STEP 7 (up to V 5.5) 3-22...........

4. Error handling 4-1.................................................

4.1 Fault finding and error elimination 4-3.................................

4.1.1 Check installation 4-3.......................................

4.1.2 Check the power supply 4-3..................................

4.1.3 Restart communication between the bus node and the device 4-4...

4.1.4 Check fieldbus communication 4-5.............................

4.1.5 Check PROFIBUS-DP configuration 4-5.........................

4.1.6 Read out diagnostic messages via controller 4-6.................

Contents and general safety instructions

Festo P.BE-CTEU-PB-OP+MAINT-EN en 1208NH English

A. Technical appendix A-1.............................................

A.1 Technical data A-3..................................................

A.2 Access to the bus node via DPV1 A-7..................................

A.2.1 Reading and writing data records A-7..........................

A.2.2 Data records for DP-master controls, general A-10.................

A.3 Operation with the general DP master A-14..............................

A.3.1 Sending parameterisation data A-14............................

A.3.2 Checking the configuration data A-16............................

A.3.3 Transferring input and output data A-17.........................

A.3.4 Reading diagnostic information A-18............................

A.3.5 Implemented functions and service access points (SAP) A-18........

A.3.6 Transmission times at the master A-19...........................

B. Index B-1.........................................................

Contents and general safety instructions

VII

Festo P.BE-CTEU-PB-OP+MAINT-EN en 1208NH English

Intended use

The bus node CTEU-PB documented in this description has

been designed exclusively for use as a station (slave) on the

PROFIBUS-DP fieldbus.

The bus node may only be used as follows:

–asintended

– in original condition, without unauthorised modifications.

Only the conversions or modifications described in the

documentation supplied with the product are permitted.

– in excellent technical condition.

The limit values specified for pressures, temperatures,

electrical data, torques etc. must be complied with.

Observe the regulations of the trade associations, German

Technical Control Board (TÜV), VDE stipulations or corres-

ponding national laws and regulations.

Range of application and certifications

The product fulfils the requirements of EU directives and is

marked with the CE marking.

Standards and test values which the product complies with

and fulfils can be found in the Technical appendix. The

product-relevant EC directives can be found in the declaration

of conformity.

Certificates and declarations of conformity for this product

can be found at www.festo.com.

Contents and general safety instructions

VIII

Festo P.BE-CTEU-PB-OP+MAINT-EN en 1208NH English

Target group

This description is intended exclusively for technicians

trained in control and automation technology who have

experience in installing, commissioning, programming and

diagnosing programmable logic controllers (PLCs) and

participants on the PROFIBUS-DP fieldbus.

Service

Please consult your local Festo Service if you have any tech-

nical problems.

Instructions on this description

This description includes specific information about the con-

figuration, parameterisation, commissioning, programming

and diagnostics of the bus node with the PROFIBUS-DP field-

bus protocol.

Information for mounting the bus node on the CAPC-... elec-

trical connection box can be found in the assembly instruc-

tions supplied with the electrical connection box.

Information about other bus nodes and components of the

CTEU… product family can be found in the product document-

ation for the respective product.

Contents and general safety instructions

Festo P.BE-CTEU-PB-OP+MAINT-EN en 1208NH English

Important user instructions

Danger categories

This description includes instructions on the possible dangers

which can occur if the product is used incorrectly. These

instructions are marked with a signal word (Warning, Caution,

etc.), printed on a shaded background and marked

additionally with a pictogram.

A distinction is made between the following danger warnings:

Warning

... means that failure to observe this instruction may result

in serious personal injury or material damage.

Caution

... means that failure to observe this instruction may result

in personal injury or material damage.

Note

... means that failure to observe this instruction may result

in material damage.

In addition, the following pictogram marks passages in the

text which describe activities with electrostatically sensitive

devices:

Electrostatically sensitive devices: Incorrect handling may

cause damage to devices.

Contents and general safety instructions

Festo P.BE-CTEU-PB-OP+MAINT-EN en 1208NH English

Marking special information

The following pictograms mark passages in the text which

contain special information.

Pictograms

Information:

Recommendations, tips and references to other information

sources.

Accessories:

Specifications on necessary or useful accessories for the

Festo product.

Environment:

Information on the environmentally friendly use of Festo

products.

Text designations

•

Bullet points denote activities that may be carried out in

any sequence.

1. Numerals denote activities that must be carried out in the

sequence specified.

– Arrowheads indicate general lists.

Contents and general safety instructions

Festo P.BE-CTEU-PB-OP+MAINT-EN en 1208NH English

The following product and fieldbus-specific terms and abbre-

viations are used in this description:

Term/abbreviation Significance

Bus nodes create the connection to certain fieldbuses/networks, pass on control

signals to the connected devices/modules and monitor their functioning.

CLEAR_DATA This command, sent by the master, resets all outputs of the addressed

slave.

DI, DO, DX Digital inputs (DI) or outputs (DO) or digital inputs and outputs (DX)

DIL switches Dual-In-Line switches usually comprise several switch elements that can

be used to make hardware settings.

DP PROFIBUS protocol for decentralised peripheral equipment, such as

sensors and actuators, and their cyclical communication functions (data

exchange and diagnostic messages) through DPV0-protocol or acyclic,

need-dependent data exchange and alarm handling through DPV1-pro-

tocol.

Hexadecimal numbers are marked by a low-set “h”.

Fail state This is a function which can automatically activate the “Hold last state” in

the event of connection errors (program abort or timeout of the fieldbus

connection) and is also designated “fail safe” in some cases.

FREEZE This command, sent by the master, freezes all inputs of the slave. The

slave now sends a constant image of all inputs, independent of their fur-

ther change in status. The input image is updated with each further trans-

mission of the FREEZE command.

A FREEZE command is cancelled with UNFREEZE.

GSD General Station Description (or Gerätestammdatei - device master file)

stands for the individual electronic data sheet of the device type. It is

made available by the device manufacturer.

Hold last state defines the status which outputs/valves are to assume after fieldbus

and/or communication errors

I&M stands for ‘Identification and Maintenance’ and represents the electronic

name plate of the bus node.

Load voltage includes the power supply for connected devices and (digital) outputs,

e.g. solenoid coils of valves

Contents and general safety instructions

XII

Festo P.BE-CTEU-PB-OP+MAINT-EN en 1208NH English

Term/abbreviation Significance

Master The master/DP master is an active device that determines the data traffic

in the fieldbus system PROFIBUS-DP and may send messages/commands

without external request if there is a transmission authorisation.

The DP master can be an individual device or part of a programmable logic

controller (PLC).

O, I Digital output, digital input

OB Output byte

Operating voltage also designated signal voltage : includes the power supply for electronics

and sensors

PLC Programmable Logic Controller (German: Speicherprogrammierbare

Steuerung (SPS))

Power supply Heading term for operating and load voltage supplies

PROFIBUS DP is the PROFIBUS variant for speed-optimised, serial data exchange with

decentralised stations and is performed cyclically with the protocol DPV0.

Slave The slave/DP slave is a passive peripheral device that receives messages/

commands of the master, implements and acknowledges them or re-

sponds with a message on request of a master.

Station address Address of the fieldbus station, also designated PROFIBUS address or

station number

Status bits Internal inputs, which supply coded common diagnostic messages

PLC/IPC programmable logic controller/industrial PC, also designated system

controller or controller (German: SPS)

SYNC A SYNC command causes all slaves addressed by the master to freeze

their own output data and buffer the data transferred from the master,

which will be switched through to the physical outputs at the next SYNC

command.

A SYNC command is cancelled with UNSYNC.

Tab. 0/1: Terms and abbreviations

Installation

1-1

Festo P.BE-CTEU-PB-OP+MAINT-EN en 1208NH English

Chapter 1

Installation

1. Installation

1-2
