Festo DFPD-HD S Series User manual

Translation of the original instructions
© 2020 all rights reserved to Festo SE & Co. KG
1 About this document
1.1 Purpose of the document
This document describes the use of the above-mentioned product.
Certain aspects of use in combination with a hydraulic or mechanical manual over-
ride are described in other documents and must be observed.
1.2 Applicable documents
All available documents for the product èwww.festo.com/sp.
Document Contents
Operating instructions DFPD-HD-...-HP Design, commissioning and operation of the
hydraulic manual override
Operating instructions DFPD-HD-...-MW Design, commissioning and operation of the
mechanical manual override
Operating conditions EX Information on the use of the product in poten-
tially explosive gas atmospheres
Tab. 1 Applicable documents
1.3 Target group
The document is targeted towards individuals who install and operate the
product.
2 Safety
2.1 General safety instructions
– Only use the product in original status without unauthorised modifications.
– Only use the product if it is in perfect technical condition.
– Take into consideration the legal regulations for the installation location.
– Take into consideration the ambient conditions at the location of use. Corros-
ive environments reduce the service life of the product.
– Observe the specifications on the product labelling.
– Observe labelling on the product.
– Prior to mounting, installation and maintenance work: Switch off compressed
air supply and secure it from being switched back on.
– Exhaust drive prior to assembly, installation and dismounting.
Operating medium
– Use compressed air only in accordance with the specifications
è14 Technical data.
– Use only unlubricated compressed air under normal conditions. Once the
product has been used with lubricated compressed air, it must continue to be
operated with lubricated compressed air only.
Return to Festo
Hazardous substances can endanger the health and safety of personnel and
cause damage to the environment. To prevent hazards, the product should only
be returned upon explicit request by Festo.
– Consult your regional Festo contact.
– Complete the declaration of contamination and attach it to the outside of the
packaging.
– Comply with all legal requirements for the handling of hazardous substances
and the transport of dangerous goods.
2.2 Intended use
The product is intended to actuate process valves, such as ball valves and butter-
fly valves, with a rotation angle from 0° (valve closed) to 90°. The product is suit-
able for control of media-flow process valves in fluid engineering systems.
NOTICE!
The operating torque of the drive must not be greater than the maximum permiss-
ible torque listed in ISO5211 in relation to the size of the mounting flange and of
the coupling.
2.3 Training of qualified personnel
Installation, commissioning, maintenance and disassembly should only be con-
ducted by qualified personnel.
3 Additional information
– Accessoriesèwww.festo.com/catalogue.
4 Service
Contact your regional Festo contact person if you have technical questions
èwww.festo.com.
5 Product overview
5.1 Product design
The product labelling is located on the gear unit.
1Port (2)
2Adjustable stop for end-position
adjustment
3Pneumatic cylinder
4Mounting thread in accordance
with ISO5211
5Keyway
6Mounting thread, e.g.for sensor
box
7Transmission shaft (internal),
delivery status "valve closed"
8Spring package
9Adjusting screw for end-position
adjustment
10 Transport lug
11 Gear unit
12 Mechanical position indication
13 Port (4)
Fig. 1 Product design
5.2 Function
Fig. 2 Symbol - single-acting semi-rotary drive
The DFPD-HD-...-...S... is a single-acting semi-rotary drive. The piston is moved by
pressurising the pneumatic cylinder. The semi-rotary drive of type
DFPD-HD -...- RS closes clockwise, the type DFPD-HD -...- LScloses anti-clockwise.
The linear motion of the piston is converted into a swivel motion of the transmis-
sion shaft by a Scotch yoke system (Scotch-Yoke). The spring force returns the
process valve. The connected process valve records the reaction torque of the
semi-rotary drive.
Fig. 3 Mode of operation (example for DFPD-HD -...- RS)
8134576
DFPD-HD-...-...S
Semi-rotary drive
8134576
2020-06b
[8134578]
Operating instructions
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
[phone]
www.festo.com

6 Transport and storage
WARNING!
Danger of crushing.
Body parts can be crushed if the product falls.
• Use appropriate load handling equipment.
• Lift the semi-rotary drive using the transport lugs.
• Before transporting: detach the semi-rotary drive from the process valve.
NOTICE!
For variants with a hydraulic unit (DFPD-HD-...-HP): environmental damage due to
escaping oil.
• Store the product horizontally and avoid inclines.
– When dispatching used products: comply with all legal requirements for the
handling of hazardous substances and the transport of dangerous goods. For
return to Festo è 2.1 General safety instructions.
– Remove all attachments.
– Store the product in a cool, dry, UV-protected and corrosion-protected envir-
onment. Ensure that storage times are kept to a minimum.
– For long-term storage: test the function of the product regularly.
– Observe environmental and storage conditions è 14 Technical data.
– Seal pneumatic connections.
– Protect coupling parts with grease or protective oil.
– To prevent damage to the coupling flange, store the product on a level
wooden pallet.
7 Mounting and installation
NOTICE!
Semi-rotary drives of the series DFPD-HD are intended for installation parallel to
the line axis.
• If another installation position is necessary, consult your regional Festo con-
tact èwww.festo.com.
NOTICE!
Semi-rotary drives with a hydraulic manual override are designed for a horizontal
installation position only. In this position, the pump and reservoir are mounted
towards the top of the hydraulic cylinder.
7.1 Assembly
1. Clean the coupling flange.
2. Adjust the valve position according to the semi-rotary drive settings.
3. Lubricate the valve spindle.
4. Place the semi-rotary drive on the control shaft of the process valve.
5. Mount the semi-rotary drive on the connecting flange of the process valve
with 8 threaded pins.
Tightening torque è Tab. 2
Flange type F25 F30 F35
Tightening torque [Nm] 160 320 1100
Tab. 2
7.2 Pneumatic installation
• Observe the operating instructions of the process valve.
• Test the correct function of the pneumatic control.
• Take precautions at the open port 4, which prevent the suction of harmful
substances, e.g.unfiltered outside air, humidity or water, into the product.
Connection Effect
2 Air supply
4 Port remains open to the environment
Tab. 3
8 Commissioning
8.1 Requirements
– The drive is fully mounted and connected.
8.2 Commissioning the semi-rotary drive
1. Check operating conditions and critical limits è 14 Technical data.
2. Switch on the compressed air supply.
3. Check the semi-rotary drive for leakage.
4. First check the direction of rotation of the semi-rotary drive and reaction of
the process valve at a low travel speed.
8.3 Adjusting the end positions
8.3.1 "Valve closed" end position
The "Valve closed" end position is set at the pneumatic cylinder.

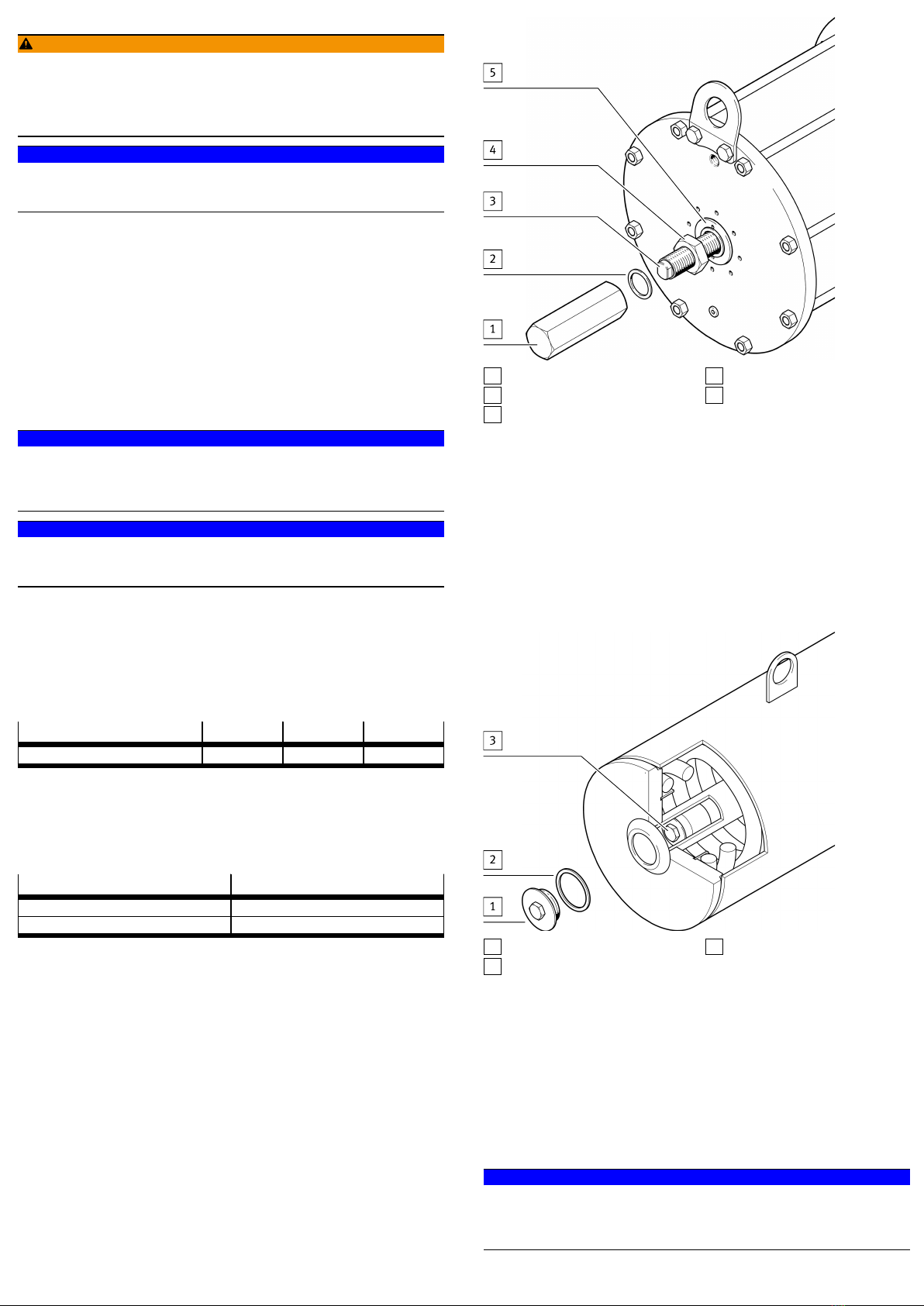

1Stop bolt covering
2Sealing washer
3Stop adjusting screw
4Stop nut
5Sealing washer
Fig. 4 Adjust "valve closed" end position
1. Pressurise the connection (2) slightly to relieve the stop bolt.
2. Remove stop bolt 1 and sealing washer 2 covering.
3. Loosen the stop nut 4 together with the sealing washer 5.
4. To reduce the rotation angle, screw in the stop adjusting screw 3.
To increase the rotation angle, screw out the stop adjusting screw 3.
5. Tighten the stop nut 4. Make sure that the sealing washer 5 is centred on
the stop nut and lies in the recess of the flange.
6. Run through a complete cycle to test the setting.
7. Replace stop bolt 1 and sealing washer 2 covering.
8.3.2 "Valve open" end position
The "valve open" end position is set at the spring package.
1Stop cap
2Sealing washer
3Stop adjusting screw
Fig. 5 Adjust "valve open" end position
1. Switch off the compressed air supply to relieve the spring.
2. Remove the stop cap 1 and sealing washer 2.
3. To reduce the rotation angle, screw in the stop adjusting screw 3.
To increase the rotation angle, screw out the stop adjusting screw 3.
4. Switch on the compressed air supply.
5. Run through a complete cycle to test the setting.
6. Replace the stop cap 1 and sealing washer 2.
9 Operation and use
• Comply with operating conditions.
• Comply with permissible critical limits.
NOTICE!
For continuous operation under extreme conditions: Use lubricated compressed
air. The oil must be chemically inert and must not carbonise. Once the product has
been used with lubricated compressed air, it must continue to be operated with
lubricated compressed air only.

10 Maintenance
When used as intended, the product is maintenance-free.
Festo recommends the following periodic inspections:
Interval Test
Annually Correct function of the semi-rotary drive by repeatedly opening
and closing the valve fully (rotation angle = 90°)
Every six months Visual inspection (during operation)
Quarterly Correct function of the semi-rotary drive during operation
Tab. 4
11 Malfunctions
• In case of malfunctions, consult your regional Festo contact.
12 Disassembly
WARNING!
Danger of crushing.
Body parts can be crushed if the product falls.
• Use appropriate load handling equipment.
• Lift the semi-rotary drive using the transport lugs.
• Before transporting: detach the semi-rotary drive from the process valve.
WARNING!
Risk of injury due to uncontrolled movement.
• Before disassembling the semi-rotary drive: Depressurise the pipeline.
1. Disconnect the semi-rotary drive from the compressed air supply.
2. Release the pneumatic ports.
3. Unscrew the retaining screws on the semi-rotary drive.
4. Lift the semi-rotary drive off the process valve.
13 Disposal
ENVIRONMENT!
Send the packaging and product for environmentally sound recycling in accord-
ance with the current regulations èwww.festo.com/sp.
14 Technical data
DFPD
Operating medium Compressed air in accordance with ISO8573-1:2010
[7:4:4]1)
Note on the operating medi-
um
lubricated operation possible
(in which case lubricated operation will always be
required)
Ambient temperature [°C] –20…+80
Rotation angle [°] 0…90
Mounting position parallel to the line axis (DFPD-HD-...-HP horizontal only)
Pneumatic port G½, G1 (depending on cylinder size)
Standard connection to valve
body
ISO5211
CE marking (declaration of conformity
èwww.festo.com/sp)
in accordance with EU Explosion Protection Directive
(ATEX)
in accordance with EU Machinery Directive
Degree of protection IP66M, IP67M
Operating conditions
Operating pressure2) [MPa] 0.3…0.85
Nominal operating pressure [MPa] 0.5_0.1
End-position adjustment
range 0°
[°] _5
End-position adjustment
range 90°
[°] _5
Material
Housing Steel
Cover Steel
Pneumatic cylinder Steel (nickel-plated)
Piston rod Steel (chrome-plated)
Piston Steel
Tie rod Steel
Stop cap Steel
Stop adjusting screw Steel
Seal NBR, polyurethane
Topcoat Polyurethane
1) Pressure dew point at least 10 °C below the outside temperature
2) dependent on the spring force, see product labelling
Tab. 5
