SOMFY Sonesse 28 WireFree RTS Li-ion User manual

Somfy RTS Motor Programming Instructions
Motor Programming Instructions have been rewritten by https://www.AVOutlet.com
We rewrite the Somfy instructions in an effort to make things a little easier to follow. There are
however some subtle differences in the motors. Please refer to the included Somfy motor
specific instructions if something is not working. Feel free to let us know if something is found to
be incorrect.
Please Read and Follow These Instructions.
Please use the motor programming instructions provided here. The remote control
instructions can be used for reference but they are not as easy to follow. A copy of the
Somfy instructions are also provided for your reference.
Please read installation instructions and programming instructions completely prior to
proceeding with installation and programming. Failure to do so can result in damage to the
motor and or the shade.
Be prepared to stop the shade during programming. The programming step where you set the
first stop limit (upper or lower whichever you do first) will activate the motor to move without
stopping on its own. You will need to stop the motor at the next stop limit using the remote as
indicated. Failure to stop the shade can result in shade or motor damage.

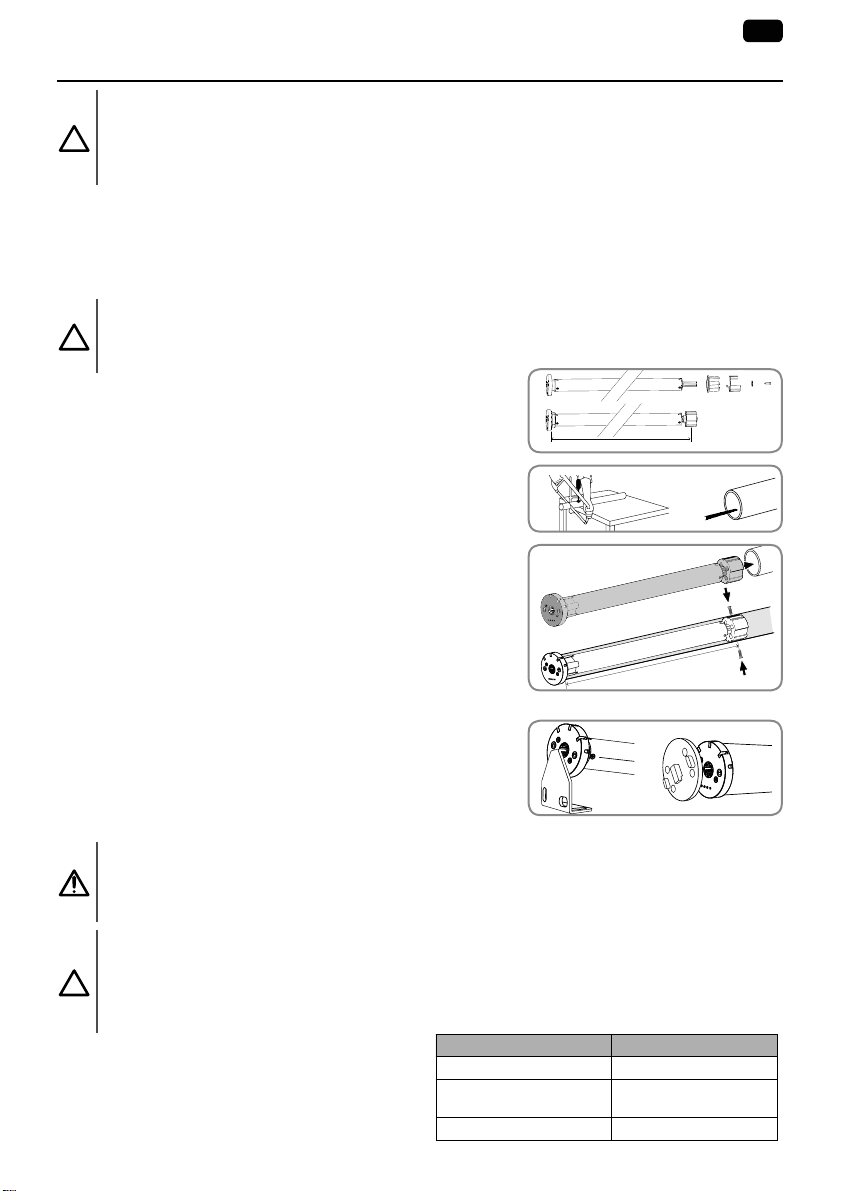

The motors MUST be installed in the tube and the assembly must be mounted into brackets to
be able to program the motor.
Only apply power to the motor being programmed regardless if the other motors have been
programmed or not. This will prevent inadvertent interaction with other motors. This is not
possible for motors with built-in batteries like the R28WF, ST30WF etc. Motors with built-in
batteries must be put to sleep.
We recommend mapping out the installation before proceeding. This will reduce set-up time and
make life easier. Decide the channels and or additional remotes to be assigned to each shade
in the installation. Each shade should be completely programmed before moving to the next.
Have the necessary remotes and controls ready prior to proceeding.
All motors programmed to the same RTS channel will operate at the same time. If you want
individual control of the motor, you must use separate channels on multi-channel remotes or
separate single channel remotes
The remote controls are generally considered to be dummy devices as they do not store any
motor or programming information. The motors are the intelligent devices. The motors store the
shade operation limits in their memory and the motors also memorize the specific remotes or
channels assigned to control them. Each motor can have up to 12 remotes or channels
controlling them.
Note: The Telis 4 Remote Control is a 5 Channel Remote control. The 5th channel is all lights
on. The 5th channel by default is not a group channel. This channel is not automatically
assigned and must be programmed.

Please read the previous page before proceeding.

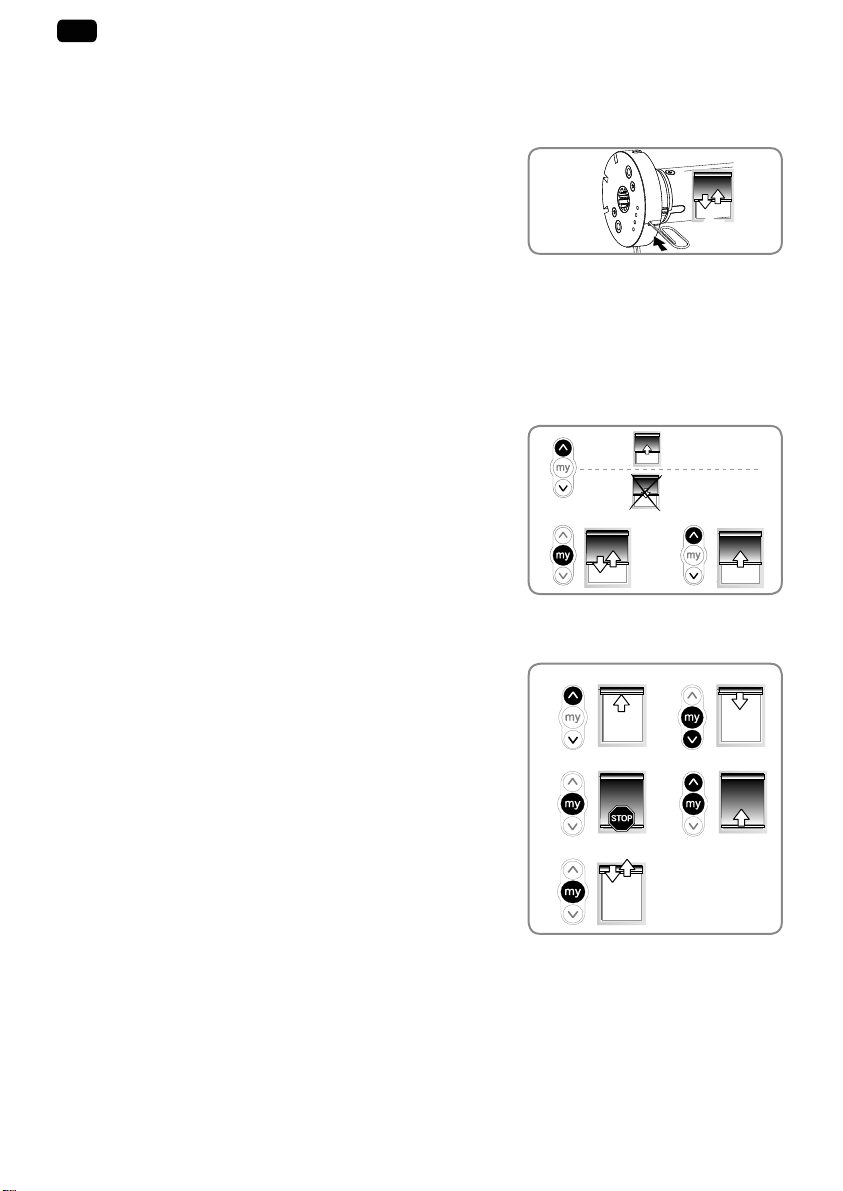

Step 1 - Assign a RTS Channel to the Motor
1-A) Select the RTS remote control and channel you want to use.
1-B) Press and Hold both the UP and DOWN buttons simultaneously until the motor jogs, then
release. A jog is a movement in both directions.
If the motor does not respond, proceed to the “Resetting and Clearing the Motor Memory”
Page(s) and reset the motor. If working with a built-in battery motor like the ST30WF you might
need to wake the motor first.
Step 2 - Check Motor Direction and Change if Necessary –DO NOT SKIP
2-A) Check the direction of operation (the motor will operate in momentary fashion).
Confirm that the UP button brings the shade UP and DOWN brings the shade DOWN.
2-B) Changing the direction (If needed), Press and Hold the STOP/MY button until the motor
jogs, then release. A jog is a movement in both directions. Re-Check the direction.
Step 3 - Set Lower and Upper Shade Limits
3-A) Move the shade to the desired lower limit position using the remote control. The shade will
only move when the button is being pressed.
3-B) Press and Hold both the STOP/MY and UP buttons simultaneously until the motor begins
to move up, then release. Be prepared to stop the shade manually using the STOP/MY button.
Stop the shade and adjust to your desired upper limit position.
3-C) Press and Hold both the STOP/MY and DOWN buttons simultaneously until the motor
begins to move Down, then release. The shade will move down to the already set lower limit
position and will stop on its own.
Step 4 - Store the Limits in the Motor Memory
4-A) Press and Hold the STOP/MY button until the motor jogs. A jog is a movement in both
directions. The limits are now recorded. The shade will NOT move automatically to a limit with
one button press yet!! Perform the next step.
Step 5 - Exit and Save Initial Programming
5-A) Briefly Press and Release the program button on the remote control. The motor will jog
once. A jog is a movement in both directions. The program button is typically on the backside of
a hand-held remote control or front of a wireless wall switch. A paperclip will be needed to press
the program button.
The shade should now move to the open and closed positions with a momentary press of the
buttons.
The optional steps on the next page should be reviewed. You should program the MY position
now as well as program additional channels of control if needed before moving on to another
motor.

Optional Programming Tasks
These procedures can be done at any time after initial programming, but we do recommend
performing all desired additional tasks before moving onto the next shade. All shades not being
programmed should have the power disconnected be put to sleep.

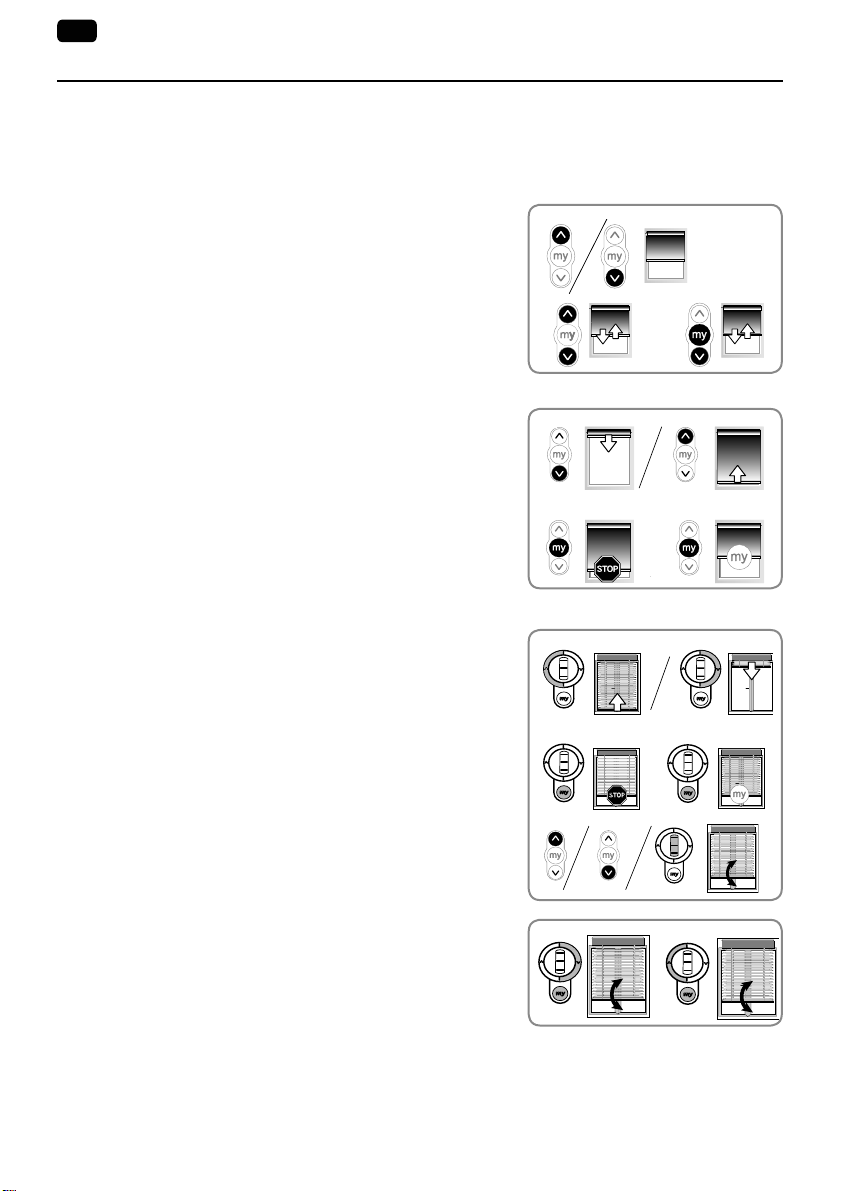

Set the Customer Preferred MY Intermediate Position
1) Using the remote, position the shade to the location you would like as your intermediate
customer preferred position
2) Press and Hold the STOP/MY button until the motor jogs, then release. A jog is a movement
in both directions.
Note: Simply repeat this step if you want to change the intermediate position to a new position
even if one has already been programmed.
Add a Remote or Channel to Control the Same Shade (If Desired)
1) To ADD another remote control or another RTS channel to the motor memory, Press and
Hold the program button on the previously recorded remote control until the motor jogs. A jog is
a movement in both directions.
2) Select the new remote or RTS channel to add to the motor memory. Briefly Press and
Release the program button on the remote control. The motor will jog once. A jog is a
movement in both directions.
Note: Some the older style motors require a Press and Hold of the program button for both
steps. Please refer to the included motor specific instructions if you are having difficulties.
Delete a Remote or Channel from the Motor Memory
1) To DELETE a remote control or channel, Press and Hold the program button of a previously
recorded channel or remote until the motor jogs. A jog is a movement in both directions.
(This remote or channel is the one to keep)
2) Select the remote or channel to delete. Briefly Press and Release the program button on the
remote control. The motor will jog once. A jog is a movement in both directions.
Note: Some the older style motors require a Press and Hold of the program button for both
steps. Please refer to the included motor specific instructions if you are having difficulties.

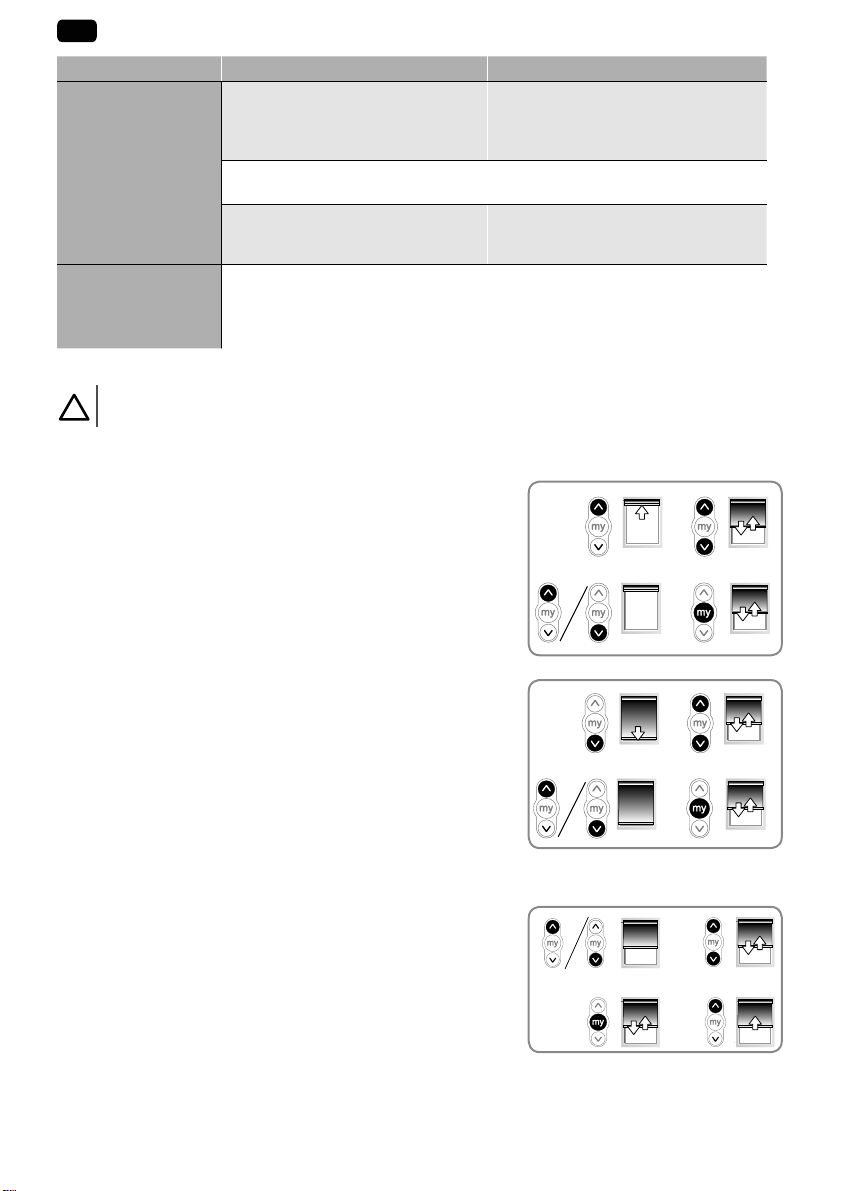

Adjusting the Lower Limit
1) Move the shade to its current lower limit position and let it stop.
2) Press and Hold the UP and DOWN buttons simultaneously and until the motor jogs, then
release. A jog is a movement in both directions.
3) Adjust to a new lower limit position. Press and Hold the STOP/MY button until the motor jogs,
then release. A jog is a movement in both directions.

Adjusting the Upper Limit
1) Move the shade to its current upper limit position and let it stop.
2) Press and Hold the UP and DOWN buttons simultaneously until the motor jogs, then release.
A jog is a movement in both directions.
3) Adjust to a new upper limit position. Press and Hold the STOP/MY button until the motor jogs,
then release. A jog is a movement in both directions.
Resetting and Clearing the Motor Memory
This procedure works for all motors except the ST40 120VAC and ST50 120VAC Motors. The
caveats of each motor are listed separately.
A paperclip will be needed to press the program button on some motors. These program
buttons do not need to be pressed hard. If you are having difficulty pressing the button, please
use a larger diameter paperclip.
Press and Hold the program button on the motor until the shade jogs 3 times while continuously
pressing the button. One jog is a movement in both directions. There will be a pause between
jogs so please be patient.
RU28 12VDC, R28WF Battery & ST30WF Battery RTS Motors
Same as a above. The program button is rectangular and found on the motor head.
R28 12VDC RTS Motor (Older Version)
Same as above. The program button is in a hole on the motor head.
The reset procedure on older versions of the R28 motor only works if the motor has been
completely programmed. Remove power for a minimum of 2 minutes if the motor is not
resetting.
LT30 12VDC RTS Motor
Same as above. The program button is in a hole on the motor head.
Some older versions of this motor do not jog. Hold the program button until the LED next to the
power connection stops blinking which is typically around 12 seconds.
ST30 RTS Motor (24VDC Version)
Same as above. The Sonesse 30 has two holes with recessed buttons. The white hole has the
program button and the yellow is for manually activating the shade to move.
RU24WF, ST30UWF & ST40WF RTS Battery RTS Motors
Same as above. The program button is in a hole on the motor head.

ST40 120VAC & ST50 120VAC Motor Resetting and Clearing
This reset procedure is sometime finicky. Several attempts may be required.
1) Disconnect power for 2 seconds.
2) Connect power for 5 seconds.
Note: Somfy recommends 10-15 seconds but we found 5 seconds to work better.
3) Disconnect power for 2 Seconds
4) Connect power and then leave it on. The motor will rotate in one direction if the shade is
between limits or will jog if at one of the programmed stops.
5) Press and Hold the programming button (App. 10 sec) on any RTS remote until the shade
jogs twice. There will be a pause between the jogs. Do not release the program button until the
second jog is complete. (The remote used does not have to be the one already programmed to
the shade) The motor is now ready for programming from the beginning.

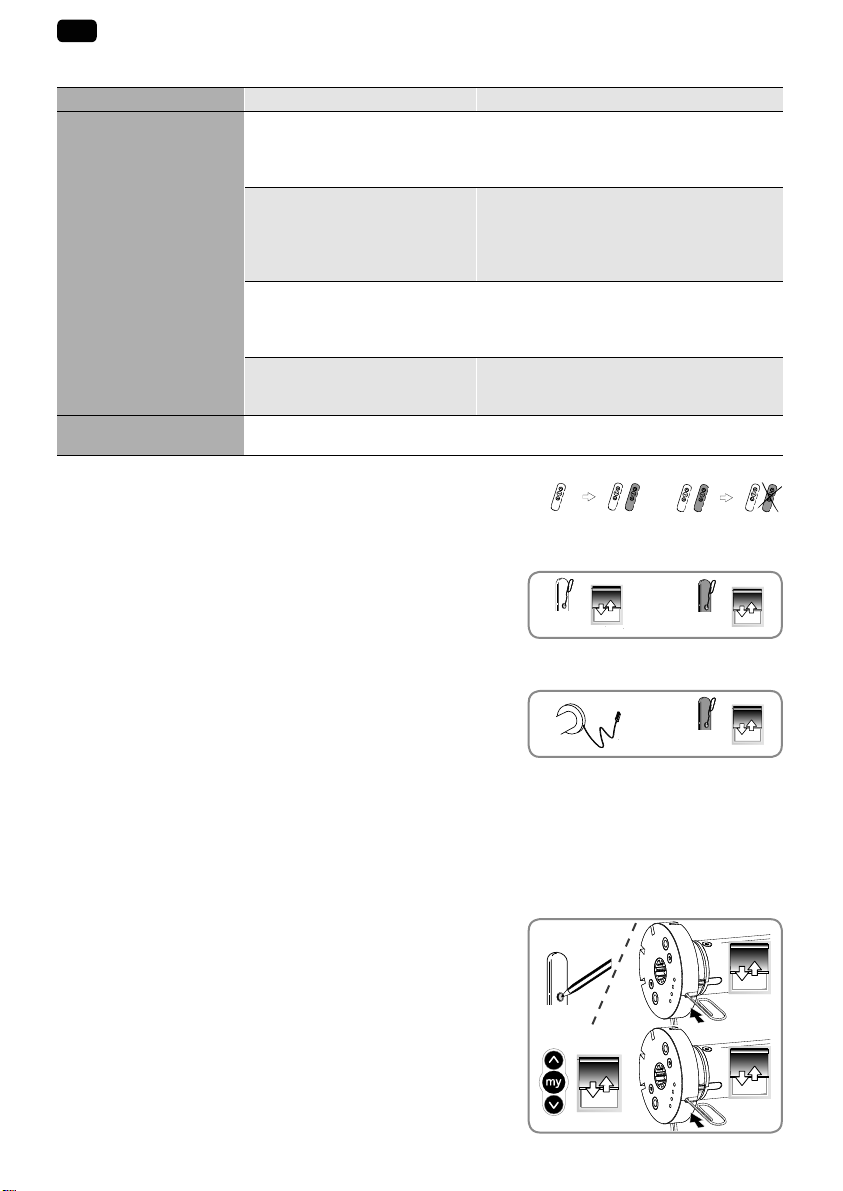

Built-in Battery Motor –Sleeping and Waking
Sleep –Temporary (App. 15 Minutes)
Press and Hold the program button on the motor head until the shade jogs once. A jog is a
movement in both directions.
Press and Release the program button. The shade will jog twice. A jog is a movement in both
directions.
Sleep –Until Wake (Motor must be programmed prior)
Press and Hold the program button on the motor head or remote control until the shade jogs
once. A jog is a movement in both directions.
Press and Hold all three buttons Up, Stop/My/Down on the remote control until the shade jogs
once. A jog is a movement in both directions.
Wake
Press and Release the program button on the motor head until the shade jogs once or plug in a
charger. A jog is a movement in both directions.

Intentionally blank

Sonesse 28
WireFree RTS Li-ion
Sonesse ULTRA 30
WireFree RTS Li-ion
EN Instructions
ES Instrucciones
FR Notice
DE Anleitung
RU инструкции

AR

EN Sonesse 28 WireFree RTS / Sonesse ULTRA 30 WireFree RTS
2Copyright©2017 - 2018 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
ORIGINAL INSTRUCTIONS
These instructions apply to all Sonesse 28 WireFree RTS and Sonesse ULTRA 30 WireFree RTS drives,
the different versions of which are available in the current catalogue
CONTENTS
GENERAL INFORMATION
Safety intructions
Danger
Indicates a danger which may result in immediate death or serious injury.
Warning
Indicates a danger which may result in death or serious injury.
Precaution
Indicates a danger which may result in minor or moderate injury.
Attention
Indicates a danger which may result in damage to or destruction of the product.
1. PRIOR INFORMATION
1.1. SPHERE OF APPLICATION
Sonesse 28 and Sonesse 30 drives are designed to drive all types of interior blinds except pantographs.
The installer, a home motorisation or home automation professional, must ensure that once the driven prod-
uct is installed, it respects the current standards in the country of installation, notably standard EN 13120
relative to interior blinds.
1.2. LIABILITY
Before installing and using the drive, please read these instructions carefully. In addition to the in-
structions provided in this guide, please also comply with the instructions set out in the enclosed
Safety instructions document.
The drive must be installed by a home motorisation and automation professional, in accordance with
Somfy’s instructions and the applicable regulations in the country of installation.
Any operation of the drive outside the sphere of application described above is prohibited. Such op-
eration shall exclude Somfy from all liability and invalidate the Somfy warranty, as will any failure to
comply with the instructions given herein and in the enclosed Safety instructions document.
A*er installing the drive, the installer must inform his customers of the operating and maintenance
conditions for the drive and must pass the operating and maintenance instructions on to them, as
well as the enclosed Safety instructions document. Any A*er-Sales Service operation on the drive
requires intervention by a home motorisation and automation professional.
Should any doubt arise during installation of the drive or for additional information, consult a Somfy
contact or visit www.somfy.com.
1. Prior information 2
1.1. Sphere of application 2
1.2. Liability 2
2. installation 3
2.1. Assembly 3
2.2. Wiring 3
2.3. Commissioning 4
2.4. Tips and advice on installation 5
3. Use and maintenance 8
3.1. Mode selection: roller or tilting mode 8
3.2. Controlling up, down, my: in roller mode 8
3.3. Controlling up, down, my: in tilting mode 8
3.4. Adjusting the tilting speed 8
3.5. Favorite (my) position 9
3.6. Adjusting the speed 9
3.7. Tips and advice on operation 10
3.8. Battery replacement 11
4. Technical data 12

Sonesse 28 WireFree RTS / Sonesse ULTRA 30 WireFree RTS EN
3Copyright©2017 - 2018 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
2. INSTALLATION
Attention
• These instructions are mandatory for the home motorisation and automation professional
installing the drive.
• Never drop, knock or puncture the drive or immerse it in liquid.
• Install an individual control point for each drive.
!Make sure that LED, programming button and input connection remain visible and easily accessible
after installation.
2.1. ASSEMBLY
2.1.1. Drive preparation
Attention
• Sonesse 28 WireFree RTS: interior diameter of the tube has to be Ø26.6 mm or greater.
• Sonesse ULTRA 30 WireFree RTS: interior diameter of the tube has to be Ø27.7 mm or
greater.
1) Fit the crown (a) and drive wheel (b) to the motor.
2) Measure the length (L) between the end of the drive wheel
and the head end.
2.1.2. Tube preparation
1) Cut the tube to the required length.
2) Deburr the tube and remove the debris.
2.1.3. Drive/tube assembly
1) Slide the drive into the tube. Insert the wheel by aligning
the wheel to the tube profile. Insert the drive half way and
then slide the crown down the drive and insert it in the tube.
Finally, push the motor inside the tube.
2) Not required, but if needed, fix the tube to the drive with
self-tapping screws or steel pop rivets depending on the
dimension (L).
2.1.4. Mounting the tube-drive assembly on the brackets
a) Standard bracket.
b) Drive plate for specific bracket.
!For optimal radio reception, the motor antenna should be kept
straight and should be positioned outside of headrail (if used).
2.2. WIRING
Precaution
• To ensure electrical safety, this Class III motor must be powered by a «SELV» voltage source
(Safety Extra Low Voltage).
• The battery level must be below 30% before shipping by air.
Attention
• Use power charger (recommended by Somfy) to charge the drive battery.
• Ensure battery is fully charged prior to installation on site.
• Before setting, it is necessary to charge the battery only if the LED blinks red 5 times when
you press any button on the paired control point.
1) Connect the charger to the drive.
2) When charging is complete, disconnect and
store charger for later use.
!The drive will go back to sleep if le!untouched
for 15 minutes.
L
1
2
a b
12
1
2
L
a b
LED illuminates Behaviour
Solid Red LED. Charging.
Green LED blinks twice
every 10 seconds. Charging is near completion.
Solid Green. Charging is complete.

EN Sonesse 28 WireFree RTS / Sonesse ULTRA 30 WireFree RTS
4Copyright©2017 - 2018 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
2.3. COMMISSIONING
!Orange LED blinks continusly in setting mode.
!Green LED blinks once when any order from paired remote is received.
2.3.1. Wake up the drive
For initial unpackaging of drive, wake up the drive by briefly
pressing the motor head programming button or plugging on
the charger.
The driven product briefly moves Up and Down 3 times and LED
lights orange.
2.3.2. Preprogramming the control point
Press the UP and DOWN buttons simultaneously on the control point:
the driven product moves Up and Down and the control point is temporarily programmed to driven
product.
2.3.3. Checking the rotation direction
Press the control point UP button:
a) If the driven product raises (a), the rotation direction is
correct: proceed to section «Setting the end limits».
b) If the driven product is lowers (b), the rotation direction is
incorrect: move to the next step.
• b1) Press the control point MY button until the driven
product moves Up and Down: the rotation direction
has been modified and green LED blinks 5 times.
• b2) Press the control point UP button to confirm the
rotation direction.
2.3.4. Setting the end limits
!The end limits can be set in any order.
1) Press and hold the UP button to move the driven product to
the desired Up position. If necessary, adjust the Up position
using the UP or DOWN buttons.
2) To memorize the UP limit: Press the MY and DOWN
buttons simultaneously and release once the driven product
begins to move. The Up limit is now memorized. and green
LED blinks 5 times.
3) Press the MY button when the driven product reaches
the desired Down position. If necessary, adjust the down
position using the UP or DOWN buttons.
4) To memorize the Down limit: Press the MY and UP buttons
simultaneously and release when the driven product begins
to move. The Down limit is now memorized. The driven
product moves up and will stop at its upper limit and green
LED blinks 5 times.
5) To confirm and complete limit programming: Press and hold the MY button until the driven
product briefly moves Up and Down. The end limits are now recorded.
3x
a
b
=
=
b2b1
1 2
3 4
5

Sonesse 28 WireFree RTS / Sonesse ULTRA 30 WireFree RTS EN
5Copyright©2017 - 2018 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
2.3.5. Activate/Deactivate “RTS” radio technology when control point is temporarily
preprogrammed (not paired) to the driven product.
!This function is used to deactivate the radio transmission to
save the battery life during shipment, or when the product will
not be used for an extended amount of time (eg: storage).
1) To deactivate the “RTS” Radio Technology Somfy, press the
UP, MY and DOWN buttons simultaneously, until the driven
product briefly moves Up and Down once and green LED
blinks 5 times.
2) To activate the “RTS” Radio Technology Somfy, briefly press the motor head programming button,
the driven product briefly moves Up and Down twice.
2.3.6. Recording “Pairing” the control point
A*er recording the end limits:
Briefly press the control point programming button. The driven
product will briefly move Up and Down to confirm pairing.
The control point is recorded “paired” to driven product and
green LED blinks 5 times.
2.4. TIPS AND ADVICE ON INSTALLATION
2.4.1. Questions about the drive?
Observations Possible causes Solutions
The driven product
does not operate.
Drive battery is low and requires
charge. Red LED blinks 5 times
when any button of a paired
control point is pressed.
Plug in the charger.
The control point battery is low.
LED doesn't light when any
button of a paired control point is
pressed.
Check the battery and replace it as
required.
The control point is not compatible
or not programmed. LED doesn't
light when any button of control
point is pressed.
Check the compatibility or pair the
control point as required referring
to 3.7.1. Adding/Deleting Control
point chapter.
An obstacle hinders the movement
of the driven product. The Red LED
lights fixed on.
Remove the obstacle.
Drive position is out of the end
limits. Red LED blinks 2 times
intermittently and continually.
Proceed to section «Setting the end
limits»
Motor is neither set nor paired.
Orange LED lights fixed on. Proceed to section «Commissioning»
The thermal protection has
activated. LED blinks red
continuously
Wait for the drive to cool down (LED
will switch off)
The driven product
stops too soon.
The end limits are incorrectly set Reset the end limits.
The driven product has exceeded
recommended weight limit. Replace driven product.
Battery is low. Red LED blinks 5
times when any button of a paired
control point is pressed.
Charge the battery.
1 2
2x
PROG.

EN Sonesse 28 WireFree RTS / Sonesse ULTRA 30 WireFree RTS
6Copyright©2017 - 2018 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
Observations Possible causes Solutions
Setting is not
allowed. The drive
moves briefly 3
times in one direction
and 3 times in the
other direction
Red LED blinks 3
times and 3 times
intermittently.
Maximum number of control points
reached. Erase control points from memory referring to add a new control point
2.4.5. Erasing control points from
memory
Maximum/minimum value of the
setting is reached. Perform correct setting.
End limits are too close Readjust the end limits referring
to chapter 2.4.2. End limit
readjustment
Red LED blinks
slowly for 3 seconds
before and after
motor running.
Battery is low. Battery capacity is
less than or equal to 5%. Charge the battery.
2.4.2. End limit readjustment
Attention
Control point must be paired to the driven product.
!Orange LED blinks slowly until the new end limit is recorded.
2.4.2.1. Readjusting the upper end limit
1) Briefly press the UP button, to move the driven product to
the upper end limit.
2) Press and hold the UP and DOWN buttons simultaneously
until the driven product briefly moves Up and Down.
3) Press and hold the UP or DOWN button to move the driven
product to the new desired position.
4) To confirm the new position press and hold the MY button
until the driven product briefly moves Up and Down and
green LED blinks 5 times.
2.4.2.2. Readjusting the lower end limit
1) Briefly press the DOWN button to move the driven product
to the lower end limit.
2) Press and hold the UP and DOWN buttons simultaneously
until the driven product briefly moves Up and Down.
3) Press and hold the UP or DOWN button to move the driven
product to the new desired position.
4) To confirm the new position press and hold the MY button
until the driven product moves Up and Down and green LED
blinks 5 times.
2.4.3. Modifying the motor rotation direction
1) Using the UP or DOWN button on the control point, move
the driven product away from the end limits.
2) Press and hold the UP and DOWN buttons simultaneously
until the driven product briefly moves Up and Down and
orange LED starts to blink slowly.
3) Press the MY button until the driven product briefly moves
Up and Down to reverse the rotation direction and green
LED blinks 5 times.
4) Press the UP button to check the new rotation direction. The motor rotation direction is reversed.
1 2
34
1 2
34
1 2
34

Sonesse 28 WireFree RTS / Sonesse ULTRA 30 WireFree RTS EN
7Copyright©2017 - 2018 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
2.4.4. Modifying the wheel rotation direction
1) Using the UP or DOWN button on the control point, move
the driven product away from the end limits.
2) Press and hold the UP and DOWN buttons simultaneously
until the driven product briefly moves Up and Down and
orange LED starts to blink slowly.
3) Press the UP, MY and DOWN buttons simultaneously, until
the driven product briefly moves Up and Down, wheel
rotation is reversed and green LED blinks 5 times.
2.4.5. Erasing control points from memory
To delete all the programmed control points, press and hold the
motor head programming button until the driven product briefly
moves Up and Down twice. All programmed control points are
deleted and green LED blinks 5 times.
2.4.6. Erasing the memory of the motor (factory default)
To reset the motor, press and hold the motor head program-
ming button until the driven product briefly moves Up and Down
3 times.
All the settings are erased. Green LED blinks 5 timest then or-
ange LED is fixed on.
2.4.7. Temporary sleeping mode
Attention
The driven product must be programmed.
!The drive will not respond to any control points commands for 15 minutes.
1) Press and hold the motor head programming button until
the driven product briefly moves Up and Down.
2) Briefly press the motor head programming button, the
driven product briefly moves Up and Down twice. “Sleeping
mode” is activated, green LED blinks 5 times to confirm,
then orange LED blinks every second as long as the motor
is in the temporary sleeping mode.
3) To deactivate the “Sleeping mode”, briefly press the motor
head programming button. The driven product briefly moves
Up and Down, the control point commands are enabled.
Green LED blinks 5 times.
1
2 3
2x
3x
2
3
1
2x

EN Sonesse 28 WireFree RTS / Sonesse ULTRA 30 WireFree RTS
8Copyright©2017 - 2018 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
3. USE AND MAINTENANCE
3.1. MODE SELECTION: ROLLER OR TILTING MODE
The drives are designed to work in 2 modes: Tilting mode or Roller mode.
This feature allows the drive to be set according to the type of application.
!The drive is set (by default) to work in Roller mode.
1) Move the driven product away from the end limits.
2) Simultaneously press and hold the UP and DOWN buttons
until the driven product briefly moves Up and Down.
3) Press and hold the MY and DOWN buttons simultaneously
until the driven product briefly moves Up and Down to change
from Roller mode to Tilting mode. Green LED blinks twice to
indicate that the motor is in Roller mode or three times to
indicate that the motor is in Tilting mode.
3.2. CONTROLLING UP, DOWN, MY: IN ROLLER MODE
1) To move the driven product from a limit to the other limit,
briefly press the UP or DOWN button.
2) To stop the driven product, briefly press the MY button.
3) (If a my position is recorded) To move the driven product to
the my position, briefly press the MY button.
3.3. CONTROLLING UP, DOWN, MY: IN TILTING MODE
1) To move the driven product from a limit to the other limit,
briefly press (less than 0,5s) the UP or DOWN button.
2) To stop the driven product, press the MY button.
3) (If a my position is recorded) To move the driven product
to the my position, briefly press the MY button. The driven
product will automatically travel to the down end limit (first)
then to the my position.
4) To tilt the slats, press and hold the UP or DOWN button or
use the scroll of the remote control, until the slats reach the
desired position.
3.4. ADJUSTING THE TILTING SPEED
1) To decrease the tilting speed, press and hold the MY and
DOWN buttons simultaneously until the driven product
briefly moves Up and Down. Repeat as needed. The minimum
speed has been reached when the driven product no longer
moves Up and Down and green LED blinks 5 times.
2) To increase the tilting speed, press and hold the STOP
and UP buttons simultaneously until the driven product briefly moves Up and Down. Repeat as
needed. The minimum speed has been reached when the driven product no longer moves Up and
Down and green LED blinks 5 times.
1
23
1
2 3
1
2 3
4
1 2

Sonesse 28 WireFree RTS / Sonesse ULTRA 30 WireFree RTS EN
9Copyright©2017 - 2018 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
3.5. FAVORITE !MY"POSITION
!A intermediate stop or “favorite (my) position,” which is commonly used between the fully Up and
Down positions.
1) To set this function, move the driven product to the desired
position using the UP or DOWN button. Briefly press MY
button to stop the driven product.
2) Press and hold the MY button until the driven product moves
Up and Down. Favorite (my) position is set and green LED blinks 5 times.
3.5.1. To modify the favorite (my) position
1) Use the UP or Down button to move the driven product to
the NEW desired favorite (my) position.
2) Press the My button to stop the driven product.
3) Press and hold the MY button until the driven product briefly moves Up and Down. The new
favorite (my) position is programmed and green LED blinks 5 times.
!Only one favorite (my) position is permitted.
3.5.2. To use the favorite (my) position
Attention
The driven product must be stopped.
Briefly press the MY button: the driven product moves to the
favorite (my) position.
3.6. ADJUSTING THE SPEED
!Orange LED blinks slowly in this mode.
1) Move the driven product away from the end limits. Press
and hold the UP, MY and DOWN buttons simultaneously,
until the driven product briefly moves Up and Down once.
The driven product will move UP and Down automatically in
10 second cycles and green LED blinks 5 times to validate
entering in speed adjustment mode.
2) To increase the speed, press and hold the UP button until the
driven product briefly moves Up and Down. and green LED
blinks 5 times. Repeat as needed.
!Maximum speed is reached when the driven product moves
briefly 3 times in one direction and 3 times in the other
direction. Red LED blinks 3 times and 3 times intermittently.
3) To decrease the speed, press and hold the DOWN button until the driven product briefly moves Up
and Down. Repeat as needed.
!Minimum speed is reached when the driven product moves briefly 3 times in one direction and 3
times in the other direction.
4) To confirm the new speed, press and hold the MY button until the driven product briefly moves Up
and Down and green LED blinks 5 times.
1 2
1 2
1
2
3 4
10
s10 s

EN Sonesse 28 WireFree RTS / Sonesse ULTRA 30 WireFree RTS
10 Copyright©2017 - 2018 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
3.7. TIPS AND ADVICE ON OPERATION
Observations Possible causes Solutions
The driven product does
not operate.
The control point battery is
low. LED doesn't light when
any button of a paired control
point is pressed.
Change control point battery as required.
Drive battery is low and
requires charge. Red LED
blinks 5 times when any
button of a paired control point
is pressed.
Plug in the charger.
RTS is deactivated. LED
doesn't light when any button
of a paired control point is
pressed.
Press motor PROG. button.
Thermal protection of the drive
is on (Red LED blinks slowly). Wait for the motor to cool down (Red LED will stop blinking when drive is
ready to use.
The driven products
stops before its end limit The drive has detected an obstacle (solid Red LED). Move the driven product in the other direction.
3.7.1. Adding/Deleting Control point
!Orange LED blinks slowly when adding or deleting remote control.
Using a control point (A) that has been previously programmed to the driven product:
1) Press and hold the control point programming button (A)
until driven product briefly moves Up and Down. Green LED
blinks 5 times then orange LED blinks slowly.
2) Quickly press the programming button on the back of the
new control point (B) to add or delete control point and green LED blinks 5 times.
Using the Programming button on motor head:
1) Press and hold the motor head programming button until
driven product briefly moves Up and Down. Green LED
blinks 5 times then orange LED blinks slowly.
2) Quickly press the control point programming button (B) to add or delete control point and green
LED blinks 5 times.
3.7.2. Disabling/Activating “RTS” radio technology when control point is
definitively is programmed
!Disabling the radio transmission saves battery life during shipment or for a long period of non-use
(eg storage). The following steps can only be performed in “User” mode.
Press and hold the programmed control point programming button or the motor head programming
button until the driven product briefly moves Up and Down and
green LED blinks 5 times. (Motor is in programming mode)
TO DEACTIVATE RTS RADIO TECHNOLOGY:
a) Press the UP, MY and DOWN simultaneously until the driv-
en product briefly moves UP and Down once and green LED
blinks 5 times.
TO ACTIVATE RTS RADIO TECHNOLOGY:
b) Briefly press the motor head programming button or plug in
the charger, the driven product briefly moves UP and Down
once and green LED blinks 5 times.
A
B
A
A
A
B
B
1 2
PROG.
A
PROG.
B
1 2
PROG.
B
ba
PROG.

Sonesse 28 WireFree RTS / Sonesse ULTRA 30 WireFree RTS EN
11Copyright©2017 - 2018 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
3.8. BATTERY REPLACEMENT
!Contact Somfy for battery model's recommendation.
Precaution
Replacement of the battery by an identical model only, must be carried out by a professional of
the motorization and the automation of the habitat.
Attention
• Do not use tools that could damage the drive when replacing the battery.
• Do not cut or damage the antenna cable.
1) If the drive is fixed to the tube, disassemble the driven
product to access the self-tapping screws or steel pop rivets
(motor drive wheel side) and remove them.
2) Grab the motor head and pull out the drive by sliding it out of
the driven product tube.
3) If necessary, offset the ring gear on the actuator tube to
access the two T6 torx screws or cruciform screws and
unscrew the motor head.
4) Remove carefully the motor head from the drive tube taking
care not to damage the wires and disconnect the battery.
5) Grab and remove the used battery by sliding it out of the
drive tube taking care not to damage the wires.
6) Insert and slide the new battery into the drive tube, leaving
the battery connector accessible from the outside of the
tube.
7) Connect the new battery.
8) Insert the motor head using the keying notches on the drive
tube taking care not to cut offthe wires.
9) Screw the motor head using the two T6 torx screws or
cruciform screws to the drive tube.
10) Restart the installation in chapter 2.1.3. Drive/tube
assembly.
!if necessary, readjust the end limits referring to chapter 2.4.2.
End limit readjustment.
B 2.1.3. Drive/tube assembly.
1
3
9
10
4
5
6
7
8
2

EN Sonesse 28 WireFree RTS / Sonesse ULTRA 30 WireFree RTS
12 Copyright©2017 - 2018 SOMFY ACTIVITES SA, Société Anonyme. All rights reserved.
4. TECHNICAL DATA
Power supply 12 Vdc SELV
Frequency bands and maximum power used 433,42MHz
Sonesse 28 WireFree RTS torque 1,1 Nm
Sonesse ULTRA 30 WireFree RTS torque 2 Nm
Speed 10-28 RPM
Electrical insulation III
Minimum distance between limits 1 turn
Operating temperature 0°C à + 60°C
Protection rating IP 20 (For indoor use only)
Charging temperature 0 / +45°C
Battery type Li-ion
Battery charging time 6 hours max.
Running time 4 minutes
Maximum number of associated control 12
!For additional information on the technical data for this drive contact your Somfy representative.
Please separate storage cells and batteries from other types of waste and recycle them via the
local collection facility.
We care about our environment. Do not dispose of the appliance with usual household waste.
Give it to an approved collection point for recycling.
SOMFY ACTIVITES SA, F-74300 CLUSES as manufacturer hereby declares that the drive
covered by these instructions and used as intended according to these instructions is in
compliance with the essential requirements of the applicable European Directives and in
particular of the Machinery Directive 2006/42/EC, and the Radio Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at www.somfy.com/ce.
Antoine Crézé, Approval manager, acting on behalf of Activity director, Cluses, 07/2018.
