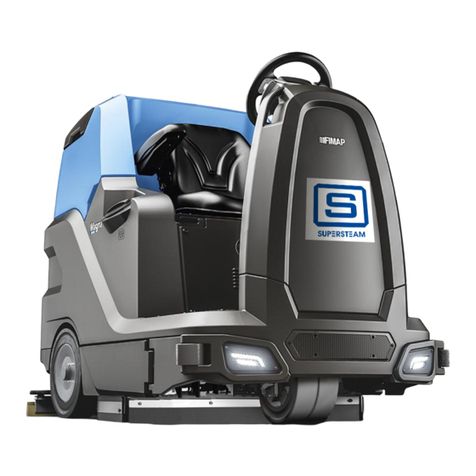

Fimap MAGNA 65 Operating instructions

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 1 di 19
READ THE OPERATING AND MAINTENANCE MANUAL
Service of the Console
The console allows to:
-set the chopper card for a personalised behaviour of the traction motor
-read the type of the alarm for a correct and easy trouble shooting
-test the different electric values and the state of the electric circuit relative to the traction
Use of the Console
The use of the instrument is very easy and comparable to one of the most common electronic devices
(such as mobile phones).
The sequence to follow always for the console connection is:
1. SWITCH OFF THE GENERAL KEY of the machine
2. take off the connector E from the chopper
3. connect the console in place of the connector E. If the operation connection results to be difficult,
check that the connector is positioned in the correct direction.
4. switch on the key and work with the console
5. quit from all the programs (main menu of the ignition) and SWITCH OFF THE GENERAL KEY of the
machine
6. disconnect the console connector and plug in the connector E
THE WRONG OPERATION SEQUENCE CAN EASILY COMPROMISE
THE FUNCTIONALITY OF THE CHOPPER CARD OR OF THE CONSOLE

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 2 di 19
Menu of the Console
HEADING: the features of the console and of the chopper card: voltage and maximum current of the
chopper card, the working hours of the chopper card.
PARAMETER CHANGE: in this menu the parameters can be changed to personalise the machine. The
parameters that can be modified are : CUT BACK SPEED 1 (minimum speed machine) and the CUT BACK
SPEED 2 (medium speed machine). All the other parameters are decided in Fimap and they are
related to the traction motor. It is forbidden to change them without previous Fimap
authorisation.
TESTER: the quantities of the electric characteristics (traction motor voltage, state of power switch =
closed/open ...) are showed in this menu.
SAVE: this permits, once the parameters have been changed, to enter the new setting in a storage
location of the console.
RESTORE: this permits to restore on the chopper card a parameter setting which has been entered in
the console.
ALARMS: indicates a list of the last five alarms occurred on the machine. According to the alarm a
specific corrective action is adopted (see following paragraph).
PROGRAM VACC: this section is used to teach the chopper about the potentiometer which is assembled
on the machine. It is an operation to be carried when there is the alarm Vacc not ok, when the
pedal accelerator is being replaced, when the chopper card is being replaced. A wrong relation
between the potentiometer and the chopper card causes the machine stop.

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 3 di 19
Flow chart of the console
HEADING
PROGRAM
TESTER
LIST OF PARAMETERS
ROLL to select
PARAM SET to change
enter
out
enter
out DO YOU WANT TO
SAVE DATA ?
ENTER = change
OUT
=
no change
enter
enter
TEST LIST OF VALUES
to test
ROLL to select
PROGRAM
VACC
enter
out
Program for setting
pedal accelerator
MOTOR data
enter
out
R
O
L
L
R
O
L
L ente
r
out
enter
SAVE
enter
out
LIST OF free locations
Write on on a FREE
location
enter
enter
RESTORE
enter
out
LIST OF locations
(programs) to load on
the chopper card
Enter: Are you sure ?
ENTER = restore
OUT= no restore
out
Out: Are you sure?
ENTER = change
OUT= no change
enter / enter
ALARMS List of the last 5
alarms occurred
Out
This menù has
not to be
modified
This menù has
not to be
modified
Enter: Are you sure ?
ENTER = save
OUT= no save

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 4 di 19
Alarms and Decoder
The chopper card visualises an anomaly on two levels of information
1. through a red alarm led which blinks for a quantity of times relative to the type of anomaly
2. through a message on the console that specifies more details on the nature of the anomaly.
Following table reports for each alarm the possible anomaly and of how to proceed on the machine.
DIAGNOSIS LIST ALARMS
(for better understanding of the list refer also to the electrical layout)
Number of
blinkings MESSAGE NOTES
1 WATCH DOG
The test of self-diagnosis of the chopper card carried
out both on rest as in drive verifies an anomaly
Possible causes
-the logic of the chopper card is damaged
Actions
-replace the chopper card
1 EEPROM DATA KO
The data of the hourmeter inside the chopper card
Actions
-switch off and on again the key. If the problem will be
solved the counter will be reset.
1 EEPROM OFF LINE
The data of the hourmeter and of the alarm stored in
the chopper card are not correct
Actions
-switch off and on again the key. If the problem persists
replace the chopper card
-if the problem will be solved the data will be cancelled
1 EEPROM PAR KO
The memory of the chopper card has lost the
adjustment and operation data
Actions
-switch off and on again the key. If the problem persists
replace the chopper card
-if the problem will be solved the data will be replaced with
the standard data

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 5 di 19
Number of
blinkings MESSAGE NOTES
2 INCORRECT START
Incorrect starting sequence
Possible causes
-error in the sequence Key/drive selection made by the
operator
-the micro pedal and/or micro drive are stuck
-wiring not correct
Actions
check the starting sequence which is:
-switch on the key
-select drive (forwards/backwards)
-press the accelerator
-check that the drive microswitch and the manipulator
forward/backward traverse selector do not have the
contacts stuck and that they work correctly
-verify the continuity of the circuit that connects the micro
drive pedal, the chopper card and the drive manipulator.
3 VMN LOW
The first check recognises a voltage VMN lower than the
25% of the battery voltage
Possible causes
-wrong connections on the motor
-motor current leakage to the ground
Actions
-check that the motor terminals are well isolated from the
motor casing both inside and outside the motor. Verify that
there is not dirt that causes current leakage between the
terminals and the motor body
-verify that the motor is not wet and in case dry with an air
flow
-check that the connections on the motor and on the
chopper card are correct (verify the type of traction motor
assembled, the correct wiring and the connections on the
chopper VMN, positive and negative)
if the problem persists replace first the chopper card and, if
necessary, also the motor
3 VMN HIGH
Starting test check possible faults on the power circuit
branch .
Possible causes
-chopper power branch damaged
-MOSFET logic control damaged
Action
-replace the chopper card

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 6 di 19
4 VACC NOT OK
The chopper card recognizes an anomaly in the mechanical
stroke of the accelerator
Possible causes
-the operator switched on the machine with the
accelerator pressed down or he pressed down the
accelerator before the selection of forward or backward
traverse
-the seat microswitch does not work
-the potentiometer and/or the chopper card has been
changed and the relating values between the two
components are to be re-programmed
-a cable between the potentiometer and the chopper card is
interrupted
-the potentiometer is faulty
-the PROGRAM VACC (see chapter Adjustment and
Inspection) has not been carried out correctly
Actions
- check the correct sequence to get traverse
-check the continuity of connections between the
potentiometer accelerator and chopper card
-re-program the chopper card with PROGRAM VACC (see
chapter Adjustment and Inspection)
- check the functionality of the potentiometer (it could be
broken) and replace it if necessary (re-programming then
the chopper card)
5 I HIGH AT STAND
The chopper card tests if on rest the signal of the
current is zero. Otherwise, it blocks the traction
Possible causes
-defective current sensor
-fault in the feedback circuits, or in the logic or on the
chopper card
Actions
- replace the chopper card
6 NPOT NOT OK
Test on working condition: the negative point brings is
at a wrong
Possible causes
-the potentiometer is not well connected to the chopper card
-potentiometer defected
Actions
-check the good connections potentiometer – chopper card
-check the potentiometer efficiency

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 7 di 19
7 TH PROTECTION
The chopper card works out of the temperature range
(-30°C + 70°C)
Possible causes
-chopper card faulty
-the machine runs in braking condition and the chopper gets
overheated
Actions
-check the temperature of the site where the machine works
-check the consumption of the traction motor
8 DRIVER SHORTED
COIL SHORTED
The driver that controls the driver power switch do not
operate properly
Possible causes
-the driver is defected
Actions
-replace the chopper card
32
permanent
blink
BATTERY LOW
Battery level too low: the chopper card cuts the power to the
traction motor for its safeguard
Actions
check the charge of the batteries
check the cleanliness and the good connections on the
chopper card of the cable that come from the battery
permanent
switched on FORW BACK
The alarm is indicated when both the forward and backward
requests are activated simultaneously
Possible causes
-wiring not correct
-microswitch forward or backward stuck
Actions
-check the correct functionality of the contacts of the
manipulator
-verify the wiring relative to the manipulator
-if the defect persists replace the chopper card

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 8 di 19
Chopper card setting
1. Switch OFF the general key and plug in the special
connector. The OFF condition is necessary to save the
memory card from loss of data).
2. Switch ON the general key
3. The model of the card (name, volts and amps) and the chopper
working hours appear on the display MX v.2.1
HOURS .0
4. press ENTER to get the main menu
5. you read the first option of the main menu: PROGRAM= CHANGE
PARAMETERS
6. press ENTER again to enter in this first branch of the main menu
where you can check and eventually modify the parameters of the
card. To move through the parameters use the button ROLL and
check if you have the situation below mentioned:
* SELECT MENU *
1- PROGRAM
CHOPPER MX BASIC PROFY/
KLINIK
1. ACCELERATION DELAY 6 6 ACCELERAZIONE SECONDI
2. CUTBACK SPEED 1 9 0 I RIDUZIONE DI VELOCITA' % VOLT
3. CUTBACK SPEED 2 6 6 II RIDUZIONE DI VELOCITA' % VOLT
4. COMPENSATION 9 4 COMPENSAZIONE DI POTENZA % AMP
5. TRACTION IMAX 9 9 CORRENTE MASSIMA % AMP
6. BRAKING 5 5 FRENATURA IN RALLENTAMENTO % AMP
7. RELEASE BRAKING 2 2 FRENATURA A RILASCIO % AMP
8. INVERSION BRAKING 1 1 FRENATURA INVERSIONE MARCIA % AMP
9. MAX SPEED FORW 9 9 MASSIMA VELOCITA' AVANTI % VOLT
10.MAX SPEED BACK 8 8 MASSIMA VELOCITA' INDIETRO % VOLT
11.CREEP SPEED 1 1 VELOCITA' MINIMA DI PARTENZA % VOLT

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 9 di 19
7. At the end press OUT and confirm ENTER if some parameter has been changed.
ATTENTION: PLEASE DO NOT CHANGE ANY PARAMETERS RELATED TO THE SAFETY
USE CONDITION OF THE MACHINE LIKE THE ONCE RELATED TO ACCELERATION,
BREAKING,. ECC. ONLY THE DIFFERENT SPEED VALUES CAN BE MODIFIED (CUTBACK
SPEED 1 – 2 and MAX SPEED FORWARD)
IN CASE OF LOSS OF DATA:
To set automatically the right values of all the parameters please
find out the menu "RESTORE PARAM." by using the ROLL button * SELECT MENU *
4 - RESTORE
1. Press ENTER
2. SELECT the program Mod. 03 (or the memory where the list has
been stored with the SAVE program). Use the ROLL button to run
through)
SELECT PROGRAM:
Mod. 03
3. Press ENTER to confirm the restore operation
4. Answer to the question “ARE YOU SURE?” by pressing ENTER to
confirm the operation (OUT to cancel and exit) ARE YOU SURE?
YES=ENTER NO=OUT
5. Press ENTER to confirm the restoring operation
6. Wait until the message WAIT stands still written on the display WAIT!
7. When all the parameters are refreshed and updated the heading
specified on the left appears on the display: SELECT MENU
RESTORE

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 10 di 19
PROGRAM VACC
8. Run through the different menus moving from the menu RESTORE
to the menu PROGRAM VACC (to relate the pedal accelerator
stroke to the chopper card)
BE CAREFUL: EACH TIME YOU REPLACE THE CHOPPER CARD
AND/OR THE PEDAL ACCELERATOR THE FOLLOWING
INSTRUCTIONS MUST BE DONE
SELECT MENU
RESTORE PARAM.
9. Stop your run when you read “PROGRAM VACC”
10.Press ENTER to go into the menu
SELECT MENU
PROGRAM VACC
11.You read first the values set up on the chopper that have to be
refreshed. VACC SETTING
4,8 4,8
12.Press ENTER again to be ready to teach to the chopper card the new
stroke
13.Now you can start your operations: 0.0 0.0
14.Select the forward drive direction and press down slowly the pedal
from the top until the end of its stroke
15.Repeat the same operation with the backward drive direction
16.You can read now on the screen the new values FORW BACK
4,9 4,9
17.Press OUT
18.Read the two different choice to go ahead: ENTER to confirm the
new values, OUT to cancel and exit
ARE YOU SURE?
YES = ENTER NO =
OUT
19.Press ENTER to confirm
20.Run through the different menus to come back to the heading as
showed on the left SELECT MENU
PROGRAM
21.Press OUT to come back to the main heading. SWITCH OFF the
key and then disconnect the console. MX V.2.1
HOURS

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 11 di 19
Tester function
After having connectec the console, the heading message will
appear. This notice say the chopper model, the default machine
where it is (or was) installed and the worked hours of the device.
Enter in the TESTER submenu and using the ROLL UP button you
can see all the tester menu items.
Verify that VMN (which means the voltage on the negative
output pin) is > 30% (in reference to the battery voltage VB).
If an error message regarding this appear, you need to replace the chopper because the power stage is
damaged.
Verify the direction microswitch (MA forward direction and MI
backward direction).
Verify the forward direction:
•Push the seat microswitch;
•Move the direction selector switch for a forward direction;
•Push the accelerator pedal;
On the console the following message should appear.
Verify the backward direction:
•Push the seat microswitch;
•Move the direction selector switch for a backward direction;
•Push the accelerator pedal;
On the console the following message should appear.
If the message on the console is different verify the functioning of the seat microswitch, the direction
micriswitch (on the pedal assembly) and of the direction selector switch.
WARNING: Be sure that the traction wheel is lifted up before performing this test.
Verify the potentiometer:
Without pressing the accelerator pedal the message on the onsole
should be like the picture one.
Push the pedal till its end-stroke to verify the potentiometer
functioning. When the pedal is totally pressed the message on
the console should be similar to he picture one. Verify that the
value increasing is linear.
If some problems occurred verify the potentiometer and if necessary replace it.
To perform this kind of test it is not necessary to press the seat microswitc nor the direction selector.
Verify the current which flows in the traction motor. The first
value is the current which is flowing in the motor at the reading
moment, the second one (70A) is the maximun chopper current.
When the machine is steady the current has to be zero.
A macchina ferma la corrente deve essere nulla.
If some anomaly are shown is necessary to verify the traction motor, the connections between the chopper
card and the traction motor and verify the chopper.
VMN
VMN > 30%
MX C83-104
HOURS 58
CURRENT
AMP = 0 70A
ACCELERATION
mV= 4998 100%
ACCELERATION
mV= 254 5%
DIRECTION
B3 = 0V B4 = VB
DIRECTION
B3 = 0V B4 = 0V
DIRECTION
B3 = VB B4 = 0V

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 12 di 19
Verify the temperature on the power stage of the chopper card.
The temperature should be the same of the environment one only
if the machine had been turned off for at least 1 hour and just
turned on.
If some anomalies are shown verify the thightness of the connections between the chopper card and the
traction wheel, the traction motor carbon brushes and the traction motor conditions. If the problem is not
solved the temperature probe of the card is fault and the entire card has to be replaced.
Verify the battery voltage.
Compare the battery voltage value read with a voltmeter with the
one read with the chopper console. The two values should be
equal.
If the difference between the values is greater than 0,5V, verify the supply cables, the battery poles conditions
and the connector that supply the chopper card.
Verify the motor voltage. The value you can read is the voltage
on the motor at the reading moment.
If the machine is steady the motor voltage has to be zero.
At maximun speed (and when the gear selector is on the “rabbit”)
the motor voltage has to be equal to VB (battery voltage).
If some anomaly occurs, verify the chopper-traction motor connections and the speed reduction microswitch
and selector.
Verify the speed reductions.
Turn the steering wheel until the front wheel has the axle parallel
with the machine axle. After done that verify that the message on
the console card is like the picture one.
Turn the steering wheel until you hear the cut back speed
microswitch switch. Verify that on the console the following
message appear.
In case some anomalies occur, verify the right functioning of the cutback speed microswitch and the right
wiring of it.
CUTBACK SPEED
B9=0V B8=0V
CUTBACK SPEED
B9=0V B8=VB
MOTOR VOLTAGE
VOLT = 37,6
MOTOR VOLTAGE
VOLT = 0
BATTERY
VOLT = 39.0 36V
TEMPERATURE
DEGREES = 17°C

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 13 di 19
Functional inspection electric layout
1. Remove the battery connector
2. Verify the cleanliness and the tightening of the power cable
connections. . (on power switches, fuses, motors, batteries, ecc.)
3. Re-connect the battery connector
4. Check the signal lamps and switches:
-check forward and backward movement, speed reductions,
acceleration and braking
-check functionality manipulators up - down brushes base
and squeegee
-check signal lamp up – down brushes base
-check switch with signal lamp and brushes motor (running
with the machine)
-check switch with signal lamp and solenoid valve (running
with the machine)
-check switch with signal lamp and suction motor
-check the efficiency of the floating tap on the recovery tank:
with the suction motor working and with the tank full the
tap has to close the aspiration.
-check operation AUT-MAN relative to the working of the
squeegee
-check the parking brake (lamp and efficiency)
-check operation of the hourmeter
-check operation of the horn
-check the operation of the backward alarm
Adjusting bending speed reduction microswitch
1. On the crown of the front wheel is present one support and a
microswitch for the regulation of the speed in curve. You must
regulate the microswitch in way that the micro is pressed in
forward or reverse gear (always leaving a small game) and when
turn right or left the micro is opened.

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 14 di 19
Water unit inspection
1. Check the cleanliness and the operation of the solution filter
2. Fill the solution tank and check there is no leakage on the
water circuit
3. Verify there is no leakage on the solenoid valve and
especially on its hoses connections and on the water cock
4. Check if the detergent solution falls down regularly and
uniformly along the cleaning width
5. Fill the recovery tank and check the sealing
6. Check that the hose and the exhaust plug do not have any
leakages
7. On the solution pump inlet the flow passes through an
adjustable narrow neck to get the right uniform water
spreading on the floor; to increase the water flow please
increase the diameter of this throttled pump inlet .
Suction unit inspection
1. Check the cleanliness and the functionality of the filter and
of the float system.
2. Check the air sealing between the tap and the recovery tank.
3. Check the sealing on both suction hoses and squeegee hose
connection terminals.
4. Check the cleanliness and the functionality of the black box
and the pipe.

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 15 di 19
Brush head frame adjustments (for both cylindrical and rotating brush head)
For the general check please verify the following brush head
level adjustments:
1. On the right side the length of the two rods has to be:
•the lowest should be about 188mm (7,40 inches)
between the center of the two bolts
•the distance in the upper most has to be about 187mm
(7,36 inches)
2. On the left side the length of the two rods has to be:
•the lowest should be about 198mm (7,67 inches)
between the centre of the two bolts
•the distance in the upper one has to be about 200mm
(7,63 inches)
3. to adjust the length, release the nuts and screw or unscrew
the rods
4. with the above-mentioned adjustments the rotating brushes
should be lifted of about 3-4mm
(0.12 inches) on the front
when the rear edge of the brushes is touching the floor. In
case adjust the rods in order to get this situation.

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 16 di 19
Up-down microswitches adjustments for the brush head
5. On the actuator’s support of the brush base are the
microswitches with corresponding stops:
•The micro switch nr. 1, is positioned in the upper part and
refers to the upward movement; the corresponding stop must
be adjusted, so that the bogie on the frame causes that the
micro switch snaps; thus control in upper position that it does
not pushes to much on the frame.
•The micro switch nr. 3, is positioned
in the lowest point of
the micro box, and refers to the downward movement;
consider that this is a security micro, therefore it do not
work normally and is activated only if the brushes are not
assembled and the basement is lowered to much, in order to
avoid that the actuator is blocked. Adjust the micro in the
way that the shaft does not come out more than 30mm.
Put down the basement with brushes, verify that the actuator has
a movement of about 5-10mm and then the screw
turn on the
end stroke microswitch.
Rotating brush head frame adjustments
6. Check that the oil level is visible inside the taps on the
reduction box.
7. Check the belts’ condition
8. Check the cleanliness of the slots on the motor body. It is
important for the motor cooling
9. Check the motor carbon-brushes condition
Cylindrical brush head adjustments
To adjust the cylindrical brushes inclination adjust the screw on
the top of the side brush cover. In this way the brush end will
move up or down. The target is to have two uniform tracks of
about four centimetres (1,57 inches) wider.
1
3

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 17 di 19
Splash guards adjustment: operate on the screw to adjust the
height of the rubber that must touch the floor for all its
length.
Microswitches adjustment for the squeegee unit
Up limit microswitch adjustment (the nearest to the motor
actuator):
1. Unscrew the cam fixing screw in order to have the cam free.
Lift the squeegee until the distance between the bottom
edge of the rubber and the floor is within 3 and 4cm
(between 1,18 and 1,57 inches)
2. Rotate the cam until the microswitch is switched on and fix
the cam in this position.
After the above-mentioned adjustment the low limit stop
microswitch will be automatically switched on at the right
position when the squeegee will be lowered.
3. When the cam switches on the microswitch, the distance
between the metal lever and the body of the two
microswitches must be at least 1mm. In case bend a little
bit the microswitch support.
Squeegee adjustment
1. Release the two knobs for the wheel height adjustment
2. Adjust the squeegee inclination in order to get the rubber
uniformly pressed on the floor along the whole squeegee
length. Operate with the proper knob.
3. Tight the stopper nut to fix the tuning.
4. Screw the two knobs in order to lift a little bit the squeegee
and get an inclination of the rubber of about 30° on the floor
(see also use and maintenance book)
5. The fourth knob is only to adjust the pressure of the
automatic releasing of the squeegee in case of shocks
against side obstacles.

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 18 di 19
Brake and steering adjustment
1. Steering tension chain adjustment:
•remove the foot board
•release the lock nut and screw the M8 screw to give the
right tension in order to have a good and suitable rotation
of the steering wheel
•tight the lock nut in order to fix the adjustment
2. brake pedal stroke adjustment:
•Release the lock nut and adjust the position of the
respective fork on the rod
•Check the wheel has to turn freely, brake uniformly and
the pedal must be locked in the parking brake condition.
•Just in case of a not balanced brake effect or no operating
parking brake condition please set properly the two forks
(left and right side) on the braking rods.
•Remember to tight the lock nuts to fix the adjustments.
Reductors oil
1. Check the oil level using the glassy plug. The oil level haven’ t to
be higher of the red point. Use Shell OMALA 460 (about 0.35kg)
or equivalent oil.
To add oil use the upper plug.
2. As before, check the oil level using the glassy tap. The level must
reach the red point but don’t exceed it. Use Shell OMALA 220 or
FINA GIRAN 220 oils (about 0.25-0.35 kg) or equivalent oils.

ADJUSTMENT
AND
INSPECTION MAGNA 65-70-75-83 Doc. 10004978
Issued 27/03/2008
Rev. 00
Pag. 19 di 19
Inspections functions of the machine
Check the functionality of the seat microswitch;
Check the functionality of the acceleration pedal;
Check the functionality of the brush base;
Check the functionality of the brush motor;
Check the functionality of the solenoid valve and the pump;
Check the functionality of the squeegee;
Check the functionality of the suction motor;
Check the functionality of the emergency and parking brake;
Check the functionality of the steer;
Check the battery conditions, the holdfasts and the cables;
Check the functionality of the horn and the buzzer of the reverse gear;
Check the functionality of the winking light.
Test the machine functions
Fill the tank with water and check if there are any leakages.
Check the tightness of the water system and that the water outflow on both brushes is regularly.
Adjust the inclination and the wheels of the squeegee and carry out a test.
Adjust the inclination of the brush base and carry out a test.
Adjust through the knobs the lateral splashguards and carry out a test.
Check the efficiency of the parking and emergency brake: brake with max. speed and check that the
wheels are blocked contemporarily.
Check that the machine launched with max. speed, with full tank, will stop after releasing the
acceleration pedal within 85-90 cm. In contrary case, check the parameters of the console
again, in particular “Release Braking”.
Check the function of the seat micro-switch.
Check forward and reverse motion, acceleration and braking.
Final inspection
Check all the functions: scrubbing, suction, forward and reverse gear and braking.
