Fisher-Price H7185 User manual

www.fisher-price.co. uk
H7185
WARNING
IMPORTANT! KEEP INSTRUCTIONS
FOR FUTURE REFERENCE.
Cradle
Cradle
(Seat moves
side to side)
Swing
Swing
(Seat moves
front to back)

WARNING
CAUTION
To prevent serious injury and/or
falls and being strangled in the
restraint system:
• Always use restraint system. Never
rely on the tray to restrain child.
• Not recommended for children who
can sit up by themselves (6 months
approximately, until 9 kg/20 lbs).
• Never leave child unattended.
• It is dangerous to use this product
on an elevated surface.
This product contains small parts
in its unassembled state. Adult
assembly is required.
• Please read these instructions before use of this swing.
• Adult assembly is required.
• Tools needed for assembly: Allen Wrench (included) and
Phillips Screwdriver (not included).
• Requires four LR20 (“D”) alkaline batteries for operation
(not included).
• Maximum Weight Limit: 9 kg (20 lbs).
IMPORTANT! If your child weighs less than 9 kg (20 lbs), but is
really active and appears to be able to climb out of the swing,
immediately discontinue its use.
• Product features and decorations may be different than shown
in photos.
GREAT BRITAIN
Mattel UK Ltd, Vanwall Business Park, Maidenhead SL6 4UB.
Helpline: 01628 500303; www.service.mattel.com/uk
AUSTRALIA
Mattel Australia Pty. Ltd., 658 Church Street, Locked Bag #870,
Richmond, Victoria 3121 Australia. Consumer Advisory Service
1300 135 312.
NEW ZEALAND
16-18 William Pickering Drive, Albany 1331, Auckland.
ASIA
Mattel East Asia Ltd, Room 1106, South Tower, World Finance
Centre, Harbour City, Tsimshatsui, HK, China.
MALAYSIA
Diimport & Diedarkan Oleh: Mattel SEA Ptd Ltd. (993532-P)
Lot 13.5, 13th Floor, Menara Lien Hoe, Persiaran Tropicana Golf
Country Resort, 47410 PJ. Tel: [phone], Fax: [phone].
Care
• Remove the tray from the seat.
• Unbuckle the restraint system.
• Remove the pad elastic loops from the pegs and unfasten
the pad fasteners from the seat.
• Remove the pad from the restraint system.
• Machine wash the pad and toys in cold water with a mild
detergent. Do not use bleach. Tumble dry on low heat and
remove promptly.
• To clean the seat, restraint system, tray, mobile, storage
pouch, toys and motorized frame, use a mild cleaning agent
and damp cloth. Rinse with clean water to remove residue.
• Periodically check the swing for loose fasteners or broken
parts and tighten as needed.
2

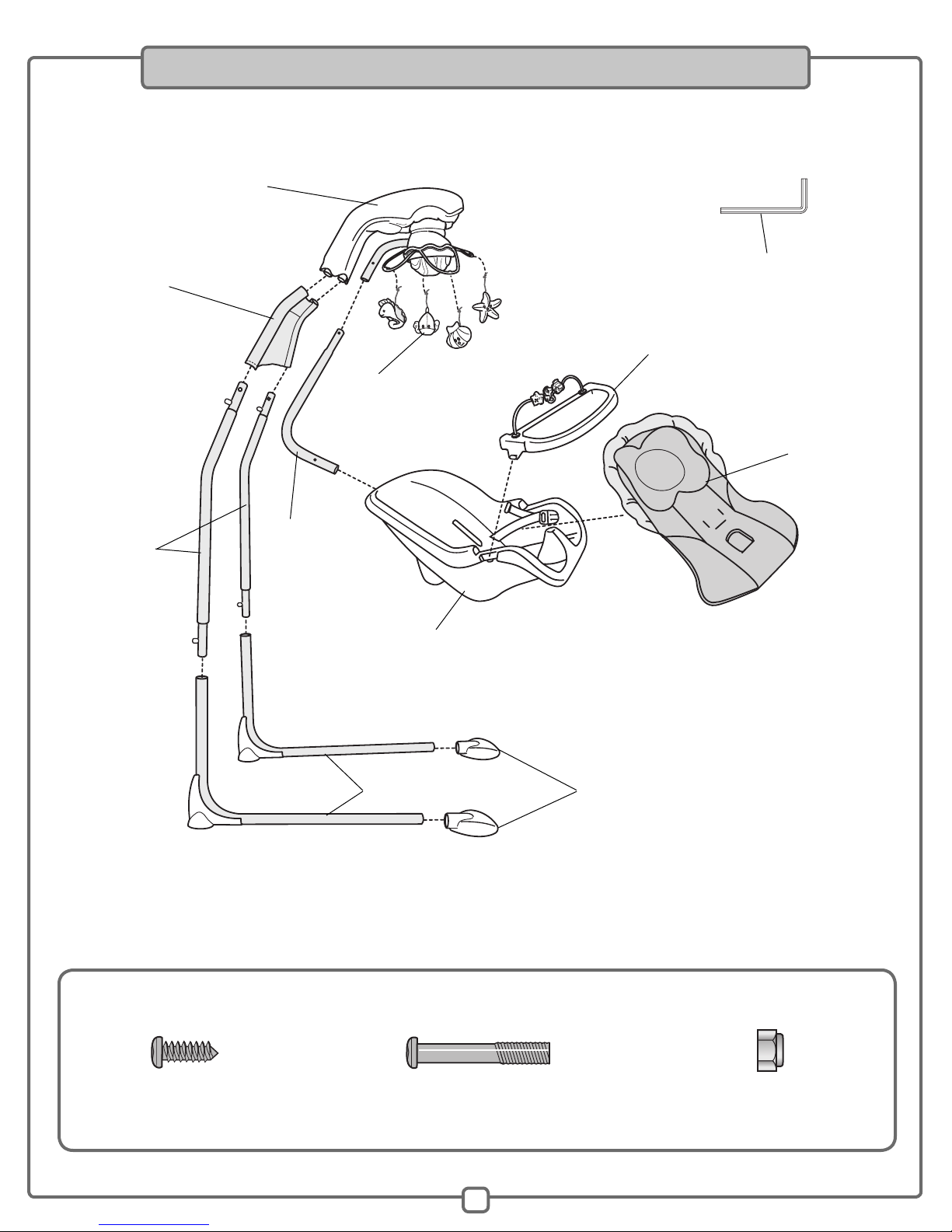

Consumer Information

Motorized Frame
2 Lower Legs
2 Upper Legs
Seat with Restraint System
2 Feet
Tray
4 Toys
(toys may be different)
Pad with
Headrest
ALL SHOWN ACTUAL SIZE
#8 x 1,3 cm Screw - 2 M5 x 30 mm Bolt - 2 M5 Lock Nut - 2
Lower Seat Tube
Note: Tighten the screws with the enclosed Allen wrench.
Parts
Fabric Panel
Allen Wrench
3

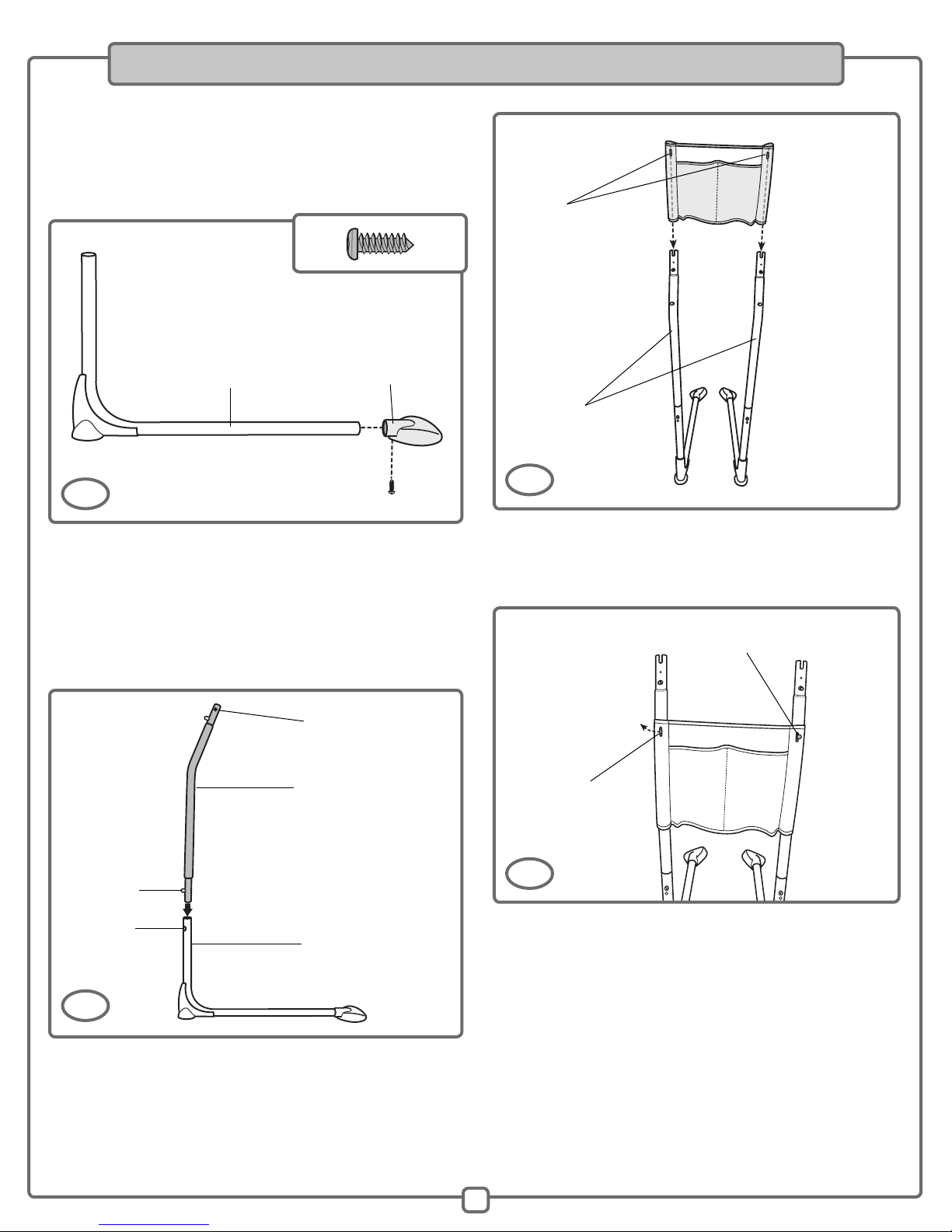

Lower Leg
• Position a lower leg so that it stands on a flat surface, as shown.
• Fit a foot onto the end of the lower leg.
• Insert a #8 x 1,3 cm screw through the bottom of the foot
and into the lower leg. Fully tighten the screw with the
Allen wrench.
• Repeat this procedure to assemble the other foot to the
other lower leg.
Foot
• Position an upper leg so that the red dot is up.
• While pressing the button on the straight end of an upper leg,
insert the upper leg into a lower leg. Make sure the button on
the upper leg “snaps” into the hole in the lower leg.
• Repeat this procedure to assemble the other upper leg to the
other lower leg.
Red Dot Up
Lower Leg
Upper Leg
Straight
End
Button
Hole
Assembly
IMPORTANT! Before assembly, inspect this product for
damaged hardware, loose joints, missing parts or sharp edges.
DO NOT use if any parts are missing or broken. Contact Mattel
for replacement parts and instructions if needed. Never
substitute parts. Button
Holes Up
Upper Legs
• Position the fabric panel with the button holes up.
• Position the legs so that the feet are away from you.
• Slide the fabric panel onto the upper legs.
Button Hole
Rivet Through
Button Hole
• Fit the rivets on the upper legs through the button holes
in top ends of the fabric panel.
1
2
3
4
4

• Locate the Rand Lon the underside of each elbow foot.
The Rindicates the right leg. The Lindicates the left leg.
• While pressing the upper button on the right leg, fit it into
the tube in the motorized frame. Make sure the upper
button on the right leg “snaps” into the hole in the tube.
• Repeat this procedure to assemble the left leg to the
motorized frame.
• When the legs are assembled correctly to the tubes in the
motorized frame, you should not see the red dots.
Tube
Hole
Red Dot
Motorized Frame
Button
Elbow Foot
L
R
• Stand the assembly upright.
• Pull the legs out so that the buttons “snap” into the holes in
the motorized frame.
• When standing behind the product, all four feet should be flat
upon the floor. And, check for an Lmarking on the left foot
and an Rmarking on the right foot.
• If the feet are not flat upon the floor, or the left and right feet
have been reversed, remove both lower legs from the upper
legs. Replace them onto the opposite upper leg.
Feet
Feet
Button Button
LR
• Position the seat upright.
• Place the pad onto the seat with the ruffle toward the top
of the seat.
• Fold the bottom of the pad up. Insert the crotch belt through
the slot in the pad. Make sure the crotch belt is not twisted.
Crotch Belt
Slot
Ruffle
Seat
Assembly
• Fold the top of the pad down.
• Insert the two elastic loops on the pad through the holes in
the seat bottom.
• While holding the elastic loops in place, turn the seat
face down.
• Hook the elastic loop on the left side onto the peg on the
right side.
• Hook the elastic loop on the right side onto the peg on the
left side.
Elastic
Loops
Hole
Hole
Elastic
Loops
Peg
Hint: The elastic loops should cross over each other when
attached correctly to the pegs.
Bottom View
5
6
7
8
5

• Turn the seat upright.
• Fold the top of the pad down. Insert the waist belts through
the slots in the pad. Make sure the waist belts are not twisted.
• Fit the pad edges around the rim of the seat.
• Hook the two fastener straps on each side of the pad onto the
rim on each side of the seat.
Seat
Slots
Waist
Belts
Pad
Assembly
• Fit the lower seat tube into the short tube on the seat back.
• Insert the tray tabs into the slots in each side of the seat.
Tray
Slot
Lower Seat Tube
Short Tube
9
6
10
11
12
Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. PRINTED IN CHINA
©2007 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc. H7185b-0726

Upper Seat Tube
• Tip the assembly on it’s side on a flat surface.
• Fit the lower seat tube into the upper seat tube.
Lower Seat Tube
• First, fit an M5 lock nut into an opening in the short tube.
Make sure the rounded side of the lock nut faces out.
• Next, insert an M5 x 30 mm screw through the opening in the
opposite side of the short tube. Fully tighten the screw with
the Allen wrench.
• Turn the assembly upright.
• Fit the string (below the knot) of a toy through the slot in a
clip on the mobile.
• Pull down on the toy to be sure it is secure on the mobile.
• Repeat this procedure to assemble the other three toys to
the mobile.
Clip
Mobile
Toy
• First, fit an M5 lock nut into an opening in the upper seat tube.
Make sure the rounded side of the lock nut faces out.
• Next, insert an M5 x 30 mm screw through the opening in the
opposite side of the upper seat tube. Fully tighten the screw
with the Allen wrench.
Assembly
Clip
Slot
Rounded
Side Rounded Side
7
13
14
15
16

Hint: We recommend using alkaline batteries for longer battery life.
Battery Installation Battery Safety Information
1,5V x 4
LR20 (“D”)
Battery Compartment Door
In exceptional circumstances, batteries may leak fluids that
can cause a chemical burn injury or ruin your product.
To avoid battery leakage:
• Do not mix old and new batteries or batteries of different
types: alkaline, standard (carbon-zinc) or rechargeable
(nickel-cadmium).
• Insert batteries as indicated inside the battery compartment.
• Remove batteries during long periods of non-use. Always
remove exhausted batteries from the product. Dispose of
batteries safely. Do not dispose of product in a fire. The
batteries inside may explode or leak.
• Never short-circuit the battery terminals.
• Use only batteries of the same or equivalent type
as recommended.
• Do not charge non-rechargeable batteries.
• Remove rechargeable batteries from the product
before charging.
• If removeable, rechargeable batteries are used, they are only to
be charged under adult supervision.
• Loosen the screws in the battery compartment door with
a Phillips screwdriver.
• Remove the battery compartment door.
• Insert four LR20 (“D”) alkaline batteries.
• Replace the battery compartment door and tighten the screws
with a Phillips screwdriver.
• Protect the environment by not disposing of this
product with household waste (2002/96/EC). Check
your local authority for recycling advice and facilities
(Europe only).
Hint: If the swinging motion becomes noticeably
slower, or sounds and lights become faint or stop,
remove the batteries and replace them with four, new
LR20 (“D”) alkaline batteries. Dispose of exhausted
batteries properly.
8

Leg
Leg
Button
Button

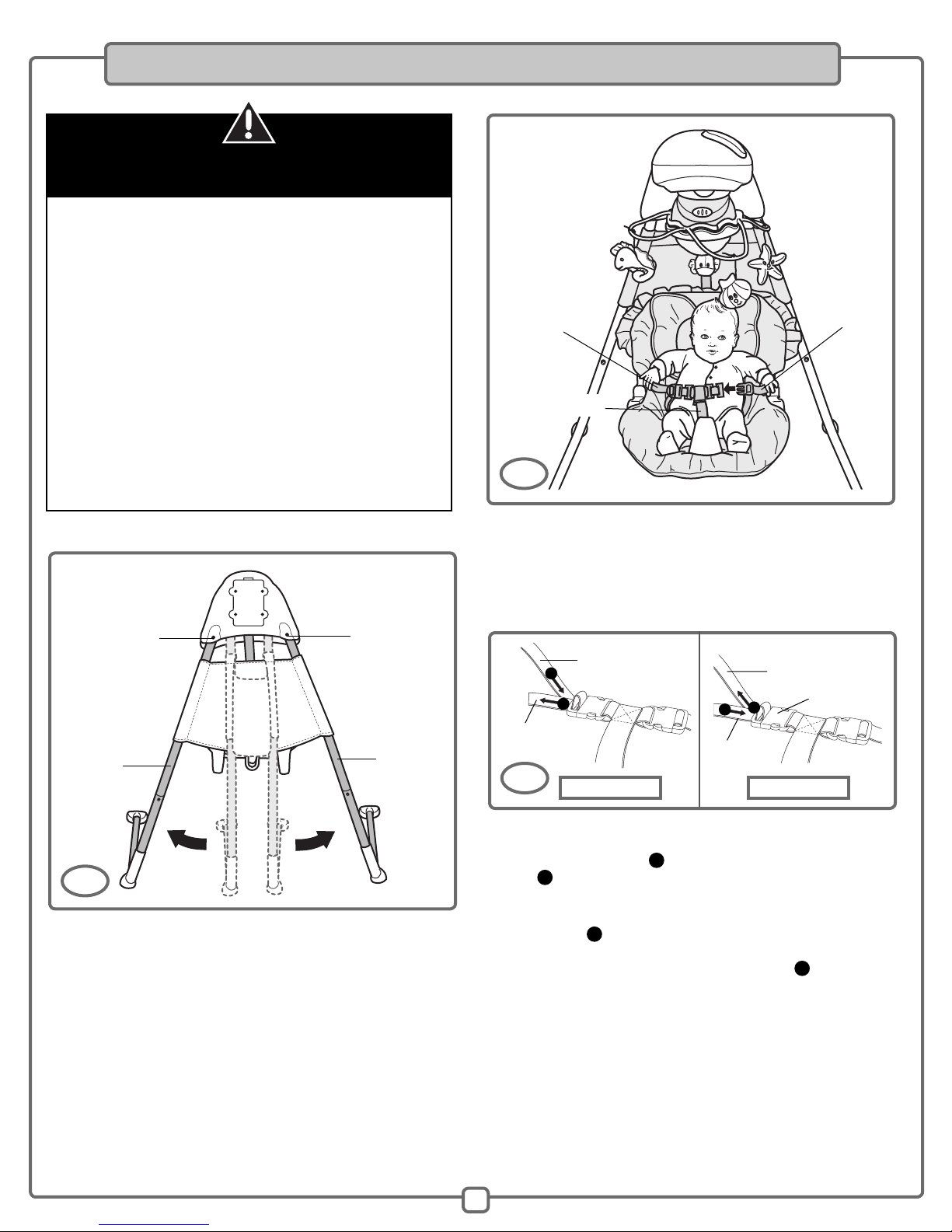

To Unfold
• Firmly pull the legs outward. Make sure the buttons snap
into the notches in the motorized frame.
• Check to be sure the legs are locked into position by
pushing the legs inward. The legs should not move.
WARNING
To prevent serious injury and/or
falls and being strangled in the
restraint system:
• Always use restraint system. Never
rely on the tray to restrain child.
• Not recommended for children who
can sit up by themselves (6 months
approximately, until 9 kg/20 lbs).
• Never leave child unattended.
• It is dangerous to use this product
on an elevated surface.
Set Up
Restraint Belts
• Place your child in the seat.
• Pull the crotch belt up between your child’s legs and fasten
both waist belts to the crotch belt. Make sure you hear a
“click” on both sides.
Waist Belt Waist Belt
Crotch Belt
Anchored End
Free End
Buckle
Anchored End
Free End
To tighten the waist belts:
• Feed the anchored end of the waist belt up through the
buckle to form a loop A. Pull the free end of the waist
belt B.
To loosen the waist belts:
• Feed the free end of the waist belt up through the buckle to
form a loop A. Enlarge the loop by pulling on the end of the
loop toward the buckle. Pull the anchored end of the waist
belt to shorten the free end of the waist belt B.
Note: Check to be sure the restraint is securely attached by
pulling it away from your child.
1
9
2
3
To Tighten To Loosen
B
A
B
A

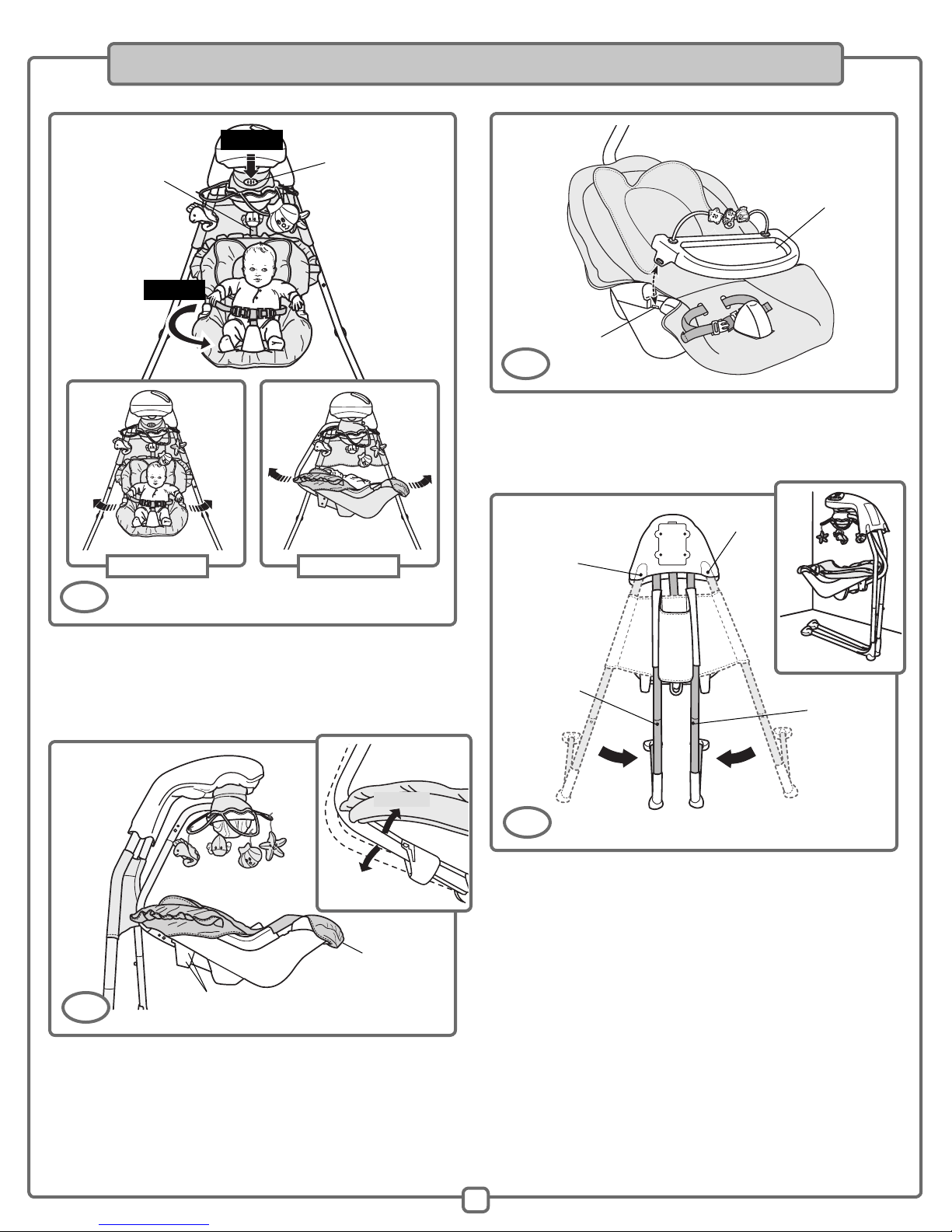

You can adjust the seat to two different positions:
Recline or Upright.
• From behind the seat, press both seat position buttons.
• Push the seatback up until the buttons “snap” into the
upright position.
• Push the seatback down until the buttons “snap” into the
recline position.
Front Edge
of Seat
Press Seat Position Buttons
You can adjust the motion of the swing: side to side or
front to back.
• Press the seat tube button to unlock the seat tube.
• Rotate the seat tube to the desired position.
Seat Tube Button
Seat Tube
PRESS
TURN
Upright
Recline Storage
• Press the buttons on the back of the motorized frame while
pushing the legs inward.
• Lean the swing frame against a wall for storage.
IMPORTANT! Remove the batteries for long-term storage.
Button
Button
Lower Leg
Button
Lower Leg
Button
Hint: The legs may be disassembled for long-term storage. Press the
button on each lower leg and remove them from the upper legs.
Using the Tray
• Fit the tabs on the tray into the slots in the sides of the seat.
• To remove the tray, pull one edge of the tray out and lift.
Tray
Slot
Set Up
10
4
6
5
7
Cradle Swing

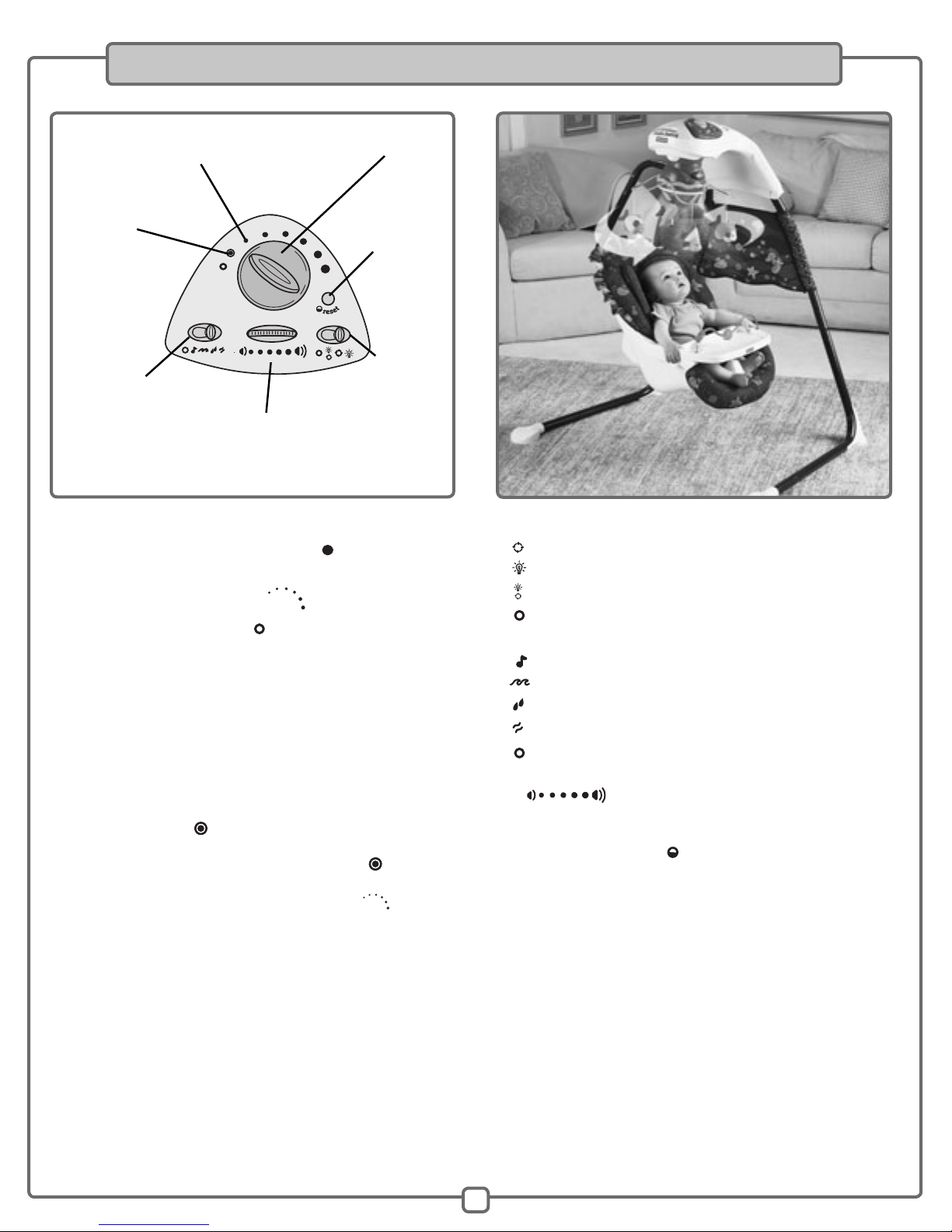

Swing, Waterglobe and Mobile Use
Waterglobe/
Mobile ON
Music/Sounds
Switch
Power Dial
Mobile/
Waterglobe
Switch
Reset Button
Swing/Waterglobe/Mobile ON
Volume Dial
Swing
• Turn the power dial to the ON position . The swing
begins swinging.
• Select any of six speed settings .
• Be sure to turn swinging OFF when not in use.
Hints:
• As with most battery-powered swings, a heavier child will reduce the
amount of swinging motion on all settings. In most cases, the low
setting works best for a smaller child while the high setting works best
for a larger child.
• If the low setting provides too much swinging motion for your child, try
placing one end of a blanket underneath your child and let the other end
of the blanket drape down while swinging.
Waterglobe, Mobile, Music and Sounds
Turn the power dial to to turn power ON for waterglobe,
mobile, music and sounds.
Hint: The swing does not work on this power dial setting . If you’d like
to use the waterglobe, mobile, music or sounds and swing at the same
time, turn the power dial to any of the six speed settings .
11
To select waterglobe/mobile, slide switch to:
Mobile
Lights (Waterglobe)
Mobile and Lights (Waterglobe)
Mobile and Lights (Waterglobe) Off
To select sounds or music, slide switch to:
Music
Waves
Rain
Babbling Brook
Music and Sounds Off
To select a comfortable listening setting: turn the volume
dial .
Hint: The waterglobe, mobile, music or sounds will turn off after
approximately seven minutes. To restart waterglobe, mobile, music or
sounds, press the reset button for another seven minutes of use.

Problems and Solutions
Problem Probable Cause Solution
Motor is not running;
no swinging
Motor is running but swinging
stops after a few minutes
No difference noticed in
swinging motion after power
dial is adjusted
Swinging motion too high even at
the lowest setting
Waterglobe (lights)/mobile,
music/sounds do not work
and swing is off
Music/sounds do not work
(and power dial is set to )
Waterglobe (lights) does not
work (and power dial is set to )
Mobile does not work (and power
dial is set to )
Power is not on
Batteries incorrectly installed
Dead batteries
Need to start swinging motion
Swing motion setting is inappropriate
for child’s weight
Weak batteries
Swing did not have sufficient time
to adjust to different setting
Weak batteries
Normal operation
Power dial is not on correct setting
Dead batteries
Waterglobe (lights)/mobile, music/sounds
turn off automatically after seven minutes
Music/sounds switch is in OFF position
Music/sounds turn off automatically after
seven minutes
Mobile/waterglobe switch is in
OFF position or mobile only position
Waterglobe (lights)/mobile turn off
automatically after seven minutes
Mobile/waterglobe (lights) switch is in OFF
position or waterglobe only position
Mobile/waterglobe (lights) turn off
automatically after seven minutes
Turn the power dial to one of six settings.
Remove the batteries and replace in correct orientation, as
indicated inside the battery compartment.
Replace all four batteries with four, fresh “D”
alkaline batteries.
To start swinging motion, give the seat a light push.
Adjust the power dial to a higher speed setting and give the
seat a light push.
Replace all four batteries with four, fresh “D”
alkaline batteries.
Allow the swing time to adjust to new setting.
Replace all four batteries with four, fresh “D”
alkaline batteries.
To slow swinging motion, place one end of a blanket underneath
your child and let the other end drape down while swinging.
Position the power dial to the position.
Replace all four batteries with four, fresh “D” alkaline batteries.
Press the reset button to restart waterglobe (lights)/mobile,
music/sounds for another seven minutes.
Slide music/sounds switch to desired setting .
Press the reset button to restart music/sounds for
another seven minutes.
Slide mobile/waterglobe (lights) switch to desired setting .
Press the reset button to restart waterglobe (lights)/mobile
for another seven minutes.
Slide mobile/waterglobe (lights) switch to desired setting .
Press the reset button to restart mobile/waterglobe (lights)
for another seven minutes.
12
