Fisher-Price DRP30 User manual

1
DRP30
Keep this owner’s manual for future reference,
as it contains important information.
Requires four AA (LR6) alkaline batteries (not included) for operation.
Use ONLY alkaline batteries for longest battery life.
Adult assembly is required.
Required tool: Phillips screwdriver (not included).
Tablet, TV and media streaming box (required for TV play) not included.
App features and decorations shown in photographs and illustrations may vary.

2
Consumer Information
•Age: 3-6 years.
•Maximum weight of child: 75 lb (34 kg)
•Always sit on the seat.
•Always wear shoes.
•Only one (1) rider at a time.
•This product is intended for indoor
use only.
•Frequency: 2,4 Ghz
CAUTION
This package contains small
parts. For adult assembly only.
Notice
READ THIS NOTICE BEFORE YOU OR
YOUR CHILD USE ANY VIDEO GAME
I. Follow these precautions whenever
using video games:
•Do not sit or stand too close to the
television screen. Play as far back from
the screen as possible.
•Do not play if you are tired or
need sleep.
•Always play in a well lit room
•Be sure to take a 10 to 15 minute break
every hour while playing.
II. Epilepsy warning
•A very small portion of the population
have a condition which may cause them
to experience epileptic seizures or have
momentary loss of consciousness when
viewing certain kinds of flashing lights
or patterns that are commonly present
in our daily environment. These persons
may experience seizures while watching
some kinds of television pictures or
playing certain video games. Players
who have not had any previous seizures
may nonetheless have an undetected
epileptic condition.
•If you or anyone in your family has
experienced symptoms linked to an
epileptic condition (e.g. a seizure or loss
of awareness), immediately consult your
physician before using any video games.
We recommend that parents observe
their children while they play video
games. If you or your child experience
any of the following symptoms:
dizziness, altered vision, eye or muscle
twitching, involuntary movements, loss of
awareness, disorientation, or convulsions,
DISCONTINUE USE IMMEDIATELY and
consult your physician.
•Protect the environment by not
disposing of this product or any
batteries with household waste. This
symbol indicates that this product shall
not be treated as household waste.
Check your local authority for recycling
advice and facilities.

3
Download
FREE app
•Download the FREE Mission to
Tech City™ app available on the
App Store®, Google Play or Amazon.
Apple®
Android™
Amazon Fire
iPad®Generation 3 & 4,
iPad Air®, iPad Air®2, iPad Pro®,
iPad Pro®9.7, iPad mini™ (1, 2,
3 & 4) with iOS 7 and higher
Kindle Fire HDX 8.9" (4th gen),
Fire HD 6", Fire (5th generation),
Fire HD 7", Fire HD 8" (2015),
Fire HD 8" (2016), Fire HD 10"
Most Android tablets
with 5.1 (Lollipop) or higher
Apple TV®
Amazon FireTV
Android™TV
4th generation
2nd generation
Is Your Tablet
Compatible?
For a full list, please visit
www.fisher-price.com/thinkandlearn
TECH CITY™

4
Note: All screws are shown actual size on this page.
Tighten and loosen all screws with a Phillips screwdriver.
Do not over-tighten the screws.
Parts
M4,5 x 15 mm Screw - 8
M8 x 76 mm Screw - 1
M4,5 x 30 mm Screw - 2
Frame
Tablet Holder
Seat
Assembly Pedal Assembly
Handlebar
Front Base
Back Base

5
•Fit the frame to the front base.
Hint: The frame is designed to fit the
front base one way. If it does not seem to
fit, try assembling it to the other base.
•Turn the assembly over.
•Insert two M4,5 x 15 mm screws into
the front base. Fully tighten the screws.
1 3
24
Assembly
Frame
Front Base
Seat
Assembly
Back Base
•Fit the seat assembly to the back base.
•Turn the assembly over.
•Insert two M4,5 x 15 mm screws into the
back base. Fully tighten the screws.
Bottom View
Bottom View
Bottom View
Bottom View

6
Assembly
•Fit the seat assembly into the large
socket in the frame assembly.
•Insert the M8 x 76 mm screw into the
frame and tighten.
•Fit the pedal assembly into the large
opening in the frame.
•Make sure the connector on the pedal
assembly is fitted to the connector on
the frame.
Pedal
Assembly
•Insert four M4,5 x 15 mm screws into the
pedal assembly and tighten.
5
68
7

7
Assembly
•Fit the handlebar to the collar on the
front of the frame.
•Insert two M4,5 x 30 mm screws into the
handlebar and tighten.
•Pull up on the handlebar to be sure it's
secure to the frame.
Handlebar
Tablet
Holder
•Insert and "snap" the end of the tablet
holder into the socket in the front of
the frame.
•To remove the tablet holder, simply push
the buttons on each side of its base and
pull to remove.
9
10
11
Push buttons to
Push buttons to
remove tablet
remove tablet
holder.
holder.

8
•Locate the battery compartment on
the front wheel. Loosen the screw and
remove the door.
•Insert four AA (LR6) alkaline batteries.
•Replace the battery compartment door
and tighten the screw.
•If this product begins to operate
erratically, you may need to reset the
electronics. Slide the Power Switch off
and then back on.
Battery
Installation
Battery Safety
Information
1,5V x 4
(AA) LR6
In exceptional circumstances,
batteries may leak fluids that can cause
a chemical burn injury or ruin your
product. To avoid battery leakage:
•Do not mix old and new batteries or
batteries of different types: alkaline,
standard (carbon-zinc) or rechargeable.
•Insert batteries as indicated inside the
battery compartment.
•Remove batteries during long periods
of non-use. Always remove exhausted
batteries from the product. Dispose of
batteries safely. Do not dispose of this
product in a fire. The batteries inside
may explode or leak.
•Never short-circuit the battery terminals.
•Use only batteries of the same or
equivalent type, as recommended.
•Do not charge non-rechargeable batteries.
•Remove rechargeable batteries from the
product before charging.
•If removable, rechargeable batteries are
used, they are only to be charged under
adult supervision.
Battery
Compartment
Door
We recommend using alkaline
batteries for longer battery life
and proper function.

9
Attach Your Tablet
•Place your tablet in the holder and
push the center of the upper bar down
to secure.
•Check to be sure your tablet is secure.
•While turning and holding the knob on
the front of the tablet holder, lift the
upper bar.
(Tablet is not included.)
1
1
2
2
3
3
Adjust Seat Height
•While pressing the seat latch, lift or
lower the seat to a comfortable height
for your child.
Lift or lower
seat to any of
three positions.
1
2

10
•Wipe with a clean cloth dampened with a mild soap and water solution. Do not use
bleach. Do not use harsh or abrasive cleaners. Do not immerse.
•This product has no consumer serviceable parts. Do not take this product apart.
•Periodically check this product for wear and damage and replace any cracked part.
Consumer Information
CO
N
SU
MER
ASS
I
S
T
A
N
CE
1-800-432-5437 (US & Canada)
1300 135 312 (Australia)
Fisher-Price, Inc., 636 Girard Avenue, East Aurora, NY 14052.
Hearing-impaired consumers: 1-800-382-7470.
Outside the United States:
Canada: Mattel Canada Inc., 6155 Freemont Blvd.,
Mississauga, Ontario L5R 3W2; www.service.mattel.com.
Great Britain: Mattel UK Ltd, Vanwall Business Park,
Maidenhead SL6 4UB. Helpline: 01628 500303.
www.service.mattel.com/uk
Mattel Europa B.V., Gondel 1, 1186 MJ Amstelveen, Nederland.
Australia: Mattel Australia Pty. Ltd., 658 Church Street,
Locked Bag #870, Richmond, Victoria 3121 Australia.
New Zealand: 16-18 William Pickering Drive,
Albany 1331, Auckland.
©2017 Mattel. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, except as noted.
DRP30-0970
PRINTED IN CHINA 1101442764-DOM
©2016 Viacom International, Inc. All Rights Reserved. Nickelodeon, SpongeBob SquarePants and all
related titles, logs and characters are trademarks of Viacom International, Inc.
SpongeBob SquarePants Created by
www.nick.com
© 2016 Viacom International Inc. All Rights Reserved. Nickelodeon, Shimmer and Shine and all
related titles, logos and characters are trademarks of Viacom International Inc.
© 2016 Viacom International Inc. All Rights Reserved. Nickelodeon, Blaze and the Monster Machines
and all related titles, logos and characters are trademarks of Viacom International Inc.
The Bluetooth® word mark and logos are registered trademarks owned by BlueTooth SIG, Inc. and
any use of such marks by Apple is under license.
Apple, iPad, Apple TV and the Apple logo are trademarks of Apple Inc., registered in the U.S. and
other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
Android, Android TV, Google Play and the Google Play logo are trademarks of Google Inc.
Amazon, Kindle, Fire and all related logos are trademarks of Amazon.com, Inc. or its aliates.

11
Smart Cycle® Controls
Slide the Power Switch
ON or OFF . The
Power LED turns on
when power is on.
Move the Joystick to
make selections on
menus or in activities.
The faster kids
pedal, the faster the
on-screen action!
Press either
Handlebar Button
to confirm choices.
Turn the Handlebar for
steering or aiming.
The Connection LED
blinks while connecting
to the app and stays on
when connected.
Press the Nav Button
to select a destination.
•Launch the app on your tablet or TV
(a media streaming box is required for
TV play).
•Turn Smart Cycle power ON.
•The Connection LED on Smart Cycle
blinks while it's connecting to the app.
When it stops blinking, you're connected.
Mission to Tech City™
•Here's the home screen. Press a Handlebar
Button to play!

12
•Awesome! You've completed the
practice drive. Now, it's time to
customize your character's vehicle. Use
the Joystick to highlight your choice and
then press a Handlebar Button to select.
Hint: You'll earn stars in activities and
games along the way. For every three
stars earned, you'll be rewarded with
a new accessory or paint choice for
your vehicle.
•When you press the Nav Button, you'll
see this screen. You can choose your
destination, go to the Home screen, go
to the Garage to customize your vehicle/
change characters or Exit the game.
Mountain
Mountain
Forest
Forest
Exit
Exit
Seaside
Seaside
Village
Village
Tech City
Tech City
Garage
Garage
Home
Home
Time for a learning adventure!
•In the garage, use the Joystick to
highlight character choices - T.R., Frita,
Walla or Widgey. Press a Handlebar
Button to select your choice.
•It's time to practice using the Smart
Cycle®'s controls. Follow Teach 'n Tag
Movi's™ directions and have fun!

13

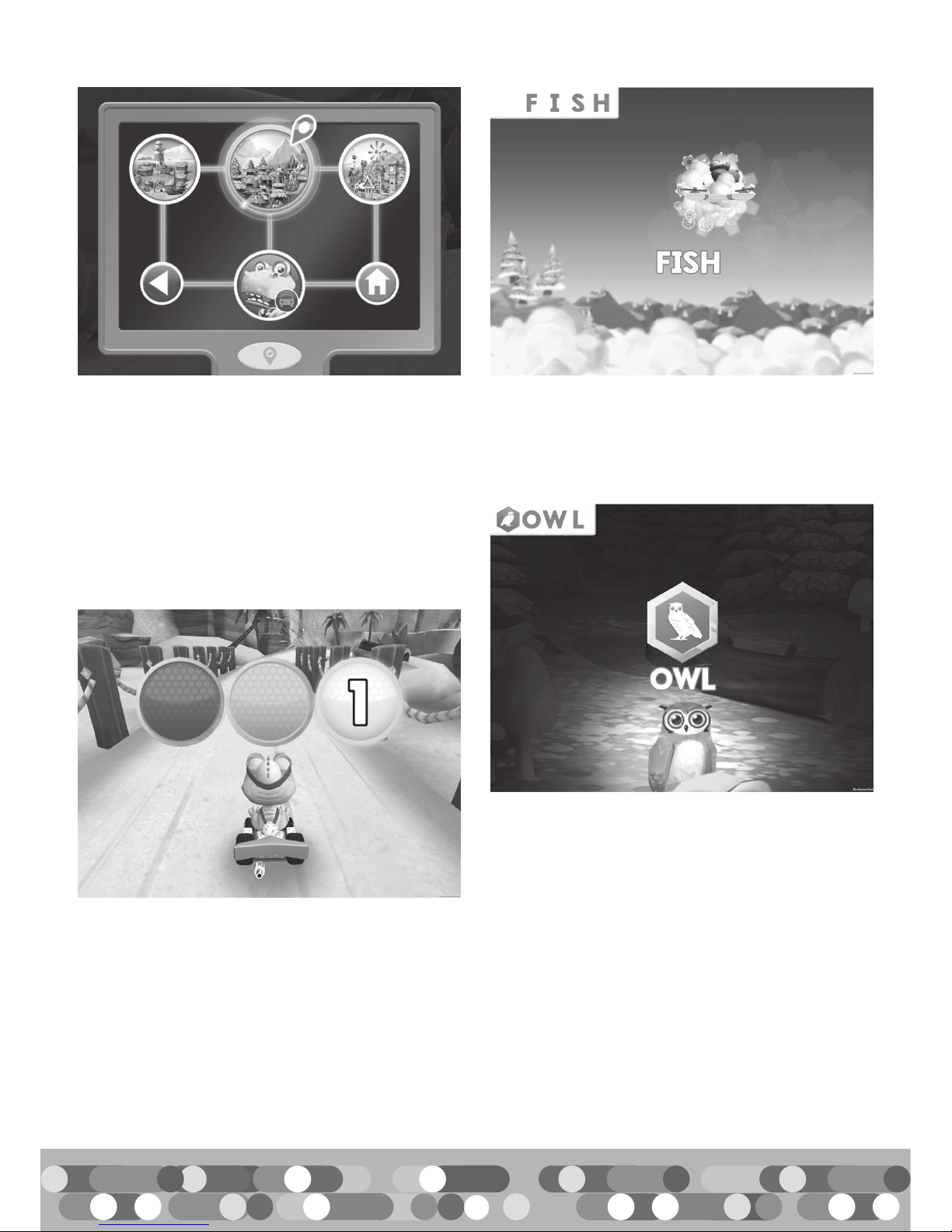

•Each destination has four games/
activities. You'll need to complete the
first game/activity to unlock the next
game/activity.
Hint: Once you've unlocked a game/
activity, you can go back to it again
and again!
•Use the Joystick to highlight the game/
activity, then press a Handlebar Button
to select.
Balloon Pop
•Use the Handlebar to aim the slingshot
toward the letter that matches the
missing letter in the word on the screen.
Then press a Handlebar Button to
launch an object. Did you hit the
correct letter?
Hint: You may need to pedal to adjust the
distance the object needs to travel to hit
the letter.
Let's Drive to Seaside Village
•Use the Handlebar to steer and pedal to
get to Seaside Village.
Seaside Village
Alphaballoons
•Use the Handlebar to aim the air
compressor hose toward the letter that
matches the missing letter in the word
on the screen. Press a Handlebar Button
to select the letter. Then pedal to blow
up the balloon.

14
Seaside Race
•Are you ready to race? 3-2-1-GO! Pedal
as fast as you can!
•After completing an activity, you may
receive a star!
•When you earn three stars, pedal fast to
open your prize. The next time you're in
the Garage, you'll see a new accessory
or paint choice for your vehicle.
Seaside Village You Get a Prize!

15
•After completing all four games/
activities in Seaside Village, you can go
to Mountain Forest. Use the Joystick to
highlight the destination and then press
a Handlebar Button to select.
•Just like Seaside Village, there are
four games/ activities. You'll need to
complete the first game/activity to
unlock the next game/activity.
Night Light
•Use the Joystick to shine a flashlight to
find the animal that matches the word
on the screen. Pedal to make the lighted
area larger! When you find it, press
a Handlebar Button.
Drone Zoom
•Use the Joystick to fly the drone through
word clouds or word syllables that match
the word or syllable on the screen.
Let's Drive to Mountain Forest
•Use the Handlebar to steer and pedal to
go to Mountain Forest.
Mountain Forest

16
Mountain Forest Tech City
Mountain Forest Racing
•Are you ready to race? 3-2-1-GO! Pedal
as fast as you can!
•Match-a-Word is an activity included
in each destination. Use the Joystick to
highlight a familiar word learned in that
destination that matches the word on
the screen. Press a Handlebar Button to
select it.
•After completing all four games/
activities in Mountain Forest you can
go to Tech City. Use the Joystick to
highlight the destination and then press
a Handlebar Button to select.
•Just like Seaside Village and Mountain
Forest, there are four games/activities.
You'll need to complete the first game/
activity to unlock the next game/activity.
Let's Drive to Tech City
•Use the Handlebar to steer and pedal to
go to Tech City.

17
Tech City
Sort & Rhyme
•First look at the pictures at the top of
the screen. Pedal to start the conveyor
belt moving. Look at the picture on
the crate. Which picture on the top of
the screen does it rhyme with? Use the
Joystick or press a Handlebar Button to
move the crate toward it.
Tech City Racing
•Are you ready to race? 3-2-1-GO! Pedal
as fast as you can!
Bot Chef
•Look at the ingredients on the list on
the screen. Use the Joystick to select
the ingredient that matches. Then press
a Handlebar Button to drop it into
the blender. Pedal to mix all the
ingredients together!
•After completing all of the games and
activities, you've probably earned a lot
of stars along the way. Go to the Garage
to see all of the accessories and paint
choices you've earned for your vehicle.

18
Just for Grown-ups
•If you'd like to check your child's
progress in games and activities or need
customer support, touch the information
icon on the Home screen. Then enter the
code shown on the screen.
•Content for all of the games and
activities increases in complexity the
more your child plays and gains success.
There are more than 15 levels in all! For
example, words are shorter in the lowest
level - "Bug" and longer in a higher
level - "Balloon".

19
Troubleshooting
Problem Solution
The Power LED is blinking and then
shut off.
It's time for an adult to change batteries
in Smart Cycle®. Be sure to replace all
four batteries with fresh, AA (LR6)
alkaline batteries.
The Power LED is off but the Power
Switch is in the ON position.
Smart Cycle enters sleep mode after
several minutes of inactivity and the
Power LED turns off. Simply slide the
Power Switch OFF and then back ON.
I can't adjust the tablet holder to attach
my tablet.
Be sure you turn the knob all the way
clockwise, hold it in that position and
then lift the top bar on the holder. Place
your tablet in the holder and then push
the top bar down to secure.
The app won't connect to Smart Cycle. Be sure Smart Cycle power is on.
Slide the Power Switch ON.
The Connection LED on Smart Cycle
is blinking.
The Connection LED blinks while
it is looking for a connection. If the
Connection LED continuously blinks,
check to be sure that Bluetooth is
enabled on your tablet.
Why can't I select a destination or
activity/game?
You'll need to complete the first game/
activity to unlock the next game/activity.
Once you've unlocked a game/activity,
you can go back to it again and again!

20
Consumer Information
FCC Statement (UNITED STATES ONLY)
This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed
to provide reasonable protection against
harmful interference in a residential
installation. This equipment generates
uses and can radiate radio frequency
energy and, if not installed and used
in accordance with the instructions,
may cause harmful interference to
radio communications. However, there
is no guarantee that interference will
not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television
reception, which can be determined
by turning the equipment off and on,
the user is encouraged to try to correct
the interference by one or more of the
following measures:
•Reorient or relocate the receiving
antenna.
•Increase the separation between the
equipment and receiver.
•Consult the dealer or an experienced
radio/TV technician for help.
NOTE: Changes or modifications not
expressly approved by the manufacturer
responsible for compliance could void the
user’s authority to operate the equipment.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
CAN ICES-3 (B)/NMB-3 (B)
Operation is subject to the following
two conditions: (1) this device may not
cause interference, and (2) this device
must accept any interference, including
interference that may cause undesired
operation of the device.
L’utilisation de ce dispositif est autorisée
seulement aux conditions suivantes :
(1) il ne doit pas produire de brouillage
et (2) il doit pouvoir tolérer tout
brouillage radioélectrique reçu, même
si ce brouillage est susceptible de
compromettre son fonctionnement.
