Fisher-Price iXL User manual

12
www.fisher-price.com
PRINTED IN CHINA R9703pr-0920
Fisher Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A.
©2010 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc., unless otherwise indicated.
Find more ways to excel!
Look for a wide range of software titles with a big selection
of favorite friends from the world of entertainment.
© 2010 Viacom International Inc. All Rights Reserved.
Nickelodeon, Ni Hao, Kai-lan! and all related titles,
logos and characters are trademarks of Viacom
International Inc.
SCOOBY-DOO and all related characters and elements
are trademarks of and © Hanna-Barbera.
(s10)
Disney elements © Disney
Disney/Pixar elements © Disney/Pixar
BATMAN: THE BRAVE AND THE BOLD and all related
characters and elements are trademarks of and
© DC Comics.
WB SHIELD: TM & © Warner Bros.
Entertainment Inc. (s10)

23
iXL™Learning System iXL™Learning System
Digital Reader
iXL™Handheld Device
Game
Player
Notepad
Art Studio
Photo Viewer
MP3 Player
headphones not
included
Quick Start
1. Install batteries in iXL (see page 6).
2. Open iXL and press the power button.
3. Touch a gray bar (profile) on the
login screen. To create a custom
profile, see page 45.
4. Calibrate the touch screen with the
stylus. See page 50.
5. From the Home screen, choose
an activity.
Digital Reader - Listen to a story
read aloud and then play an
activity! See page 11.
Game Player - Play a game that
makes learning to count fun!
See page 15.
Notepad - Practice writing letters,
numbers and words! See page 17.
Art Studio - Create artwork with
backgrounds and drawing tools.
See page 19.
MP3 Player - Listen to a song
sampler. See page 24.
Photo Viewer - Watch a pre-
loaded picture slideshow that you
can draw on! See page 26.
6. Install iXL Computer Software and
connect iXL to your computer to
load your own music and photos,
additional software titles (sold
separately) or manage your music
playlists and photos. See page 30.

45

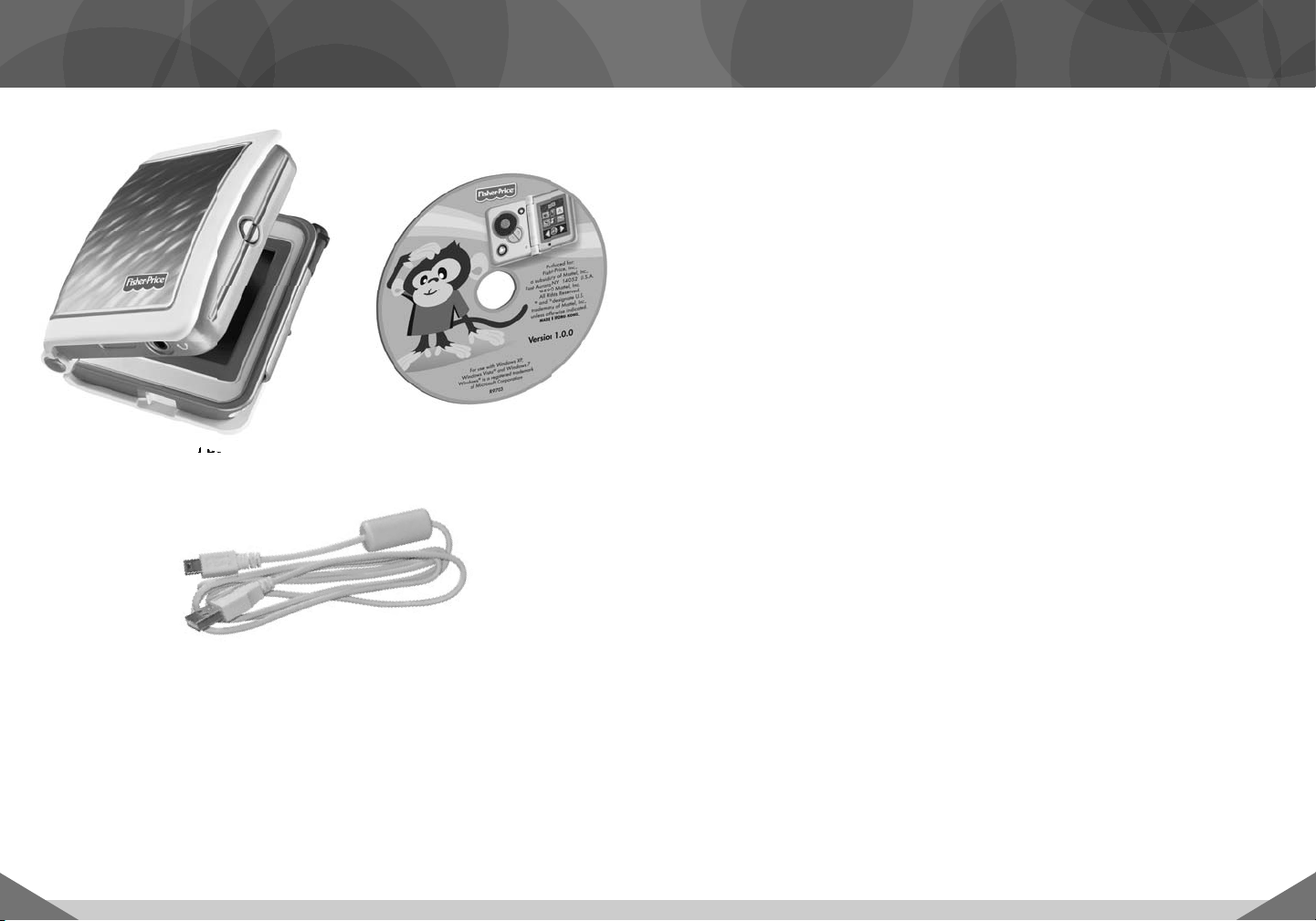

iXL™Learning System
iXL™ Handheld Device
iXL™ Computer Software CD-ROM
(CD-ROM is not a toy)
d
De
v
d
De
USB Cable
(USB cable is not a toy)
Consumer Information
Please keep this owner’s manual for future reference, as it contains•
important information.
Requires four “AA” (LR6)• alkaline batteries (not included) for operation.
Adult assembly is required for battery installation, software installation,•
content management and hook up to your computer.
Tool required for optional SD card installation: Phillips screwdriver (SD card•
and screwdriver are not included).
Use only the attached stylus on the touch screen. Never use any other•
object, such as regular pens or pencils, on the touch screen. Markings
from regular pens and pencils cannot be removed and will damage the
touch screen.
Exposure to prolonged periods of cold temperatures can affect images on•
the touch screen. This is a temporary condition and will change once the
touch screen returns to a normal temperature.
For proper use of this toy, we recommend your computer meet minimum•
system requirements, including an Internet connection.
Minimum System Requirements
Operating System ................Microsoft®Windows XP, Windows Vista™ or
Windows 7
Macintosh OS X v10.4 or higher
Processor.............................1.2GHz
Memory ...............................256 MB RAM
Hard Drive............................150 MB available
Video Resolution..................800x600 32-bit color DirectX9.0c compatible
Sound ..................................16-bit DirectX compatible
CD or DVD drive
USB port ..............................1.1
Note: Internet connection is required.
Note: Product features and decorations may be different from photos included in this manual.

67
1,5V x 4
“AA” (LR6)
Battery Installation
Using a coin, turn the battery compartment•
fastener on the side of iXL™ to unlock .
Slide• the battery compartment door to remove it.
Insert four “AA” (LR6)• alkaline batteries.
Hint: We recommend using alkaline batteries for
longer battery life.
Fit the tabs on the underside of the battery•
compartment door into the grooved tabs on iXL.
Slide• the battery compartment door to close.
Using a coin, turn the fastener to lock• .
NOTE: When you see the low battery indicator on the screen, it’s time
for an adult to change the batteries!
iXL™Features
Press the• Power Button (with iXL open) to turn power ON.
The• Light Sensor automatically dims the backlight on the screen when used
in a dark room (if the automatic backlight feature is turned ON see page 35).
Use only the• Stylus on the Touch Screen to make selections. Store the stylus
on the side of iXL when not in use.
To load your own photos, music or additional software titles (sold separately)•
manage content on or customize iXL, slide the door open to access the USB
Port . Insert the USB cable (included) to connect iXL to your computer.
For private listening, insert a headphone pin (headphones sold separately)•
into the Headphone Jack . Make sure the headphones used are equipped
with a 3,5 mm pin.
Press the• Action Button in some activities to make choices.
Press the• Volume Buttons to increase or decrease the volume.
Press the• Home Button to return to the Home screen in any activity.
To• conserve battery life, the iXL touch screen dims 1½ minutes after the last
input and completely turns OFF after 3 minutes.
Volume
Buttons
Action
Button
Home
Button
Stylus
Storage
Touch Screen
USB Port
Stylus
Headphone Jack
Light
Sensor
Power Button
B
B
B
B

89
Open• iXL™ and press the power button .
Hint: Make sure iXL is completely open before pressing the power button.
Getting Started
Power Button
Use the stylus to touch a gray bar (profile) on the login screen.•
Hint: You can create up to five custom profiles on iXL using the enclosed
computer software. For more information, go to page 45.
Getting Started
Touch a background design with the stylus, and then touch• .
From the Home screen, touch• with the stylus to change the screen
background design.
Home Screen
Login Screen

10 11
Home Screen
Choose an activity. Touch an activity on the screen with the stylus.•
Touch• or at the bottom of the Home screen (or any opening activity
screen) with the stylus to select a different software title.
*To use this feature, you must purchase, install and load additional software
titles (sold separately) to iXL™. For more information, go to page 30.
Digital Reader
Art Studio
Game Player
Notepad
Photo Viewer
MP3 Player
Digital Reader
Touch• on the Home screen with the stylus to read stories.
From the Digital Reader screen, touch• Read-to-Me or Play mode
with the stylus.
In• Read-to-Me mode, listen to the narrator read the entire story.
Hint: Press the Action Button on iXL™ to pause the story. Press it again to
resume the story.
Play
Mode
Read-
to-Me
Mode
Home Screen
Home Screen
Digital Reader Screen
Di it l R d
Software
Select*

12 13
Digital Reader
In• Play mode, listen to the page read.
Touch• to repeat the page.
Hint: Press the Action Button on iXL™ to pause the story. Press it again to
resume the story.
Explore the page by touching objects with the stylus.•
Touch the bottom corners on the screen with the stylus to turn the page.•
Repeat Page
Digital Reader
After the story, play a comprehension activity.•
Hint: In Play mode, you will need to turn the page at the end of the story to
play this activity.
Use the stylus to choose an animal, game and prize. Touch the arrows on•
the screen with the stylus to scroll through choices. When you’re finished,
touch .
Animal Prize
Game
Touch the highlighted key words on the page with the stylus to learn more.•
Turn Page

14 15
Digital Reader
Listen to the newspaper story!•
Touch• with the stylus to Repeat the headline story.
Touch• with the stylus to Create a new headline story, or touch to Exit
this activity and return to the Home screen.
Hint: You can also press the Home Button on iXL™ at any time to exit
this activity and return to the Home screen.
Touch• on the Home screen with the stylus to play a game.
From the Game Player screen, touch• with the stylus to begin the game.
Help the monkey collect bananas and count them in order.•
Touch the top, sides or bottom of• on the screen with the stylus
to move the monkey left, right, up or down!
Game Player
Home Screen Game Player Screen
Repeat CreateExit

16 17
Climb up and down the ladders or get on the elevator to collect•
more bananas!
Watch out for the gorilla and mosquitoes. Touch the monkey with the•
stylus to throw bananas and get them out of your way.
When you collect all 10 bananas, listen and count them again!•
In• Level 2, count backwards; in Level 3, count by 2’s. Watch for more
obstacles in these levels!
Press the Home Button• on iXL™to exit this activity and return to the
Home screen.
Game Player
Elevator
Ladder
Notepad
Touch• on the Home screen with the stylus to practice writing letters,
numbers and words.
Choose a writing activity from the Notepad screen.•
Touch a letter (or number or word) on the top of the screen with the stylus•
and watch it drawn on screen.
Touch• or at the top of the screen with the stylus to scroll through
more choices (letters, numbers or words).
Home Screen Notepad Screen
Upper Case
Letters
Lower Case
Letters
Numbers
Spelling
Eraser

18 19
Use the stylus to trace on the screen.•
Notepad
Touch• on the screen with the stylus to clear the screen.
Hint: You can also press the Action Button on iXL™ to clear the screen.
Press the Home Button• on iXL to exit this activity and return to the
Home screen.
Art Studio
Art Studio Screen
Toolbar
Home Screen
Touch• on the toolbar with the stylus to choose a background to draw on.
First, touch• or with the stylus to scroll through background choices.
When you find one that you like, touch the background with the stylus.
Touch the• on the Home Screen with the stylus to create artwork.
Use the stylus to draw on the picture or touch any tool on the toolbar.•
Backgrounds

20 21
Touch• on the toolbar with the stylus to choose a color from the color
palette. Touch or on the screen with the stylus for more colors. When
you find a color that you like, touch it with the stylus.
Art Studio
Touch• on the toolbar with the stylus to choose a pencil, paint brush,
paint bucket or spray paint. Touch your choice with the stylus to draw
or paint.
Styles
Color Palette
Touch• on the toolbar with the stylus to choose stampers for
your picture.
Touch• or on the screen with the stylus for more stampers.
When you find a stamper that you like, touch it with the stylus.•
Art Studio
Stampers
Using the stylus on the screen, draw or paint on the background.•

22 23
Touch the screen with the stylus to place stamp in your picture.•
Art Studio
Touch• on the toolbar with the stylus if you’d like to erase.
Erase
Erase Last Addition Erase All
Eraser
Touch• on the toolbar with the stylus to listen to music while you draw!
Touch• or to scroll through song choices. Touch , or to turn the
music ON or OFF.
Press the Home Button• on iXL to exit this activity and return to the
Home screen.
Music
Hint: You can also press the Action Button on iXL™ to erase all.
Art Studio

24 25
MP3 Player
Touch• on the Home screen with the stylus to listen to music.
Touch the numbers at the top of the screen with the stylus to choose any of•
five, preloaded songs.
Touch• or at the top of the screen with the stylus to view more songs;
touch or at the bottom of the screen to change backgrounds.
Note: To use the scrolling feature, you need to load your own music or
additional software titles (sold separately). For more information, go to page
30.
MP3 Player
Touch• on the screen with the stylus to stop the music.
Touch• on the screen with the stylus to play the music.
Press the Home Button• on iXL™ to exit this activity and return to the
Home screen.
s
cr
ee
s
t
Home Screen

26 27
Home Screen
Photo Viewer
Touch• on the Home screen with the stylus to view a pre-loaded
picture slideshow.
Hint: If you would like to load your own pictures, go to page 30 for
more information.
If you’d like to draw on a picture, touch the screen with the stylus to see•
the toolbar.
Hint: You can also press the Action Button on iXL™ to use the toolbar.
Touch• or to scroll through pictures. To choose a picture, touch the
screen with the stylus.
Touch• on the toolbar with the stylus to choose a pencil, paint brush or
spray paint to draw or paint. Touch your choice with the stylus.
Touch• on the toolbar with the stylus to choose a color from the
color palette.
Touch• or on the screen with the stylus for more colors. When you find
a color that you’d like to use, touch it with the stylus.
Photo Viewer
Styles
Toolbar
Color Palette
Picture Slideshow

28 29
Touch• on the toolbar with the stylus to choose a stamper for the picture.
Touch• or for more stampers. When you find a stamper you’d like to
use, touch it with the stylus.
Touch• on the toolbar with the stylus to choose how to erase what you
have added to your picture. Touch your choice with the stylus to make a
selection.
Hint: The eraser in this activity only erases what has been added to the
picture and does not erase the original picture.
Photo Viewer
Touch• on the toolbar with the stylus to listen to music while watching
the slideshow.
Touch• or with the stylus to scroll through song choices.
Touch• or with the stylus to turn the music ON or OFF.
Touch• on the toolbar with the stylus to exit the toolbar and return to
the slideshow.
Hint:You can also press the Action Button on iXL™ to exit the toolbar.
All of the art you’ve added to your picture is automatically saved.•
Press the Home Button• on iXL to exit this activity and return to the
Home screen.
Photo Viewer
MusicStampers
Erase
Erase Last Addition Erase All
Eraser

30 31
Computer Software Installation
If you would like to load your own music or photos, additional software•
titles (sold separately), manage content on or customize iXL™, you’ll need
to install iXL Computer Software.
If you have multiple logons on your computer, be sure the logon you are•
using has Administrator privileges. You will need Administrator privileges to
install this software.
PC Users
Insert the enclosed CD into the CD-ROM or DVD drive of your computer.•
The software installer launches automatically. Follow the on-screen•
instructions to complete installation.
Note: You need to install all components to use this software.
If installation of the software does not launch automatically, go to the•
“Start” menu, click on “Run” and type “D:\setup”.
Mac Users
Note: The CD is used for PC software installation only. Please visit
http://www.fisher-price.com/ixl/software/macintosh to download a Macintosh
compatible version.
Connecting iXL™
Slide the USB door open on• iXL to access the USB port.
Insert the smaller end of the USB cable into the USB port on• iXL.
Insert the larger end of the USB cable into the USB port• on
your computer.
After installing• iXL Computer Software, you will need to connect iXL to your
computer, using the included USB cable to load and manage content.
Small End of
USB Cable
Large End of
USB Cable
USB Port
USB Port
Co
Co
o
Co
o
Co
om
om
If
If
If
y
y
ou
ou
w
w
w
w
w
ou
ou
ou
ou
ou
l
l
ld
ld
ld
ld
ld
l
l
i
ik
e to lo
•
•
t
i
t
l
es
(
so
ld
separate
l
y
)
t
o
in
s
t
a
ll
i
XL Com
p
ut
e
If h l i l l
To prevent strangulation,
keep computer cables away from children.
WARNING

32 33
Connecting iXL™
To launch• iXL™ Computer Software, double-click on the on your
computer desktop.
Click on the• Welcome tab to get started.
- Click on the User’s Guide link for interactive use instructions and
frequently asked questions about iXLTM Learning System.
- Click on the Consumer Relations Answer Center link to go directly to
Fisher-Price®Consumer Relations.
- Click on the Play & Learn Family Activities link for fun activities you can
do with your child.
- Click on the Printable Activities link for activity sheets you can print for
your child.
- Click on the Settings & System Information link for system information
and settings updates.
Computer Software
Welcome Tab
User’s Guide
Consumer
Relations
Activities
Settings
& System
Information
Power Button
C
C
Open• iXL and press the power button .
If• iXL is properly connected to your computer, you will see the USB connect
symbol on the screen.

34 35
Software Update –• Click on to turn automatic software updates ON or OFF.
To receive updated software, we recommend selecting ON.
System Information –• Click on the button to view information about your
computer system and the software titles (each sold separately) you
have installed.
Firmware Repair• – Click on the button if you need to repair the iXL™
firmware. If you unsure of the status of the firmware, contact Fisher-Price®
Consumer Relations at 1-888-892-6123.
Automatic Backlight –• Use this feature to conserve batteries! Click on a
button to turn iXL’s automatic backlight (light sensor) ON (recommended)
or OFF.
Click on• to exit Settings & System Information.
Settings and System Information
Click on the buttons at the top of the screen to scroll through activity•
sheet choices.
Note: Printable activity sheets are available only on iXL™ Computer Software
and cannot be transfered (loaded) to the iXL handheld device.
First, click on the activity sheet you would like to print. Then, click on•
in the pop-up window.
Click on• to exit Printable Activities.
Printable Activities
Activity
Sheet
Buttons
Exit Button
Print Button
Activity Sheet
No
t
e
:Printable activity
and cannot be transfer
e
P
P
Pr
Pr

36 37
My Library
Click on the• My Library tab to transfer your own pictures, music or other
software titles (sold separately) to iXL™, manage iXL content. You can also
check how much memory is available on iXL.
Note: iXL must be connected to your computer, turned on and open to use
this feature.
My Library Tab
On the• My Library side of the screen, click on the Pictures tab to transfer
your own pictures from your computer to iXL™.
Click on the• Import Pictures from Computer link.
My Library Pictures
Locate the picture you would like to transfer from your computer. Make sure•
the file format of the pictures is JPG (or JPEG). First, click on the picture.
Hint: To select multiple pictures at the same time, press and hold the Ctrl
button on your computer keyboard while clicking on the pictures.
Then, click on• .
Pictures Tab
Open Button
Import
Pictures
Link

38 39
Once loaded to the• My Library side of the screen, click on the check box
next to each picture you would like to transfer to iXL.
Hint: You can also click on the Select All link to transfer all the pictures from
the My Library side to the My Handheld side of the screen.
Click on the• Transfer Pictures button to move the pictures onto the
My Handheld side of the screen and iXL™.
Hint: If you’d like the pictures in your slideshow in a particular order, be sure
to transfer pictures in that order.
To remove pictures from• iXL, first click on the check box next to the picture
on the My Handheld side of the screen. Then, click on . You can also use
this process to remove pictures from the My Library side of the screen.
Hint: If you’d like to check how much memory is available on iXL, look at the
memory gauge on the My Handheld side of the screen.
My Library Pictures My Library Pictures
To rotate pictures before transferring• them to iXL™, first click on the check
box next to the picture.
Then, click on the rotate buttons• or on the bottom left of the screen.
Check Box
Check Box
Select All Link
Rotate
Buttons
Remove
Button
Memory
Gauge
Transfer
Pictures
M
M
M
M
M
My
M
y
