Fransgard SV-2500SE User manual

Translated from original manual
Fransgård
Manual
GB
Swath wilter
SV-2500SE

Fransgård Maskinfabrik A/S
Fredbjergvej 132
DK - 9640 Farsø
Phone: [phone]
www.fransgard.dk
[email protected]

1
LIST OF CONTENTS Page
Technical specifications.......................................................... 1
Safety Precautions.................................................................. 2
Introduction............................................................................. 2
Assembling instructions .......................................................... 2
Mounting on the tractor........................................................... 2
Starting of the machine........................................................... 3
Lubrication and Maintenance.................................................. 3
Fitting the belt-drive ................................................................ 4
Power transfer......................................................................... 5
Storage of belt drive................................................................ 5
Ordering Spare parts .............................................................. 6
Storage ................................................................................... 6
Disposal and destruction......................................................... 6
Assembling SV-2500SE.......................................................... 7
TECHNICAL SPECIFICATIONS:
Working width ....................................................... 2,50 mtr/8’2”
Transport width..................................................... 3,00 mtr/9’8”
Working speed, max .............................8-13 km/h / 5-8 miles/h
Power requirement................................................60 hp/45 kW
Power take-off..............................................................540 rpm
Tyre size .........................................................16,5 x 8” – 6 ply
Recommended tyre pressure.........................................2,7 bar
Weight..............................................................910 kg/2.006 Lb
Number of double rake tines...........................................72 pcs

2
SAFETY PRECAUTIONS
It is the owner’s responsibility to instruct all equipment
operators and support personal in the operation of the
machine. Do not operate this machine until the owner’s
manual has been completely read and understood. New
owner’s manual is available from your dealer or the
factory telephone: [phone].
All covers and screen must be correctly positioned and
checked before the machine is started. It is dangerous
to remain in the machine’s working area while its
working parts are rotating. Keep hands, feet and
clothing away from the power-driven parts! Do not leave
the tractor running unattended.
Disengage the PTO and turn the tractor off before you
service the machine.
The machine is made to work in hay and straw crops
and may not be used for anything else.
The machine may only be operated by qualified
operator.
Familiarise yourself with the controls and how to stop
the machine and tractor in an emergency.
Do not let children or incapable persons operate the
machine. Machine lubrication, adjustment and setting
may only take place while machine is not in use and
while the power take-off is switched off.
Remove the keys so the tractor cannot be started up
accidentally.
Retighten bolts and check adjustments after approx. 5
hours of operation.
Use only original Fransgård spare parts.
Introduction:
Assemble instructions
The swath Wilter model SV-2500SE is partly assembled
from the factory. All loose parts have to be mounted
according to the parts drawings later in the spare part
manual. Loose parts which is not mounted is: three
point hitch, 2 pieces stabilising chains, 2 pieces tines, 2
pieces wheels with brackets, support legs, PTO-cover.

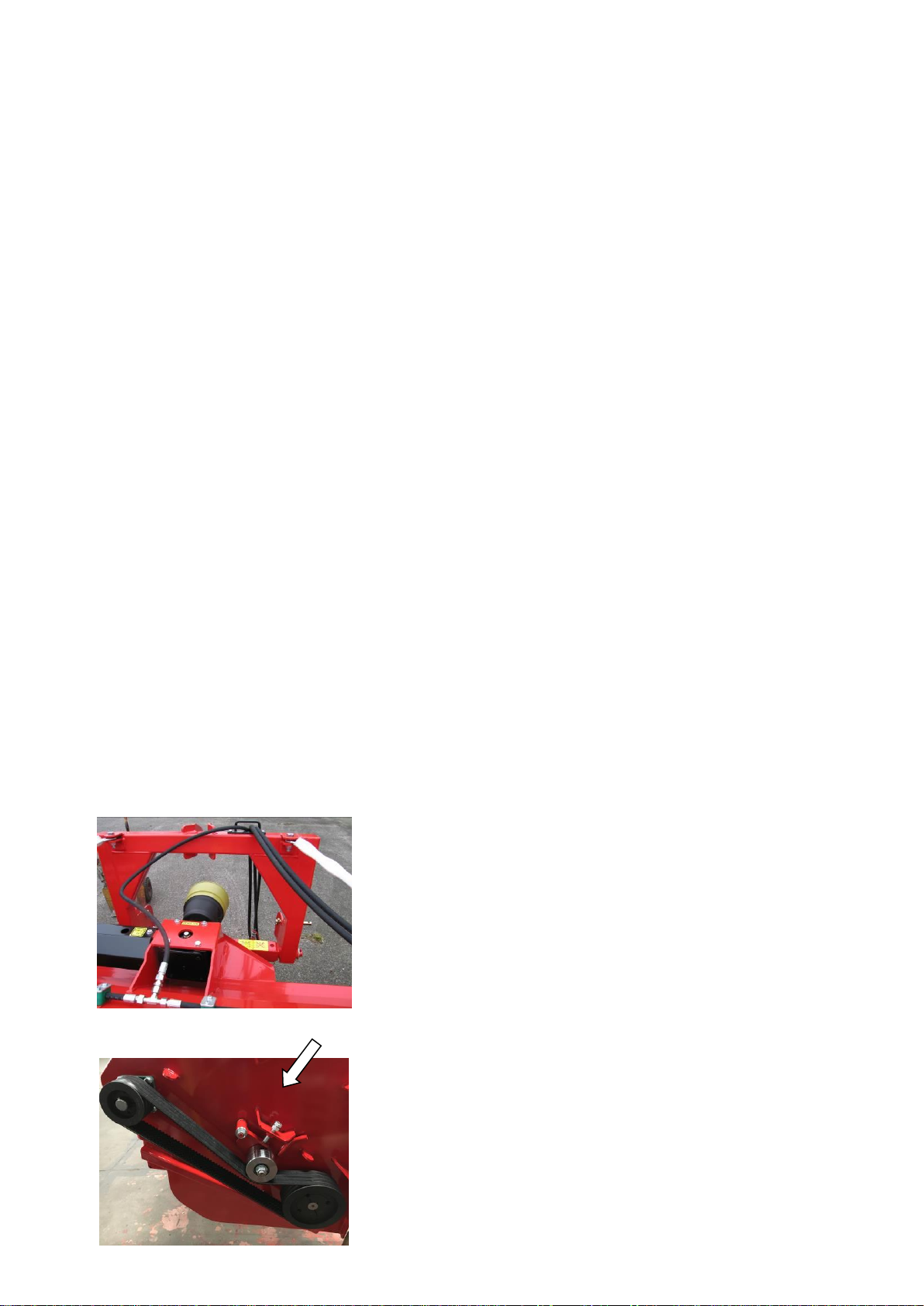

The gearbox is from Fransgård filled with 1,2 litre SAE
80/90 W oil and needs to be checked by the plug at the
back of the gearbox before starting to operate
(picture 1).
The machine is mounted with 4 pieces V-belts, which is
tightened from Fransgård, but need to be checked
before operation otherwise retighten (picture 2).
Mounting on the tractor
The swath Wilter SV-2500SE is mounted on the tractors
three-point hitch and the PTO is mounted after this. It is
very important to check the length of the PTO in both
working- and transport-position.
Picture 1
Picture 2

3
Starting the machine

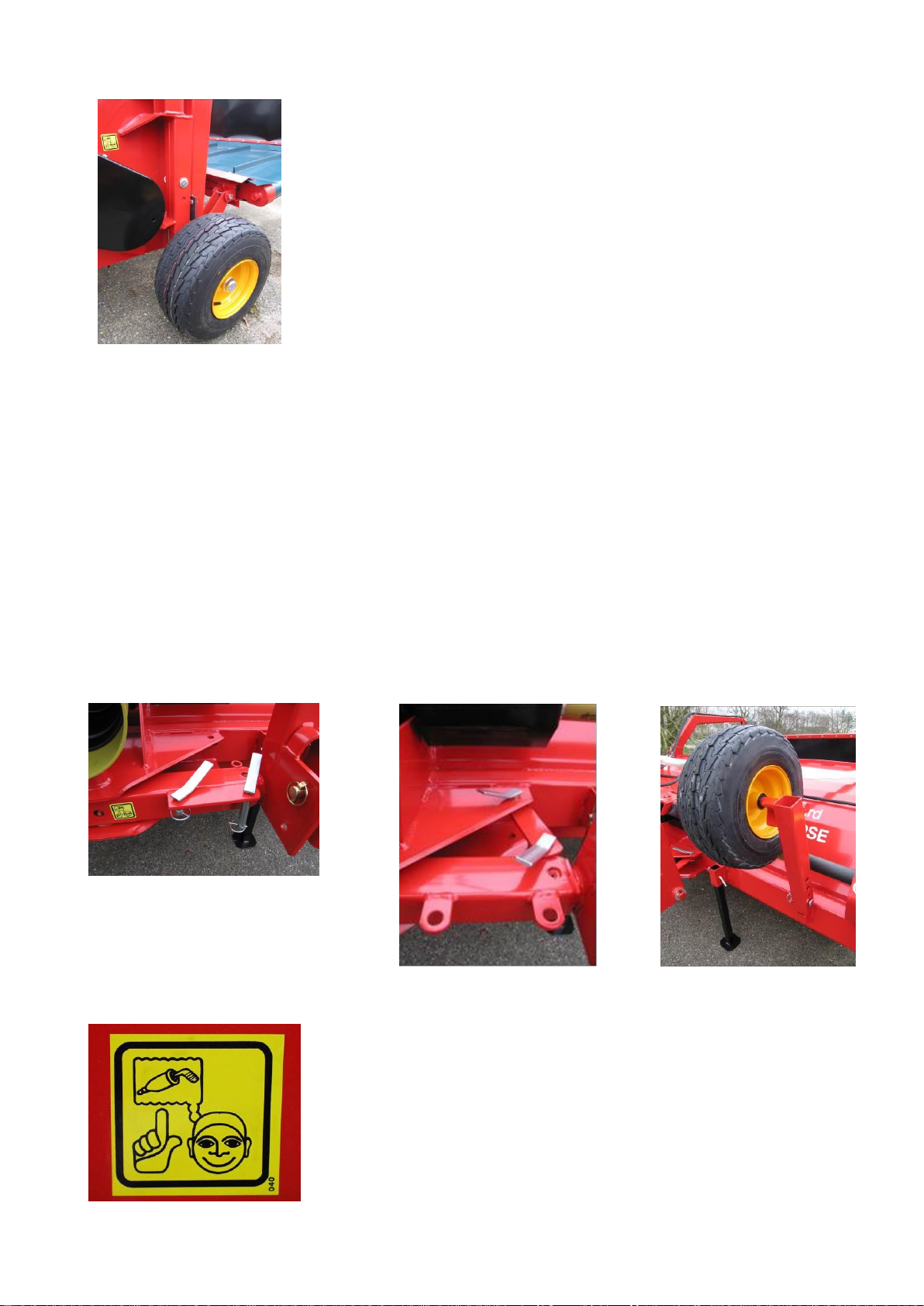

The machine is lowered on the wheels (picture 3) which
is adjusted to the needed raking height. Fine
adjustment of raking height is done on the top link. The
support leg is raised. By spreading the band will be
lifted by the hydraulic. The swath can be moved to the
right and side left by the transport band. When the
machine is moved in the three-point hitch, the lock
bracket can be placed as shown (picture 4).
The best working performance is done by a forward
speed from 8 –13 km/h (5-8 miles/h). Please check
rotor- and forward-speed according to the hay/crops
and your field conditions.
Transport position.
The machine must be kept in place by means of the
bracket and bolts (picture 5).
The wheels can be mounted in the bracket on the front
of the machine to increase the transport width
(picture 6).
Lubrication and maintenance
For every 5 hours working the machines bearings, and
stickers (picture 7) and PTO shaft. Retighten bolts, nuts
and V-belts at the same.
The gearbox is filled with 1,2 litre gear oil SAE 80/90 W
and has to be checked daily and refilled if needed.
Picture 3
Picture 4
Picture 7
Picture 5
Picture 6

4

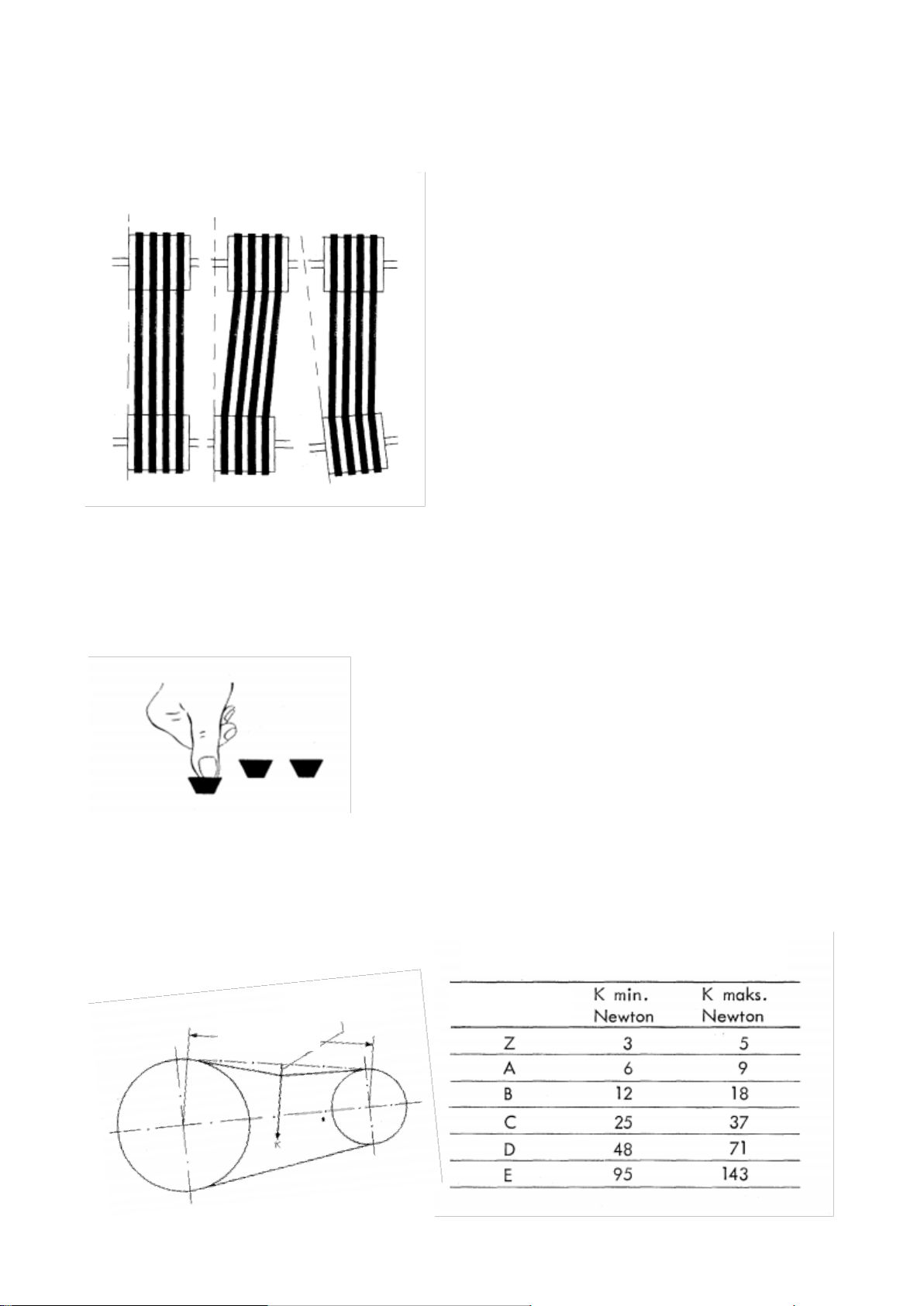

Fitting the belt drive
The pulleys must be flush, and the shafts must be parallel.
After approx. 10 –20 min. driving, the V-belt must be retightened, the belts must max.
could be pressed 15mm per meter in span. If the belt is defective it must be replaced. If
the belt is new, you must retighten sometimes, this can contribute to the belt lasting longer
and you avoid downtime.
The strap must be tightened so much that it feels “alive”when it is set in oscillations with
one finger. Tightening the belt destroys the cord and causes unnecessarily high bearing
load.
If a closer check of the belt tension is desired, this can be done as follows: The span is
measured as shown in the sketch. In the middle of the span, a force K, perpendicular to
the span, is placed sufficient to deflect the belt 15 mm per 1 m span. The deflection force
for each V-belt should be within the minimum and maximum force given in the schedule.
The schedule applies to the classics.
Correct in-correct
Deflection
Span
Deflection K (per belt)
Belt profile

5

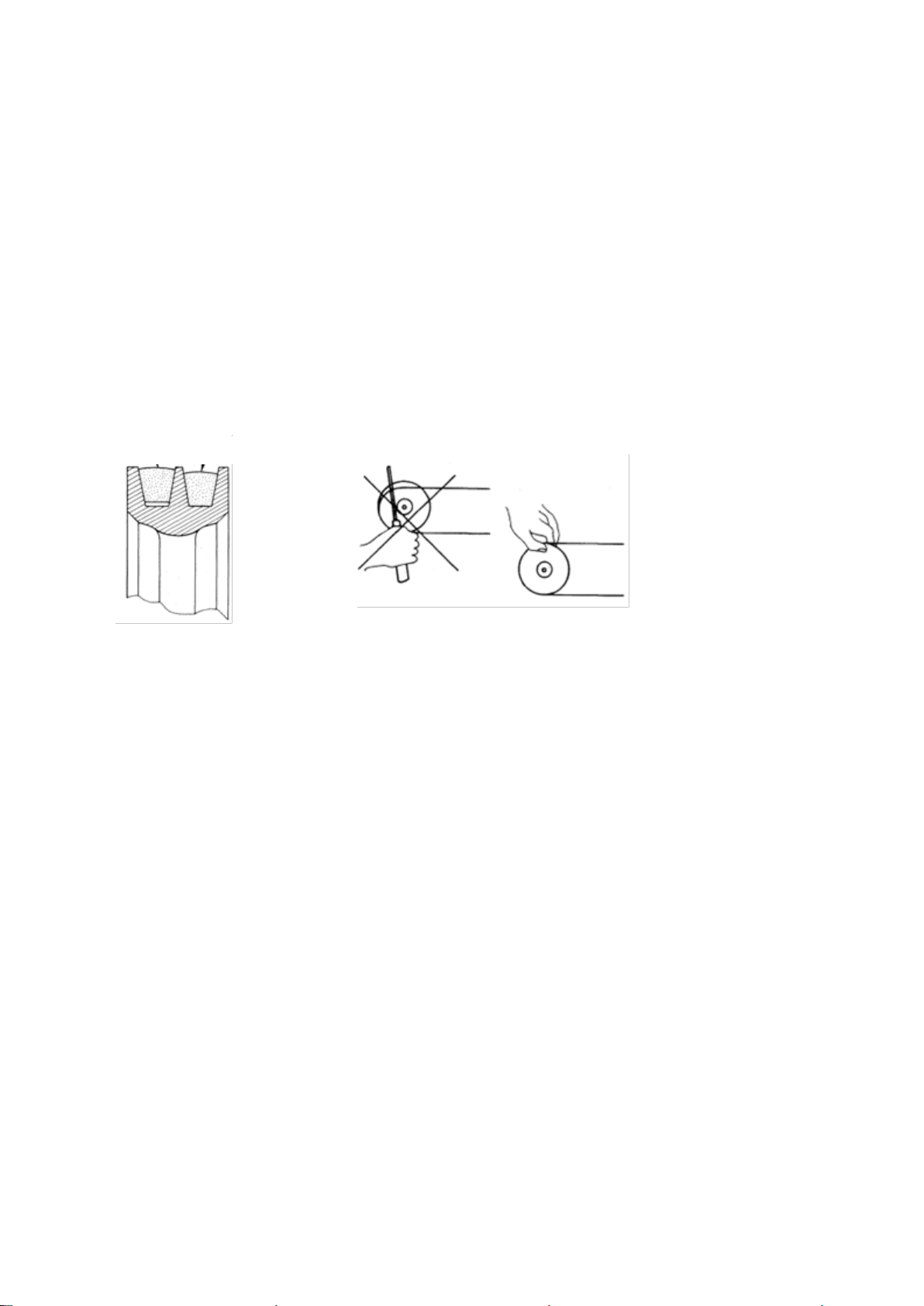

Power transfer
Poor power transfer may be due to:
a. Fitting the belt drive incorrectly.
b. Dirt, oil, grease, paint and rust on belts and pulleys. Oil and grease on the discs can be
washed off with mineral spirits, benzene, trichlorethylene, tetra chlorocarbon and the like.
Oil and grease on ordinary V-belts will eventually dissolve the rubber. Wipe the straps with
a clean cloth, possibly with a little turpentine or similar.
Paint and rust on the pulley can be removed with emery cloth. The disc should preferably
rotate, possibly clamped in a lathe during trimming.
c. The belts / pulleys are worn so that the belts go to the bottom of the tracks. If the pulley
is shiny in the track bottom, this is probably the problem.
d. The belt record has been damaged due to:
Tightening of the belts.
New and used belts in the same pull or attachment with a screwdriver.
New belts should not be used in sets with used ones, as the results is that the new belts
wear quickly due to uneven distribution of the load.
The belt must neverbe forced over the pulleys, e.g., application with screwdriver. Instead,
the centre distance is reduced or thetension roller is relaxedso that the belt canbeapplied
by hand.
Storage of belt drive.
When machines are left for a long time with tightened belt drives and in a humid environment,
the following happens:
a. The pulleys rust and cause: That the belt wears up due to rust.
b. The belts are shaped according to the discs and at start-up may run with the inside out or
burst.
c. The bearing may be damaged due to the tightening.
It is therefore approprierede:
To remove the straps and put them in a dry and cool place. When hanging, this must be done
on a bow or similar, never on a nail.
To rust protect the pulley with special grease or oil.
Correct in-correct

6
Storage
Before the machine is stocked for the winter, the
machine has to be cleaned and greased properly. V-
belts have to be loosened and swath deflectors have to
be dismounted (take less space). The machines are

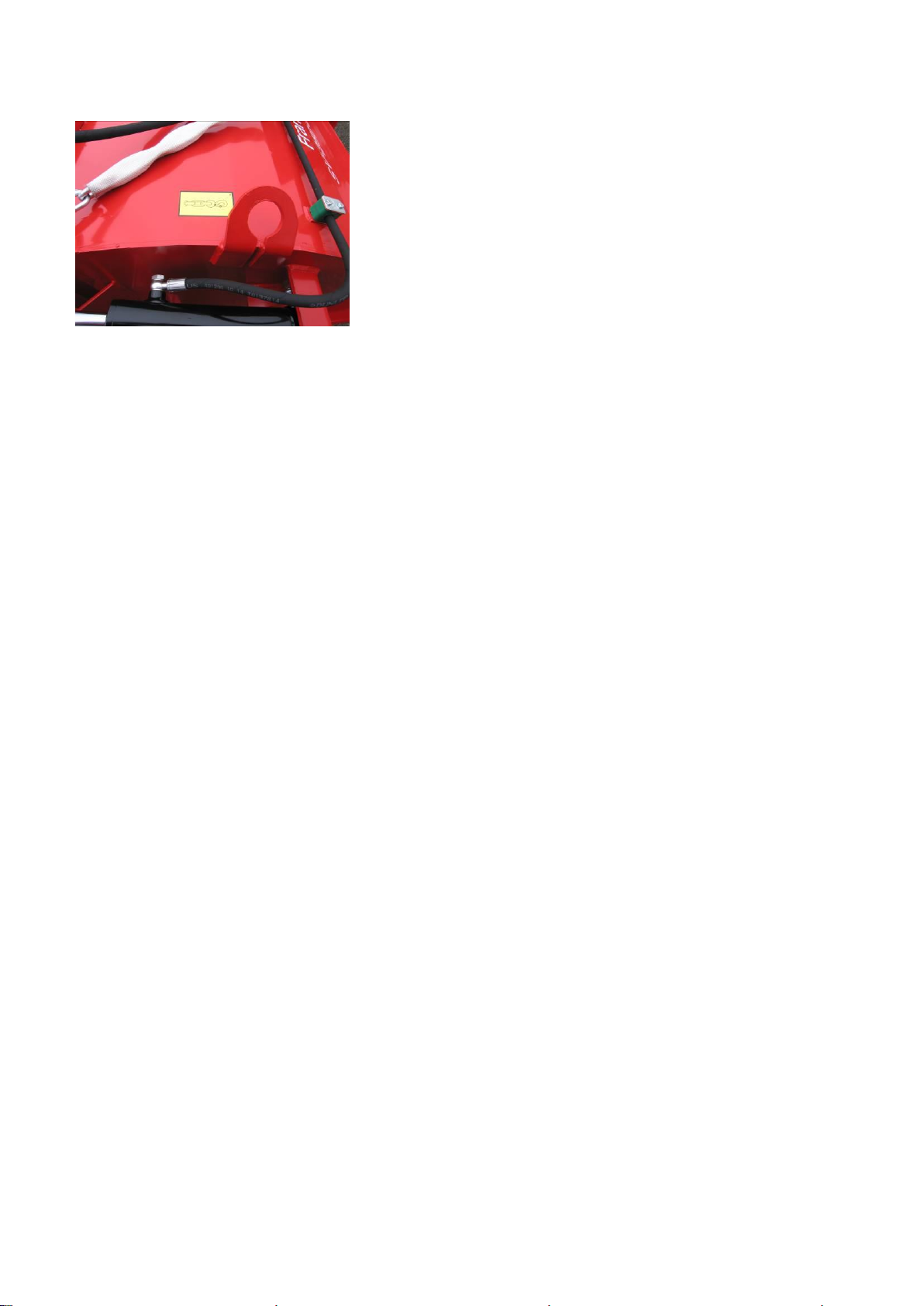

equipped with a lifting eye (picture 8) in each side for
lifting and storage.
Ordering spare parts
When you order spare parts please inform the following:
1. Type of machine SV-2500SE and
serial no.
2. Spare part number, maybe dimension and
number of parts.
Disposal and destruction.
When the machine can no longer be used, it is the owner’s responsibility that the machine
is disposed of in a safe manner, oil, plastic, metals etc. Must be destroyed or sent for
recycling, in accordance with the laws and regulations of that country.
Picture 8

7

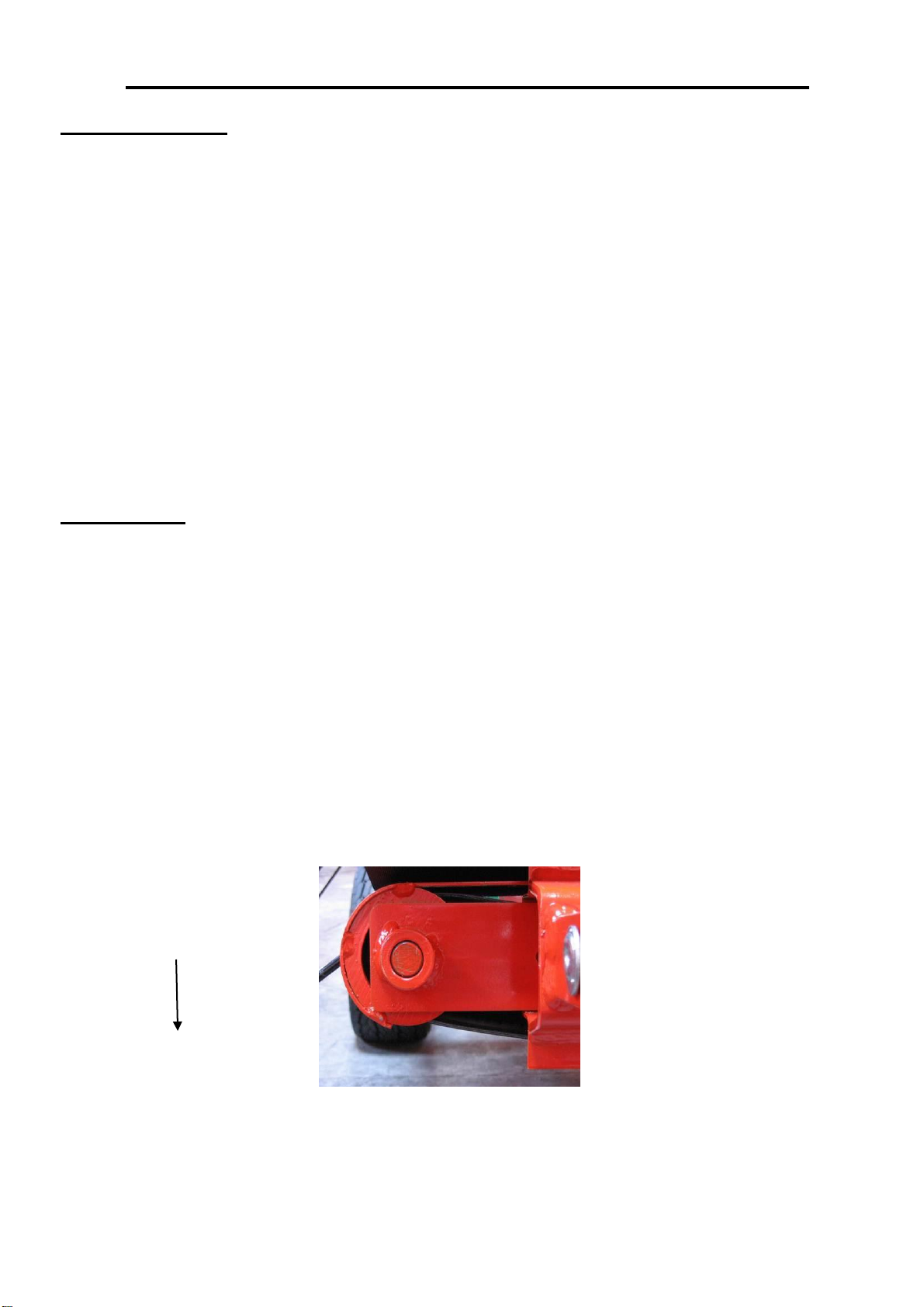

Assembly and user guide for escalator unit on SV-2500SE
Assembly guide
1. Screws and nuts etc. are placed on the right spots.
2. The two tube brackets must be fixed into the brackets just above the wheels on the main frame,
please note there is a right and left bracket. Hang up the escalator unit into the tube brackets and
tighten all screws.
3. Insert the hoses into the holders on the tube
4. Attach the guard on the back, and the cylinder.
5. Pull the hydraulic hoses through the brackets on the three point linkage
6. Attach the swath guards (left and right)
Users guide
1. Please read the safety precautions.
2. The escalator unit is equipped with an oil motor operating the escalator.
ATTENTION: the flow must not exceed 60 litre per minute, and the pressure 175 bar.
With the oil motor you are able regulate the speed of the escalator, and bringing the crop either to
the left or the right. Further to this you can also collect three swaths.
3. The escalator has been adjusted from the factory, though it is necessarily from the first hour of use
to make some extra adjustments.
To avoid the escalator being angled, please make sure that both ends on the escalator is equal
adjusted. This can be measured from the escalator frame to the centre of roller axle (fig. 1/2)
