Frico AGI6000 User manual

AGI4500/6000
Original instructions
.... 18
SE .... 21 GB .... 24
NO .... 27 FR .... 31 DE
.... 35
ES .... 39 NL .... 43 IT .... 47 PL .... 51 RU

Introduktionssidorna består huvudsakligen av bilder. För översättning av de
engelska texter som används, se respektive språksidor.
SE
The introduction pages consist mainly of pictures. For translation of the
English texts used, see the respective language pages.
GB
Introduksjonssidene består hovedsakelig av bilder. For oversettelse av de
engelske tekstene, se de respektive språksidene
NO
Les pages de présentation contiennent principalement des images. Consulter
la page correspondant à la langue souhaitée.
FR
Die Einleitungsseiten bestehen hauptsächlich aus Bildern. Für die Übersetzung
der verwendetenTexte in englischer Sprache, siehe die entsprechenden
Sprachseiten.
DE
Las páginas introductorias contienen básicamente imágenes. Consulte la
traducción de los textos en inglés que las acompañan en las páginas del
idioma correspondiente.
ES
De inleidende pagina's bevatten hoofdzakelijk afbeeldingen.Voor een vertaling
van de gebruikte Engelse teksten, zie de pagina's van de resp. taal.
NL
Le pagine introduttive contengono prevalentemente immagini. Per le
traduzioni dei testi scritti in inglese, vedere le pagine nelle diverse lingue.
IT
Początkowe strony zawierają głównie rysunki. Tłumaczenie wykorzystanych
tekstów angielskich znajduje się na odpowiednich stronach językowych.
PL
AGI4500/6000
2
RU Страницы в начале Инструкции состоят в основном из рисунков, схем и
таблиц. Перевод встречающегося там текста приведен в разделе RU.

AGI4500
DN25 (1"), inside thread
2
AGI4500/6000
3
Fig.1a
L
[mm]
AGI4515 1500
AGI4520 2000
AGI4525 2500
AGI4530 3000
L
300
135
135
255 195
430
80
640 486
185245
80
10
25
465
1,5 m: 4 x M10
2, 2,5, 3 m: 6 x M10
640
430640
486
25
10
625
50
465
L
Vertical mounting
Horizontal mounting
L/2

AGI6000
Fig.1b
Horizontal mounting
L
575 7575
485
185
730
300
1601,2; 1,8 m; 2,4 m: 6 x M10
3 m: 10 x M10
56,5
101,5
240
195
AGI4500/6000
4
L
[mm]
AGI6012 1200
AGI6018 1800
AGI6024 2400
AGI6030 3000
L/2
25
25
25
25
A
GI6012
A
GI6018
A
GI6024
737,5
25
25
25
25
737,5
737,5
737,5
A
GI6030
L/2
25
25
25
25
A
GI6012
A
GI6018
A
GI6024
737,5
25
25
25
25
737,5
737,5
737,5
AGI6030
2Inside thread
AGI6012/6018/6024: DN25 (1")
AGI6030: DN32 (1 1/4")

Vertical mounting
300
485
185
730
160
50
L
25
25 25
75 75575
25
300
300
485
185
730
160
50
L
25
25 25
75 75575
25
300
AGI6000
Fig.1c
AGI4500/6000
5
L
[mm]
AGI6012 1200
AGI6018 1800
AGI6024 2400
AGI6030 3000
2Inside thread
AGI6012/6018/6024: DN25 (1")
AGI6030: DN32 (1 1/4")

Fig. 2. Floor frame
Fig. 3. Minimum distance
A
[mm]
B
[mm]
C
[mm]
D
[mm]
AGI4500 251 625 215 432
AGI6000 296 717 260 524
AGI4500/6000
6
min
300 mm
A
C
D
18
96.5
B
50
13.2X4

Accessories
AGI4500/6000
7
AXP500
DBS10-4 AGIH4515
DBS10-6 AGIH4520/4525/4530
GP1010 AGIH6000
AXP500 AGIV
DBS
RTRD3
RTRD5.2
RTRD7
RTRD14
RTRDU7
T10S
RTI2
AGB304
MDC
MDCDC
Controls
VRS20 DN20
VRS25 DN25
TVVS20 DN20
TVVS25 DN25
SD20
GP1010
RTI2
T10S
(AGI W)
RTRD3/5.2/7 RTRD14 AGB304
MDC
RTRDU
Level 1 12
Level 2 2
SD20
AV20/25TRVS20/25
BPV10JVF20/25
VRS20/25
TVVS20/25 SD20
GP1010
AGIH6012/6018/6024 6 pcs
AGIH6030 10 pcs

AGI4500/6000 A

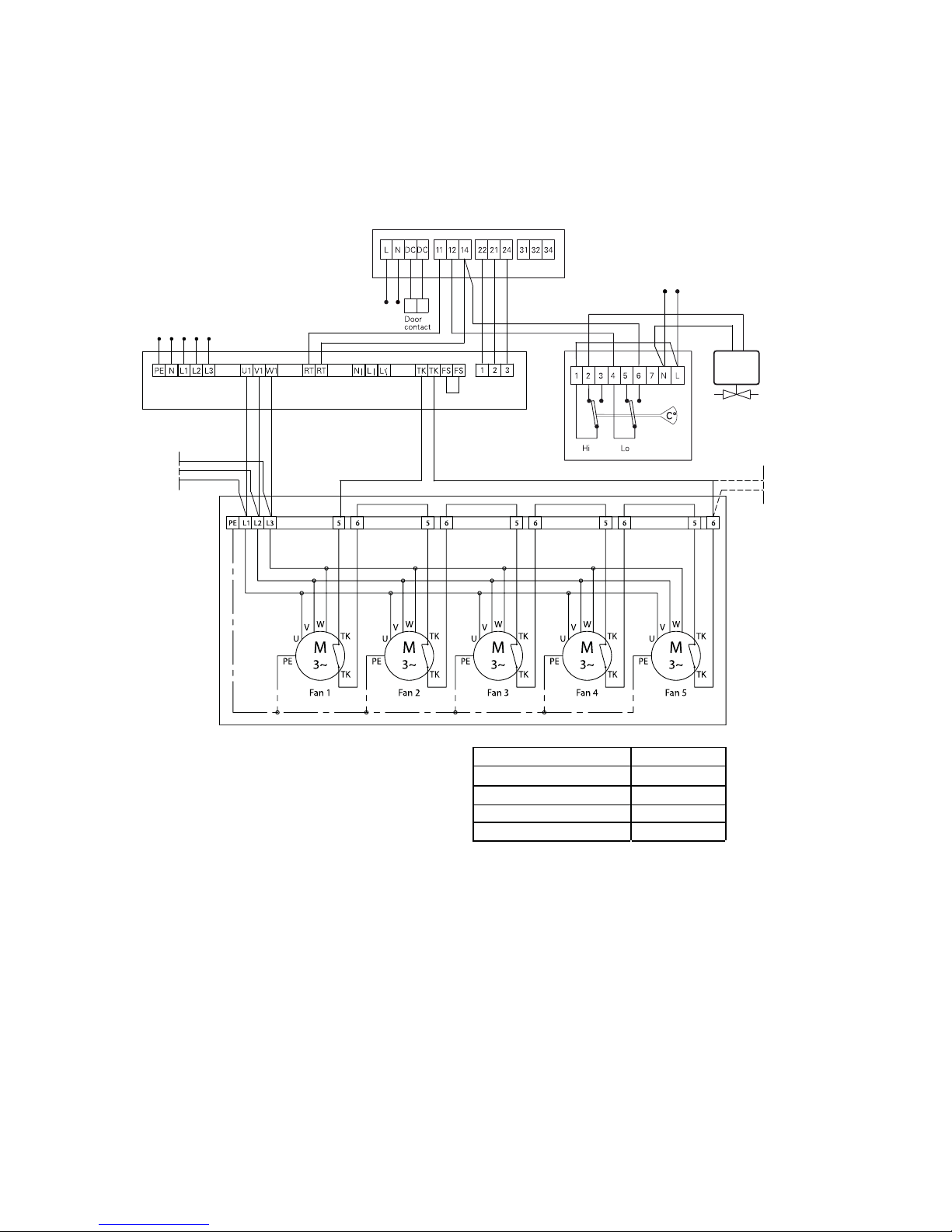

PE L1NL2L3NLL TK TK FS FSU1 V1 W1 RT RT
400V3N~
RTRD
Fan 1
M
3~
M
3~
M
3~
M
3~
U
V
TK
W
TK
PE
U
V
TK
W
TK
PE
U
V
TK
W
TK
PE
U
V
TK
W
TK
PE
U
V
TK
W
TK
PE
Fan 2 Fan 3 Fan 4 Fan 5
M
3~
PE L1 L2 L3 56 65 65 65 65
AGI
13
14
AGB
To
terminals
L1, L2 and
L3 in slave
units.
Bridge RT-RT if no door
contact is used.
To
terminals
5-6 in slave
units.
Number of fans
AGI4515/AGI6012 2
AGI4520/AGI6018 3
AGI4525/AGI6024 4
AGI4530/AGI6030 5
AGI4500/6000
8

AGI4500/6000 W
Level 1
PE L1NL2L3NLL TK TK FS FSU1 V1 W1 RT RT
400V3N~
RTRD
SD20
TVVS20/25
Fan 1
M
3~
M
3~
M
3~
M
3~
U
V
TK
W
TK
PE
U
V
TK
W
TK
PE
U
V
TK
W
TK
PE
U
V
TK
W
TK
PE
U
V
TK
W
TK
PE
Fan 2 Fan 3 Fan 4 Fan 5
M
3~
PE L1 L2 L3 56 65 65 65 65
230V~
A/B
244
>t°C
627
T10S
13
14
AGB
1
2
3
KRT1900
To
terminals
L1, L2 and
L3 in slave
units.
Bridge RT-RT if no door
contact is used.
To
terminals
5-6 in slave
units.
Number of fans
AGI4515/AGI6012 2
AGI4520/AGI6018 3
AGI4525/AGI6024 4
AGI4530/AGI6030 5
AGI
AGI4500/6000
9

AGI4500/6000 W
Level 2
RTI2
TVVS20/25
SD20
MDC
RTRDU
230V~
230V~
400V3N~
Number of fans
AGI4515/AGI6012 2
AGI4520/AGI6018 3
AGI4525/AGI6024 4
AGI4530/AGI6030 5
To
terminals
L1, L2 and
L3 in slave
units.
To
terminals
5-6 in slave
units.
AGI
AGI4500/6000
10

AGI4500/6000
230V3~
-connected - only for 230V3~
AGI
AGI4500/6000
11
Convertible 400V3~ / 230V3~

See www.frico.se for additional calculations.
AGI4500/6000
12
Output charts water AGI4500WL
Supply water temperature: 80 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 80/60 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI4515WL Max 5500 32 43 0,21 0,8 44 42 0,53 4,8
AGI4520WL Max 7300 42 39 0,25 1,3 61 43 0,75 10,1
AGI4525WL Max 9100 52 37 0,29 2,1 78 43,5 0,96 18
AGI4530WL Max 10900 62 37 0,35 2,1 94 44 1,15 20
Supply water temperature: 70 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 70/50 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI4515WL Max 5500 32 46 0,32 1,8 34 36,5 0,41 3
AGI4520WL Max 7300 42 43 0,378 2,9 48 37,6 0,59 6,5
AGI4525WL Max 9100 52 41 0,436 4,3 62 38 0,75 11,7
AGI4530WL Max 10900 62 41 0,52 4,5 74 38 0,9 13
Supply water temperature: 60 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 60/40 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI4515WL Max 5500 32 50 0,77 9,7 25 31 0,3 1,7
AGI4520WL Max 7300 42 48 0,85 13,5 35 32 0,43 3,7
AGI4525WL Max 9100 51 45 0,83 14,2 46 33 0,55 6,8
AGI4530WL Max 10900 62 46 1,08 18 55 33 0,66 7, 1
Supply water temperature: 55 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 55/35 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI4515WL Max 5500 - - - - 19 28 0,3 1,7
AGI4520WL Max 7300 42 50 2,01 46,7 29 30 0,34 2,5
AGI4525WL Max 9100 - - - - 35 29,5 0,56 7, 1
AGI4530WL Max 10900 - - - - 45 30 0,53 4,9
*1) Recommended outlet air temperature for good comfort and optimized output.
*2) Nominal output at given supply and return water temperature.
– = at the current water temperatures and airflows, the air outlet temperature will be less than 35 °C.

AGI4500/6000
13
Output charts water AGI4500WH
*1) Recommended outlet air temperature for good comfort and optimized output.
*2) Nominal output at given supply and return water temperature.
Supply water temperature:110 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 110/80 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI4515WH Max 5500 32 49 0,46 0,26 51 45,6 1,52 2,5
AGI4520WH Max 7300 42 44 0,57 0,45 72 47,3 2,14 5,4
AGI4525WH Max 9100 52 40,5 0,67 0,67 93 48,3 2,75 9,5
AGI4530WH Max 10900 62 41 0,8 0,74 111 48,3 3,3 11,0
Supply water temperature:90 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 90/70 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI4515WH Max 5500 31 53,5 0,21 0,7 42 40,5 0,51 3,8
AGI4520WH Max 7300 42 49,5 0,26 1,12 58 41,8 0,72 7, 9
AGI4525WH Max 9100 52 46 0,29 1,58 74 42 0,9 10,4
AGI4530WH Max 10900 63 47 0,36 1,85 90 42,5 1,1 16,1
Supply water temperature:80 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 80/60 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI4515WH Max 5500 31 56 1,15 1,54 34 36,3 1,49 2,5
AGI4520WH Max 7300 42 52,5 1,35 2,32 48 37,5 2,11 5,5
AGI4525WH Max 9100 52 49,5 1,5 3,14 62 38,2 2,72 9,7
AGI4530WH Max 10900 63 50 1,83 3,65 74 38,2 3,26 11,1
Supply water temperature:82°C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 82/71 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI4515WH Max 5500 32 42 0,19 0,7 41 40,1 0,91 11,5
AGI4520WH Max 7300 42 39 0,24 1,2 57 41,1 1,27 23,7
AGI4525WH Max 9100 52 36 0,27 1,8 73 41,7 1,62 26,7
AGI4530WH Max 10900 63 37 0,34 2,0 87 41,8 1,95 27,8
See www.frico.se for additional calculations.

AGI4500/6000
14
Output charts water AGI6000WL
Supply water temperature: 80 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 80/60 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI6012WL Max 6600 38,8 38,0 0,23 6,3 55,1 42,5 0,67 47,8
AGI6018WL Max 9600 56,4 40,0 0,35 2,4 77,5 41,7 0,95 15,7
AGI6024WL Max 12600 71,6 38,0 0,42 2,8 103,6 42,1 1,26 21,2
AGI6030WL Max 15600 90,7 38,0 0,53 1,9 130,1 42,4 1,59 14,6
Supply water temperature: 70 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 70/50 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI6012WL Max 6600 37,2 41,0 0,31 11,4 43,9 37,5 0,53 31,3
AGI6018WL Max 9600 55,4 44,0 0,52 5,1 61,6 36,8 0,75 10,2
AGI6024WL Max 12600 73,8 44,0 0,69 7, 0 82,3 37,1 1,00 13,9
AGI6030WL Max 15600 93,0 44,0 0,87 4,7 103,4 37,4 1,26 9,5
Supply water temperature: 60 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 60/40 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI6012WL Max 6600 39,4 50,0 0,96 96,0 32,5 32,5 0,39 18,1
AGI6018WL Max 9600 55,4 50,0 1,35 31,7 45,5 31,9 0,55 5,9
AGI6024WL Max 12600 74,1 50,0 1,80 42,7 60,7 32,1 0,74 8
AGI6030WL Max 15600 93,0 50,0 2,26 29,5 76,5 32,4 0,93 5,4
Supply water temperature: 55 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 55/35 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI6012WL Max 6600 37,3 50,0 2,01 404,9 26,8 29,9 0,32 12,7
AGI6018WL Max 9600 54,7 53,0 5,89 565,0 37,3 29,4 0,45 4,1
AGI6024WL Max 12600 73,2 53,0 7,89 728,4 49,6 29,6 0,60 5,6
AGI6030WL Max 15600 88,3 50,0 4,76 126,1 62,7 29,8 0,76 3,8
*1) Recommended outlet air temperature for good comfort and optimized output.
*2) Nominal output at given supply and return water temperature.
See www.frico.se for additional calculations.

AGI4500/6000
15
Output charts water AGI6000WH
*1) Recommended outlet air temperature for good comfort and optimized output.
*2) Nominal output at given supply and return water temperature.
Supply water temperature:110 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 110/80 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI6012WH Max 6600 37,3 47,0 0,15 0,9 57,9 43,7 0,48 7, 9
AGI6018WH Max 9600 56,5 47,0 0,22 1,2 87,4 44,7 0,72 10,9
AGI6024WH Max 12600 71,2 44,0 0,27 1,2 115,9 45 0,95 12,5
AGI6030WH Max 15600 88,6 44,0 0,33 0,7 145,7 45,4 1,20 8
Supply water temperature:90 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 90/70 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI6012WH Max 6600 37,5 54,0 0,26 2,5 47 38,9 0,58 11,6
AGI6018WH Max 9600 56,7 54,0 0,39 3,5 70,9 39,6 0,87 16
AGI6024WH Max 12600 72,7 52,0 0,47 3,4 94 39,9 1,15 18,4
AGI6030WH Max 15600 90,9 52,0 0,58 2,1 118,2 40,2 1,45 11,8
Supply water temperature:80 °C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 80/60 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI6012WH Max 6600 37,2 58,0 0,40 6,0 38,7 35,2 0,47 8,1
AGI6018WH Max 9600 56,2 58,0 0,61 8,4 58,4 35,8 0,71 11,2
AGI6024WH Max 12600 74,7 58,0 0,81 9,7 77,5 36 0,95 12,9
AGI6030WH Max 15600 88,1 54,0 0,82 4,1 97,4 36,3 1,19 8,2
Supply water temperature:82°C
Room temperature: +18 °C
Outlet air temperature: +35 °C*1
Water temperature: 82/71 °C
Room temperature: +18 °C
Type Fan
position
Airflow
[m3/h]
Output
[kW]
Return
water
temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
Output *2
[kW]
Outlet
air temp.
[°C]
Water
flow
[l/s]
Pressure
drop
[kPa]
AGI6012WH Max 6600 38,0 58,0 0,39 5,5 45,4 38,2 1,01 34,6
AGI6018WH Max 9600 55,7 56,0 0,52 6,2 68,5 38,9 1,53 47,5
AGI6024WH Max 12600 71,6 54,0 0,62 5,9 90,8 39,1 2,02 54,2
AGI6030WH Max 15600 89,7 54,0 0,78 3,7 114,3 39,5 2,55 34,9
See www.frico.se for additional calculations.

AGI4500/6000
16
Technical specifications AGI4500
1Ambient, no heat - AGIH4500 A Horizontal mounting (IP54)
1Ambient, no heat - AGIV4500 A Vertical mounting (IP54)
2Water heat - AGIV4500 WL, coil for low water temperature (480 °C)Vertical mounting (IP54)
*1) Sound power (LWA) measurements according to ISO 27327-2: 2014, Installation type E.
*2) Sound pressure (LpA). Conditions: Distance to the unit 5 metres. Directional factor: 2. Equivalent absorption area: 200 m².
*3) ∆t = temperature rise of passing air at maximum heat output and highest airflow.
*4) Applicable at water temperature 60/40 °C, air temperature, in +18 °C.
*5) Applicable at water temperature 80/60 °C, air temperature, in +18 °C.
Type Output*4
[kW]
Airflow
[m3/h]
∆t*3,4
[°C]
Water
volume
[l]
Sound
power*1
[dB(A)]
Sound
pressure*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Length
[mm]
Weight
[kg]
AGIH4515WL 25 5500 13 7, 2 75 59 400V3~ 1,1 1500 109
AGIH4520WL 35 7300 14 9,7 76 60 400V3~ 1,5 2000 141
AGIH4525WL 46 9100 15 12,3 77 61 400V3~ 1,9 2500 174
AGIH4530WL 55 10900 15 14,6 78 62 400V3~ 2,2 3000 212
Type Output
[kW]
Airflow
[m3/h]
Sound
power*1
[dB(A)]
Sound
pressure*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Length
[mm]
Weight
[kg]
AGIH4515A 0 5500 75 59 400V3~ 1,1 1500 70
AGIH4520A 0 7300 76 60 400V3~ 1,5 2000 90
AGIH4525A 09100 77 61 400V3~ 1,9 2500 110
AGIH4530A 0 10900 78 62 400V3~ 2,2 3000 130
2Water heat - AGIH4500 WL, coil for low water temperature (480 °C) Horizontal mounting (IP54)
2Water heat - AGIH4500 WH coil for high water temperature (580 °C) Horizontal mounting (IP54)
2Water heat - AGIV4500 WH, coil for high water temperature (580 °C)Vertical mounting (IP54)
Horizontal mounting
Vertical mounting
Type Output*5
[kW]
Airflow
[m3/h]
∆t*3,5
[°C]
Water
volume
[l]
Sound
power*1
[dB(A)]
Sound
pressure*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Length
[mm]
Weight
[kg]
AGIH4515WH 34 5500 23 5,0 75 59 400V3~ 1,1 1500 97
AGIH4520WH 48 7300 24 6,6 76 60 400V3~ 1,5 2000 125
AGIH4525WH 62 9100 24 8,3 77 61 400V3~ 1,9 2500 154
AGIH4530WH 74 10900 24 9,9 78 62 400V3~ 2,2 3000 186
Type Output*4
[kW]
Airflow
[m3/h]
∆t*3,4
[°C]
Water
volume
[l]
Sound
power*1
[dB(A)]
Sound
pressure*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Height
[mm]
Weight
[kg]
AGIV4515WL 25 5500 13 7, 2 75 59 400V3~ 1,1 1550 114
AGIV4520WL 35 7300 14 9,7 76 60 400V3~ 1,5 2050 146
AGIV4525WL 46 9100 15 12,3 77 61 400V3~ 1,9 2550 179
AGIV4530WL 55 10900 15 14,6 78 62 400V3~ 2,2 3050 217
Type Output
[kW]
Airflow
[m3/h]
Sound
power*1
[dB(A)]
Sound
pressure*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Height
[mm]
Weight
[kg]
AGIV4515A 0 5500 75 59 400V3~ 1,1 1550 75
AGIV4520A 0 7300 76 60 400V3~ 1,5 2050 95
AGIV4525A 09100 77 61 400V3~ 1,9 2550 115
AGIV4530A 0 10900 78 62 400V3~ 2,2 3050 135
Type Output*5
[kW]
Airflow
[m3/h]
∆t*3,5
[°C]
Water
volume
[l]
Sound
power*1
[dB(A)]
Sound
pressure*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Height
[mm]
Weight
[kg]
AGIV4515WH 34 5500 23 5,0 75 59 400V3~ 1,1 1550 102
AGIV4520WH 48 7300 24 6,6 76 60 400V3~ 1,5 2050 130
AGIV4525WH 62 9100 24 8,3 77 61 400V3~ 1,9 2550 159
AGIV4530WH 74 10900 24 9,9 78 62 400V3~ 2,2 3050 191

AGI4500/6000
17
Technical specifications AGI6000
1Ambient, no heat - AGIH6000 A Horizontal mounting (IP54)
1Ambient, no heat - AGIV6000 A Vertical mounting (IP54)
2Water heat - AGIV6000 WL, coil for low water temperature (480 °C)Vertical mounting (IP54)
*1) Sound power (LWA) measurements according to ISO 27327-2: 2014, Installation type E.
*2) Sound pressure (LpA). Conditions: Distance to the unit 5 metres. Directional factor: 2. Equivalent absorption area: 200 m².
*3) ∆t = temperature rise of passing air at maximum heat output and highest airflow.
*4) Applicable at water temperature 60/40 °C, air temperature, in +18 °C.
*5) Applicable at water temperature 80/60 °C, air temperature, in +18 °C.
2Water heat - AGIH6000 WL, coil for low water temperature (480 °C) Horizontal mounting (IP54)
2Water heat - AGIH6000 WH coil for high water temperature (580 °C) Horizontal mounting (IP54)
2Water heat - AGIV6000 WH, coil for high water temperature (580 °C) Vertical mounting (IP54)
Horizontal mounting
Vertical mounting
Type Output*4
[kW]
Airflow
[m3/h]
∆t*3,4
[°C]
Water
volume
[l]
Sound
power*1
[dB(A)]
Sound
pressure*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Length
[mm]
Weight
[kg]
AGIH6012WL 33 6600 15 6,6 85 69 400V3~ 2,0 1200 72
AGIH6018WL 46 9600 14 10,1 87 71 400V3~ 2,8 1800 112
AGIH6024WL 61 12600 14 14,0 88 72 400V3~ 3,7 2400 150
AGIH6030WL 77 15600 14 1 7, 6 89 73 400V3~ 4,7 3000 185
Type Output
[kW]
Airflow
[m3/h]
Sound
power*1
[dB(A)]
Sound
pressure*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Length
[mm]
Weight
[kg]
AGIH6012A 0 6600 85 69 400V3~ 2,0 1200 51
AGIH6018A 0 9600 87 71 400V3~ 2,8 1800 75
AGIH6024A 0 12600 88 72 400V3~ 3,7 2400 97
AGIH6030A 0 15600 89 73 400V3~ 4,7 3000 120
Type Output*5
[kW]
Airflow
[m3/h]
∆t*3,5
[°C]
Water
volume
[l]
Sound
power*1
[dB(A)]
Sound
pressure*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Length
[mm]
Weight
[kg]
AGIH6012WH 39 6600 17 4,6 85 69 400V3~ 2,0 1200 65
AGIH6018WH 58 9600 18 7, 0 87 71 400V3~ 2,8 1800 98
AGIH6024WH 78 12600 18 9,5 88 72 400V3~ 3,7 2400 128
AGIH6030WH 97 15600 18 12,0 89 73 400V3~ 4,7 3000 158
Type Output*4
[kW]
Airflow
[m3/h]
∆t*3,4
[°C]
Water
volume
[l]
Sound
power*1
[dB(A)]
Sound
pressure*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Height
[mm]
Weight
[kg]
AGIV6012WL 33 6600 15 6,6 85 69 400V3~ 2,0 1250 77
AGIV6018WL 46 9600 14 10,1 87 71 400V3~ 2,8 1850 119
AGIV6024WL 61 12600 14 14,0 88 72 400V3~ 3,7 2450 157
AGIV6030WL 77 15600 14 1 7, 6 89 73 400V3~ 4,7 3050 192
Type Output
[kW]
Airflow
[m3/h]
Sound
power*1
[dB(A)]
Sound
pressure*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Height
[mm]
Weight
[kg]
AGIV6012A 0 6600 85 69 400V3~ 2,0 1250 56
AGIV6018A 0 9600 87 71 400V3~ 2,8 1850 80
AGIV6024A 0 12600 88 72 400V3~ 3,7 2450 102
AGIV6030A 0 15600 89 73 400V3~ 4,7 3050 125
Type Output*5
[kW]
Airflow
[m3/h]
∆t*3,5
[°C]
Water
volume
[l]
Sound
power*1
[dB(A)]
Sound
pressure*2
[dB(A)]
Voltage
motor
[V]
Amperage
motor
[A]
Height
[mm]
Weight
[kg]
AGIV6012WH 39 6600 17 4,6 85 69 400V3~ 2,0 1250 70
AGIV6018WH 58 9600 18 7, 0 87 71 400V3~ 2,8 1850 103
AGIV6024WH 78 12600 18 9,5 88 72 400V3~ 3,7 2450 133
AGIV6030WH 97 15600 18 12,0 89 73 400V3~ 4,7 3050 163

AGI4500/6000
21
GB
Assembly and operating instructions
General Instructions
Read these instructions carefully before
installation and use. Keep this manual for
future reference.
The product may only be used as set out in
the assembly and operating instructions. The
guarantee is only valid if the product is used
in the manner intended and in accordance
with the instructions.
Application area
AGI is a robust air curtain intended for
vertical or horizontal installation in large
doorways such as logistic centres, loading
bays and warehouses. Recommended
installation height AGI4500: 4,5 m and
AGI6000: 6 m. The air curtain is available
without heat and with water heating.
Protection class: IP54.
Operation
Air is drawn in at the top/rear of the unit and
blown out downwards/outwards so that it
shields the door opening and minimizes heat
loss. To achieve the optimum air curtain effect
the unit must extend the full height/width of
the door opening.
The grille nearest the door is adjustable and
is normally angled outwards to achieve the
best protection against incoming cold air.
The efficiency of the air curtain depends
on the air temperature, pressure differences
across the doorway and any wind pressure.
NOTE! Negative pressure in the building
considerably reduces the efficiency of the air
curtain. The ventilation should therefore be
balanced.
Mounting
The air curtain range includes variants for
horizontal and vertical installation. See
dimension drawings.
Horizontal mounting
The air curtain is installed horizontally with
the supply air grille facing downwards as close
to the door as possible. The unit is suspended
from the ceiling by threaded rods. For the
protection of wider doorways, several units
can be mounted next to each other.
Electrical installation
The installation, which should be preceded by
an omnipolar switch with a contact separation
of at least 3 mm, should only be wired by a
competent electrician and in accordance with
the latest edition of IEE wiring regulations.
Control (400V3~) is connected to the
terminal block in the junction box. The cable
glands used must meet the protection class
requirements. See wiring diagrams.
Connecting the water coil (W)
The installation must be carried out by an
authorised installer.
The water coil has copper tubes with
aluminium fins and is suitable for connection
to a closed water heating system. The heating
coil must not be connected to a mains
pressure water system or an open water
system.
Note that the unit shall be preceded by a
regulating valve, see Frico valve kit.
The water coil is connected via connections
with dimensions as given in the table
(see diagram) on the side of the unit. The
connections to the heating coil must be
equipped with shut off valves to allow problem
free removal.
Adjustment of the air curtain and air flow
The direction and speed of the air flow should
be adjusted considering the load on the
opening. Pressure forces affect the air stream
and make it bend inwards into the premises
Vertical mounting
The air curtain is mounted vertically as close
as possible to the door. For the best effect air
curtains should be placed on both sides of the
opening.
The unit can be turned and positioned on
either side of the door. The air curtain is
mounted on a floor frame which is included.
The edging is attached horizontal to the floor
using fasteners appropriate for the surface.
See Fig.2.
Two units can be mounted directly on top
of each other, they are fastened together with
supplied fastening plates. The air curtain
must be secured to wall or ceiling.

AGI4500/6000
22
GB
Replacing the water coil (W)
1.Shut off the water supply to the unit.
2.Disconnect the connections to the water
coil.
3.Remove the mounting screws securing the
coil in the unit and lift the coil out.
4.Install the new coil in reverse order to the
above.
Draining the water coil (W)
The drain valve is on the underside of the coil
on the connector side.
Trouble shooting
If the fans are not working or do not blow properly,
check the following:
• Operating power supply to the unit;
check fuses, circuit-breaker, time switch/
thermostat (if any) that starts and stops the
unit.
• That the air flow selector is correctly set.
• That the position limit switch is working.
• That the overheat protection for the motors
has not been deployed.
• That the intake grille/filter is not dirty.
If there is no heat, check the following:
• Settings for thermostat, omnipolar swtitch
etc are set so the unit can be expected to
provide heat.
For units with water coil, also check the following:
• That the water coil is air free.
• That there is enough water flow.
• That incoming water is heated enough.
If the fault cannot be rectified, please contact
a qualified service technician.
Filter (W)
The distance between the coil plates in
combination with the hole diameter of
the intake grille protects against dirt and
blockage. This normally makes a separate
filter unnecessary.
Service, repairs and maintenance
For all service, repair and maintenance
disconnect the power supply for all
connections.
Maintenance
Since fan motors and other components are
maintenance free, no maintenance other than
cleaning is necessary. The level of cleaning
can vary depending on local conditions.
Undertake cleaning at least twice a year. Inlet
and exhaust grilles, impeller and elements
can be vacuum cleaned or wiped using a
damp cloth. Use a brush when vacuuming
to prevent damaging sensitive parts. Avoid
the use of strong alkaline or acidic cleaning
agents.
Overheating
All motors are equipped with an integral
thermal safety cut-out. This will operate,
stopping the air curtain should the motor
temperature rise too high. The cut-out
will automatically reset when the motor
temperature has returned to within the
motor’s operating limits.
(when the premises are heated and the
outdoor air is cold).
The air stream should therefore be directed
outwards to withstand the load. Generally
speaking, the higher the load, the greater the
angle that is needed.
Basic setting fan speed
The fan speed when the door is open is set
using the control. Note that the air flow
direction and fan speed may need fine
adjustment depending on the loading of the
door.
Fan replacement
1.Determine which of the fans is not
functioning.
2.Disconnect the cables to the relevant fan.
3.Remove the screws securing the fan and lift
the fan out.
4.Install the new fan as above in reverse
order.

AGI4500/6000
23
GB
Safety
• Keep the areas around the air intake
and exhaust grilles free from possible
obstructions!
• The unit may have hot surfaces during
operation and when cooling down!
• Lifting equipment must be used to lift the
unit.
• This appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
the hazards involved. Children shall not
play with the appliance. Cleaning and user
maintenance shall not be made by children
without supervision.
