WARNING
Ground the equipment to
prevent electrical shock
and mutual interference.
Confirm that the power supply voltage
is compatible with the voltage rating
of the equipment.
Connection to the wrong power supply
can cause fire or equipment damage. The
voltage rating appears on the label at the
rear of the display unit.
Use the correct fuse.
Use of a wrong fuse can cause fire or
equipment damage.
Keep the following compass safe
distances.
Standard Steering
Antenna Unit
Communication Unit
Terminal Unit
Junction Box
Handset
Telex Distress Alert Button
Telephone Distress Button
Incoming Indicator
Printer
Facsimile
Telephone
SAFETY INSTRUCTIONS
Do not open the equipment
unless totally familiar with
electrical circuits and
service manual.
Only qualified personnel
should work inside the
equipment.
WARNING
Turn off the power at the
mains switchboard before
beginning the installation.
Post a sign near the switch
to indicate it should not be
turned on while the equip-
ment is being installed.
Fire, electrical shock or
serious injury can result if the
power is left on or is applied
while the eqiuipment is being
installed.
ELECTRICAL
SHOCK
HAZARD
1.60 m 1.10 m
2.10 m 1.40 m
1.10 m 0.80 m
1.10 m 0.90 m
2.05 m 1.40 m
0.80 m 0.60 m
1.00 m 0.80 m
1.60 m 1.20 m
0.50 m 0.40 m
Do not approach the ra-
dome closer than 6 meters
when it is transmitting.
The radome emits radio
waves which can be harmful
to the human body, particu-
larly the eyes.
1.0 m
6.0 m
100W/m
10W/m
distance
RF power density
on antenna aperture
2
2

ii
TABLE OF CONTENTS
EQUIPMENT LISTS..................................iii
SYSTEM CONFIGURATION ....................v
1 MOUNTING OF UNITS..........................1
1.1 Antenna Unit...........................................1
1.2 Communication Unit...............................9
1.3 Terminal Unit (for class 1 only)................11
1.4 Printer....................................................12
1.5 Junction Box IB-313................................13
1.6 Telex Distress Alert Button IB-352...........14
1.7 Telephone Distress Button IB-362...........14
1.8 Handset Hanger RB-2721B or
RB-2721B/362..........................................15
1.9 Mounting of Optional Equipment.............16
2 WIRING..................................................20
2.1 Standard Wiring......................................20
2.2 Handset IB-882/IB-882-362 ....................24
2.3 Junction Box IB-313................................25
2.4 Wiring at the Antenna Unit ......................26
2.5 Telephone FC755D1 (option)..................26
2.6 Facsimile PFX-50 (option) ......................27
2.7 Incoming Indicator IC-372 (option)..........28
2.8 Gyrocompass.........................................29
2.9 Telex Distress Alert Button IB-352/
Telephone Distress Button IB-362............30
2.10 DGPS Decoder.....................................31
2.11 Checking the Installation.......................32
3 INITIAL SETTINGS................................34
3.1 Hatch Direction and Heading Adjustment34
3.2 Setting of Telephone (option) ..................35
3.3 Facsimile PFX-50 Setting........................36
4 SYSTEM SETUP....................................38
4.1 Setting Up ..............................................38
4.2 Registering Answerback Code
(Class 1 only)............................................39
4.3 OID/DID Setting......................................40
4.4 Setting of Gyro Converter.......................42
5 9.6K DATA COMMUNICATIONS...........50
5.1 Installation..............................................50
5.2 Checking Operation................................50
5.3 Modem Setup.........................................51
5.4 Dial-up Setup..........................................54
6 CHANGING POWER SPECIFICATIONS
.............................................................58
PACKING LISTS.......................................A-1
OUTLINE DRAWINGS..............................D-1
SCHEMATIC DIAGRAMS.........................S-1

iii
EQUIPMENT LISTS
Standard Supply
Name Type Code No. Qty Remarks
Antenna Unit IB-182 - 1 set
Communication Unit IB-282 - 1 set
Terminal Unit IB-582 - 1 set Class 1 only
Junction Box IB-313 - 1 set
IB-882 - with handset hanger RB-2721BHandset
IB-882-362 -
1 set
with handset hanger RB-2721B-362
Telex Distress Alert
Button IB-352 - 1 set Class 1 only
Telephone Distress
Button IB-362 - 1 set Only when handset IB-882 is selected
Printer PP-510-82 - 1 set
CP16-01300 000-043-215 No antenna cable,
w/CP16-01101
CP16-01310 000-043-216 w/30m antenna
cable, CP16-01101
CP16-01320 000-043-217 w/50m antenna
cable, w/CP16-
01101
CP16-01330 000-043-218
1 set Supplied with antenna
unit
w/100m antenna
cable, w/CP16-
01101
CP16-01811 004-444-210 For CP16-
01310/01320
CP16-01812 004-444-220 For CP16-01330
CP16-01813 004-444-230
1 set Supplied with
Communication Unit
For CP16-01300
CP16-01820 000-043-387 1 set Supplied with Terminal
Unit Cable assy, Power cable, CP16-01821
CP16-01830 004-444-260 Connector assy
(5m), CP05-08002
CP16-01840 004-444-270 Connector assy
(10m), CP05-08002
CP16-01850 004-444-280
1 set Supplied with Handset
Connector assy
(20m), CP05-08002
CP16-01701 004-444-290 1 set Supplied with Printer
CP16-01102 004-441-450 1 set Supplied with Junction Box
CP16-01801 004-444-300 1 set Supplied with Telex Distress Alert Button
Installation Materials
CP16-01801 004-444-300 1 set Supplied with Telephone Distress Button
FP16-00400 000-043-388 1 set Supplied with Terminal Unit Mini keyboard,
FP16-00401
Accessories
FP16-00100 000-043-258 1 set Supplied with Printer Recording
paper

iv
Optional Supply
Name Type Code No. Qty Remarks
Incoming Indicator IB-372 - 1 set w/CP16-01801
Printer PP-510-82 - 1 set w/CP16-01701, FP16-00100
Facsimile PFX-50 - 1 set w/CP16-00590
Telephone FC755D1 - 1 set w/CP16-00511, 00512
Antenna Cover QB05-1801 100-079-480 1
Modular Jack Box OP16-10 000-043-278 1 Box type
Modular Jack Box OP16-11 000-043-279 1 Flush mount type
Modular Jack Set OP16-13 000-043-228 1
Lifting Metal OP16-15 004-442-460 1
000-560-452 For junction box, 10m
000-103-868 For junction box, 20m
000-103-869 For junction box, 30m
000-132-829 For junction box, 40m
5-pair cable CO-SPEVV-SB-C
0.2x5P
000-132-828
1
For junction box, 50m
000-110-681 For junction box, 10m
000-138-789 For junction box, 20m
000-138-790 For junction box, 30m
000-138-791 For junction box, 40m
1-pair cable CO-SPEVV-SB-C
0.2x1P
000-138-792
1
For junction box, 50m
Ribbon Cartridge SP-16051NB 000-133-029 1
A2 1PLYW 000-134-903 1 set 12 rollsPrinter Paper A2 2PLYWW 000-134-780 1 set 12 rolls
K52
257X50M25TRU 000-806-564 1 set 12 rolls, B4 sizeRecording paper
K52
216X50M25TRU 000-806-565 1 set 12 rolls, A4 size
Transformer FIT-100 000-139-903 1 220 VAC→100 VAC
KLASHOPPER
PCMCIA400 000-142-952 1 For laptop computer, PMCIA card type II, w/cable
HSD I/F
KLASHOPPER
PCI-400 000-142-951 For desktop computer, built-in type

v
SYSTEM CONFIGURATION
COMMUNICATION
UNIT
IB-282
JUNCTION
BOX
IB-313
ANTENNA
UNIT
IB-182
NAVIGATOR
TELEPHONE DISTRESS BUTTON IB-362*
TELEX DISTRESS ALERT BUTTON IB-352 (FELCOM 82A only)
TERMINAL
UNIT
IB-582
PRINTER
PP-510
(FELCOM 82A only)
Ship's mains 100-115/ 220-230 VAC 1∅, 50/60 Hz
HANDSET IB-882/IB-882-362
DGPS
DECODER
HSD IF
PC
INCOMING INDICATOR IB-372 Max. 3 units
MJ-2S MJ-2S
FACSIMILE PFX-50
PC PC-AT compatible
HSD
GYROCOMPASS
MJ-2S
100V AC
TELEPHONE FC755D1
Standard supply Option Local supply
*: For use with Handset IB-882.
9.6K DATA
100 VAC
100 VAC
TELEPHONE FC755D1
FACSIMILE PFX-50
TELEPHONE FC755D1
FACSIMILE PFX-50

This page is intentionally left blank.

1
1MOUNTING OF UNITS
This chapter describes how to mount the units of the system, including optional equipment.
1.1 Antenna Unit
1.1.1 Mounting considerations
General
Interfering objects (especially metallic objects such as masts) near the antenna can, in the
worst case, prevent reception or transmission. Further, RF radiation from the antenna will
affect the human body. Keep these and the following guidelines in mind when selecting a
mounting location for the antenna unit.
Secure unobstructed path in all directions
The ideal mounting location secures an unobstructed path between the antenna unit and the
satellites, from horizontal to zenith. In order words, whatever the direction the antenna unit is
pointing there are no interfering objects within the main beam (12 degrees). While this might
be feasible on some vessels, on others it is impossible due to space considerations. The
antenna unit should be located at least 3 meters away from masts having a diameter less
than 15 centimeters.
12
4300 mm
Beam
Direction
Beam direction
Select a location low in vibration
The maximum permissible vibration amplitude in three axis direction should be as shown in
the table at the top of the next page. Consult with the shipyard to determine the mounting
location which meets the requirements shown in the table.
The table at the top of the next page is taken from Inmarsat’s System Definition Manual
(SDM) and defines frequency and maximum vibration amplitude.

2
Freq. Range Max. Amplitude
4 to 10 Hz
10 to 15 Hz
15 to 25 Hz
25 to 33 Hz
2.54 mm (max. 9.8 m/s²)
0.76 mm (max. 6.86 m/s²)
0.40 mm (max. 9.8 m/s²)
0.23 mm (max. 9.8 m/s²)
Half Vibration
Max. amplitudes
Locate away from passengers and crew
Radio waves can be harmful to the human body. Since safe distances vary by country and
ship construction there is no uniform formula for calculating safe distance. However, below
are general guidelines.
•Unprotected persons should not approach an area in which the radiation level is higher than 100
W/m2.For an Inmarsat B antenna, the radiation level is less than 100W/m2 at 1 meterdistance from
the radome surface.
•Unprotected persons should not approach within 6 meters of a transmitting Inmarsat antenna.
WARNING
Do not approatch within 6 meters of the
antenna radome when it is transmiting.
Microwave radiation can be harmful to
the human body, particularly the eyes.
Minimum distance from other antennas
HF antennas, communication/navigation antennas:
The FELCOM 82 antenna should be at least 5 meters from a HF antenna. VHF, satellite
navigation antenna and other communication antennas should be at least 4 meters away.
Radar:
The antenna for the FELCOM 82 should be at least 5 meters away to protect the low noise
amplifier in the radar antenna. However, if this distance cannot be secured be sure the
FELCOM 82 antenna unit is not within the radar beam.

3
More than 5 m
If installed within 5 m of
radar antenna, the antenna
unit must not be within the
radar beam.
20
30
Distance from antenna radar
Compass safe distance
Locating the antenna unit too close to a compass can affect compass performance. The
compass safe distance is 1.10 meters, steering compass, 1.60 meters, standard compass.
Other mounting guidelines
Other important mounting guidelines are
•Locate the antenna unit away from exhaust stacks (foreign material on the radome can interfere
with reception and transmission).
•Keep the unit away from heat sources.
•Locate the unit away from places where fuels and chemical solvents are stored.
•Keep in mind the length of the cable from the communication unit is maximum 100 meters.
1.1.2 General mounting (construction of mast)
General
To facilitate servicing, construct a mast more than 1 meter in height from the deck. The
paragraphs which follow provide guidelines for selection and construction of the mast.
Refer to the drawing at back of this manual.
Guardrail, platform
When the mast is tall, fit it with a guardrail and platform (or steps), for serviceman’s safety
and convenience.
For servicing ease, the distance between hatch and the deck (or platform) to the antenna
unit should be about 1 meter. (In most installations the serviceman stands on the platform
while checking the radome. Thus this distance should be secured for ease of servicing.)
The guardrail should be as high as possible for sufficient safety.

4
Mast strength
The mast material must be sufficiently strong to meet the demands of the marine
environment. It should satisfy the following requirements.
•It must be able to support radome mass plus at least 2.5 centimeters of ice and snow. Special
consideration should be given if the unit is operated in areas of heavy snow or freezing
temperature.
•Mast bending moment must be able to withstand expected maximum pitching, rolling and wind
pressure.
To prevent resonance at low frequencies (about 5 Hz), four stays can be fixed between the
mast and the mounting base.
Mast
Mass Bending
Moment
Wind
Pressure
Fixing radome
Item Mass
Antenna unit mass 87 kg ±10%
Platform, guardrail mass
Expected ice and snow
Maximum wind pressure (at wind speed 75 m/s) 2083 N
Maximum bending moment (at wind speed 75 m/s) 1354 N•m
Maximum bending moment
(at wind speed 75 m/s, muximum rolling angle) 1450 N•m
Maximum bending moment
(at wind speed 75 m/s, maximum rolling angle including 0.5 G speed added by rolling.) 1730 N•m

5
Mounting base
A mounting base is installed between the mast and the antenna unit. Below are guidelines
for installation of the mounting base.
1. The face of the mounting base should be flat as possible (tolerance: within 2 millimeters
of the horizontal plane).
2. The mounting base should be parallel with ship’s horizontal plane (tolerance: ±1 degree).
3. The fixing bolts of the mounting base should be parallel with the ship’s keel line
(tolerance: ±2 degrees).
4. Weld a ground bolt (stainless steel, M12x40, local supply) to the mast within 50 cm of the
ground terminal on the antenna unit. The length of the ground wire (supplied) is 50
centimeters.
5. Make four holes on the mounting base to face drain holes of the antenna unit.
Mounting base
Make drain holes.
Drain holes

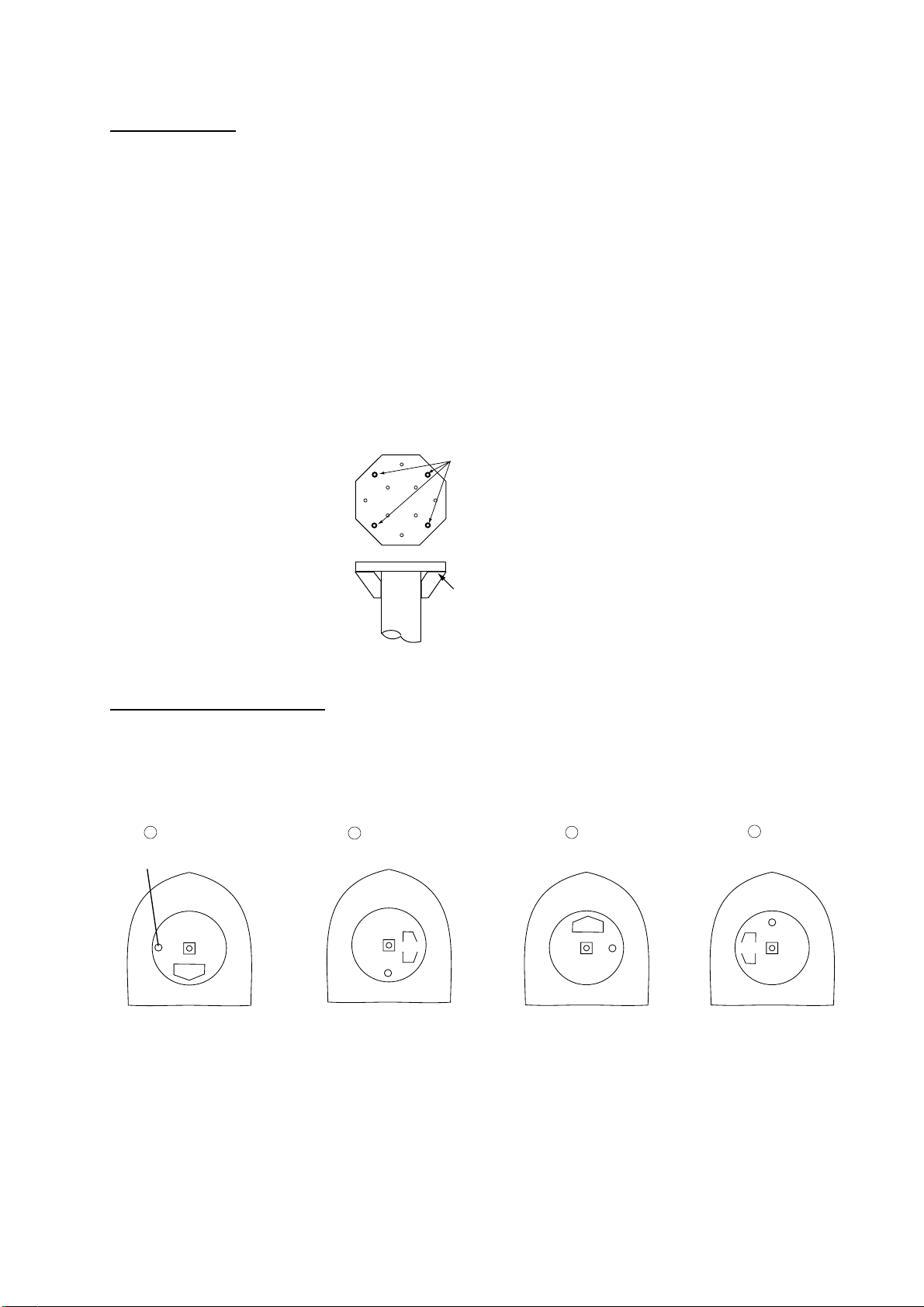

Changing hatch direction
The standard hatch direction is stern, as shown in 1 in the figure below. If the hatch cannot
face the stern, it may face port, starboard or bow direction as shown in 2, 3 and 4 in the
figure below. Note that the location of the cable gland changes with hatch direction. After
changing hatch direction, change the disk position setting for the limit switch. See Chapter 3.
Hatch
Hatch
Cable Gland
Hatch Hatch
1 Stern (standard) 2 Starboard 3 Bow 4 Port
Hatch directions (view: top view)

6
Unpacking
•Check that if the antenna unit is damaged by shipment.
•Unpack the antenna unit carefully so as not to damage it.
Remove hex nut, spring washer, flat washer, large washer and fixing material to dismount
the antenna unit. This hardware can be discarded.
Eye bolt
Antenna Fixing plate
Fixing material
Large washer
Flat washer
Spring washer
Hex. nut
Palette
Unpacking antenna unit

7
1.1.3 Mounting
Unpacking, visual inspection
Carefully unpack the radome and
check for damage.
Procedure
1. Run lifting rope through eye bolts
and shackles.
2. Cover the portion of the radome
which contacts the lifting rope with
protective material (rubber mat,
etc.), to prevent damage to the
radome when hoisting it to the
mounting location.
3. Hoist the antenna unit to the
mounting location.
4. Fix the antenna unit to the
mounting base (see note below)
with nuts, keeping in mind hatch
direction (standard direction is
stern).
Flat Washer
Spring Washer
Coat here with
silicone sealant. 13 mm Nut
10 mm Nut
Mounting Base
FIXING OF RADOME
5. If necessary, replace eye bolts
with hex. bolts (supplied).
Note1: Coat all bolts and nuts with
silicone sealant to prevent electrolytic
corrosion.
Note2: Do not use a rubber gasket on the mounting base. The face of the mounting base
should be flat as possible (tolerance: within 2 mm of the horizontal plane).
If tolerance is more than 2 mm, insert a metal spacer between the antenna bottom
and the mounting base. For earth wiring, see Chapter 2.
Mounting Base
Lifting Rope
1 Eye Bolt Eye Bolt
4 Radome (Can be
supplied
together with
snackles.)
Antenna Bottom
Shackle
2 Protective
Material

8
Attach electromagnetic wave caution label
Labels which warn of electromagnetic waves are supplied with the installation materials.
Attach them as follows.
1. To the radome mast where it can easily be seen.
2. In a conspicuous location in the stairwell leading to the deck where the antenna unit is
installed.
Removing ropes

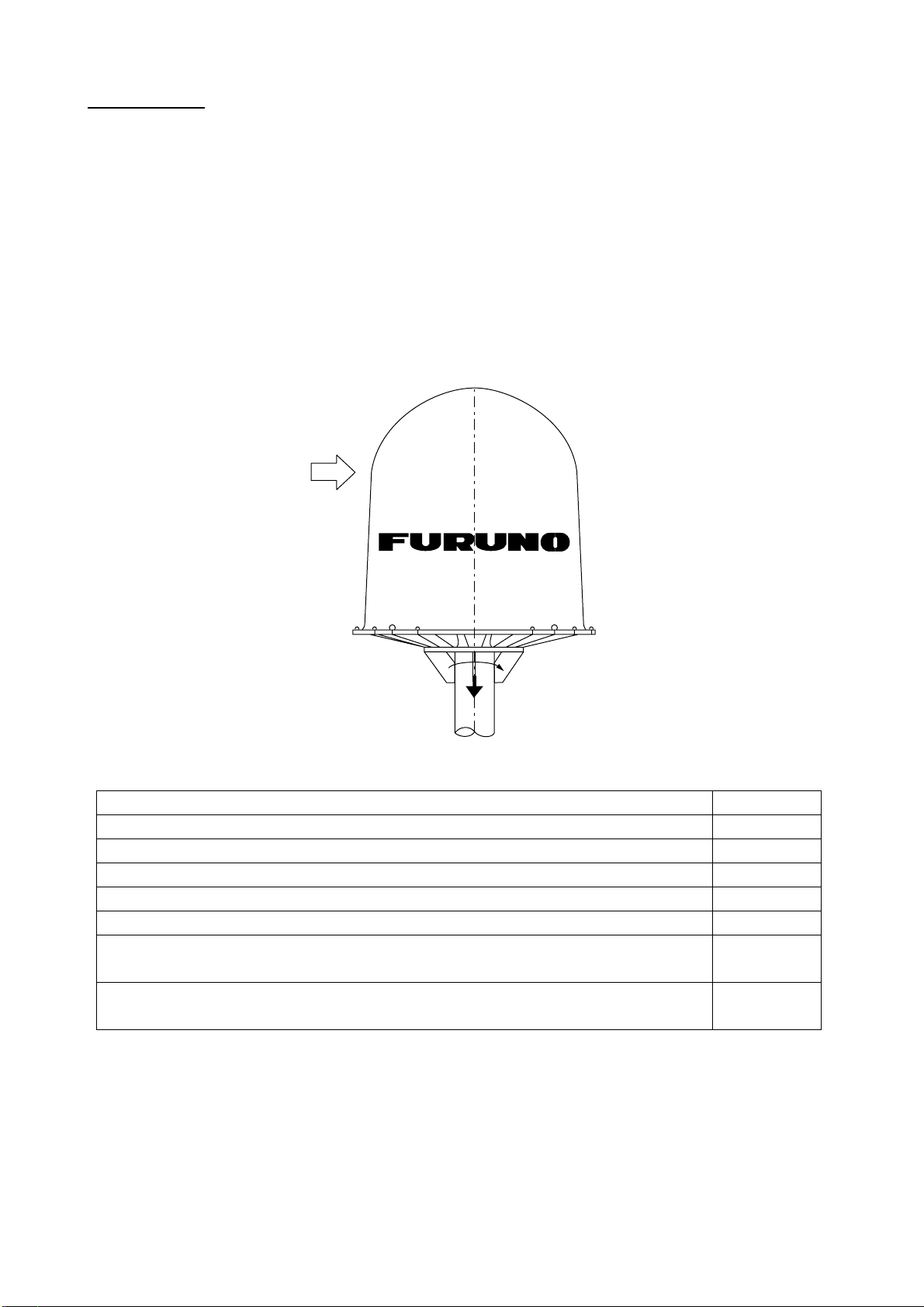

The stabilizer in the radome is tied by two ropes to prevent damage to it during shipment and
installation. Cut and remove them after finishing the installation.
Rope
Rope
HPA
Antenna unit
Note 1: Turn on the switch on the HPA case after mounting the antenna unit.
Note 2: The antenna cable for FELCOM 81 may be used in case of retrofit.

9
1.2 Communication Unit
1.2.1 Mounting considerations
Vibration conditions
The mounting location should satisfy the condition of vibration amplitude tabulated below.
Freq. Range Max. Amplitude
4 to 15 Hz
15 to 25 Hz
25 to 33 Hz
33 to 40 Hz
40 to 50 Hz
0.76 (max. 6.86 m/s²)
0.40 (max. 9.8 m/s²)
0.23 (max. 9.8 m/s²)
0.13 (max. 8.23 m/s²)
0.07 (max. 6.86 m/s²)
Half Vibration
Max. amplitudes
Environmental conditions
The mounting location should satisfy the following conditions. This unit can be mounted on
the top or underside of a table.
•The usable temperature range is –15 to +55 °C.
•Select a location which is well ventilated.
•The location should be clean, and moderate and stable in temperature and humidity.
•Be sure to leave sufficient space around the unit for maintenance and checking.
•Locate the unit well away from high power HF band radiotelephones and antenna feeders.
•Be sure the mounting location is strong enough to support the weight of the unit under conditions of
vibration normally encountered on the vessel.

10
1.2.2 Mounting
Procedure
Before mounting the unit, lay cables, fabricate connectors and establish the ground system.
Then, mount the unit as follows.
Note:Do not install the communication unit on a bulkhead because of its weight.
1. Fix the arms at both sides of the equipment to the mounting location with four tapping
screws (5x20, supplied as installation materials). The tapping screws should be fastened
loosely.
2. Slide the equipment away, and then fasten tapping screws tightly.
HSD(56k/64k)
MSD(9.6k)
JUNCTION BOX
PRINTER VDU HANDSET GYRO
BREAKER
PRINTER
4 VDC VDU
4 VDC
50/60 Hz
100-115 VAC
0- 30 VAC
ANT DGPS
HSD(56k/64k)
MSD(9.6k)
JUNCTION BOX
PRINTER VDU HANDSET GYRO
BREAKER
PRINTER
4 VDC VDU
4 VDC
50/60 Hz
100-115 VAC
0- 30 VAC
ANT DGPS
Table top mounting Mounting on underside of table
426±0.5
200±0.5
50
#100 #150
#100
#: Service Space
4- 6 Fixing Hole
Air vent
#150
(required for air vent)
Mounting dimensions for the communication unit

11
1.3Terminal Unit (for class 1 only)
1.3.1 Mounting location
•Leave sufficient space around the unit to permit checking and maintenance.
•Locate the unit where temperature and humidity are stable and moderate.
•Locate the unit at least 5 meters from high power communications equipment and its feeder and
antenna to prevent mutual interference.
Mounting main unit
1. Fix the hanger to the table with five tapping screws.
2. Attach connectors to bottom panel.
3. Fix the unit to the hanger by two knobs.
Mounting keyboard
To permanently fix the keyboard, do the following:
1. Attach the four “hook loop fastener 3” (small ones) to the bottom of the keyboard.
2. Attach the four “hook loop fastener 4” (large ones) to the “hook loop fastener 3” attached
to the keyboard bottom.
3. Remove seals from the hook loop fastener 4.
4. Set the keyboard on the mounting location and press down firmly.
5. Attach labels as shown on the next page.
30
#80#80
40±0.5
35
300
#100
#: Service space
170
5- 7.5 Fixing hole
125±0.5125±0.5
80±0.5
Label for INMAR "B"
OFF
OFF
ON
ON
BRILL
BRILL
POWER
POWER
B
Mounting dimensions for the terminal unit

12
Label for compass safe distance
(16-011-5804-0, supplied)
Label for key operation for
INMARSAT-B (16-011-5803, supplied)
Keyboard, attaching labels
1.4 Printer
Fix the printer to the mounting location with the two mounting fixtures (supplied). See the
outline drawing at back of this manual for details.
405
200
Printer
fixture1
Printer fixture 2
Attach label for
compass safe distance.
Attach label for INMAR "B".
Printer PP-510
