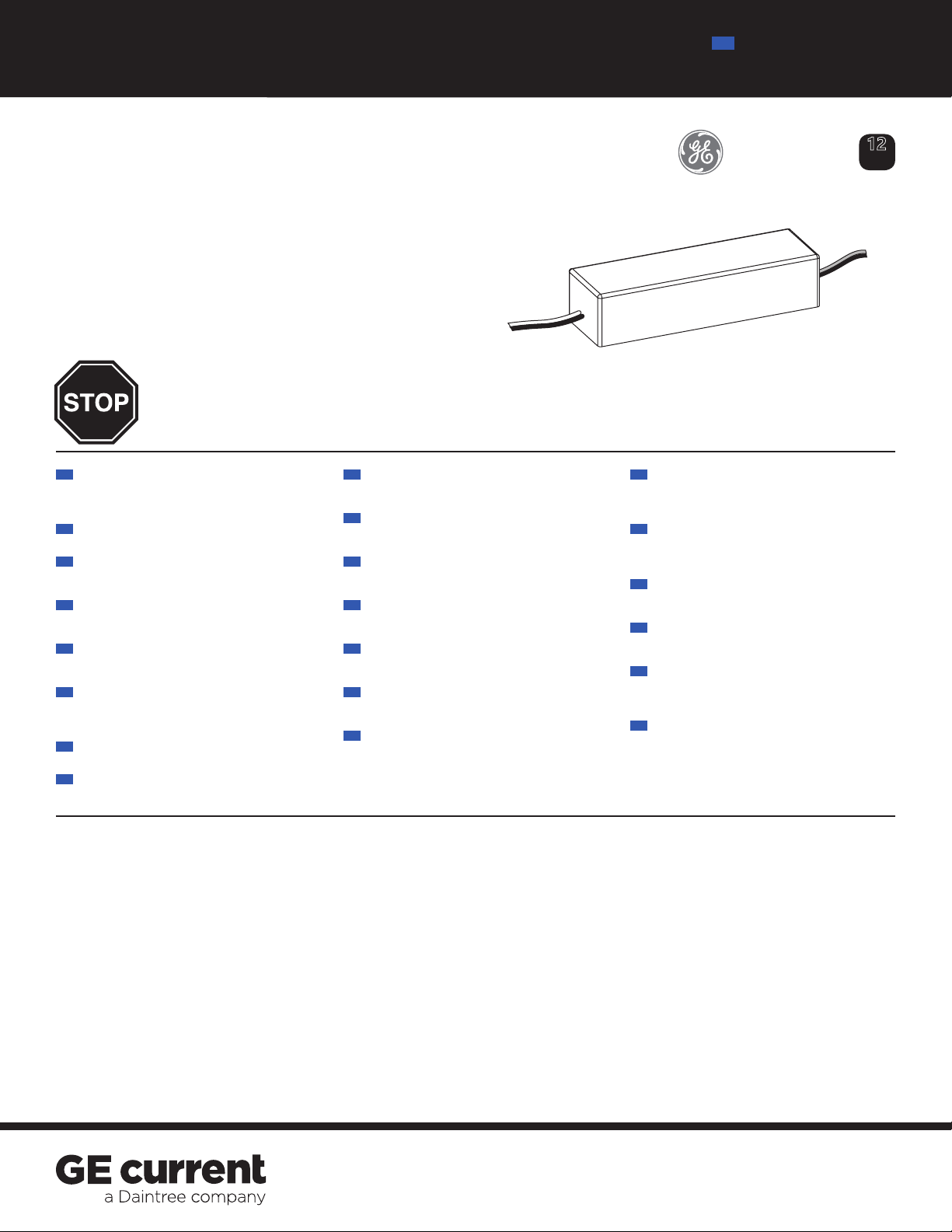

GE Tetra GEPS12-25U-EU User manual

Installation Guide
SIGN194 | GE2025-6717
Tetra®LED Systems Power Supply
EN
Power Supply Features
• Supports all 12 VDC Tetra Products
• SELV Compliant
• 220-240 VAC Input
Save These Instructions
Use only in the manner intended by the manufacturer.
If you have any questions, contact the manufacturer.
For the latest North American install guides for your product go to: https://products.gecurrent.com/led-signage-lighting
For the latest European install guides for your product go to: https://products.gecurrent.com/eu
BG Българската версия на инструкциите за инсталаця
и информация за безопасност могат да бъдат
намерени на следния адрес: https://products.
gecurrent.com/eu
CS Návod k montáží a bezpečnostní informace v češtině
najdete zde: https://products.gecurrent.com/eu
DA Den danske version af installationsvejledningen
og sikkerhedsoplysninger kan findes på følgende
placering: https://products.gecurrent.com/eu
DE Die deutsche Version der Installationsanleitung und
Sicherheitsinformationen finden Sie in folgendem
Verzeic: https://products.gecurrent.com/eu
EL Μπορείτε να βρείτε την ελληνική εκδχή των οδηγιών
νγκατάστασης και των πληροφοριών ασφάλειας στην
εξής τοποθεσία: https://products.gecurrent.com/eu
ES La versión española de las instrucciones de instalación
y la información sobre seguridad puede encontrarse
en la siguiente ubicación: https://products.gecurrent.
com/eu
ET Eestikeelse paigaldusjuhendi ja ohutusnñuded leiate
aadressilt: https://products.gecurrent.com/eu
FI Asennusohjeiden ja turvallisuustietojen
suomenkielinen versio löytyy seuraavasta paikasta:
https://products.gecurrent.com/eu
FR La version française des instructions d’installations
et information de sécurité est disponible à l’adresse
suivante: https://products.gecurrent.com/eu
HR Hrvatska verzija priručnika za ugradnju i sigurnosnih
informacija nalazi se na sljedečoj lokaciji: https://
products.gecurrent.com/eu
HU A telepítési útmutató és a biztnosági információk
magyar nyelvű változata az alábbi címen található:
https://products.gecurrent.com/eu
IT La versione italiana del manuale di installazione e
sicurezza può essere reperita nella seguente sezione:
https://products.gecurrent.com/eu
LT Lietuvišką diegimo instrukcijos ir saugos informacijos
versiją galima rasti šioje vietoje: https://products.
gecurrent.com/eu
LV Uzstādīšanas instrukciju un drošības informāciju
latviešu valodā var atrast šeit: https://products.
gecurrent.com/eu
NL De Nederlandse versie van de installatie-instructies
en veiligheidsinformatie kan op de volgende locatie
worden gevonden: https://products.gecurrent.com/eu
PL Polską wersję instrukcji instalacji oraz informacje
dotyczące bezpieczeństwa można znaleźć w
następującej lokalizacji: https://products.gecurrent.
com/eu
PT A versão em Português das instruções de instalação e
das informações de segurança pode ser encontrada
na seguinte localização: https://products.gecurrent.
com/eu
RO Versiunea în limba română a instrucţiunilor de
instalare şi a informaţiilor de siguranţă pot fi găsite la:
https://products.gecurrent.com/eu
SV Ni hittar den svenska versionen av
installationsanvisningarna och säkerhetsinformationen
på följande plats: https://products.gecurrent.com/eu
SL Previdnostna opozorila in varnostne informacije so na
zadnji strani vodnika za namestitev. Pred začetkom
namestitve izdelka jih skrbno preberite: https://
products.gecurrent.com/eu
SK Slovenskú verziu montažnej príručky a
bezpečnostnŷch instrukcií nájdete na nasledujúcej
lokalite: https://products.gecurrent.com/eu
12
Volt
GEPS12-25U-EU (220-240 VAC input/12VDC output/25W)
BEFORE YOU BEGIN
Read these instructions completely and carefully.

Tetra®Power Supply GEPS12-25U-EU Installation Guide
2
Power Supply Installation
Connect the AC line to the black
or brown (line) and white or
blue (neutral) input wires of the
power supply using suitable wire
connectors.
Connect the supply wire that is
attached to the Tetra LED System
to the red (+) and black or blue (-)
output wires of the power supply
as outlined in the “Electrical
Connections” section of your LED
system’s Installation Instructions.
NOTE: To avoid overloading this
power supply with LED modules,
please refer to the specic module
loading guides.
Input
wires
White or blue
(neutral)
Black or brown
(line)
AC line
To Tetra LED System
Output
wires
Red (+) Black or blue (-)
Mount the power supply. Mounting
the power supply base directly to
a thermally conductive installation
surface can improve thermal
performance.
NOTE: All electrical connections
should be suitably protected
from mechanical damage and the
environment. Seal all connections
exposed to water with electrical
grade self-hardening silicone.
WARNING / AVERTISSEMENT
RISK OF ELECTRIC SHOCK
• Disconnect power at fuse box or circuit breaker before servicing or
installing product.
• Properly ground Tetra®power supply.
RISK OF FIRE
• Use only approved wire for input/output connection. Minimum size
18 AWG (0.82 mm2).
• Follow all local codes.
• Application considerations potentially requiring additional spacing
include high ambient temperature seen by the power supply, poor
contact with a heat dissipating material, inadequate ventilation, or
direct exposure to sun.
RISQUES DE DÉCHARGES ÉLECTRIQUES
• Coupez l’alimentation électrique à la boîte de fusibles ou au disjoncteur
avant l’entretien ou l’installation du produit.
• Assurez-vous de correctement mettre à terre le bloc d’alimentation Tetra®.
RISQUES D’INCENDIE
• N’utilisez que des ls approuvés pour les entrées/sorties de connexion.
Taille minimum 18 AWG (0.82 mm2).
• Respectez tous les codes locaux.
• Certaines applications pourraient requérir un espacement additionnel,
p. ex. une température ambiante élevée autour du bloc d’alimentation,
un mauvais contact avec une matière dissipatrice de chaleur, une
ventilation inadéquate ou une exposition directe au soleil.
CAUTION / ATTENTION
RISK OF INJURY
• While performing installations described, gloves, safety glasses or
goggles should be worn.
RISQUES DE BLESSURE
• Lors de l’exécution des installations décrites, des gants, des lunettes de
sécurité ou des lunettes de protection doivent être portées.
OPTIONAL
A Weather Box (GEXNWB2) may be used to
house and seal Class 2 connections.
A) Insert wire connectors into weather box. Fill
with electrical grade silicone and close box.
B) Secure the weather box using a #6 or #8
(M2 or M3) screw.
Weather box
can be painted
Light engine
WARNING
RISK OF ELECTRIC SHOCK
AC input connections shall be
suitably enclosed.
1 2 3
A B

Installation GuideTetra®Power Supply GEPS12-25U-EU
www.gecurrent.com
© 2021 Current Lighting Solutions, LLC. All rights reserved. GE and the GE monogram are trademarks of the
General Electric Company and are used under license. Information provided is subject to change without
notice. All values are design or typical values when measured under laboratory conditions.
SIGN194 (Rev 02/05/21) GE2025-6717
Power Supply Specications
Performance Data Min Typical Max
Input Voltage (VAC) 194 220-240 264
Input Frequency (Hz) – 50/60 –
Input Current (A) 0.15 (240VAC) – 0.2 (194VAC)
THD – – 20
PF 0.9 –
Output Voltage (VDC) 11.0 12.0 13.0
Output Current (ADC) – – 2.0
Output Power (W) – – 25
Environmental Operating Temperature Range -25°C +25°C +50°C*
Environmental Humidity (non-condensing) – – 95%
Environmental Storage Temperature Range -10°C – +70°C
Environmental Rating IP66 rated: must be protected from direct exposure to the weather
Dimensions 5.2 in. x 1.6 in. x 1.2 in. (133 mm x 30.5 mm x 40 mm)
*Maximum case temperature is 75°C
Symptom Solution
All letters are OFF • Recycle AC power, turn it o, then turn on again.
• If still o, check the power supply DC output voltage using a voltmeter. It should be nominally 12V.
»If there is DC output, inspect and correct all DC wire damage/polarity issues; If no issue is found, replace the
OFF-module string.
»If there is no DC output, have a licensed electrician check the input AC voltage and if there is correct AC voltage,
replace the power supply.
»If there is no AC voltage, correct the upstream AC issue.
Some LEDs appear dim • Ensure the overall length of the Tetra®LED System does not exceed the maximum load.
• Ensure the length of supply wire is equal to or below the recommended remote mounting distance.
Some of the letters
are not illuminated
• Inspect and correct the wires of the non-illuminated letters for damage/polarity issues; If no issues are found, see the
troubleshooting solution for “All letters are OFF.”
Shadows • Re-route supply wire and secure to the back of the can with electrical grade RTV silicone. Adjust wire connector
orientation so that it does not cover any LEDs.
• Adjust LED layout to ensure uniformity of illumination of the face of the letter.
Troubleshooting
Conforms to the following standards:
This product is intended to be used as a lamp control gear that is installed after the mains control switch.
