Table of Contents
Safety Warnings And Precautions 04
Product Structure 06
Installation Instructions 07
Operation Instructions 10
Care & Maintenance 20
Technical Specications 22
Warranty Terms & Conditions 43

P.4
Safety Warnings And Precautions
1. Please read all instructions carefully before using this product.
2. Before use, please check whether the voltage used is consistent with the
voltage on the label of this product.
3. This product can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall not be made
by children without supervision.
4. Children of less than 3 years should be kept away unless continuously
supervised.
5. Children aged from 3 years and less than 8 years shall only switch on/
off this product provided that it has been placed or installed in its intended
normal operating position and they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8 years shall not plug in,
regulate and clean this product or perform user maintenance.
6. WARNING: some parts of this product can become very hot and cause
burns. Particular attention has to be given where children and vulnerable
people are present.
7. This product is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction concerning use of this
product by a person responsible for their safety.
8. Children should be supervised to ensure that they do not play with this product.
9. WARNING: In order to avoid overheating, do not cover this product.
10. Do not use this product in the immediate surroundings of a bath, a shower or a
swimming pool.
11. Do not use this product if it has been dropped.
12. This product must not be located immediately below a socket-outlet.
13. Do not use if there are visible signs of damage to this product.
NOTE:
• IP23 protection rating only applies to when this product is installed and
xed on the wall for vertical operation.
• This product is a heater. Do not use this product as a fan.

P.5
Safety Warnings And Precautions
14. If the supply cord is damaged, it must be replaced by a special cord or assembly
available from the manufacturer or its service agent.
15. Use this product on a horizontal and stable surface, or fasten it to the wall, as
applicable. (Note: height above the ground should be higher than 1 meter and
distance to the sidewall should be more than 0.3 meter. If this product is used in
the bathroom, it should be at least 1 meter away from the water source).
16. WARNING: Do not use this product in small rooms when they are occupied
by persons not capable of leaving the room on their own, unless constant
supervision is provided.
17. WARNING: In order to avoid a hazard for very young children, this product
should be installed so that the lowest heated rail is at least 1000 mm above
the oor.
18. The towel rail is to be installed so that switches and other controls cannot be
touched by a person in the bath or shower.
19. This product for household and indoor use only.
20. Switch and control panel cannot be touched by wet hand.
21. For additional protection, the installation of a residual current device (RCD)
having a rated residual operating current not exceeding 30 mA is advisable in
the electrical circuit supplying the bathroom. Ask your installer for advice.
22. This product is intended only for drying textiles washed in water.
23. The plug of this product shall be protected, for example, away from the water
source, or the plug shall be protected with a waterproof box.
24. Do not ingest battery, Chemical Burn Hazard.
25. WARNING: This product contains a coin / button cell battery. If the coin /
button cell battery is swallowed, it can cause severe internal burns in just 2
hours and can lead to death.
26. Keep new and used batteries away from children.
27. If the battery compartment does not close securely, stop using this product and
keep it away from children.
28. If you think batteries might have been swallowed or placed inside any part of the
body, seek immediate medical attention.
29. The batteries contain materials, which are hazardous to the environment; they
must be removed from this product before it is scrapped and that they are
disposed of safely.
30. WARNING: To reduce the risk of re, keep textiles, curtains, or any other
ammable material a minimum distance of 1 m from the air outlet.

P.6

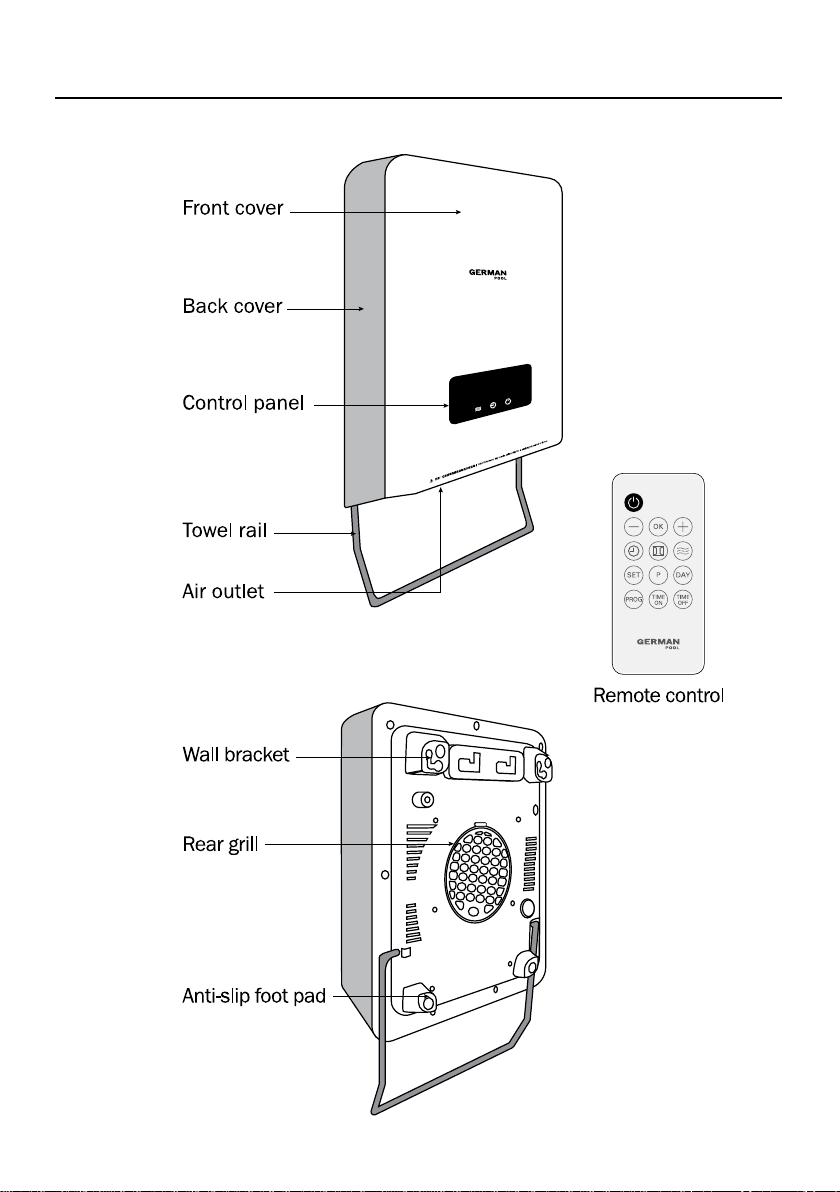

Product Structure
FRONT
BACK

P.7

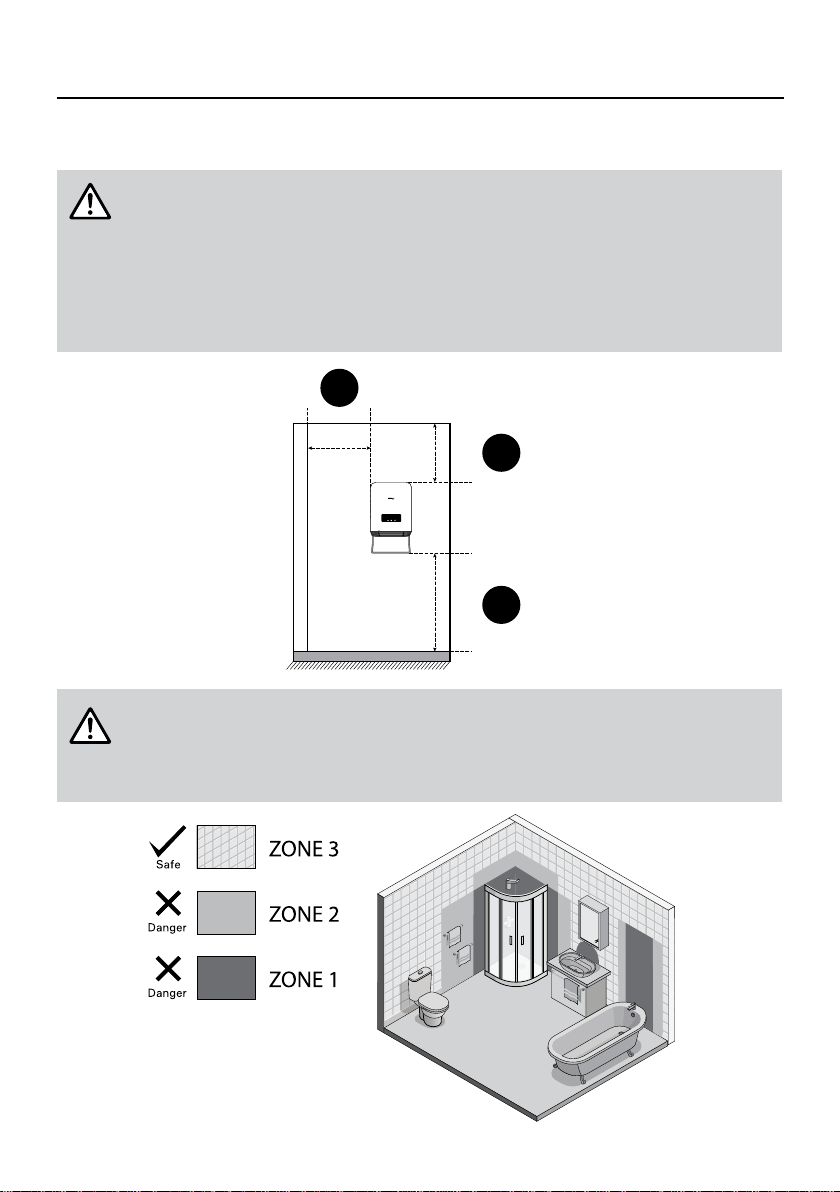

Installation Instructions
WARNING!
When installing this product, must leave ample space on all sides to
ensure adequate ventilation and heat dissipation.
WARNING!
This product can only be installed beyond ZONE 1 and 2.
Heater must be installed so that switches and other controls cannot be
touched by a person in the bath or shower.
Installation Requirements
1. Leave at least 500mm above the product.
2. Leave at least 800mm on either side of the product.
3. Leave at least 1,000mm from the ground.
注意：切勿長時間晾掛烘乾毛巾或衣物！ CAUTION:Neverdrytowelsor laundry for a prolonged period of time!
1
3
2

P.8
Install With Wall-Mounting Components
1. Drill two holes in the wall, and make the diameter of hole as 6mm, depth as
29mm. The distance between the two holes is 59mm.
2. Fix the rubber plug into the two holes.
3. Fix the screws into the above rubber plugs, and screw it in securely.
4. When installing the product on the hook: Aim big hole at wall hook and then turn
right to lock securely into small hole. (see diagram below)
Installation Instructions

P.9

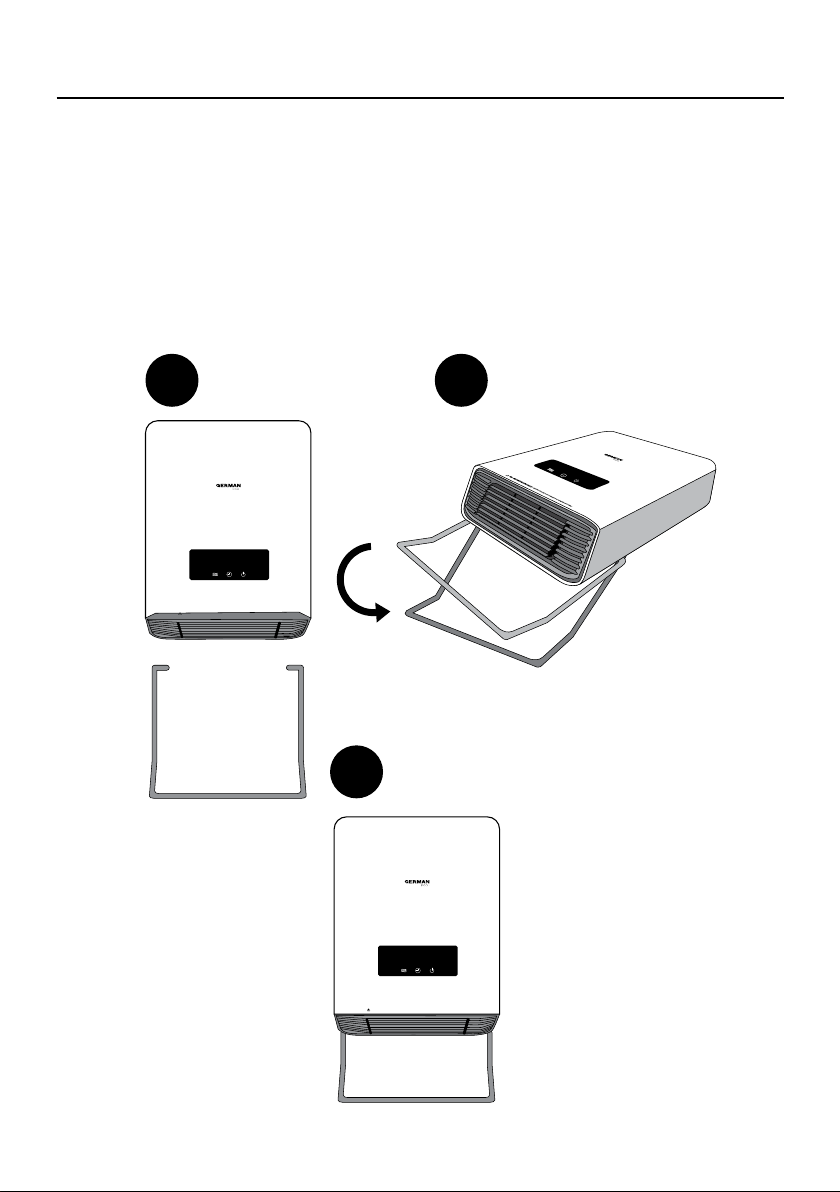

Installing The Towel Rail
1. First insert the left / right ends of the aluminum towel rail into the grooves onto
the left / right sides of the bottom of the air outlet grill.
2. Pull the left and right sides of the rail towards you.
3. Make sure towel rack is locked in securely. When the towel rack is not used, push
the left and right sides inwards to remove it.
Installation Instructions
注意：切勿長時間晾掛烘乾毛巾或衣物！ CAUTION:Never dry towels or laundry for a prolonged period of time!
注意：切勿長時間晾掛烘乾毛巾或衣物！ CAUTION:Never dry towels or laundry for a prolonged period of time!
1
3
2

P.10
Operation Instructions
Control Panel
LED DISPLAY CONTROL BUTTONS
Cool Air Mode Warm and Cool Mode Selection Key
Low Warm Air Mode Countdown Timer Key
High Warm Air Mode On/Off Key
Thermostat Mode
Countdown Timer Mode
Weekly Programme Mode
ECO Mode

P.11
Operation Instructions

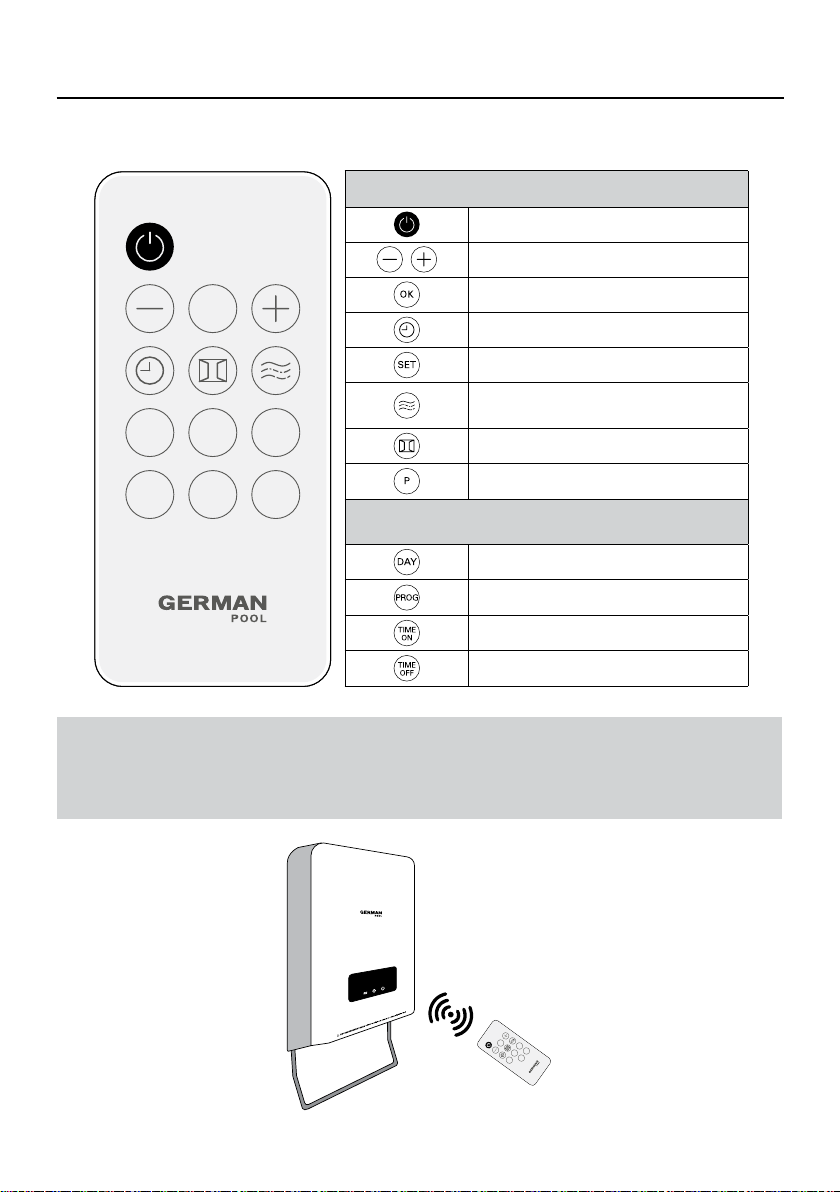

Remote Control
CONTROL BUTTONS
On/Off Key
- / + Key
Conrm Key
Countdown Timer Key
Set Key
Warm and Cool Mode
Selection Key
ECO Mode Key
Weekly Programme Key
Buttons below are only for setting
Weekly Programme Mode
Day of the Week Key
Daily Programme Key
Turn On Time Key
Turn Off Time Key
OK
PSET
TIME
OFF
TIME
ON
EDIDDAY
OK
PSET
TIME
OFF
TIME
ON
PROG
DAY
OK
P
SET
TIME
OFF
TIME
ON
DAY
ATTENTION:
The Remote Control should be pointed at the LED Display to maximize the
remote control signal.

P.12
Operation Instructions
A1. Low Warm Air High Warm Air Cool Air
1. Plug in the power source, and the product will enter into Standby Service Mode,
buzzer will beep twice, Control Panel will show “SS”.
2. Press , product will enter into Low Warm Air Mode (when product is use for the
rst time), Warm Air indicator lights up, Control Panel shows “C0” (Continuous
Mode).
3. Press to select desired mode. Modes cycle among High Warm Air Mode >
Cool Air Mode > Low Warm Air Mode respectively.
4. Simply press and product will return to Standby Service Mode, and Control
Panel will show “SS”.
A. Control Panel: Basic Operation
ATTENTION:
• When switching from Low Warm Air Mode to High Warm Air Mode ,
PTC will be delayed by 10 seconds.
• When user turns off the product while it is running in Low Warm Air Mode
or High Warm Air Mode , the fan will continue to run for 30 seconds
to dissipate residual heat.
• Next time the product is turned on, it will run on the previous mode. If user
wishes to delete the stored memory, please unplug from the power source
then re-plug again.

P.13
Operation Instructions
A1. Low Warm Air High Warm Air Cool Air
A3. Countdown to Switching On
1. In Standby Service Mode (Control Panel will show “SS”),press to enter into
Countdown to Switching On Mode, Countdown Timer Indicator turns on, Control
Panel shows “00”.
2. Press repeatedly to set Countdown to Switching On time, each press adds on
1 hr. Maximum countdown time is 12 hrs.
3. After adjustment is completed, Time indicator will ash for 5 seconds, then the
product will auto-conrm and save the current set timer. Control Panel will show
countdown time.
ATTENTION:
• When in Countdown Timer Mode, the product automatically runs at default
Thermostat Mode (35°C). This is not adjustable.
• If user wishes to cancel timer countdown, press repeatedly until
Control Panel shows “00”. Time indicator will ash for 5 seconds, then
automatically turn off timer.
A2. Countdown to Switching Off
1. In Low Warm Air Mode / High Warm Air Mode / Cool Air Mode ,press
to enter into Countdown to Switching Off Mode, Countdown Timer Indicator
turns on, Control Panel shows “00”.
2. Press repeatedly to set Countdown to Switching Off time, each press adds on
1 hr. Maximum countdown time is 12 hrs.
3. After adjustment is completed, Time indicator will ash for 5 seconds, then the
product will auto-conrm and save the current set timer. Control Panel will show
“C0”, countdown timer indicator turns off.

P.14
Operation Instructions
B. Remote Control: Basic Operation
OK
PSET
TIME
OFF
TIME
ON
EDIDDAY
OK
PSET
TIME
OFF
TIME
ON
PROG
DAY
B1. Low Warm Air High Warm Air Cool Air
1. Plug in the power source, and the product will enter into Standby Service Mode,
buzzer will beep twice, Control Panel will show “SS”.
2. Press , product will enter into Low Warm Air Mode, Warm Air indicator
lights up, Control Panel shows “C0”.
3. Press to select desired mode. Modes cycle among High Warm Air Mode >
Cool Air Mode > Low Warm Air Mode respectively.
4. Simply press and product will return to Standby Service Mode, and Control
Panel will show “SS”.
ATTENTION:
• When switching from Low Warm Air Mode to High Warm Air Mode ,
PTC will be delayed by 10 seconds.
• When user turns off the product while it is running in Low Warm Air Mode
or High Warm Air Mode , the fan will continue to run for 30 seconds
to dissipate residual heat.
• Next time the product is turned on, it will run on the previous mode. If user
wishes to delete the stored memory, please unplug from the power source
then re-plug again.

P.15
Operation Instructions
B3. Countdown to Switching On
1. In Standby Service Mode (Control Panel will show “SS”),press to enter into
Countdown to Switching On Mode, Countdown Timer Indicator turns on, Control
Panel shows “00”.
2. Press repeatedly to set Countdown to Switching On time, each press adds on
1 hr. Maximum countdown time is 12 hrs.
3. After adjustment is completed, Time indicator will ash for 5 seconds, then the
product will auto-conrm. Alternatively, user may press to conrm right away.
Control Panel will show countdown time.
ATTENTION:
If user wishes to cancel timer countdown, press repeatedly until Control
Panel shows “00”. Time indicator will ash for 5 seconds, then automatically
turn off timer. Alternatively, user may also press right away to cancel timer.
B2. Countdown to Switching Off
1. In Low Warm Air Mode / High Warm Air Mode / Cool Air Mode ,press
to enter into Countdown to Switching Off Mode, Countdown Timer Indicator
turns on, Control Panel shows “00”.
2. Press repeatedly to set Countdown to Switching Off time, each press adds on
1 hr. Maximum countdown time is 12 hrs.
3. After adjustment is completed, Time indicator will ash for 5 seconds, then the
product will auto-conrm. Alternatively, user may press to conrm right away.
Control Panel will show “C0”, countdown timer indicator turns off.
ATTENTION:
When in Countdown Timer Mode, the product automatically runs at default
Thermostat Mode (25°C). This is not adjustable.

P.16
Operation Instructions
C1. Adjust Thermostat Temperature
1. In Standby Service Mode (Control Panel will show “SS”), press , and press
/ to adjust to desired temperature. Temperature indicator will turn on,
temperature setting range is 15°C - 35°C .
2. After adjustment is completed, the set temperature will ash for 5 seconds, then
the product will auto-conrm and enter into “Thermostat Mode”. Alternatively, user
may press to conrm right away and enter into “Thermostat Mode”.
3. When running in “Thermostat Mode”, the control device will keep the temperature
constant at the target temperature.
• when the ambient temperature drops below the set temperature, the product
will automatically heat up;
• when the ambient temperature is the same or higher than the set temperature,
the product will automatically stop heating.
4. If user wishes to cancel “Thermostat Mode”, press to return to Low Warm Air
Mode / High Warm Air Mode / Cool Air Mode . Temperature indicator
will turn off.
C. Remote Control: Advanced Operation
OK
PSET
TIME
OFF
TIME
ON
EDIDDAY
OK
PSET
TIME
OFF
TIME
ON
PROG
DAY

P.17
Operation Instructions
ATTENTION:
• When in “Thermostat Mode”, the product automatically runs at High Warm
Air Mode .
• If user manually switches it to Low Warm Air Mode or Cool Air Mode
, the product will automatically exit “Thermostat Mode”.
C2. ECO Mode
1. In “Thermostat Mode”, press to enter into “ECO Mode”. ECO Mode and
Thermostat indicators light up.
2. Press / to adjust temperature. Temperature setting range is 15°C-35°C.
3. When this mode is on, if the temperature drops 5-10°C within ten minutes from a
certain moment, the product will stop running, and returns to Standby Service Mode.
4. If user wishes to turn off “ECO Mode”, press , and ECO Mode indicator
turns off.

P.18
Operation Instructions
Weekly Programme Mode refers to setting some time periods and temperatures in
each week to let the product work at the set temperature within the corresponding
time.
D1. Setting Day-of-the-Week and Time
OK
PSET
TIME
OFF
TIME
ON
EDIDDAY
OK
PSET
TIME
OFF
TIME
ON
PROG
DAY
PSET
TIME
OFF
TIME
ON
PROG
DAY
D. Remote Control: Weekly Programme Mode
1. In Standby Service Mode (Control Panel will show “SS”), press to enter into
setting, then press / to adjust among (d1-d7) (Monday to Sunday).
2. Press then press / to adjust hour (“00-23”: 12am-11pm).
3. Press then press / to adjust minute (“00-59”: minutes).
4. After setting day and time, press to return to Standby Service Mode.
ATTENTION:
Under any mode, press will display day-of-the-week and time.

P.19
Operation Instructions

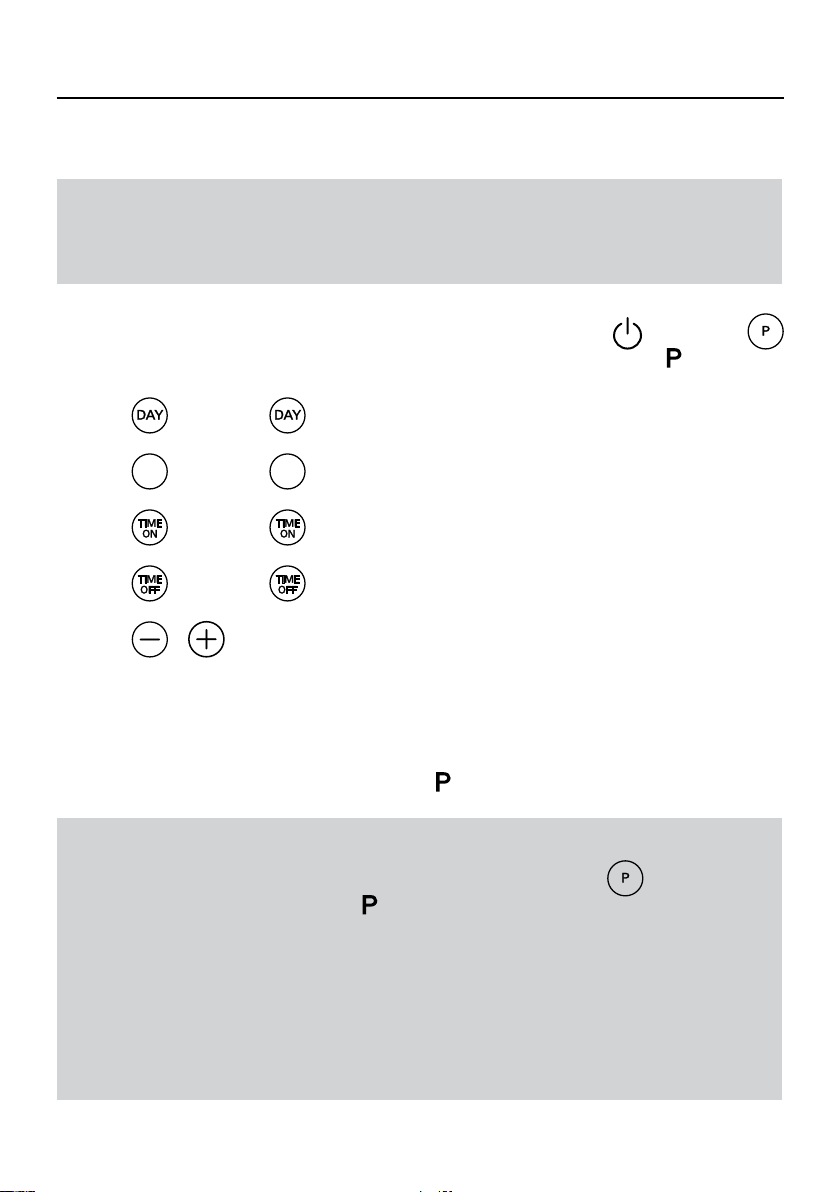

D2. Setting Weekly Programme Mode
ATTENTION:
Before setting Weekly Programme Mode, user must rst set the current day of
the week and time.
ATTENTION:
• If user wishes to turn off Weekly Programme Mode, press again .
Weekly Programme indicator turns off.
• If user wishes to change Weekly Programme settings, repeat step 3.
• Weekly Programme will automatically repeats itself (ie. after Sunday d7, it
will automatically carry on to Monday d1).
• In Weekly Programme Mode, user can only schedule the product to
automatically turn on twice per day (ie. P1 & P2).
• If the scheduled times of P1 and P2 overlap, the product will run on the
higher preset temperature.
1. In Standby Service Mode (Control Panel will show “SS”), press , and press
to enter into Weekly Programme Mode. Weekly Programme indicator lights up.
2. Press then press repeatedly to select day-of-the-week (d1-d7);
3. Press PROG then press PROG repeatedly to select daily schedule (P1/P2);
4. Press then press repeatedly to set switch-on time (hr: 00-24);
5. Press then press repeatedly to set switch-off time (hr: 00-24);
6. Press / repeatedly to set temperature (15°C-35°C); then press to
conrm setting.
7. Repeat step 3 to set Weekly Programme for Monday to Sunday (d1-d7). After
setting is complete, product will enter into Weekly Programme Standby Service
Mode, and Weekly Programme indicator will light up.

P.20
Care & Maintenance
WARNING!
Before cleaning, be sure to turn off the power and unplug the power plug,
or else it may cause electric shock.
Cleaning The Surface
1. Clean the surface of the heater with a damp cloth (or moistened with detergent).
Do not rinse directly with water. Do not use gasoline, thinner, or corrosive
detergent or solvent.
2. If too much foreign matter adheres to the lter screen, it will affect the air blowing,
so it should be cleaned at least every other month.
Cleaning The Filter
1. Remove the lter and mesh cover in order.
2. Immerse the lter in cleaning agent for a few minutes and then wash and dry it.
3. Re-install the lter and mesh cover properly.
Power-Off Memory Function
When power supply is cut off:
1. The week, time period and temperature data set in Weekly Programme Mode
are memorized. When power is turned on again, the default Weekly Programme is
turned off. User will need to turn it back on manually and the previously set data will
be displayed.
2. Day-of-the-week and time data will only be stored for approximately 3 days. If
power is not turned back on during that period, the current day-of-the-week and time
data will be lost, and user will need to manually set current day and time again.
Operation Instructions
