Gima 43283 User manual

PROFESSIONAL MEDICAL PRODUCTS

All serious accidents concerning the medical device supplied by us must be reported to the manufacturer and competent authority of the mem-
ber state where your registered office is located.
You have purchased an aid designed to facilitate disabled users.Any other use is prohibited. Use only in a seated position and never stand up, for assembly
refer to the explanatory images below.
SAFETY AND MAINTENANCE
1. Before use, please check all the screws are tighten and the main frame
is stable. The maximum load weight is 100 kg.
2. Placed in ventilation place.
3. Verify that the test leads are in good condition. If necessary, replace them
immediately if worn or missing.
4. Add the lubricating oil to the transmission parts regularly.
CLEANING
Use damp cloth with normal detergents. Do not submerge the seat in the
bath water; drain after use and dry the seat. Don’t use harsh abrasives or
bleach based cleaners.
WORKING CONDITION
Temperature: 5 ÷ 38°C
Humidity percentage: 20 ÷ 90% RH
Atmospheric pressure: 800 ÷ 1060 hPa
CONSERVATION CONDITION AND TRANSPORT
Temperature: - 10 ÷50°C
Humidity percentage: 20 ÷ 90%
Atmospheric pressure: 800 ÷ 1060 hPa
M43283-M-Rev.0-09.22
FS609U (GIMA 43283)
GIMA WARRANTY TERMS
The Gima 12-month standard B2B warranty applies.
Keep in a cool, dry place Product code
Keep away from sunlight Lot number
Consult instructions for use Medical Device
Medical Device compliant
with Regulation (EU) 2017/745 Manufacturer
Caution: read instructions
(warnings) carefully Date of manufacture
Authorized representative
in the European community
Foshan Dongfang Medical Equipment Manufactory (LTD.)
5 Xingfu Road, Zone A, Shishan Industrial Park,
Nanhai District, Foshan City, China, 528000
Made in China
Importato da / Imported by:
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
[e-mail]
[e-mail]
www.gimaitaly.com
MedNet EC-Rep GmbH
Borkstrasse 10. 48163 Muenster. Germany
ENGLISH

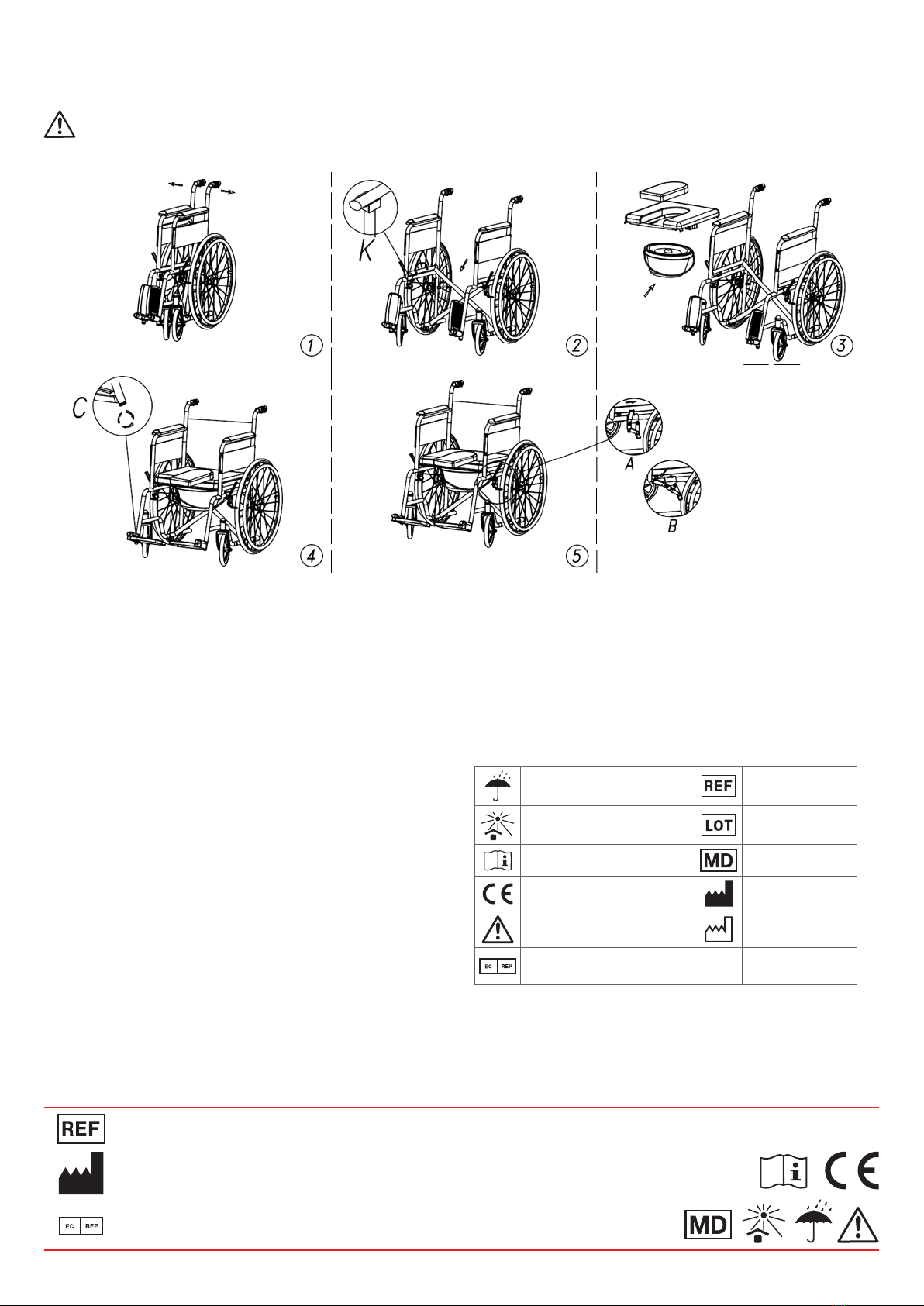

ASSEMBLY INSTRUCTIONS
1. Open Note: Hold the handshake at both sides of the frame to pull, and then put the hand down the pipe of the word pressure (1,2); fully open, such as (Figure
2). (The word pipe fell to the C-type card K View).
2. Commode and the base plate, seat installation instructions: shown in Figure 3 direction, the rst mounting plate, and then install the seat, and then insert
the commode, such as (Figure 4).(Note that in order to install the product fully open state, received timely need to be removed).
3. Brake Description: Figure A walking state, Figure B for braking state; pull the brake lever to release the brake the direction of the Figure A, Figure B,
compared with brake (note about brake use).
4. Foot Description: The direction in Figure 3 as shown in the foot inward rotation can be opened using the contrary Collapse; Figure C loosen the screw
locking screw (adjust the height adjustable foot high and lowpoles).
5. Collapse: rst remove the commode a chance to open the cushion and the seat plate, and then hold the word tube rope to pull to collapse.
