GlammFire Crea7ionEVO Plus Series User manual

INSTRUCTIONS MANUAL
Crea7ionEVO PLUS

GlammFire. PAG./2
Thank you for purchasing a GlammFire product.
In order to activate your 2-year GlammFire warranty, please register your GlammFire product at
www.glammfire.com/pt/sobre/garantia or complete your warranty card and send it to us along with a
purchase copy, to our address, within 30 days after the purchase.
For more information please check the Warranty chapter.

GlammFire. PAG./3
ÍNDEX
1—Material Supplied 4
2—Components 4
3—Safety Instructions 5
3.1—Ventilation 5
3.2—Cautions 5
4—Fuel 7
4.1—Bioetanol –The adequate fuel 7
5—Installation 8
5.1—Flammable material 8
5.2—Materials: stone/metal/ceramics 8
5.3—Dimensions 9
5.4—Installation Procedures 11
5.5—Levelling of combustion fire line 12
5.6—Filling system 17
5.6.1—Local filling system 17
5.6.2—Displaced filling system (Option) 18
5.7—Home Automation (Option) 21
5.8—Burner support with protection glasses (Option) 25
5.9—Verre frontal (Option) 29
6—Operation Instructions 33
6.1—Functions—Buttons 33
6.2—Language Selection 36
6.3—Remote Control synchronization 36
6.4—Turn on 37
6.5—Out of fuel 38
6.6—Turn off 39
6.7—Fuel reserve 39
6.8—Battery charging 40
7—Security Systems 40
7.1—Leak detection system 41
7.2—Vibration Sensor 41
7.3—Tank door locking system 41
7.4—Smothering the combustion fire line 42
7.5—Tank filter 42
7.6—Failed components 42
8—Display Messages 48
9—Maintenance 48
10—Overall Dimensions 48
11—Especifications 49
12—Dimensions of the option burner support with protection glasses 49
13—After-Sales Service 50
14–Warranty 50

1—Material Supplied
2—Components
Please read this Instruction Manual carefully before using your decorative fireplace. It contains important operating
and maintenance instructions, that should be followed correctly, in order to ensure a durable use of your decorative
fireplace.
All presented cautions and warnings must be respected.
Keep this manual for future reference.
This Instruction Manual is subject to change without notice.
1. Combustion fire line;
2. Control panel;
3. Tank zone;
1.
2.
3.
1. Burner;
2. Remote control;
3. Manual Bioethanol Pump;
4. Hex Key Nº4;
5. 2x Batteries;
6. 2x Metallic handles;
7. Battery charger;
8. AC adapter;
9. Local Filling System Kit;
10. Displaced Filling System Kit (Optional);
11. Burner support with protection glasses (Option)
4.2.
1.
5. 6.
7.
8.
9.
10.
3.
11.
GlammFire. PAG./4

GlammFire. PAG./5
3—Safety Instructions
3.1—Ventilation
It is recommended that you keep a good ventilation of the area, in order to ensure a healthy level of oxygen.
Biothanol combustion releases carbon dioxide (CO2) and water (H2O). The combustion requires oxygen, therefore the
area where the fireplace is should have adequate ventilation with ventilation grids or other means, to allow air quality
and circulation.
3.2—Cautions:
GlammFire is concerned about your safety, therefore we have taken all necessary consideration for conception, fabri-
cation, assembly and transport, to ensure perfect functioning.
We therefore ask you to thoroughly follow our instructions for assembly, use and maintenance.
 Do not cover your decorative fireplace;
 Keep it away from flames, ignition sources, and flammable materials;
 Never use a manual lighter to ignite the fireplace.
 Do not place the fireplace near windows or doors that can create drafts. These drafts may cause irregular function-
ing;
 Do not blow to the combustion fire line when igniting or during normal functioning of the fireplace;
 Keep a regular watch, during use of the fireplace;
 Keep children and animals away from the fireplace. Children do not recognize danger. Therefore make sure children
are kept at a safe distance;
 Keep children watched when fireplace is working;
 The fireplace should not be exposed to direct sunlight or any heat source, as it may damage its materials;
 If you spill bioethanol onto the floor absorb it with a cloth, and then clean with a wet cloth, to avoid ignition out-
sider the combustion fire line and stains on the floor;
 In case you spill bioethanol in the fireplace clean it immediately with a wet cloth, to avoid ignition outside the com-
bustion fire line and damages to the finishing of the fireplace (paint, lacquers, leathers, amongst others);
 Attention: While working the fireplace may achieve very high temperatures. Therefore avoid touching it. Areas of
potential contact with skin may cause burns;
 Do not fill the combustion fire line while hot, wait for it to cool down;
 Never pour bioethanol over the flame;
 After extinction of the flame wait approximately 5/10 minutes before handling the fireplace;
 In case of fire use a fire blanket;

 Do not use water to extinguish the fire;
 Do not use chemical products to clean the fireplace, as they may damage the materials. When in doubt contact an
authorized dealer;
 After flame cutting may remain small residual flames at the point of fuel inlet for approximately 2 to 10 minutes. At
the end of this time the flame will extinguish naturally;
 If bioethanol pours out during the process of filling up the tank, clean the tank and surrounding area, before using
again;
 Decorative stones, wood or other accessories should not be placed directly on top of the burning area. Should you
use decorative accessories make sure:
 The accessories do not interfere with the flame;
 Are only for decorating the fireplaces and combustion fires;
 There is no risk of falling inside the combustion fire.
GlammFire. PAG./6

GlammFire. PAG./7
4—Fuel
4.1—Bioethanol –The adequate fuel
 GlammFire fireplaces are designed to work with quality bioethanol liquid with a minimum of 96% suitable for
fireplaces, fully tested. Only this fuel ensures a clean and efficient combustion. Fuel with less or inappropriate
quality may lead to:
 Higher probability of malfunction;
 Reduction in durability of the system;
 Incomplete and inefficient combustion;
 Smoke and odours;
 Residues inside the combustion fire line.
 Bioethanol is internationally recognized as being the major source of renewable energy, 100% ecological and
environmentally friendly. It is made from fermentation and distillation of sugars from plants, such as sugar cane,
potato, beetroot and cereals;
 The use of bioethanol guarantees a reduction of 85% in CO2 emissions, therefore contributing for the reduction of
global warming;
 Use only liquid bioethanol as fuel. Only bioethanol will make a clean and perfect combustion;
 Keep bioethanol away from children and animals, as well as from a working fireplace;
 Avoid contact with eyes and skin;
 Do not drink bioethanol. In case you do go to the nearest hospital;
 Bioethanol should be kept at a minimum distance of 1 m from the fireplace;
 Do not place bioethanol in front of the fireplace;
 For security reasons bioethanol should be stored at a room temperature of approximately 20 ºC.
 Use only liquid bioethanol, recommended by GlammFire.

5—Installation
5.1—Flammable materials
 Do not place flammable materials near the fireplace, within 1m;
 Racks or shelves should be distant 1m from the combustion fire line;
5.2—Materials: stone/metal/ceramics
 A - 100 mm;
 B - 100 mm;
 C - 500 mm;
A
B
C
GlammFire. PAG./8

GlammFire. PAG./9
5.3—Dimensions:
 The surface which you want to install the combustion fire must be as level as possible;
Necessary dimensions for the built-in hole:
Crea7ionEVO PLUS Length (D) Width (E) Height (F)
400 746mm 190mm >170mm
600 935mm 190mm >170mm
800 1146mm 190mm >170mm
1200 1546mm 190mm >170mm
1600 1946mm 190mm >170mm
2000 2346mm 190mm >170mm
2400 2746mm 190mm >170mm
 Make sure there is always a good ventilation (ca. 50mm) around the Crea7ionEVO PLUS, when it is built-in;
D
E
F
50mm 50mm
Ventilation

GlammFire. PAG./10
Ventilation
Crea7ionEVO PLUS Ventilation area (cm2)
400 75cm2
600 115cm2
800 150cm2
1200 225cm2
1600 300cm2
2000 375cm2
2400 450cm2
Required ventilation:
Crea7ionEVO PLUS Length (D) Width (E) Height (F)
400 770mm 214mm 160mm
600 959mm 214mm 160mm
800 1170mm 214mm 160mm
1200 1570mm 214mm 160mm
1600 1970mm 214mm 160mm
2000 2370mm 214mm 160mm
2400 2770mm 214mm 160mm
If you want to put the Crea7ionEVO PLUS faced on the surface, in which it will be built-in, use the following dimen-
sions:

GlammFire. PAG./11
5.4—Installation Procedures
Very Important:
We recommend extreme caution when unpacking your fireplace.
The Crea7ionEVO PLUS is supplied with two metallic handles which facilitate handling during installation.
To proceed with the installation of handles, disconnect the system from the power supply sources, open the doors
and fit the handles in the indicated areas. See Figure 1 and 2.
Figure 1—Metalic handle right fitted.
Figure 2—Crea7ionEVO Plus prepared to be handled.

GlammFire. PAG./12
5.5—Levelling of combustion fire line
If after having the burner working for more than 20 minutes in order to stabilize the flame, it still does not fill the
combustion line as a whole, it must be leveled.
When installing the Crea7ionEVO PLUS, level the combustion fire line, using the supplied Hex Key Nº4 (G) and the
screws (H). See Figure 3. (In case the burner is between model 1200 and 2400, two screws are required Figure 3.)
If the flame does not occupy the entire opening will be necessary to level the combustion fire line.
- Lack of flame on the left: Turn the screw clockwise to clockwise. Parallel turn the screw counter clockwise.
- Lack of flame on the right side: Turn the screw clockwise to clockwise. Parallel turn the right screw counter
clockwise.
- Repeat the procedure described till to get a uniform flame.
G
H
H
H
H

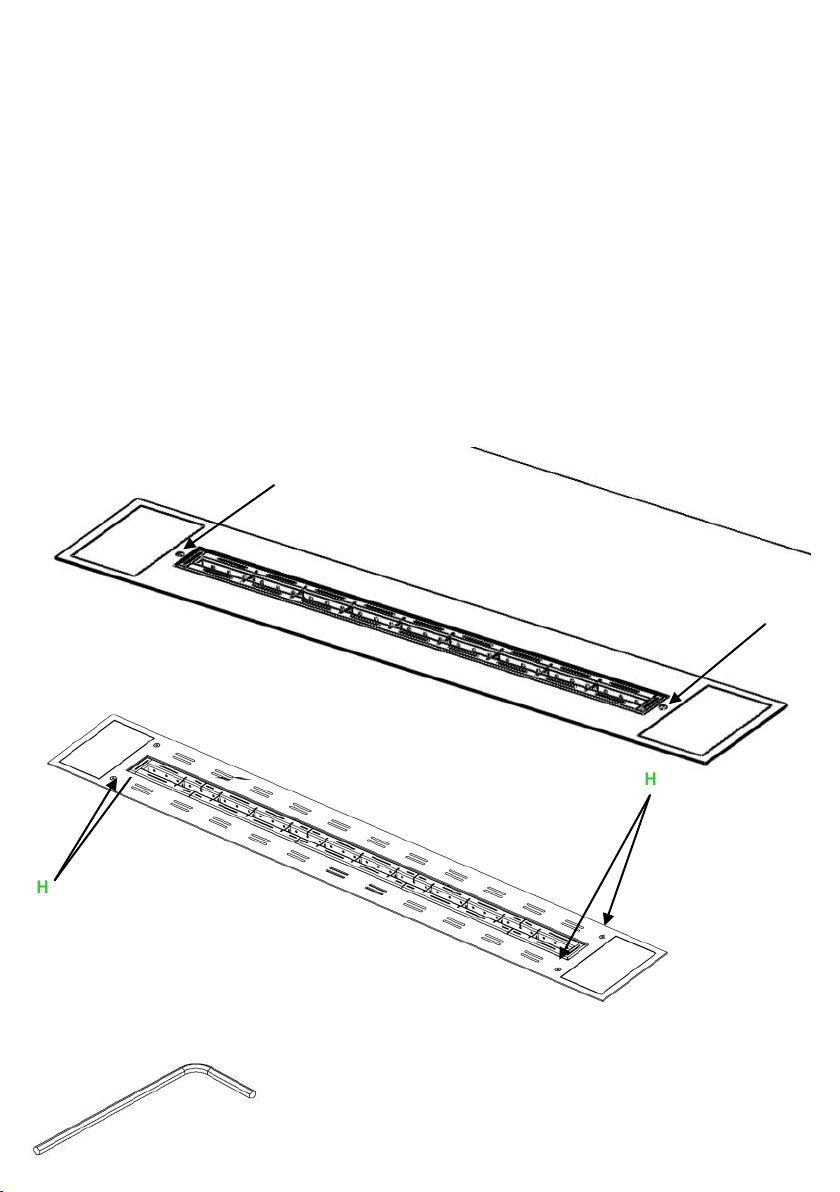

Figure 3—Screws for levelling the combustion fire line.

GlammFire. PAG./13
In case of installation of Crea7ion Evo Plus, please note the details below.
f there is an air / chimney extraction it must be closed.

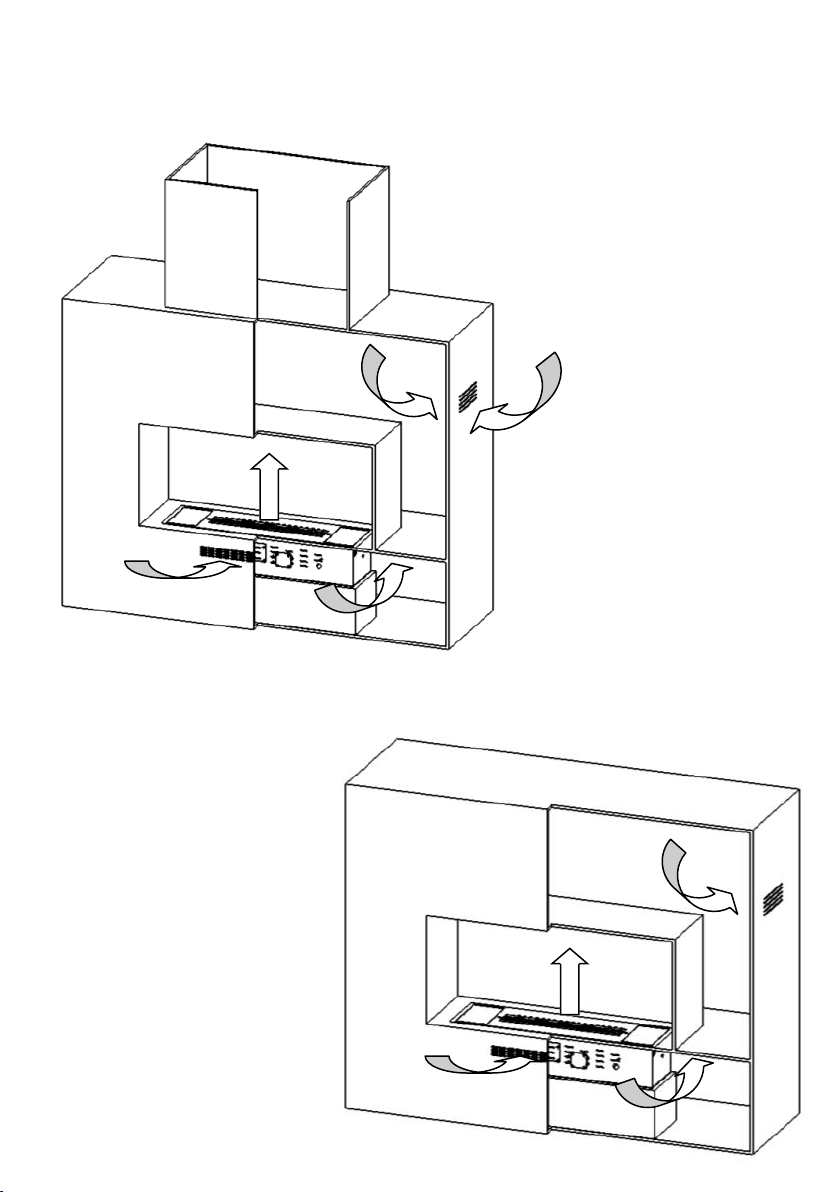

Figure 3—Installation with superior extraction of air
Figure 4—Normal airflow for burner ventilation
Figure 5—Anormal airflow for burner ventilation
Ventilation must be performed from the bottom up in the Crea7ion Evo Plus (Figure 4) as the air must enter the
burner's safety box and exit by the combustion zone, thus allowing perfect combustion and operation. Correct ventila-
tion of the appliance must be ensured.
If there is an air extraction, it must be closed, otherwise the natural air flow of the system is inverted (Figure 5).

GlammFire. PAG./14
If this situation is not foreseen and there is a higher air extraction at the place of installation, it must be closed
otherwise this will cause an abnormal return of the flame as the air flow is performing the reverse course to the
correct and normal operation of the burner, as previously mentioned.
The flame will therefore be sucked in by the burner ventilation features and this will damage the system (Figure 6).
Figure 6—Incorrect movement of the air flow

GlammFire. PAG./15
Figure 7-Physical barrier for perfect functioning
Physical barrier for
perfect functioning
In order to avoid this problem a physical barrier must be created to prevent extraction. (Figure 7)

GlammFire. PAG./16

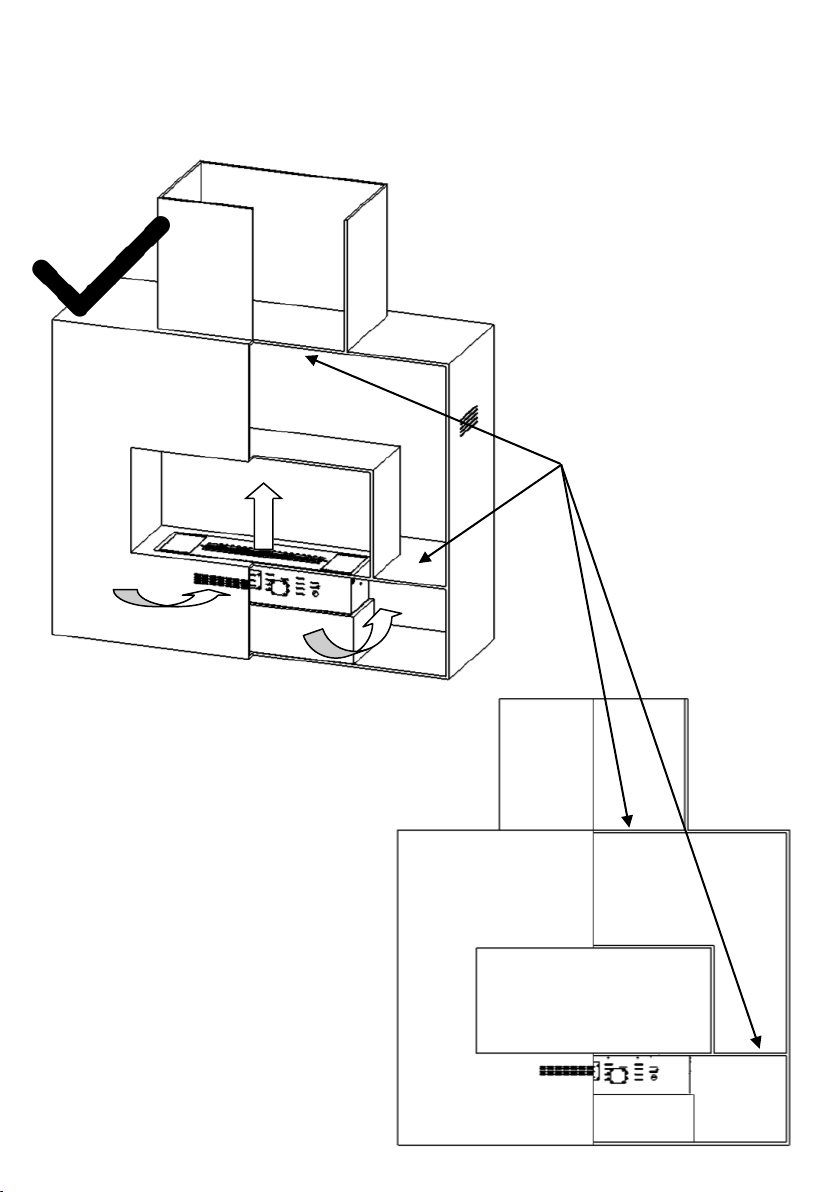

Figure 8—Correct installation
Figure 9—Correct installation
The installation should be preferably carried out according to Figure 9.
A correct installation when there is an extraction has to be carried out with a physical barrier in order to verify the air
flows of Figure 8.

GlammFire. PAG./17
5.6—Filling system (Option)
5.6.1—Local filling system
If your Crea7ionEVO PLUS has a local filling system, please follow the following steps to install it correctly:
Attach the hose provided (Figura 4) in the quick coupler, located next to the tank(Figura 11).
Place the other end of the hose, with its own filter, in the bioethanol jerry can.
At this point, you can fill the fireplace, pressing continuously the filling button until the green light appears, indicating
that the tank is full and the system is switched off automatically.
Attention: When the green light appears, you should stop pressing the button, otherwise there is a risk of having a
fuel overflow.
Note: The filling time of the local filling system is approximately 60 sec/liter.
Filling hose
Quick coupler Filling button
After filling the fireplace, remove the hose, close the fuel cap and you can use the Crea7ionEVO PLUS normally.
Filter
Quick coupler

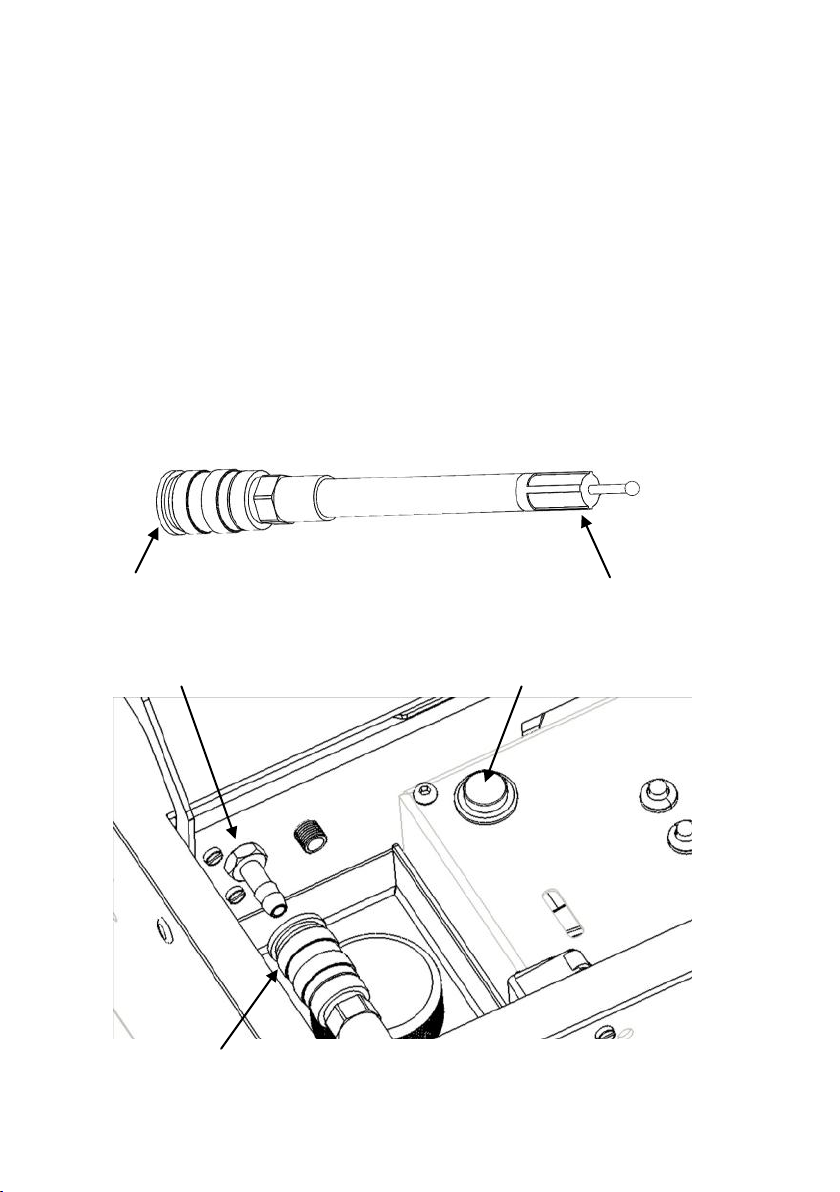

Figura 10—Filling hose
Figura 11—Filling system

GlammFire. PAG./18
5.6.2—Displaced filling system
If your Crea7ionEVO PLUS has a displaced filling system, please follow the following steps to install it correctly:
Note: GlammFire recommends the utilization of 20 litres deposit.
Material provided:
-Technical box with displaced filling pump;
-Pipe 10m (hose, electronic cable);
-2x clamps;
-2x electrical terminals;
-Tank’s stopper;
First, fix the technical box of the displaced filling system using the drilling available on the back or bottom of it.
(Figure 12).
Attention: The technical box of the displaced filling system must be located lat a maximum distance of 10m away from
the fireplace. For the proper functioning of the system, it is recommended not to put a higher difference of 3m.
Note: The filling time of the displaced filling system is approximately 30 sec/liter.
256
173
235

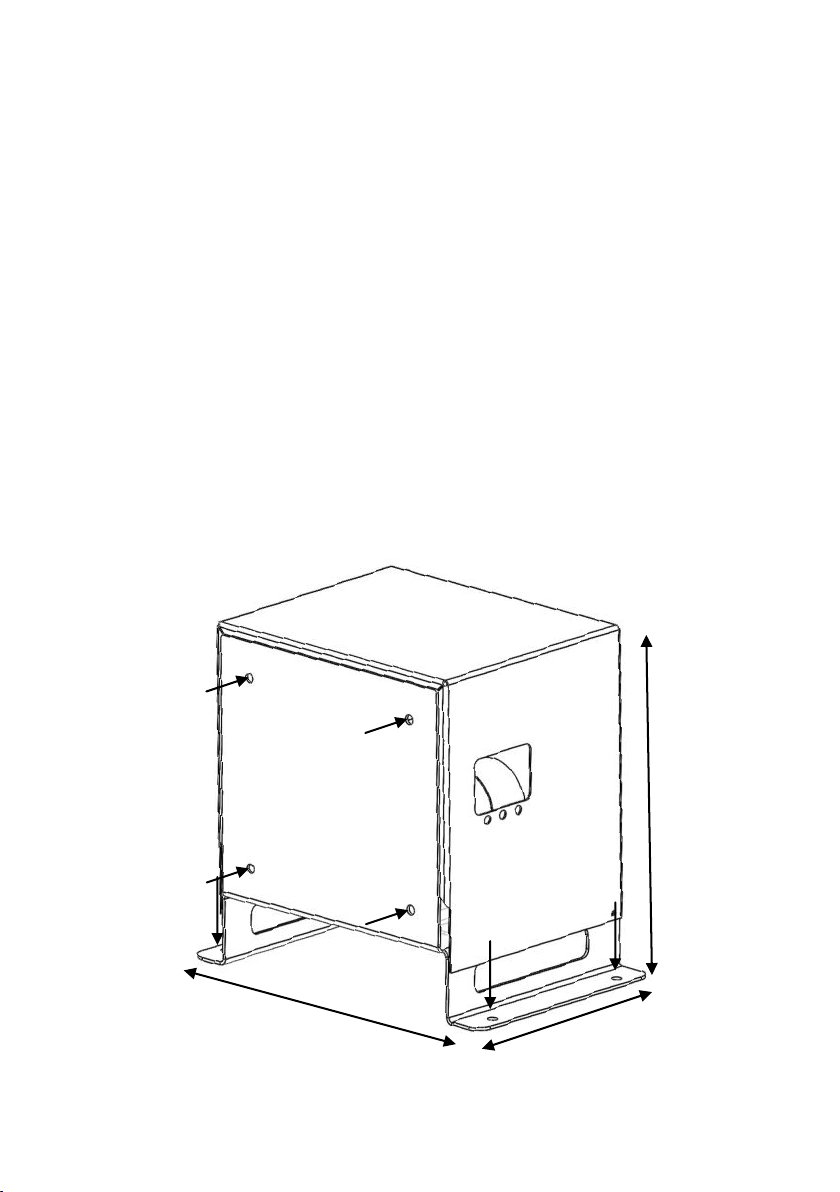

Figure 12—Displaced filling system technical box installation

GlammFire. PAG./19

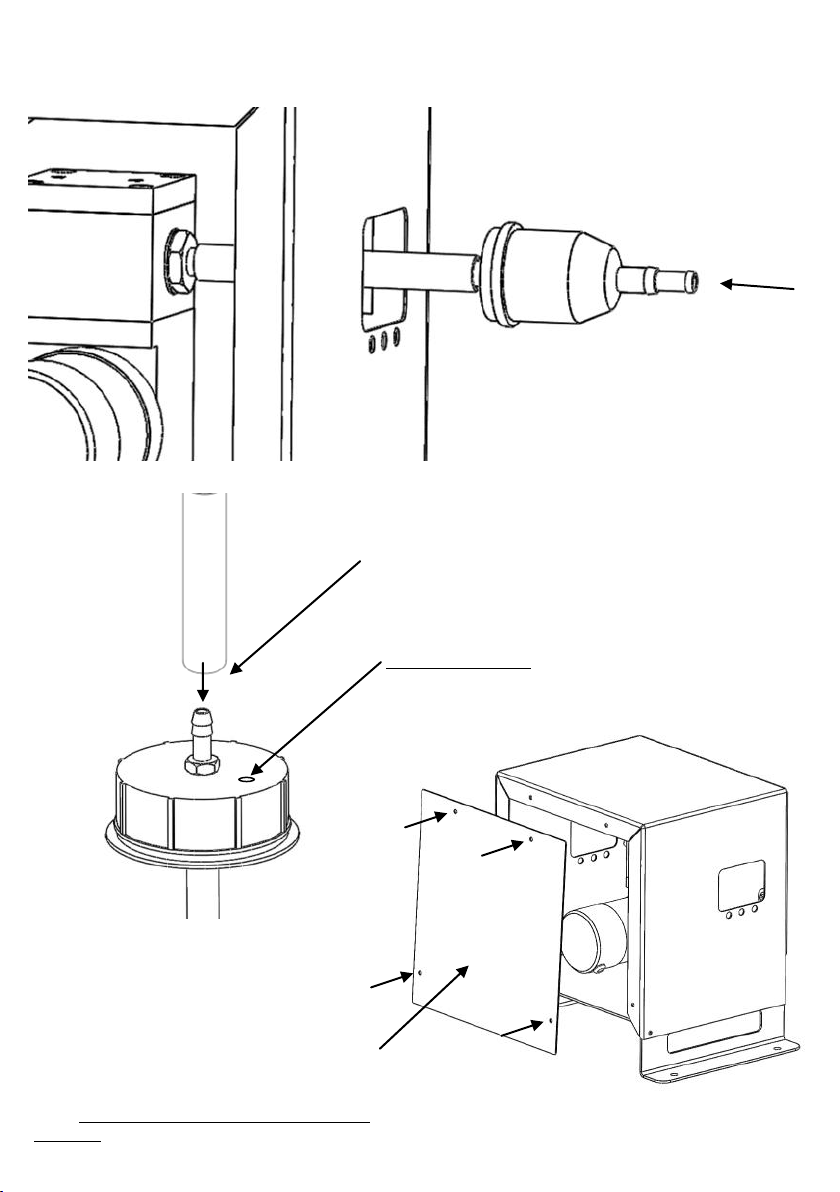

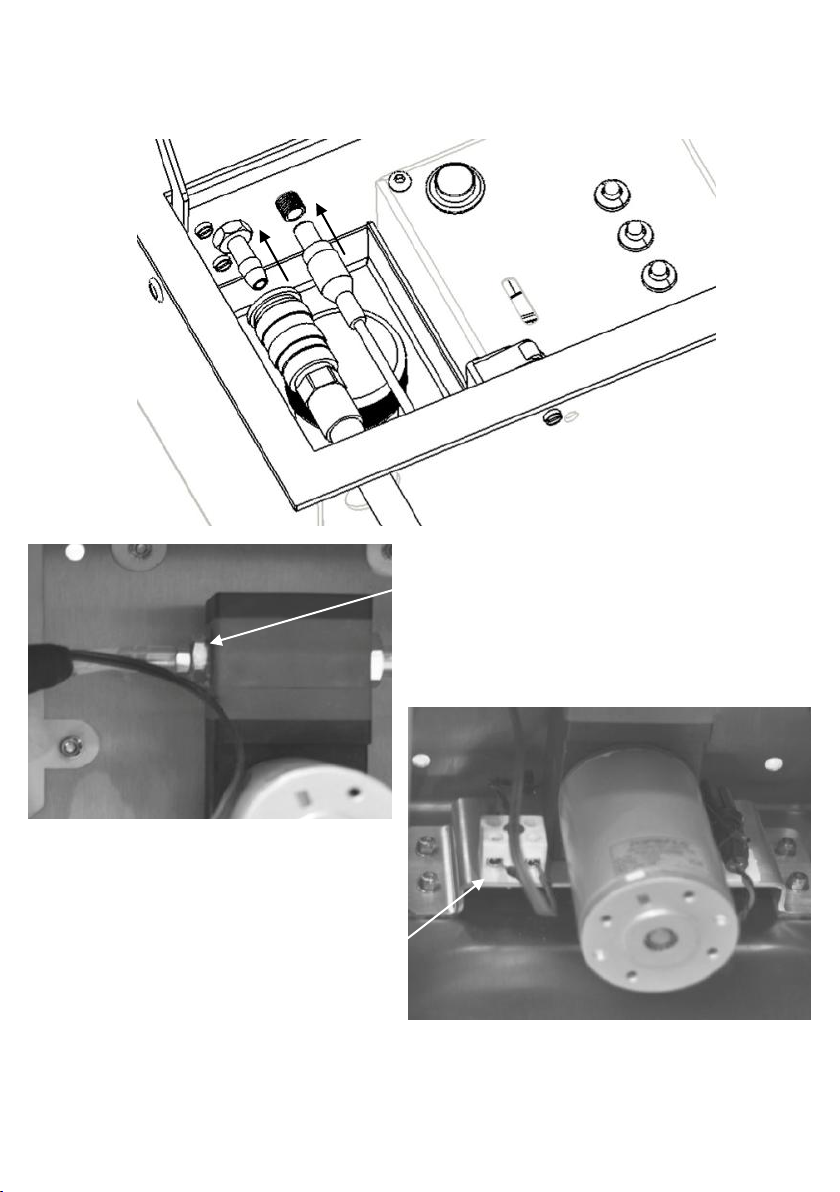

Pass the hose and the electronic cable through the hole in the box and connect them in the respective orifices, located
near the tank(Figura 13).
Attach the hose to the available connection in the pump
displaced filling system, using the serrated clamp provided
(Figura 8).
Make the connection of the electronic cables to the
ceramic connector, respecting the colours of existing
wires (red/red; black/black) (Figura 15).
Note: If the hose and the electronic cable are too long (10m), you can reduce it, cutting them to the desired extent.
Thus use the supplied terminals and stick them in the electronic cable wires.
Figura 13—Hose (ou pipe) and Cable Connection
Figura 14—Hose connection
Figura 15—Electrical connection

GlammFire. PAG./20
Attach the 1,50m hose provided to the filter, using the serrated clamps(Figura 16).
Connect the hose to the quick coupling of the tank stopper, which
can be placed in the tank(Figura 17).
Finally, close the technical box of the displaced filling
system, fixing the front plate with the screws pro-
vided (Figura 18).
NOTE: YOU MUST ALWAYS CHECK IF THERE ARE NO
LEAKAGES
Mandatory ventilation
Figura 18—Placing the cover
Figura 17—Connecting the hose (ou pipe) to the
easy connection of the stopper
Figura 16—Connecting the filter to the hose
