GlammFire KIT Glamm 3D User manual

KIT Glamm 3D / 3D S / 3D II
Capacity
1,1 litters ( filtered water )
Autonomy
8 hours
Voltage
220/240 V
Frequency
50 Hz
Lamps
4 x 50W Xenon Amber
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic
Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives
2006/95/EC and 2004/108/EC

GlammFire. PAG./3
INDEX
1—Components 8
2—Important Safety Advice 9
2.1—Warning 9
2.2—Damage 9
2.3—Location 9
2.4—Plug Position 9
2.5—Unplugging 9
2.6—Owner/User 9
2.7—Electricity 9
3—General Information 10
4—Installation Instructions 10
4.1—Before You Start 10
4.2—Installation 10
5—Operating the Fire 12
5.1—Manual Controls 12
5.2—Remote Control 13
6—Maintenance 14
6.1—General Tips 14
6.2—Filling The Water Tank 14
6.3—Changing Lamps 14
6.4—Cleaning 15
6.4.1—Water Tank 15
6.4.2—Sump 15
6.4.3—Air Filter 16
7—Troubleshooting 17

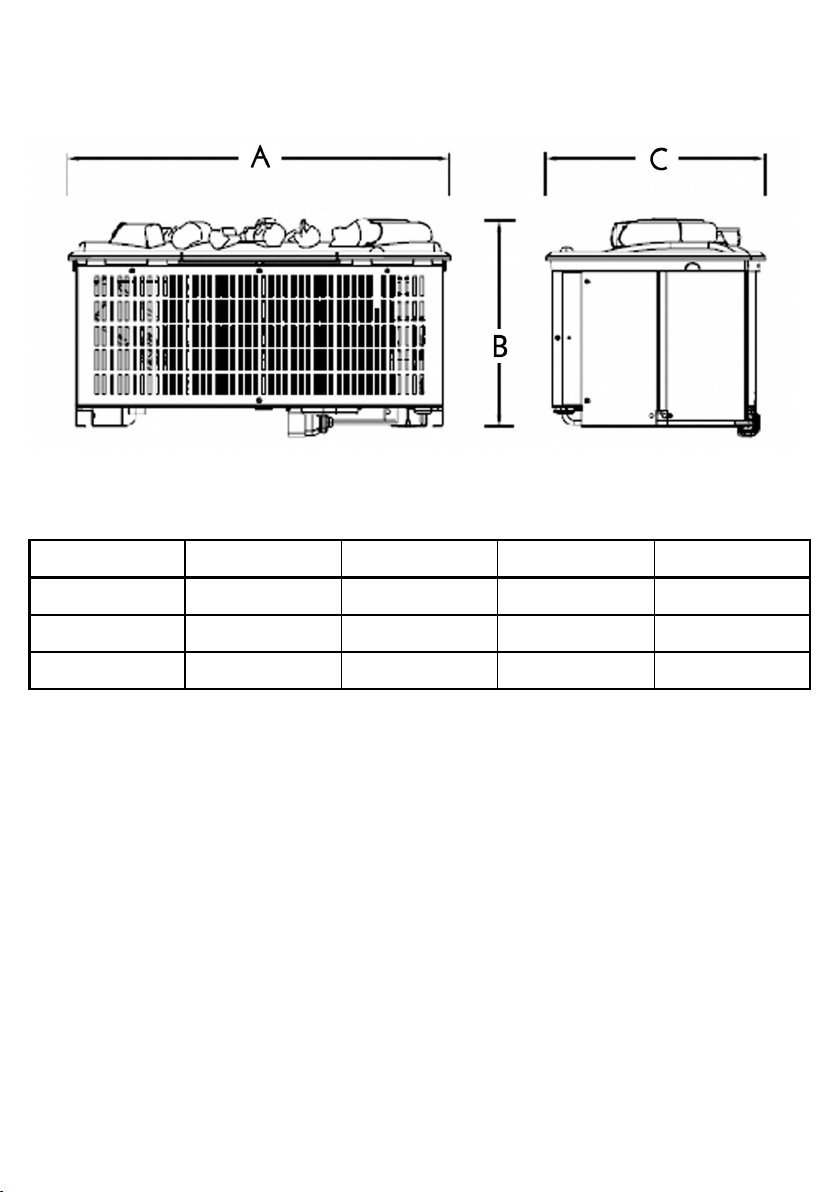

8—Overall Dimensions 18

GlammFire. PAG./5

GlammFire. PAG./7

Congratulations on purchasing your GlammFire Electric appliance. This quality product has been designed with preci-
sion and rigour that characterizes us to offer you pleasant and soothing moments.
Please read the instructions for use carefully and effective before using the appliance.
Keep this Manual in a safe place.
Please read this manual before using your appliance and keep it for future reference. All presented warnings must be
respected.
The information provided in this manual is subject to change without notice.
1—Components
Decorative
Tank
Lighting
of

GlammFire. PAG./9
2—Important Safety Advice
When using electrical appliances, basic precautions should always be followed to reduce the risk of fi re, electrical
shock and injury to persons, including the following:
2.1—Warning
Do not place material or garments on, or obstruct the air circulation around the appliance. The appliance carries the
Warning symbol indicating that it must not be covered.
2.2—Damage
If the appliance is damaged, check with the supplier before installation and operation.
If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualified person
in order to avoid a hazard.
2.3—Location
 Do not use outdoors.
 Do not use in the immediate surroundings of a bath, shower or swimming pool.
 Do not locate the fi re immediately below a fixed socket outlet or connection box.
2.4—Plug Position
The appliance must be positioned so that the plug is accessible. Keep the supply cord away from the front of the appli-
ance.
2.5—Unplugging
In the event of a fault unplug the device.
Unplug the device when not required for long periods.
2.6—Owner/User
This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appli-
ance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the
appliance
2.7—Electricity
WARNING –THIS APPLIANCE MUST BE EARTHED.
This appliance must be used on an AC ~ supply only and the voltage marked on the appliance must correspond to the
supply voltage.
Before switching on, please read the safety advice and operating instructions.

3—General Information
Only use filtered water in this appliance. This model is designed to be free standing and is normally positioned near a
wall. Always ensure that the appliance is sitting on a level surface.
Please note: Used in an environment where background noise is very low, it may be possible to hear a sound which is
related to the operation of the flame effect. This is normal and should not be a cause for concern.
If this product experiences a power surge for whatever reason the product may cut-out. This is a normal safety feature
and the product will resume operation after 30 seconds. Once installed, never move this appliance or lay on its back,
without draining the water from sump and water tank.
If you intend not using the appliance for longer than 2 weeks, drain the water from sump and water tank and dry the
sump.
The water tank, sump, sump lid, tank cap and air filters must be cleaned once every two weeks, particularly in hard
water areas.
The appliance should never be operated if the lamps are not working. The lamps should be regularly inspected as
described under ‘Maintenance’ and ‘Changing lamps’.
4—Installation Instructions
This section describes how to set up your fire.
4.1—Before You Start
1. Ensure that all packing items are removed (read any warning labels carefully) and retain all packing for possible
future use e.g. in the event of moving house or returning the appliance to your supplier.
2. Before connecting to the mains supply, check that the supply voltage is the same as that stated on the appliance.
4.2—Installation
Place the appliance against a wall.
Connecting the Transducer Unit + Lamps
1. Release the two red tabs by turning them by 90 degrees (see Fig 2)
2. Lift out the Sump Nozzle (Fig 3)
3. Insert lamps into lamp holders (Fig 4), carefully locating the pins into the holes (Fig 4a)
4. Push lamps firmly into place

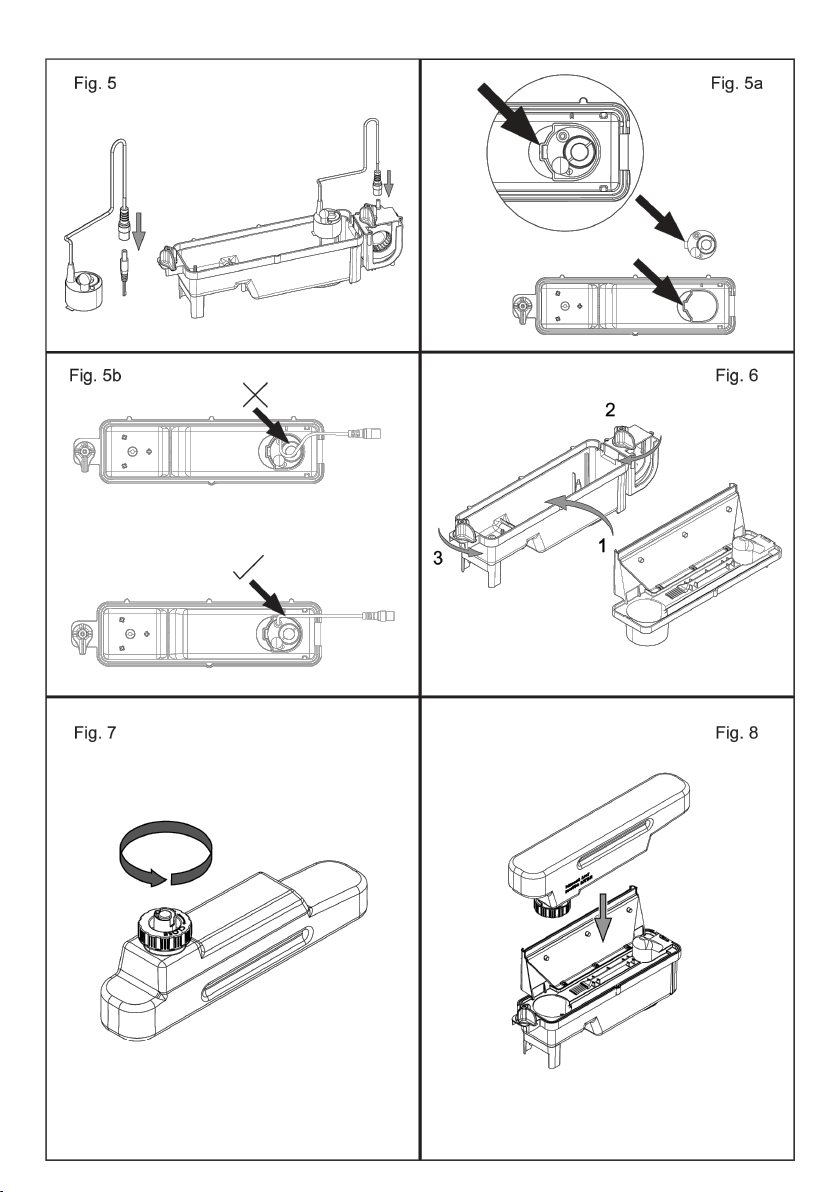

5. Place the Transducer Unit into the sump and join the cable to the connector on the sump (Fig 5)
6. To ensure that the Transducer Unit is correctly placed in the sump, the tab on the Transducer Unit should be lined
up with the moulded recess in the sump (Fig 5a).

GlammFire. PAG./
7. Ensure that the cable is not placed above the disc on the Transducer Unit (Fig 5b). To prevent the cable becoming
pinched between the nozzle and the sump, place the cable in the slot in the wall of the sump.
8. Replace the Sump Nozzle and secure it by turning the two red tabs by 90 degrees (Fig 6) Filling the Water Tank
9. Place Water Tank in sink and remove cap (turn anti-clockwise to open) (Fig 7)
10. Fill Water Tank with filtered tap water only. This is necessary to prolong the life of the flame and smoke effect
producing unit. The water should be filtered through a conventional domestic water filter unit and the filter should be
replaced regularly. Distilled water must not be used.
11. Screw the cap back on –do not overtighten.
12. Place the Water Tank in the Sump, with the tank cap facing down and the fl at side of the tank facing outward (Fig
8) Assembling the fire

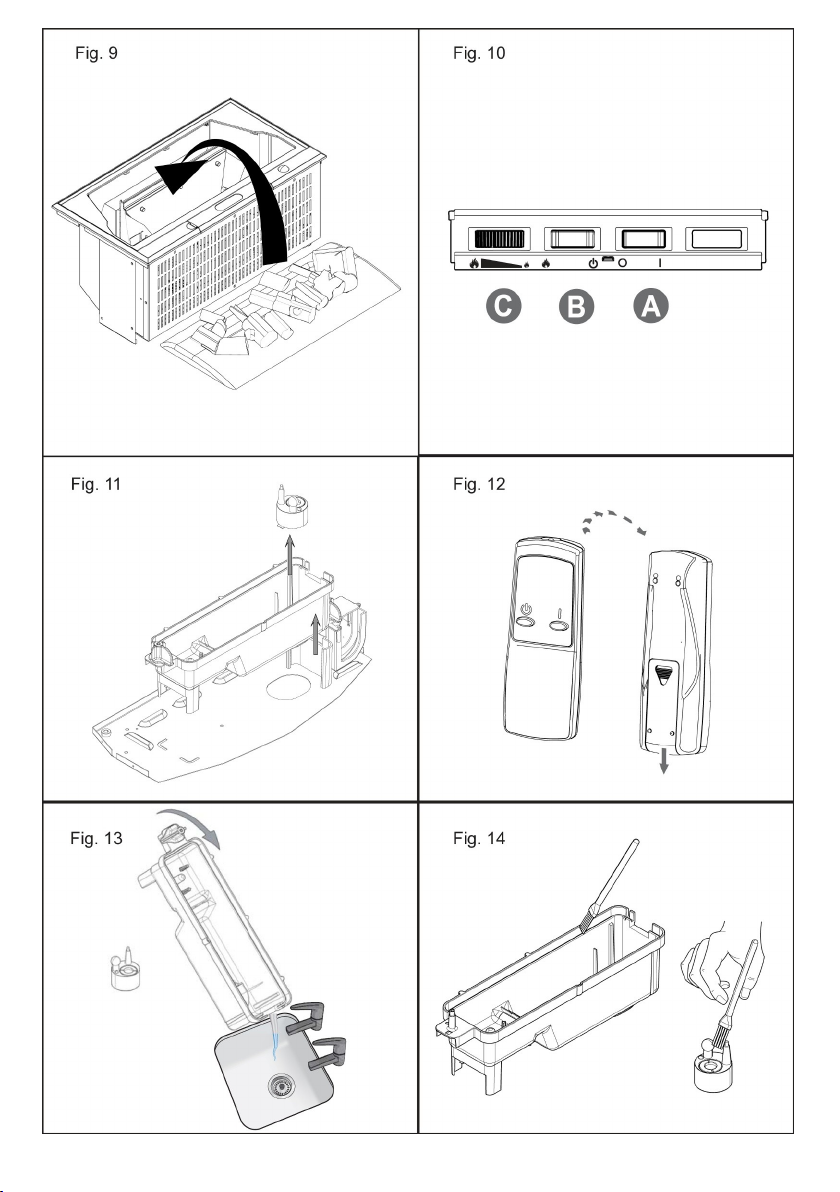

13. Place the Fuelbed on top of the Water Tank and Mist Nozzle (Fig 9) Connect the power cable to the appropriate
power connector at the back of the appliance and Plug the power cable into a 13amp/240volt outlet. The appliance is
now ready for use.

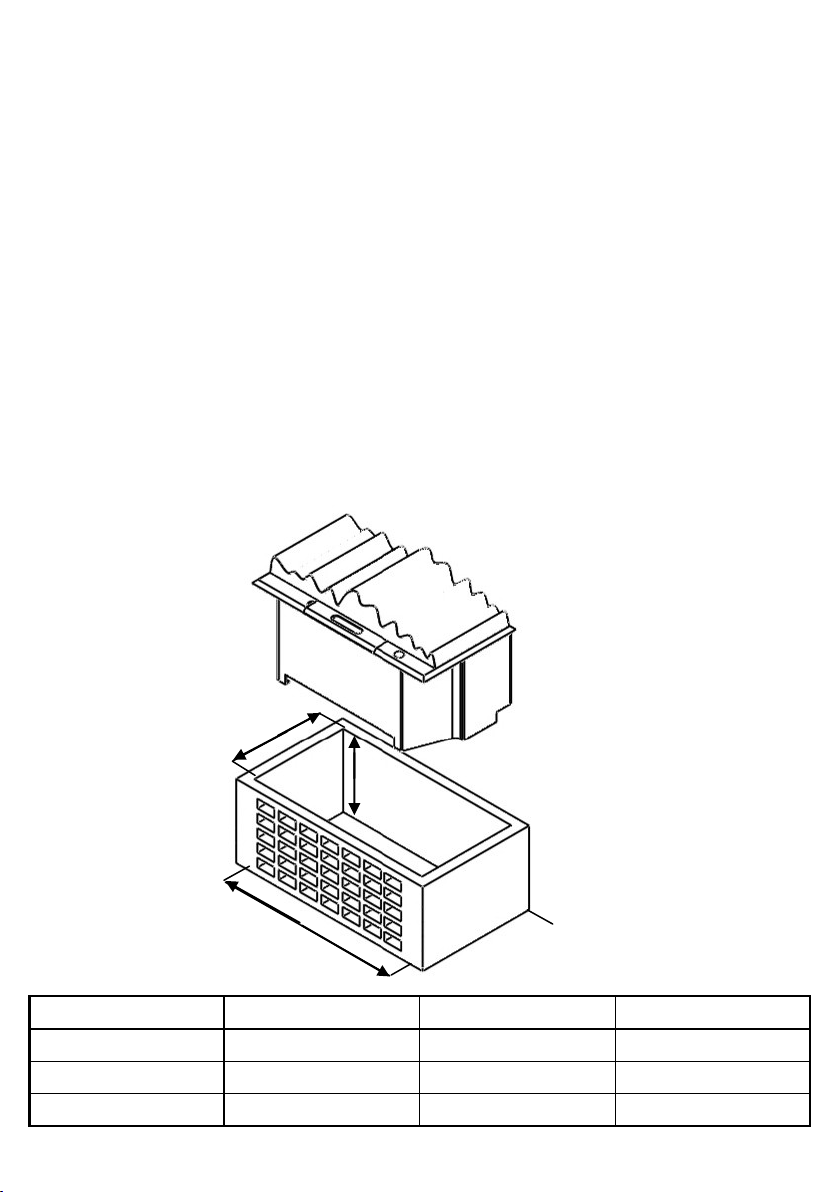

14. Installation dimensions.
Note: It’s important to have an opening on at least one of the sides for ventilation.
Model A B C
Kit Glamm 3D 209 mm 171 mm 396 mm
Kit Glamm 3D S 209 mm 171 mm 396 mm
Kit Glamm 3D II 209 mm 171 mm 555 mm
A
C
B

5—Operating the Fire
5.1—Manual Controls
The manual controls are located beneath the hinged flap. (See Fig. 2 for Manual Control lay out).
Controls the power supply to the Fire.
Note: This switch must be in the “ON” (I) position for the Fire to operate.
Press once to turn on the flame effect. This will be indicated by an audible beep.
Although the main lights operate immediately it will take a further 30 seconds before the flame effect starts
Press qto put fire in to standby mode. This will be indicated by one beep.
Controls the intensity of the flame effect.
Turning the control knob to the left increases the flame effect, turning the control knob to the right will decrease the
flame effect.
1. The flame control knob “C” (Fig. 2) may be turned up or down to give a more realistic effect.
2. Generally the flames appear more realistic when the flame control is turned down.
3. Give the flame generator time to react to changes you may make.
4. The appliance will use less water if the flame effect is set to a lower level (control knob “C”).
5. Do not tilt or move the appliance while there is water in the tank or sump.
6. Make sure that the appliance is on a levelled floor.

GlammFire. PAG./

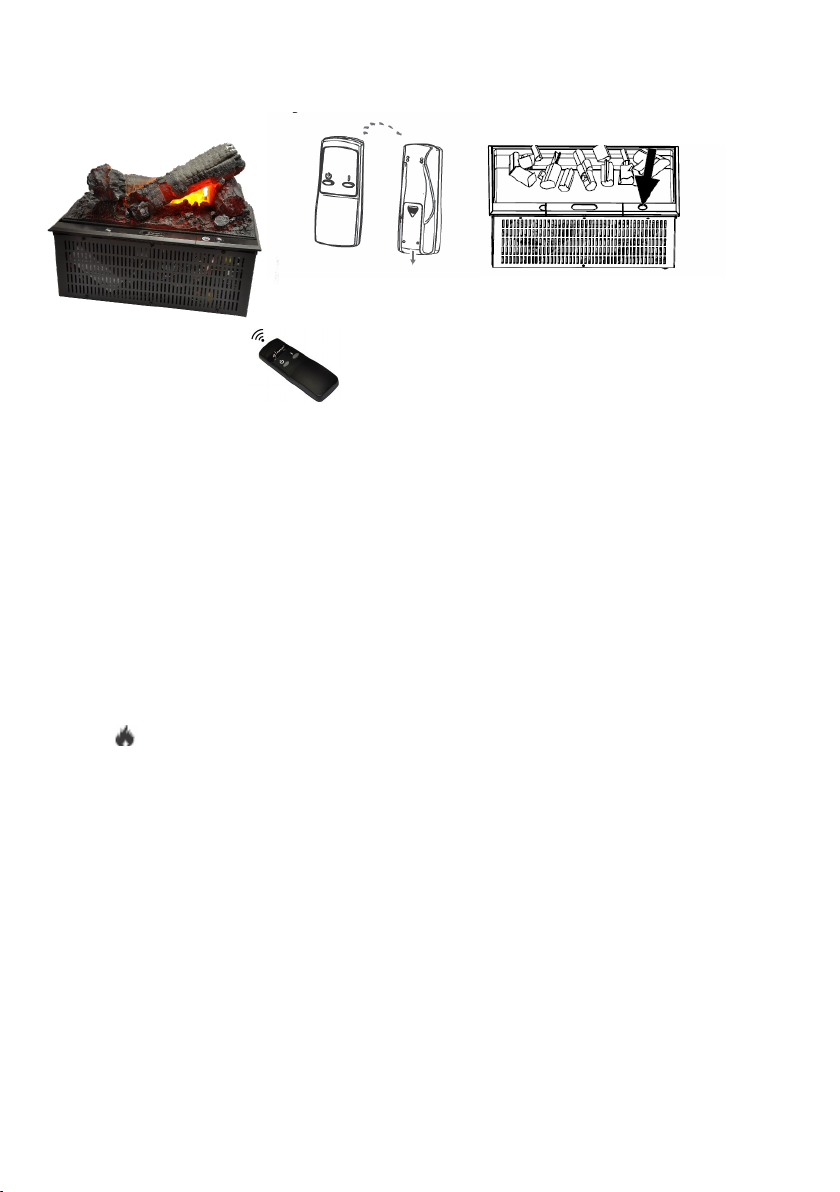

The remote sensor.
Fig. 12 Fig. 17
On the control panel, Switch “A” (see Fig. 2) must be in the “ON” (I) position in order for the remote control to oper-
ate.
There are 3 buttons on the remote control. (See Fig. 2).
To operate correctly the remote must be pointed towards the front of the grate. (See Fig. 4).
The remote control functions are as follows:
I Press once to turn on flame effect.
This will be indicated by one beep.
Standby
This will be indicated by one beep.
5.2—Remote Control

6—Maintenance
6.1—General Tips
Only use filtered tap water in this appliance.
Always ensure that the appliance is sitting on a level surface.
If you intend not using the appliance for longer than 2 weeks, remove and empty the sump and water tank.
Once installed, never move this appliance or lay on its back, without draining the water from sump and water tank.
The appliance should never be operated if the lamps are not working.
The lamps should be regularly inspected as described under ‘Changing lamps’.
6.2—Filling The Water Tank
When the water tank is empty, the flame and smoke effect shuts off and you will hear 2 audible beeps, follow these
steps.
1. Press Switch ‘A’ to (0) (See Fig.10)
2. Gently lift out the fuelbed and carefully set aside.
3. Remove the water tank by lifting upwards and outwards.
4. Place the water tank in sink and remove cap, Anti-clockwise to open. (Fig 7)
5. Fill tank with filtered tap water only. This is necessary to prolong the life of the flame and smoke producing unit.
The water should be filtered through a conventional domestic water filter unit and the filter should be replaced regu-
larly.
6. Screw the cap back on, do not over tighten.
7. Return the tank to the sump, with the tank cap facing down and the fl at side of the tank facing outward. (Fig 8)
8. Gently place the fuelbed back into position. (Fig 9)
9. Press Switch ‘A’ to ‘ON’ (I) position (See Fig.10)
6.3—Changing Lamps
If the flame and smoke effect appears grey or colourless it may be that one or more lamps have failed. You can check
for lamp failure as follows.
1. Leaving the flame effect on, lift out the fuelbed and water tank.
2. It should be possible to view the lamps with the nozzle in place and observe which one needs to be changed.
3. Put Switch ‘A’ in the ‘OFF’ (0) position, and unplug the fi re from the mains.
4. Leave the appliance for 20 minutes to allow the lamps to cool down before removing them.
5. Remove the sump as described in the Cleaning Section.

GlammFire. PAG./
6. Remove the defective lamp, by gently lifting vertically and disengaging the pins from the lamp holder, (See Fig.4 and
4a). Replace with a Xenon Amber, 12V, 45W, Gu5.3 base, 8º beam angle, coloured lamp.
7. Carefully insert the two pins of the new lamp into the two holes in the lamp holder. Push firmly in place. (See Fig.4
and 4a).
8. Replace the sump, nozzle, water tank and fuelbed.
6.4—Cleaning
Warning –Always press Switch ‘A’ to the ‘OFF’ (0) position (See Fig.10) and disconnect from the power supply before
cleaning the fi re.
We recommend cleaning the following components once every 2 weeks, particularly in hard water areas:
Water Tank, Sump, Nozzle, Tank cap and seal, Air filter.
For general cleaning use a soft clean duster –never use abrasive cleaners.
To remove any accumulation of dust or fluff, the soft brush attachment of a vacuum cleaner should occasionally be
used.
6.4.1—Water Tank
1. Remove water tank, as described earlier, put into sink and empty water.
2. Using the supplied brush gently rub the inside surfaces of the cap paying particular attention to the rubber ring in
the outer groove and the centre rubber seal.
3. Put a small quantity of washing up liquid into the tank, refit the cap and shake well, rinse out until all traces of
washing up liquid are gone.
4. Refill with filtered tap water only, replace the cap, do not overtighten.
6.4.2—Sump
1. Press Switch ‘A’ to the ‘OFF’ (0) position
2. Gently lift out the fuelbed and place carefully on the ground.
3. Remove the water tank by lifting upwards.
4. Disconnect the electrical connector, located on the right side of the sump. (See Fig.5) .
5. Release the right sump locking tabs by turning 90º. This allows the sump to be lifted completely from its location.
6. Gently lift up the sump, taking care to keep level so as not to spill any water. Sit the assembly in the sink.
7. Release the left sump locking tabs by turning 90º, then lift off the Nozzle. (See Fig.3)
8. Lift out the transducer and carefully tilt, as shown, so that the liquid drains out of the sump. (See Fig.13)
9. Put a small amount of washing up liquid into the sump, and using the supplied brush, gently clean all surfaces in the
sump and gently clean the transducer including the metal discs located in the top grooved surface. (See Fig.14)
10. When cleaned, thoroughly rinse the sump with clean water to remove all traces of washing up liquid.
11. Clean the Nozzle with the brush and flush out thoroughly with water. (See Fig.15)

12. Reverse the above steps to reassemble.
6.4.3—Air Filter
1. Gently lift out the fuelbed and place carefully on the ground.
2. Gently slide the air filter upwards out of its plastic holder. (See Fig.16)
3. Gently rinse with water in the sink and dry with fabric towel before returning.
4. Replace the filter making sure that the coarse black filter is facing the front of the fi re.
5. Replace the fuelbed.

GlammFire. PAG./
7—Troubleshooting
Symptom Cause Corrective Action
The flame effect will not
start.
Mains plug is not plugged in.
Low water level.
Low voltage connector not
connected properly. (See Fig.5)
The Transducer Unit is not sitting
correctly in the sump
Check plug is connected to wall socket correctly
Check that the water tank is full and there is
water in the sump.
Check that the connector is inserted correctly.
(See Fig.5)
Ensure the Transducer in sitting down into the
moulded recess in the sump
The flame effect is too low. Flame effect control knob is set too
low.(See Fig.10)
The Metal Disc in the transducer
might be dirty (See Fig.14)
The wire from the Transducer Unit
is sitting over the metal disc
Increase level of flame by turning Control knob ‘D’
to the left slowly. (See Fig.10)
Clean the Metal Disc with soft brush supplied.
(See Fig.14) See ‘Maintenance.’ for a step by step
procedure.
Direct the wire to the back of the sump and make
sure it sits into the side slot exiting the sump.
Unpleasant smell when
unit is used.
Dirty or stale water.
Using unfiltered tap water.
Clean the unit as described under maintenance.
Use only filtered tap water.
The flame effect has too
much smoke.
Flame effect setting is too high. Turn the flame effect Control knob ‘D’ to the right,
about ¼ a turn, at a time. Give the flame
generator some time to adjust to the new setting.
(See Fig.10)
Main lamps are not
working and there are no
flames or smoke.
There is no water in the water tank. Follow instructions under Maintenance, ‘Filling
the water tank’.
Check the plug is connected to the Wall socket
correctly and that Switch ‘A’ Fig. 10 is in the
‘ON’ ( I ) position.

8—Overall Dimensions
Model A B C Weight
Kit Glamm 3D 405 mm 350 mm 216 mm 4 kg
Kit Glamm 3D S 405 mm 179 mm 216 mm 4 kg
Kit Glamm 3D II 564 mm 340 mm 216 mm 6 kg

GlammFire. PAG./
Equipment Guarantee beneficiary
Version Address
Controller Tel.
Availability date
Local…………………………………………..Date……………………..
Signature
Series and Guarantee numbers
Distributor code
Name and Address of the Distributor
Guarantee
This Electric Appliance carries a guarantee against defects of manufacture and faulty workmanship for a period of 2
years from the date of purchase. This does not apply to the batteries, whose lifespan, regretfully, we cannot predict.
All guarantee periods commence on the date of purchase and are non-transferable.
Our guarantee is offered as an addition to your statutory rights.
The guarantee is applicable to the original purchaser only, non-transferable.
Use of spare parts other than those supplied by the manufacturer will invalidate the appliance guarantee and must
only be fitted by an authorised service engineer.

PT04253-F
Recuperadores Pachinha Lda.
Zona Industrial da Lagoa, Lote G1
4950-850 CORTES - MONÇÃO PORTUGAL
Tel[phone]
Fax[phone]
[email protected]om
www.glammfire.com
