GlammFire Luminous 1200 User manual

Luminous
Dimensions Luminous 1200
L1230 a x 460 l x 180 p mm
Dimensions Luminous 1800
L 1890 mm x A 500 mm x P 180 mm
Type
Built-in
Voltage
220/240 V
Frequency
50 Hz
Power
1000 W—2000 W
Weight Luminous 1200
25 kg
Weight Luminous 1800
37 kg
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic
Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives
2006/95/EC and 2004/108/EC.

Thank you for purchasing a GlammFire product.
To activate your GlammFire 2 years warranty, please register your product at www.glammfire.com/pt/
sobre/garantia or complete your warranty card and send it to us, along with a purchase copy, to our
address within 30 days after the pruchase.
For more information check the Warranty chapter.

GlammFire. PAG./3
INDEX
1—Supplied material 4
2—Important Safety Advice 5
3—Installation 6
3.1—Mounting Methods 6
3.1.1—Flush mount 6
3.1.2—Surface mount 9
3.1.2.1—Luminous 1800 9
3.1.2.2—Luminous 1200 10
3.1.3—In-wall Recessed (only on Luminous 1200) 12
4—Controls 14
5—Maintenance 16
6—Overall Dimensions 17
7—After-Sale Service 18
8—Warranty 18

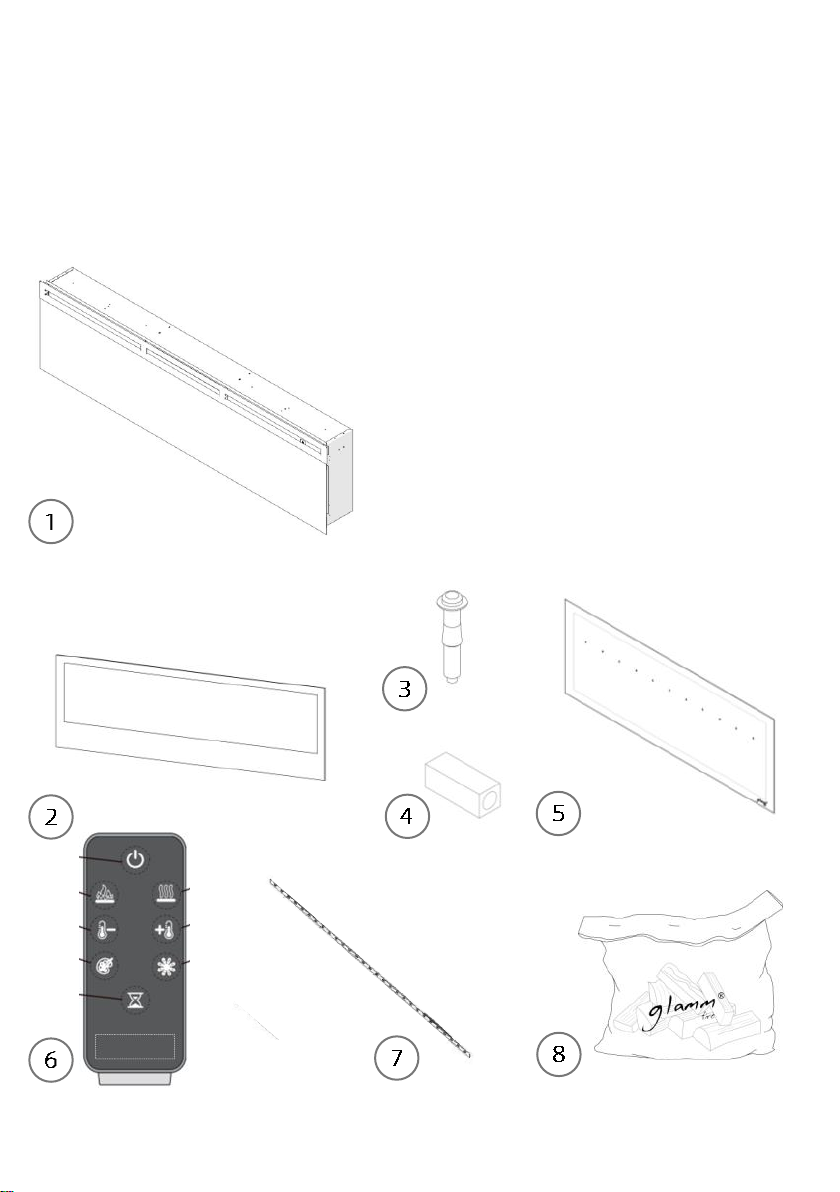

1—Supplied Material
Supplied Material:
1–Fireplace
2–Frontglass
3–Screws (x10), whashers (x4) and bushings (x4)
4–Level
5–Template
6–Remote control
7–Wall mounting support
8–Bag of firewood
Congratulations on purchasing your GlammFire Electric appliance. This quality product has been designed with preci-
sion and rigour that characterizes us to offer you pleasant and soothing moments.
Please read the instructions for use carefully and effective before using the appliance.
Keep this Manual in a safe place.
Please read this manual before using your appliance and keep it for future reference. All presented warnings must be
respected.
The information provided in this manual is subject to change without notice.

GlammFire. PAG./5
1 -IMPORTANT SAFETY ADVICE
PLEASE READ ALL THE INSTRUCTIONS BEFORE USING THIS APPLIANCE.
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical
shock and injury to persons, including the following:
If the appliance is damaged, check with the supplier before installation and operation.
Do not use outdoors.
Do not use in the immediate surroundings of a bath, shower or swimming pool.
Do not locate the appliance immediately below a fixed socket outlet or connection box.
This appliance is not intended for use by children under the age of 8 or other persons without proper care or supervi-
sion if their physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised
to ensure that they do not play with the appliance.
Do not use this appliance in series with a thermal control, a program controller, a timer or any other device that
switches on the heat automatically, since a fire risk exists when the appliance is accidentally covered or displaced.
This appliance is not equipped with a device to control the room temperature. Do not use this appliance in small
rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision
is provided.
Ensure that furniture, curtains or other combustible material are positioned no closer than 1 metre from the applian-
ce. In the event of a fault unplug the appliance.
Unplug the appliance when not required for long periods.
Although this appliance complies with safety standards, we do not recommend its use on deep pile carpets or on long
hair type of rugs.
The appliance must be positioned so that the plug is accessible.
If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualified person
in order to avoid a hazard.
Keep the supply cord away from the front of the appliance.
WARNING: In order to avoid overheating, do not cover the appliance. Do not place material or garments on the
appliance, or obstruct the air circulation around the appliance, for instance by curtains or furniture, as this could cause
overheating and a fire risk.
WARNING: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be
supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on
and off by the utility.
CAUTION - Some parts of this product can become very hot and cause burns. Particular attention has to be given whe-
re children and vulnerable people are present.
The Heater carries the Warning symbol
indicating that it must not be covered.

3 -INSTALLATION
- Review and consider all of the following conditions before installation:
Dimensions of the unit (consultar página das dimensões gerais)
For surface installation, the unit requires a minimum of 2 wall studs in order to ensure secure installation. For other
installation methods, suitable framing is required.
3.1 MOUNTING METHODS:
- Flush mount, Surface mount and In-wall Recessed .
CAUTION: Ensure the power cord is not installed so that it is pinched or against a sharp edge and ensure that the
power cord is stored or secured to avoid tripping or snagging to reduce the risk of fire, electric shock or injury to per-
sons. Construction and electrical outlet wiring must comply with local building codes and other applicable regulations
to reduce the risk of fire, electric shock and injury to persons.
NOTE: A 15 Amp, 120 Volt circuit is required. A dedicated circuit is preferred but not essential in all cases. A dedicated
circuit will be required if, after installation, the circuit breaker trips or fuse blows on a regular basis when the heater is
operating. Additional appliances on the same circuit may exceed the current rating of the circuit breaker
3.1.1 FLUSH MOUNTED:
CAUTION: Two people may be required for various steps of this procedure.
(Luminous 1200)
1. Prepare a wall with a framed opening of 1245mm wide x 470 cm high (Figure 1).
NOTE: The sizing has allowed for 6.4mm around the fireplace insert for ease of installation. This fireplace does not
require any additional venting.
(Luminous 1800)
1. Prepare a wall with a framed opening of 1854mm wide x 470 cm high (Figure 2).
NOTE: The sizing has allowed for 6.4mm around the fireplace insert for ease of installation. This fireplace does not
require any additional venting.
Figure 1. 1245 mm x 470 mm Framing.
Figure 2. 1854 mm x 470 mm Framing.

GlammFire. PAG./7
2. Choose your method of supplying power to the unit:
-Plug in (you may run the power cord out of the framed wall opening to an existing outlet or install an outlet on a
nearby wall stud within the wall).
-Hard wire the fireplace.
NOTE: Hard wiring can be done by removing the Plug from the factory fitted cord and completing the wiring according
to National and Local Elecrical Codes.
WARNING: Do not attempt to wire your own new outlets or circuits. To reduce the risk of fire, electric shock or injury
to persons, always use a licensed electrician.
Ensure that the 3-Position Switch is set to the Off position ("O") and that the circuit on which the fireplace is to be
installed has the power cut off at the service panel until installation is complete.
3. Lift fireplace and insert into opening. The fireplace's mounting trim should be flush against the wall (Figure 3).
4. Use bubble level (supplied) to level the fireplace within the framing. Adjust as required.
5. (Luminous 1200): Drive four supplied mounting screws through the four mounting holes located on the inside sur-
face of the fireplace chassis, into wall studs (Figure 3)
(Luminous 1800): Use the supplied template to mark the 4 screws that secure the installation bar to the wall. Insert
the 4 wall plugs also supplied before insert the 3.8mm screws.
Figure 3.

6. Front glass installation:
6.1. Evenly distribute the supplied wood on the front tray of the fireplace (Figure 4).
6.2. Carefully mount front glass assembly so that the front glass hooks (4) hang on the front glass mounts on the
fireplace (4) (Figure 5).
6.3. Use the supplied two (2) Phillips sheet metal screws to fasten the glass assembly tabs to the fireplace (Figure 6).
6.4. Ensure the fireplace's 3-Position Switch is switched to the Off position ("O").
6.5. If unit is not hard-wired, Plug fireplace into a 10 Amp, 230-240 Volt outlet.
NOTE 1: A 13 Amp, 230-240 Volt circuit is required. A dedicated circuit is preferred but not essential in all cases. A
dedicated circuit will be required if, after installation, the circuit breaker trips or fuse blows on a regular basis when
the heater is operating. Additional appliances on the same circuit may exceed the current rating of the circuit breaker.
Figure 4. Figure 5.
Figure 6.

GlammFire. PAG./9
3.1.2 SURFACE INSTALLATION
3.1.2.1(Luminous 1800)
CAUTION: Two people may be required for various steps of this procedure.
WARNING: Ensure that the circuit on which the fireplace is to be installed has the power cut off at the service panel
until installation is complete.
1. Determine the mounting location of the unit so that the wall-mounting bracket can be installed into 3 wall studs.
NOTE: It is recommended that the mounting bracket be installed 1420 mm off of the ground to maintain an optimized
viewing angle of the flame.
2. Hold the wall mounting bracket, with the bubble level on the top, on the wall so that the bubble on the level is
centered between the two black lines.
3. Mark the 4 mounting screw locations, on the wall, ensuring that the wall bracket stays level. (Figure 7)
4. In locations where the screws are being installed only into drywall, install the supplied wall anchors before installing
the screw (predrill if required).
5. Secure the wall bracket to the wall using the supplied 38 mm mounting screws and washers into the wall and/or
wall anchors.
6. Install the bottom support bracket to the wall centered with the wall mounting bracket, using the appropriate
mounting hardware, (350 mm) below the wall mounting bracket. (Figure 7)
7. Remove the center screw from the bottom of the fireplace. (Figure 8)
Figura 7.

Figura 8.
8. Hang the fireplace from the bracket.
9. Install the removed screw through the bottom support bracket into the fireplace.
10. Refer to Front Glass Installation section final installation procedures.
3.1.2.2 MONTAGEM À SUPERFÍCIE (Luminous 1200)
1. Choose a location which has a minimum of two wall studs available for mounting.
2. Choose your method of supplying power to the unit: • Plug in to an existing outlet or install an outlet nearby. •
Hard wire the fireplace. Follow the hard wiring instructions on page 7.
WARNING: Do not attempt to wire your own new outlets or circuits. To reduce the risk of fire, electric shock or injury
to persons, always use a licensed electrician.
Ensure that the circuit on which the fireplace is to be installed has the power cut off at the service panel until installa-
tion is complete.
3. Remove the partially reflective glass from the fire:
 Lay fireplace on its back.
 Remove Phillips screws from each of the two glass brackets (figure 9).
 Remove glass brackets.
 With one hand keeping pressure on the partially reflective glass, tilt the
fireplace upright and slightly forward to allow the partially reflective
glass to fall out of the inside framing.
CAUTION: Partially reflective glass is not tempered. Do not bump or drop the
partially reflective glass to avoid breakage and personal injury.
 Remove partially reflective glass from fireplace.
Parafusos de suporte
Vidro parcialmente
refletivo
Suporte do vidro
Figure 9.

GlammFire. PAG./11
4. Position the fireplace on a wall at the position where it will be mounted (Figure 10). Use a bubble level (one is sup-
plied) to ensure that fireplace is level on the wall.
5. Ensuring that at least two key-holes line up with a wall stud (key-holes are spaced at 102 mm centers), mark the
location of four screw locations on the wall (through key-holes).
6. Remove fireplace from wall and store in a safe place away from traffic
7. Where marked screw locations do not line up with a wall stud, insert (screw in) one of the two supplied wall
anchors (predrill if required). Repeat if only two screws line up with a wall stud.
8. Screw all four supplied #8, 38 mm square head mounting screws and washers into the wall and/or wall anchors
leaving 6.5 mm of thread.
9. Align chosen key-holes with screws and hang fireplace on the wall. Screw heads and washers will fit through keyho-
les and fireplace will slide down into place (screws will slide into narrow part of keyholes).
10. Tighten all four mounting screws down on fireplace chassis.
11. Screw the two supplied #8 square head screws through two of the permanent mounting holes which align with a
wall stud.
12. Carefully replace and install partially reflective glass and glass brackets using screws from step 1.
13. Refer to Front Glass Installation section for final installation procedures. (page 8)
Figure 10.

GlammFire. PAG./12
3.1.3 IN-WALL RECESSED INSTALLATION (ONLY ON LUMINOUS 1200)
CAUTION: Two people may be required for various steps of this procedure.
1. Prepare a wall with a framed opening of 1181 mm wide x 420 cm high (Figure 11).
NOTE: The sizing has allowed for 6.4mm around the fireplace insert for ease of installation. This fireplace does not
require any additional venting.
2. Choose your method of supplying power to the unit:
-Plug in (you may run the power cord out of the framed wall opening to an existing outlet or install an outlet on a
nearby wall stud within the wall).
-Hard wire the fireplace. (recommended)
AVISO: Do not attempt to wire your own new outlets or circuits. To reduce the risk of fire, electric shock or injury to
persons, always use a licensed electrician.
Ensure that the 3-Position Switch is set to the Off position ("O") and that the circuit on which the fireplace is to be
installed has the power cut off at the service panel until installation is complete.
3. Lift fireplace and insert into opening. (figure 12).

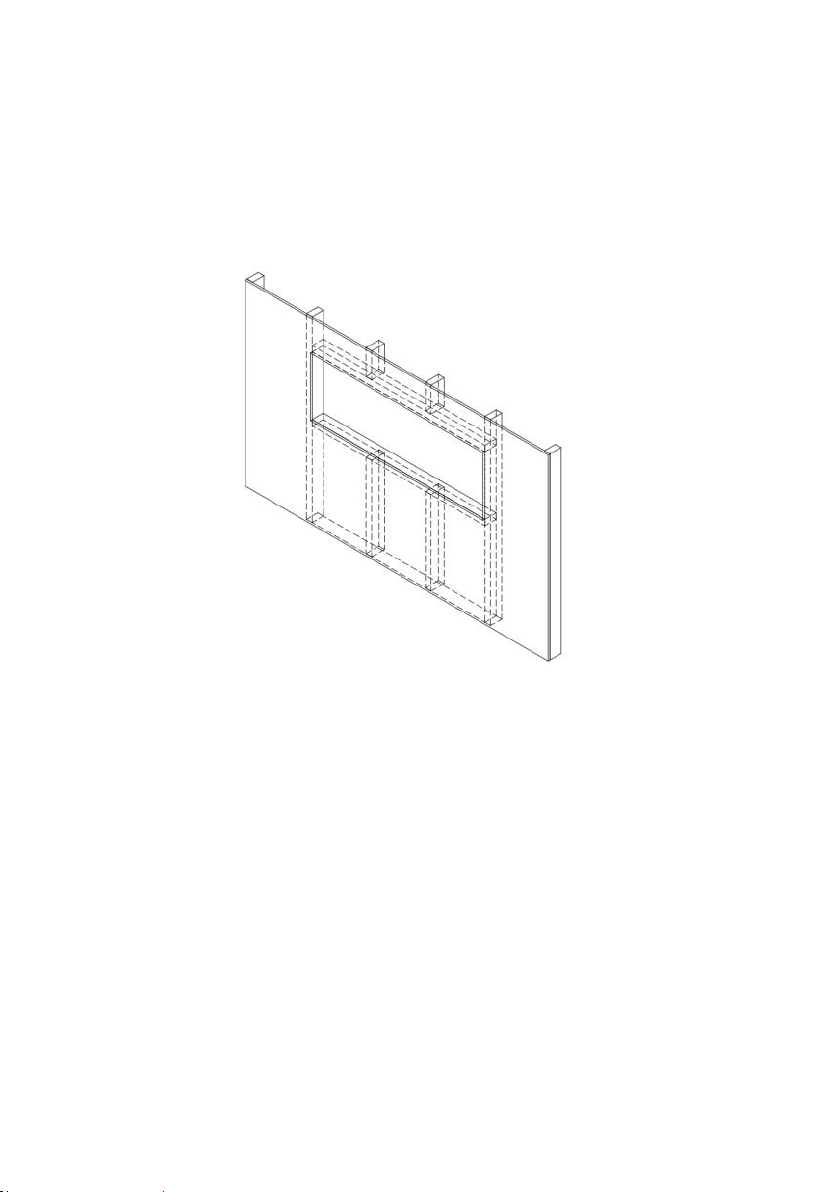

Figure 11. 1181 mm x 420 mm framing.

GlammFire. PAG./13
4. Use bubble level (supplied) to level the fireplace within the framing. Adjust as required.

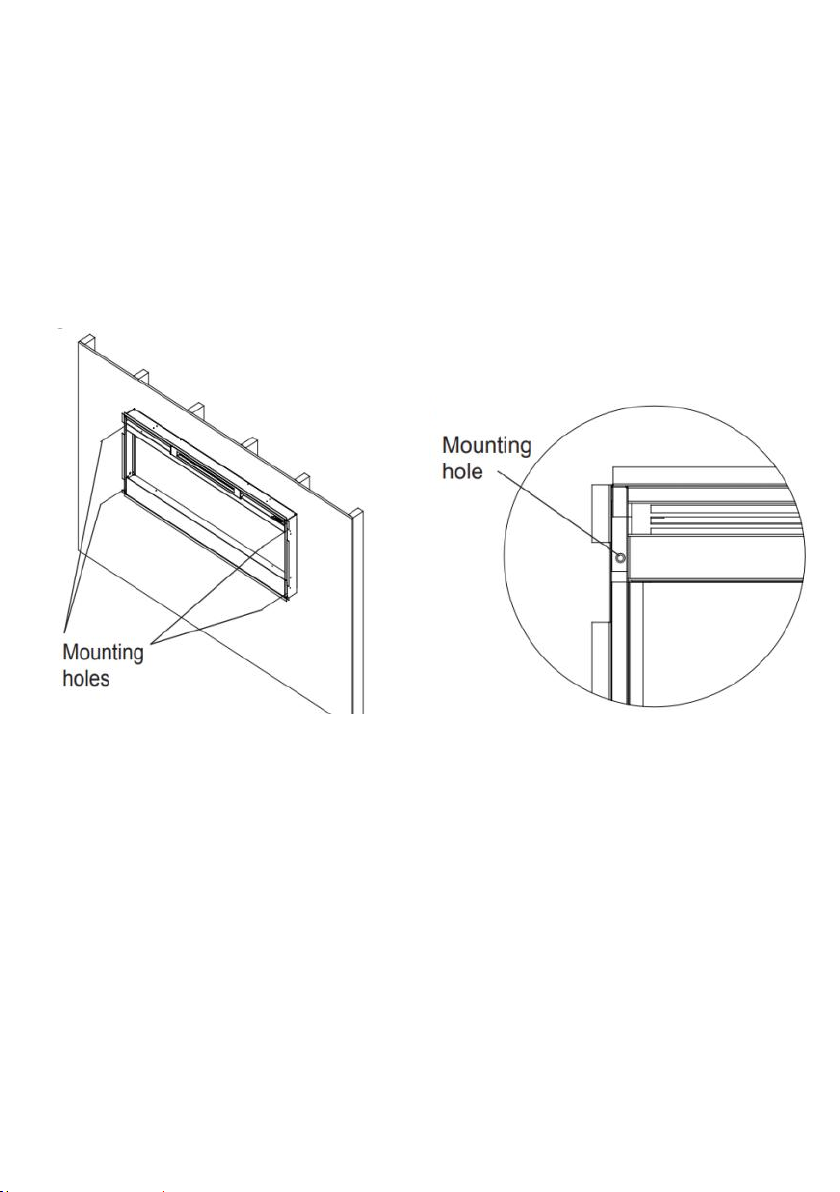

5. Drive four supplied mounting screws through the four mounting holes located in each corner of the fireplace chas-
sis, into wall studs (Figure 13).
6. . Refer to Front Glass Installation section for final installation procedures. (page 8)
Figure 12. Figure 13.

GlammFire. PAG./14
4 - CONTROLS
WARNING: This electric firebox must be properly installed before it is used.
The unit can be controlled by either the manual controls which are located on the upper right of the fireplace or the
remote (Figure 7 & 8). The fireplace is supplied with an IR multifunction remote control.
A. Standby - Turns the unit On and Off
Activated by pressing the Standby button on the remote or the unit.
The unit will turn on with the same functions that it was set to when it was turned Off and the intake
temperature will be indicated on the Floating DisplayTM.
NOTE: When any button is pressed the intake temperature will be displayed on the Floating DisplayTM for
5 seconds.
B. Sleep timer Press multiple times to change the “SLEEP TIMER” in 0.5hr to 8.0 hr before turning off. The
remaining time on the “SLEEP TIMER” displays. (This icon is green in colour)
C. Flame effect “FLAME EFFECT” button cycles the unit sequentially through the 4 setting, low flame, High
flame, demo mode and off.
Low Flame—This setting will run the flame effect at a low brighness level. (the display will
show F1)
High Flame—This setting will run the flame effect at a High brighness level. (The display will
show F2)
Demo mode—This setting will slowly pulse the flame effect between low and High brightness.
(The display will show FP)
Off—This will turn the flame effect off. If the heater is running, the display will activate and
remain active to read the set temperature and show if the product is on LOW HEAT/ HIGH
HEAT/COOL BLOW.
D. Colour theme - “Colour Themes” are setting wich change the colour of the fuel bed there are eight
diferente themes.
Theme 1—Theme 1 is a “Demo mode” this setting will scroll throught all of the colour
settings you can “Pause” this demo mode by pressing th “Brightness Button” in which
case the display will read I.P to “unpause” press the “Brightness Button” in which case
display will read I.U.
Theme 2-8—Themes 2-8 are preset colour that remain static.
E. Brightness - This button switches themes 2-8 between full brightness and half brightness. This button also
ineracts with the product when set on theme as perviously described above.
F. Heat - “HEAT” button cycles the unit sequentially through the 4 settings: Low heat, High heat, cool blow and
off. The heat setting will be indicated by na icon in the display. When the flame effect is On the display will
turn off after 5 seconds, however if the heater is being used independantly of the flame effect. The low heat
or High heat icon will appear continuously in the floanting display.
Low heat - This setting will run the heater at low heat this setting wil be indicated by the
“low heat” icon and the letters LO appearin in the display. ( Icon is Orange)
High heat - This icon in the floating display indicates hight heat this setting will be indicated
by the High Heat icon and the letters HI appearing in the display. (Icon is Red)
Cool Blow - This icon in the floating display indicates Cool Blow this setting will be indicated
by the Cool Blow icon and the letters CB appearing in the display. (Icon is Blue)
OFF - This switches the heater and blowe “OFF”, no icon will be displayed in the floating
display. Note the blower will run for 10-20 seconds after being turned off this is to ensure
the product cools down safely.

GlammFire. PAG./15
G. Temp Down -Press multiple times to lower the heater temperature in 1ºC increments. The lowest
temperature that can be set 5ºC.
Note: Once you stop at your desired temperature this will flash 3 times, then the display will show the room
temperature as detected by the product. If the set temperature is lower than the detected room temperature
the heater will not activate.
H. Temp Up -Press multiple times to increase the heater temperature in 1ºC increments. The highest
temperature that can be set is 37ºC.
Note: Once you stop at your desired temperature this will flash 3 times, then the display will show the room
temperature as detected by the product. If the set temperature is lower than the detected room temperature
the heater will not activate.
Modos de uso:
Change Celcius (ºC) to Fahrenheit (ºF) - Press the both 3 Dot button and 2 Dot on the unit and hold until beep
is heard and display flashes. (To revert back repeat this action)
Ligar/ Desligar a opção de aquecimento
Resetting the Temperature Cutoff Switch: Should the heater overheat, na automatic cut out will turn the whole unit
off and it will not come back on without being reset. It can be reset by turning the unit off at the main disconnect
panel and waiting 5 minutes before turning the unit back on.
Remote Control Battery Replacement—To replace the battery:
1. Slide battery cover open on the remote control.
2. Correctly install one 3 Volt (CR2032 [longer life] or CR2025) battery in the battery holder.
3. Close the battery cover.
Battery must be recycled or disposed of properly. Check with your Local Authority or Retailer for recycling advi-
ce in your area.
Figure 14. Manual and remote control.
+
+
Floating DisplayTM
-Hold both 1 Dot button and Flame button, on the unit, for 2 seconds,
when the heater has been disabled the display will read “..” and beep.
To enble heat repeat this action.

4 - MAINTENANCE
WARNING: Disconnect power before attempting any maintenance or cleaning to reduce the risk of fire, electric shock
or damage to persons.
Partially Reflective Glass Cleaning
The partially reflective glass is cleaned in the factory during the assembly operation. During shipment, installation,
handling, etc., the partially reflective glass may collect dust particles; these can be removed by dusting lightly with a
clean dry cloth. To remove fingerprints or other marks, the partially reflective glass can be cleaned with a damp cloth.
The partially reflective glass should be completely dried with a lint free cloth to prevent water spots. To prevent scrat-
ching, do not use abrasive cleaners.
Fireplace Surface Cleaning
Use only a damp cloth to clean painted surfaces of the fireplace. Do not use abrasive cleaners.
Servicing
Except for installation and cleaning described in this manual, an authorized service representative should perform any
other servicing.

GlammFire. PAG./17
6 - OVERALL DIMENSIONS
Luminous 1800
Luminous 1200

7- AFTER SALES SERVICE
In case of doubt or any anomaly, do not use the fireplace and please contact a specialized technician.
8- WARRANTY
In order to activate your GlammFire 2 year warranty, please register your new GlammFire product at
www.glammfire.com/en/about/warranty or complete your warranty card and return it to us, along with a copy of the
proof of purchase, at our address within 30 days of purchase.
All our Bioethanol Fireplaces and Burners, Electric Fireplaces, Fire Pits & Barbecues carry a warranty against defects of
manufacture and faulty workmanship for a period of 2 years from the date of purchase.
This warranty does not cover glass replacement, batteries, whose lifespan, regretfully, we cannot predict, damage
caused by accident or misuse of the appliance, or the assembly/disassembly not indicated in the instruction manuals.
If the product fails during normal and proper use (not considering the above mentioned events) within the warranty
period, GlammFire will replace the product free of charge.
Our warranty is offered as an addition to your statutory rights. It is applicable to the original purchaser only, non-
transferable. All repairs must only be fitted by an authorised service technician. Use of spare parts other than those
supplied by the manufacturer will invalidate the appliance warranty and must only be fitted by an authorised service
technician.
IMPORTANT: Registering your product does not require proof of purchase, if it will be made on our website, and must
be based on the date of purchase. It will be assumed that registration information accurately reflects the information
on the proof of purchase which will be required upon servicing of any/all products under warranty.
If the information conflicts, information stated on the proof of purchase will be deemed accurate and true and
warranty will be assessed accordingly.
The GlammFire is always concerned with the environment. This is reflected when the projection of their products and
their packaging. Focusing on the reduction of energy consumption, raw materials, natural resources and quantity of
waste generated, GlammFire follows the policy of the 4R's (Reduce, Reuse, Recycle and Recover). Thus GlammFire
have in mind the use of long lasting products as well as reusable and recyclable products.
The GlammFire recommend reusing the packaging GlammFire separately and deposit plastic, paper, cardboard and
glass in the appropriate collection point.
"In nature nothing is created, nothing is lost, everything is transformed."
Antoine Laurent de Lavoisier

GlammFire. PAG./19
Equipment: Guarantee beneficiary:
Version: Adress:
Controller: Tel.:
Availability date:
Local…………………………………………..Date………………………..
Signature
Series and Guarantee numbers:
Distributor code:
Name and Adress of the distribuidor:
GlammFire fireplaces are manufactured under the strict Standard of the world recognized ISO 9001:2008 Quality As-
surance Certificate.
GlammFire products are designed with superior components and materials, assembled by trained craftsmen who take
great pride in their work.
Once assembled the complete fireplace is thoroughly inspected by a qualified technician before packaging to ensure
that you, the customer, receive the quality product that you expect from GlammFire.

PT09097-E
Recuperadores Pachinha Lda.
Zona Industrial da Lagoa, Lote G1
4950-850 CORTES - MONÇÃO PORTUGAL
Tel[phone]
Fax[phone]
[email protected]om
www.glammfire.com
