GlammFire KIT Glamm 3D L User manual

KIT Glamm 3D L / Kit Glamm 3D M
Dimensions
H 350 mm x W 724 mm x D 360 mm / H 320 mm x W 567 mm x D 290 mm
Weight
20 kg / 18 kg
Capacity
1,8 litters (filtered water) / 1,3 litters (filtered water)
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic
Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives
2006/95/EC and 2004/108/EC

GlammFire. PAG./3

Fig. 13

GlammFire. PAG./5
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFER-
ENCE
Important Safety Advice:
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical
shock and injury to persons, including the following:
If the appliance is damaged, check with the supplier before installation and operation.
Do not use outdoors.
Do not use in the immediate surroundings of a bath, shower or swimming pool.
Do not locate the fire immediately below a fixed socket outlet or connection box.
This appliance is not intended for use by children or other persons without assistance or supervision if their physi-
cal, sensory or mental capabilities prevent them from using it safely.
Children should be supervised to ensure that they do not play with the appliance.
Ensure that furniture, curtains or other combustible material are positioned no closer than 1 metre from the fire.
In the event of a fault unplug the fire.
Unplug the fire when not required for long periods.
Although this fire complies with safety standards, we do not recommend its use on deep pile carpets or on long hair
type of rugs.
The appliance must be positioned so that the plug is accessible.
If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualified per-
son in order to avoid a hazard.
Keep the supply cord away from the front of the fire.
WARNING: In order to avoid overheating, do not cover the fire. Do not place material or garments on the fire, or
obstruct the air circulation around the fire.
The fire carries the Warning symbol indicating that it must not be covered.

General.
Unpack the fire carefully and retain the packaging for possible future use, in the event of moving or returning the fire
to your supplier. The Remote Control and batteries are packed separately in the carton.
The fire incorporates a flame effect. Using the flame effect on its own only requires little electricity.
This model is designed to be installed in a surround or into a wall recess.
Before connecting the fire check that the supply voltage is the same as that stated on the fire.
Please note: Used in an environment where background noise is very low, it may be possible to hear a sound which is
related to the operation of the flame effect. This is normal and should not be a cause for concern.
Electrical connection.
WARNING –THIS APPLIANCE MUST BE EARTHED.
This fire must be used on an AC ~ supply only and the voltage marked on the fire must correspond to the supply volt-
age.
Before switching on, please read the safety warnings and operating instructions.
PLEASE RETAIN THIS USER’S GUIDE FOR FUTURE REFERENCE
Do not put plastic components into a dishwasher.
Only slide out the drawer when the water tank needs to be filled or a lamp needs to be changed otherwise you will
inadvertently alter the water level and the flame effect operation.
Only use filtered tap water in this appliance with a maximum hardness of 10 dH.
Always ensure that the fire is sitting on a level floor.
If you intend not using the appliance for longer than 2 weeks, drain the water from sump and water tank and dry
the sump.
Once installed, never move this fire or lay on its back, without draining the water from sump and water tank.
The water tank, sump, sump lid, tank cap and air filters must be cleaned once every two weeks, particularly in hard
water areas.
The fire appliance should never be operated if the lamps are not working.
The lamps should be regularly inspected as described under ‘Maintenance’ and ‘Changing lamps’.
Installation Instructions
Ensure that all packing items are removed (read any warning labels carefully).
Retain all packing for possible future use, in the event of moving or returning the appliance to your supplier.
To install the appliance;
Hold the fire by the sides and gently manoeuvre into position. Plug the fire into a 13amp/240 volt outlet. Ensure that
the supply cable exits at the front of the fire, at the right or left hand corner to suit your supply socket location and is
not trapped under the fire such that it might cause it to be damaged.
Before switching on the appliance, please read the following instructions.
Before using the manual controls firstly fill the water tank (See ‘Maintenance’, ‘Filling the water tank’).
Manual Controls.
The manual controls are located behind the drawer.

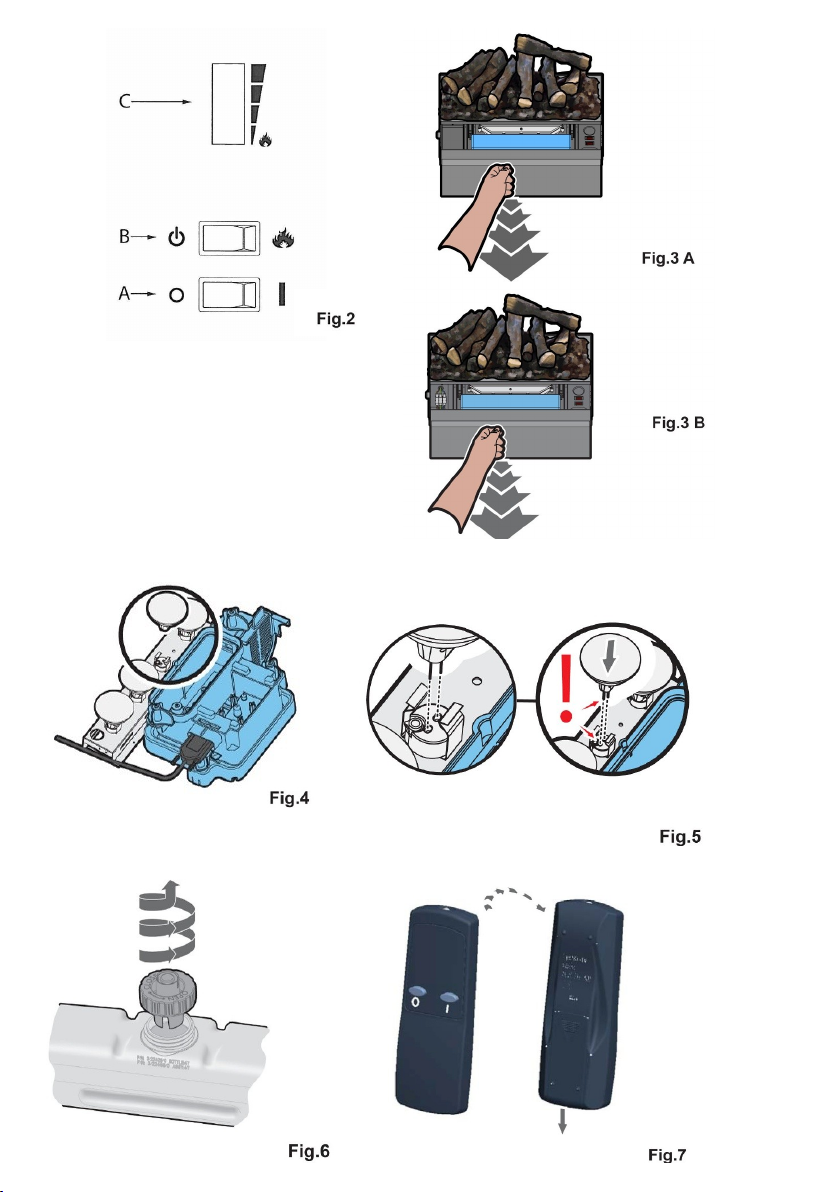

(See Fig.2 for Manual Control lay out) Switch ‘A’:- Controls the electricity supply to the fire.
Note: This switch must be in the ‘ON’ ( I )
Switch ‘B’:- Controls the function of the fire.
Press ionce to turn on flame effect. This will be indicated by one beep.
Although the main lights operate immediately it will take a further 30 seconds before the flame effect
starts.
Press qto put fire in to standby mode.
This will be indicated by one beep.
Control Knob ‘C’:- Controls the intensity of the flame effect.
Turning the control knob clockwise increases the flame effect, turning the control knob anticloc
wise will decrease the flame effect.

GlammFire. PAG./7
When the water tank is empty the main lamps go out. See instructions under Maintenance’, ‘Filling the water tank’.
When this procedure is complete, the main lamps will illuminate but it will take 30 seconds before the flames return.
Remote Control Operation
On the control panel, Switch A (see Fig.2) must be in the ‘ON’ ( I ) position in order for the remote control to operate.
There are 3 buttons on the remote control. (See Fig.7)
To operate correctly the remote must be pointed towards the front fuel effect.
The remote control functions are as follows:
|Press once to turn on Flame effect only.
This will be indicated by one beep.
qStandby
This will be indicated by one beep.
Battery Information.
1. Unclip the battery cover on the back of the remote control. (See Fig.7)
2. Install AAA batteries into the remote control.
3. Replace the battery cover.
Discard leaky batteries.
Dispose of batteries in the proper manner according to provincial and local regulations.
Any battery may leak electrolyte if mixed with a different battery type, if inserted incorrectly, if all the batteries are
not replaced at the same time, if disposed of in a fire, or if an attempt is made to charge a battery not intended to be
recharged.
Tips for using your appliance.
1. Only pull out the drawer when its time to refill the water tank or change a lamp, otherwise it may lead to excess
water in the sump and reduced flame effect. If this happens empty the water from the sump as instructed under
‘Maintenance’.
2. With the flame setting on minimum the unit will use approximately 40ml of water per hour and will last 3 times as
long than when it is at maximum flame setting.
3. Do not tilt or move the fire while there is water in the tank or sump.
4. Make sure that the fire is on a level floor.
5. The flame control knob ‘C’ (Fig.2) may be turned up or down to give a more realistic effect.
6. Sometimes the flames appear more real when the flame control knob is turned down.
7. Give the flame generator some time to react to changes you may make on the flame control knob.
Maintenance
WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE ATTEMPTING ANY MAINTENANCE
Fitting Replacement Lamps.
If a large amount of the smoke appears grey or colourless it may be that one or more lamps have failed.
You can check for lamp failure as follows.
1. Leaving the flame effect on, open the drawers fully, gently pull the drawer fully out by the tab. (See Fig.3)
2. View the lamps from a distance in front of the fi re and observe which lamp needs to be changed.
3. Put Switch ‘A’ in the ‘OFF’ position, and unplug the fire from the mains.
4. Leave the appliance for 20 minutes to allow the lamps to cool down before removing them.
5. Remove the water tank by lifting upwards and place in a sink.
6. Remove the sump as described in the Cleaning Section.
7. Remove the defective lamp, by gently lifting vertically and disengaging the pins from the lamp holder, (See Fig. 4
and 5). Replace with 12V, 50W, Gu5.3 base, 8° beam angle, coloured lamp.
8. Carefully insert the two pins of the new lamp into the two holes in the lamp holder. Push firmly in place. (See Fig.4
and 5).
9. Replace the sump and water tank and carefully close the drawer.
10. Switch on.

Filling the water tank.
When the water tank is empty, flame and smoke effect shuts off , and you will hear 2 audible ‘beeps’.
Follow these steps to refill:
1. Press Switch ‘A’ to (0). (See Fig.2)
2. Pull out the drawer as far as possible by the tab. (See Fig.3)
3. Remove the water tank by lifting upwards and outwards.
4. Place the water tank in sink and remove cap, Anti-clockwise to open. (See Fig.6)
5. Fill tank with filtered tap water with a maximum hardness of 10 dH only. This is necessary to prolong the life of the
flame and smoke producing unit.
Use only filtered water. Do not use a decalcifier.
6. Screw the cap back on, do not over tighten.
7. Return the tank to the sump, with the tank cap facing down and the fl at side of the tank facing outward.
8. Press Switch ‘B’ once to turn on flame effect. (See manual control section and Fig.2).
9. Press Switch ‘A’ to ‘ON’ ( I ) position. (See Fig.2)
10. Gently push the drawer back in as far as it will go.
Cleaning.
WARNING –ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE CLEANING THE FIRE.
We recommend cleaning the following components once every 2 weeks, particularly in hard water areas:-
Water Tank, Sump and Seal, Sump lid, Tank cap and seal, Air filter.
For general cleaning use a soft clean duster –never use abrasive cleaners. To remove any accumulation of dust or fluff
the soft brush attachment of a vacuum cleaner should occasionally be used to clean the outlet grille of the fan fire.
Water tank
1. Remove water tank, as described earlier, put into sink and empty water.
2. Using the supplied brush gently rub the inside surfaces of the cap paying particular attention to the rubber ring in
the outer groove and the centre rubber seal.
3. Put a small quantity of washing up liquid into the tank, refit the cap and shake well, rinse out until all traces of
washing up liquid are gone.
4. Refill with filtered tap water with a maximum hardness of 10 dH only, replace the cap, do not over tighten.
5. Do not use a decalcifier when cleaning the appliance, this may shorten the lifetime of the smoke unit.
Sump
1. Press Switch ‘A’ to the ‘OFF’ (0) position
2. Gently pull the drawer out as far as possible. (See Fig.3)
3. Remove the water tank by lifting upwards.
4. Disconnect the electrical connector, located on the left side of the sump, by first loosening the two retaining screws
and gently withdrawing the connector. (See Fig.8)
5. Release the lower sump locking tabs by turning 90o, this allows the sump to be lifted completely from its location.
(See Fig.9)
6. Gently lift up the sump assembly, taking care to keep level so as not to spill any water. Sit the assembly in the sink.
(See Fig.10)
7. Release the two upper sump locking tabs by turning 90o, then lift off the sump lid. (See Fig.11)

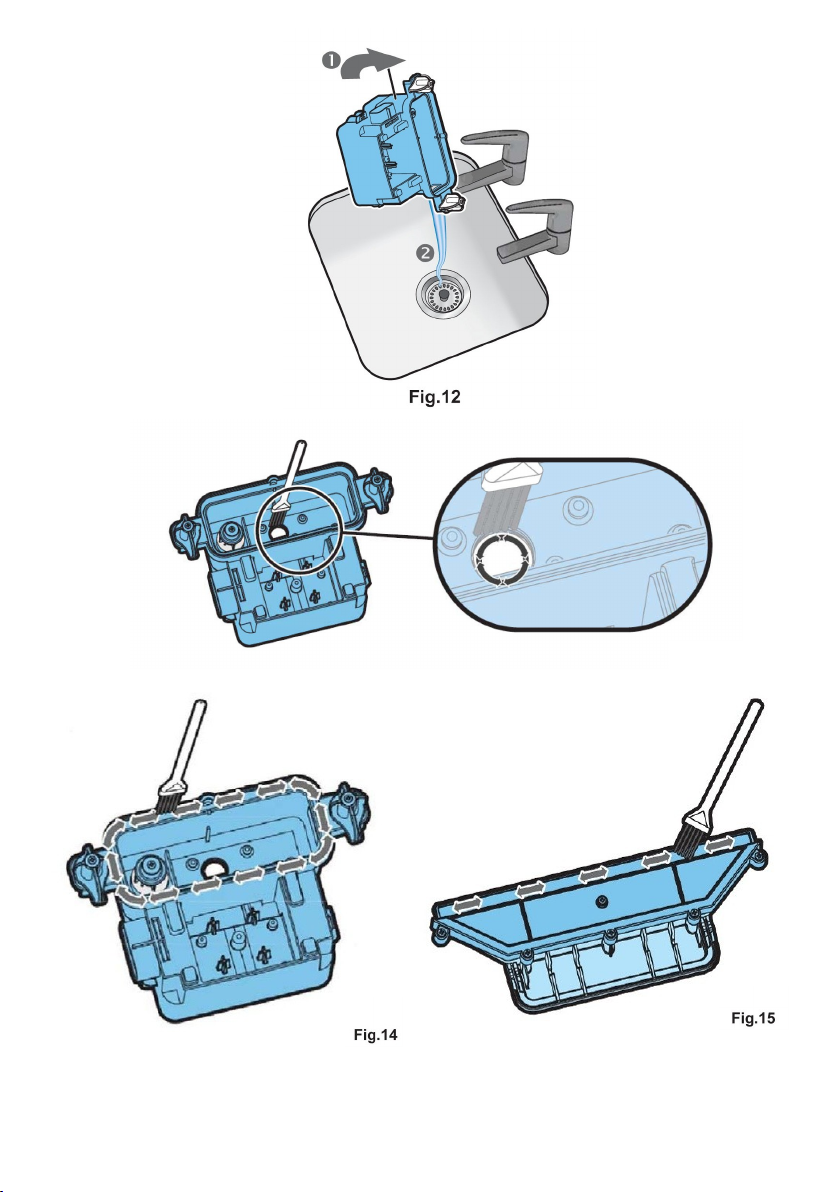

8. Carefully tilt, as shown, so that the liquid drains out of the sump. (See Fig.12)
9. Put a small amount of washing up liquid into the sump, and using the supplied brush, gently clean all surfaces
including the metal disc and the rubber seal located in the top grooved surface. Do not remove the rubber seals. (See
Fig.13 and 14)
10. When cleaned, thoroughly rinse the sump with clean water.
11. Clean the outlet surface of the sump lid with the brush and flush out thoroughly with water. (See Fig.15 & 16)
12. Reverse the above steps to reassemble.

GlammFire. PAG./9
Air filter.
1. Gently pull the drawer out as far as possible. (See Fig.3).
2. Press Switch ‘A’ to the ‘OFF’ (0) position (See Fig.2)
3. Remove the tank and place in a sink with the cap facing upwards.
4. Gently slide upwards the air filter plastic holder. (See Fig.17)
5. Remove the filter combination from the plastic holder.
6. Gently rinse with water in the sink and dry with fabric towel before returning.
7. Replace the filter combination making sure that the course black filter is in contact with the plastic holder. (See
Fig.18)
8. Replace the tank.
9. Press Switch ‘A’ to the ‘ON’ ( I ) position (See Fig.2).
10. Close the drawer fully.
Recycling.
For electrical products sold within the European Community. At the end of the electrical products useful life
it should not be disposed of with household waste. Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice in your country.
After Sales Service
Should you require after sales service, please get in touch with the supplier through whom you purchased the
appliance.

Troubleshooting
Symptom Cause Corrective Action
The flame effect will not
start.
Mains plug is not plugged in.
Switch A is in the ‘ON’ (I) position,
but mode Switch B has not been
pressed.(See Fig.2)
Low water level.
Low voltage connector not con-
nected properly. (See Fig.8)
Check plug is connected to wall socket correctly.
Press Switch B once for flame effect. (See Fig.2)
Check the water tank is full and there is water in
the sump.
Check that the connector is inserted correctly.
(See Fig.8)
The flame effect is too low. Flame effect control knob is set too
low. (See Fig.2)
The water in the sump may be too
high due to the drawer being
opened and closed a number of
times, water tank removed a num-
ber of times, or the fire has been
moved.
Metal Disc at the base of Sump
might be dirty (See Fig.13)
Increase level of flame by turning Control knob C
to the left slowly. (See Fig.2)
If water level in the sump is more than 40mm,
the sump should be removed and emptied in the
sink.
Clean Metal Disc with soft brush supplied. (See
Fig.13) See ‘Maintenance.’ for a step by step
procedure.
Unpleasant smell when unit
is used.
Dirty or stale water.
Using unfiltered tap water.
Clean the unit as described under maintenance.
Use filtered tap water with a maximum hardness
of 10 dH only.
The flame effect has too
much smoke.
Flame effect setting is too high. Turn the flame effect Control knob C to the right
until it is at minimum and slowly turn to the left,
¼ about . a turn, at a time. Give the flame genera-
tor some time to adjust before increasing. (See
Fig.2)
Main lamps are not working
and there are no flames or
smoke.
There is no water in the tank. Follow instructions under Maintenance, ‘Filling
the water tank’.
Check the plug is connected to wall socket cor-
rectly.
Switch ‘A’ Fig. 2 is in the ‘ON’ ( I ) position.
Press switch ‘B’ Fig.2 until you can hear one beep
only, for flame effect.
Model A B C D
Kit Glamm 3D M 567 mm 320 mm 260 mm 290 mm
Kit Glamm 3D L 724 mm 350 mm 330 mm 360 mm
A
B
C
D

GlammFire. PAG./
Equipment Guarantee beneficiary
Version Address
Controller Tel.
Availability date
Local…………………………………………..Date……………………..
Signature
Series and Guarantee numbers
Distributor code
Name and Address of the Distributor
Guarantee
This Electric Appliance carries a guarantee against defects of manufacture and faulty workmanship for a period of 2
years from the date of purchase. This does not apply to the batteries, whose lifespan, regretfully, we cannot predict.
All guarantee periods commence on the date of purchase and are non-transferable.
Our guarantee is offered as an addition to your statutory rights.
The guarantee is applicable to the original purchaser only, non-transferable.
Use of spare parts other than those supplied by the manufacturer will invalidate the appliance guarantee and must
only be fitted by an authorised service engineer.

PT03700-D
Recuperadores Pachinha Lda.
Zona Industrial da Lagoa, Lote G1
4950-850 CORTES - MONÇÃO PORTUGAL
Tel[phone]
Fax[phone]
[email protected]
www.glammfire.com
