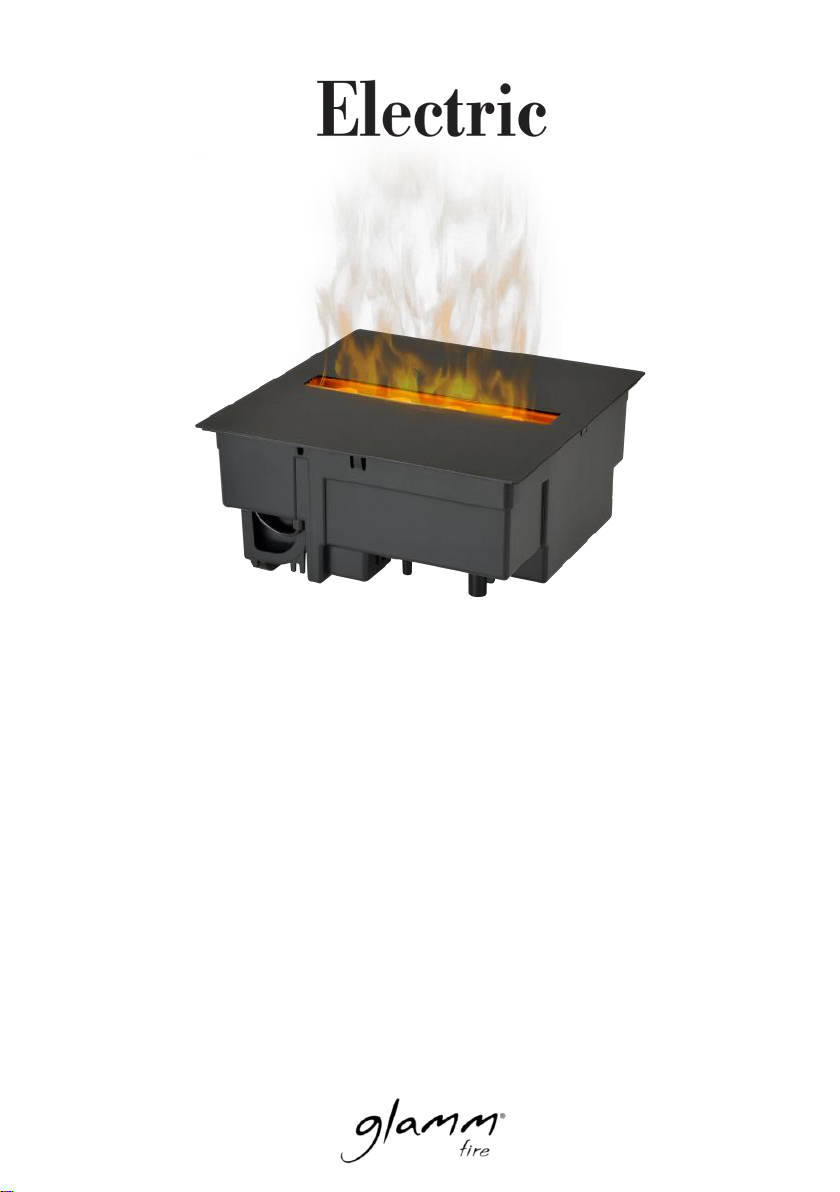

GlammFire KIT Glamm 3D Plus 500 User manual

KIT Glamm 3D Plus 250
Capacity
0,65 (filtered water)
Autonomy
4 hours
Voltage
220/240 V
Frequency
50 Hz
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic
Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives
2006/95/EC and 2004/108/EC.

GlammFire. PAG./2

GlammFire. PAG./3
Index
1—Components 8
2—Important safety advice 8
3—General Information 10
4—Installation Instructions 10
4.1—Before you start 10
4.2—Furniture type installation 10
4.3—Connecting the transducer unit 11
4.4—Filling the water tank 11
5—Operanting the product 11
5.1—Manual controls 11
5.2—Receiver controls 11
5.3—Remote control 11
6—Maintenence 12
6.1—General tips 12
6.2—Filling the water tank 12
6.3—Cleaning 12
7–Additional information 13
8—Troubleshooting 13
9—General dimensions 14
10—After-sales service 14
11—Warranty 14
Congratulations on purchasing your GlammFire Electric appliance. This quality product has been designed with preci-
sion and rigour that characterizes us to offer you pleasant and soothing moments.
Please read the instructions for use carefully and effective before using the appliance.
Keep this Manual in a safe place.
Please read this manual before using your appliance and keep it for future reference. All presented warnings must be
respected.
The information provided in this manual is subject to change without notice.

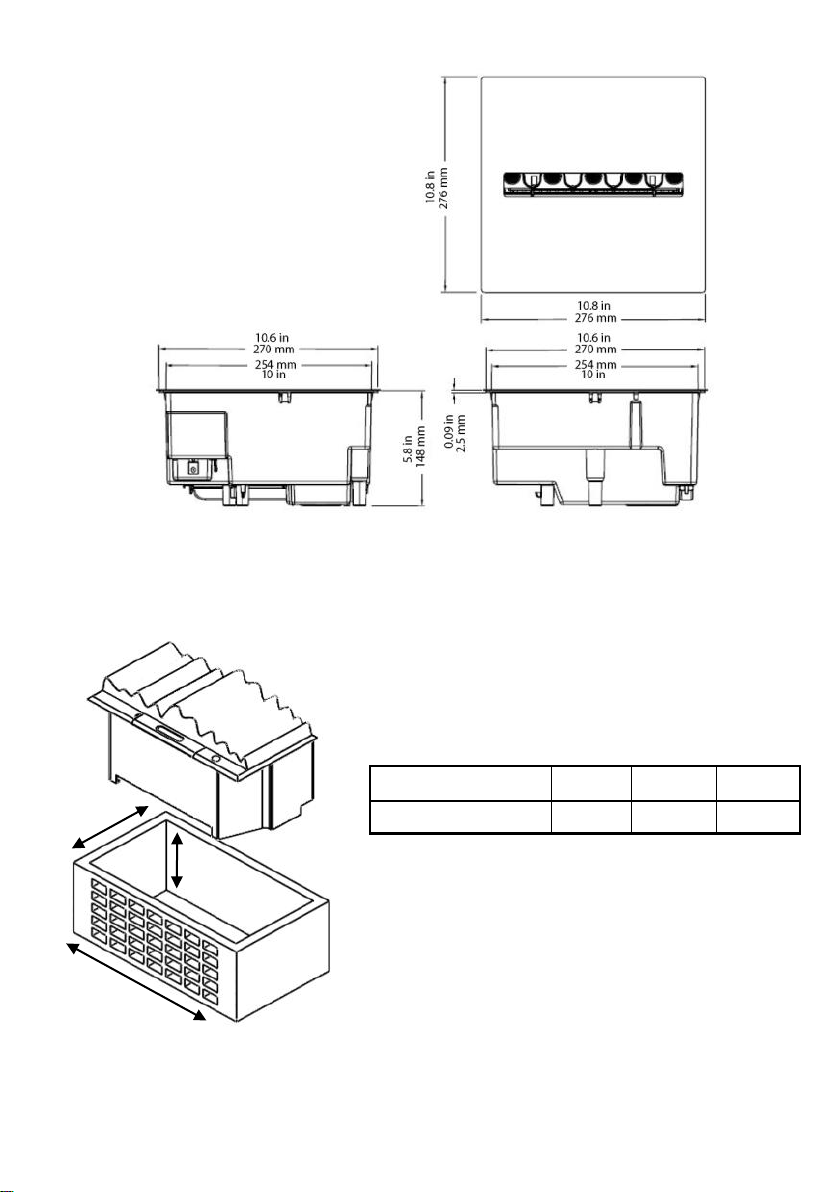

Model C D E
Kit Glamm 3D Plus 250 281 mm 150 mm 281 mm
Fig. 1
Note: It’s importante that at least one side has openings to permit ventilation of the product.
Fig. 1
Dimensions for installation
C
E
D

GlammFire. PAG./5

GlammFire. PAG./6

GlammFire. PAG./7
Fig. 8

GlammFire. PAG./8
Introduction
Thank you for choosing this Glammfire electric fire. Please read this information guide carefully to be able to safely
install, use and maintain your product.
2—Important safety advice
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical
shock and injury to persons, including the following:
WARNING:
Do not place material or garments on, or obstruct the air circulation around the appliance.
The appliance carries the Warning symbol indicating that it must not be covered.
DAMAGE
If the appliance is damaged, check with the supplier before installation and operation.
If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualified person
in order to avoid a hazard.
LOCATION
Do not use in the immediate surroundings of a bath, shower or swimming pool.
Do not locate the fire immediately below a fixed socket outlet or connection box.
Ensure that furniture, curtains or other combustible material are positioned no closer than 1 metre from the
appliance.

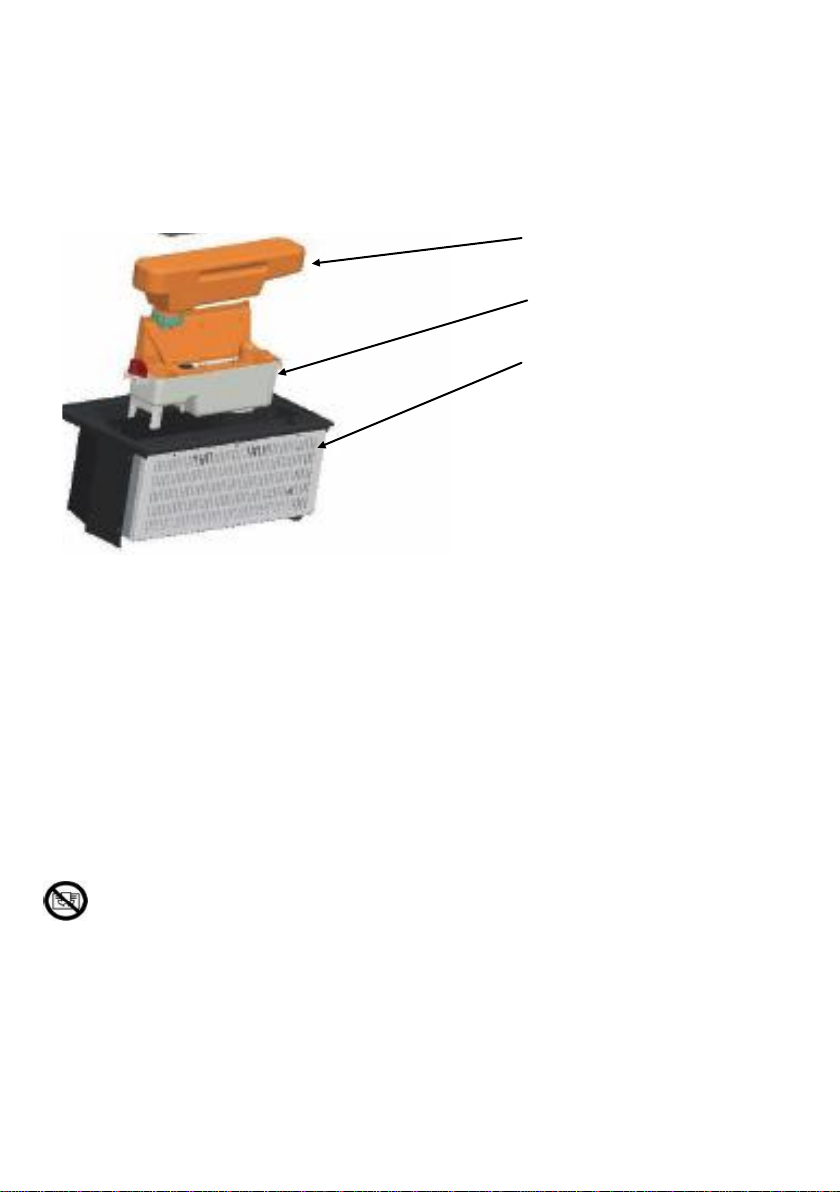

1—Components
Tank
Sump
Model base

GlammFire. PAG./9
PLUG POSITIONING
The appliance must be positioned so that the plug is accessible.
Keep the supply cord away from the front of the appliance.
UNPLUGGING
In the event of a fault unplug the device.
Unplug the device when not required for long periods.
OWNER/USER
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by Children without supervision.
Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and
less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended
normal operating position and they have been given supervision or instruction concerning use of the appliance in a
safe way and understanding the hazards involved. Children aged from 3 years and less than 8 years shall not plug in,
regulate and clean the appliance or perform user maintenance.
ELECTRICITY
Before switching on, please read the safety advice and operating instructions.
Note: This appliance is only to be used with the power supply unit provided.
Only plug this appliance into a supply that corresponds to that displayed on the power supply unit. The appliance must
only be supplied at extra low voltage corresponding to the markings on the appliance.
CAUTION —Some internal parts of this product can become hot and may cause burns. Particular attention
has to be given where children and vulnerable people are present.
WARNING - In order to avoid overheating, do not cover the appliance.

3—General information
Only use decalcified/filtered water in this appliance.
This applliance is intended for table top, worktop and furniture type fittings
Always ensure that the appliance is sitting on a level surface.
Once installed, never move this appliance or lay on its back, without draining the water from sump and water tank.
If you intend not using the appliance for longer than 2 weeks, drain the water from sump and water tank and dry the
sump.
PLEASE NOTE: Used in an environment where background noise is very low, it may be possible to hear a sound which
is related to the operation of the flame effect. This is normal and should not be a cause for concern.
Once installed, never move this appliance or lay on its back, without draining the water from sump and water tank.
The water tank, sump, sump lid, tank cap and air filters must be cleaned once every 2 weeks, particularly in hard
water areas.
If you intend not using the appliance for longer than 2 weeks, drain the water from sump and water tank and dry the
sump.
The sump and the water tank in this product are treated with a biocidal product, Silver Biocide. This conforms to the
latest relevant ISO standard.
Do not drink the water from the sump or from the water tank(s).
4—Installation instructions
This section describes how to install and set up your fire.
Before you start
Ensure that all packing items are removed (read any warning labels carefully) and retain all packing for possible future
use e.g. in the event of moving house or returning the appliance to your supplier.
Before connecting to the mains supply, check that the supply voltage is the same as that stated on the appliance.
Furniture type installlation
The model is intended to be used for furniture type installation - see Fig. 1 for product dimensions.
A minimum of 40cm clearance must be left between the metal bed and any shelf/enclosure above it, in order to
provide enough space for the flames/mist to form fully and not be obstructed.
There are slots at the base of the product that allows air to flow through, helping the mist evacuate effortlessly and
also to keep the electronic components cool.
The product needs ventilation from underneath or at the rear to operate effectively.
A minimum 200cm2 is required, for examples - see Fig. 1A.
Where the product is left in the centre of a room/hall, drafts or pedestrian traffic passing by the appliance can have
an impact on the performance of the flame. For these installations, we would recommend putting a 4 sided glass
surround, that sits on top of the table/worktop/shelf, around the outlet (metabed) - minimum size 33x33x10cm high.
To assemble the appliance into a ‘worktop’ (or similar type shelf), a rectangular hole is required to allow the product
to be dropped into place. Adding a recess allows the product to be ‘flush’/level with the worktop - see Fig. 2.
The metal bed is removable to allow access to controls and also to access the water tank, nozzle Lid, sump and
transducer - see Fig. 3. The 24V input connection is at the rear of the product - connect the jack from the power
supply unit to this input socket - see Fig. 4. A clearance hole (16-20mm) is required in furniture, to allow the lead
from the power supply unit to be fitted. Alternatively, the ventilation hole may be used. Insert the jack from the mains
cable to the power power supply unit (Do not Connect the Mains plug to a socket outlet until the appliance is ready
for operation). The product can be secured, by screw fixing through the base or at 2 sides - see Fig. 5 and 5a. (fixin
screws are not included).

GlammFire. PAG./11

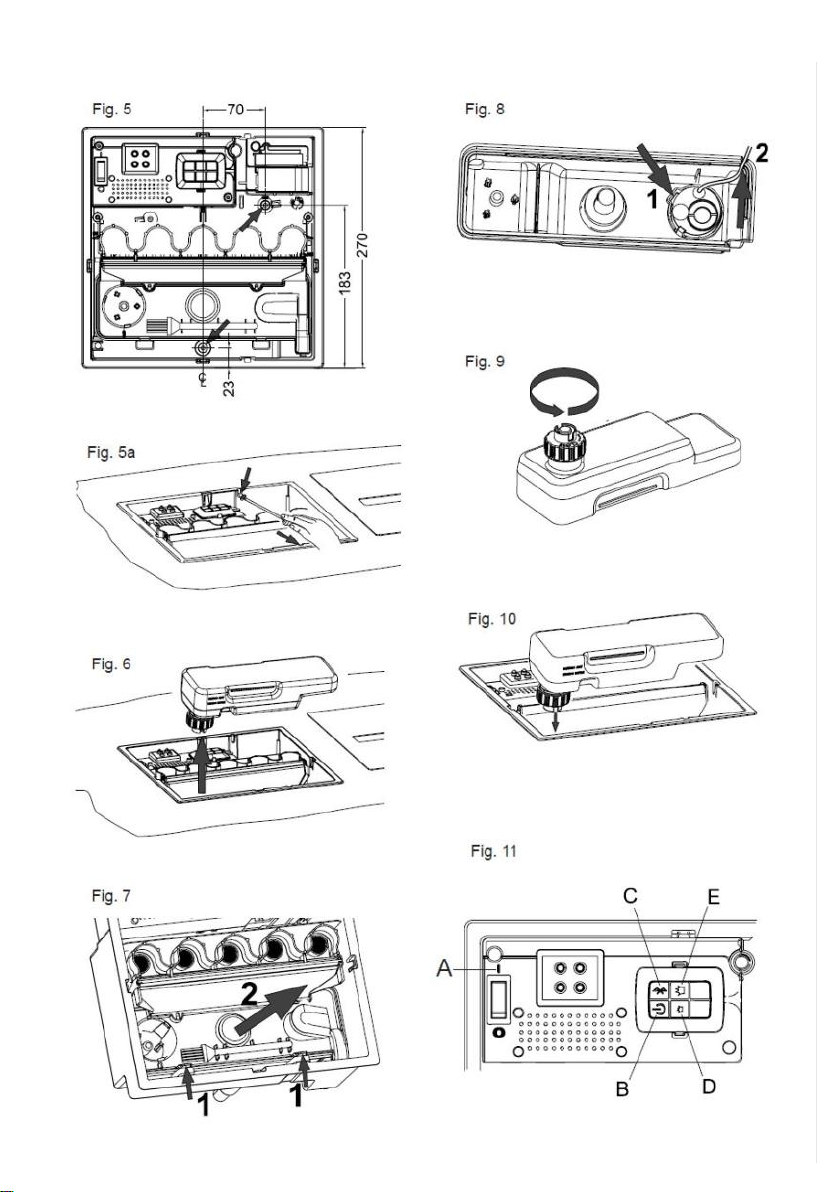

Connecting the transducer unit:
Lift off the metal bed and place carefully on the table/worktop - see Fig 3.
Remove the water tank by lifting upwards and outwards - see Fig 6.
Remove the nozzle by unclipping (1) and lifting upwards and outwards (2) - see Fig 7.
The transducer will be inside the sump. Remove from its bag.
Locate the tab on the Transducer unit into the moulded recess in the base of the sump (1). Ensure that the cable does
not obstruct the Transducer disc. To prevent the cable becoming pinched between the nozzle and the sump, ensure
the cable exits through the slot at the corner of the sump (2). - see Fig 8.
Filling the water tank:
Lift out the metal bed and water tank, as desribed above.
Place the water tank in sink and remove cap, anti-clockwise to open - see Fig 9.
Fill the tank with decalcified/filtered tap water only. This is necessary to prolong the life of the flame and smoke
producing unit. The water should be filtered through a conventional domestic water filter unit and the filter should be
replaced regularly. Distilled water must NOT be used
Screw the cap back on (clockwise) - do not over tighten.
Place the Water Tank in the Sump, with the tank cap facing down and the flat side of the tank facing outward - see
Fig. 10.
4—Operating the product
This section describes how to activate your fire using either the manual controls or remote control. Inert the mains
plug to the socket outlet (ensure that the supply voltage matches the voltage marked on the appliance).
MANUAL CONTROLS
The manual controls are located beneath the metal bed - see Fig. 11 for Manual Control lay out.
Switch ‘A’:- Controls the electricity supply from the power supply unit to the Fire.
Note: This switch must be in the ‘ON’ ( I ) position for the Fire to operate.
BLUE TOOTH (BT) RECEIVER
Button ‘B’:- Press once to turn on the flame effect. The LED’s light up - it will take a further 45 seconds before the
flame effect starts.
(Button ‘C’ is used to pair the remote control - see Blue Tooth Remote Control section below)
Press to put fire in to standby mode. This will be indicated by the LED’s switched off.
Button ‘D’and ‘E’:- Control the intensity of the flame effect.
Press button ‘D’ to decrease the flame height.
Press button ‘E’ to increase the flame height.
When flame height reaches max. or min. the LED’s will blink once.
Give the flame generator a couple of seconds to react to changes you may make.
The appliance will use less water if the flame effect is set to a lower level.

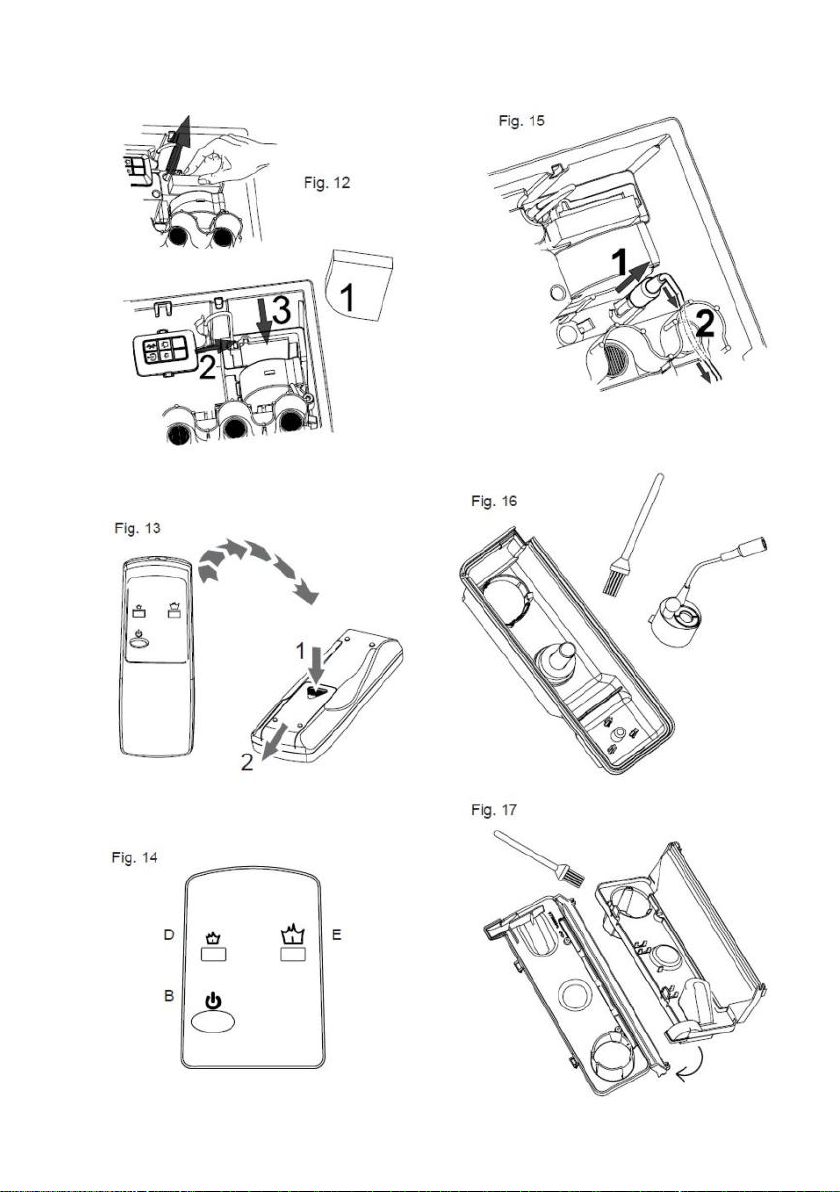

The Blue Tooth receiver can be removed from its location and placed outside the product if preferred. To do this,
remove the metal bed - see Fig. 3, remove the Air filter - Unclip the BT receiver and feed it out through the air filte
inlet hole - see Fig. 12. Unwind the cable from underneath and fit the BT receiver where desirable (cable length from
inlet hole is 120cm). Replace the filter and the metal bed.
BLUE TOOTH (BT) REMOTE CONTROL
The remote control is supplied with 2xAAA batteries. Remove the battery cover from the underside of the remote
control - see Fig. 13 and after removing the batteries from the plastic wrapping fit them into place. Replace the
battery cover. The remote control has wireless technology and is required to be paired to the receiver. This is done by
pressing the button (C) on the BT receiver. The LED’s will start to blink on and off. This is to let you know that the
appliance is ready to connect to the remote control. Press the button (B) on the remote control. The appliance will
switch off. Now the remote control is paired to the appliance. The operation of the remote control is the same as
described in ‘Receiver Controls’. There are 3 buttons on the remote control - see Fig. 14. To operate correctly the
remote must be pointed towards the product. The remote control functions operate in the same way as the manual
buttons ‘B’, ‘D’ and ‘E’.
Standby (B) Flame down (D) Flame up (E)

6—Maintenence
General tips
Only use filtered/decalcified water in this appliance.
Always ensure that the appliance is sitting on a level surface.
If you intend not using the appliance for longer than 2 weeks, remove and empty the sump and water tank.
Once installed, never move this appliance or lay on its back, without draining the water from sump.
Filling the water tank
When the water tank needs refilling, the LED’s, flame/smoke effect shuts off. (To indicate when tank needs refilling
the LED’s blink twice, approximately 15 minutes before the flame/smoke shuts off)
Lift out the metal bed and place carefully on the table/worktop - see Fig. 3.
Remove the water tank by lifting upwards and outwards - see Fig. 6.
Place the water tank in sink and remove cap, anti-clockwise to open - see Fig. 9.
Fill tank with decalcified/filtered water only. This is necessary to prolong the life of the flame and smoke
producing unit. The water should be filtered through a conventional domestic water filter unit and the filter should be
replaced regularly.
Screw the cap back on (clockwise), do not over tighten.
Return the tank to the sump, with the tank cap facing down and - see Fig. 10.
Gently place the metalbed back into position.
Cleaning
Warning –Always press Switch ‘A’ to the ‘OFF’ (0) position (Fig 21) and disconnect from the power supply before
cleaning the fire. We recommend cleaning the following components once every 2 weeks, particularly in hard water
areas: Sump, Nozzle, Tank cap and seal, Air filter.
For general cleaning use a soft clean duster –never use abrasive cleaners. To remove any accumulation of dust or
fluff, the soft brush attachment of a vacuum cleaner should occasionally be used.
Water tank
Lift the metalbed and place carefully on the table/worktop - see Fig. 3.
Remove the water tank, as described earlier - see Fig. 6, put into sink , unscrew cap anti-clockwise - see Fig. 9
and empty water.
Using the supplied brush gently rub the inside surfaces of the cap, paying particular attention to the rubber ring in
the outer groove and the centre rubber seal.
Put a small quantity of washing up liquid into the tank, refit the cap and shake well, rinse out until all traces of
washing up liquid are gone.
Refill with decalcified/filtered tap water only, replace the cap (clockwise) , do not overtighten - see Fig. 10.
Gently place the metalbed back into position.
Sump
Lift the metalbed and place carefully on the table/worktop - see Fig. 3.
Press Switch ‘A’ to the ‘OFF’ (0) position
Remove the water tank by lifting upwards and outwards - see Fig. 6.
Remove the nozzle by unclipping (1) and lifting upwards (2) - see Fig. 7
Disconnect the transducer (1) and feed/pull the connector underneath the LED’s (2) - see Fig. 15.
Gently lift up the sump, taking care to keep level so as not to spill any water. Sit the assembly in the sink.
Lift out the transducer and carefully tilt, so that the liquid drains out of the sump.
Put a small amount of washing up liquid into the sump, and using the supplied brush, gently clean all surfaces in the
sump and gently clean the transducer including the metal discs located in the top grooved surface - see Fig. 16.
When cleaned, thoroughly rinse the sump with clean water to remove all traces of washing up liquid.
Clean the Nozzle with the brush and flush out thoroughly with water - see Fig. 17.
Reverse the above steps to reassemble.

GlammFire. PAG./13
7—Additional information
Recycling
For electrical products sold within the European Community - At the end of the electrical products useful
life it not be disposed of with household waste. Please recycle where facilities exist. Check with your Local
Authority or retailer for recycling advice in your country.
Symptom Cause Corrective ACtion
The flame effect will
not start.
Mains plug is not plugged in.
Low water level.
Low voltage connector not connected
properly. (Fig.4)
Check plug is connected to wall socket
correctly.
Check that the water tank is full and there is
water in the sump.
Check that the connectors are inserted
correctly. (Fig.4) Check the mains plug is
inserted correctly.
The flame effect is too
low.
Flame effect is set too low.
The Disc in the transducer might be
dirty.
The wire from the Transducer Unit is
sitting over the disc.
Increase level of flame by pressing
(button ‘E’) on your remote or receiver.
Clean the Disc with a soft brush. See
‘Maintenance.’ for a step by step procedure.
Direct the wire to the corner of the sump
and make sure it sits into the slot exiting the
sump - check the connection.
Unpleasant smell when unit
is used.
Dirty or stale water.
Using unfiltered tap water.
Clean the unit as described under chapter of
maintenance.
Use only decalcified/filtered tap water.
The flame effect has
too much smoke.
Flame effect setting is too high. Decrease level of flame by pressing (button ‘D’)
on your remote or receiver. Give the flame
generator some time to adjust to the new
setting.
Product will not
operate. LED’s are
not on.
The product has no water Refill the water tank.
8—Troubleshooting
Air filte
Lift the metal bed and place carefully on the table/worktop - see Fig. 3.
Gently slide the air filter upwards out of its plastic holder - see Fig. 12.
Gently rinse with water in the sink and dry with fabric towel before returning.
Replace the filter making sure that the coarse black filter is facing the front of the fire
Gently place the metalbed back into position.

8—General dimensions
9—After-Sales Service
In case of doubt or any anomaly, do not use the fireplace and please contact a specialized technician.
10–Warranty
All our Bioethanol Fireplaces and Burners, Electric Fireplaces, Fire Pits & Barbecues carry a warranty against defects of
manufacture and faulty workmanship for a period of 2 years from the date of purchase.
This warranty does not cover glass replacement, batteries, whose lifespan, regretfully, we cannot predict, damage
caused by accident or misuse of the appliance, or the assembly/disassembly not indicated in the instruction manuals.
If the product fails during normal and proper use (not considering the above mentioned events) within the warranty
period, GlammFire will replace the product free of charge.
Our warranty is offered as an addition to your statutory rights. It is applicable to the original purchaser only, non-
transferable. All repairs must only be fitted by an authorised service technician. Use of spare parts other than those
supplied by the manufacturer will invalidate the appliance warranty and must only be fitted by an authorised service
technician.

GlammFire. PAG./15
Equipment: Beneficiário da garantia:
Version: Adress:
Controller: Tel.:
Availability date:
Local…………………………………………..Date………………………..
Signature:
Series and Guarantee numbers:
Distributor code:
Name and Address of the Distributor
GlammFire fireplaces are manufactured under the strict Standard of the world recognized ISO 9001:2015 Quality
Assurance Certificate.
GlammFire products are designed with superior components and materials, assembled by trained craftsmen who take
great pride in their work.
Once assembled the complete fireplace is thoroughly inspected by a qualified technician before packaging to ensure
that you, the customer, receive the quality product that you expect from GlammFire.
The GlammFire is always concerned with the environment. This is reflected when the projection of their products and
their packaging. Focusing on the reduction of energy consumption, raw materials, natural resources and quantity of
waste generated, GlammFire follows the policy of the 4R's (Reduce, Reuse, Recycle and Recover). Thus GlammFire
have in mind the use of long lasting products as well as reusable and recyclable products.
The GlammFire recommend reusing the packaging GlammFire separately and deposit plastic, paper, cardboard and
glass in the appropriate collection point.
"In nature nothing is created, nothing is lost, everything is transformed."
Antoine Laurent de Lavoisier

PT13328-A-EN
Recuperadores Pachinha Lda.
Zona Industrial da Lagoa, Lote G1
4950-850 CORTES - MONÇÃO PORTUGAL
Tel[phone]
Fax[phone]
[email protected]om
www.glammfire.com
