GlammFire SENSES 3D User manual

SENSES 3D
Dimensions
H 700 mm x W 900 mm x D 170 mm
Capacity
1,1 litres ( filtered water)
Autonomy
8 hours
Voltage
220/240 V
Frequency
50 Hz
Lamps
4 x 50W Xenon Amber
Heat Power
1000 W—2000 W / 20 °C—25 °C
(depending of the room area)
Weight
40 kg
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic
Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives
2006/95/EC and 2004/108/EC

Congratulations on purchasing your GlammFire Electric appliance. This quality product has been designed with preci-
sion and rigour that characterizes us to offer you pleasant and soothing moments.
Please read the instructions for use carefully and effective before using the appliance.
Keep this Manual in a safe place.
Please read this manual before using your appliance and keep it for future reference. All presented warnings must be
respected.
The information provided in this manual is subject to change without notice.

GlammFire. PAG./3
ÍNDICE
1—Material Fornecido 4
2—Important Safety Advice 5
3—General Information 6
3.1—Electrical connection 7
4—Installation Instructions 8
4.1—Before You Start 8
4.2—Installation 8
4.3—Connection the transducer 10
4.4—Remove water from the sump 12
5—Operating mode 13
5.1—Manual Controls 13
5.2—Remote control 13
5.2.1—Switching on the appliance 14
5.2.2—Adjust the flame setting 14
5.2.3—Switching on the heat 14
5.2.4—Setting the thermostat 14
5.2.5—Thermal safety cut-out 14
5.2.6—Setting the Date and Time 15
5.2.7—Operation modes of the remote control 15
5.2.8—Setting the timer modes 16
5.2.9—Manual mode 17
5.2.10—Protection against low temperatures 17
5.2.11—Screen Personalization 18
5.2.12—Remote control - features 18
6—Maintenance 19
6.1—Changing lamps 19
6.2—Cleaning 19
6.3—Water tank 19
6.4—Sump 20
6.5—Air filter 20
7—Troubleshooting 21
8—Overall dimensions 22
9—Warranty 23

1. Senses 3D;
2. Remote control;
3. Decorative firewood;
4. Transducer;
5. Water tank;
6. Set of lamps;
7. Eletric cable;
8. Nozzle;
9. Remote control base
10. 4xLamps;
11. Screw kit;
12. Cleaning brush;
13. Template.
1.
2.
3.
4.
5.
6.
7.
8.
GlammFire. PAG./4
1—Supplied material:
13.
12.
10.

GlammFire. PAG./5
2—Important Safety Advice
When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical
shock and injury to persons, including the following:
If the appliance is damaged, check with the supplier before installation and operation.
 Do not use outdoors.
 Do not use in the immediate surroundings of a bath, shower or swimming pool.
 Do not locate the heater immediately below a fixed socket outlet or connection box.
This appliance is not intended for use by children or other persons without assistance or supervision if their physical,
sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do
not play with the appliance.
WARNING: This appliance requires ground connection.
It is not recommended to use an extension cable to connect this product to the electricity network. This connection
through this device can cause a risk of overload, overheating and even fire hazard.
It must only be used with an alternating current voltage and the voltage marked on the appliance.
Do not use this appliance in series with a temperature control, program controller, timer or other type of appliance
that automatically switches on the heater, as there is a danger of fire if the appliance changes position or is covered
accidentally.
In the event of a fault, turn off the heater.
Unplug the heater when not required for long periods.
Although this heater complies with safety standards, we do not recommend its use on deep pile carpets or on long
hair type of rugs.
Ensure that furniture, curtains or other combustible material are positioned no closer than 1 metre from the heater.
In the event of a fault unplug the heater.
The appliance must be positioned so that the plug is accessible.
If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualified person
in order to avoid a hazard.
Keep the supply cord away from the front of the heater.
WARNING: In order to avoid overheating, do not cover the heater. Do not place material or garments on the heater,
or obstruct the air circulation around the heater.
The heater carries a DO NOT COVER warning.
WARNING: To avoid risk due to unintentional restart of the thermal commutator, this device must not receive power
from a device with an external switch, such as a timer, or connect to a circuit with automatic connection and discon-
nection by the electricity company.

GlammFire. PAG./6
3—General information
Unpack the heater carefully and retain the packaging for possible future use, in the event of moving or returning the
fire to your supplier.
The fire incorporates a flame effect, which can be used with or without heating, so that the comforting effect may be
enjoyed at any time of the year. Using the flame effect without selecting heat requires little electric power.
Always ensure that the appliance is fixed to the wall in a level position.
Before turning on the heater, check that the supply voltage corresponds to the voltage indicated on the heater.
Use only filtered water on this device.
Once installed, do not move the appliance or lay it on its back without draining the water from the deposit and the
water tank. The water tank, deposit, deposit cover, tank cover and air filters should be cleaned every 2 weeks, particu-
larly in hard water areas. If you do not intend to use the appliance for more than two weeks, remove the water from
the deposit and the tank and dry them.
Please note: If the unit is used in an environment where the background noise is quite low, you may hear a sound
related to the operation of the flame effect. This is normal and should not worry.
The deposit and the water tank of these products contain a treatment of harmful or unwanted organisms.
A fan heater can provide warmth in cold climates.
Do not drink the water from the sump or from the sump or from the water tank(s).
Heat Output 230V 240V
Nominal Heat Output (Pnom.) 1,8kW 2,0kW
Minimum Heat Output (Pmín.) 0,9kW 1,0kW
Maximum Continuous Heat Output (Pmáx.) 1,8kW 2,0kW
Auxiliary Electricity Consumption
In Standby Mode (PNom.) 0,45kW 0,48kW

GlammFire. PAG./7
3.1—Electrical connection:
WARNING –THIS APPLIANCE MUST BE EARTHED.
This heater must be used on an AC supply only and the voltage marked on the heater must correspond to the supply
voltage.
Before switching on, please read the safety warnings and operating instructions.
PLEASE RETAIN THIS USER’S GUIDE FOR FUTURE REFERENCE
The appliance should never be operated if the lamps are not working.
The lamps should be regularly inspected as described under ‘Maintenance’ and ‘Changing lamps’.

4—Installation instructions
4.1—Before You Start
1. Ensure that all packing items are removed (read any warning labels carefully).
2. Retain all packing for possible future use, in the event of moving or returning the appliance to your supplier.
4.2—Installation
To install the unit:
1. Clean the area where the fire will be installed;

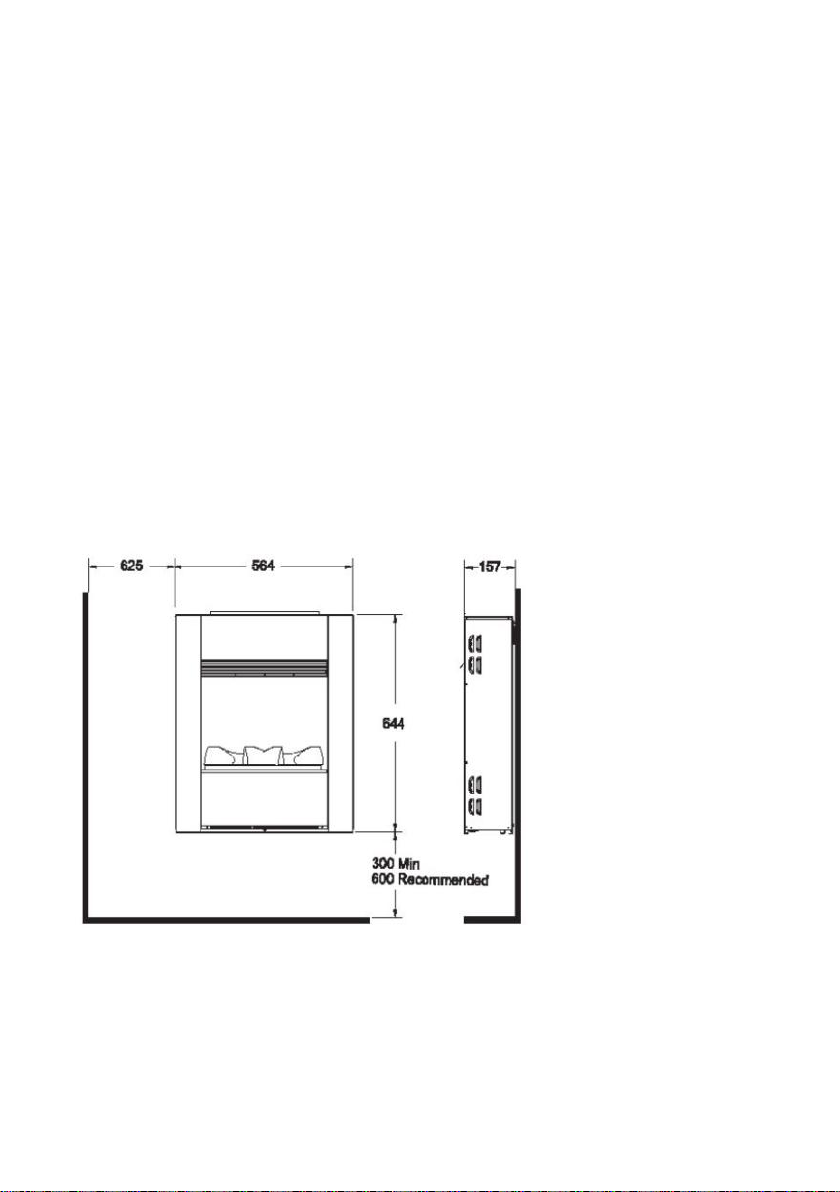

2. Remove the back wall bracket of the appliance by removing the two screws with which the wall bracket is
fixed. From the ground to the appliance there should be a minimum distance of 300 to 600mm, the distance
to a side wall should be at least 625mm and from the top of the appliance to a shelf the distance should be
150mm (Figure 1);
Figure 1- Installation dimensions
3. Fix the wall bracket to the wall making sure it is level, using the wall plugs and screws supplied for blocks
walls.
GlammFire. PAG./8

GlammFire. PAG./9

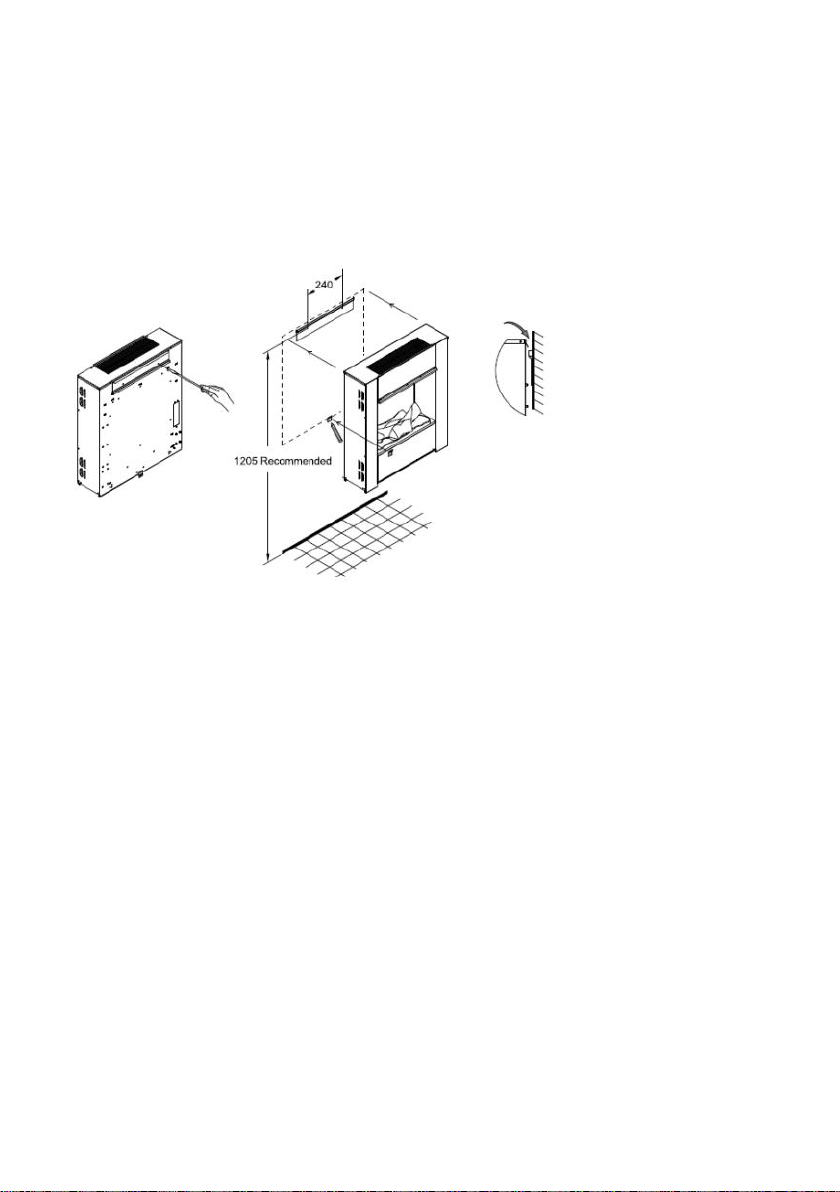

4. Rotate the safety fixation bracket on the base so that the fixation is visible, marking the wall
5. Hang the unit on the fixed wall bracket. Turn the safety fixation bracket on the base of the product so that
the fixation hole is exposed. Mark this hole and remove the fixation device. Secure the bushing to the wall in the
marked position.
6. Hang the appliance again on the wall fixation bracket and secure it in place using the screw provided through
the safety fixation bracket (Figure 2).
Figure 2- Installation of the appliance
7. Ensuring that the appliance is switched off
8. Connect the appliance to a power source of 13 A /240 V.
WARNING: The customer must be careful to avoid electric cables when drilling the wall to place the wall brackets.

4.3—Connection the transducer
1. Remove the wood from the appliance;
2. Carefully lift the tank and set it aside (Figura 3);
Figura 3- Removal of firewood and tank;
3. Remove the nozzle by un-clipping and lifting upwards and outwards;.
4. Inserting the lamps according to figure 4.
Figure 4- Placing the lamps
GlammFire. PAG./10

GlammFire. PAG./11
5. Locate the tab on the transducer unit into the moulded recess in the base of the sump. Ensure that the cable
does not obstruct the transducer disc. To prevent the cable becoming pinched between the nozzle and the sump,
place the cable in the slot in the wall of the sump.
Figure 5- Connection the transducer
Figure 6- Placing the transducer cable
6. Replace the tank nozzle. Then fill the tank with water and place it inside the appliance.

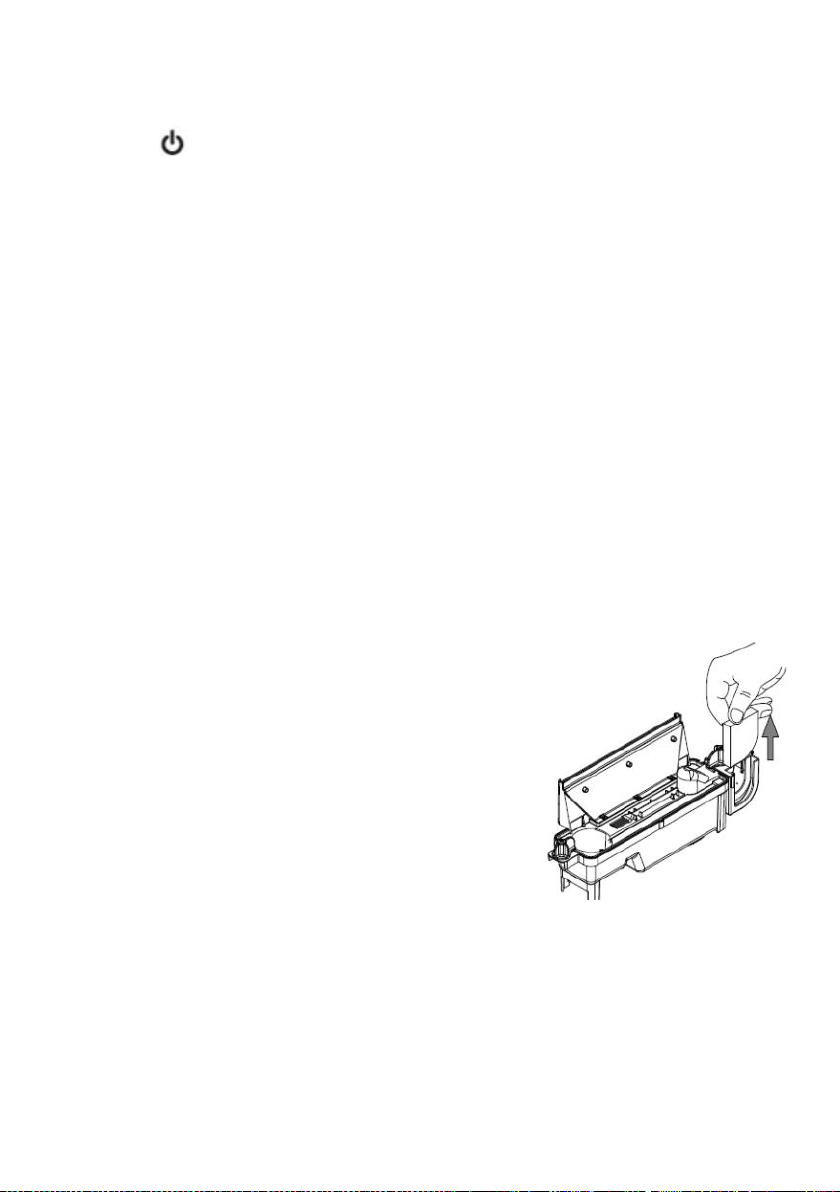

4.4—Remove water from the sump
1. Disconnect the appliance from the mains;
2. Remove the wood, tank and nozzle. Then remove the transducer and clean it;
3. Remove the sump and pour the water to a desired location;
4. Replace all the above components and then turn the unit on.
Figure 7- Remove water from the sump
GlammFire. PAG./12
WARNING: When the sump is empty, the
flame effect and the steam will turn off, 2x
beeps will be heard and Cd01. will
appear on the screen.

GlammFire. PAG./13
The manual controls are located on the base of the appliance.
Switch“A” : Controls the electricity supply to the Fire.
Note: This switch must be in the “ON” (I) position for the Fire to operate with or without heat when activated.
Switch “B”: Press once to turn on the flame effect.
This will be indicated by na audible “beep”.
Although the main lights operate immediately it will take a further 45 seconds before the flame effect starts.
Press to put fire into standby mode. This will be indicated by one “beep”.
5—Operating mode
5.1—Manual controls
Figure 8- Manual controls

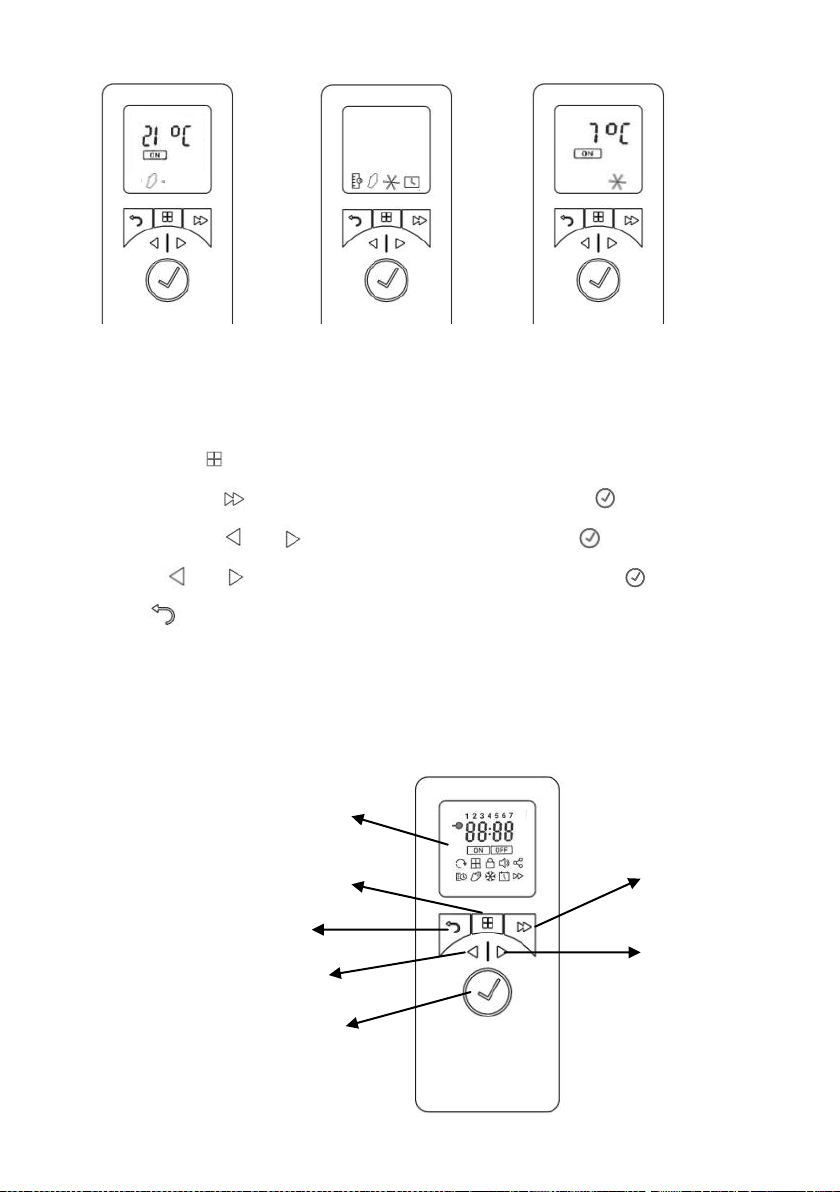

5.2—Remote control
The remote control is packed with 2AA batteries.
To insert the batteries, lift the remote control cover from the rear and insert them, taking into account the polarity
(Figure 9).
Figure 9- Opening the remote control

5.2.1—Switching on the appliance
GlammFire. PAG./14
Press and hold the button for 3 seconds to activate the remote control. FIRE will be displayed and ON will be
blinking.
P re s s to switch on the appliance. To turn off the appliance press so that FIRE is blinkin, press twice.
5.2.2—Adjust the flame setting
With the remote control activated, press once FIRE will be blinking on the display. Press
The current flame setting will be displayed F1-F6.Press t h e and buttons to adjust the setting.
After have selected the flame setting press twice to exit the menu and return to the home screen.
5.2.3—Switching on the heat
With the remote control activated press once. FIRE will be blinking on the display. Press once, HEAT
will be blinking.
Press
The current heat setting will be displayed OFF LO HI. Press the and buttons to adjust the setting.
After have selected the flame setting press
5.2.4—Setting the thermostat
The temperature shown on the display is the room temperature set point. This is the temperature that the heater will
mantain during the heating periods. If the room temperature is above this temperature then the heater will not ope-
rate.
The heater leaves the factory with this temperature set as 15°Cwhich represents a typical comfortable room tempe-
rature.
If the require different room temperature then press the o r home screen until the display shows the tem-
perature required.
5.2.5—Thermal safety cut-out
A thermal safety cut-out is incorporated in the fan heater to prevent damage due to overheating. This can happen if
the heat outlet was restricted in any way. If the cut-out operates, unplug the heater from the socket outlet and allow
approximately 10 minutes before reconnecting. Before switching the heater back on remove any obstruction that may
be restricting the heat outlet, then continue normal operation.

GlammFire. PAG./15
Caution: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be
supplied through an external switching device, such as a timer, or connected to a swith that is regularly switched on
and off by utiliy.

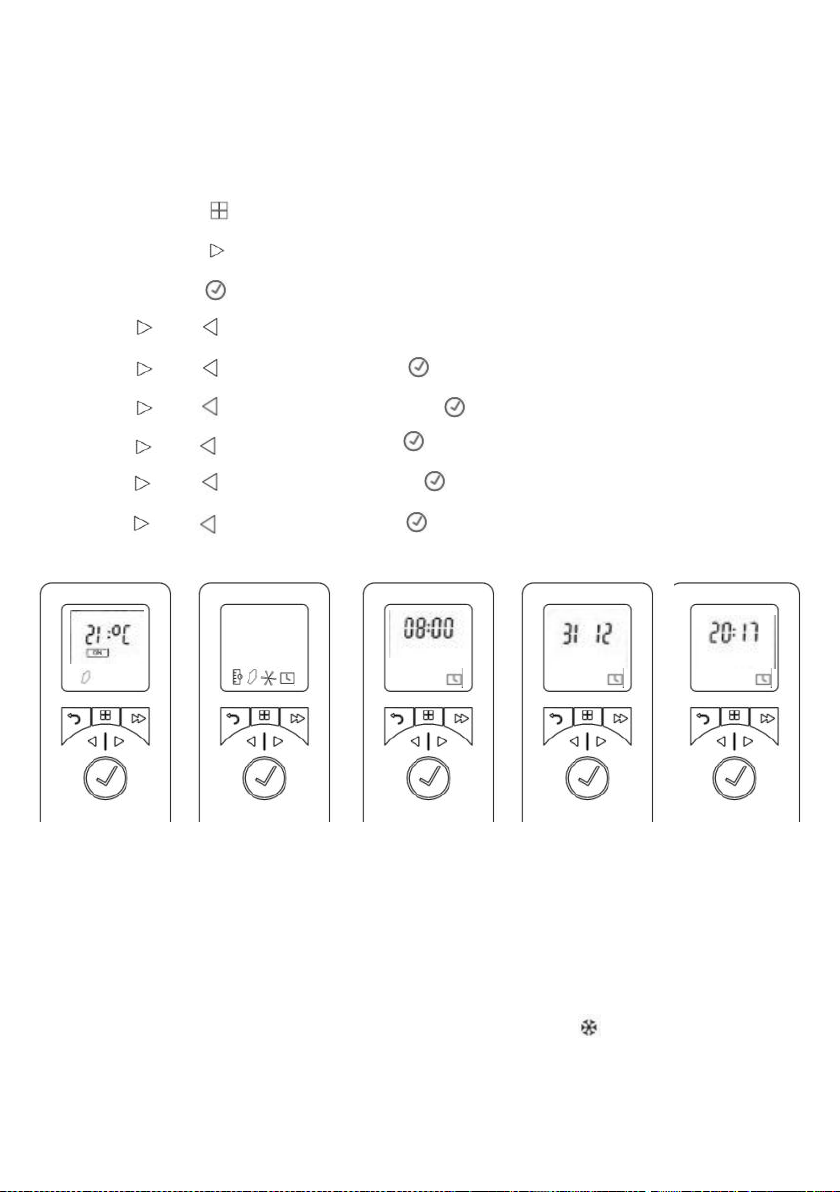

5.2.6—Setting the Date and Time
To set the date and time on the unit:
1. Press the button
1. Press the button 4 times
3. Press the button when the date and time icon blinks
4. Press and to set the hour
5. Press and to set the time and click on
6. Press and to set the minutes, then click on to confirm the time
7. Press and to set the day and click on
8. Press and to set the month and click on
9. Press and to set the year and click on to confirm the date.

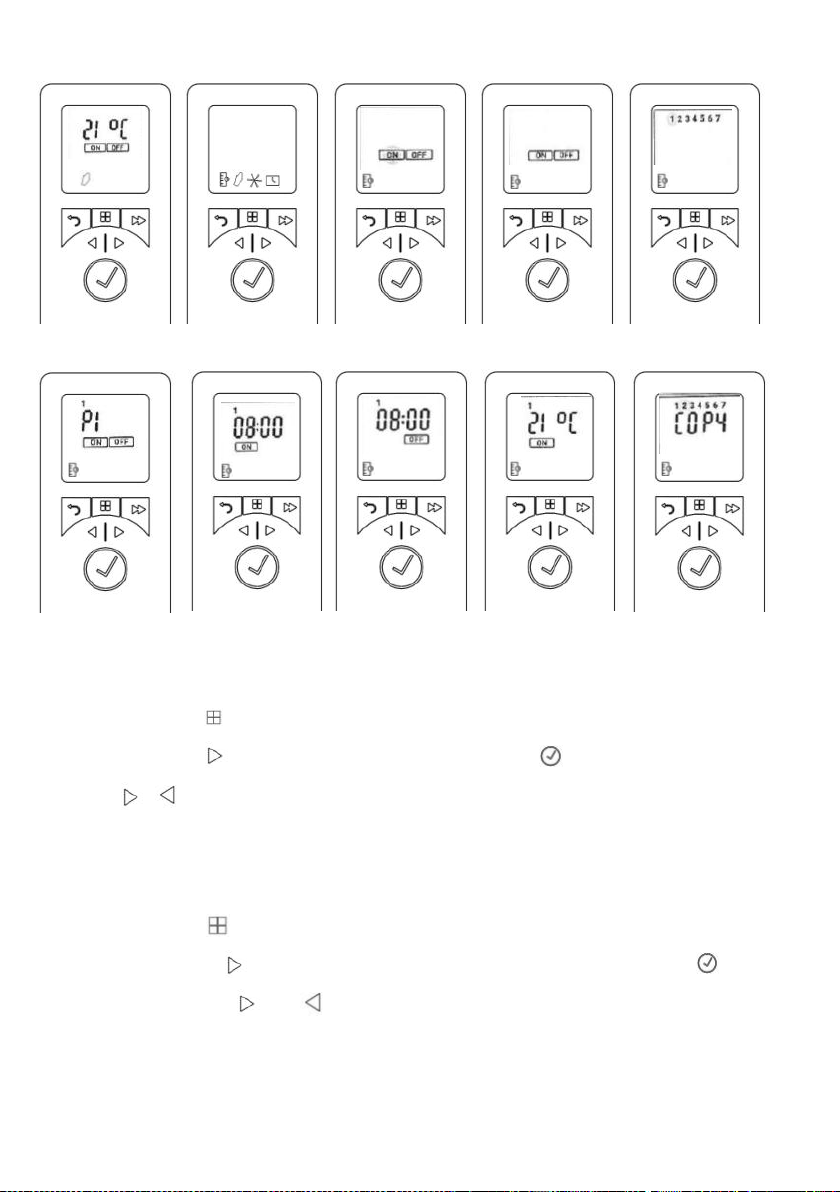

5.2.7—Operation modes of the remote control
Setting the timer
Provides greater flexibility to the user. There are four time slots available throughout the day that can be customize
for each day of the week. Consult "Setting the timer modes" for instructions on adjusting period times and tempera-
ture.
Manual mode: This mode warms the room to the temperature set by the remote control.
Protection against low temperatures:
This mode should be used for low temperature protection as indicated by the icon
Protection against low temperatures:
The low temperature protection mode maintains an ambient temperature of 7 °C .

GlammFire. PAG./16
5.2.8—Setting the timer modes
To set the timer:
1. Press the button
2. Press the button once to program the icon and click on
3. Press twice and click on
Note: The days of the week are indicated at the top of the screen
Day 1= Monday
Day 2= Tuesday
Day 4= Wednesday
Day 5= Thursday
Day 5= Friday
Day 6= Saturday
Day 7= Sunday
4. Press to modify Day 1 and click on to navigate to the desired day and press
5. P1 is indicated on the screen
6. P r e s s to select P1, to choose P2, P3 and P4 press and click on
7. The display shows ON (turned on), press to set the time
8. Press and to set the time and click on to confirm
9. P res s and to set the minutes and click on to confirm
10. Press and to set the temperature and click on to confirm
11. Press and to set the time to turn off and click on to confirm
12. Press and to set the minutes to turn off and click on to confirm
Press to modify the Program P2, follow the steps in 5-12 and click on to switch to P3.
Press to modify the Program P3, follow the steps in 5-12 and click on to switch to P4.
Press to modify the Program P4, follow the steps in 5-12
To copy the recently programmed P1-P4 programs to the other days, click on
COPY is displayed on the screen.
To copy the next day's settings in sequence, press the button, to deselect the next day of the sequence,
click on
The days of the week that are selected are indicated at the top of the screen. Days that are cleared will not be visible.
Press to confirm the backlight will blink and return to the beginning.

GlammFire. PAG./17
5.2.9—Modo manual
To select a constant heat mode. This mode ignores the timer and maintains the displayed temperature.
1. Press the button
2. Press the button twice to highlight the hand icon and click on to confirm
3. Use to set the desired temperature
5.2.10—Protection against low temperatures:
The low temperature protection mode maintains an ambient temperature of 7 °C for 24 hours.
1. Press the button
2. Press the button three times to highlight the snowflake icon and confirm the button
3. Press the button to and exit this mode and enter manual mode.

GlammFire. PAG./18
5.2.11—Screen Personalization:
The maximum temperature setting of the product is 32°C. You have the option to reduce this temperature and to
change from °C to °F.
1. Press the button
2. Press the button twice and the SP message will flash, then click on to confirm
3. Press the button and to select between °C or °F and click the button to confirm
4. Press to and select the maximum temperature set point and click on to confirm
5. P r e s s three times to return to the home screen
5.2.12—Remote control - features
“Enter”Button
Display
“Menu” Button “Advance”Button
Front arrow
Back arrow
“Back” Button

GlammFire. PAG./19
6—Maintenance
WARNING –ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE CLEANING THE HEATER.
6.1—Changing lamps
If there is a large amount of gray or colorless smoke, it is likely that one or more bulbs have melted. You can check the
lamp failure as follows:
1. Leaving the effect flame turned on, remove the nozzle, tank and water tank.
2. Observe the lamps from a distance and confirm which lamps have to be replaced.
3. Press the switch "A" to the off position (0) and disconnect the appliance from the mains.
4. Do not tamper with the equipment for 20 minutes to allow the lamps to cool down before removing them.
5. Remove the water tank by lifting it up and placing it in a sink.
6. Remove the tank as described in the Cleaning section.
7. Remove the defective lamp by carefully lifting it upright and undocking the pins of the lamp support. Replace with a
colored lamp, with a beam width of 8o, base Gu5.3, 50 W, 12 V.
8. Carefully insert the two new lamp pins into the two holes of the lamp support. Press the lamp firmly.
9. Replace the nozzle, deposit and water tank.
10. Switch on the appliance after everything is set.
6.2—Cleaning
WARNING: BEFORE CLEANING THE APPLIANCE, ALWAYS DISCONNECT THE APPLIANCE. LET IT COOL FOR 10 MINUTES
TO ALLOW THE APPLIANCE TO COOL DOWN.
We Recommend cleaning the following components once every 2 weeks, particularly in hard water areas:
Water Tank, Sump, Nozzle, Tank cap and seal, Air filter.
For general cleaning use a soft clean duster –never use abrasive cleaners. To remove any accumulation of dust or fluff
the soft brush attachment of a vacuum cleaner should occasionally be used to clean the outlet grille of the fan heater.
6.3—Water tank
1. Remove the water tank as described previously, place it in the sink and empty the water.
2. With the supplied brush, rub the inside surfaces of the cover, paying close attention to the plastic ring of the
outer and central groove.
3. Put a small dose of non-abrasive detergent and place the cover again and shake well. Rinse until all detergent
has disappeared.
4. Fill the tank with filtered water and place the cover again without over tightening.

6.4—Sump
1. Press to place the product on "standby"
2. Carefully lift the tank nozzle and the water tank and place them on the ground.
3. Remove the sump by lifting it up and out
4. Slope the water tank in a sink so that the liquid exits
5. Put a small dose of non-abrasive detergent and rub with the supplied brush all the surfaces
6. Rinse thoroughly and clean the component. Reverse previous steps to reassemble it
6.5—Air filter
1. Turn off the device
2. Gently lift out the sump and place carefully on the ground.
3. Gently slide upwards the air filter out of its plastic holder. (Figure 10).
4. Gently rinse with water in the sink and dry with fabric towel before returning.
5. Replace the filter making sure that the course black filter is facing the front of the fire.
6. Replace the sump.
7. Turn on the device
GlammFire. PAG./20
Figure 10- Cleaning the air filter
CAUTION: It is recommended that some necessary arrangements are made by a qualified electrician.
