GlammFire KIT Glamm H3D 700 User manual

The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic
Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 These cover the essential requirements of EEC Directives
2006/95/EC and 2004/108/EC
KIT Glamm H3D 700 ( With Heating System )
KIT Glamm H3D 800 ( With Heating System )
Dimensions
H 700 mm x W 490 mm x D 255 mm
H 823 mm x W 490 mm x D 255 mm
Capacity
1,1 litres ( filtered water)
Autonomy
8 hours
Voltage
220/240 V
Frequency
50 Hz
Lamps
4 x 50W Xenon Amber
Heating power
2000 W
Weight
12,86 kg/13,07 kg

GlammFire. PAG./3
INDEX
1—Important Safety Advice 9
1.1—Warning 9
1.2—Damage 9
1.3—Location 9
1.4—Plug Position 9
1.5—Use of Other Controls 9
1.6—Unplugging 9
1.7—Owner/User 9
1.8—Electricity 9
2—General Information 10
3—Installation Instructions 10
3.1—Before You Start 10
3.2—Installation 10
3.4—Instructions of installation —Images 12
4—Operating the Fire 16
4.1—Manual Controls 16
4.1.1—Setting the Thermostat 17
4.1.2—Thermal Safety Cut-out 17
4.1.3—Getting The Desired Flame Effect 17
4.2—Remote Control 17
4.2.1—Switching on the appliance 18
4.2.2—Adjust the flame setting 18
4.2.3—Switching on the heat 18
4.2.4—Setting the thermostat 18
4.2.5—Thermal safety cut-out 18
4.2.6—Setting the Date and Time 19
4.2.7—Operation modes of the remote control 19
4.2.8—Setting the timer modes 20
4.2.9—Manual mode 21
4.2.10—Protection against low temperatures 21
4.2.11—Screen Personalization 22
4.2.12—Remote control - features
5—Maintenance 23
5.1—General Tips 23
5.2—Filling The Water Tank 23
5.3—Changing Lamps 23
5.4—Cleaning 24
5.4.1—Water Tank 24
5.4.2—Sump 24
5.4.3—Air Filter 25
6—Troubleshooting 25
7—Overall Dimensions 26

Modelo “H” “W” “X” “Y”
Glamm H3D 700 700 490 413 395
Glamm H3D 800 823 490 413 517

GlammFire. PAG./5

GlammFire. PAG./7

Congratulations on purchasing your GlammFire Electric appliance. This quality product has been designed with preci-
sion and rigour that characterizes us to offer you pleasant and soothing moments.
Please read the instructions for use carefully and effective before using the appliance.
Keep this Manual in a safe place.
Please read this manual before using your appliance and keep it for future reference. All presented warnings must be
respected.
The information provided in this manual is subject to change without notice.

GlammFire. PAG./9
1—Important Safety Advice
When using electrical appliances, basic precautions should always be followed to reduce the risk of fi re, electrical
shock and injury to persons, including the following:
1.1—Warning
WARNING: In order to avoid overheating, do not cover the heater. Do not place material or garments on the heater,
or obstruct the air circulation around the heater. The heater carries a DO NOT COVER warning.
1.2—Damage
If the appliance is damaged, check with the supplier before installation and operation.
If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualified person
in order to avoid a hazard.
1.3—Location
 Do not use outdoors.
 Do not use in the immediate surroundings of a bath, shower or swimming pool.
 Do not locate the heater immediately below a fixed socket outlet or connection box.
 Ensure that furniture, curtains or other combustible material are positioned no closer than 1 metre from the heater.
 Although this heater conforms with safety standards, we do not recommend its use on deep pile carpets or on long
hair type of rugs.
1.4—Plug Position
The appliance must be positioned so that the plug is accessible. Keep the supply cord away from the front of the
heater.
1.5—Use of Other Controls
Do not use this heater in series with a thermal control, a program controller, a timer or any other device that switches
on the heat automatically, since a fi re risk exists when the heater is accidentally covered or displaced.
1.6—Unplugging
In the event of a fault unplug the device.
Unplug the device when not required for long periods.
1.7—Owner/User
This appliance is not intended for use by children or persons with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appli-
ance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the
appliance.
1.8—Electricity
WARNING –THIS APPLIANCE MUST BE EARTHED.
This heater must be used on an AC ~ supply only and the voltage marked on the heater must correspond to the supply
voltage.
Before switching on, please read the safety advice and operating instructions.

2—General Information
Only use filtered water in this appliance. Always ensure that the appliance is sitting on a level surface.
Although this heater complies with safety standards, we do not recommend its use on deep pile carpets or on long
hair type of rugs.
Please note: Used in an environment where background noise is very low, it may be possible to hear a sound which is
related to the operation of the flame effect. This is normal and should not be a cause for concern.
If this product experiences a power surge for whatever reason the product may cut-out. This is a normal safety feature
and the product will resume operation after 30 seconds. Once installed, never move this appliance or lay on its back,
without draining the water from sump and water tank.
If you intend not using the appliance for longer than 2 weeks, drain the water from sump and water tank and dry the
sump.
The water tank, sump, sump lid, tank cap and air filters must be cleaned once every two weeks, particularly in hard
water areas.
The appliance should never be operated if the lamps are not working. The lamps should be regularly inspected as
described under ‘Maintenance’ and ‘Changing lamps’.
3—Installation Instructions
This section describes how to set up your fire.
3.1—Before You Start
1. Ensure that all packing items are removed (read any warning labels carefully) and retain all packing for possible
future use e.g. in the event of moving house or returning the appliance to your supplier.
2. Before connecting the appliance, check that the supply voltage is the same as that stated on the heater.
3.2—Installation
Place the appliance against a wall.
Connecting the Transducer Unit + Lamps
1. Release the two red tabs by turning them by 90 degrees (Fig 2)
2. Lift out the Sump Nozzle (Fig 3)
3. Insert lamps into lamp holders (Fig 4), carefully locating the pins into the holes (Fig 4a)
4. Push lamps firmly into place
5. Place the Transducer Unit into the sump and join the cable to the connector on the sump (Fig 5)
6. To ensure that the Transducer Unit is correctly placed in the sump, the tab on the Transducer Unit should be lined
up with the moulded recess in the sump (Fig 5a).

GlammFire. PAG./11
7. Ensure that the cable is not placed above the disc on the Transducer Unit (Fig 5b). To prevent the cable becoming
pinched between the nozzle and the sump, place the cable in the slot in the wall of the sump.
8. Replace the Sump Nozzle and secure it by turning the two red tabs by 90 degrees (Fig 6) Filling the Water Tank
9. Place Water Tank in sink and remove cap (turn anti-clockwise to open) (Fig 7)
10. Fill Water Tank with filtered tap water only. This is necessary to prolong the life of the flame and smoke producing
unit. The water should be filtered through a conventional domestic water filter unit and the filter should be replaced
regularly. Distilled water must not be used.
11. Screw the cap back on –do not over tighten.
12. Place the Water Tank in the Sump, with the tank cap facing down and the fl at side of the tank facing outward (Fig
8) Assembling the fire
13. Place the Fuel bed on top of the Water Tank and Mist Nozzle (Fig 9)

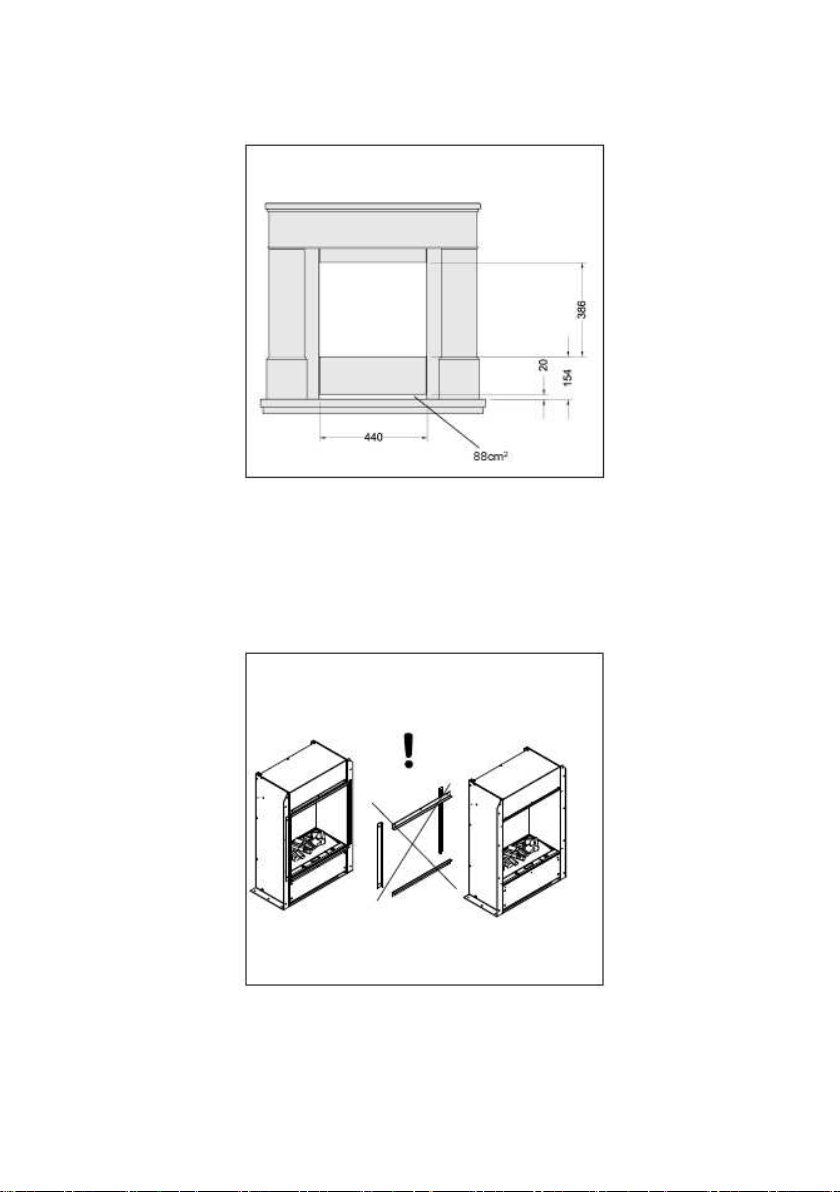

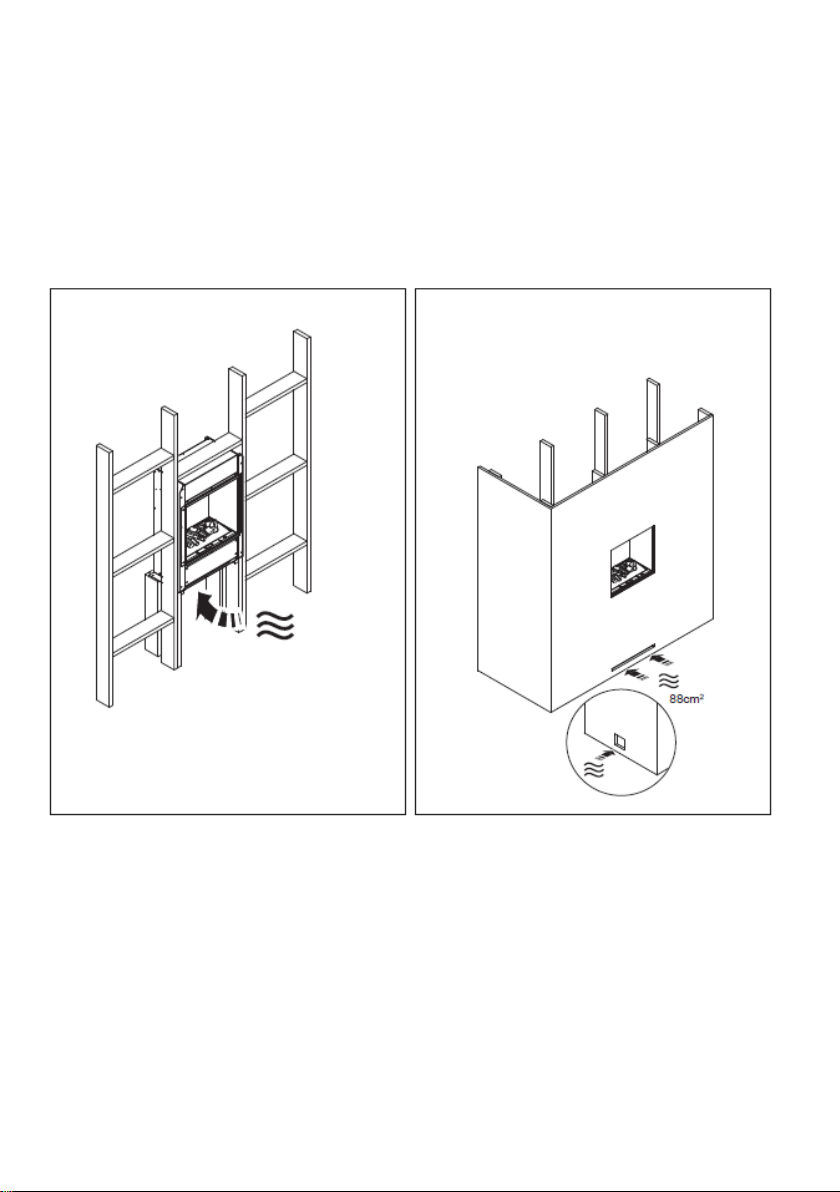

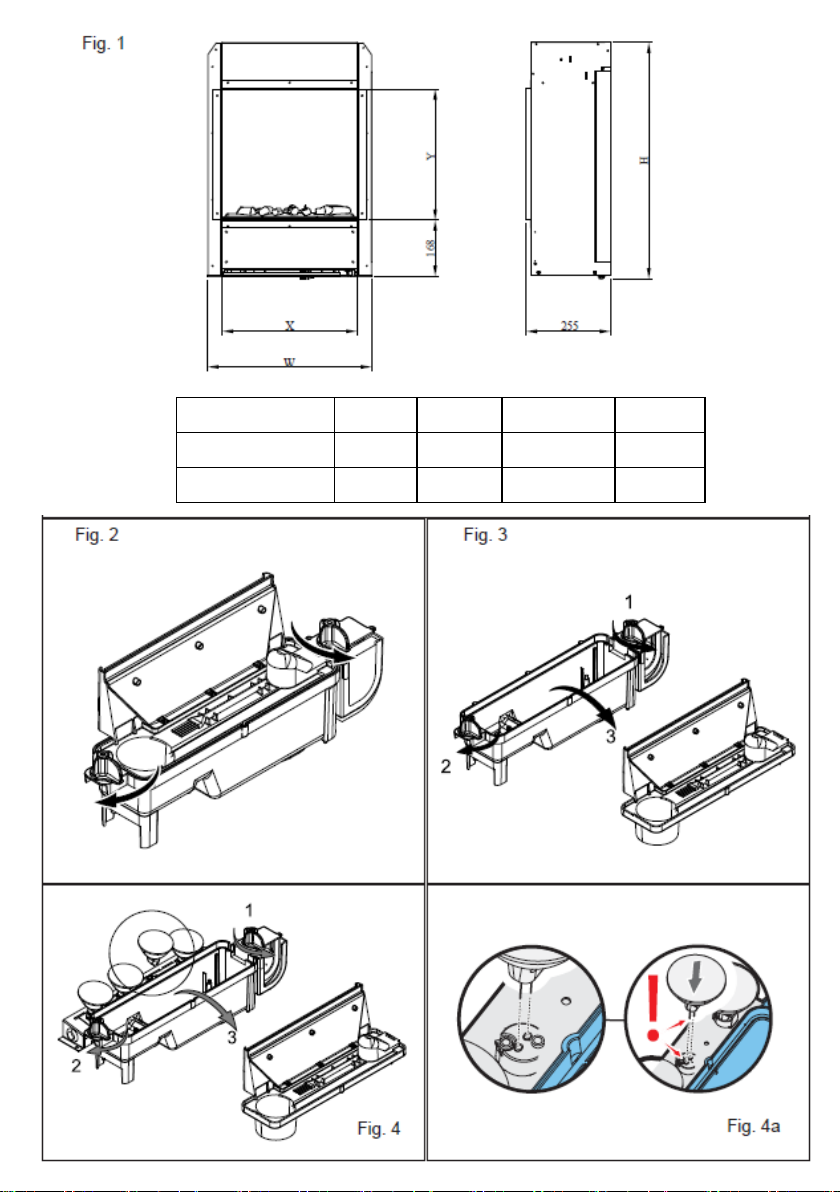

3.4—Instructions of installation —Images

GlammFire. PAG./13

GlammFire. PAG./15

4—Operating the Fire
4.1—Manual Controls
The manual controls are located beneath the hinged flap. (See Fig. 10 for Manual Control lay out).
Switch “A”: Controls the electricity supply to the Fire.
Note: This switch must be in the “ON” ( I ) position for the Fire to operate either with or without heat.
Switch “B”: Press once to turn on the flame effect. This will be indicated by an audible beep.
Although the main lights operate immediately it will take a further 30 seconds before the flame effect starts.
 Press again to give flame effect and half heat. This will be indicated by two beeps.
 Press again to give flame effect and full heat. This will be indicated by three beeps.
 Press again to return to flame effect only. This will be indicated by one beep.
 Press to put fire in to standby mode. This will be indicated by one beep.
Control knob "C": Controls the Thermostat setting.
Turning the control knob to the left will decrease the temperature setting, turning the control knob to the right will
increase the temperature setting.
Control knob "D": Controls the intensity of the flame effect.
Turning the control knob to the left increases the flame effect, turning the control knob to the right will
decrease the flame effect.

GlammFire. PAG./17
4.1.1—Setting the Thermostat
Ensure the fire is plugged in and switch it on to the full heat setting. Turn the Control Knob ‘C’ fully to the right (max
temperature setting) to warm the room rapidly. When the room temperature has reached the desired level, turn the
thermostat knob back slowly until you hear the thermostat just click off. The heater will then maintain the room tem-
perature at the chosen level.
Note: Should your heater fail to come on when the thermostat is at a low setting, this may be due to the room tem-
perature being higher then the thermostat setting.
4.1.2—Thermal Safety Cut-out
A thermal safety cut-out is incorporated in the fan heater to prevent damage due to overheating. This can happen if
the heat outlet was restricted in any way. If the cut-out operates, unplug the heater from the socket outlet and allow
approximately 10 minutes before reconnecting. Before switching the heater back on remove any obstruction that may
be restricting the heat outlet, then continue normal operation.
Caution: In order to avoid a hazard due to inadvertent resetting of the thermal cut out, this appliance must not be
supplied through an external switching device, such as a timer, or connected to a switch that is regularly switched on
and off by the utility.
4.1.3—Getting The Desired Flame Effect

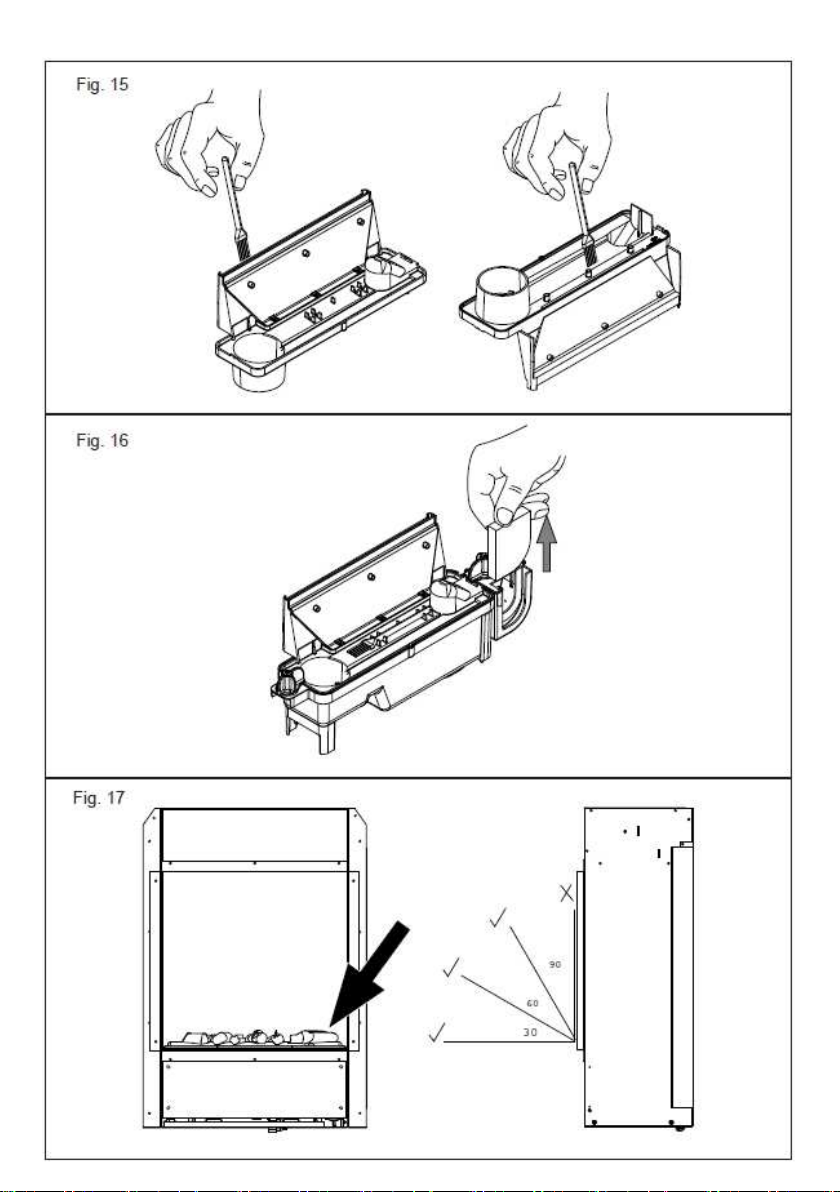

1. The flame control knob “D” (Fig.10) may be turned up or down to give a more realistic effect.
2. Generally the flames appear more realistic when the flame control is turned down.
3. Give the flame generator time to react to changes you may make.
4. The fire will use less water if the flame effect is set to a lower level.
5. Do not tilt or move the fire while there is water in the tank or sump.
6. Make sure that the fire is on a level floor.
4.2—Remote Control
The remote control is packed with 2AA batteries.
To insert the batteries, lift the remote control cover from the rear and insert them, taking into account the polarity
(Figure 18).

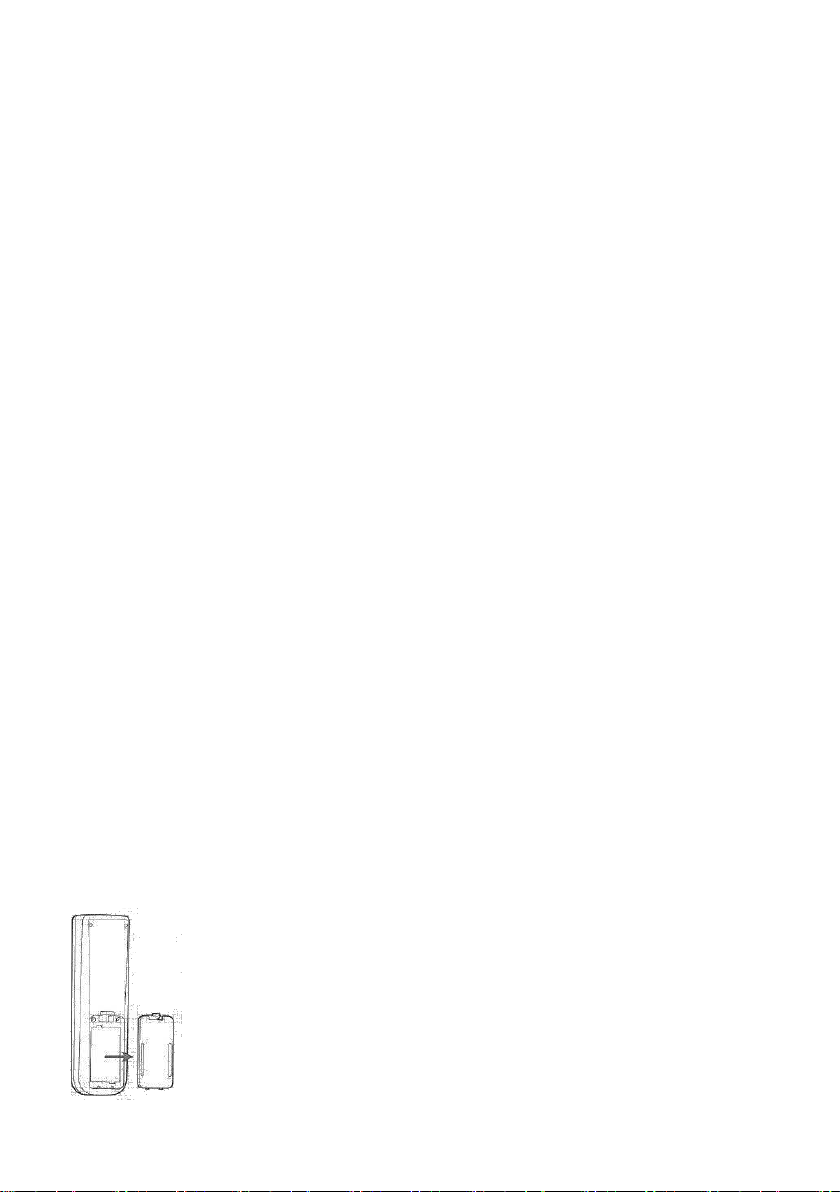

Figure 18- Opening the remote control

4.2.1—Switching on the appliance
Press and hold the button for 3 seconds to activate the remote control. FIRE will be displayed and ON will be
blinking.
P r e s s to switch on the appliance. To turn off the appliance press so that FIRE is blinkin, press twice.
4.2.2—Adjust the flame setting
With the remote control activated, press once FIRE will be blinking on the display. Press
The current flame setting will be displayed F1-F6.Press t h e and buttons to adjust the setting.
After have selected the flame setting press twice to exit the menu and return to the home screen.
4.2.3—Switching on the heat
With the remote control activated press once. FIRE will be blinking on the display. Press once, HEAT
will be blinking.
Press
The current heat setting will be displayed OFF LO HI. Press the and buttons to adjust the setting.
After have selected the flame setting press
4.2.4—Setting the thermostat
The temperature shown on the display is the room temperature set point. This is the temperature that the heater will
mantain during the heating periods. If the room temperature is above this temperature then the heater will not ope-
rate.
The heater leaves the factory with this temperature set as 15°C which represents a typical comfortable room tempe-
rature.
If the require different room temperature then press the o r home screen until the display shows the tem-
perature required.
4.2.5—Thermal safety cut-out
A thermal safety cut-out is incorporated in the fan heater to prevent damage due to overheating. This can happen if
the heat outlet was restricted in any way. If the cut-out operates, unplug the heater from the socket outlet and allow
approximately 10 minutes before reconnecting. Before switching the heater back on remove any obstruction that may
be restricting the heat outlet, then continue normal operation.

GlammFire. PAG./19
Caution: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be
supplied through an external switching device, such as a timer, or connected to a swith that is regularly switched on
and off by utiliy.

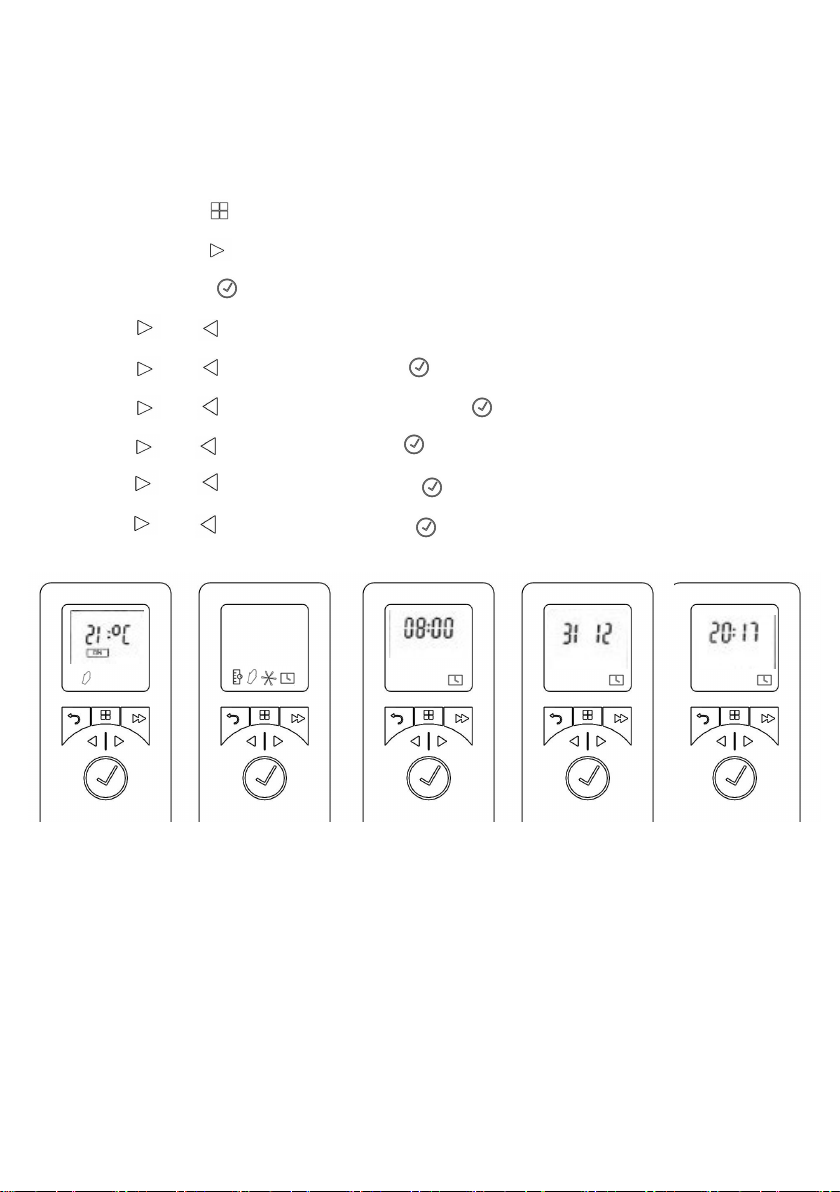

4.2.6—Setting the Date and Time
To set the date and time on the unit:
1. Press the button
2. Press the button 4 times
3. Press the button when the date and time icon blinks
4. Press and to set the hour
5. Press and to set the time and click on
6. Press and to set the minutes, then click on to confirm the time
7. Press and to set the day and click on
8. Press and to set the month and click on
9. Press and to set the year and click on to confirm the date.
4.2.7—Operation modes of the remote control
Setting the timer
Provides greater flexibility to the user. There are four time slots available throughout the day that can be customize
for each day of the week. Consult "Setting the timer modes" for instructions on adjusting period times and tempera-
ture.
Manual mode: This mode warms the room to the temperature set by the remote control.
Protection against low temperatures:
This mode should be used for low temperature protection as indicated by the icon
Protection against low temperatures:
The low temperature protection mode maintains an ambient temperature of 7 °C .

4.2.8—Setting the timer modes
To set the timer:
1. Press the button
2. Press the button once to program the icon and click on
3. Press twice and click on
Note: The days of the week are indicated at the top of the screen
Day 1= Monday
Day 2= Tuesday
Day 4= Wednesday
Day 5= Thursday
Day 5= Friday
Day 6= Saturday
Day 7= Sunday
4. Press to modify Day 1 and click on to navigate to the desired day and press
5. P1 is indicated on the screen
6. Press to select P1, to choose P2, P3 and P4 press and click on
7. The display shows ON (turned on), press to set the time
8. Press and to set the time and click on to confirm
9. Press and to set the minutes and click on to confirm
10. Press and to set the temperature and click on to confirm
11. Press and to set the time to turn off and click on to confirm
12. Press and to set the minutes to turn off and click on to confirm
Press to modify the Program P2, follow the steps in 5-12 and click on to switch to P3.
Press to modify the Program P3, follow the steps in 5-12 and click on to switch to P4.
Press to modify the Program P4, follow the steps in 5-12
To copy the recently programmed P1-P4 programs to the other days, click on
COPY is displayed on the screen.
To copy the next day's settings in sequence, press the button, to deselect the next day of the sequence, click
on
The days of the week that are selected are indicated at the top of the screen. Days that are cleared will not be visible.
Press to confirm the backlight will blink and return to the beginning.
