GME XRS-660 User manual

1
XRS-660 Quick Start Guide
XRS™Connect 5 Watt Handheld UHF CB Radio
The XRS-660 Instruction Manual can be downloaded from
www.gme.net.au
Introduction
Building on the market-leading innovation of GME’s popular range of
XRS™Connect UHF CB Radios, the Australian Made XRS-660 oers
a number of exciting new features, clearly demonstrating GME’s
ongoing commitment to the development of new technology for UHF
CB Radio users.
The XRS-660 is the rst Handheld UHF CB radio to feature a colour
TFT LCD screen, providing the ultimate Handheld radio display for all
environmental conditions – even in full sunlight.
Bluetooth® audio connectivity allows the XRS-660 to wirelessly
connect to an extensive range of third-party audio accessories,
providing users with new and improved ways to stay connected.
Built-in GPS functionality ensures the XRS-660 can provide true
location awareness without relying on a smartphone to provide GPS
location data. This capability is particularly useful in commercial
applications where location tracking of users in remote areas may be
required for workplace safety.
Featuring rugged IP67 Ingress Protection and a MIL-STD810G rating,
the XRS-660 is our toughest and most advanced handheld radio yet.
Key Features
l 5/1/0.1 Watt Switchable Transmission Power
l Rugged Design, IP67*
Ingress Protection
l 2 Watt Front-Facing Speaker
l Transective Colour LCD Display (TFT)
l Bluetooth® Wireless Technology - Audio & Data
l Built-in GPS Receiver - Location Aware
l XRS™Connect – Smartphone Application
l Scansuite™– Digital Scanning Technology
l Multiple Power Saving Modes
*Ingress Protection rating of 6 – dustproof, and 7 – waterproof when immersed at 1 metre depth for
30 minutes with radio correctly and fully assembled.

2
Overview of Parts, Controls & Buttons
For a detailed description of the radio, refer to the XRS-660 instruction
manual.
XRS™Connect app
The GME XRS™Connect app is the easy way to customise, update and
maintain your XRS™Connect radio. To download the free XRS™Connect
app for iOS or Android go to the App Store or Google Play and search for
‘XRS™Connect’.
Pairing
To pair your Smart Device with your XRS™Connect radio, open the XRS™
Connect app, select ‘Radios’ from the menu. Locate your radio in the
list and press. If a previously paired radio is found it will automatically
connect. Your Smart Device will now pair with your radio and the icon
on your radio will change to to show that the Bluetooth pairing is
successful.
Once connected, select the ‘Read from Radio’ button to read your
radio’s settings into the app. After you have congured your preferences
in the app, select ‘Write to Radio’ to update your radio with your new
settings.
NOTE: The Bluetooth®connection between your smart device and your
XRS™Connect radio must be made through the XRS™Connect app. You
will not be able to pair your smart device to your XRS™Connect radio
using the normal Bluetooth settings option on your smart device.
XRS™Connect radios are compatible with iOS and Android.
App and Pairing
Antenna
On-O / Volume Knob
Programmable (XRS1)
Function Key
Push-To-Talk (PTT) Button
Channel Up
Channel Down
Menu / Enter
Back
Scan
Priority
Colour TFT
Display
Microphone
Speaker Belt Clip
Accessory Port
Charger Port
Transmit / Receive LED
Programmable (XRS2)
Function Key
Programmable (XRS3)
Function Key

Basic Operation
Please refer to the diagram in the previous section for information
on using the radio’s controls and buttons to select channels, menu
options, and other basic operations.
Display Symbols

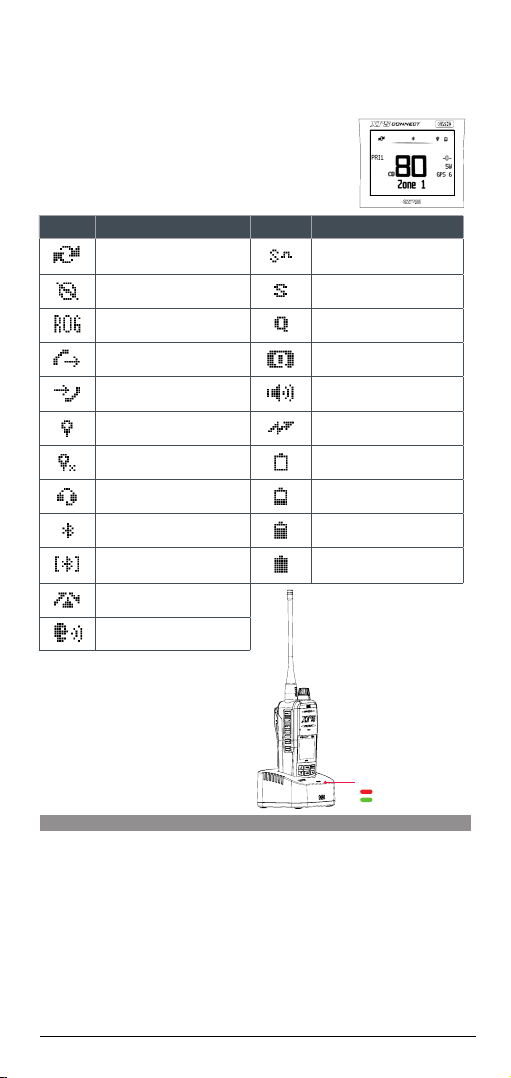

The diagram below explains the icons that display
on the LCD screen.
3
Charging the Radio
Single charging dock available.
Red LED indicates charging, Green
LED indicates fully charged.
ICON DESCRIPTION ICON DESCRIPTION
Channel is in Scan Memory
(animates if actively scanning)
Channel is in Silent Memory
Using DCS
Scrambler Enabled Channel is in Silent Memory
Using CTCSS
Roger Beep Enabled Channel is in
Quiet Memory
Selcall Sending Channel is in Quiet Memory and
Quiet Mode is Active
Selcall Received Channel Busy
Location Services Location and
Name/Status Ready to Send Transmitting
Location Services Name/Status
Ready to Send
Battery Low
(Flashes if Critical)
Bluetooth Headset Connected
(Flashes if Connection is Poor) Battery Medium
Bluetooth is Enabled Battery High
Bluetooth is Connected Battery Very High/Full
Channel is Set as Duplex
VOX (Voice Activated PTT)
Enabled
The use of the Citizen Band radio service is licensed in
Australia by the Australian Communications and Media
Authority (ACMA) Radio communications (Citizens Band
Radio Station Class Licence and in New Zealand by the
Ministry of Economic Development New Zealand (MED)).
A General User Radio Licence for Citizens Band radio
and operation is subject to conditions contained in
those licences.
The class licence for users and equipment operating in the
CB/PRS 477 MHz band was amended in 2011 to include
80 channels. This radio meets the 80 channel standard.
Further information and updates are available from
the ACMA at www.acma.gov.au and the MED, Radio
Spectrum Management at: www.rsm.govt.nz
Emergency channels
The ACMA has allocated channels 5/35 for emergency
use only. Channel 5 is the primary Simplex Emergency
Channel. Where a Channel 5 repeater is available, you
should select Duplex on CH 5.
NOTE: Channel 35 is the input channel for the Channel 5
repeater therefore Channel 35 should also not be used for
anything other than emergency transmissions.
Telemetry Channels
ACMA regulations have allocated channels 22 and 23
for telemetry only applications and have prohibited the
transmission of speech on these channels. Consequently
your radio has a transmit-inhibit applied to channels 22
and 23. Currently transmissions on channels 61, 62 and
63 are also inhibited and these channels are reserved
for future use.
IMPORTANT INFORMATION CONCERNING UHF CB RADIO
Single Desktop
Charger (BCD022)
Dual Desktop
Charger (BCD023)
CHARGER LED INDICATORS
Red LED - Charging
Green LED - Fully charged
LED
Front LED
Rear LED
FRONT
REAR
