Godox SL150II User manual

Instruction Manual

705-SL152B-00
Made in China

: 2
: 0755-29609320(8062) : 0755-25723423 : [e-mail]
godox.com
Add: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao’an District,
Shenzhen, China Tel: [phone](8062) Fax: [phone] E-mail: [email protected]
GODOX Photo Equipment Co., Ltd.
LED
Bi-color LED Video Light

QCPASS

- 09 - - 10 -
When using your photographic equipment, basic safety precautions should
always be followed, including the following:
1. Read and understand all instructions before using.
2. Close supervision is necessary when any appliance is used by or near children.
Do not leave appliance unattended while in use.
3. Care must be taken as burns can occur from touching hot parts.
4. The appliance switch is provided with the symbols 0 indicating off and 1
indicating on. The symbols and may be used for this purpose.
5. Do not operate appliance with a damaged cord or if the appliance has been
dropped or damaged – until it has been examined by a qualified serviceman.
6. Position the cord so that it will not be tripped over, pulled, or contact hot
surfaces.
7. If an extension cord is necessary, a cord with a current rating at least equal to
that of the appliance should be used. Cords rated for less amperage than the
appliance may overheat.
8. Always unplug appliance from electrical outlet before cleaning and servicing and
when not in use. Never yank cord to pull plug from outlet. Grasp plug and pull to
disconnect.
9. Let appliance cool completely before putting away. Loop cord loosely around
appliance when storing.
10. To reduce the risk of electric shock, do not immerse this appliance in water or
other liquids.
11. To reduce the risk of electric shock, do not disassemble this appliance, but take
it to a qualified serviceman when service or repair work is required. Incorrect
reassembly can cause electric shock when the appliance is used subsequently.
12. The use of an accessory attachment not recommended by the manufacturer
may cause a risk of fire, electric shock, or injury to persons.
13. Connect this appliance to a grounded outlet.
14. Disconnect this unit from its source of supply before replacing the projection
lamp.
15. This appliance has a polarized plug (one blade is wider than the other). To
reduce the risk of electric shock, this plug is intended to fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician. Do not modify the plug in any way.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Thank you for purchasing this Godox Product!
With 8 special effects modes, strong power, soft illumination and abundant
functions, Bi-color LED Video Light SL150IIBi can achieve creative shooting easily.
Main Features:
• With color temperature adjustment from 2800K to 6500K.
• With 9 FX special effects mode to simulate various of shooting scene.
• Silent mode: without noises and interference.
• Built-in Godox 2.4G wireless & wirelessly adjust parameters.
• With stable light source and 0% to 100% precise light adjustment.
• With 16 groups and 32 channels wireless control.
• With U-type bracket to adjust different angles easily.
• Bowens-mount enables to install various of accessories.
• Clear LCD display.
• Excellent heat dissipation.
Always keep this product dry. Do not use in rain or in damp conditions.
Do not disassemble. Should repairs become necessary, this product must be
sent to an authorized maintenance center.
Keep out of reach of children.
As this product do not have waterproof function, please take measures of
waterproof in rainy or damp environment.
Do not use the product in the presence of flammable gases, chemicals and
other similar materials.
CAUTION: Hot parts!When the product is always on and flickering,please do
not touch the high temperature part of the LED head.
When replacing product accessories,please turn off the LED light and perform
a cold cut.
Foreword
Warning

- 09 - - 10 -
When using your photographic equipment, basic safety precautions should
always be followed, including the following:
1. Read and understand all instructions before using.
2. Close supervision is necessary when any appliance is used by or near children.
Do not leave appliance unattended while in use.
3. Care must be taken as burns can occur from touching hot parts.
4. The appliance switch is provided with the symbols 0 indicating off and 1
indicating on. The symbols and may be used for this purpose.
5. Do not operate appliance with a damaged cord or if the appliance has been
dropped or damaged – until it has been examined by a qualified serviceman.
6. Position the cord so that it will not be tripped over, pulled, or contact hot
surfaces.
7. If an extension cord is necessary, a cord with a current rating at least equal to
that of the appliance should be used. Cords rated for less amperage than the
appliance may overheat.
8. Always unplug appliance from electrical outlet before cleaning and servicing and
when not in use. Never yank cord to pull plug from outlet. Grasp plug and pull to
disconnect.
9. Let appliance cool completely before putting away. Loop cord loosely around
appliance when storing.
10. To reduce the risk of electric shock, do not immerse this appliance in water or
other liquids.
11. To reduce the risk of electric shock, do not disassemble this appliance, but take
it to a qualified serviceman when service or repair work is required. Incorrect
reassembly can cause electric shock when the appliance is used subsequently.
12. The use of an accessory attachment not recommended by the manufacturer
may cause a risk of fire, electric shock, or injury to persons.
13. Connect this appliance to a grounded outlet.
14. Disconnect this unit from its source of supply before replacing the projection
lamp.
15. This appliance has a polarized plug (one blade is wider than the other). To
reduce the risk of electric shock, this plug is intended to fit in a polarized outlet
only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician. Do not modify the plug in any way.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Thank you for purchasing this Godox Product!
With 8 special effects modes, strong power, soft illumination and abundant
functions, Bi-color LED Video Light SL150IIBi can achieve creative shooting easily.
Main Features:
• With color temperature adjustment from 2800K to 6500K.
• With 9 FX special effects mode to simulate various of shooting scene.
• Silent mode: without noises and interference.
• Built-in Godox 2.4G wireless & wirelessly adjust parameters.
• With stable light source and 0% to 100% precise light adjustment.
• With 16 groups and 32 channels wireless control.
• With U-type bracket to adjust different angles easily.
• Bowens-mount enables to install various of accessories.
• Clear LCD display.
• Excellent heat dissipation.
Always keep this product dry. Do not use in rain or in damp conditions.
Do not disassemble. Should repairs become necessary, this product must be
sent to an authorized maintenance center.
Keep out of reach of children.
As this product do not have waterproof function, please take measures of
waterproof in rainy or damp environment.
Do not use the product in the presence of flammable gases, chemicals and
other similar materials.
CAUTION: Hot parts!When the product is always on and flickering,please do
not touch the high temperature part of the LED head.
When replacing product accessories,please turn off the LED light and perform
a cold cut.
Foreword
Warning

FX GR CH
CCT/FX
- 11 - - 12 -
Name of Body
Power Input Socket
& Fuse Holder
Power Switch
DIM
Select Dial
Fan Button
LCD Display
Bracket
Screw
Air Inlet
CCT/FX
Select Dial
FX Button
GR Button CH Button
Handle
Umbrella Input
U-type Bracket
Thermovent 2
Protect Cover
Bowens Mount
Accessory
Locking Ring
Thermovent 1
Bracket Screw

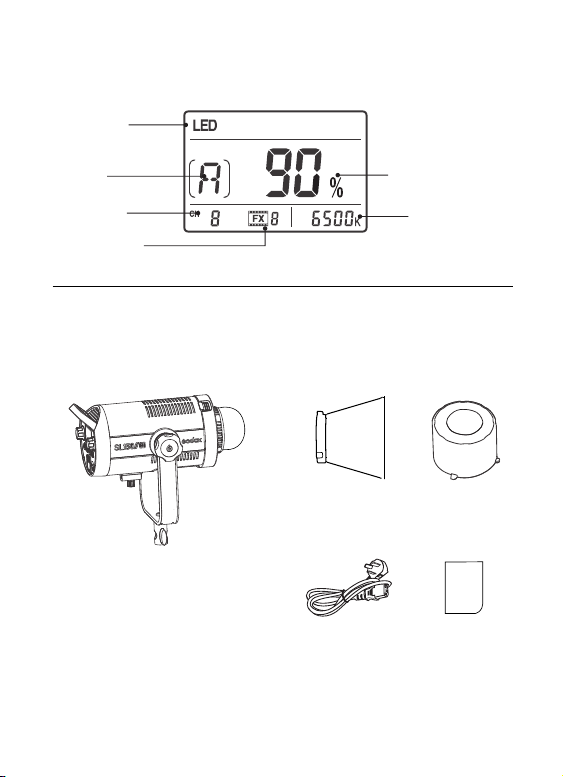

LCD Panel
Group
LCD Panel
Color Temperature
Power/Light Brightness
Channel/ID
Special Effect
Included Items
Body *1 Reflector *1 Protect Cover *1
Power Cable *1 Instruction
Manual *1
Frosted Cover *1
LED Light

FX GR CH
CCT/FX
- 11 - - 12 -
Name of Body
Power Input Socket
& Fuse Holder
Power Switch
DIM
Select Dial
Fan Button
LCD Display
Bracket
Screw
Air Inlet
CCT/FX
Select Dial
FX Button
GR Button CH Button
Handle
Umbrella Input
U-type Bracket
Thermovent 2
Protect Cover
Bowens Mount
Accessory
Locking Ring
Thermovent 1
Bracket Screw
LCD Panel
Group
LCD Panel
Color Temperature
Power/Light Brightness
Channel/ID
Special Effect
Included Items
Body *1 Reflector *1 Protect Cover *1
Power Cable *1 Instruction
Manual *1
Frosted Cover *1
LED Light

Mode Selection
1.1 LED silent mode: in this mode, the fan is turned off. There is no noises and
interference in this mode. In silent mode, the brightness adjustment range is from 0% to
50%.
1.2 LED special effects modes: Short press the FX button to enter or exit the special
effects. When entering the FX modes, FX icon will be displayed on the LCD panel. Then,
turn the FX select dial to choose one mode from the 9 special effects modes to achieve
creative shooting.
1.3 LED strong power mode: turn on the fan to enter LED strong power mode and the
power will up to the maximum value in this mode.
- 13 - - 14 -
Separately Sold Accessories
The product can be used in combination with the following accessories sold
separately, so as to achieve best photography effects: RC-A6 Remote Control,
Power Inverter, Softbox, Photographic Umbrella, Light Stand, Barndoor, Snoot,
etc.
Power Connection
Use the power cord to connect the LED light to an AC power source and turn on the
power switch.
Operation
Note: Only 6500K color temperature can be displayed in special effects mode.

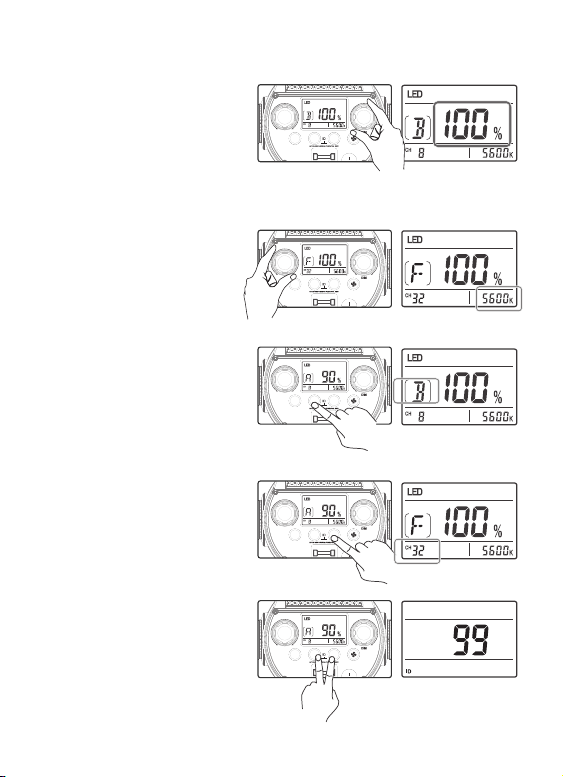

Light Brightness Adjustment
In LED mode, the light brightness of
LED light can be adjusted by turning
the DMX select dial from 0% to
100%. And the light brightness will
be clearly displayed on the LCD
Panel.
FX GR CH
CCT/FX
FX GR CH
CCT/FX
FX GR CH
CCT/FX
FX GR CH
CCT/FX
FX GR CH
CCT/FX
Color Temperature
Adjustment
In continuous LED mode, turn the
CCT/FX select dial to adjust color
temperature from 2800K to 6500K.
And the color temperature value will
be precisely displayed.
Group GR, Channel CH and
ID Setting
GR Setting: Short press GR button
to choose group from A, B, C, D, E,
F and 0 to 9.
CH Setting: Short press CH button
to choose channel from 1 to 32.
ID Setting: Long press GR and CH
button to enter ID setting interface.
Then, turn the DIM select dial to
choose ID from OF and 01 to 99.
Display
Scene
FX1
Flash1
FX2
Flash2
FX3
Storm1
FX4
Storm2
FX5
TV
FX6
Broken bulb
FX7
Camdle
FX8
Fire
FX9
Firework

Mode Selection
1.1 LED silent mode: in this mode, the fan is turned off. There is no noises and
interference in this mode. In silent mode, the brightness adjustment range is from 0% to
50%.
1.2 LED special effects modes: Short press the FX button to enter or exit the special
effects. When entering the FX modes, FX icon will be displayed on the LCD panel. Then,
turn the FX select dial to choose one mode from the 9 special effects modes to achieve
creative shooting.
1.3 LED strong power mode: turn on the fan to enter LED strong power mode and the
power will up to the maximum value in this mode.
- 13 - - 14 -
Separately Sold Accessories
The product can be used in combination with the following accessories sold
separately, so as to achieve best photography effects: RC-A6 Remote Control,
Power Inverter, Softbox, Photographic Umbrella, Light Stand, Barndoor, Snoot,
etc.
Power Connection
Use the power cord to connect the LED light to an AC power source and turn on the
power switch.
Operation
Note: Only 6500K color temperature can be displayed in special effects mode.
Light Brightness Adjustment
In LED mode, the light brightness of
LED light can be adjusted by turning
the DMX select dial from 0% to
100%. And the light brightness will
be clearly displayed on the LCD
Panel.
FX GR CH
CCT/FX
FX GR CH
CCT/FX
FX GR CH
CCT/FX
FX GR CH
CCT/FX
FX GR CH
CCT/FX
Color Temperature
Adjustment
In continuous LED mode, turn the
CCT/FX select dial to adjust color
temperature from 2800K to 6500K.
And the color temperature value will
be precisely displayed.
Group GR, Channel CH and
ID Setting
GR Setting: Short press GR button
to choose group from A, B, C, D, E,
F and 0 to 9.
CH Setting: Short press CH button
to choose channel from 1 to 32.
ID Setting: Long press GR and CH
button to enter ID setting interface.
Then, turn the DIM select dial to
choose ID from OF and 01 to 99.
Display
Scene
FX1
Flash1
FX2
Flash2
FX3
Storm1
FX4
Storm2
FX5
TV
FX6
Broken bulb
FX7
Camdle
FX8
Fire
FX9
Firework

- 15 - - 16 -
Note: The wireless signal can be received only when the controller of LED
light is powered on.
Wireless Control
With 2.4G wireless system, Bi-color LED Video Light SL150IIBi have receive and
control function. Up to multiple groups of LED lights can be controlled. 32
channels and 99 wireless IDs are available with strong anti-interference capability.
Please set the channels, groups and IDs of LED light to the same as those of RC-
A6 remote control before usage.
Adjusting Channel/Group with the Remote Control
● Press the CH/GR button and the group icon blinks.
Press the“-”“+”button to choose a group (A to F, 0 to 9).
● Press the CH/GR button twice and the channel icon blinks.
Press the“-”“+”button to choose a channel (1 to 32).
Adjusting ID with the Remote Control
● Double click the CH/GR button and press the“-”“+”button to choose ID from
OFF or 01 to 99.
Adjusting Light Brightness with the Remote Control
● Press the“-””+“button to adjust the light brightness.
Adjusting Color Temperature with the Remote Control
● Press the SET button of the remote control and the color temperature icon
blinks. Press the“-”“+”button to adjust the color temperature.
Remote control reset: press down "-" and "+" button simultaneously to reset.
Setting color temperature range
The factory setting of remote control's color temperature range is 2800-6500K.
In order to use remote control conveniently, color temperature range settings
are added: when the remote control is off, hold down the SET button and turn it
on to enter color temperature adjusting interface. Press CH/GR button to switch
the lowest and highest color temperature value and press "-" or "+" button to
change the value. Press the SET button to confirm it.
* Product design and specifications are subject to change without notice.
Technical Data
LED Video Light
Power Supply
Output Power
Color Temperature Range
100% Light Brightness(LUX,1M)
CRI 
TLCI 
Light Brightness Range
Operation Temperature
Channel
Group
Dimension (not included a
standard reflector)
Net Weight(not include reflector
and protect cover)
SL150IIBi
AC100V-240V(50/60HZ)
150W
2800~6500K
≈30000
96
97
0%-100%
-1040
32
16(A, B, C, D, E, F, 0-9)
34x20x16cm
3.07Kg
Note: the remote control needs to be purchased separately.

- 15 - - 16 -
Note: The wireless signal can be received only when the controller of LED
light is powered on.
Wireless Control
With 2.4G wireless system, Bi-color LED Video Light SL150IIBi have receive and
control function. Up to multiple groups of LED lights can be controlled. 32
channels and 99 wireless IDs are available with strong anti-interference capability.
Please set the channels, groups and IDs of LED light to the same as those of RC-
A6 remote control before usage.
Adjusting Channel/Group with the Remote Control
● Press the CH/GR button and the group icon blinks.
Press the“-”“+”button to choose a group (A to F, 0 to 9).
● Press the CH/GR button twice and the channel icon blinks.
Press the“-”“+”button to choose a channel (1 to 32).
Adjusting ID with the Remote Control
● Double click the CH/GR button and press the“-”“+”button to choose ID from
OFF or 01 to 99.
Adjusting Light Brightness with the Remote Control
● Press the“-””+“button to adjust the light brightness.
Adjusting Color Temperature with the Remote Control
● Press the SET button of the remote control and the color temperature icon
blinks. Press the“-”“+”button to adjust the color temperature.
Remote control reset: press down "-" and "+" button simultaneously to reset.
Setting color temperature range
The factory setting of remote control's color temperature range is 2800-6500K.
In order to use remote control conveniently, color temperature range settings
are added: when the remote control is off, hold down the SET button and turn it
on to enter color temperature adjusting interface. Press CH/GR button to switch
the lowest and highest color temperature value and press "-" or "+" button to
change the value. Press the SET button to confirm it.
* Product design and specifications are subject to change without notice.
Technical Data
LED Video Light
Power Supply
Output Power
Color Temperature Range
100% Light Brightness(LUX,1M)
CRI 
TLCI 
Light Brightness Range
Operation Temperature
Channel
Group
Dimension (not included a
standard reflector)
Net Weight(not include reflector
and protect cover)
SL150IIBi
AC100V-240V(50/60HZ)
150W
2800~6500K
≈30000
96
97
0%-100%
-1040
32
16(A, B, C, D, E, F, 0-9)
34x20x16cm
3.07Kg
Note: the remote control needs to be purchased separately.

- 17 - - 18 -
Maintenance
This product, except consumables e.g. cable, is supported with a one-year warranty.
Avoid sudden impacts and the product should be dedusted regularly.
Maintenance of the flash must be performed by our authorized maintenance
department which can provide original accessories.
Unauthorized service will void the warranty.
If the product had failures or was wetted, do not use it until it is repaired
by professionals.
Changes made to the specifications or designs may not be reflected in this manual.
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

- 17 - - 18 -
Maintenance
This product, except consumables e.g. cable, is supported with a one-year warranty.
Avoid sudden impacts and the product should be dedusted regularly.
Maintenance of the flash must be performed by our authorized maintenance
department which can provide original accessories.
Unauthorized service will void the warranty.
If the product had failures or was wetted, do not use it until it is repaired
by professionals.
Changes made to the specifications or designs may not be reflected in this manual.
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Any Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

Warranty
Dear customers, as this warranty card is an important certificate to apply for our
maintenance service, please fill in the following form in coordination with the seller
and safe-keep it. Thank you!
Note: This form shall be sealed by the seller.
Applicable Products
The document applies to the products listed on the Product Maintenance lnformation
(see below for further information). Other products or accessories (e.g. promotional
items, giveaways and additional accessories attached, etc.) are not included in this
warranty scope.
Warranty Period
The warranty period of products and accessories is implemented according to the
relevant Product Maintenance lnformation. The warranty period is calculated from the
day(purchase date) when the product is bought for the first time, And the purchase date
is considered as the date registered onthe warranty card when buying the product.
Product
Information
Model Product Code Number
Name Contact Number
Address
Customer
Information
Seller
Information
Note:
Name
Contact Number
Address
Date of Sale
If maintenance service is needed, you can directly contact the product distributor or
authorized service institutions. You can also contact the Godox after-sale service call
and we will offer you service. When applying for maintenance service, you should
provide valid warranty card. If you cannot provide valid warranty card, we may offer you
maintenance service once confirmed that the product or accessory is involved in the
maintenance scope, but that shall not be considered as our obligation.
The guarantee and service offered by this document are not applicable in the following
cases: . The product or accessory has expired its warranty period; . Breakage or
damage caused by inappropriate usage, maintenance or preservation, such as improper
packing, improper usage, improper plugging in/out external equipment, falling off or
squeezing by external force, contacting or exposing to the improper temperature,
solvent, acid, base, flooding and damp environments, etc; . Breakage or damage
caused by non-authorized institution or staff in the process of installation, maintenance,
alternation, addition and detachment; . The original identifying information of product
or accessory is modified, alternated, or removed; . No valid warranty card; .
Breakage or damage caused by using illegally authorized, nonstandard or non-public
released software; . Breakage or damage caused by force majeure or accident; .
Breakage or damage that could not be attributed to the product itself. Once met these
situations above, you should seek solutions from the related responsible parties and
Godox assumes no responsibility. The damage caused by parts, accessories and
software that beyond the warranty period or scope is not included in our maintenance
scope. The normal discoloration, abrasion and consumption are not the breakage within
the maintenance scope.
How to Get the Maintenance Service
Inapplicable Cases
Godox After-sale Service Call 0755-29609320-8062
Maintenance and Service Support Information
The warranty period and service types of products are implemented according to the
following Product Maintenance Information:
Product
Type
Parts
Other Items
Name
Circuit Board
Battery
Electrical parts e.g.battery
charger, power cord, sync cable,
etc.
Flash tube, modeling lamp, lamp
body, lamp cover, lockingdevice,
package, etc.
Maintenance
Period(month)
12
3
12
No
Warranty Service
Type
Customer sends
the product to
designated site
Without warranty
Customer sends
the product to
designated site
Customer sends
the product to
designated site

Warranty
Dear customers, as this warranty card is an important certificate to apply for our
maintenance service, please fill in the following form in coordination with the seller
and safe-keep it. Thank you!
Note: This form shall be sealed by the seller.
Applicable Products
The document applies to the products listed on the Product Maintenance lnformation
(see below for further information). Other products or accessories (e.g. promotional
items, giveaways and additional accessories attached, etc.) are not included in this
warranty scope.
Warranty Period
The warranty period of products and accessories is implemented according to the
relevant Product Maintenance lnformation. The warranty period is calculated from the
day(purchase date) when the product is bought for the first time, And the purchase date
is considered as the date registered onthe warranty card when buying the product.
Product
Information
Model Product Code Number
Name Contact Number
Address
Customer
Information
Seller
Information
Note:
Name
Contact Number
Address
Date of Sale
If maintenance service is needed, you can directly contact the product distributor or
authorized service institutions. You can also contact the Godox after-sale service call
and we will offer you service. When applying for maintenance service, you should
provide valid warranty card. If you cannot provide valid warranty card, we may offer you
maintenance service once confirmed that the product or accessory is involved in the
maintenance scope, but that shall not be considered as our obligation.
The guarantee and service offered by this document are not applicable in the following
cases: . The product or accessory has expired its warranty period; . Breakage or
damage caused by inappropriate usage, maintenance or preservation, such as improper
packing, improper usage, improper plugging in/out external equipment, falling off or
squeezing by external force, contacting or exposing to the improper temperature,
solvent, acid, base, flooding and damp environments, etc; . Breakage or damage
caused by non-authorized institution or staff in the process of installation, maintenance,
alternation, addition and detachment; . The original identifying information of product
or accessory is modified, alternated, or removed; . No valid warranty card; .
Breakage or damage caused by using illegally authorized, nonstandard or non-public
released software; . Breakage or damage caused by force majeure or accident; .
Breakage or damage that could not be attributed to the product itself. Once met these
situations above, you should seek solutions from the related responsible parties and
Godox assumes no responsibility. The damage caused by parts, accessories and
software that beyond the warranty period or scope is not included in our maintenance
scope. The normal discoloration, abrasion and consumption are not the breakage within
the maintenance scope.
How to Get the Maintenance Service
Inapplicable Cases
Godox After-sale Service Call 0755-29609320-8062
Maintenance and Service Support Information
The warranty period and service types of products are implemented according to the
following Product Maintenance Information:
Product
Type
Parts
Other Items
Name
Circuit Board
Battery
Electrical parts e.g.battery
charger, power cord, sync cable,
etc.
Flash tube, modeling lamp, lamp
body, lamp cover, lockingdevice,
package, etc.
Maintenance
Period(month)
12
3
12
No
Warranty Service
Type
Customer sends
the product to
designated site
Without warranty
Customer sends
the product to
designated site
Customer sends
the product to
designated site

Instruction Manual

705-SL152B-00
Made in China

: 2
: 0755-29609320(8062) : 0755-25723423 : [e-mail]
godox.com
Add: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao’an District,
Shenzhen, China Tel: [phone](8062) Fax: [phone] E-mail: [email protected]
GODOX Photo Equipment Co., Ltd.
LED
Bi-color LED Video Light

QCPASS
