Goldmedal Astro Pop 16oz Series User manual

© 2021 Gold Medal Products Co.
Part No. 41474
Instruction Manual
10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA
Astro Pop 16 oz.
Model No. 2023E, 2023XE, 2023XEN

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 2
www.gmpopcorn.com
SAFETY PRECAUTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning.
008_012221
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
To avoid burns, DO NOT touch the kettle or any heated surface.
DO NOT place or leave objects in contact with heated surfaces.
013_092414
WARNING
ALWAYS wear safety glasses when servicing this equipment.
010_010914
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
WARNING
Read and understand operator’s manual and all other safety instructions
before using this equipment. To order copies of the operator’s manual go to
gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,
Cincinnati, OH 45241 USA 1-(800)-543-0862
022_060215

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 3
www.gmpopcorn.com
WARNING
DO NOT allow direct contact of this equipment by the public when used in
food service locations. Only personnel trained and experienced in the
equipment operation may operate this equipment.
Carefully read all instructions before operation.
012_010914
WARNING
This machine is NOT to be operated by minors.
007_010914
DO NOT install equipment in an area where a water jet is used.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Unit to be in a supervised location.
Install unit on a level surface. Locate machine in a protected environment.
Note: Improvements are always being made to Gold Medal’s equipment. This information
may not be the latest available for your purposes. It is critical that you call Gold Medal’s
Technical Service Department at 1-800-543-0862 for any questions about your
machine operations, replacement parts, or any service questions. (Gold Medal
Products Co. does not assume any liability for injury due to careless handling and/or
reckless operation of this equipment.) General images may be used in manual for
reference only.

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 4
www.gmpopcorn.com
INSTALLATION INSTRUCTIONS
Inspection of Shipment
After unpacking, check thoroughly for any damage which may have occurred in transit. Claims
should be filed immediately with the transportation company. The warranty does not cover
damage that occurs in transit, or damage caused by abuse, or consequential damage due to the
operation of this machine, since it is beyond our control (reference warranty in back of manual).
Manual
Read and understand the operator’s manual and all other safety instructions before using this
equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold
Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862.
Model Description
The Astro Pop is a 16 oz. popcorn popper.

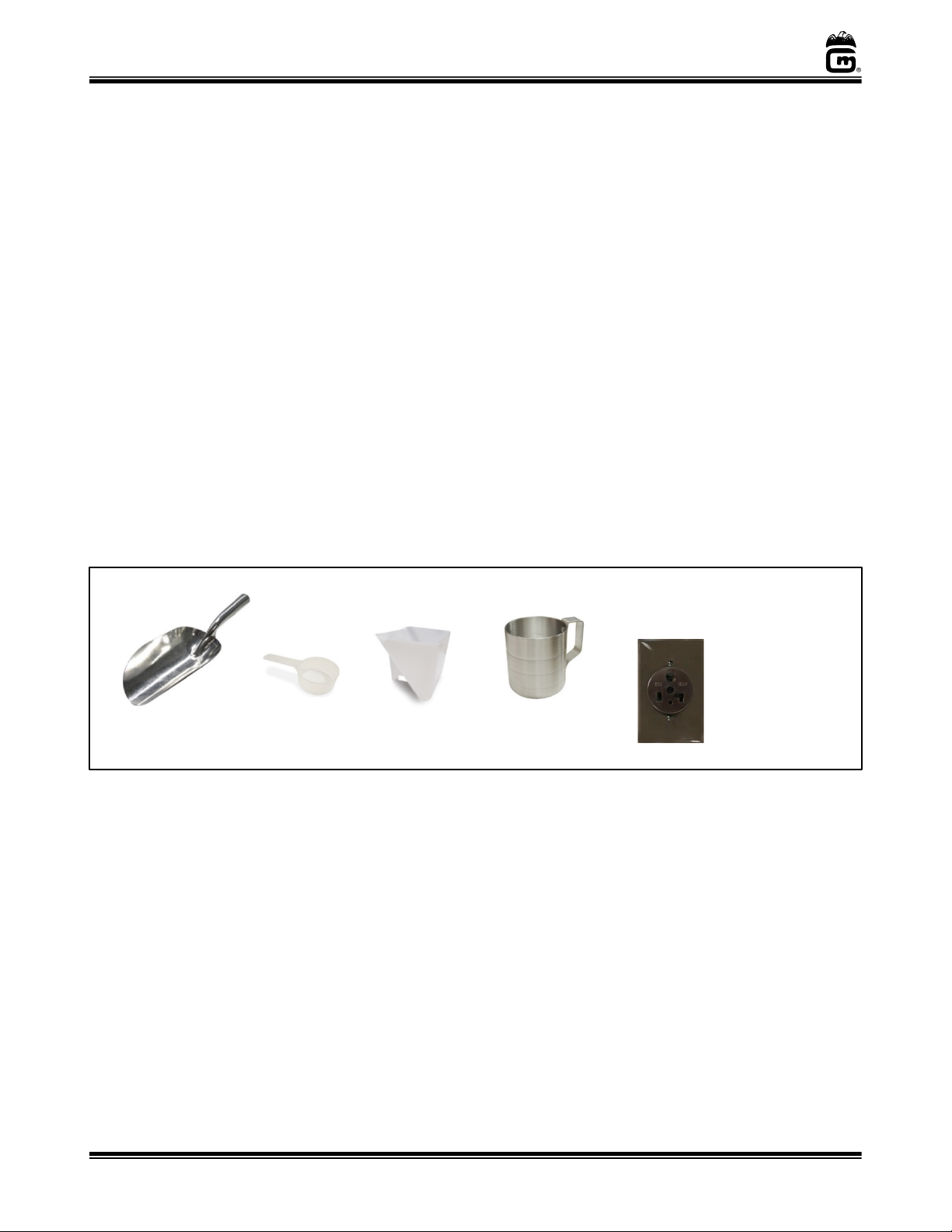

Items Included with this Unit
Setup
This unit has been tested at the factory.
1. Remove all packaging and tape prior to operation.
2. Place the unit on a sturdy, level base.
3. The Popper blower vents out the top of unit, allow adequate clearance for airflow.
4. The door knobs are shipped facing the inside of the machine. Re-adjust knobs to face
the outside of the machine.
5. Make sure kettle lead-in cord is securely plugged into unit, and twisted to lock into the
kettle receptacle.
6. Reference the Instruction Manual for the oil dispense unit for instructions on
connecting the oil unit to the popper (oil unit sold separately).
7. After setup, the unit should be cleaned prior to use (see Care and Cleaning section).
Aluminum
Scoop
(PN 2071)
20cc Measure
(PN 47680)
6 oz. Oil
Measure
(PN 49049)
16 oz. Corn
Measure
(PN 68050)
Power Supply
Re
ceptacle
(PN
47211)
Cover
(PN 47377)
(2023E
Units ONLY)

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 5
www.gmpopcorn.com
Electrical Requirements
The following power supply must be provided (reference unit Data Plate for Wattage requirement):
2023E:120 V~, 60 Hz
2023XE, 2023XEN: 220-230 V~, 50/60 Hz
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning.
008_012221
A certified electrician must furnish sufficient power for proper machine operation and install any
supplied receptacle (reference unit Data Plate for model specific Volts AC, Hertz, and Wattage
requirements). We recommend this equipment be on a dedicated and protected circuit. Failure
to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal
Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of
extension cords is not recommended due to safety concerns, and may cause sacrificed and/or
reduced performance. Make sure cord is located to prevent a trip hazard or unit upset.
Before You Plug In Machine
1. Make sure all machine switches are OFF before plugging equipment into receptacle.
2. Make sure wall outlet can accept the grounded plugs (where applicable) on the power
supply cord.
3. The wall outlet must have the proper polarity. If in doubt, have a competent
electrician inspect the outlet and correct if necessary.
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable).
5. Install unit in a level position.
CAUTION
If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,
its service agent or similarly qualified persons in order to avoid a hazard.
039_080614

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 6
www.gmpopcorn.com
OPERATING INSTRUCTIONS
Controls and Their Functions
OIL SYSTEM MASTER SWITCH
Sends power to the oil pump. The warmer/blower on the oil pump is activated. The
warmer/blower on the oil pump will keep coconut popping oil in liquid form if the doors
on the base are kept closed. It may be desirable to keep this switch on at night if you have
problems keeping the coconut oil liquefied. Coconut oil will congeal at temperatures
below approximately 76º F [24º C]. (Reference Instruction Manual for oil dispense unit.)
RED OIL DISPENSE MOMENTARY SWITCH (Oil Light Indicator)
When pushed, this will dispense the predetermined amount of oil into the kettle.
LIGHT SWITCH
This switch operates the LED lighting and sign.
WARMER SWITCH
This switch operates the forced air popcorn crisping system.
KETTLE MOTOR SWITCH
This switch operates the popcorn agitator motor. This switch must be on at all times when
popcorn (popped and un-popped) is present in the kettle. This switch activates the
exhaust fan.
KETTLE HEAT SWITCH
This switch turns on the heat elements located in the popcorn kettle by sending power to
the Big Eye electronic control system.
YELLOW LIGHT AND AUDIBLE SOUND
The Astro-Pop is equipped with the state of the art Big Eye electronic control that “watches
your popcorn machine” to deliver optimum popping performance. The Big Eye control will
signal the operator to:
•Load the corn and oil or
•Dump the popped corn from the kettle or
•Turn OFF the Kettle Heat if you are finished popping corn.
Kettle Heat
Switch
Lights
Switch
Warmer
Switch
Kettle Motor Switch
Oil
Dispense
Switch
Oil Master
Switch
Oil Light
Indicator
Load
Dump
Indicator

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 7
www.gmpopcorn.com
Popping Instructions
Remember: When the Yellow Light comes ON, and Audible Signal (if enabled) is sounding, one
of the following actions should be taken:
•Load the corn and oil or
•Dump the popped corn from the kettle or
•Turn OFF the Kettle Heat if you are finished popping corn.
Amount of Popcorn and Oil
This popper is equipped with a corn, salt, and oil measure. Gold Medal recommends flavored and
colored coconut oil. Popcorn popped in coconut oil stays fresh longer and does not leave black
deposits in your kettle like other oils. Use only top quality, fresh popcorn from reputable suppliers.
Kettle Size
Popcorn Charge
Oil Charge
Flavacol (Salt)
16 oz.
16 oz. (473 ml)
5 oz. (148 ml)
1.5 Tblsp. (20cc)
Popping Standard (Salted) Popcorn
Premeasure all ingredients (adjust as needed for desired taste), or for best results use Mega-Pop®
premeasured popcorn and oil pouch made for your kettle size.
Note: When using coconut oil, be sure the oil is liquid. As a check, dispense oil
into a measuring cup first, then use that oil for the first popping cycle.
1. Turn all switches ON.
2. Kettle is ready to pop (about 4 minutes) when the Load/Dump Light and Audible Signal
(beeper, if enabled) turn ON.
3. Lift kettle lid, pour in popcorn and Flavacol, then add oil; close lid (if equipped, press
the “Red” Oil Dispense PB Switch to add oil) (light and beeper will turn OFF in approx.
20 seconds).
4. When the light and beeper come on again, gently dump the kettle.
Note: The signal “To Dump” was factory set based on Gold Medal popcorn and oil. If,
after 3 consecutive batches, the signal occurs before or after popping has
stopped, then the signal timing can be adjusted by a qualified service person
(reference Electronic Temperature Control section).
Popping Tip: On final batch, turn Kettle Heat Switch OFF just as lids are forced open by
the popping corn (kettle has plenty of heat to finish popping). This helps
eliminate smoke/odor from any oil residue remaining in kettle. With the Heat
Switch OFF, the light and beeper will not activate for the last batch.
5. When finished popping, turn KETTLE HEAT and KETTLE MOTOR switches OFF. NEVER
LEAVE THE HEAT ON WHEN YOU ARE NOT POPPING CORN!

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 8
www.gmpopcorn.com
Care and Cleaning
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
DO NOT immerse in water. DO NOT clean appliance with a water jet.
Always unplug the equipment before cleaning or servicing.
025_111616
WARNING
To avoid serious burns, DO NOT touch the kettle while it is hot!
028_082715
Good sanitation practice demands that all food preparation equipment be cleaned regularly (only
use non-toxic, food grade cleaners).
For surfaces needing further cleaning or degreasing, Watchdog Stainless Cleaner (Item No. 2088)
or Watchdog Concession Equipment Degreaser (Item No. 2580) is available for use accordingly.
For any cleaning products used, follow the manufacturer’s instructions on the product. DO NOT
use oven cleaners or abrasive materials as they will damage parts of machine.
Note: It is extremely important to follow all cleaning procedures, otherwise parts
damage and equipment failure will result. The warranty does not cover parts
that are damaged due to improper cleaning.
Daily Kettle Cleaning Instructions
1. Turn the power switch OFF and unplug the unit.
CAUTION: A hot kettle will cause burns if you touch it. Allow kettle to cool at least 1
hour before attempting to clean. DO NOT use ice or water to cool down a hot
kettle! Severe kettle damage will result and steam burns may occur!
2. When cool, wipe outside of kettle clean using a clean, soft cloth and Gold Medal
Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive
materials as they will damage the kettle.
3. Mix 2 tablespoons (29.6 ml) of Gold Medal’s Heat’n Kleen (Item No. 2095) in 1 gallon
(3.8 L) of water.
4. Only pour enough of the Heat’n Kleen pre-mixed solution into the kettle to fill it 1/2 inch
(12.7 mm) deep (it is not necessary to use the entire gallon at once).
5. Plug in the unit.
6. Turn kettle heat ON. When solution starts to boil, turn kettle heat OFF.
7. Allow kettle to cool at least 1 hour, then unplug unit.
8. Dump solution into a bucket, do not spill any in the interior of machine.
9. Rinse kettle interior with clean water and a clean cloth.

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 9
www.gmpopcorn.com
10. Dump any water remaining into a bucket (do not spill any in the interior of machine),
then wipe the kettle interior clean with a clean dry cloth.
For an extra dirty kettle, the process may be repeated; or, after turning kettle heat OFF,
allow solution to sit in kettle overnight. The next morning, finish the cleaning steps.
11. With unit OFF and unplugged, use a clean SLIGHTLY damp cloth (wring ANY EXCESS
water from cloth before use) and wipe the kettle lead cord clean. DO NOT get moisture
into the kettle lead-in cord, severe damage will result.
12. After kettle cleaning, check to be sure the crossbar fasteners are securely tightened.
Daily Unit Cleaning Instructions
1. Turn machine OFF, unplug unit and allow it to cool before attempting to clean.
2. Remove any remaining popcorn.
3. Remove all pans/accessories and take them to the sink to clean with soap and water,
then rinse and dry.
4. Clean under corn pan to remove all popcorn bits and seeds with a vacuum as needed,
then wipe the area with a clean dry cloth to remove any grease.
5. Wipe clean the area above the corn pan and exterior surfaces using a clean, SLIGHTLY
damp cloth to remove any grease from the glass and cabinet (cloth may be SLIGHTLY
dampened with soap and water, then wipe again with clean water to remove any
remaining cleaner).
6. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No.
2588) is recommended.
Ammonia cleaners will damage plastic doors/panels. Only use a non-ammonia cleaner,
such as Gold Medal Watchdog Glass Cleaner (Item No. 2588).
7. Reinstall the clean, dry pans/accessories.
8. Check the kettle lead cord, make sure it is fully plugged into the kettle receptacle and
the plug (or plug collar) is fully twisted to lock it into place.
Sanitizing the Oil System (Tubing and Pump)
Reference the Oil Dispense Unit manual for oil system cleaning instructions.

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 10
www.gmpopcorn.com
Filter Cleaning Instructions
The popcorn machine is equipped with an efficient and durable filtration system. The filter
should be cleaned every 1-2 weeks to maintain maximum efficiency.

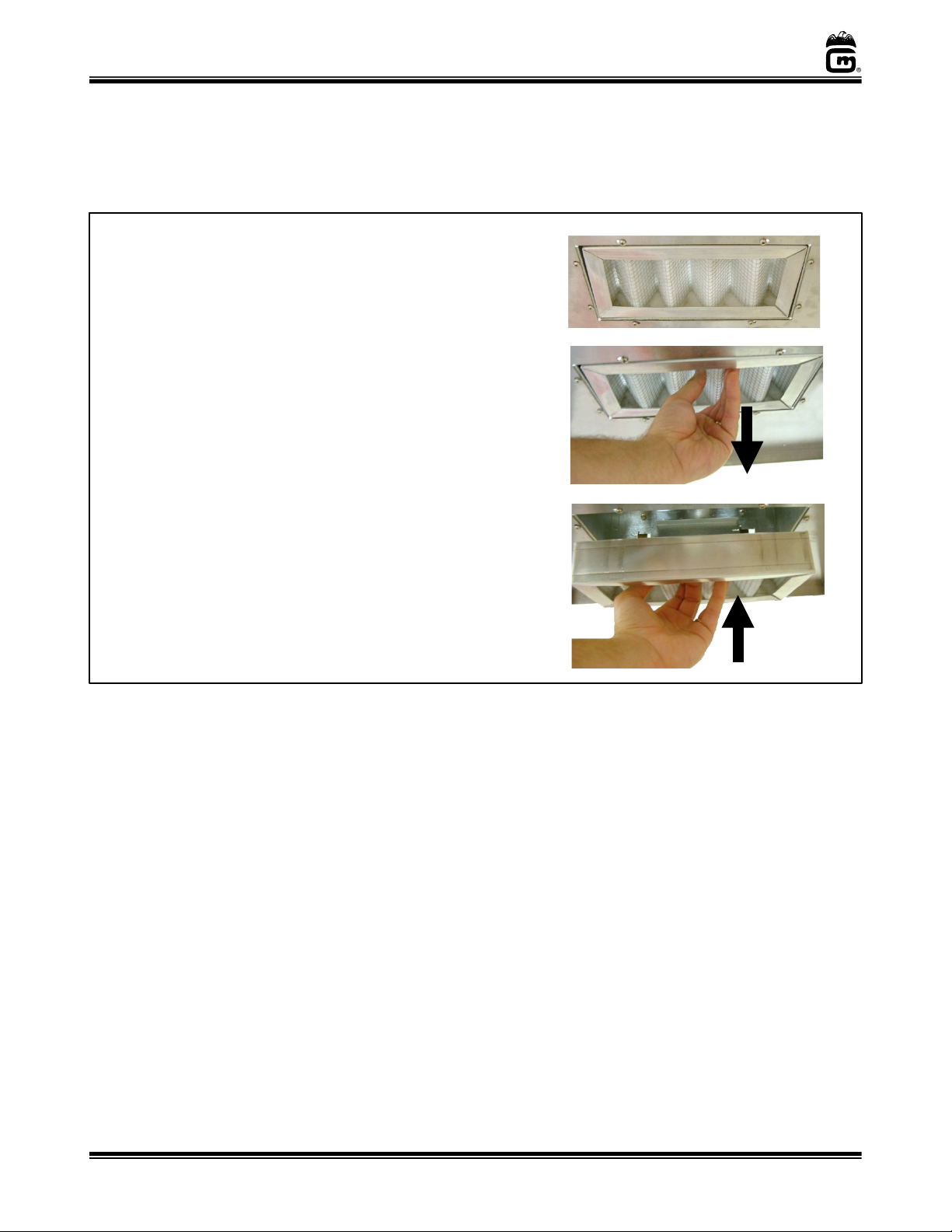

Steps to Clean Filter
1. Turn unit OFF and allow it to cool before
removing filter. Filter is located inside the
popcorn machine, above the popping kettle.
2. Remove filter by gripping the filter itself and
pulling straight down.
3. Clean filter in warm soapy water, then rinse and
allow to dry overnight. Replace filter by putting
it into the slot and pushing upward. Make sure
the filter frame is flush with the ceiling of the
popper (as shown above).

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 11
www.gmpopcorn.com
Agitator Set Collar Adjustment
The following instructions describe how to properly adjust set collars on an agitator assembly
with a fixed stir rod.
Steps to Adjust Set Collars on Agitator with a Fixed Stir Rod
Agitator assembly is adjusted while fastened to t
he kettle (image shown for general reference only).
1.
Turn machine OFF, unplug unit, and allow it to cool completely before attempting to adjust
the agitator height.
2.
Loosen the set screw in the set collar above the crossbar and below the crossbar.
3.
Place a 1/32” (1 mm)
gauge (thickness of a dime) under the base of the agitator shaft to adjust
clearance between the kettle cook surface and the shaft; reference image shown. Once
adjusted, re-tighten the set screw in the set collar above the crossbar to secure shaft in place.
4.
Adjust clearance between the bottom of the
crossbar and the lower set collar to 1/32”
(1 mm) (thickness of a dime); reference
image shown. Once adjusted, re-tighten set
screw to secure in place.
5.
To check for proper adjustment, make sure
the stir rod is parallel to the kettle cook
surface (it should be close - but not
touching).
6.
Spin the agitator shaft by hand to ensure it
spins freely and is not dragging the bottom
of the kettle.

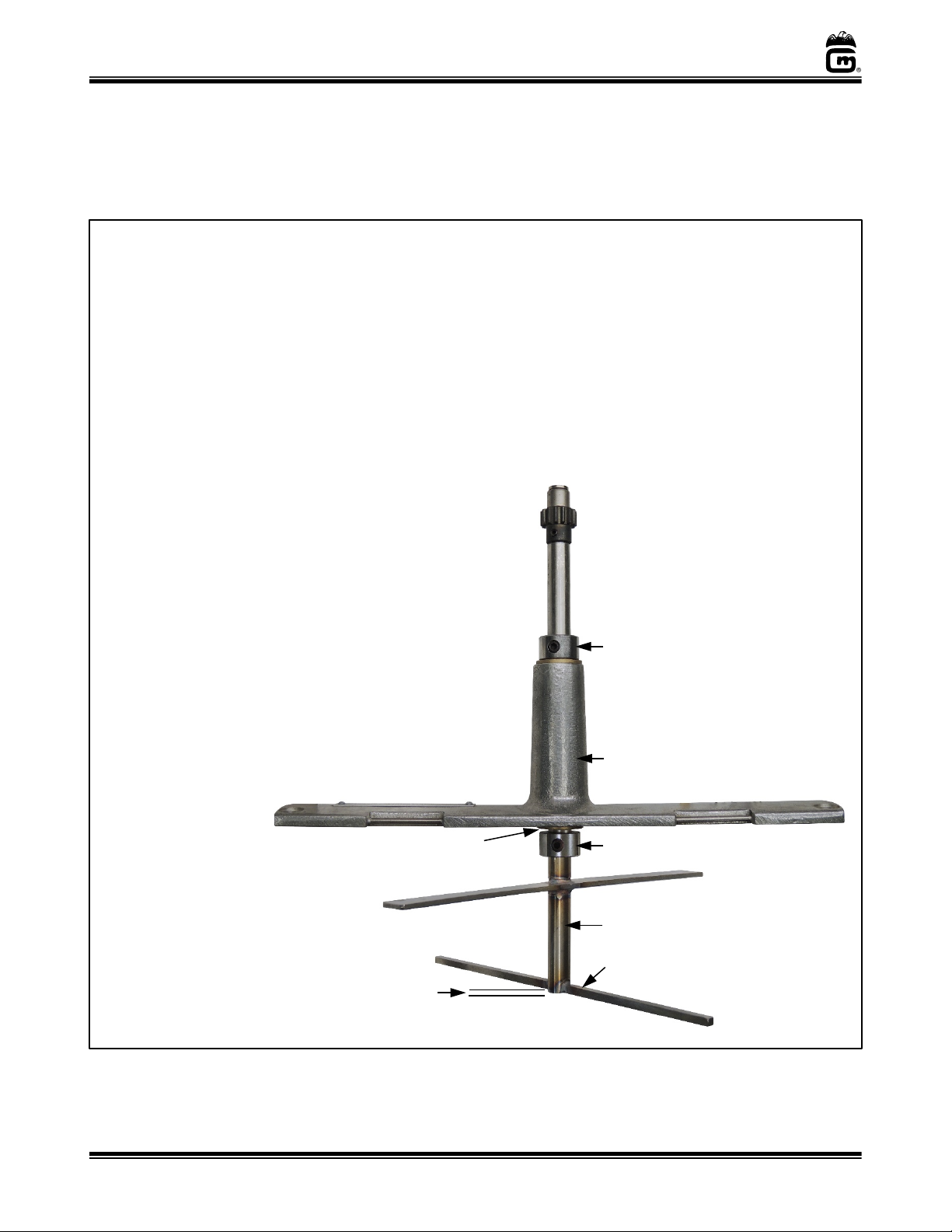

Agitator shown for general
image reference only
(lids not
shown
for clarity).
Step 3: Adjust clearance to
1/32” (1 mm)
(thickness of a dime
)
Kettle Cook
Surface
Crossbar
Set Collar w/Set Screw
above Crossbar
Lower Set Collar
Agitator Shaft
Step 4: Adjust clearance to 1/32” (1 mm)
(thickness of a dime)
Stir Rod (welded to shaft)

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 12
www.gmpopcorn.com
THE FOLLOWING SECTIONS ARE FOR QUALIFIED SERVICE PERSONNEL ONLY
MAINTENANCE INSTRUCTIONS
DANGER
Machine must be properly grounded to prevent electrical shock to personnel.
Failure to do so could result in serious injury, or death.
Make sure all machine switches are in the OFF position before plugging the
equipment into the receptacle. Keep cord and plug off the ground and away
from moisture. Always unplug the equipment before cleaning or servicing.
DO NOT immerse any part of this equipment in water.
DO NOT use a water jet or excessive water when cleaning.
008_012221
DANGER
Improper installation, adjustment, alteration, service, or maintenance can
cause property damage, injury, or death. Any alterations to this equipment
will void the warranty and may cause a dangerous condition. This appliance
is not intended to be operated by means of an external timer or separate
remote-control system. NEVER make alterations to this equipment. Read the
Installation, Operating, and Maintenance Instructions thoroughly before
installing, servicing, or operating this equipment.
014_020416
WARNING
No user serviceable parts inside. Refer servicing to qualified service
personnel.
011_051514
CAUTION
THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY
FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH
ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE
OPERATOR.
027_010914

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 13
www.gmpopcorn.com
Electronic Temperature Control (Domestic)
Operation
The temperature control is factory set to stop the power to the kettle when the thermocouple
reaches setpoint. This is also the ideal point to dump the popped corn out of the kettle. On the
first start-up, this is the ideal time to load the corn and oil. Therefore, if the Kettle Heat Switch is
turned ON and the buzzer is sounding, one of the following actions should be taken:
•Load the corn and oil or
•Dump the popped corn from the kettle or
•Turn OFF the Kettle Heat Switch if you are finished popping corn.
Adjustment of Electronic Control
This unit has an electronic kettle control with 2 thermocouples (TC), one for control and one for
limit. There are no mechanical thermostats in this kettle.
There are (4) factory adjustments on the control:
1. Control Setpoint Temperature – This is factory set, DO NOT adjust.
2. Signal to Dump – If you want the signal to dump to be a little sooner or later, you can
adjust the Kettle Dump potentiometer (see image below). Turn clockwise (CW) to signal
sooner, counterclockwise (CCW) to signal later.
3. The patented Overshoot circuit is tuned for the kettle, DO NOT adjust this potentiometer.
4. The Audible Signal to Dump has three options; full volume, half volume, no sound (yellow
light only). Adjustments are made by jumper positions (see image below). The unit is
shipped with full volume.
It does not matter which TC goes
to A or B
; it DOESmatter that the
yellow leads go to the positive
terminals.
Remove this
jumper for
no s
ound.
Remove this
jumper
for
lower volume.
Control Setpoint Temperature
This
is factory set,DO NOT ADJUST.
Overshoot – This is factory set,
DO NOT ADJUST
.
Kettle Dump - This is factory set
to signal when
kettle is ready to
dump. Turn
CW to signal sooner;
CCW
to signal later. ONLY make
small adjustments if needed.
L2 Neutral Lead
L1 Hot Lead
Audible Signal to Dump
Jumper Wire A & B
for 120 VAC

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 14
www.gmpopcorn.com
Electronic Temperature Control (Export)
Operation
The temperature control is factory set to stop the power to the kettle when the thermocouple
reaches setpoint. This is also the ideal point to dump the popped corn out of the kettle. On the
first start-up, this is the ideal time to load the corn and oil. Therefore, if the Kettle Heat Switch is
turned ON and the buzzer is sounding, one of the following actions should be taken:
•Load the corn and oil or
•Dump the popped corn from the kettle or
•Turn OFF the Kettle Heat Switch if you are finished popping corn.
Adjustment of Electronic Control
This unit has an electronic kettle control with 2 thermocouples (TC), one for control and one for
limit. There are no mechanical thermostats in this kettle.
There are (4) factory adjustments on the control:
1. Control Setpoint Temperature – This is factory set, DO NOT adjust.
2. Signal to Dump – If you want the signal to dump to be a little sooner or later, you can
adjust the Kettle Dump potentiometer (see image below). Turn clockwise (CW) to signal
sooner, counterclockwise (CCW) to signal later.
3. The patented Overshoot circuit is tuned for the kettle, DO NOT adjust this potentiometer.
4. The Audible Signal to Dump has three options; full volume, half volume, no sound (yellow
light only). Adjustments are made by jumper positions (see image below). The unit is
shipped with full volume.
It does not matter which TC goes
to A or B
; it DOES matter that the
yellow leads go to the positive
terminals.
Remove this
jumper for
no s
ound.
Remove this
jumper
for
lower volume.
Control Setpoint Temperature
This
is factory set,DO NOT ADJUST.
Overshoot – This is factory set,
DO NOT ADJUST
.
Kettle Dump - This is factory set
to signal when
kettle is ready to
dump. Turn
CW to signal sooner;
CCW
to signal later. ONLY make
small adjust
ments if needed.
L2 Neutral Lead
Jumper Wire C for 230 VAC
L1 Hot Lead
Audible Signal to Dump

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 15
www.gmpopcorn.com
ORDERING SPARE PARTS
1. Identify the needed part by checking it against the photos, illustrations, and/or
parts list. (General images may be used in manual for reference only.)
2. Use only approved replacement parts when servicing this unit.
3. When ordering, please include part number, part name, and quantity needed.
4. Please include your model number, serial number, and date of manufacture (located
on the machine nameplate/data plate) with your order.
5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700
Medallion Drive, Cincinnati, Ohio 45241-4807
or place orders by phone or online:
Phone: [phone]
[phone]
Fax: [phone]
[phone]
E-mail: [e-mail]
Web Page: gmpopcorn.com

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 16
www.gmpopcorn.com

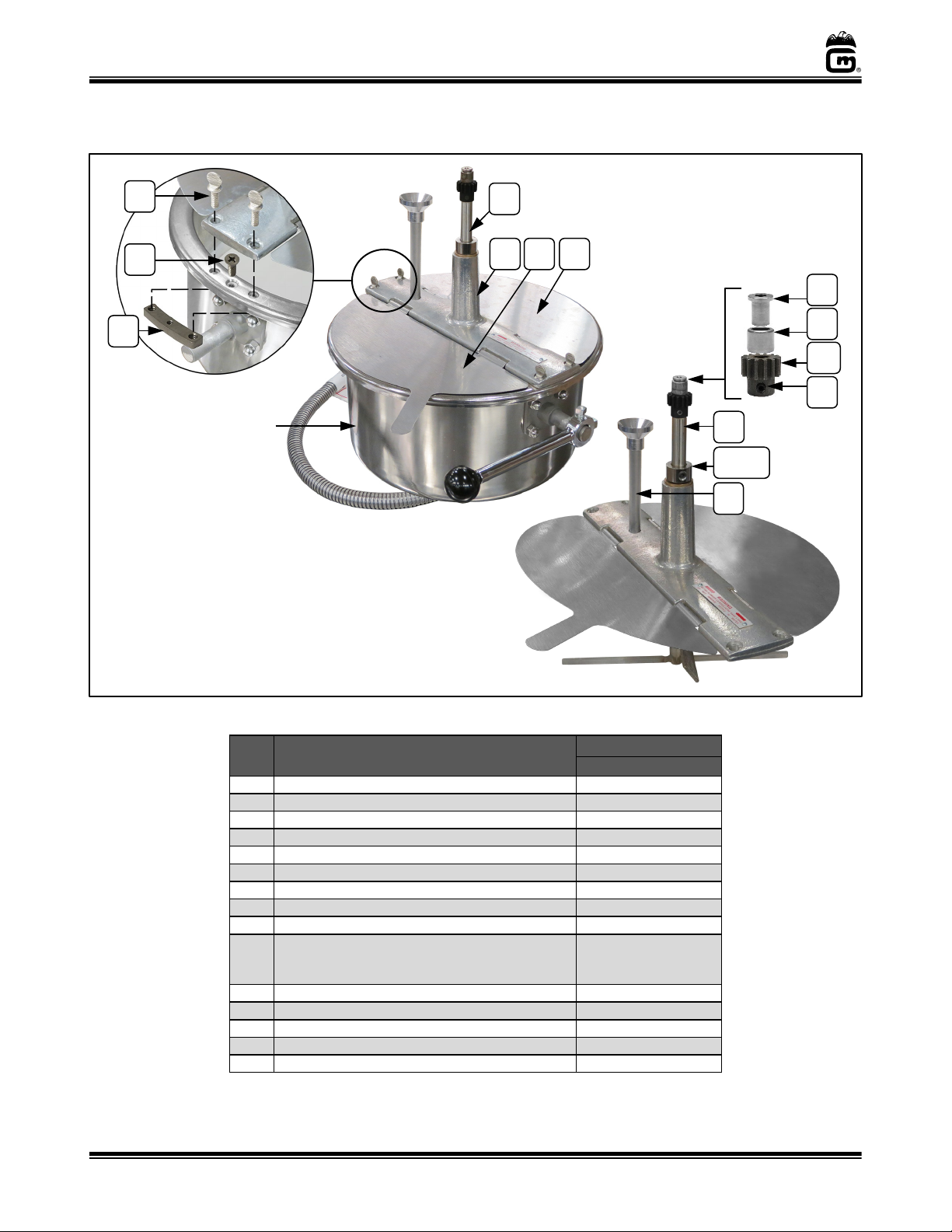

16 oz. Kettle Assembly (55166E, 55166XE) – Agitator Assy. View
Item Part Description
Part Number
55166E, 55166XE
1
THUMB SCREW 1/4-20 X 3/4
38379
2
10-32 X 1/2 PH FL HD MS
40717
3
THREADED BLOCK
61167
4
LID & AGITATOR ASSEMBLY (Complete Assy.)
41066
5
CROSSBAR ASSEMBLY
41086
6
FRONT LID
41123
7
REAR LID
41120
8
AGITATOR BEARING HUB
43434
9
NEEDLE BEARING
47106
10*
SPUR GEAR KIT (Includes 2 gears with set
screws. Always replace Agitator Spur Gear and
Kettle Drive Motor Gear as a set.)
47059K
11
10-32 X 3/16 SET SCREW
41742
12
AGITATOR SHAFT ASSEMBLY
41093
13
½ ID X 7/8 OD SET COLLAR
47326
14
¼-20 X 3/16 SET SCREW
47751
15
OIL TUBE W/ FUNNEL
41239
Complete Kettle Assembly
See Kettle Bottom
Assy. section for
parts breakdown
(includes Handle
Assembly and
Kettle Lead).
55166Overall Kettle
55166E Ag.Assy.
55199EExp. Views
1
2
3
Complete Agitator Assembly
(Includes Lids)
4
Complete Agitator Assy.
(Includes Lids)
*See Parts
List note.
8
9
10*
11
15
13, 14
12
5 6 7

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 17
www.gmpopcorn.com
16 oz. Kettle Assembly (55166E, 55166XE) – Kettle Bottom
Element View
55199EKettle Element
55199EKettle Bottom Assy.
55199Eexp. views

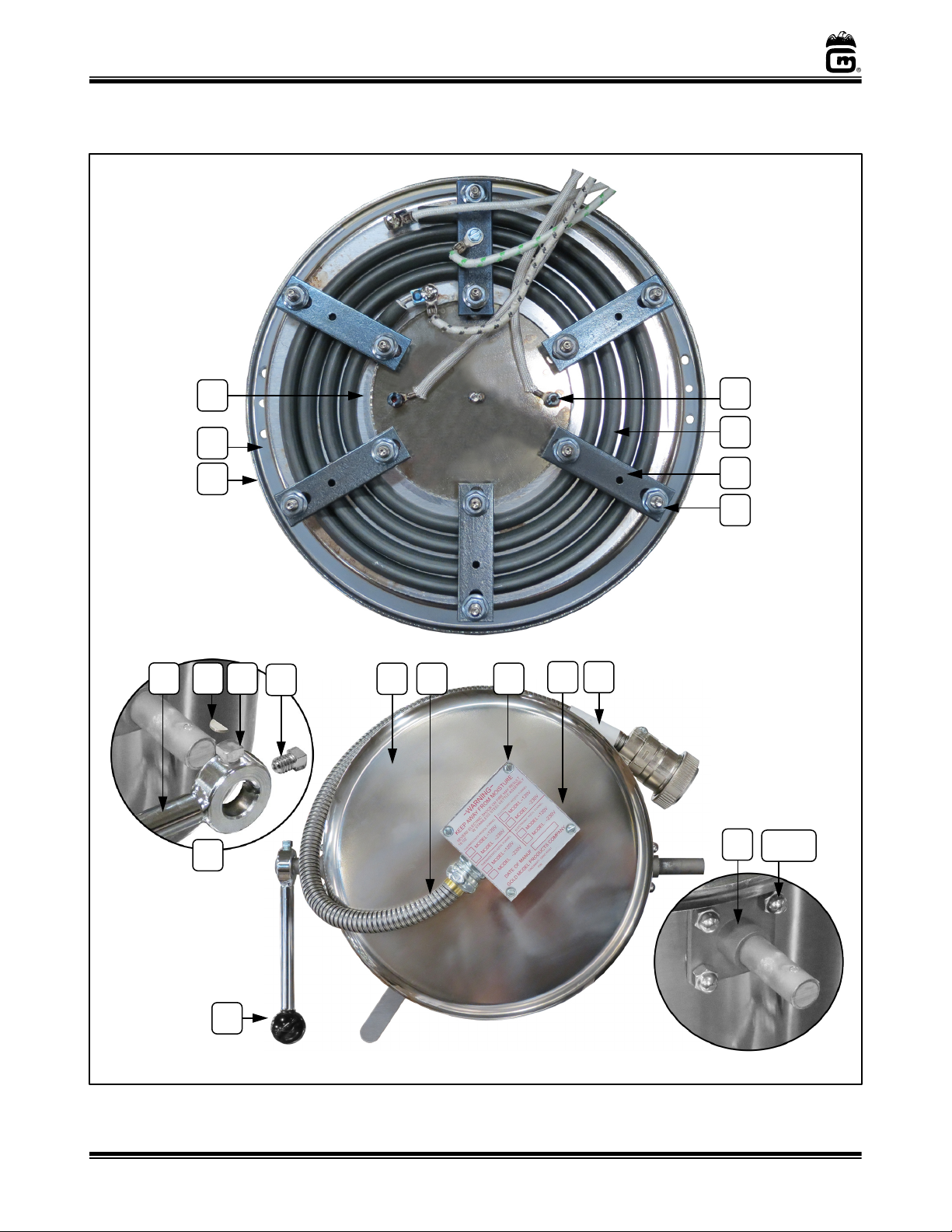

Kettle Bottom Assembly View
20, 21
19
17 18 1615
14
13*
*Dump Handle
Assembly
(includes Knob)
1
2
3
7
6
5
4
8 9 10
11 12

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 18
www.gmpopcorn.com
16 oz. Kettle Assembly (55166E, 55166XE) – Kettle Bottom –
Parts List
Item Part Description
Part Number
55166E
55166XE
16OZ KETTLE BOTTOM ASSY (Complete Assy.)
55201
55201EX
1
HEAT TRANSFER PLATE (beneath heat element)
67890
67890
2
KETTLE GASKET
41598
41598
3
KETTLE WELDMENT
67892
67892
4
¼ - 20 SERRATED LOCK NUT
46311
46311
5
ELEMENT CLAMP (6 required)
67894
67894
6
1550 TUBULAR HEAT ELEMENT
67014
67014EX
7
8-32 TOP LOCK NUT
67943
67943
8
KETTLE SHELL ASSEMBLY (has Pivot Pins
attached)
41081 41081
9
KETTLE LEAD ASSEMBLY
55176
55176
10
8-32 x 3/8 SLT HWHW M/S (fastens Nameplate
to Jct. Box, and fastens Jct. Box to Kettle)
42044 42044
11
JUNCTION BOX
47393
47393
12
KETTLE CONDUIT LABEL
82840
82840
13
DUMP HANDLE ASSEMBLY (assembly includes
Handle, Knob, 2 SQ HD Screws, and Key)
47102 47102
14
DUMP HANDLE KNOB
47110
47110
15
DUMP HANDLE
47707
47707
16
3 1/8 X ½ WOODRUFF KEY
41730
41730
17
5/16 – 18 X ½ SQ HD SCREW
47725
47725
18
5/16 – 18 X 3/8 SQ HD SCREW (holds key)
47662
47662
19
PIVOT PIN
41426
41426
20
1/4-20 ACORN NUT
42229
42229
21
1/4-20 X 3/8 BUTTON HEAD
12492
12492

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 19
www.gmpopcorn.com
Cabinet Exterior
Item Part No. Model(s) Part Description Qty.
141345 ALL DOME ASSEMBLY 1
241350 ALL MALE HINGE SHORT RIGHT 2
341351 ALL FEMALE HINGE LONG LEFT 2
441014 ALL ASTRO DOOR 2
541017 ALL DROP PANEL ASSEMBLY 1
641013 ALL DOOR KNOB 2
747561 ALL MAGNETIC CATCH 1
841340 ALL MAGNETIC CATCH BRACKET 1
941838 ALL OLD MAID PAN 1
10 41349 ALL MALE HINGE SHORT LEFT 2
11 41352 ALL FEMALE HINGE LONG LEFT 2
12 67848 ALL INSPECTION COVER 1
13 41282 ALL CASE BOTTOM RUBBER FEET 4
1
2, 3
4
5
6
7, 8
9
10, 11
12
13

Astro Pop 16 oz. Model No. 2023E, 2023XE, 2023XEN
Page 20
www.gmpopcorn.com
Cabinet Interior – Hanger Assembly
Item Part Description
Part Number
55166E
55166XE
1
5 HOLE SWITCH BOX
17450
17450
2
ROCKER SWITCH LABEL, 5 PN
48542
48542
3
SWITCH, LIGHTED ROCKER GR
42798
42798
4
PILOT LIGHT, AMBER
55039
55039EX
5
ROCKER PUSH BUTTON BOX
17451
17451
6
ROCKER & BUTTON OIL LABEL
48496
48496
7
SWITCH OIL PUMP
41031
41031
8
PILOT LIGHT, GREEN
48660
48660EX
9
BOX FILTER (not shown)
69850
69850
10
FILTER SPRING CLIPS
62666
62666
11
LED REPLACEMENT NO PLATE
100544
100544
12
SET COLLAR
47225
47225
13
SET SCREW
47226
47226
14
HANGER ARM FRONT
47262
47262
15
HANGER ARM REAR
47228
47228
16*
SPUR GEAR KIT (Includes 2 gears with set screws. Always
replace Agitator Spur Gear and Kettle Drive Motor Gear as a set.)
47059K 47059K
17
10-32” X 3/16” SET SCREW
41742
41742
18
GEAR BLOCK ASSEMBLY
67194
67194
19
RECEPTACLE ASSY
62306
62306EX
LED Bulb
11
8 7 6 5 1234
16*, 17
15
14
9 12, 13
10
18
19
