Goodwe ES Series User manual

ES Series
SBP Series
Quick Installation Guide
Hybrid Inverter
AC-Coupled Inverter
V1.1-2022-08-30
(GW3000-ES-20 | GW3600-ES-20 | GW3600M-ES-20 | GW5000-ES-20 | GW5000M-ES-20 |
GW6000-ES-20 | GW6000M-ES-20)
(GW3600-SBP-20 | GW5000-SBP-20 | GW6000-SBP-20)

1
EN
General Disclaimer
Safety Disclaimer
Warning
PV panel safety:
1. Ensure the component frames and the bracket system are securely grounded.
2. Connect the DC cables using the delivered PV connectors. The manufacturer shall not be
liable for equipment damage if other connectors are used.
3. Ensure the DC cables are connected tightly, securely, and correctly. Inappropriate wiring may
cause poor contacts or high impedances, and damage the inverter.
4. Measure the DC cable using the multimeter to avoid reverse polarity connection. Also, the
voltage should be under the max DC input voltage. The manufacturer shall not be liable for
the damage caused by reverse connection and extremely high voltage.
5. The PV strings cannot be grounded. Ensure the minimum insulation resistance of the
PV string to the ground meets the minimum insulation resistance requirements before
connecting the PV string to the inverter. R=Max. Input Voltage/30mA.
6. The PV modules used with the inverter must have an IEC61730 class A rating.
Inverter safety:
1. The voltage and frequency at the connecting point should meet the on-grid requirements.
2. Additional protective devices like circuit breakers or fuses are recommended on the AC side.
Specication of the protective device should be at least 1.25 times the rated AC output rated
current.
3. Make sure that all the groundings are tightly connected. When there are multiple inverters,
make sure that all the grounding points on the enclosures are equipotential bonding.
4. Do not start the BACK-UP function if there is no battery in the PV system. The manufacturer
shall not be liable for the risks caused by not following this rule.
5. Do not apply mechanical load to the terminals, otherwise the terminals can be damaged.
01 Safety Precautions
EN
• The information in this quick installation guide is subject to change due to product updates
or other reasons. This guide cannot replace the product labels or the safety precautions in
the user manual unless otherwise specied. All descriptions here are for guidance only.
• Before installations, read through the quick installation guide. For additional information,
please see the user manual.
• All operations should be performed by trained and knowledgeable technicians who are
familiar with local standards and safety regulations.
• Check the deliverables for correct model, complete contents, and intact appearance. Contact
the manufacturer if any damage is found or any component is missing.
• Use insulating tools and wear personal protective equipment when operating the equipment
to ensure personal safety. Wear anti-static gloves, clothes, and wrist strip when touching
electronic components to protect the inverter from damage. The manufacturer shall not be
liable for any damage caused by static electricity.
• Strictly follow the installation, operation, and conguration instructions in this guide and user
manual. The manufacturer shall not be liable for equipment damage or personal injury if you
do not follow the instructions. For more warranty details, please visit https://en.goodwe.com/
warranty.

2
EN
HIGH VOLTAGE HAZARD.
Disconnect all incoming power
and turn o the product before
working on it.
Delayed discharge. Wait 5 minutes
after power o until the components
are completely discharged.
Read through the guide before
working on this device.
Potential risks exist. Wear proper
PPE before any operations.
High-temperature hazard. Do
not touch the product under
operation to avoid being burnt.
Grounding point. Indicates the
position for connecting the PE cable.
CE marking Do not dispose of the inverter
as household waste.Discard the
product in compliance with local
laws and regulations, or send it back
to the manufacturer.
5min
6. All labels and warning marks should be visible after the installation. Do not scrawl, damage,
or cover any label on the device.
7. Do not touch the running equipment to avoid being hurt as its temperature may exceed 60℃.
Do not install the equipment at a place within children's reach.
8. Unauthorized dismantling or modication may damage the equipment, the damage is not
covered under the warranty.
9. If there is any radio or wireless communication equipment below 30MHz near the inverter,
you have to:
• Install the inverter at least 30m far away from the wireless equipment.
• Add a low pass EMI lter or a multi winding ferrite core to the DC input cable or AC output
cable of the inverter.
10.Warning labels on the inverter are as follows.
Battery safety:
1. The battery used with the inverter shall be approved by the inverter manufacturer. The
approved battery list can be obtained through the ocial website.
2. Before installations, read through the corresponding battery's User Manual to learn about
the product and the precautions. Strictly follow its requirements.
3. If the battery discharged completely, please charge it in strict accordance with the
corresponding model's User Manual.
4. The battery current may be inuenced by temperature, humidity, weather condition, etc.,
which may limit the current and aect the laod capacity.
5. If the battery cannot start properly, contact the After-sales Service as soon as possible.
Otherwise, the battery will be damaged permanently.
6. Measure the DC cable using the multimeter to avoid reverse polarity connection. Also, the
voltage should be under the permissible range.
7. To avoid damage the inverter, do not connect one battery pack to multi inverters.

3
EN
Check before Power-on
No. Check Item
1The product is rmly installed at a clean place that is well-ventilated and easy-to-
operate.
2The PE, DC input, AC output, and communication cables are connected correctly and
securely.
3 Cable ties are intact, routed properly and evenly.
4 Unused ports and terminals are sealed.
5The voltage and frequency at the connection point meet the inverter grid connection
requirements.
EU Declaration of Conformity
GoodWe Technologies Co., Ltd. hereby declares that the inverter with wireless communication
modules sold in the European market meets the requirements of the following directives:
• Radio Equipment Directive 2014/53/EU (RED)
• Restrictions of Hazardous Substances Directive 2011/65/EU and (EU) 2015/863 (RoHS)
• Waste Electrical and Electronic Equipment 2012/19/EU
• Registration, Evaluation, Authorization and Restriction of Chemicals (EC) No 1907/2006 (REACH)
GoodWe Technologies Co., Ltd. hereby declares that the inverter without wireless communication
modules sold in the European market meets the requirements of the following directives:
• Electromagnetic compatibility Directive 2014/30/EU (EMC)
• Electrical Apparatus Low Voltage Directive 2014/35/EU (LVD)
• Restrictions of Hazardous Substances Directive 2011/65/EU and (EU) 2015/863 (RoHS)
• Waste Electrical and Electronic Equipment 2012/19/EU
• Registration, Evaluation, Authorization and Restriction of Chemicals (EC) No 1907/2006 (REACH)
You can download the EU Declaration of Conformity on https://en.goodwe.com.

4
EN

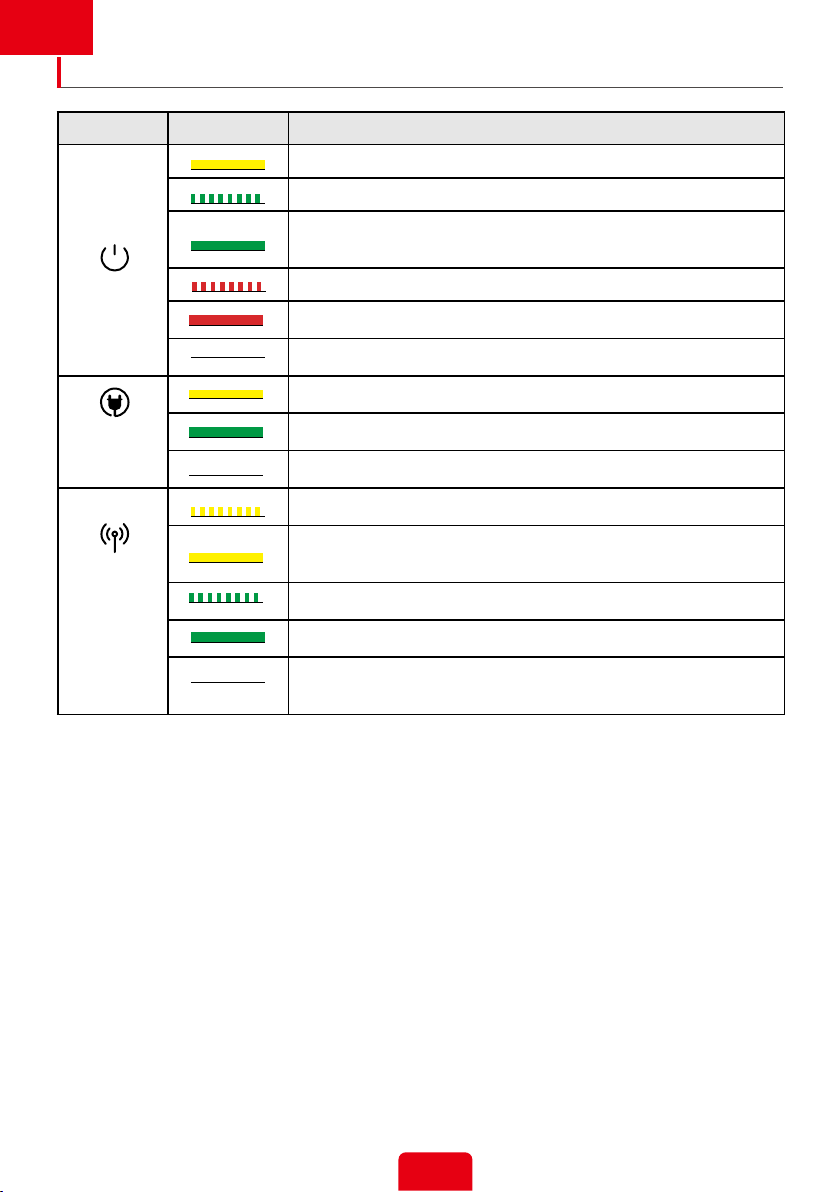

LED Indicators
Indicator Status Description
The inverter is power on and in the standby mode.
The inverter is starting up and in the self-check mode.
The inverter is in normal operation under grid-tied or o-grid
modes.
BACK-UP output overload.
A fault has occurred.
The inverter is powered o.
The grid is abnormal and the inverter is in o-grid mode.
The grid is normal and the inverter is in grid-tied mode.
BACK-UP is o.
The monitoring module of the inverter is resetting.
The inverter fails to connect with the communication terminal
device.
Faults between the communication terminal device and Server.
The monitoring of the inverter operates well.
The monitoring module of the inverter has not been started
yet.

Introduction
5
Introduction
02 Product Introduction | Introdução ao produto

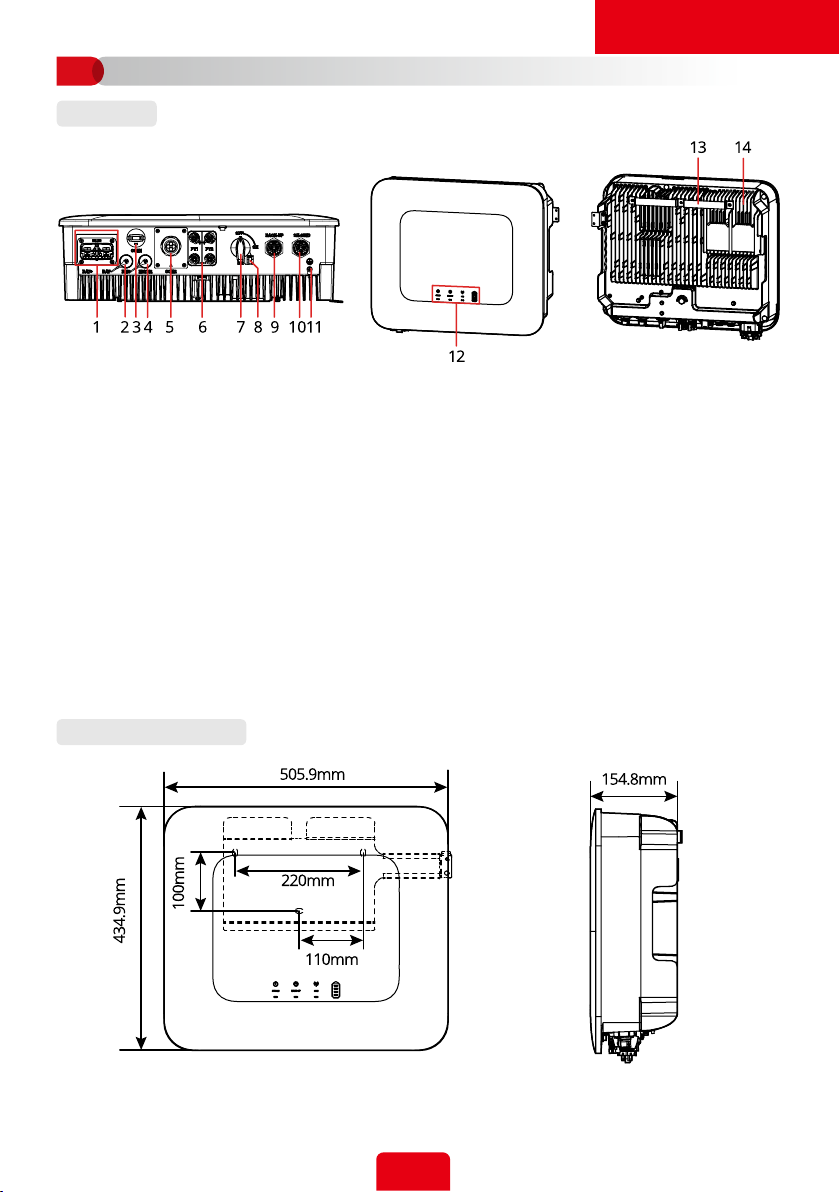

Parts |Peças
Dimensions | Dimensões
*1: SBP series inverter: 0 x PV+/PV-; GW3000-ES-20: 1 x PV+/PV-; Others: 2 x PV+/PV-.
*2: For ES series inverter only.
*3: For Australia inverters only.
1. Battery Terminal (BAT
+/-) 2. BMS Communication Port (BMS) 3. Communication Module
Port (COM1)
4.
METER
Communication
Port (METER)
5. Communication Port
(COM2) 6. PV Input Terminal (PV1/ PV2)*1
7. DC Switch*28. DC switch Locking
Hole*39. AC Terminal (BACKUP)
10. AC Terminal (ON-GRID) 11. PE Terminal 12. LED Indicators
13. Mounting Plate 14. Heat Sink

6
Inverter Installation |Instalação do inversor
03
N = Quantity depends on the inverter model.
*1: For ES series only.
x 1 x N*1x 1 x 1
x 2
x 1
x 1
x 3 x 1 x 1
x 1
x 2
x 1
x 1
x 1 x N
x 2
x 4

7

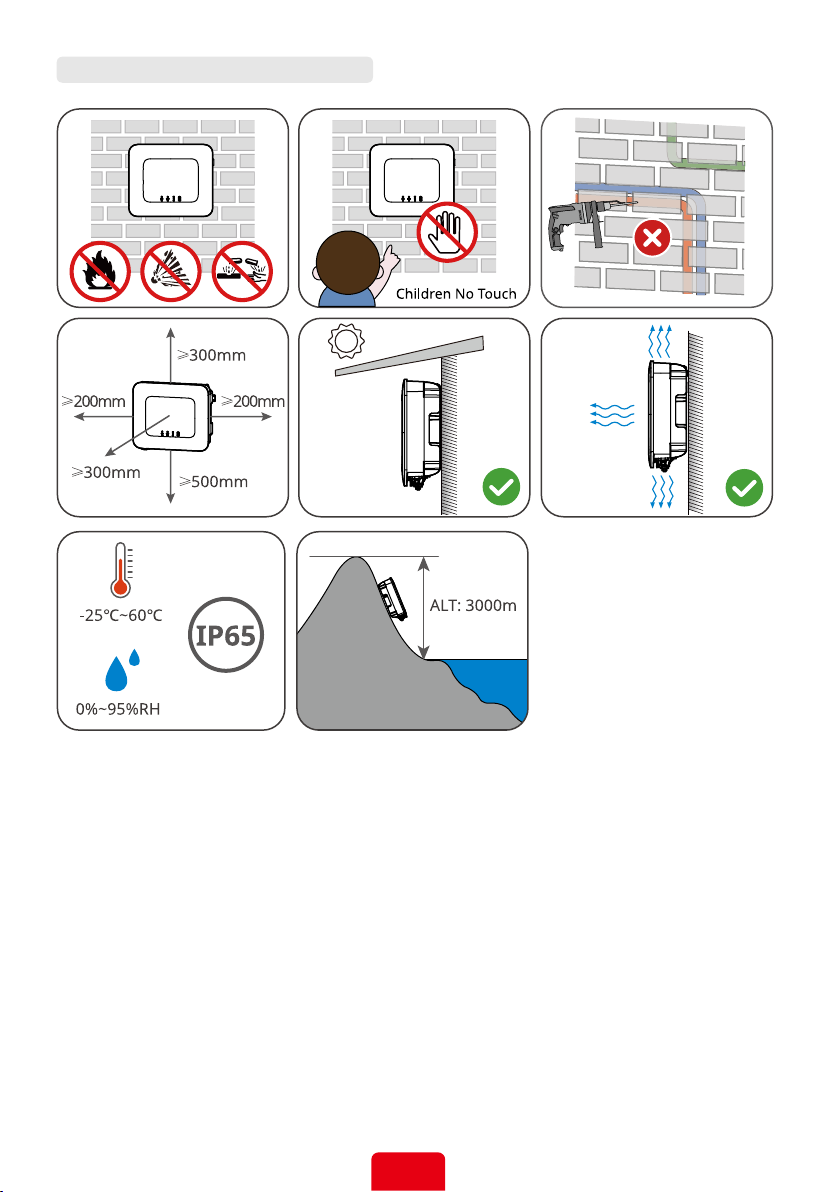

Space Requirements | Requisitos de espaço

8
Angle Requirements | Requisitos de ângulos

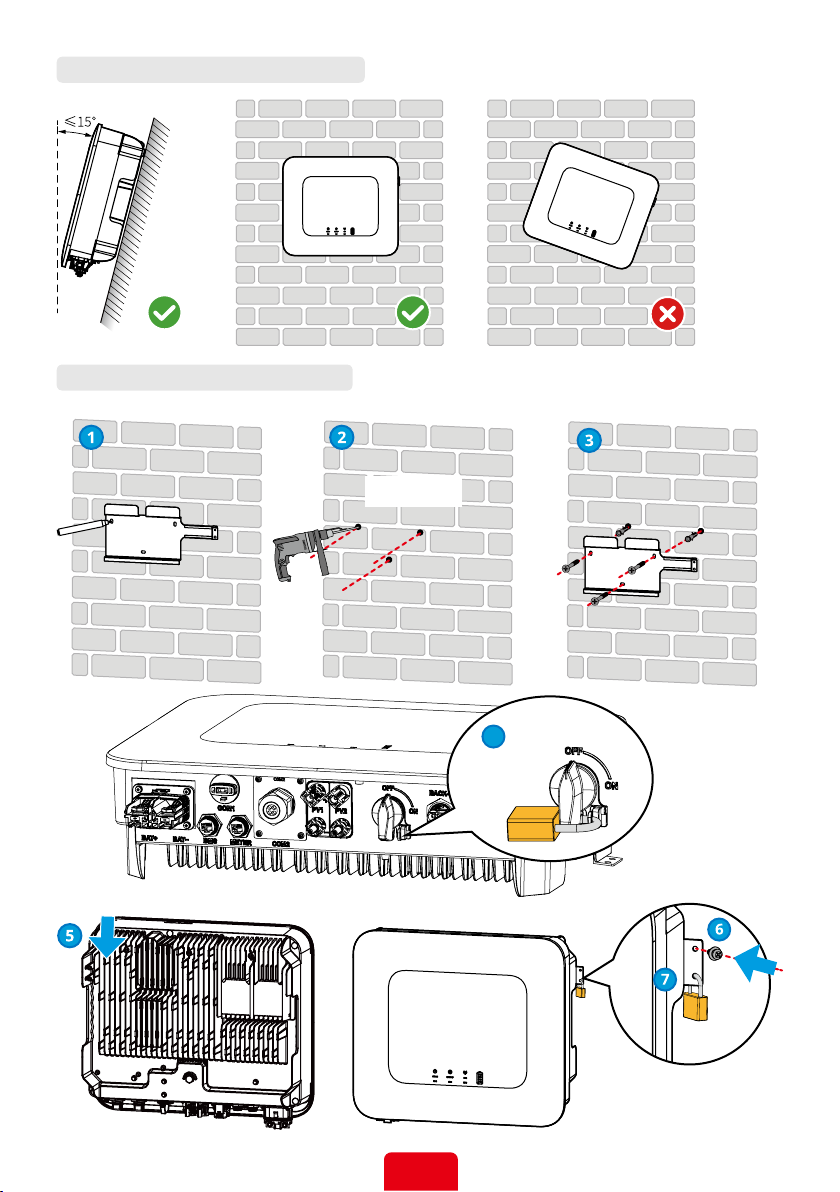

Installing the Inverter | Instalar o inversor
4
Diameter: 10mm
Depth: 80mm
For Australia only.

9
Electrical Connection |Ligação elétrica
04
PE Cable | Cabo PE
AC Cable (ON-GRID&BACK-UP) | Cabo CA (LIGAÇÃO À REDE E BACKUP)
Type One
23
4
5
1
12
10-15mm
12-14mm
Cooper, 6mm
2
≤S ≤8mm
2
For GW3600-ES-20, GW5000-ES-20, GW6000-ES-20, GW3600-SBP-20, GW5000-SBP-20, and GW6000-
SBP-20 inverters.
Cooper, 4mm
2
≤S ≤6mm
2

10
Type Two
3
1
4
65
7
2
34
1
2
1
2
0.8N·m
M3
Click
Click
Cooper, 2.5mm
2
≤S ≤4mm
2
For GW3000-ES-20, GW3600M-ES-20, GW5000M-ES-20, and GW6000M-ES-20 inverters.

11
MC4
• For ES series only.
DC Cable (PV) | Cabo CC (FV)
Click
Click
Click
1
23
4
2
3
4
1
3
1
2
4mm2≤S≤6mm2
7~8mm
7~8mm
≤600V

12
Devalan
7~8mm
7~8mm
1
2
1
23
4
2
3
4
1
3
≤600V
Click
Click

13
Battery Cable (BAT) | Cabo de bateria (BAT)
9.5-12.5mm
9.5-12.5mm
20mm
2
≤ S ≤ 35mm
2
10mm
10mm

14
Communication Connection | Ligação de comunicação
05
Load Control
1: DO1+
2: N/A
3: DO1-
Remote
Shutdown
4: Remote
Shutdown
5: GND
DI
6: DI+
7: DI-
Generator
8: DO2+
9: DO2-
DRED or RCR
10: COM/DRM0 or REF_1
11: REFGEN or REF_2
12: DRM 4/8 or DI_4
13: DRM 3/7 or DI_3
14: DRM 2/6 or DI_2
15: DRM 1/5 or DI_1
No. Color EMS/PAR
1 Orange and White RS485A (EMS)
2 Orange RS485B (EMS)
3 Green and White NC
4 Blue GND
5 Blue and White CAN_H(PAR)
6 Green CAN_H(PAR)
7 Brown and White BUS1 (PAR)
8Brown BUS2(PAR)
EMS/PAR EMS/PAR
EMS/PAR EMS/PAR

15

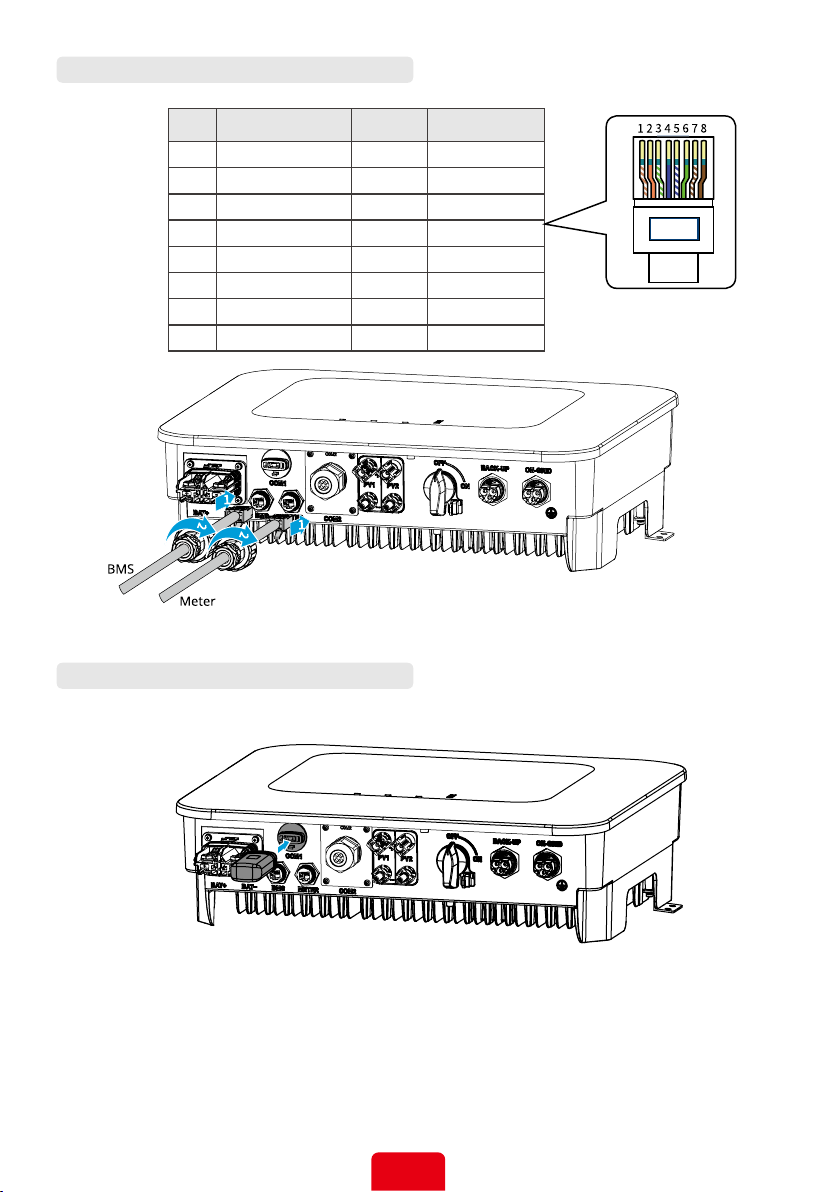

BMS or Smart Meter | BMS ou contador inteligente
Communication Module |Módulo de comunicação
No. Color BMS Smart Meter
1 Orange&White NC NC
2 Orange NC NC
3 Green&White NC NC
4 Blue CAN_H NC
5 Blue&White CAN_L NC
6 Green NC NC
7 Brown&White NC 485_B1
8Brown NC 485_A1
WiFi Kit, Bluetooth, Wi-Fi/LAN Kit, 4G module: optional

16
Power On/O
Power On/O
Power On and O |Ligar e desligar a alimentação elétrica
07
Grid
Grid
Power Meter
Power
Meter
Smart Meter
Smart Meter
DC Isolator
AC Breaker
AC Breaker
AC Breaker
Battery
Battery
PV String
PV String
Load Breaker
Load Breaker
BACK-UP Loads
BACK-UP Loads
Single-pole double throw (SPDT) witch
SPDT Switch
ON-GRID Loads
ON-GRID Loads
Grid-tie PV Inverter

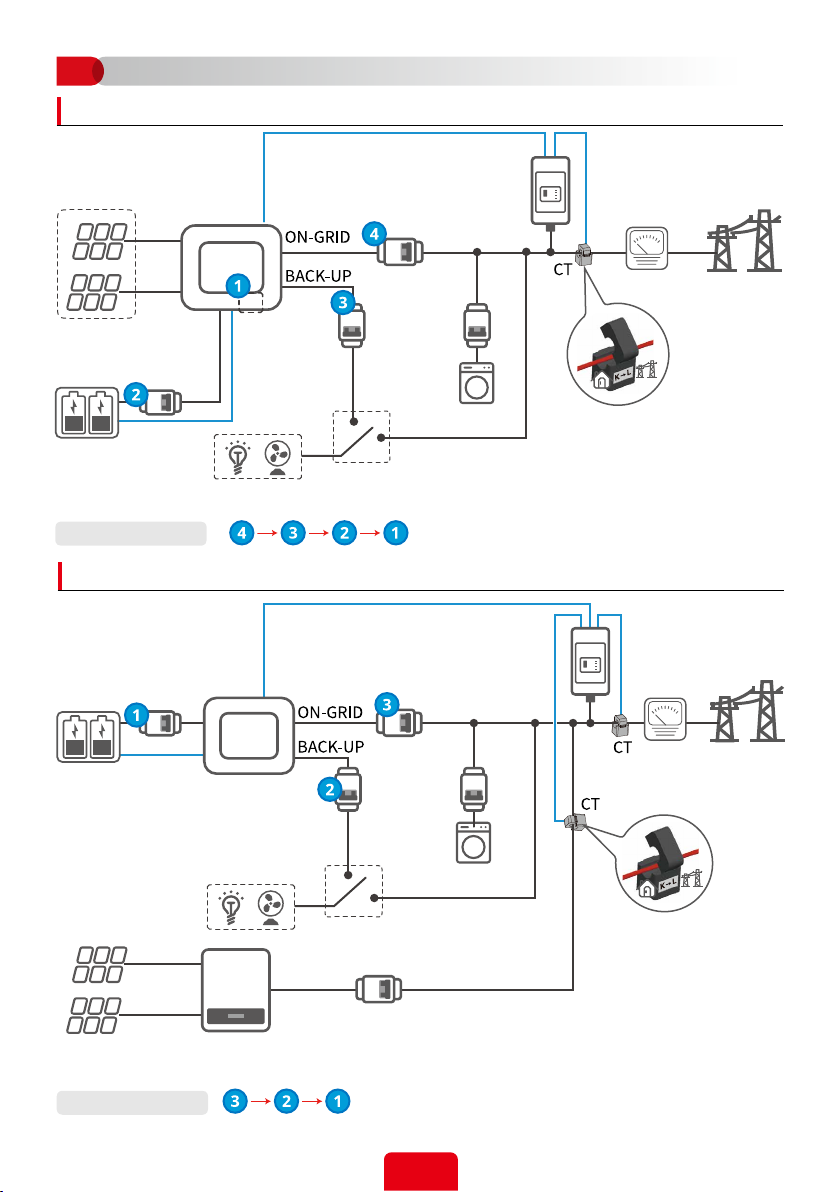

Self Consumption System (ES Inverter Scenario)
Self Consumption System (SBP Inverter Scenario)
Battery breaker
Battery breaker

17

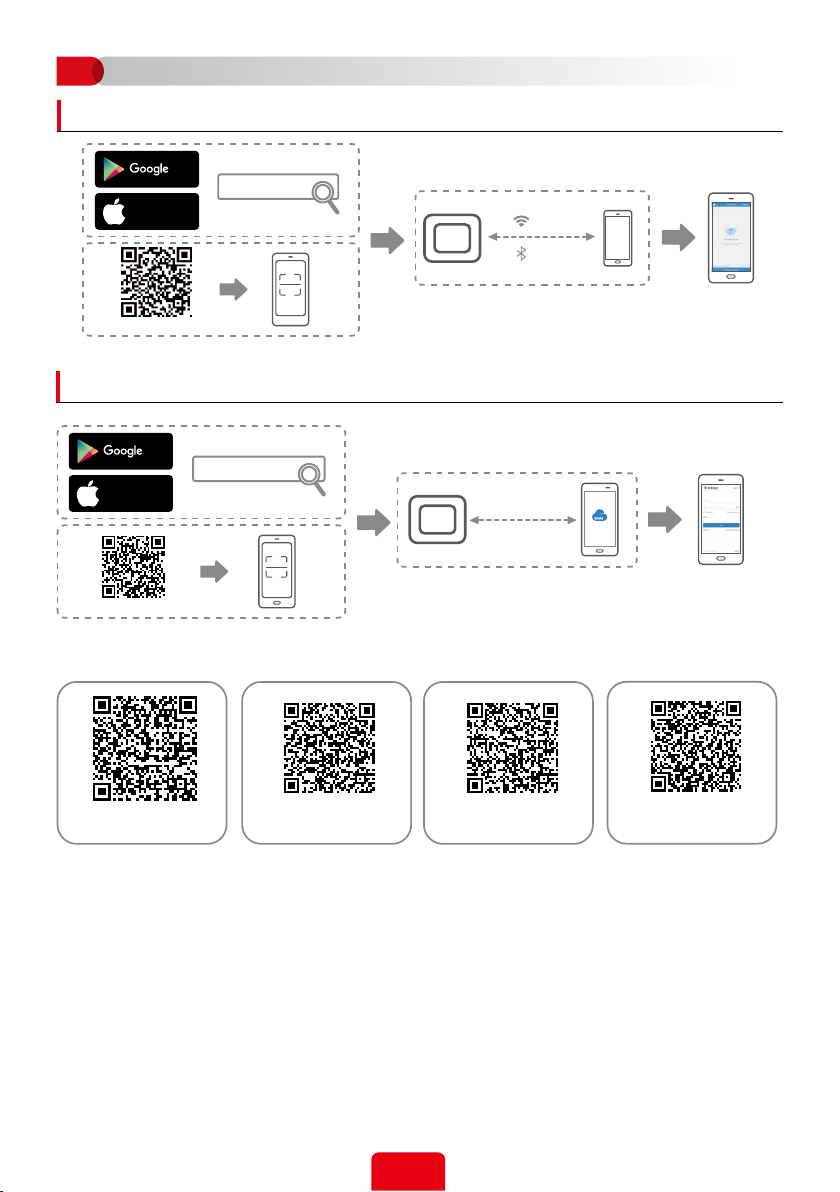

Commissioning and Monitoring | Colocação em funcionamento e monitorização
08
Commissioning via PV Master APP | Colocação em funcionamento através da PV Master APP
Monitoring via SEMS Portal App | Monitorização através da aplicação SEMS Portal
For more detailed instructions, scan the QR codes below.
ES, SBP Series 3.0-
6.0kW G2 User Manual
PV Master
User Manual
SEMS Portal
User Manual
WiFi Quick
Installation Guide
PV Master
PV Master
<10m
<5m
play
App Store
WiFi/LAN/4G
play
App Store
SEMS Portal APP
SEMS Portal

Local Contacts
Ocal Website
GoodWe Technologies Co., Ltd.
No. 90 Zijin Rd., New District, Suzhou, 215011, China
www.goodwe.com
[email protected] 340-00800-01
