Graco Xtreme Mix OEM User manual

Graco Inc. P.O. Box 1441 Minneapolis, MN 55440-1441
Copyright 2005, Graco Inc. is registered to I.S. EN ISO 9001
309521 rev.H
Installation - Parts
Xtreme Mix™OEM
Plural Component Mixer, OEM Unit
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
See page 4 for model information, including maxi-
mum working pressure and approvals.

2309521H
Contents
Manual Conventions . . . . . . . . . . . . . . . . . . . . . . . . 3
Related Manuals . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Xtreme Mix OEM Models . . . . . . . . . . . . . . . . . . . . . 4
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Pressure Relief Procedure . . . . . . . . . . . . . . . . . . . 7
Assemble . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pumps and Sensors . . . . . . . . . . . . . . . . . . . . . . 9
Control Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Air Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fluid Manifold . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Proper Lifting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Operation and Repair . . . . . . . . . . . . . . . . . . . . . . 15

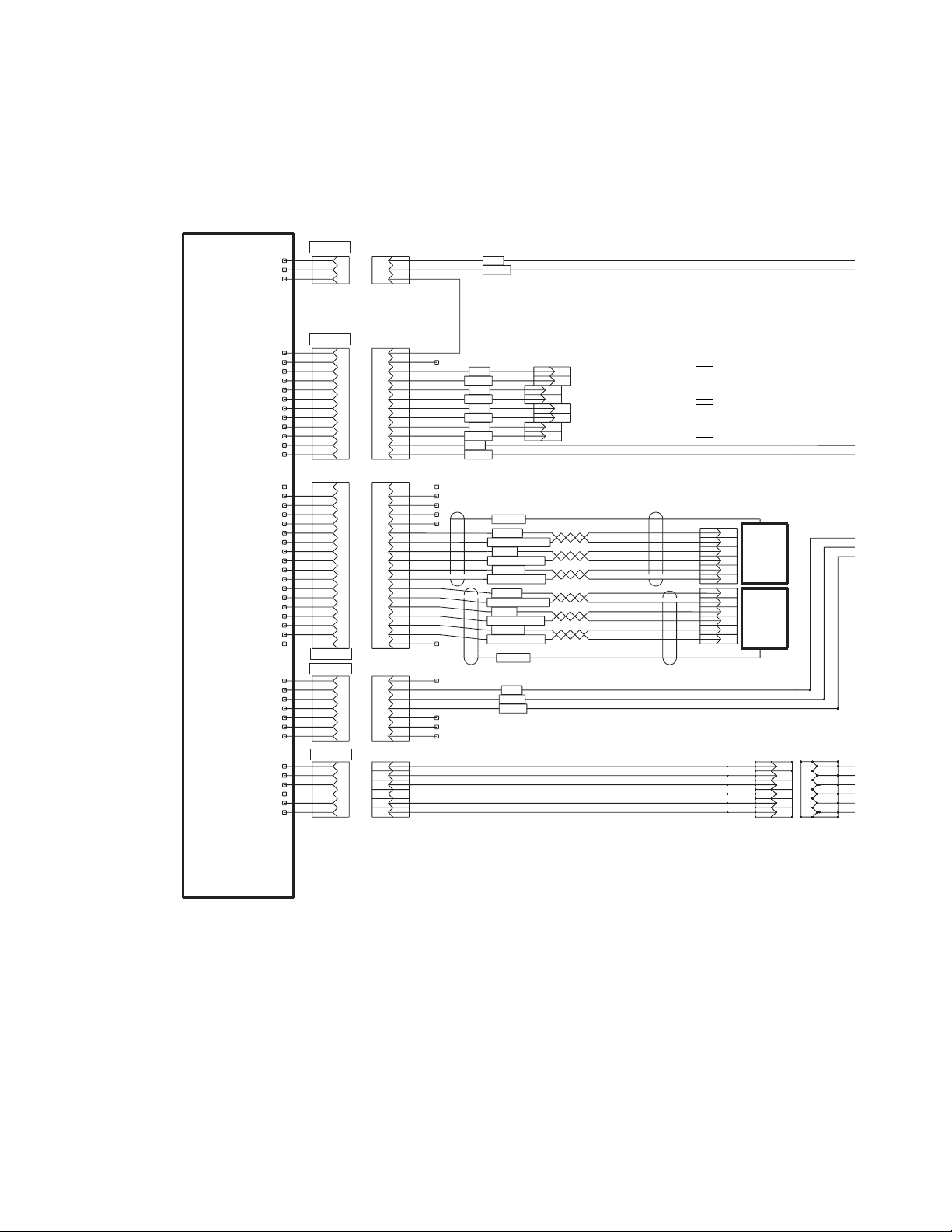

Electrical Schematic . . . . . . . . . . . . . . . . . . . . . . . 16

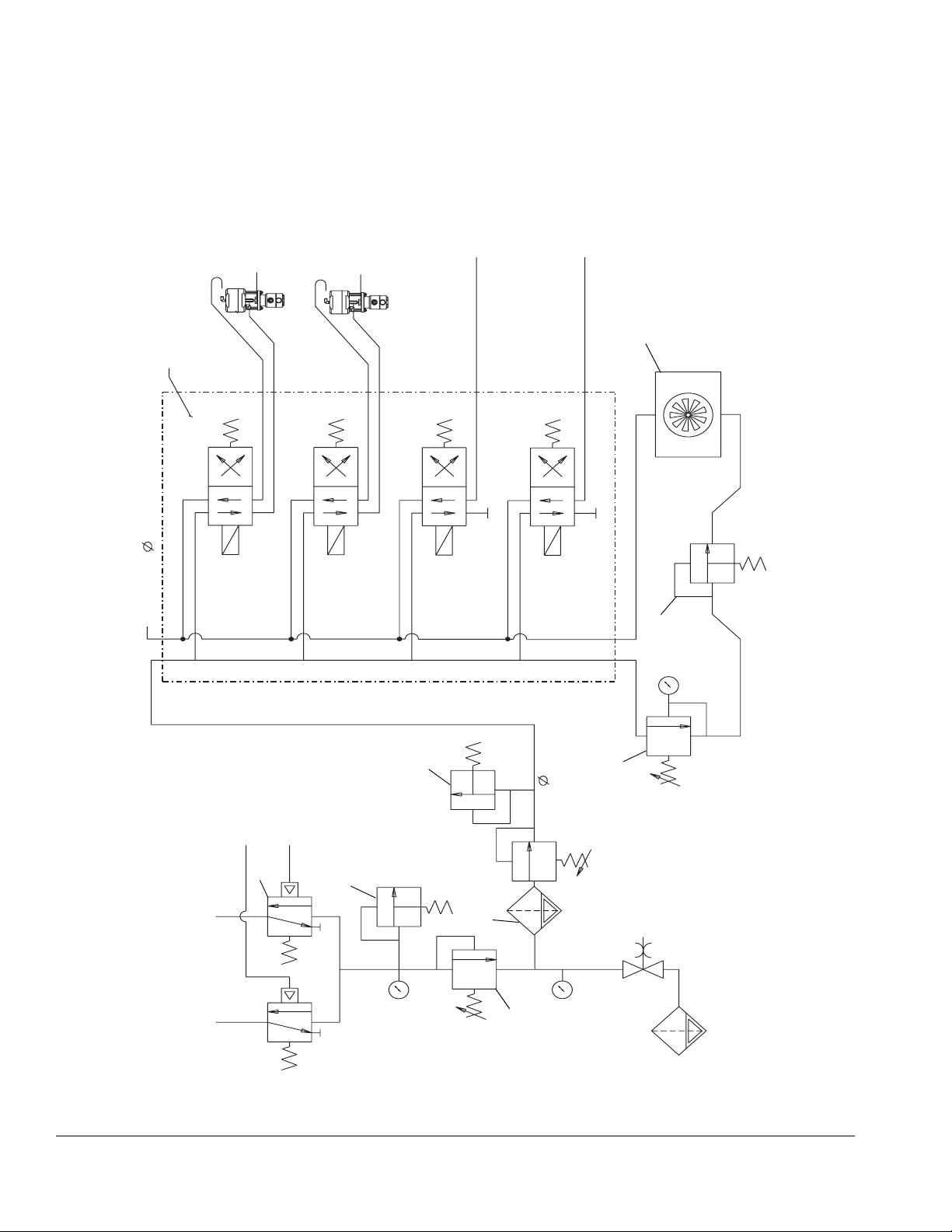

Pneumatic Schematic . . . . . . . . . . . . . . . . . . . . . . 18
Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Xtreme Mix Proportioner . . . . . . . . . . . . . . . . . . 20
Pneumatic Control 245803 . . . . . . . . . . . . . . . . 22
User Interface 245804 . . . . . . . . . . . . . . . . . . . . 24
Pump Air Manifold 245802 . . . . . . . . . . . . . . . . 25
Metering Valve Manifold 245824 . . . . . . . . . . . . 26
Sampling Valve 245143 . . . . . . . . . . . . . . . . . . . 26
Metering Valve 245846 . . . . . . . . . . . . . . . . . . . 27
Fluid Manifold 245833 . . . . . . . . . . . . . . . . . . . . 28
Sensor 245825 . . . . . . . . . . . . . . . . . . . . . . . . . 29
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Graco Standard Warranty . . . . . . . . . . . . . . . . . . . 32
Graco Information . . . . . . . . . . . . . . . . . . . . . . . . . 32

Manual Conventions
309521H 3
Manual Conventions
Warning Caution
Note
Related Manuals
Refer to the following manuals for detailed component information.
Component Manuals This manual available in following languages:
WARNING
A warning alerts you to possible serious injury or
death if you do not follow instructions.
Symbols, such as fire and explosion (shown), alert you
to a specific hazard and direct you to read the indi-
cated hazard warnings (pages 5-6).
CAUTION
A caution alerts you to possible equipment damage or
destruction if you do not follow instructions.
A note indicates additional helpful information.
Manual Description
309535 Xtreme Mix Operation
309518 Xtreme Mix Repair
309329 Xtreme Displacement Pump Operation
309340 Xtreme Displacement Pump Repair
309347 King Air Motor
or 309348 King Quiet Air Motor
310743 XTR Spray Gun
309524 VISCON HP Heater
309525 Heated Hose Kit
308981 Husky 716 Diaphragm Pump
309615 Heater Bracket Kit
309568 Remote Manifold Kit
Manual Language Manual Language
309521 English 309540 German
309538 French 309546 Swedish
309539 Spanish 309604 Japanese

Xtreme Mix OEM Models
4309521H
Xtreme Mix OEM Models
WARNING
Do not install equipment approved only for non-haz-
ardous location in a hazardous area. Substitution of
components may impair intrinsic safety. See page 5.
Approved for Hazardous Location
Class I, Div 1, Group D
Xtreme
Mix
Part No. Series
Pump
Part No.
Pump
Description
Maximum Working
Pressure
psi (MPa, bar) Approvals
233871 A 249274 45:1 King 4500 (31, 310)
233872 A 249275 56:1 King 5600 (38.6, 386)
233873 A 249276 68:1 King 6800 (46.9, 469)
233874 A 249277 80:1 King 7250 (50, 500)
233875 A 249278 45:1 Quiet King 4500 (31, 310)
233876 A 249279 56:1 Quiet King 5600 (38.6, 386)
233877 A 249280 68:1 Quiet King 6800 (46.9, 469)
233878 A 249281 80:1 Quiet King 7250 (50, 500)
234024 A none
Approved for Non-hazardous Location
233879 A 249274 45:1 King 4500 (31, 310)
233880 A 249275 56:1 King 5600 (38.6, 386)
233881 A 249276 68:1 King 6800 (46.9, 469)
233882 A 249277 80:1 King 7250 (50, 500)
233883 A 249278 45:1 Quiet King 4500 (31, 310)
233884 A 249279 56:1 Quiet King 5600 (38.6, 386)
233885 A 249280 68:1 Quiet King 6800 (46.9, 469)
233886 A 249281 80:1 Quiet King 7250 (50, 500)
234025 A none
Conforms to
FM std 3600 & 3610 for
use in Class I Div 1
Group D
T3 Hazardous locations
ll 2 G
CAN/CSA
22.2 No. 157-92
& No. 1010.1-92
Conforms to UL std 61010A-1
CSA std C22.2 No 1010.1-92

Xtreme Mix OEM Models
309521H 5
Warning
Skin Injection Hazard
High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just
a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment.
• Do not point the gun at anyone or at any part of the body.
• Do not put your hand or fingers over the gun fluid nozzle.
• Do not stop or deflect leaks with your hand, body, glove, or rag.
• Do not “blow back” fluid; this is not an air spray system.
• Follow Pressure Relief Procedure, page 7, when you stop spraying and before cleaning, checking,
or servicing equipment.
• Use lowest possible pressure when flushing, priming, or troubleshooting.
• Never spray without tip guard and trigger guard installed.
• Engage trigger lock when not spraying.
• Tighten all fluid connections before operating the equipment.
• Check hoses, tubes, and couplings daily. Replace worn or damaged parts immediately. High pres-
sure hose cannot be recoupled; replace the entire hose.
Fire and Explosion Hazard
Solvent and paint fumes in work area can ignite or explode. To help prevent fire and explosion:
• Use equipment only in well ventilated area.
• Eliminate all ignition sources, such as pilot lights, cigarettes and plastic drop cloths (potential static
arc).
• Do not plug or unplug power cords or turn lights on or off when flammable fumes are present.
• Keep the work area free of debris, including solvent, rags, and gasoline.
• Ground equipment and conductive objects. See Grounding, page 11.
• Hold gun firmly to side of grounded pail when triggering into pail.
• Use only grounded hoses.
• If there is static sparking or you feel an electric shock, stop operation immediately. Do not use
equipment until you identify and correct the problem.
• If connecting PC for data download, PC must be in non-hazardous location and a safety barrier must
be installed. See Xtreme Mix software documentation.
• Keep a fire extinguisher in the work area.
Electric Shock Hazard
Improper grounding, wiring, or usage of the system can cause electric shock.
• All electrical wiring must be done by a qualified electrician and comply with all local codes and regu-
lations.
• Connect only to grounded power source.
• Turn off and disconnect power at the main switch before disconnecting any cables and before servic-
ing equipment.

Xtreme Mix OEM Models
6309521H
Moving parts hazard
Moving parts can pinch or amputate fingers and other body parts. Pressurized equipment can start acci-
dentally and cause serious injury.
• Keep clear of moving parts.
• Do not operate equipment with protective guards or covers removed.
• Before checking or servicing equipment, follow Pressure Relief Procedure, page 7. Disconnect
power or air supply.
• Do not move or lift pressurized equipment.
Equipment Misuse Hazard
Misuse can cause serious injury or death.
• For professional use only.
• Use equipment only for its intended purpose. Call your Graco distributor for information.
• Read manuals, warnings, tags, and labels before operating equipment. Follow instructions.
• Check equipment daily. Repair or replace worn or damaged parts immediately.
• Do not alter or modify equipment. Use only Graco parts and accessories.
• Do not exceed the maximum working pressure or temperature rating of the lowest rated system com-
ponent. See Technical Data in all equipment manuals.
• Use fluids and solvents that are compatible with equipment wetted parts. See Technical Data in all
equipment manuals. Read fluid and solvent manufacturer’s warnings.
• Route hoses and cables away from traffic areas, sharp edges, moving parts, and hot surfaces.
• Do not kink or overbend hoses or use hoses to pull equipment.
• To lift equipment, follow instruction, page 15.
• Comply with all applicable approval requirements and safety regulations.
Burn Hazard
This equipment is used with heated fluid, which can cause equipment surfaces to become very hot. To
avoid severe burns:
• Do not touch hot fluid or equipment.
• Allow equipment to cool completely before touching it.
• Wear gloves if fluid temperature exceeds 110° F (43° C).
Toxic Fluid or fumes Hazard
Toxic fluids or fumes can cause serious injury or death if splashed in the eyes or on skin, inhaled, or swal-
lowed.
• Read Material Safety Data Sheet (MSDS) to know the specific hazards of the fluids you are using.
• Store hazardous fluid in approved containers, and dispose of it according to applicable guidelines.
Personal Protective Equipment
You must wear proper protective equipment when operating, servicing, or when in the operating area of
the equipment to help protect you from serious injury, including eye injury; inhalation of toxic fumes; and
hearing loss. This equipment includes but is not limited to:
• Protective eyewear
• Gloves, clothing, and respirator as recommended by the fluid and solvent manufacturer
• Hearing protection
Recoil Hazard
The gun can recoil when triggered at a very high pressure. If unprepared, this could force your hand back
or cause you to fall and injure yourself. Be sure you have firm footing and hold the gun securely.
Warning

Pressure Relief Procedure
309521H 7
Pressure Relief Procedure
WARNING
Follow Pressure Relief Procedure when you stop
spraying and before cleaning, checking, servicing, or
transporting equipment. Read warnings, page 5.
1. Engage trigger lock.
2. Press Stop .
3. Close main air shutoff valve on air supply line and on
unit. Turn off air regulator.
4. Close fluid sampling and shutoff valves A and B.
5. Disengage trigger lock.
I
O
SUPPLY AIR
PRESSURE
PLURAL COMPONENT PROPORTIONER
AB
Close Close
Close Close
I
O
PSI
Bar
MPa
PSI
Bar
MPa
6. Hold a metal part of the gun firmly to a grounded
metal pail. Trigger gun to relieve pressure.
7. Engage trigger lock.
8. Place waste container under sampling valves, then
open valves A and B slowly to relieve pressure
between pump and metering valves.
9. Close sampling valves A and B.
AB
Close Close
Open Open
Close Close
AB

Assemble
8309521H
Assemble
FIG. 1
5
913913
903
905
904
901
2
7
914
915
6
902
10
910 911
912
4
3307
721

Assemble
309521H 9
Pumps and Sensors
1. Secure magnet holders (903) to the pump (2) motor
displacement rods with screws (905). FIG. 1.
2. Install a short magnet strip then a long one (904) on
each magnet holder (903). Secure with tape sup-
plied.
3. Secure pumps (2) on mounting brackets with two
3/8 x 1-1/4” screws (913), lockwashers (914), and
nuts (915).
4. Secure sensors (7) on pumps and pump mounting
brackets with two screws (913), lockwashers (914),
and nuts (915).
Control Box
1. Mount control box (3) to mounting plate (10). FIG. 1.
a. Slide gasket (307) over back of pneumatic con-
trol box (3), against lip. Insert box through
mounting plate (10).
b. Secure box (3) to plate (10) with 8-32 UNC
screws (912).
2. Secure mounting plate (10) to cart/stand. Install fas-
teners (provided by installer) through six 0.3” (7.62
mm) mounting plate holes.
3. Connect conduit (721) from two sensors (7) to pneu-
matic control box (3).
4. Wire two sensors (7) to control box 18-pin connec-
tor. Connect sensor A, then sensor B wires in pairs
sequentially – black/green, black/red, black/white –
to pins 2-13. See Electrical Schematic, page 16.
5. Connect 18-pin connector to main control board
connector (F). FIG. 2.
• If using feed pumps, do not allow feed pressure
to exceed 25% of spray pressure.
• For accurate ratios, pump lowers must be
same size.
• If installing 234024 or 234025, the pump size
has not been set in the software. To set pump
A and B size and A and B sensor calibration
factors, you need Xtreme Mix Data Download
software, part no. 246322 for proportioners
located in a non-hazardous area, or part no.
246397 for proportioners located in a hazard-
ous area.
Calibration values are on pump A and B sen-
sors.
Pump Size Values
Pump Size Value
(cc/cycle)
45:1 250
56:1 220
68:1 180
80:1 145
Mount box (3) vertically for optimum alternator and
component life.
Conduit must be used. Approximately 62” (1575
mm) of cable and conduit provided; do not
lengthen.
FIG. 2 Control Box
10 9 8 7 6 5 4 3
10
9
8
7
6
5
4
3
-
+
J1
J2
F
3

Assemble
10 309521H
FIG. 3
B
Key:
A Pump A Air
B Pump B Air
C Pump A Pilot Air
D Pump B Pilot Air
E Air Supply
F Metering Valve A - CLOSE
G Metering Valve A - OPEN
H Metering Valve B- CLOSE
J Metering Valve B- OPEN
K Sensor A Cable
L Sensor B Cable
2Pump
3 Pneumatic Control
6 Metering Valve Manifold
501 Pneumatic Valve
901 Air Filter
902 Ground Wire Assembly
Ground manifold to true earth ground.
Ground by connecting ground wire from control box (3) to
manifold (6).
Ground by connecting ground wire from pumps (2) to
manifold (6).
1
2
3
A
C
D
E
F
G
H
J
KL
6
3
2
1
33
2
501
901
5
902

Assemble
309521H 11
Grounding
1. Connect 12 gauge ground wire (provided by
installer) from pneumatic control box (3) ground
screw (312, page 22) to metering valve manifold (6).
Refer to FIG. 3.
2. Connect ground wire from each pump (2) to meter-
ing valve manifold (6).
3. Connect ground wire assembly (902) to fluid mani-
fold (6). Connect clamp end to a true earth ground
before starting unit.
Air Controls
Standard Setup
FIG. 1 and FIG. 3
1. Mount pneumatic control assembly (3) to mounting
plate (10). FIG. 1.
2. Connect an air line (A and B) between each pneu-
matic valve (501) and pump air motor inlet. FIG. 3.
3. Connect air supply from air manifold’s 5 micron air
filter (518) to control box air inlet (not shown).
4. Connect tubing (C and D) from solenoids to each
pneumatic valve (501).
5. Mount air supply filter (901) to cart/stand and con-
nect air supply (E) to air manifold (5) air inlet.
WARNING
Read warnings, page 5, and follow instructions below.
Do not use air supply hose smaller than 3/4” (19
mm) ID. Smaller hose could restrict air flow and
cause alternator, solenoids, or Mac valves to mal-
function. Check air supply gauge at pump
changeover; air pressure should not drop.
36” (914 mm) hoses provided. Installer may pro-
vide different lengths.
The alternator requires 12-15 scfm of air to func-
tion correctly.
• Do not use 3/8” (9.5 mm) ID air supply tubing
longer than 24” (610 mm) from air filter to
control box air inlet.
• Do not restrict control box exhaust air.
Increased back pressure can cause a drop in
alternator power output, resulting in delayed valve
action and processor shutdown and reboot.

Assemble
12 309521H
User Interface
FIG. 4 and FIG. 5

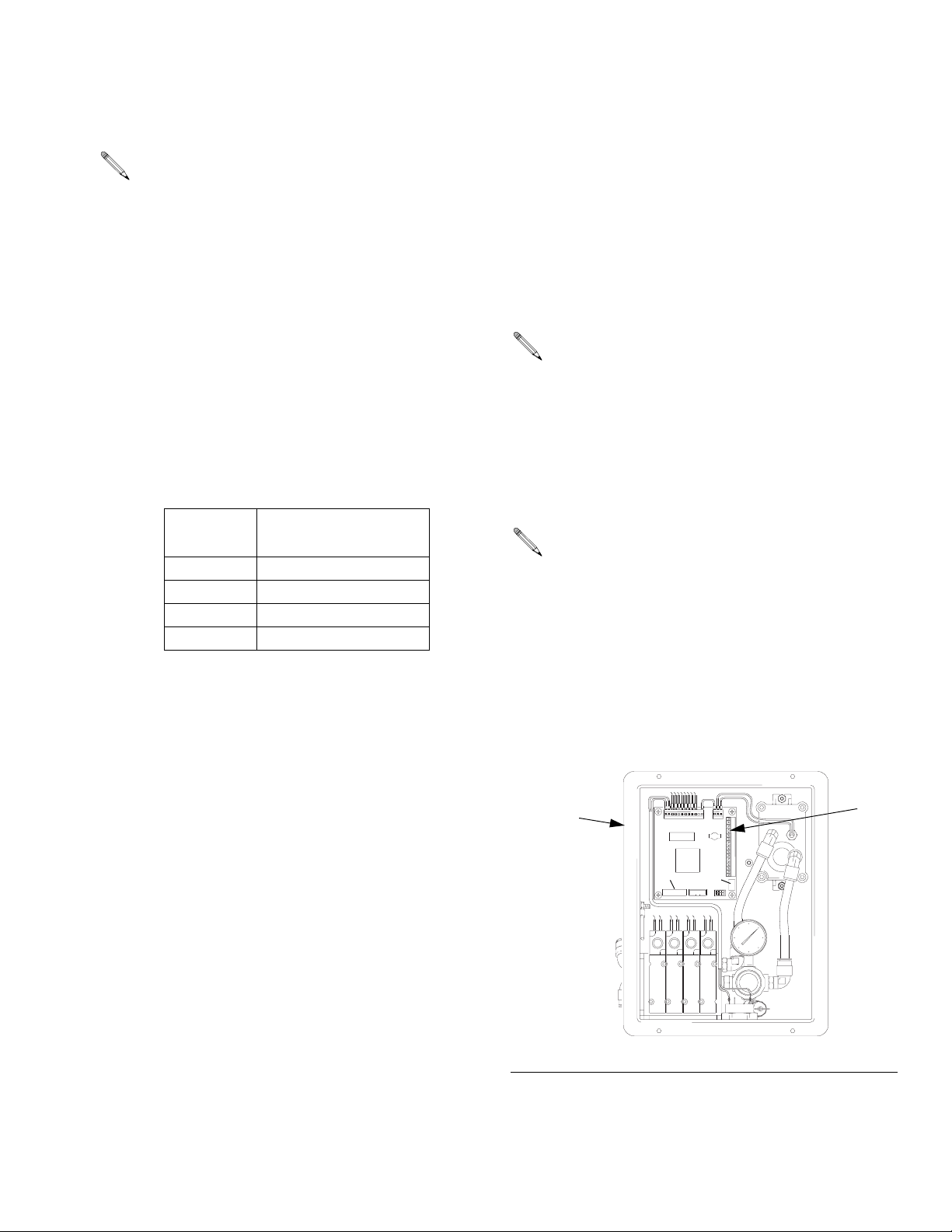

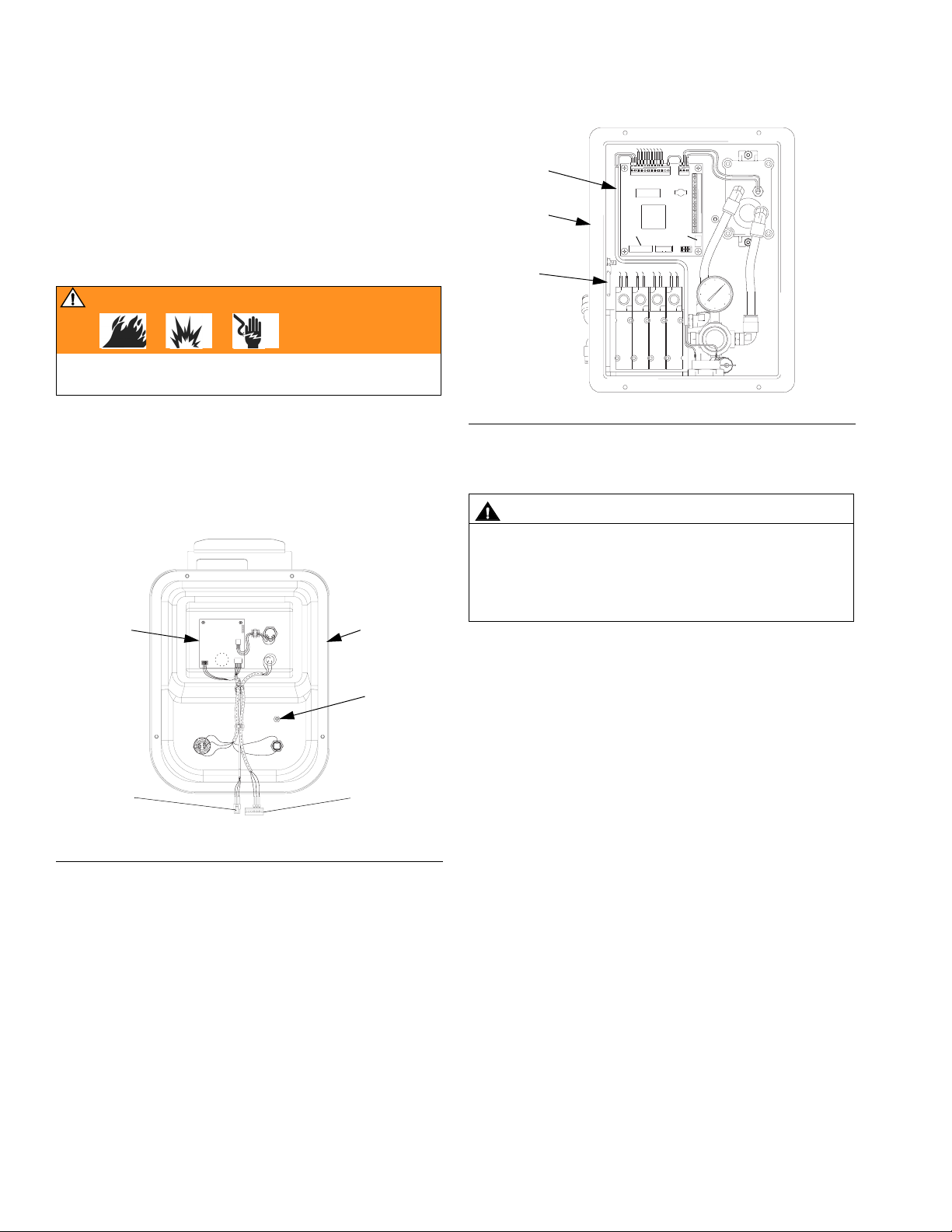

1. Connect display board (410) communication cable
(416) to J1 on main circuit board (301).
2. Connect data cable (406 - 7-pin connector) to J2.
3. Connect ground wire (315) to ground stud on back
of cover with nut (311).
4. Secure cover (4) to mounting plate (10) with lock-
washers (911) and nuts (910). FIG. 1.
Fluid Manifold
Install Sampling Valves 244683
Install sampling valves (918) into the metering valves
(601). Install barb fitting (919) and tubing (920) into each
sampling valve. FIG. 7.
WARNING
The user interface must be grounded. Read warnings,
page 5.
FIG. 4: Cover - back view
416 406
410 4
311
FIG. 5 Control Box
CAUTION
Do not assemble static mixer directly to fluid manifold.
Install static mixer after first 50 ft. (15 m) of hose to
ensure material is completely mixed. Spraying
unmixed material could necessitate rework of part
sprayed. See Setup in Xtreme Mix Operation manual.
10987654 3
10
9
8
7
6
5
4
3
-
+
J1
J2
301
3
315

Assemble
309521H 13
Cart-mounted

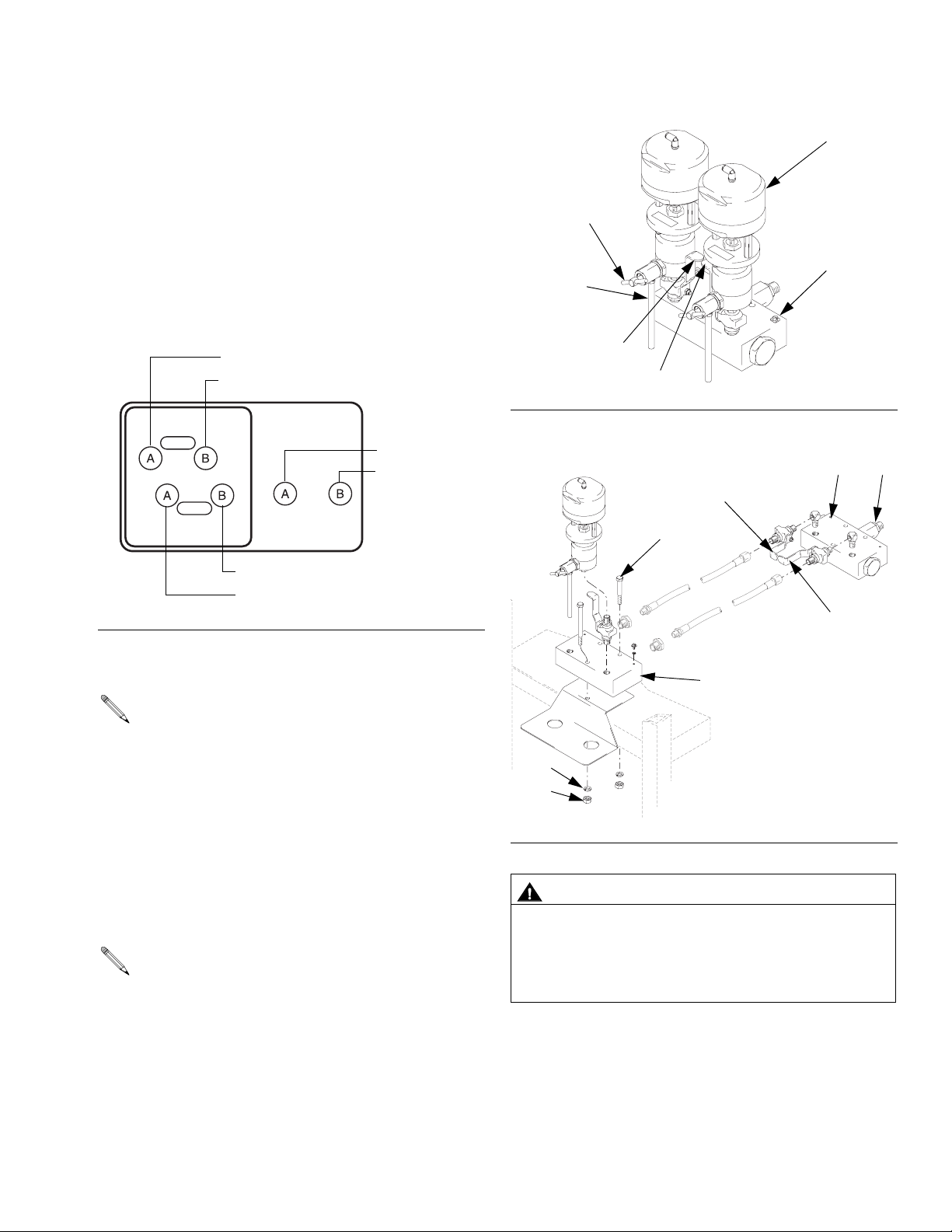

1. Secure metering valve assembly (6) to cart/stand
with screws (913), washer (914), and nuts (915).
FIG. 1, page 8.
2. Connect fluid lines (provided by installer) between
pumps and metering valves.
3. Cut air line tubing (included) to length needed to
connect between metering valves (601) and sole-
noid outlets. FIG. 3, page 10, and FIG. 6.
Remote Fluid Manifold
1. Remove metering valves (601) and shutoff valves
(606, 611) from fluid manifold (607). FIG. 7.
2. Install metering valves (601) and shutoff valves
(606, 611) onto fluid metering manifold 15A898. FIG.
8.
3. Secure fluid metering manifold 15A898 on the
cart/stand with 2 screws (913), washers (914) and
nuts (915).
FIG. 6: Control Box - bottom
To install remote fluid manifold, order part no.
15A898. All other parts referred to in the following
procedure are parts you remove from the stan-
dard manifold and reuse or parts the installer
must supply.
• Maximum length of tubing is 36” (914 mm).
Locate fluid manifold as close as possible.
OPEN
CLOSE
DOSING VALVES AIR MOTOR
PILOT VALVES
Top of Valve B
Top of Valve A
Bottom of Valve A
Bottom of Valve B
Pilot Valve A side
Pilot Valve B side
FIG. 7
FIG. 8
CAUTION
Do not assemble static mixer directly to fluid manifold.
Install static mixer after first 50 ft. (15 m) of hose to
ensure material is completely mixed. Spraying
unmixed material could necessitate rework of part
sprayed. See Setup in Xtreme Mix Operation manual.
601
607
A side 606
B side 611
918
919, 920
15A898
607
606
611
E
913
914
915

Assemble
14 309521H
4. Screw ball valves (606, 611 - purchased separately)
into fluid mix manifold (607).
5. Select appropriate fittings and fluid hose sizes and
lengths to connect between fluid metering manifold
15A898 and mix manifold (607).
6. Connect fluid lines (provided by installer) between
pumps and metering valves (601).
7. Connect mixed material hose to fluid mix manifold
(607) outlet (E).
8. Cut air line tubing (included) to length needed to
connect between metering valves (601) and sole-
noid outlets. FIG. 3, page 10, and FIG. 6, page 13.
9. Cut air line tubing, included, (F, G, H, J - FIG. 3,
page 10) to length needed to connect between
metering valves (601) and solenoid outlets.
10. Connect ground wires.
Balancing Back Pressure
Flow rates and/or viscosity differences between compo-
nent materials can create different pressure drops from
the proportioner to the manifold, causing unequal back
pressure. This will effect mix ratio accuracy.
To calculate pressure loss:
Pressure Loss = 0.000273 x Q x V L
D4
Q= Flow(GPM)
V = Viscosity in centipoise
L = Length of pipe in feet
D4= Pipe diameter to the 4th power
Example: If you need to pump 1 gpm of high solids paint
(40 seconds in a Zahn #2 cup = 100 cp) 100 ft. in a sys-
tem using 1/4” pipe:
Pressure Loss = 0.000273 x 1 gpm x 100 cp x 100 ft.
(.364 ID) .018 D4factor
Pressure Loss = 152 psi
Reduce pressure loss by using:
• Large diameter pipe or tubing
• Constant tubing or pipe size
• Long runs without bends
• Long radius elbows
You can balance differences in component back pres-
sure by adjusting hose diameter and length.
D4= .018 for 1/4” pipe
.06 for 3/8” pipe
.15 for 1/2” pipe
Using the previous example (.000273 x 1 x 100 x 100 =
2.73):
Pressure drop: 1/4” pipe = 152 psi
3/8” pipe = 46 psi
1/2” pipe = 18 psi
Balance pressure drops in the 2 lines as
instructed below to assure an accurate mix ratio.
This procedure is for the remote fluid manifold
only.

Proper Lifting
309521H 15
Proper Lifting
Either remove the cart handle or secure it to the cart
before lifting the unit. Connect a bridle swing, hooking
an end to each of the Xtreme Mix air motor rings. Hook
the center ring on a hoist. See FIG. 9. Carefully lift the
Xtreme Mix unit; make sure it balances evenly.
Operation and Repair
For operating instructions, including data collection, see
Xtreme Mix Operation manual.
For troubleshooting, alarm information, and repair
instructions, see Xtreme Mix Repair manual.
WARNING
Follow instructions below to avoid dropping or swing-
ing unit or being struck by the cart handle, which can
cause serious injury or damage to equipment.
FIG. 9

Electrical Schematic
16 309521H
Electrical Schematic
1
2
3
4
5
6
J1
R
R
4
1
12
9
6
3
1
BL
W
R
S
W
BL-W
BL-R
G
BL-G
S
+
+
R
4
11
2
3
4
5
6
J1
5
2
6
3
10
7
8
11
4
1
2
2
+
BL
5
2
6
3
18
15
12
9
6
3
16
17
4
5
8
11
7
13
14
1
2
J4
1
2
3
4
5
6
8
9
10
11
7
12
J5
5
3
+
1
2
3
4
5
6
7
J2
1
2
3
4
5
6
7
BL
R
BL
BL
R
R
15VDC
6
2
6
2
BL
R
BL
COM
3
4
3
1
5
1
5
4
-
-
-
-
1
2
3
J6
10
1
1
1
1
1
18
15
12
9
6
3
16
17
4
5
11
7
13
14
1
2
10
8
R
W
BL-W
BL-R
G
BL-G
Key:
BL Black
BR Brown
BL-GBlack with green
BL-RBlack with red
BL-WBlack with white
GGreen
GNDGround
RRed
SShield
WWhite
Jumper (15V)
Main Circuit
Board
245705
Metering Valve A
Metering Valve B
Pump A
Pump B
Solenoids
Sensor
243678
Case Gnd Clip
Metering
Valves
Air Motors
Sensor
243678

Electrical Schematic
309521H 17
R
+-
A
4
7
2
2
3
BL
R
R
G
BL
BR
G
BL
W
B
3
TX
1
GND
1
2
J3
W
8
1
1
2
RX
2
3
1
5
3
4
1
2
J2
3
42
1
1
GND
1
2
3
4
5
6
1
5
2
3
GND
2
32
1
Power
Supply
Barrier
Board
Power
Supply
Air Input
Alarm 15A849
Alarm +
Alarm COM
Front Panel
Comport Pin
Front View
COM Port
RS232
Connector
Start
Light
Stop
Start/Stop
Switch
15A851
Key Switch
15A852
Key Switch
momentary
Display Board
245706
301 304

Pneumatic Schematic
18 309521H
Pneumatic Schematic
FIG. 10
King Motor AKing Motor B
Pump A Pilot
Pump B Pilot
Gauge 90/110 psi 0.6/0.8
MPa, 6.2/8 bar) Relief Valve
Air Regulator 110 psi
(0.8 MPa, 8 bar) Relief Valve
Gauge
3/8” Air Reg. Auto Drain 5 micron 100 psi (0.7 MPa, 7 bar)
To Manifold 3/8” tube
3/4” Air Filter Auto Drain 20 micron
3/4” Ball Valve bleed type
Alternator Air Regulator
26 psi (79 kPa, 1.8 bar) Relief Valve
To Pu m p B Pilot
3-way valve
To Pu m p A Pilot
3-way valve
12 VDC
Turbine / Power Supply
Solenoid
Position 3
12 VDC
Solenoid
Position 4
12 VDC
Solenoid
Position 2
12 VDC
Position 1
Solenoid
Manifold
Air Supply Air
Exhaust
AClose
5/32”
AOpen
BClose
5/32”
BOpen
AMetering
Valve
BMetering
Valve
1/2” x 24” long
501
79
507
518
524
306e
306t 304

Pneumatic Schematic
309521H 19

Parts
20 309521H
Parts
Xtreme Mix Proportioner
5
913913
903
905
904
901
2
7
914
915
6
902
10
910 911
912
4
3307
721
908/909
908
918, 919, 920
