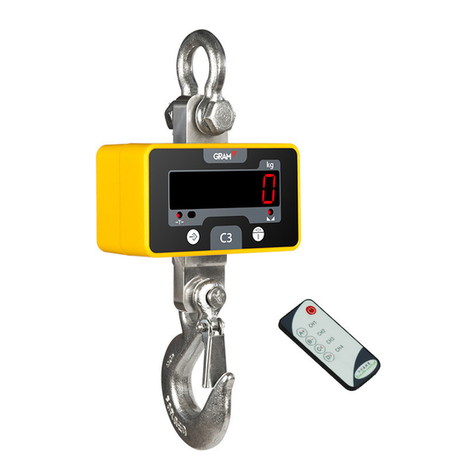

Gram C3 Series User manual

SERIES / SERIE / SÉRIE
C3
300 / 500 / 1T
OPERATION MANUAL
MANUAL DE UTILIZACION
MANUEL D´UTILISATION

2
INDEX English
Safety recommendations 5
Function keys on remote control 6
Use of crane scale 7
Turn ON 7
Turn OFF 7
Tare / Zero 7
Display brightness 7
Hold function 8
Weighing accumulation function 8
ON / OFF Save power 8
Calibration 9
Calibration using the remote controller 9
Calibration using keys of crane scale 9
Parameters setting 10
Parameters setting using the remote controller 10
Parameters setting using keys of crane scale 11
Guarantee 12

3
ÍNDICE Español
Requisitos para una óptima instalación 13
Función de las teclas del control remoto 14
Utilización del gancho 15
Encender el gancho 15
Apagar el gancho 15
Tara y puesta a cero 15
Brillo del display 15
Función Hold 16
Función de acumulación de pesadas 16
Ahorro de energía 16
Calibración 17
Calibración utilizando las teclas del mando a distancia 17
Calibración utilizando las teclas del gancho 17
Configuración de parámetros 18
Configuración de parámetros utilizando las teclas del mando a distancia 18
Configuración de parámetros utilizando las teclas del gancho 19
Garantía 21

4
SOMMAIRE Français
Conditions requises pour une installation optimale 22
Función de las teclas del control remoto 23
Utilisation du crochet 24
Allumer le crochet 24
Eteindre le crochet peseur 24
Tare et retour au zéro 24
Luminosité de l’ecran 24
Fonction Hold 25
Fonction d’accumulation de pesées 25
ON / OFF Save power 25
Etalonnage 26
Calibration avec la commande a distance 26
Calibration avec les touches du crochet 26
Configuration des parametres 27
Configuration des parametres avec la commande a distance 27
Configuration des parametrs avec les touches du crochet 28
Garantie 29

5
ENGLISH
SAFETY RECOMMENDATIONS
Before using the crane scale, please, read this manual carefully and
follow the instructions.
• DON´T overload the crane scale, this could seriously damage the
loadcell (repair not covered by the warranty).
• DON´T leave any weight on the hook for a long time, this reduces the
accuracy of the equipment and shorts the life of the loadcell.
• Before using the scale, check rings, hooks and other parts, cotter pin,
if the screw is loose and deformation loose every 3 months.
• Charge the battery when the display shows the low power indicator.
• DON’T use the crane scale in rain or storms.
• After used, hook should vertical suspended or the loadcell could be
damaged.
• DON´T try to repair the crane scale. Please contact with your
Distributor.
Model Capacity Division (e)
C3-300 300kg 50kg
C3-500 500kg 100g
C3-1T 1.000kg 200g

6
Accuracy Class III
Tare range 100% Max. capacity
Time of stability 10´s
Overload alarm Max +9e
Max. overload 125% Max. capacity
Power Fwll seal rechargeable battery 6V/4AH
Display Super light LED
Temperature 0ºC – 40C
Remote control range ≤20m
FUNCTION KEYS ON REMOTE CONTROL
Key Function
A – Confirm
B – T/0 Tare / zero
C - Accumulation
D - H Hold

7
USE OF CRANE SCALE
Turn ON
Press the key on the crane, the scale begin the self test, at the same
time, auto-zero initialization, then the display will show power status “Pbt85”
(85% power) and finally the crane scale enters to weighing mode.
Turn OFF
Press the key for 3 seconds or Dand Btogether on remote control, the
display will show “PA80” (80% power), 1.5 seconds later, the display will
show “off” and scale power off.
Tare / Zero
To obtain the net weight of a product. Place a container and press the
key or Bon remote control, the display shows zero value, put the product into
the container, the display will show the net weight of the product.
Display brightness
1. With the crane scale disconnected, press the key the same time
press also the key .
2. The display will show: “Dsp X”.
3. Available options:
X=0 Low brightness.
X=1 High brightness.
X=2 Automatical brightness (when weight changes, the high

8
brightness is activated, after 20 seconds of stability, the low
brightness is activated).
4. Press key to select the desired mode.
5. Press the key to return to normal weighing mode.
Hold function
1. Press the key Don remote control, the display´s reading will remain
locked for 30 seconds.
2. Press again the key Don remote control, the Hold function will be turn
off, the balance will return to normal weighing mode.
Weighing accumulation function
When the weight is stable, press the Ckey on the remote control to accumulate
the display values and view the accumulation times “n32”, 2 seconds later,
back to normal weighing mode.
To cancel accumulation function, press the Bkey on remote control and
returns to normal weighing mode.
ON / OFF Save power
Press the Akey on remote control for 2 seconds, the display will power off,
only shows “-“ to save power.
Press the Akey on remote control for 2 seconds, back to normal weighing
mode.

9
CALIBRATION
Calibration using the remote controller
1. Power on the crane scale and keep pressed the Dkey until display shows
“CAL SP”.
2. The display will show “CAL 00”, press A key once to display “CAL00”.
3. Do not hang on the hook any goods at this time.
4. Display will show “LOAD”, press the Akey until view “-------“ and then
later on display “LOAD”.
5. Press the Dkey to input the calibration weight value (long press Dkey to
increase the number of digit, click to the left shift).
6. Lifting weights, until steady 4 to 5 seconds.
7. Press the Akey to show “--------“, 2 seconds after the display of the
hanging weight values, calibration is finished, put weight down, turn it off.
Calibration using keys of crane scale
1. When power on and self detecting, keep pressed key until display
shows “CAL SP”.
2. Press the key once the display shows “CAL00”.
3. Do not hang on the hook any goods at this moment.
4. Press the key once the display shows “--------“, after few seconds,
the display will read “LOAD”.

10
5. Press the key to input the weighing value of the calibration weight
(keeping pressed the key means adding number, single clicking
means left shift).
6. Hang the calibration weight and wait for 4 – 5 seconds until the stable
sign light on.
7. Press the key once the display shows “-----------“, few seconds
after, the display will show the weight calibration value. Calibration is
over by now. Put down the weights and power off the scale.
PARAMETERS SETTING
Parameters setting using the remote controller
1. Post holding down the Dkey and so display “CAL SP”.
2. Press the Dkey to display “SET”.
3. Press the Akey on remote control to display “dx” (division parameter).
4. Use the Dkey to change the division value.
5. When finished, press the Akey to view the capacity of the crane scale.
6. Press the Dkey to change the capacity value.
7. Press the Akey to show “FLT 00” (filter parameter 0 – 4).
8. Press the Dkey to change the filter value.
9. Press the Akey to show “rng 1” (zero tracking parameter).
10. Press the Dkey to change the zero tracking value.
