Introduction
The Model T27665 Arbor Press is designed to
perform press jobs, such as staking, riveting, and
installing/removing bearings. The ram accepts
dies, inserts, and other tooling for custom work.
Press Capacity ......................................... 5 Tons
Throat Depth................................................ 121⁄4"
Maximum Workpiece Height ......................175⁄16"
Ram Size ................................................3" x 2
1⁄4"
Bore Size .........................................................1⁄2"
Body ......................................................Cast Iron
Ram ............................................................. Steel
Overall Size ............... 121⁄4" W x 235⁄8" D x 30" H
Weight .....................................................238 lbs.
MODEL T27665
ARBOR PRESS
INSTRUCTIONS
Specifications
This arbor press is designed to only be
used for small parts. Do not use this arbor
press for operations beyond its capacity or
modify it for increased leverage which can
lead to failure of arbor press and possible
injury.
Material under pressure
could fly apart and cause
impact injuries. Always
wear safety glasses when
using this press.
Keep hands and fingers
away from ram when apply-
ing downward pressure to
avoid pinching injuries.
Figure 1. Model T27665 arbor press.

-2- T27665 (Mfd. 01/16)

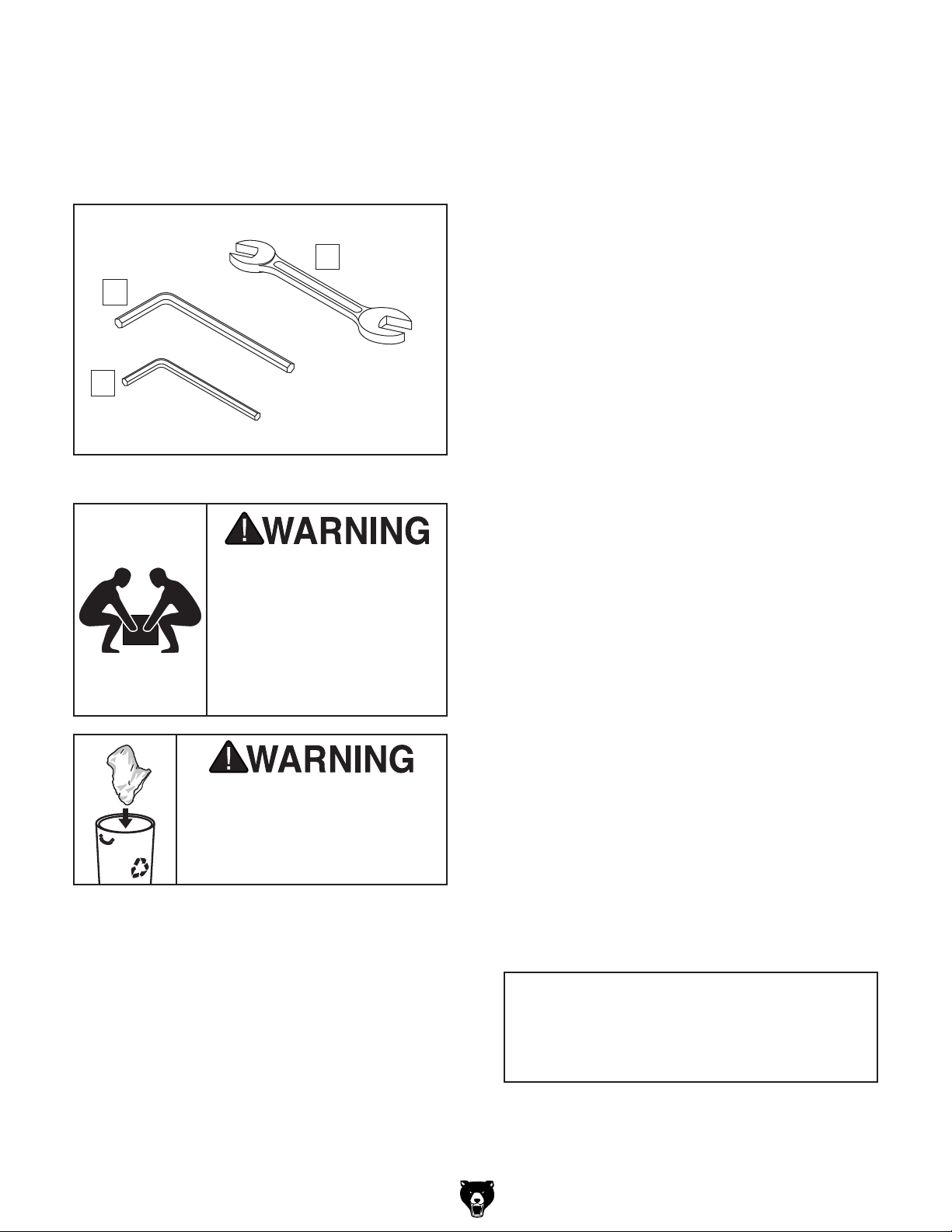

Small Item Inventory
Description Qty
A. Hex Wrench 6mm ....................................... 1
B. Hex Wrench 8mm ....................................... 1
C. Open-End Wrench 17/19mm ...................... 1
Cleanup
The unpainted surfaces of your machine are
coated with a heavy-duty rust preventative that
prevents corrosion during shipment and storage.
This rust preventative works extremely well, but it
will take a little time to clean.
Be patient and do a thorough job cleaning your
machine. The time you spend doing this now will
give you a better appreciation for the proper care
of your machine's unpainted surfaces.
There are many ways to remove this rust preven-
tative, but the following steps work well in a wide
variety of situations. Always follow the manufac-
turer’s instructions with any cleaning product you
use and make sure you work in a well-ventilated
area to minimize exposure to toxic fumes.
Before cleaning, gather the following:
• Disposable Rags
• Cleaner/degreaser (WD•40 works well)
• Safety glasses & disposable gloves
• Plastic paint scraper (optional)
Basic steps for removing rust preventative:
1. Put on safety glasses.
2. Coat rust preventative with a liberal amount
of cleaner/degreaser (see Page 7 for offer-
ings from Grizzly), then let it soak for 5–10
minutes.
3. Wipe off surfaces. If your cleaner/degreaser
is effective, rust preventative will wipe off
easily. If you have a plastic paint scraper,
scrape off as much as you can first, then wipe
off the rest with a rag.
4. Repeat Steps 2–3 as necessary until clean,
then coat all unpainted surfaces with a quality
metal protectant to prevent rust.
NOTICE
Avoid chlorine-based solvents, such as
acetone or brake parts cleaner, that may
damage painted surfaces.
Figure 2. Small item inventory.
A
B
C
SUFFOCATION HAZARD!
Keep children and pets away
from plastic bags or packing
materials shipped with this
machine. Discard immediately.
HEAVY LIFT!
Straining or crushing injury
may occur from improperly
lifting the arbor press. To
reduce this risk, get help
from other people or lifting
equipment rated for weight
of the arbor press.

T27665 (Mfd. 01/16) -3-
Mounting
Because of the dynamic forces involved in oper-
ating the arbor press, we strongly recommend
mounting it to a benchtop or other stable working
surface to prevent it from moving during operation
and causing accidental injury or damage.
The base of the arbor press has two 3⁄4" mounting
holes on each side of the upright (see Figure 3).
Figure 5. Example of a "Direct Mount" setup.
Machine Base
Workbench
Lag Screw
Flat Washer
Another option is a "Direct Mount" (see example
below) where the machine is secured directly to
the workbench with lag screws and washers.
Figure 3. Location of mounting holes in base.
3⁄4" Mounting Hole
(1 of 2)
The strongest mounting option is a "Through
Mount" (see example below) where holes are
drilled all the way through the workbench—and
hex bolts, washers, and hex nuts are used to
secure the machine in place.
Figure 4. Example of a "Through Mount" setup.
Machine Base
Workbench
Hex
Bolt
Flat Washer
Flat Washer
Lock Washer
Hex Nut

-4- T27665 (Mfd. 01/16)
Cap screws and jam nuts on the front and left
side of the ram housing (see Figure 7) adjust the
amount of ram free-play. The ideal adjustment
allows the ram to move with very little play but not
be overly stiff.
Tools Needed Qty
Hex Wrench 8mm .............................................. 1
Open-End Wrench 17mm .................................. 1
Adjusting Ram Play
2. Equally adjust each pair of cap screws a
small amount (turn hex wrench clockwise
to decrease free-play, counterclockwise to
increase free-play).
3. Use ram handle to move ram up and down a
few times to check adjustment. If necessary,
further adjust cap screws as in Step 2.
4. When satisfied with amount of ram free-
play, retighten jam nuts without moving cap
screws.
To adjust ram play:
1. Loosen jam nut shown in Figure 7.
Note: If possible, keep one hand on ram
handle, as loosening jam nut and cap screws
too quickly may allow handle to spin freely.

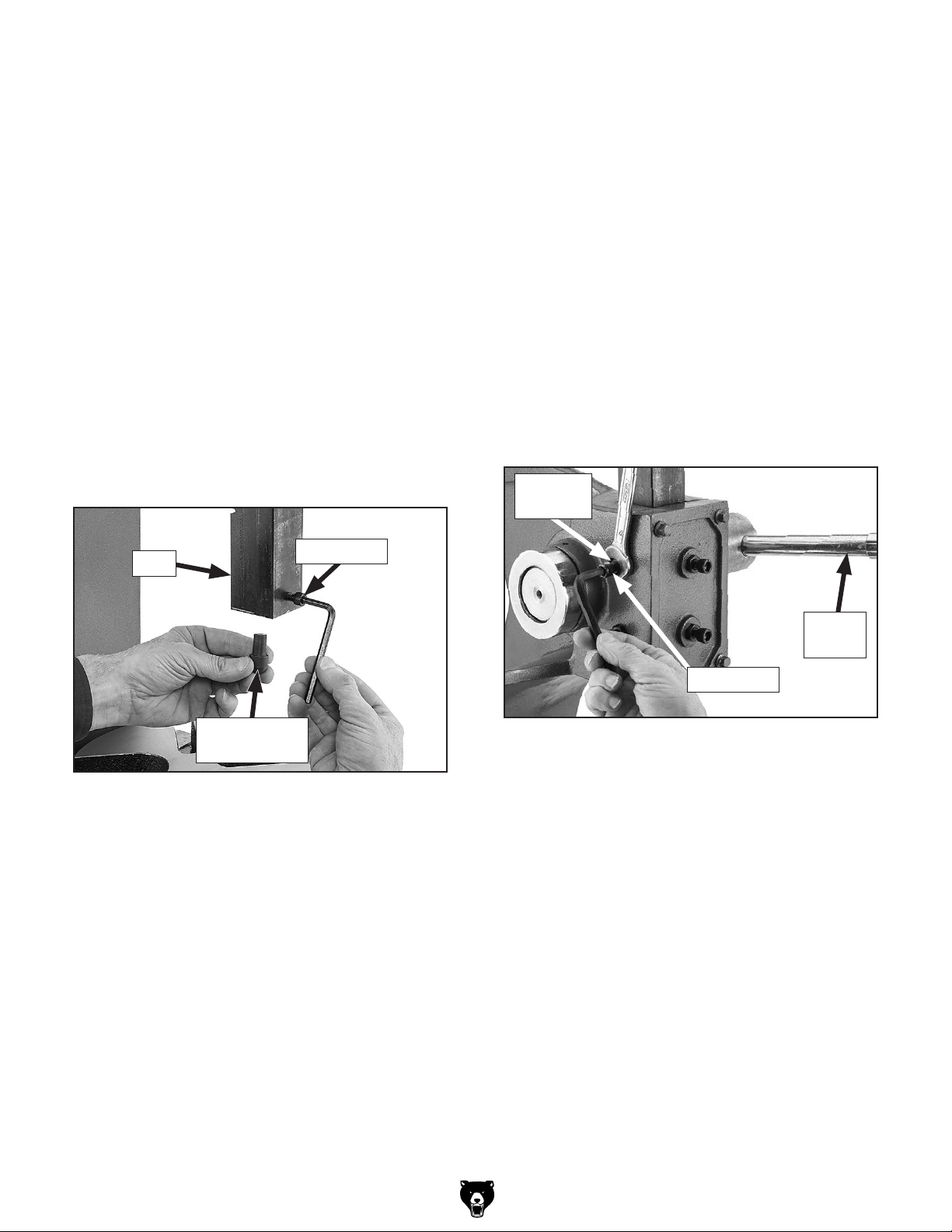

Figure 7. Cap screws and jam nuts used to
adjust ram free-play.
Cap Screw
Ram
Handle
Jam Nut
(1 of 4)
Figure 6. Typical example of inserting punch into
ram.
Cap Screw
Ram
Punch
(not included)
To change punches:
1. Use an 8mm hex wrench to loosen cap screw
at base of ram, as shown in Figure 6.
2. Insert punch until it is fully seated in ram, then
tighten cap screw.
Note: Punch removal may be difficult due
to the force applied to the punch during
pressing. Lightly tapping the side of the
punch with a hammer can help loosen it for
removal.
The ram accepts 1⁄2" diameter punch inserts.
Ram inserts allow a variety of pressing options,
with round, square, and pointed punches avail-
able. The ram can act as a press without a punch
insert.
Inserting Press Punch

T27665 (Mfd. 01/16) -5-
Wipe the arbor press down with a clean shop rag
and mineral spirits. When dry, protect the unpaint-
ed surfaces by applying a thin film of ISO 32 oil.
Grease ..................T23964 or NLGI#2 Equivalent
Grease Amount ................................. As Needed
Lubrication Frequency .........40 Hrs. of Operation
Tools Needed Qty
Open-End Wrench or Socket 12mm ................. 1
To grease rack and pinion:
1. Remove front plate, then remove ram to
expose pinion and rack (see Figure 9).
2. Use shop rags, a stiff brush, and mineral spir-
its to clean teeth of rack and pinion.
3. When dry, apply a light coat of grease to rack
and pinion teeth.
4. Re-install ram and front plate.
5. Use ram handle to move ram up and down
several times to distribute grease.
Figure 9. Ram rack and pinion exposed after
removing front plate.
Pinion
Ram
Rack
Cleaning & Protecting
Oiling Pinion Hub Shaft
Push the tip of the oil can nozzle against the oil
access hole and pump oil can once or twice. If
you see sludge and contaminants coming out
of the lubrication area, continue pumping the oil
can until the oil runs clear. Move the components
through the entire path of travel a few times to
distribute the oil. When finished, wipe away the
excess oil.
Figure 8. Location of oil access holes for
lubricating pinion hub shaft.
Oil Access
Holes
Oil Type .................T26685 or ISO 32 Equivalent
Oil Amount ......................................... 1–2 Pumps
Lubrication Frequency ...........8 Hrs. of Operation
Proper lubrication of the pinion hub shaft is done
with a pump-type oil can with a cone tip through
the oil access holes (see Figure 8).
Greasing Ram Rack and Pinion

-6- T27665 (Mfd. 01/16)
Arbor Press Breakdown & Parts List
We do our best to stock replacement parts when possible, but we cannot guarantee that all parts shown
are available for purchase. Call [phone] or visit www.grizzly.com/parts to check for availability.
1
4
5
6
7
8
9
10
11
12
13
14
15
16
18
5
13
17
14
15
19
20
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 PT27665001 BODY 12 PT27665012 FRONT PLATE
4 PT27665004 TABLE 13 PT27665013 FLANGE BOLT M10-1.5 X 40
5 PT27665005 HANDLE CAP 14 PT27665014 CAP SCREW M10-1.5 X 40
6 PT27665006 SLIDING HANDLE 15 PT27665015 HEX NUT M10-1.5
7 PT27665007 SPLINE SHAFT 16 PT27665016 HEX WRENCH 6MM
8 PT27665008 SET SCREW M8-1.25 X 10 17 PT27665017 OPEN-END WRENCH 17/19MM
9 PT27665009 LOCK COLLAR 18 PT27665018 HEX WRENCH 8MM
10 PT27665010 RAM 19 PT27665019 ROLL PIN 8 X 18
11 PT27665011 CAP SCREW M8-1.25 X 30 20 PT27665020 TOUCH-UP PAINT, GRIZZLY GREEN

T27665 (Mfd. 01/16) -7-

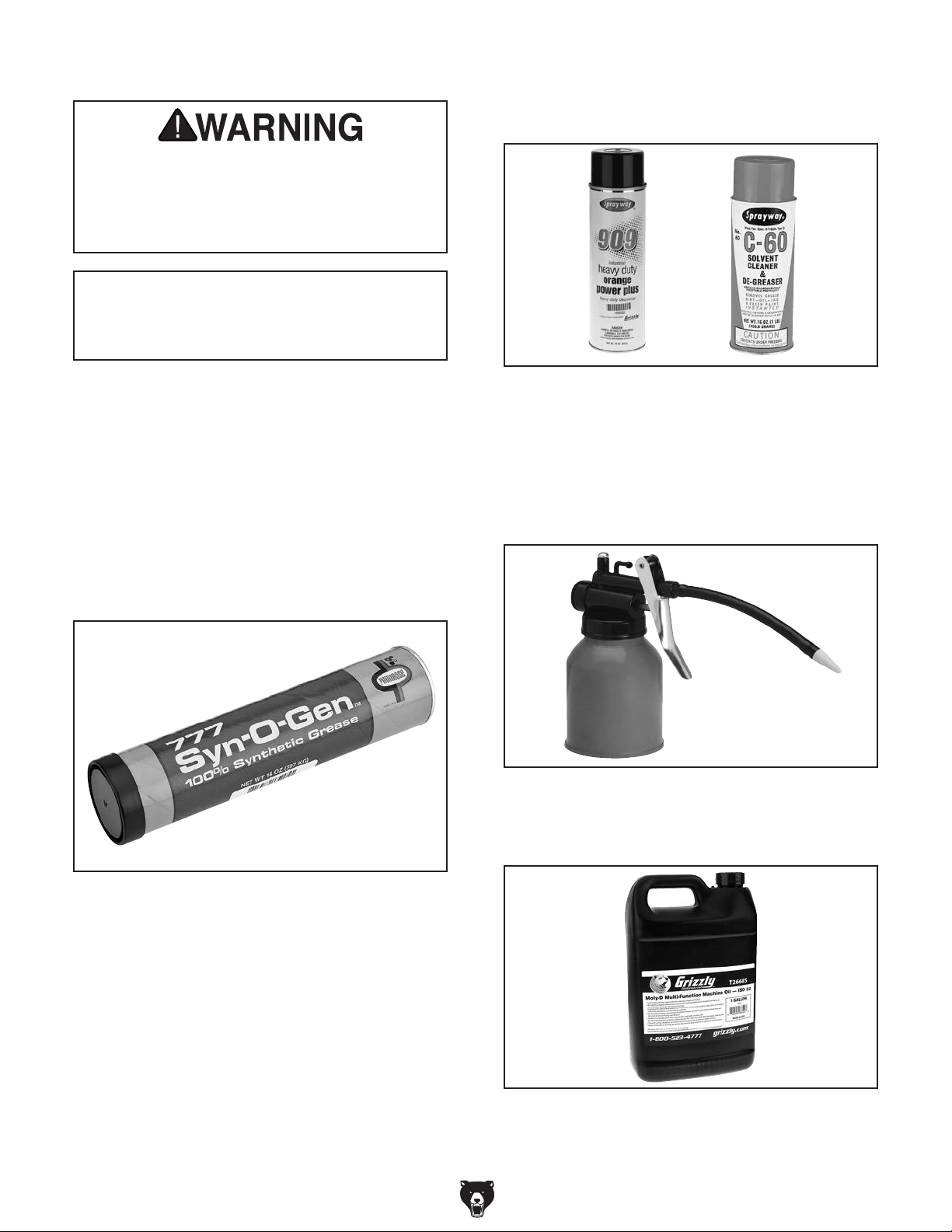

Accessories
Installing unapproved accessories may
cause machine to malfunction, resulting in
serious personal injury or machine damage.
To reduce this risk, only install accessories
recommended for this machine by Grizzly.
NOTICE
Refer to our website or latest catalog for
additional recommended accessories.
order online at www.grizzly.com or call 1-800-523-4777
Figure 11. Cleaner & degreasers.
G2544—Solvent Cleaner & Degreaser
T23692—Orange Power Degreaser
Great products for removing shipping grease.
T26419—Syn-O-Gen Grease
Syn-O-Gen Multi-purpose Synthetic Grease is
formulated with 100% pure synthesized hydro-
carbon base stocks. Superior lubricating proper-
ties coupled with extremely low pour point and
extremely high temperature oxidation and thermal
stability produce a grease that is unmatched in
performance for numerous applications. These
properties make Syn-O-Gen non-melting, tacky,
and water resistant, with outstanding extreme
pressure, rust and corrosion protection.
Figure 10. Syn-O-Gen Multi-Purpose Synthetic
Grease.
H7617—High-Pressure Oil Can w/Flex Nozzle
Whether you're lubricating cutting tools or main-
taining machinery in top operating condition, you'll
appreciate this High Pressure Oil Can. Holds 5
ounces of oil and has a trigger-activated, high-
pressure pump. Colors may vary.
Figure 12. H7617 High-Pressure Oil Can.
Figure 13. Moly-D Multi-Function Machine Oil -
ISO 32, 1 Gallon.
T26685—Moly-D Multi-Function Machine Oil -
ISO 32, 1 Gallon
