GrowSpan 500 Series User manual

1
Revision date: 04.30.19
STK#
GS05KDR2SLT (Twin-Wall Polycarbonate)
GS05KDR2SLC (Corrugated Polycarbonate)

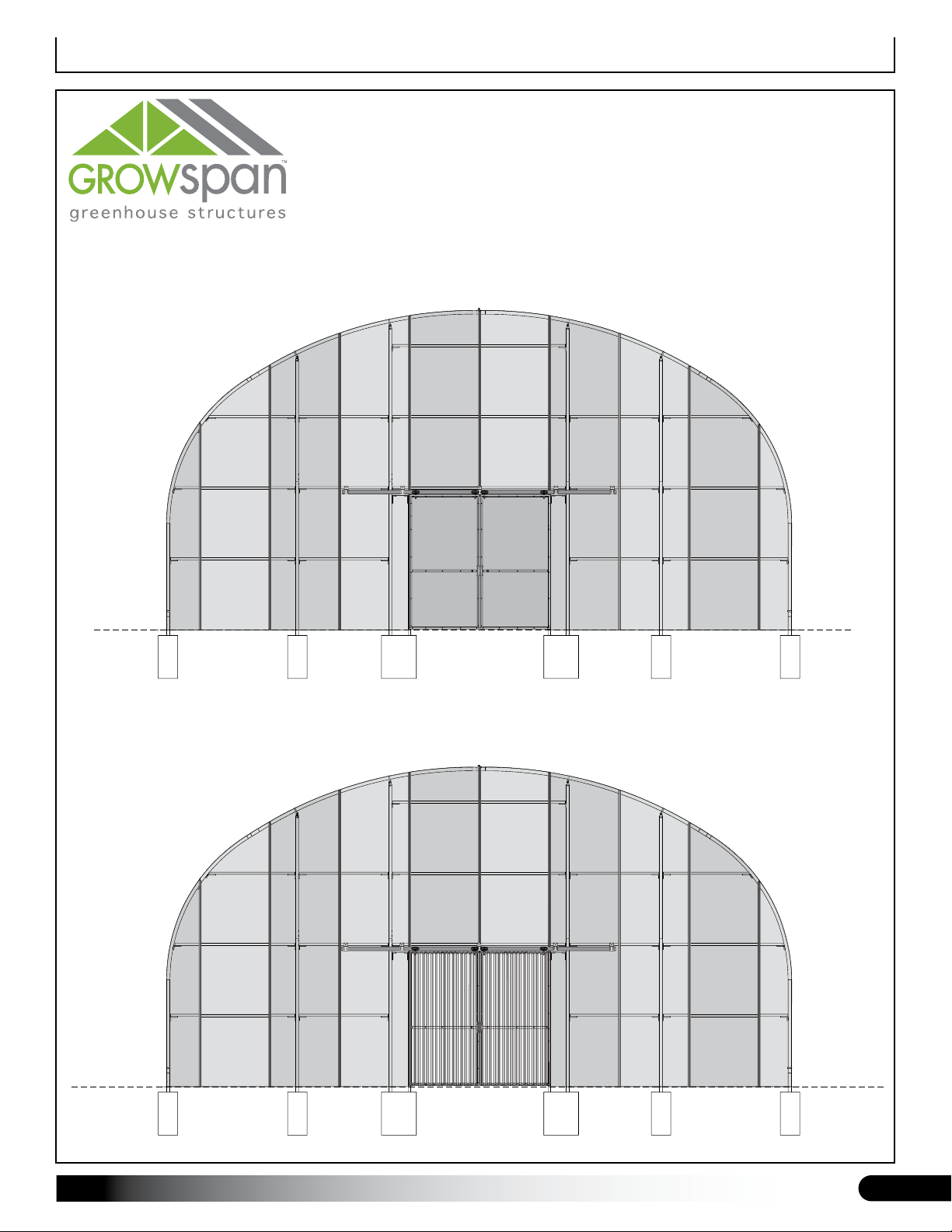

Diagram shows a double-sliding door centered and installed in an end wall frame. The door kit includes materials
for the door only. All other components shown in the diagram above and other diagrams throughout this guide
are not included and require additional purchase.
Double Sliding Door
Finished Grade Finished Grade
©2019 GrowSpan
All Rights Reserved. Reproduction
is prohibited without permission.
GrowSpan™Series 500
Door Kits

2Revision date: 04.30.19
Table of Contents
DOUBLE SLIDING DOOR KIT: READ BEFORE YOU
BEGIN
The double sliding door kit is designed to attach
to any of these end frame kits: GS05KEW20G72,
GS05KEW24G72, GS05KEW30G72 and
GS05KEW35G72. These instructions and the instructions
for the end frame are written to be used together.
Install the end wall framing before you install the door
frame. Consider the positions of fans, vents, and other
accessories before you install the door frame.
Door must not block or interfere with the operation of
building accessories.
If you are installing this door kit in an end frame that is
not identified above, use these instructions for critical
dimensions and details.
Consult the services of a qualified contractor if needed. It
is the responsibility of the owner/contractor to adapt these
instructions to safely and competently install this door in
an end frame or building that it was not designed for.
Complete these steps to begin and to install the door:
1. Based on the dimensions of the door (or doors),
determine where you can position the door in the end
frame. Use the diagrams from both this manual and
the end wall assembly guide.
2. Secure the door framing to the end wall framing.
3. Assemble door frame and door and attach the
assembled door to the door frame of the end wall.
NOTE: If you purchased a fabric end panel to cover
the end, install the panel before you install the door;
then remove the panel material as needed to allow for
the installation of the door.
If you purchased a polycarbonate package (8mm
twin-wall or corrugated), install those panels after
installing the door frame and before installing the
door.
IMPORTANT: Consult the stay roller installation
steps before installing the end wall polycarbonate
panels.
Important Information ..............................................3
Bearing Hangers.......................................................5
Door Frame Assembly .............................................6
Stay Roller Assembly...............................................7
Sliding Door Track Assembly..................................8
Adjust Doors.............................................................11
Twin-Wall Single Sliding Door Assembly ...............12
Corrugated Single Sliding Door Assembly ............14
Shelter Care and Maintenance ................................16
Quick Start Guide .....................................................17
Door Frame Layout...................................................18
Door Frame Detail Connections..............................19

3
Revision date: 04.30.19
Important Information
REQUIRED TOOLS
The following list identifies the main tools needed to
assemble the door. Additional tools and supports may be
needed depending on the structure, location, and
application.
• Tape measure or measuring device
• Fine point marker to mark the location frame
members.
• Variable speed drill (cordless with extra batteries
works the best)
• Drill bit set with 7/16" and 1/2" drill
• Wrench set
• Hammers, gloves, and eye protection
• Ladders, work platforms, and other machinery for
lifting designed to work safely at the height of the
door and door frame.
ATTENTION: Consult the services of a qualified,
professional contractor if you are not familiar with the
construction of similar frame structures and components.
YOU MUST READ THIS DOCUMENT BEFORE YOU
BEGIN TO ASSEMBLE THE DOOR KIT.
Thank you for purchasing this GrowSpan™ door kit.
When properly assembled and maintained, this product
will provide years of reliable service. These instructions
include helpful hints and important information needed to
safely assemble and properly maintain the door. Please
read these instructions before you begin.
SAFETY PRECAUTIONS
• Wear eye protection.
• Wear head protection.
• Use a portable GFCI (Ground Fault Circuit
Interrupter) when working with power tools and cords.
• Do not climb on the framing during or after
construction.
• Provide proper ingress and egress to prevent
entrapment.
WARNING: The individuals assembling this door are
responsible for designing and furnishing all temporary
bracing, shoring and support needed during the
assembly process.
For safety reasons, those who are not familiar with
recognized construction methods and techniques
must seek the help of a qualified contractor.
FASTENERS
Fasteners are included to secure door components to
metal frame members. If the building frame and cladding
are not metal, purchase the appropriate fasteners locally,
or call customer service for suggestions.

4Revision date: 04.30.19
Important Information

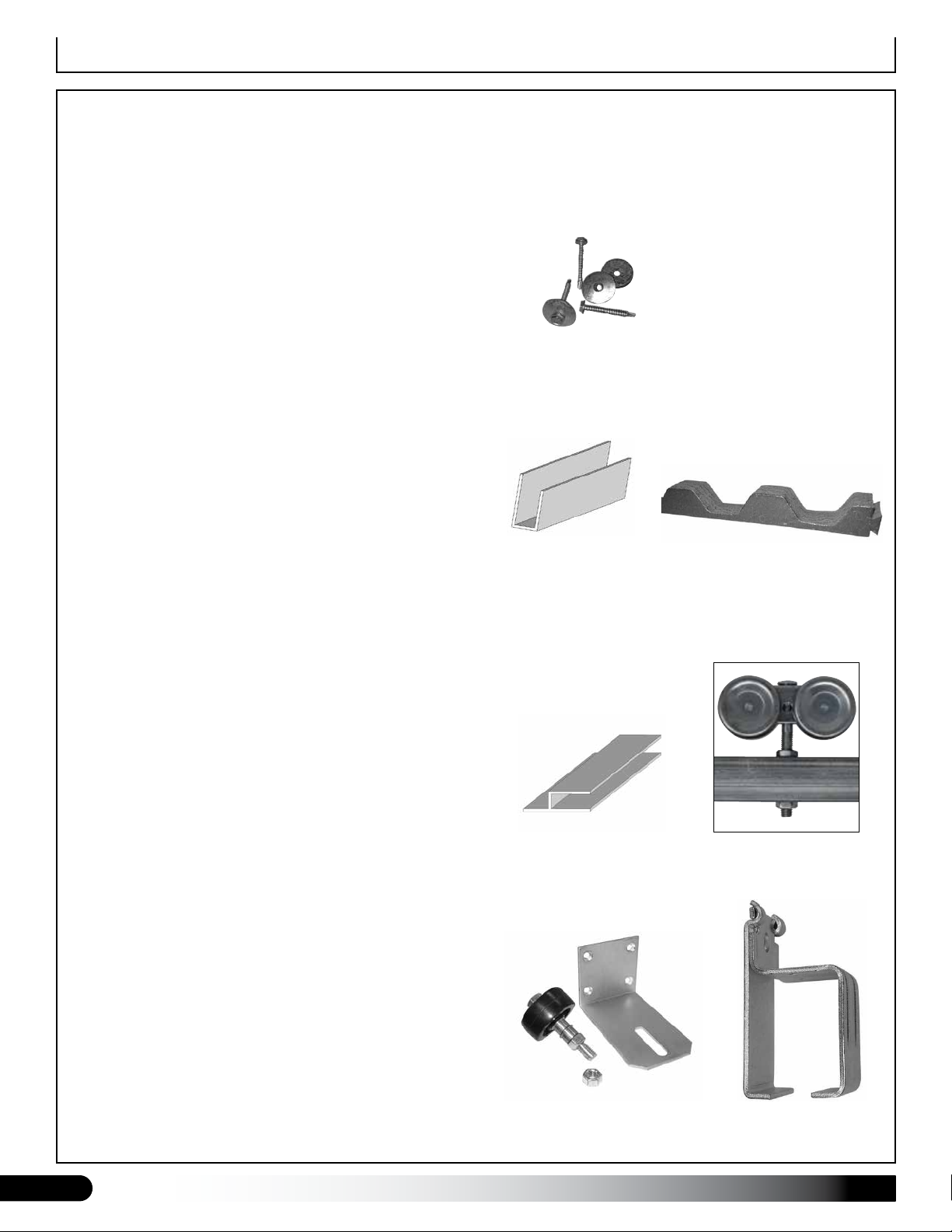

PARTS IDENTIFICATION
The following graphics and photos will help identify the
different hardware for each door kit. (Some parts are not
shown.)
102921B & FA4484B
Tek Screws and neo-
bonded washers
104213
Aluminum
U-Channel Profile
(Twin-Wall Only)
104548
End cap profile
100380
Mounting bracket
ASSEMBLY PROCEDURE
Following the instructions as presented will help ensure
the proper installation of the end frame and door. The
steps outlining the assembly process are as follows:
1. Verify that all parts are included in the shipment.
Notify Customer Service for questions or concerns.
2. Read these instructions and all additional
documentation included with the shipment before
you begin.
3. Gather the tools, bracing, ladders (and lifts), and
assistance needed to install the door and door frame.
4. Read the care and maintenance information at the
end of these instructions.
5. Complete and return all warranty information as
instructed (if included).
UNPACK AND IDENTIFY PARTS
The following steps will ensure that you have all the
necessary parts before you begin.
1. Unpack the contents of the shipment and place
where you can easily inventory the parts. Refer to the
Bill of Materials/Spec Sheets.
2. Verify that all parts listed on the Bill of Materials/Spec
Sheets are present. If anything is missing or you
have questions, consult the parts guide and all
diagrams for clarification, or contact customer
service.
NOTE: At this time, you do not need to open the
plastic bags containing smaller parts such as
fasteners and clamps (if equipped).
QUICK START DIAGRAMS
For a quick overview of the end wall, door, and
components, consult the diagrams located at the back of
these instructions.
100356
Stay roller
104709
Horizontal closure strip
(Corrugated Only)
116391
Bearing Hanger

5
Revision date: 04.30.19
Bearing Hangers
ASSEMBLE AND INSTALL SLIDING DOORS — OVERVIEW
The general steps to install the sliding doors are as follows:
1. Assemble the 102923 door frames.
2. Attach bearing hangers to the door frames.
3. Construct the rough opening in end wall frame.
4. Attach stay rollers and the sliding door tracks to the end wall.
5. Hang the sliding doors in the door track and adjust sliding doors as needed.
6. Attach polycarbonate panels to door frames.
7. Install 115581 screws through track to prevent door(s) from sliding out of the track.
8. Attach door handles and reinstall doors (if these were removed to install cladding).

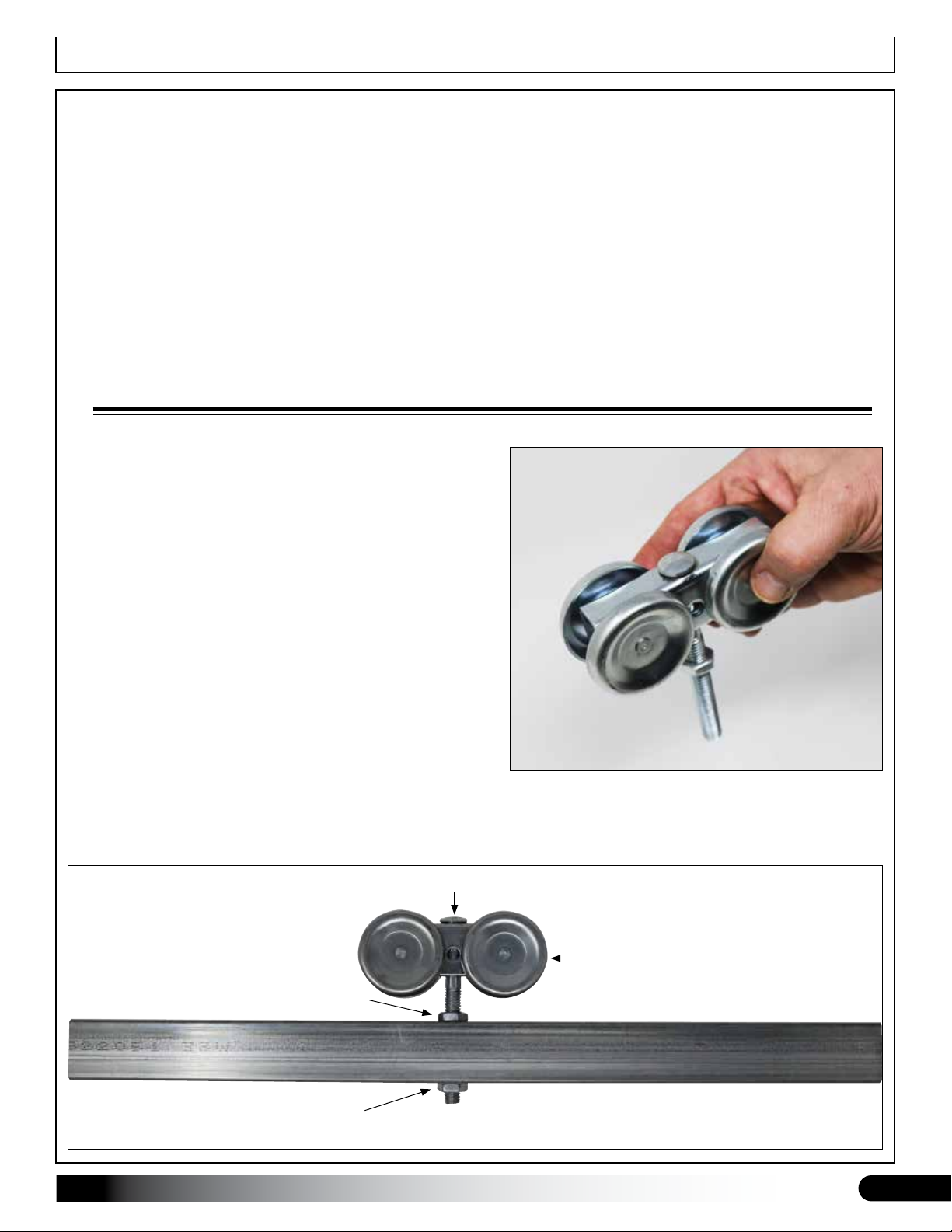

ATTACH ROLLER ASSEMBLIES TO DOOR FRAMES
Complete the following steps to attach bearing hangers to
the door frames.
1. Assemble 102923 door frames.
2. Locate and unpack the 116391 bearing hangers. Each
door requires two (2) bearing hangers.
3. Insert mounting bolt through top of roller bearing and
add one adjusting locknut.
4. Insert end of mounting bolt through mounting hole in top
of door frame and add the remaining adjusting locknut.
NOTE: Use 1/2" drill bit and drill to enlarge hole if
bearing hanger bolt does not fit.
5. Repeat to attach remaining hanger to door frame.
Door Frame Tube
Adjusting Locknut
Adjusting Locknut
Mounting Adjusting Bolt
Bearing Hanger
6. Repeat steps to attach bearing hangers to remaining door frame.
7. Continue with next procedure.
ATTENTION: Use 1/2" drill bit and drill to
enlarge hole if bearing hanger bolt does not fit.

6Revision date: 04.30.19
Door Frame Assembly
S15P118
Header (cut to length)
90"
93"
Concrete Concrete
Finished Grade
(inside-to-inside)
Bottom of header to
top of finished grade.
Door jamb
anchored in
concrete.
Finished
Grade
*Not shown
to scale.
NOTE: End frame and
rafter are not included
with any door kit.
ASSEMBLING THE DOOR FRAME COMPONENTS
Consult the diagrams at the back of these instructions before you begin. Assistance is required to assemble the door
frame and door. The following steps describe one way to assemble the door frame and door.
1. Using the dimensions on the Door Frame Layout diagram (Quick Start Section), determine the positions of the
doorjambs.
2. Dig 8"-10" diameter holes at the locations found in previous step to a depth that is below the geographic frost line.
Minimum depth: 24".
3. Using the rough door opening dimensions and the door frame components, assemble and install the door frame.
See diagram below.
4. Square door frame and secure doorjambs in holes using concrete. Verify door frame dimensions before you
secure jambs in concrete. Doorjambs must be plumb for proper door operation.
5. Once door frame is attached to end wall framing, assemble the door. Consult the procedures on the next few
pages for your door (twin wall or corrugated polycarbonate).
Tek screws
QH1330

7
Revision date: 04.30.19
Stay Roller Assembly

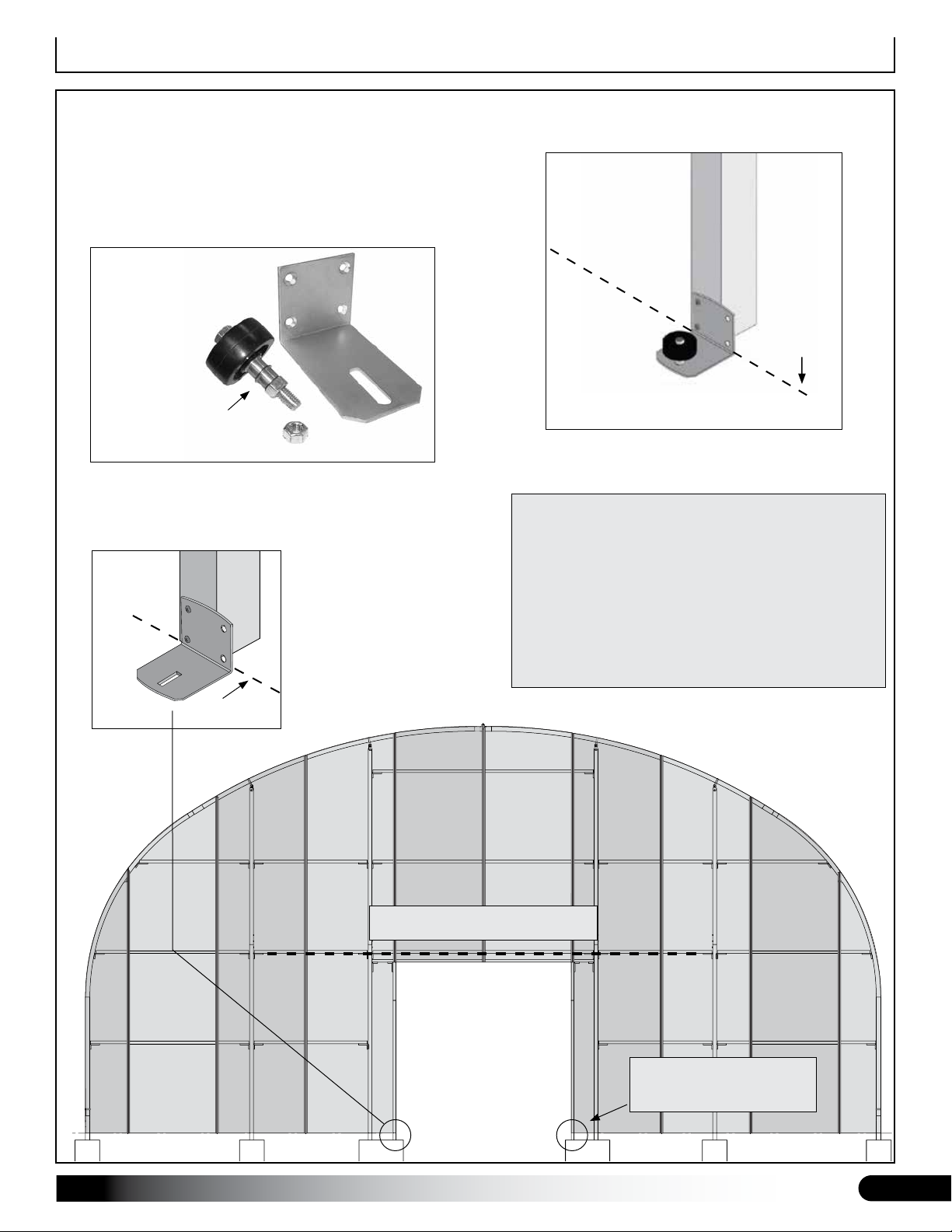

ASSEMBLE AND ATTACH STAY ROLLERS
1. Locate the 100356 stay roller assembly and remove
the roller, bushings, bolt, and nuts.
2. Secure the angle bracket in the lower-right corner of
the assembled door frame as shown below. Allow
clearance under bracket to attach stay roller.
Reattach the roller and related parts to the angled bracket
attached to the end wall frame.
NOTE: Do not tighten the roller assembly at this time. It is
adjusted and tightened when the door is installed.
ATTENTION: Stay roller assembly is attached to the door
jamb on the same side the door is on when in the open
position. For illustration purposes, the following diagrams
show the roller assembly attached to the right side.
Assemble with the
two brass bushing
on the underside of
the roller.
ATTENTION: After installing the stay roller, install
the end wall cladding (polycarbonate panels or
fabric panel). The polycarbonate panels of any
end wall PC package must be installed before you
install the sliding door assembly. Complete the
installation of all polycarbonate panels at this time
for these kits: GS05KCC2072 and GS05KCT2072,
GS05KCC2472 and GS05KCT2472, GS05KCC3072
and GS05KCT3072, and GS05KCC3572 and
GS05KCT3572.
Finished Grade
Finished Grade
Position the stay roller at the
corners of the door opening
in the end wall framing.
Dashed line shows the approximate
position of the sliding door track.
NOTE: Secure using
115581 pancake head
screws if screws are
not included with roller.
Do not use the holes
marked with an X in the
diagram.
Doorjamb
Header
Doorjamb
Door
Opening
Outside of
Building
Doorjamb
Finished
Grade
X
X
Door
Opening
Finished Grade

8Revision date: 04.30.19
Sliding Door Track Assembly
ATTACH DOOR TRACK
Gather the parts:
• FAK26 3/8" threaded rods, FALB04B 3/8" nuts, FAME18B 3/8" SS flat washers, FAMA38B lock washers, and
FAME52B 3/8" flat washers
• FA4484B Tek screws and 102921B neo-bonded washers
• 100377 door tracks and 100380 hanger brackets for door track
Complete these steps to install the slider door tracks (100377). Complete only those steps that apply to the type of
end wall polycarbonate (8mm twin-wall or corrugated) that covers the end frame.
1. Review diagram below for the slider track position. Space the five (5) track hanger brackets (100380) evenly along
the slider track with one in the center at the joint between the two slider tracks.
ATTENTION: Install hangers in a position so the mounted track is above the top of the door header. Add another
end wall horizontal tube if needed to correctly mount the slider track. Door opening is smaller than the actual
sliding door frame to prevent doors from pushing into the opening when closed.
The position of the sliding door frames when installed and closed will align with the header and doorjambs of the
end wall door frame.
Position of slider track
above door opening. 100380 Bracket
slider trackslider track
Doorjamb Doorjamb
Finished GradeFinished Grade
Center of the
door opening.

9
Revision date: 04.30.19

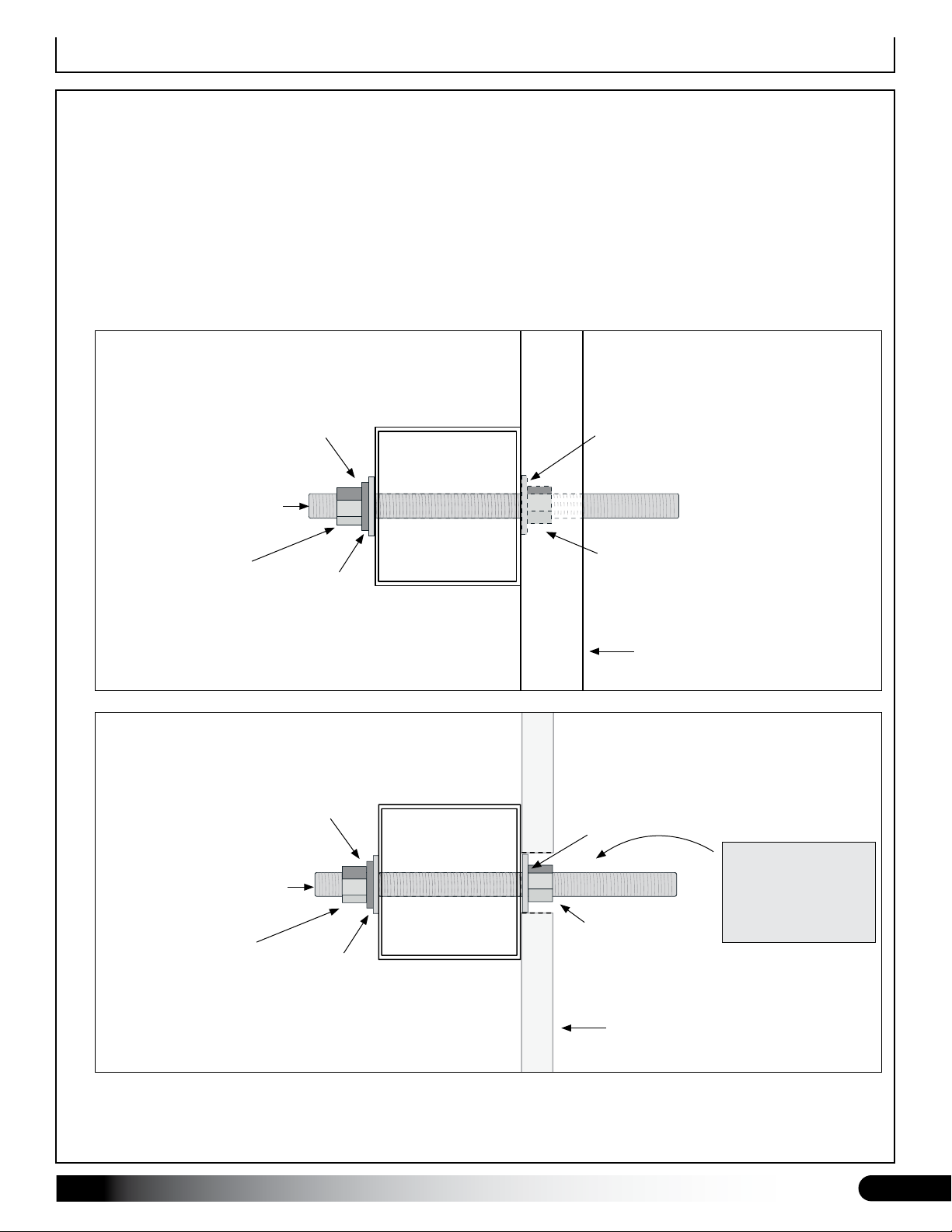

Sliding Door Track Assembly
Mark bracket positions on end wall cladding. Space brackets evenly along the length of slider track.
For corrugated panels, drill 7/16" mounting holes in the valleys of the panels. Shift brackets left or right as needed.
Drill one 7/16" hole through the end wall cladding and steel tube framing for each bracket. Drill holes level and
straight through the tube to mount the brackets and track properly. See diagrams below and on the next page.
For twin-wall polycarbonate panels, first drill a 1" hole through the twin-wall panel only at bracket mount position,
then drill the 7/16" mounting hole through the end wall frame tube. This allows the mounting nuts and washers to
directly contact end wall frame without crushing the twin-wall polycarbonate panels. See diagrams below and on
the next page. Before you install track bracket, fill hole in polycarbonate panel using customer-supplied sealant.
ATTACH DOOR TRACK (continued)
2. Install the FAK26 rod as shown above.
3. Repeat to install and secure the remaining FAK26 threaded 3/8" rods.
Twin-Wall Polycarbonate
End Wall Panel
Outside Building
FAME18B
Flat Washer
End Wall
Frame Tube
Inside Building
FALB04B
Nut
FAME18B
Flat Washer
FAMA38B
Lock
Washer
FAK26
Rod
FALB04B
Nut
Corrugated Polycarbonate
End Wall Panel
Outside Building
FAME18B
Flat Washer
End Wall
Frame Tube
Inside Building
FALB04B
Nut
FAME18B
Flat Washer
FAMA38B
Lock
Washer
FAK26
Rod
FALB04B
Nut
NOTE: Fill hole in
panel with customer-
supplied silicone
sealant after nut is
tightened.
SIDE VIEW
SIDE VIEW

10 Revision date: 04.30.19
Sliding Door Track Assembly
4. Install the mounting brackets and door tracks. See diagrams below.
NOTE: For polycarbonte panels, install as many FAME52B washers as needed to prevent the track brackets from
touching the panel when installed, then secure with the nut, lock washer and flat washer. See diagrams below.
5. Position tracks as needed in brackets to allow doors to fully close and open when operated. See diagrams below.
ATTACH DOOR TRACK (continued)
6. Add FAME18B flat washer, FAMA38B lock washer, and FALB04B nut to each threaded rod. Tighten the nuts to
secure mounting brackets to the frame. Cut the threaded rods to the desired length.
7. Continue with next procedure.
TOP VIEW SHOWING TRACK BRACKET
Track bracket with
track installed.
Track bracket with
track installed.
FAME52B
Flat
Washers
FAME52B
Flat
Washers
100380
Bracket
100380
Bracket
End Wall
Frame Tube
End Wall
Frame Tube
End Wall
Frame Tube
End Wall
Frame Tube

11
Revision date: 04.30.19
Adjust Doors
Adjusting Locknut
Adjusting
Locknut
INSTALL AND ADJUST SLIDING DOOR
Complete these steps:
1. With assistance, carefully lift doors into position and
slide bearing hangers into the end of the door track.
2. Slide doors to the closed position.
3. Adjust the nuts on each bearing hanger to achieve
the desired fit.
ATTENTION: Doors will hang level and close
tightly—no gap where doors meet—when properly
adjusted. Doors should glide freely through the stay
rollers. Adjust as needed.
4. Tighten nuts to secure bearing hanger adjustment.
5. Loosen the stay rollers as needed to adjust later.
Door
Jamb
End Frame
Base Tube
Inside
Building
Outside
Building
Sliding Door Frame
Ground Level
Adjust and Tighten
NOTE: Allow clearance for door cladding, which is
installed later. Actual positions of components may
differ from diagram.
6. Continue with the next procedure.
Space below is reserved for customer notes.
Door panel
installed later.

12 Revision date: 04.30.19

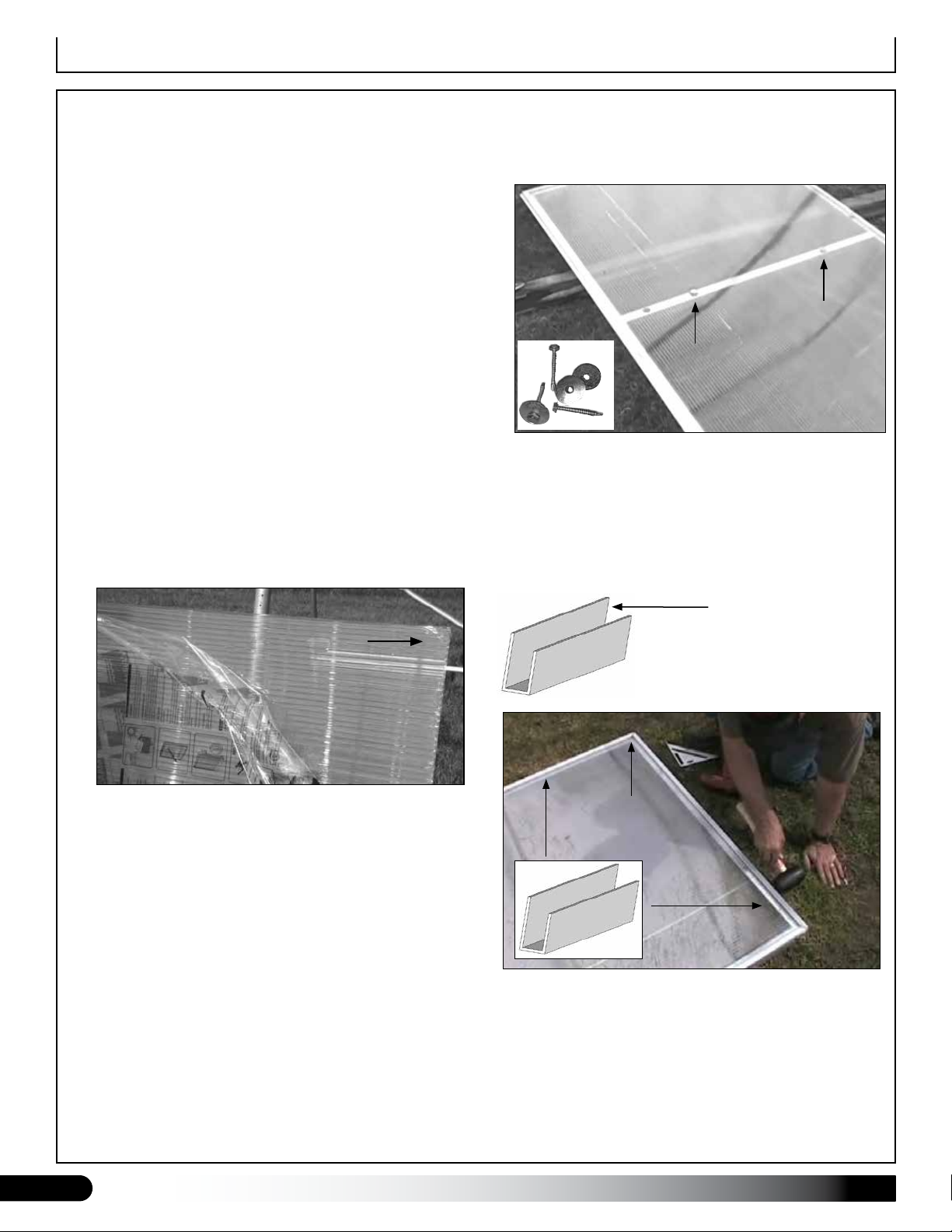

Twin-Wall Single Sliding Door Assembly
TWIN-WALL DOOR ASSEMBLY
If your door kit includes a corrugated polycarbonate
panel, skip this section and continue with the
assembly steps for that door. The materials and parts
needed to assemble the door include:
• Assembled door frames with bearing hangers
• 8 mm panels (116049)
• Door handles (100362)
• Pancake head screws (115581)
• Neo-bonded washers (102921B)
• Aluminum profile (104213)
Assemble and Attach Doors
NOTE: Attach polycarbonate panel with UV-protected
side toward the outside/sun.
1. Remove door frames with bearing hangers from door
track and place on a flat surface.
2. Take polycarbonate panel and trim so length is one-
quarter inch (1/4") shorter than length of door frame.
NOTE: Attach panel in locations shown in photo to
hold in place while attaching aluminum profile to
perimeter of panel.
6. Install aluminum U-channel profile to all edges of
polycarbonate panel. The 104213 sections at top and
bottom of panel run to panel edges to seal cells.
5. Using 115581 screws and galvanized neo-bonded
washers, attach panel to horizontal cross tube of door
frame. Evenly space Tek screws and washers every
12" or so.
3. Trim width of panel (if needed) so that it is one-
quarter inch (1/4") narrower than width of door frame.
NOTE: Trimming panel as instructed will keep panel
flush with edges of the door frame once the aluminum
profile (104213) is installed.
4. Center panel on a door frame.
Mark UV Side X
Install this edge to the
underside of the panel
against the door frame.
Photo shows the polycarbonate panel attached to
the outside of the door frame and finished with the
aluminum (104213) U-channel profile.
45° Angle

13
Revision date: 04.30.19
Twin-Wall Single Sliding Door Assembly
TWIN-WALL DOOR ASSEMBLY (continued) 11. Install two Tek screws through the front of the door
track at each end to prevent the doors from sliding out
of the track.
12. Install door handles in the desired locations. Drive
115581 pancake head screws through the panel and
into the door frame. Handles can be installed vertically
or horizontally.
ATTENTION: The installation of the 104548 profile is
an optional step for those who want to cap the end of
the end panels at the door opening. Use Tek screws
to secure the profile to the end wall framing.
View is from the inside of the frame looking at the
point where the door meets the door frame of the end
wall.
14. Check the door operation and verify that doors slide
smoothly in the door track. Adjust as needed.
15. Continue by reading the care and maintenance
information.
Stay Roller
SIDE
VIEW
Adjust Stay Roller
as needed.
Door
w/Panel
Attached
Door
Frame
w/Panel
Attached
Door Door
Frame
115581 Screws
ATTENTION: Do not use an impact driver to install
screws. Use a variable speed drill and the 100448 nut
setter. Install screws at 16" on-center.
8. With assistants, lift door up and into place with the
panel facing out and insert the rollers into the track.
9. Repeat the steps to attach polycarbonate panel to
remaining door frame and slide it into the door track.
10. Slide doors to the closed position and adjust the stay
roller for each door at bottom as needed and tighten.
7. Take the 115581 screws and, using the 100448 bit
and drill driver, secure trim to door. Carefully install
each screw. DO NOT OVERTIGHTEN! Doing so will
dent the aluminum trim pieces.
Install Tek screws here.
13. Install the 104548 profile along the end wall door
frame as shown in the following photos.
Stay Roller
Door
w/Panel
Attached
Door
Opening
Slide
to
Close

14 Revision date: 04.30.19

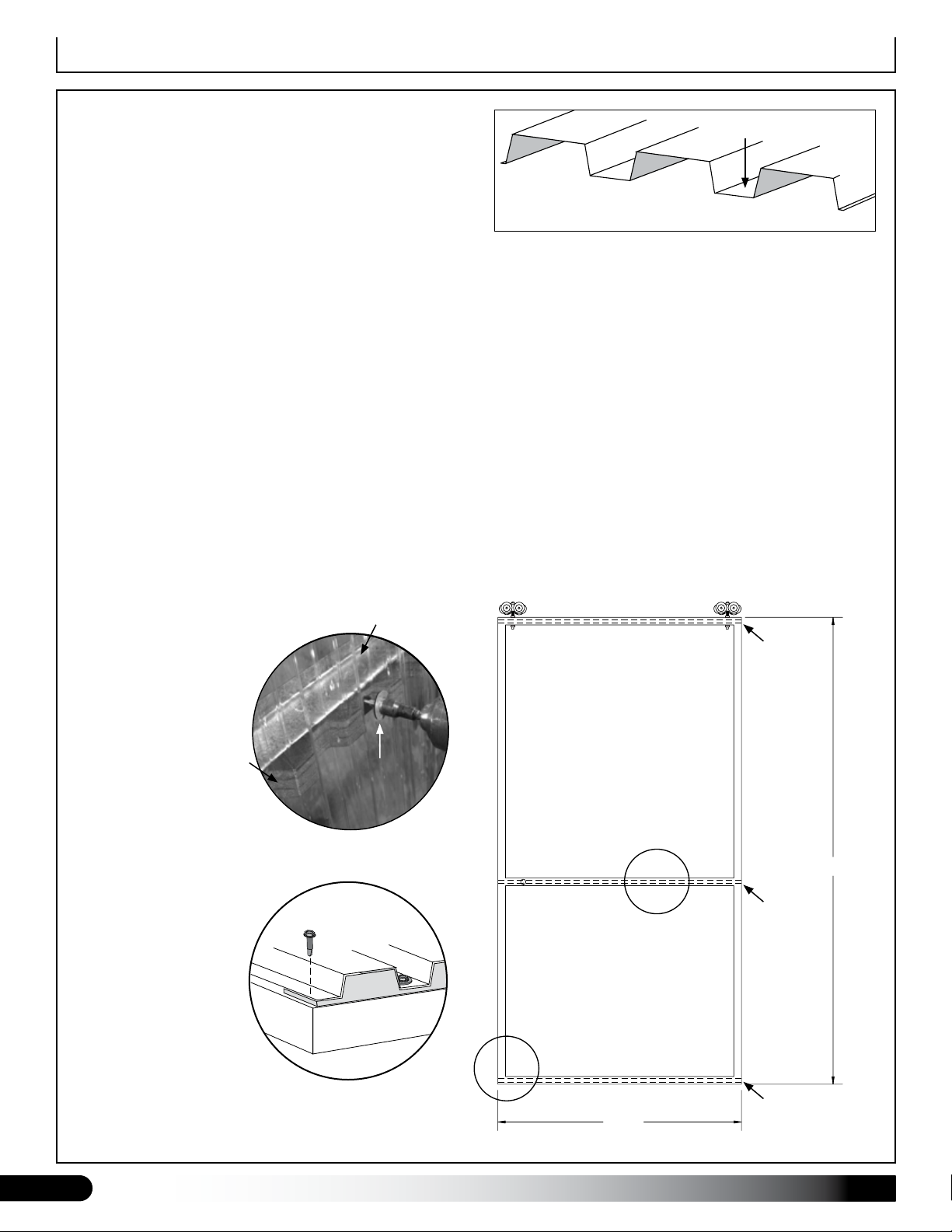

CORRUGATED DOOR ASSEMBLY
The materials and parts needed to assemble the door
include:
• Door frame (102923) and corrugated panel (104620)
• Tek screws (FA4484B)
• Neo-bonded washers (102921B)
• Horizontal closure strip (104709)
Attach Panel to Door Frame
1. Take door frame with attached bearing hangers and place it on a flat surface.
2. Select one (1) corrugated panel—this will be one 50" x 8' 2" panel—and trim it so that the length is one-quarter
inch (1/4") shorter than the length of the door frame. Pay attention of where the valleys of the panel end.
3. Install sections of the horizontal closure strips under the panel (see Detail A) and before attaching the panel to the
horizontal cross tube. Trim one (1) closure strip as needed for each of the three (3) locations.
4. Install Tek screws and washers through the panel, closure strip, and into the horizontal cross tube every 6" or so.
Always install Tek screws and washers in the valleys of the panel. Do not overtighten screws.
5. Attach the panel in the locations shown below to hold the panel in place.
6. Secure the sides of the polycarbonate panel to the door frame using Tek screws only every 16" (see Detail B).
Corrugated Panel
Valley
NOTE: Verify that the horizontal closure strip under
the panel is in place before attaching the panel to the
door frame.
Corrugated Single Sliding Door Assembly
D
D
E
E
T
T
A
A
I
I
L
L
A
A
4
4
8
8
"
"
9
9
2
2
"
"
D
D
E
E
T
T
A
A
I
I
L
L
A
A
D
D
E
E
T
T
A
A
I
I
L
L
B
B
D
D
E
E
T
T
A
A
I
I
L
L
B
B
Closure
Strip
Step 3
Closure
Strip
Closure
Strip
Closure Strip Tek Screw
and Washer
Valley
Dashed lines
identify the
positions of the
foam closure
strip (104709).

15
Revision date: 04.30.19

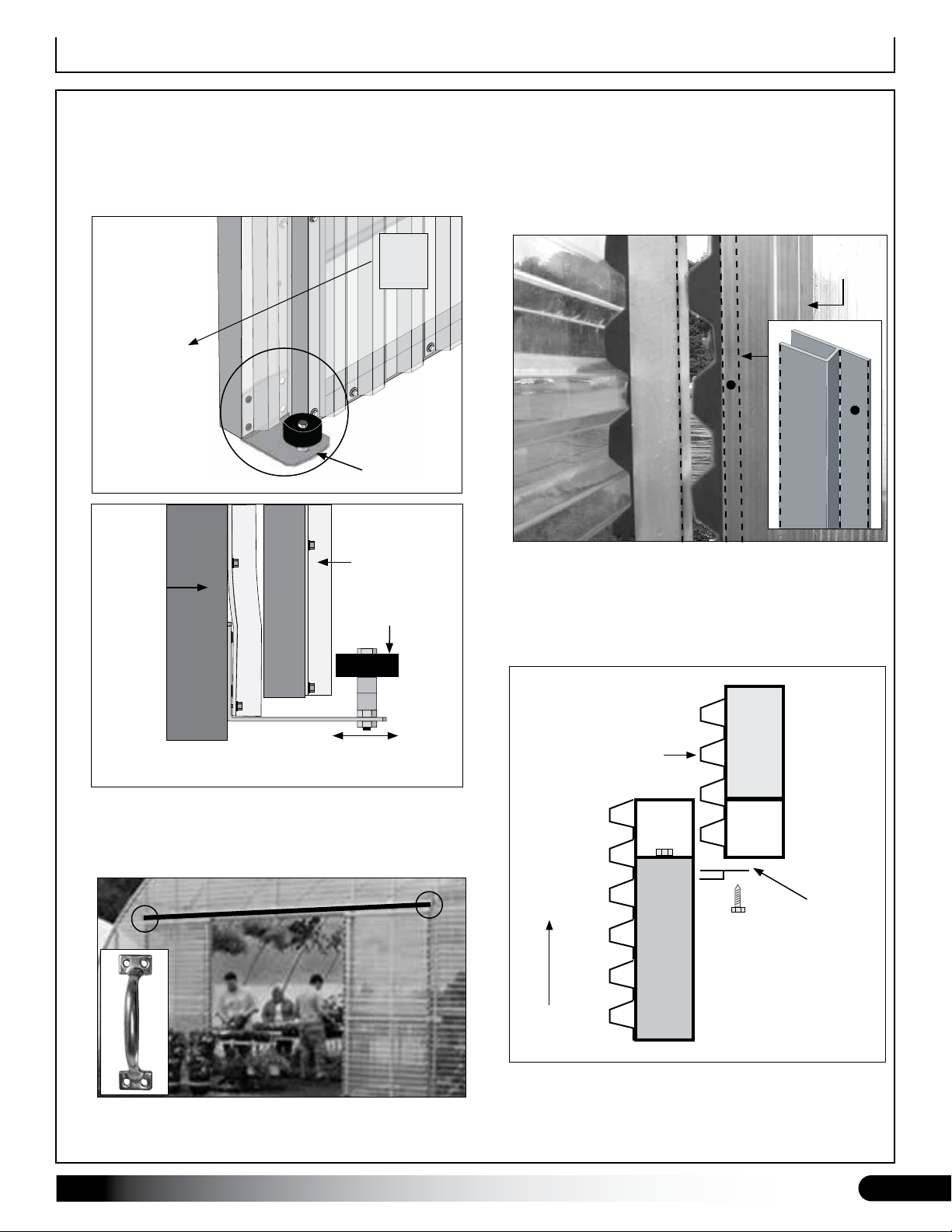

Corrugated Single Sliding Door Assembly
CORRUGATED DOOR ASSEMBLY (continued)
9. After adjustments are made, slide door to its open
position and install two Tek screws through the front
of the door track at both ends to prevent the door from
sliding out of the track.
Install the 104548 profile along the end wall door
frame as shown in the following photos.
ATTENTION: Installation of the 104548 profile is an
optional step for those who want to cap the end of the
corrugated end panels at the door opening. Use Tek
screws to secure the profile to the end wall framing.
Photo above shows end wall without installed profile.
Dashed line shows where to install profile to cover
the valleys of corrugated end panels. View is from the
inside of the frame looking at the point where the door
meets the door frame of the end wall. See diagram
below for top view. See page 13 for installed view.
Stay Roller
SIDE
VIEW
Adjust Stay Roller
as needed.
Door
w/Panel
Attached
Door
Frame
w/Panel
Attached
Door
Door
Frame
NOTE: Photo shows
panels running
horizontally. Actual
frame will have
vertically running
panels. Photo is for
illustration purposes.
10. Install the door handle in the desired location, using
Tek screws through the panel and into the door frame.
11. Check the door operation and verify that door slides
smoothly in the door track. Adjust as needed.
12. Continue by reading the care and maintenance
information.
7. With assistants, lift door up and into place with the
panel facing out and insert the hangers into the track.
8. Slide door to the closed position and adjust the stay
roller as needed and tighten.
Step 9 Step 9
Stay Roller
Door
w/Panel
Attached
Door Jamb
w/ End Panel
Attached
Door
Opening
Slide
to
Close
Outside Inside
104548
Aluminum Profile
TOP VIEW
Slide Door
to Open
Door Frame
Door
Jamb
End Wall
Horizontal
Support
Corrugated Panel
Corrugated Panel
– End Wall

16 Revision date: 04.30.19
Space below is reserved for customer notes.
Shelter Care and Maintenance
SHELTER CARE AND MAINTENANCE
Proper care and maintenance of the door are important.
Check the following items periodically to properly maintain
the door and door frame:
• Regularly check the polycarbonate panels to see that
they remain secure and in good condition. Replace
damaged panel if needed.
• Check connections and all fasteners to verify that they
remain tight.
• Check the contents of the shelter to verify that nothing
is touching the polycarbonate panels that could cause
damage or interfere with the door operation.
• For safety, door must remain fully opened or fully
closed. Do not leave door ajar.
• Check all slider mounting bolts regularly and tighten
as needed.
• Replace damaged or broken parts immediately.
• Lubricate bearing hangers and stay rollers as needed
to keep them operating smoothly.
• For replacement or missing parts, contact you sales
representative for assistance.

17
Revision date: 04.30.19
QUICK START GUIDE
Double Sliding Door Kit (GS05KDR2SLT and GS05KDR2SLC)
Quick Start Guide
Corrugated Door Sample
GS05KDR2SLC
Finished Grade
Finished Grade
Finished Grade
Finished Grade
Twin-Wall Door Sample
GS05KDR2SLT
ATTENTION: End frame and end rafter are
not included with any door kit. Actual width
of the building end wall may differ.

18 Revision date: 04.30.19
2'-0"
EMBEDMENT
90" R.O.
VIEW 2
ANGLE BRACKET
1.5" X 1.5" SQUARE TUBE CONNECTION
(S15P020)
DOOR JAMB TO HEADER CONNECTION
1.5" X 1.5" SQUARE TUBE (
VIEW 3
(CUT TO FIT IF NEEDED)
1.5" X 1.5" SQUARE TUBE (S15P118)
1.5" X 1.5" SQUARE TUBE (102897102897)
GROUND LEVEL
ANGLE BRACKET (QH1330)
ANGLE BRACKET (QH1330)ANGLE BRACKET
(QH1330)
VIEW 1 HEADER TO ENDWALL COLUMN CONNECTION
(QH1330)
)
1.5" X 1.5" SQUARE TUBE
1.5" X 1.5" SQUARE TUBE (S15P020)
(CUT TO FIT IF NEEDED)
93" R.O.

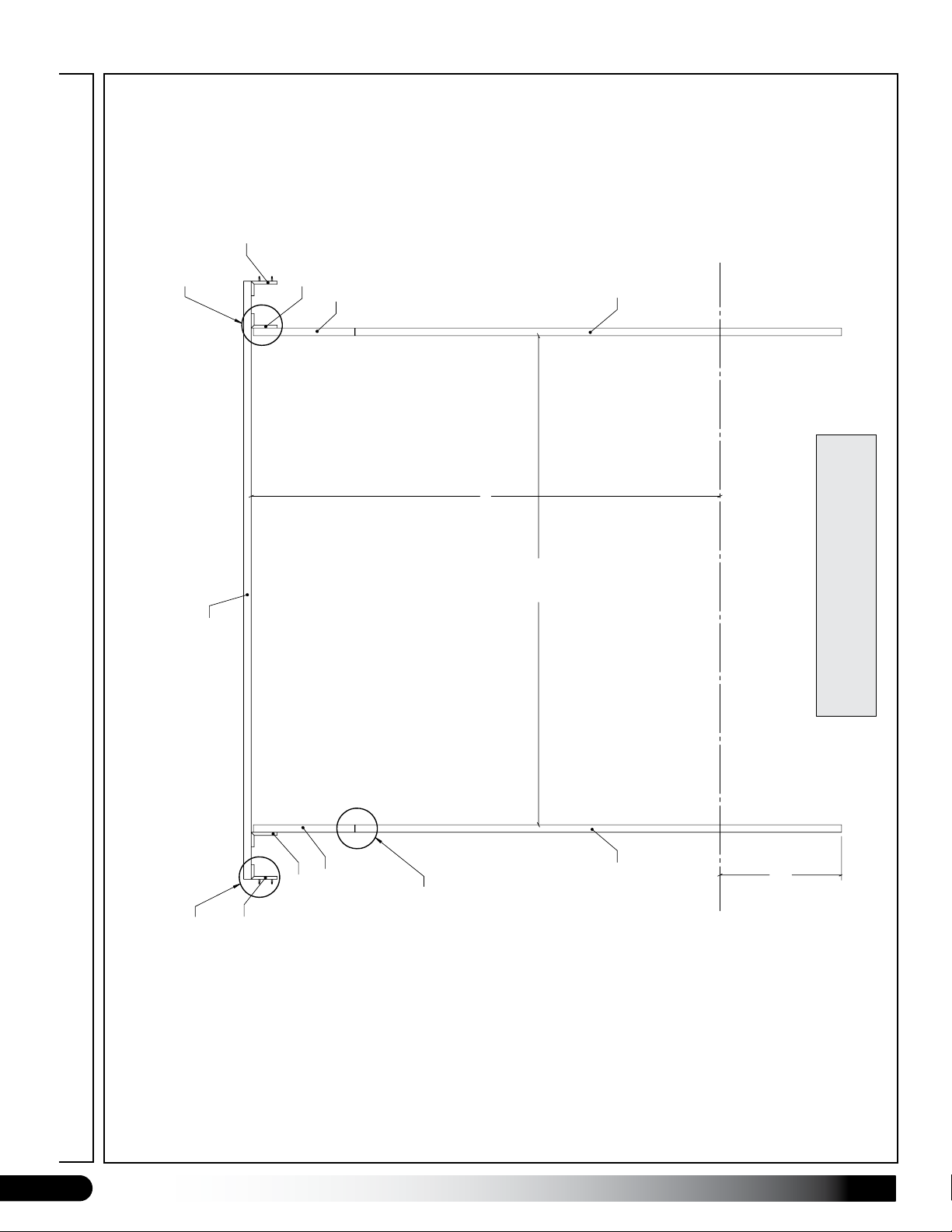

Door Frame Layout
ATTENTION: Square the door opening and measure the door before anchoring the doorjambs in concrete.

19
Revision date: 04.30.19
Door Frame Detail Connections
DOOR HEADER
DOOR JAMB
ANGLE BRACKET
(QH1330)
- (4X) #14 X 1" TEK SCREW
VIEW 2
1.5" X 1.5" SQUARE TUBE CONNECTIONHEADER TO ENDWALL COLUMN CONNECTION
VIEW 1 VIEW 3
DOOR JAMB TO HEADER CONNECTION
1.5" X 1.5" SQUARE TUBE
- (2X) #14 X 1" TEK SCREW
ENDWALL COLUMN
DOOR HEADER
ANGLE BRACKET (QH1330) - (4X) #14 X 1" TEK SCREW
ATTENTION: Install screws in a location that will not interfere with the installation of the door assembly.
