GVM GVM-PRO-SD400B User manual

GVM-PRO-SD400B
GVM-PRO-SD500B

CONTENTS
Product introduction ---------------------------------------------------------- Page 1
Disclaimers -------------------------------------------------------------------- Page 1
GVM-PRO-SD400B Product parameter --------------------------------------- Page 2
GVM-PRO-SD500B Product parameter --------------------------------------- Page 3
Product structure diagram ---------------------------------------------------- Page 4
Installation method -------------------------------------------------------- Page 5~9
Description of product control keys ---------------------------------------- Page 10
Function introduction & instructions for use --------------------------- Page 11~12
APP control -------------------------------------------------------------- Page 13~14
Use and save ----------------------------------------------------------------- Page 14
Simple faults and troubleshooting ------------------------------------------ Page 15
Packing list ------------------------------------------------------------------- Page 16
Precautions ------------------------------------------------------------------- Page 16

PRODUCT INTRODUCTION
Welcome to use " GVM-PRO-SD400B/GVM-PRO-SD500B", this product is designed
for senior photography enthusiasts, The product is suitable for live broadcast /
outdoor / film shooting / studio photography，It can also be used for YouTube
video shooting.
① It has high-definition COB beads, which help to restore and enrich the color of
objects, providing you with natural and vivid shooting effects.
② APP control, can be controlled through your iOS and Android smart mobile
device connection; support Bluetooth Mesh networking, you can group control
with GVM brand devices that support Mesh networking.
③ With standard DMX interface, DMX control mode of low precision 8bit and high
precision 16bit can be realized.
④ 3 lighting modes, CCT mode, light source matching mode, light effect Mode.
We firmly believe that the correct use of this product, for your shooting work will
certainly have a great help, Before using the product, we strongly recommend that
you read the following user guide carefully.
DISCLAIMERS
1. Before using this product, please read the text carefully to ensure that the correct
operation of the product has been carried out. Failure to follow and not following
the instructions and warnings in this document may cause harm to you and others
around you, or even damage the product or other surrounding items.
2. By using this product, you are deemed to have carefully read the disclaimer and
warning, understand and acknowledge all the terms and contents of this
statement, and promise to take full responsibility for the use of this product and
the possible consequences.
3. Design and specifications are subject to change without notice.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1

GVM-PRO-SD400B
PRODUCT PARAMETER
Brand: GVM
Product Name: Photography light
Product type: photography fill light
Function control: multiple light effect modes, high display index lamp beads
Control mode: DMX, wireless remote control, light body control, APP Bluetooth
MESH network control
Lumen: Bare light ------lux/1m;
Plus standard cover ------lux/1m
Number of lamp beads: 1 (COB lamp beads)
Color rendering index : ≥97
Color temperature: 2700K~6800K
Light adjustment method: Stepless adjustment
Product net weight: 5KG
Maximum power: 400W
Power supply mode: AC&Battery (V-mount battery)
AC input: 100V~240V
DC input: 24V~36V
Product Size (mm): 436×150×265
Controller size (mm): 136×133×335
Controller net weight: 2.6KG
Product material: Aluminum alloy
Heat dissipation: Heat sink + fan
Commodity origin: Huizhou, China
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
2

GVM-PRO-SD500B
PRODUCT PARAMETER
3
Brand: GVM
Product Name: Photography light
Product type: photography fill light
Function control: multiple light effect modes, high display index lamp beads
Control mode: DMX, wireless remote control, light body control, APP Bluetooth
MESH network control
Lumen: Bare light ------lux/1m;
Plus standard cover ------lux/1m
Number of lamp beads: 1 (COB lamp beads)
Color rendering index : ≥97
Color temperature: 2700K~6800K
Light adjustment method: Stepless adjustment
Product net weight: 5KG
Maximum power: 500W
Power supply mode: AC&Battery (V-mount battery)
AC input: 100V~240V
DC input: 24V~36V
Product Size (mm): 436×150×265
Controller size (mm): 136×133×335
Controller net weight: 2.6KG
Product material: Aluminum alloy
Heat dissipation: Heat sink + fan
Commodity origin: Huizhou, China
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆
◆

控制器
灯
Vents
lamp beads
Bowens mount
U-frame
Fixture knob
Angle lock handle
散热孔
灯珠
保荣卡口
U型架
灯架固定旋钮
角度锁定手柄
Control input
Light stand interface
Vents
控制输入
灯架接口
散热孔
Display screen
Knob①:
Brightness adjustment /
selection confirmation
Menu key
Mode key Battery plate
Return key
Cooldown key
Knob②:
CCT adjustment /
rate adjustment
Power button
controller output
interface
DMX output
interface
DMX input interface
ACinput
PRODUCT STRUCTURE DIAGRAM
Display screen
Knob①:
Brightness adjustment /
selection confirmation
Menu key
Mode key Battery plate
Return key
Cooldown key
Knob②:
CCT adjustment /
rate adjustment
Power button
controller output interface
DMX output interface
DMX input interface
ACinput
4

1
INSTALLATION METHOD
Loosen the light stand fixing knob, install the light to the light stand as shown
below, then tighten the light stand fixing knob.
2Loosen the angle locking handle, adjust the angle of the spotlight, z then turn
the angle locking handle tightly.
5

3Insert the Bowens bayonet of the standard cover into the Bowens bayonet of the
lamp correspondingly, and then turn it clockwise lightly. you can install the
standard cover to the light. Push the Bowens removal catch upward to the right
while rotating the standard cover counter clockwise to remove the standard
cover.
4Install the controller fixing clip on the light stand as shown in the figure below.
6

5Follow the steps shown in the figure below to install the controller on the
controller fixing clip first.
7

6As shown in the figure below, use the control wire to connect the light and the
controller.
8

Battery slot
Power input interface
(Batteryneedstobepurchasedseparately)
6There are two power supply modes to choose from:
①Use the AC power cord for power supply.
② Use two V button batteries for power supply.
(Batteries must be inserted into both battery slots to provide power, and the
power is halved when using batteries.)
9

4
5
6
8
1
7
2
显示屏：显示当前设置、模式和参数
模式键：灯光模式切换按键
菜单键：按此键进入设置菜单
返回键：按此键返回上一级菜单
开关机键
旋钮①： INT/SELECTOR 多功能编码
旋钮，通过按或旋转可进行“选择 /
亮度”的调节。
旋钮②： CCT 调节 / 速率调节，通过
旋转可进行色温的调节 / 光效变化速
率的调节。
3
45
6
2
8
1
7
3
冷却键：启动大风量散热，直到温度
降低到可触碰的温度。
DESCRIPTION OF PRODUCT
CONTROL KEYS
1Display: Display current settings, modes
and parameters.
Mode key: light mode switch button.
Menu key: press this key to enter the
settings menu.
Return key: Press this key to return to
the previous level menu.
Cooling key: start a large air volume
cooling until the temperature is reduced
to a touchable temperature.
Knob ①: INT/SELECTOR multi-functional
coding knob, by pressing or rotating can
be”Select/Brightness" adjustment.
Knob ②: CCT/SPEED adjustment, by
rotating it, you can make the adjustment
of color temperature and light effect
change rate.
Power ON/OFF button.
2
3
4
5
6
7
8
10

① MENU ：
DMX SETTINGS (Figure 1): Set the DMX
parameters, [address (001-512)] and
configure the mo mode [(8bit/16bit)].
DIM CURVE (Figure 2): Set the dimming
curve, [linear / logarithmic / exponential / S
curve].
WL SETTINGS (Figure 3): RF channel settings,
RF switch, Bluetooth switch, Bluetooth reset.
STUDIO (Figure 4): Set the studio mode and
non-studio mode.
Studio mode: power off and turn the light
back on, restore the memory brightness
value before the power failure.
Non-Studio mode: turn on the light again
after power failure, restore the default
brightness value of factory settings.
FREQUENCY SETTINGS (Figure 5): Set the
dimming frequency
FAN SETTINGS (Figure 6): set the cooling fan
mode.
LANGUAGE (Figure 7): Set the system
language.
SYSTEM SETTINGS (Figure 8): View x system
information and restore Factory Settings.
FUNCTION INTRODUCTION &
INSTRUCTIONS FOR USE
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 8
Figure 7
① MENU ：Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
DMX SETTINGS (Figure 1):
Set the DMX parameters, [address (001-512)]
and configure the mo mode [(8bit/16bit)].
DIM CURVE (Figure 2):
Set the dimming curve, [linear / logarithmic /
exponential / S curve].
WL SETTINGS (Figure 3):
RF channel settings, RF switch, Bluetooth
switch, Bluetooth reset.
STUDIO (Figure 4):
Set the studio mode and non-studio mode.
Studio mode: power off and turn the light
back on, restore the memory brightness
value before the power failure.
Non-Studio mode: turn on the light again
after power failure, restore the default
brightness value of factory settings.
FREQUENCY SETTINGS (Figure 5):
Set the dimming frequency.
FAN SETTINGS (Figure 6):
set the cooling fan mode.
11

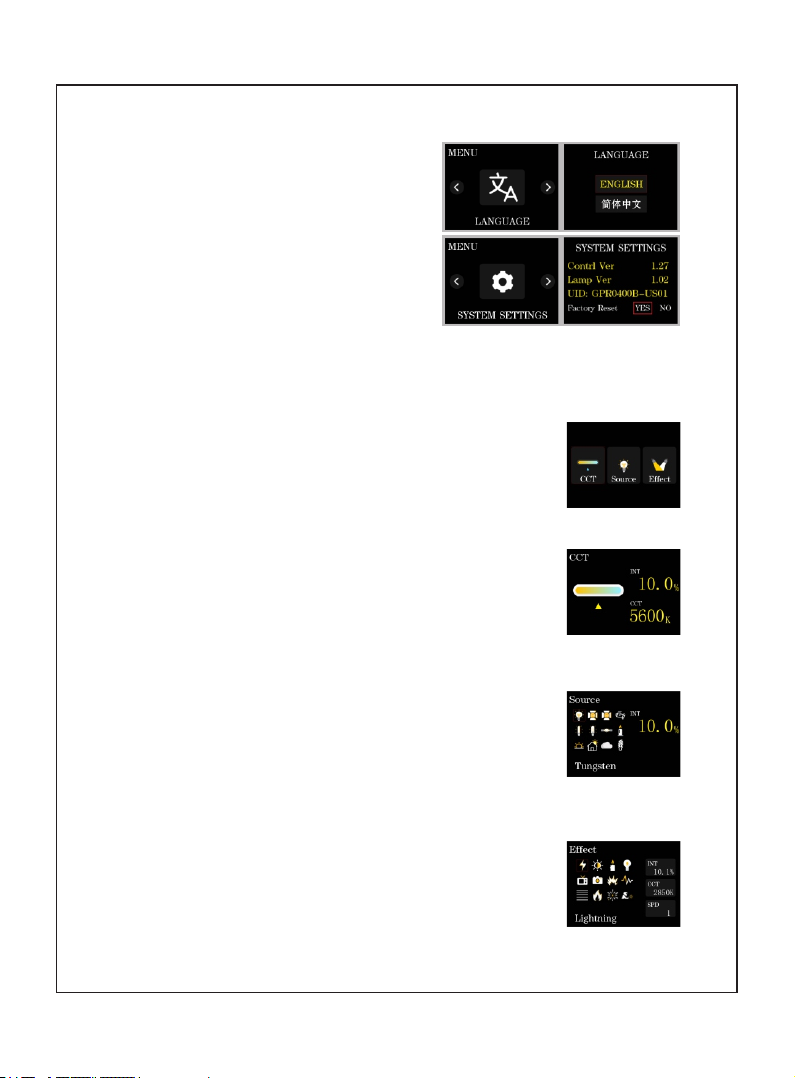

① MODE ：
Press MODE button ,enter the main page of mode selection
(Figure 9) → rotate [knob ①] to select the mode → press
[knob ①] to enter the corresponding mode interface → set
the parameter of the item by pressing or rotating [knob ①] →
press [BACK] to go up one level.
CCT mode (Figure 10):
White light mode, adjustable light intensity and color
temperature. [Knob 1] can be provided to adjust the
brightness, and [Knob 2] can be used to adjust the color
temperature.
Light source mode (Figure 11):
This mode provides 12 different types of light source types to
choose from, which can save a lot of adjustment time when
you need a specific light source.
Rotate and short press the [SELECTOR] key to select Source
mode to select the desired light source effect.
Light Effect Mode (Figure 12):
This mode provides 12 light effects: lightning, CCT cycle,
candle, bad bulb, TV, paparazzi, explosion, breathing light,
strobe, flame, firework, welding.
Rotate and short press the [SELECTOR] button to select FX
mode, you can choose a variety of light effect.
Figure 9
Figure 10
Figure 11
Figure 12
Figure 8
Figure 7
LANGUAGE (Figure 7):
Set the system language.
SYSTEM SETTINGS (Figure 8):
View x system information and restore
Factory Settings.
12

图2
添加设备
①在添加设备前,请确保您已经开启手机蓝牙
及网络数据功能 , 并重置灯光设备蓝牙 ;
②在“我的设备”页面点击“添加设备”按钮，
查找附近已开启的蓝牙灯光设备，选择需
要连接的设备进行配网连接。 ( 图 2)
*A n d r o i d 系统需要开启位置权限以使用
Mesh 技术连接设备 , 在此过程中我们不会
收集您的任何位置信息。
12
图1
APP控制
APP下载方式(扫描说明书背面二维码下载APP）
Android 版：官网二维码、 Google Play、
华为商店等。
iOS 版： App Store
注册账号
使用手机号或电子邮箱注册和登录;( 图 1)
验证码发送可能会有延迟,送达速度取决于您
所使用的通信运营商或电子邮箱服务器；
部分电子邮件服务器可能会将我们的验证邮
件识别为广告推广,请检查您的拦截邮件收件
箱。
中文有手机号和通信运营商
英文无手机号和通信运营商
使用电子邮箱注册和登录 ;( 图 1)
验证码发送可能会有延迟 , 送达速度取决于您所
使用的电子邮箱服务器；
部分电子邮件服务器可能会将我们的验证邮件
识别为广告推广 , 请检查您的拦截邮件收件箱。
APP download method
Register Account
Adding Devices
Figure 1
Figure 2
APP CONTROL
(Scan the QR code on the back of the manual to download the APP)
Android version : Official website QR code, Google Play,
Huawei Store, etc.
iOS version : App Store
Register and sign in with your email address; (Figure 1)
There may be a delay in sending the verification code, and
the delivery speed depends on the email server you are
using. the email server used;
Some email servers may recognize our verification emails as
advertising Please check your blocked email inbox.
① Before adding devices, please make sure you have turned
on the Bluetooth and network data function of your
phone, and reset the Bluetooth of your lighting device.
② Click the "Add Device" button on the "My Devices" page
to find the nearby Bluetooth lighting devices that have
been opened, and select the device to be connected to
the network connection. (Figure 2)
* Android system needs to open the location permission to
connect the device with Mesh technology, we will not
collect any of your location information in this process.
13

设备管理
图3图4
① 成 功 添 加 您 的 灯 光 设 备 后 ,
您 的 设 备 将 会 展 示 在 “ 我 的
设备”列表中 ;( 图 3)
② 点 击 设 备 栏 , 即 可 进 入 设 备
控制。 ( 图 4)
Equipment management
① After successfully adding your
lighting device, your device will be
displayed in the "My Devices" list;
(Figure 3)
② Click the device bar to enter the
device control. (Figure 4)
Figure 3
Figure 4
14
USE AND SAVE
Do not place the product in high humidity, strong electromagnetic field, direct
sunlight, high temperature environment. If the product is not to be used for a long
time, disconnect the power supply.
Clean: Please unplug the power plug before cleaning. And use a damp cloth instead of
any detergent or soluble liquid, so as not to damage the surface layer.
Power supply: Ensure that the power supply is within the scope of use, too high or too
low will affect the work.
Maintenance: If there is a malfunction or performance degradation, please do not
open the shell package by yourself, so as not to damage the machine and lose the right
of maintenance. In the event of a malfunction, please feel free to contact us, and we
will do our best to solve the problem.
Accessories: Please use the accessories provided by the manufacturer or approved
accessory products in order to give full play to the best performance.
Warranty: Do not modify the product, otherwise the right to repair will be lost.

简单故障及排除方法
故障 现象 检 查 产 品 排除 故障
开机灯不亮
①灯与电源连接是否通电正常。
②用锂电池供电时，确保电池没
有出现“低电”保护。
确保电源线插头接触良好
对电池进行充电后使用产品
APP进入添
加设备后，
搜索不到设
备蓝牙
检查设备是否正常开启，是否已
被他人连接绑定。
正常步骤：
①手机开启蓝牙及网络数据
功能，Android系统需要
开启位置权限；
②重置设备蓝牙。
APP进行设
备配网连接
失败
检查设备是否正常开启，是否已
被他人连接绑定；检查手机蓝牙
和网络状况是否良好。
重置设备蓝牙并重启APP后
重新尝试连接。
设备从APP
移除后搜索
不到
是否在设备离线状态或者网络状
况不好的情况下移除设备。
重置设备蓝牙后重新搜索添
加设备。
APP内设备
点击无法进
入控制
检查设备是否在线(显示小绿点)；
如果离线，可按配网连接失败步
骤进行检查。
重新启 动设 备， 等待5秒 ，
显示为 在线 状态 即可 控制 ；
重置设备蓝牙，把设备重新
添加到设备列表。
SIMPIE FAULTS
AND TROUBLESHOOTING
Phenomenon Check the product Troubleshooting
The switch
indicator does
not light up.
① Whether the connection
between the lamp and the
power supply is normal.
② When using a lithium battery
to supply power, make sure
that the battery does not
have "low battery"protection.
Make sure the adapter is well
contacted with the power plug.
Use the product after charging
the battery.
After the APP
enters to add a
device, the
Bluetooth of the
device cannot be
searched.
Check whether the device is
normally turned on and whether
it has been bound by another
person's connection.
Normal steps:
① The mobile phone turns on
the Bluetooth and network
data functions, and the
Android system needs to turn
on the location permission;
② Reset the device Bluetooth.
The APP fails to
connect to
thenetwork
configuration of
the device.
Check whether the device is
turned on normally and whether
it has been bound by another
person's connection;
Check whether the Bluetooth
and network conditions of the
mobile phone are good.
After resetting the device's
Bluetooth and restarting the
App, try to connect again.
The device
cannot be
searched after
being removed
from the APP.
Whether the device is offline or
in network status.
Remove the device if it is not in
good condition.
After resetting the Bluetooth of
the device, search and add the
device again.
Clicking on the
device in the APP
cannot enter the
control.
Check whether the device is
online (a small green dot is
displayed); If it is offline, you can
check according to the steps of
the d i st r i bu t i o n n e t wor k
connection failure.
Restart the device, wait for 5
seconds, and then control it
when it is displayed as online;
reset the Bluetooth of the
device, and re-add the device to
the device list.
15

注意事项
①
②
③
④
⑤
在选用DC/电池供电时，确保DC/电池供电电压在24-36V/180W
范围才能达到最大亮度；
产品不防水，请在防雨淋环境下使用；
产品不防腐蚀，切勿让产品接触到任何有腐蚀性的液体；
产品在使用中，要确保产品放置稳固，防止产品摔落损坏；
长时间不使用产品时，请关闭产品电源，以节省能源损耗；
使用与保存
请勿将产品置于高湿，强电磁场，阳光直射，高温的环境中。 如
果长时间不使用本产品，请断开电源。
清洁：清洁前，请拔下电源插头。 并使用湿布代替任何清洁剂或可溶
性液体，以免损坏表面层。
电源：确保电源在使用的要求范围内，过高或过低都会影响工作。
维修：如果出现故障或性能下降，请勿自行打开外壳，以免损坏机器
并失去保修权利。 发生故障时，请随时与我们联系，我们将尽
最大努力来解决问题。
附件：请使用制造商提供的附件或认可的附件产品，以便发挥最佳的
性能。
保证：请勿修改产品，否则将失去保修权利。
PRECAUTIONS
① When using DC/battery power supply, ensure that the DC/battery power supply
voltage is 24-36V/180W range to achieve maximum brightness;
② The product is not waterproof, please use it in a rain-proof environment;
③ The product is not anti-corrosion, do not let the product come into contact with any
corrosive liquid;
④ When the product is in use, ensure that the product is placed firmly to prevent the
product from falling and being damaged;
⑤ When the product is not used for a long time, please turn off the power of the
product to save energy consumption;
16
1
Name Quantity Notes
1
1
4
1
1
1
1
PACKING LIST
1
1
Photography lights
AC Power Cable
Controller cable
Controller
Controller clip
Standard cover
Spotlight protective cover
Magic cable tie
Carrying case
Manual

FacebookGVM Official
website
Download APP
Web: www.gvmled.com
B&H Email: [e-mail]
GVM Email: [e-mail]
Amazon Email: [e-mail]
Warehouse Add: 4301 N Delaware ave, unit D. PHILADELPHIA, PA19137, USA
