GVM GVM-PRO-YU150R User manual

GVM-PRO-YU150R

CONTENTSProduct introduction -------------------------------------------- Page 1Disclaimers --------------------------------------------------------- Page 1Product parameter ---------------------------------------------- Page 2Product structure icon ------------------------------------------ Page 3Installation method ------------------------------------------ Page 4~8Description of product control keys ----------------------- Page 9Function introduction & instruction for use -------- Page 10~11APP Control ------------------------------------------------- Page 12~13Ues and save ---------------------------------------------------- Page 13Simple faults and troubleshooting ------------------------ Page 14Packing list -------------------------------------------------------- Page 15Precautions ------------------------------------------------------- Page 15

1② Has 6 lighting modes : CCT, HSI, RGB, GEL color paper, light source matching, and field light effect. Brightness, color temperature, hue, saturation, and RGB color can be freely controlled.The main features of the product are:Welcome to "GVM-PRO-YU150R", this product is specially designed for senior photography enthusiasts. The product is suitable for live streaming / outdoor / studio photography, and also for YouTube video shooting.① LED beads with high CRI, help to restore and enrich the color of objects, providing you with natural and vivid shooting effects.③ APP control, which can be controlled by your iOS and Android smart mobile devices; At the same time, it supports Bluetooth Mesh networking, and can work with GVM brand devices that support Mesh networking to ready for group control.We believe that once using our product correctly, you can make huge progress when shooting. Before using the product, you are strongly recommended to read the instructions below carefully.④ With a standard DMX interface, it can realize DMX control of low-precision 8bit and high-precision 16bit control modes.PRODUCT INTRODUCTIONDISCLAIMERS1.Before using this product, please read the instructions carefully and make sure to use the product correctly. If you don’t obey the instructions and warnings, you maybe cause harm to yourself and the people around you or even damage the product and other things around. 3.Design and specifications are subject to change without notice.2.Once you use this product, you are deemed to have read the disclaimer and warning carefully, understand and acknowledge all the terms and contents of this statement, and promise to take full responsibility for the use of this product and possible consequences.

PRODUCT PARAMETERBrand: GVMProduct Name: Photography lightProduct type: photography fill lightProduct model: GVM-PRO-YU150RFunctions/features: Multi-scene mode / Bluetooth meshnet working / APP(Bluetooth connection) / DMX / high-definition indicator lamp beadsLumen: 17200lux/0.5m; 4640lux/1mLamp beads quantity: 1060 lamp beadsColor rendering index : ≥97Color temperature: 2000K~10000KLight adjustment method: Stepless adjustment Product net weight: 3.5KGMaximum power: 150WCooling: Active cooling by fansPower supply mode: AC input & battery/DC power supply (Note: It needs two V button batteries to supply power at the same time to light up)AC input: 100V~240VDC input: 24V~36VProduct Size (mm): 360×360×135Product material: aluminum alloy / engineering plasticCommodity origin: Huizhou, China ◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆◆2

3Carrying handleLocking screw handleCarrying handleLocking screw handleBattery plateBattery plateAccessory lockAC inputPower switchDC/Battery inputDMX interfacePRODUCT STRUCTURE ICON

214INSTALLATION METHODLoosen the lamp holder fixing knob, install the lamp on the lamp holder as shown in the figure below, and then tighten the lamp holder to fix the knob.Loosen the locking screw handle, adjust the angle of the light, and then tighten the locking screw handle.

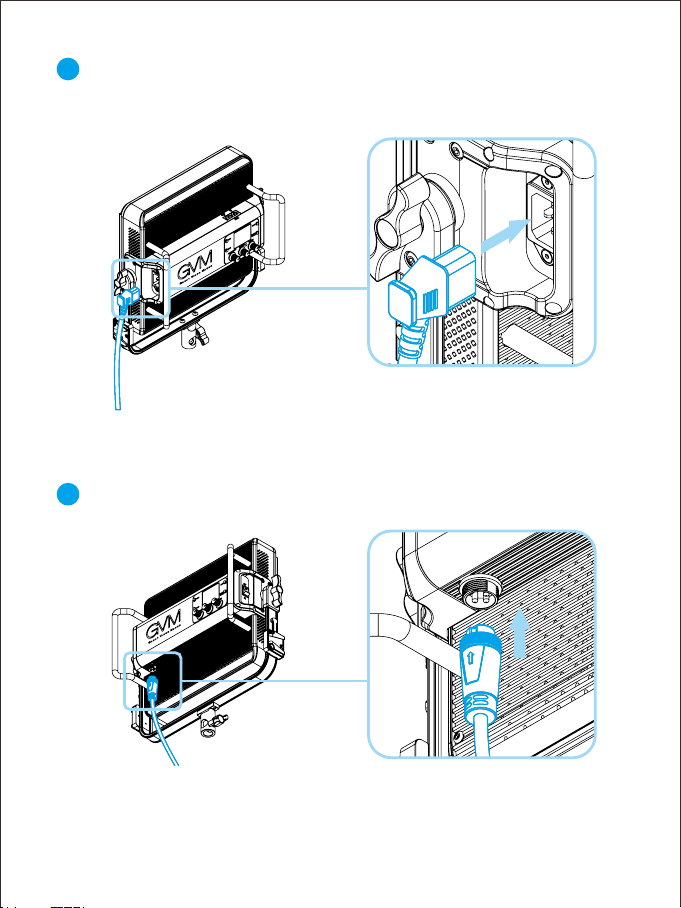

3AC power cord connectorDC/Battery poweredinterface (①+/②-)45Connect the AC power cord for the power supply.The DC battery cable is connected to the power supply.

567Install two V-button batteries on the U-shaped frame, and then connect the batteries through the battery cable and light to supply power. (V button battery needs to be purchased separately)The installation steps of the diffuser are shown in the figure below.

677The installation steps of the barn door are shown in the figure below. (The barn door needs to be purchased separately)The installation steps of the Honeycomb Grid are as follows. (Honeycomb Grid needs to be purchased separately)

88The installation steps of the softbox are shown in the figure as below. (Softbox needs to be purchased separately)

45681723456281739DESCRIPTION OF PRODUCT CONTROL KEYSknob①: INT/SELECTOR/R, Multifunctional coding knob, "INT/SELECTOR/ R" can be adjusted by pressing or rotatingknob③: SAT/GM/B, Multifunctional coding knob，"SAT/GM/B" can be adjusted by rotatingknob②: CCT/HUE/G，Multifunctional coding knob, "CCT/HUE/G" can be adjusted by rotatingDisplay: Displays current settings, modes, and parametersBACK: Press this key to return to the previous menuMENU: Press this key to enter the settings menuMODE: Lighting mode switch buttonON/OFF/COOL KEY: When the light is off, long press to turn on the light; when the light is on, long press to turn off the light, and activate the large air volume to dissipate heat until the temperature is lowered to a touchable temperature.

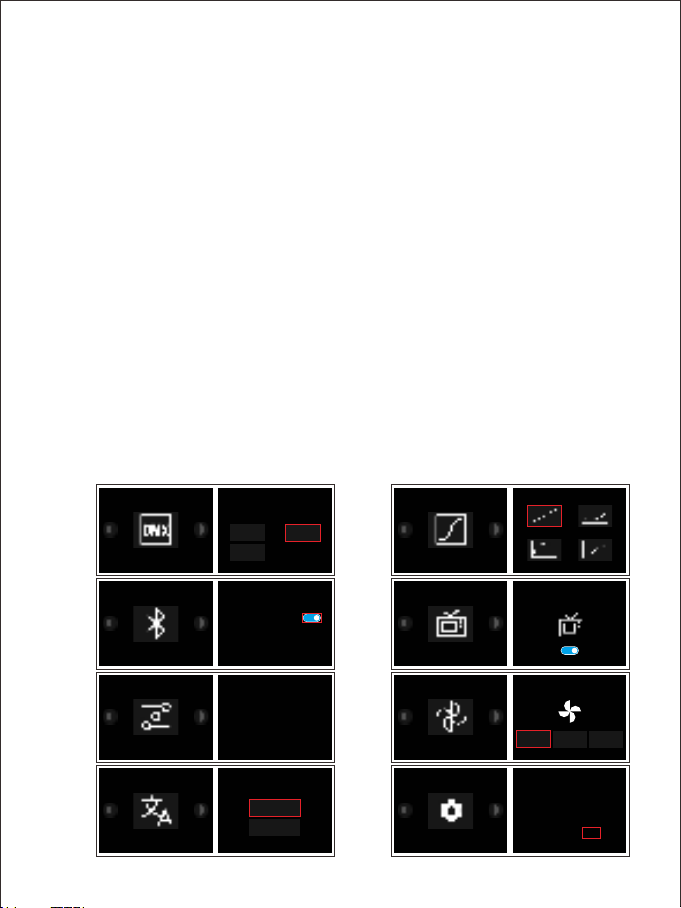

10① Menu (MENU) :BT SETTINGS(Figure3) : bluetooth switch, BT ResetPress the MENU button to enter the menu setting page → Rotate [Knob①] select project → Press [Knob①] Enter the project settings interface → Press or rotate [Knob①] set the parameters of the project → Press [BACK] Return to the previous menuSYSTEM SETTINGS(Figure8) : View system information and Factory ResetDMX SETTINGS(Figure1) : SETTINGS DMX parameter, [ADDRESS(001-512)] and [PROFILES MODE(8bit/16bit )]STUDIO Mode(Figure4) : Setting up studio mode and non-studio modeFAN SETTINGS(Figure6) : Set the cooling fan modeDIM CURVE(Figure2) : Set DIM CURVE, [Linear, Log, Exp, S]FREQUENCY SETTINGS(Figure5) : SETTINGS Dimming FrequencyLANGUAGE(Figure7) : Set system languageFigure1Figure2Figure3Figure4Figure5Figure6Figure8Figure7FUNCTION INTRODUCTION & INSTRUCTION FOR USEDMX SETTINGSDMX SETTINGSPROFILES8bit16bitADDRESS1BluetoothBT ResetYESNO25000Hz简体中文ENGLISHONBT SETTINGSBT SETTINGSMENUFREQUENCY SETTINGSFREQUENCY SETTINGSMENULANGUAGELANGUAGEMENUMENULinearExpLogSSmartHighSilentSYSTEM SETTINGSFW Ver: V1.0UID: GY150R-USFactory ResetYESNOONDIM CURVEDIM CURVESTUDIOSTUDIOMENUFAN SETTINGSFAN SETTINGSMENUSYSTEM SETTINGSMENUMENU

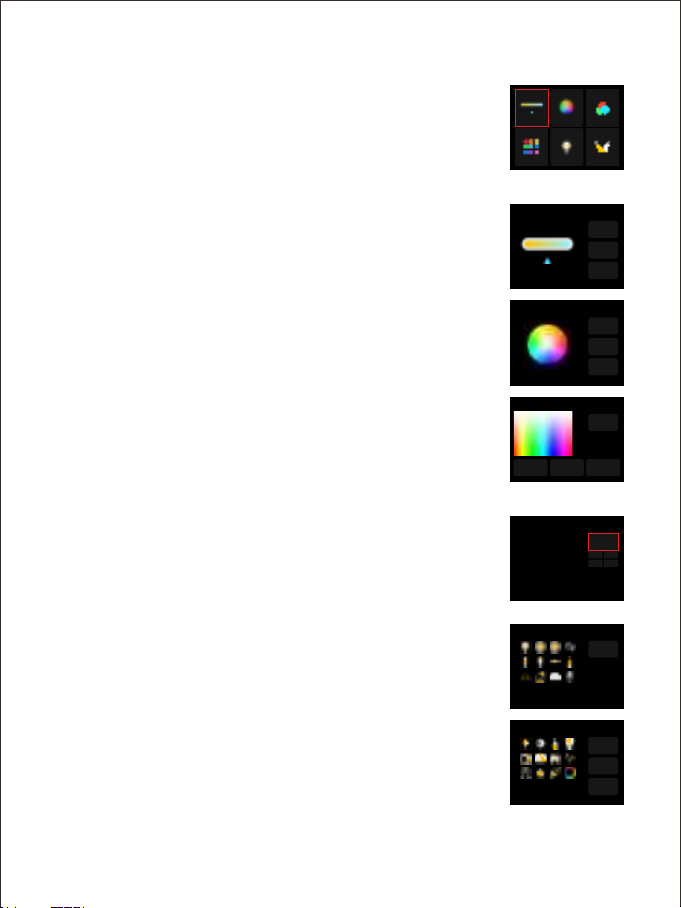

11② Mode key (MODE) :CCT MODE : [Knob1] Adjust INT, [Knob2] Adjust CCT, [Knob3] Adjust G/MGEL MODE (GEL) : Rotate and short press [Select ] key to select GEL mode, select 3200K or 5600K color temperature (CCT), and select the corresponding color paper of Rosco or LEE brand to output the desired light.RGB MODE : [Knob 1] Adjust overall INT, Press [Knob 1] Button, Switch to RGB adjustment, [Knob 1] Adjust the brightness of the red light, [Knob2] Adjust the brightness of the green light, [Knob 2] Adjust the brightness of blue light.Source MODE (Source) : Rotate and short press [Select] key to select Source mode, choose the desired light source effectEFFECT MODE (EFFECT) : Rotate and short press [Select] key to select FX mode, A variety of light effects are available: Lightning, CCT Loop, candle, Bad bulb, TV, Paparazzi, Explosion, Pulsing, Disco, Cop Car, Hue Loop.Press the [MODE] button to enter the mode selection main page → rotate [Knob 1] to select the mode → press [Knob 1] to enter the corresponding mode interface →Set the parameter of the project by pressing or rotating [Knob 1] → press [BACK] Back to previousHSI MODE : [Knob 1] Adjust INT, [Knob 2] Adjust HUE, [Knob 3] Adjust SATCCTHSIRGBGELSourceEffectCCTINT10.5%CCT6800KG/M0HSIINT10.0%HUESAT0100%°RGBINT11.2%G10R84B10EffectINT18.1%CCT10000KSPD1LightningINT10.0%GELINT100.0%3200K5600KRLL002 Rose PinkL007 Pale YellowL019 FireL021 Gold AmberL025 Sunset RedL026 Bright RedSourceTungsten

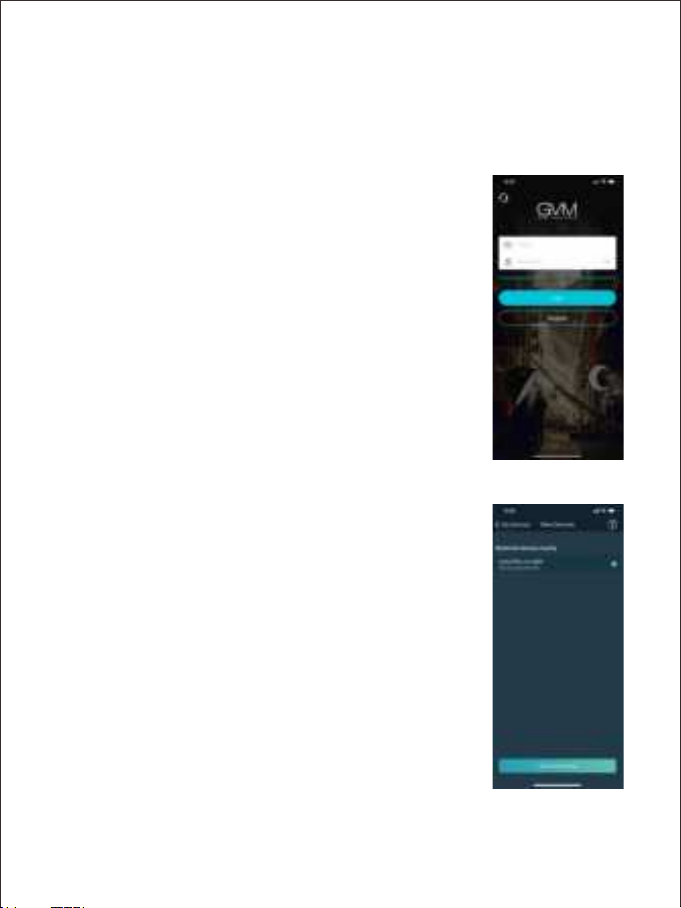

12APP CONTROLAPP download method(Scan the QR code on the back of the manual to download the APP)Android version : Official website QR code, Google Play, Huawei Store, etc.iOS version : App StoreRegister accountUse your email to register and log in; (Figure 1)There may be a delay in sending the verification code, and the delivery speed depends on the email server you use;Some email servers may recognize our verification emails as advertising promotions, please check your blocked email box.Add device② Click the "Add Devices" button on the "My Devices" page to search for nearby Bluetooth lighting devices that have been turned on, and select the device that needs to be connected for network connection. (Figure 2) * The Android system requires location permission to be enabled to connect the device using Mesh technology, and we will not collect any location information from you during this process.① Before adding a device, please make sure that you have turned on the Bluetooth and network data functions of your mobile phone, and reset the Bluetooth of the light device;Figure 1Figure 2

13Device management① After successfully adding your lighting device, your device will be displayed in the "My device" list; (Figure 3)② Click the device bar to enter the device control. (Figure 4)Figure 3Figure 4USE AND SAVEGuarantee: Do not modify the product, or you will lose the right to maintenance.Accessories: Please use the accessories provided by the manufacturer and approved ones, In order to maximize the performance.Repairing: If there is a fault or performance degradation, do not unpack the shell by yourself, avoiding damage to the machine and losing the right of maintenance. When there is a fault, do not hesitate to contact us, and we will do our best to deal with the problem.Do not put the light in a highly humid, strong electromagnetic field, direct sunlight, or high-temperature environment. If the light is not used for a long time, please disconnect the power.Power: Make sure the power is in the demanded range,not too high or too low. Correctly load the battery, in order not damage to the machine.Clean: Before cleaning, please unplug the power plug. And use a wet cloth rather than any detergent or soluble liquid, to avoid damaging the surface layer.

14SIMPLE FAULTS AND TROUBLESHOOTINGPhenomenonCheck the productSolutionThe light is not on after turning onAfter the APP enters to add a device, the Bluetooth of the device cannot be searched.The APP fails to connect the device to the network confifiguration of the device.The device cannot be searched after being removed from the APP. The device in the APP cannot be clicked to enter the control①Whether the light is connected to the power supply is energized normally.②When powered by a lithium battery, make sure that the battery does not have "low battery" protection.Check whether the device is turned on normally and whether it has been bound by others.Check whether the device is turned on normally and whether it has been connected and bound by others; check the Bluetooth of the mobile phone and whether the network is in good condition.Whether to remove the device when the device is offline or in poor network conditions. Check if the device is online (a small green dot is displayed); if it is offline, follow the steps of the network connection failure step to check.Make sure the power cord plug is in good contact.Using the product after charging the battery.Normal steps: ①Turn on the Bluetooth and network data functions of the mobile phone, the Android system needs to Enable location permissions;②Reset device Bluetooth.Retry the connection after resetting the device Bluetooth and restarting the APP.After resetting the device's Bluetooth, search again to add the device. Restart the device, wait for 5 seconds, it can be controlled when it is displayed as online; reset the device's Bluetooth, and add the device to the device list again.

15PhotographyLights1Power CableSoftboxNameQuantityNotesCarrying Case1PACKING LISTManual1HoneycombGridNeed to be purchased separatelyNeed to be purchased separatelyNeed to be purchased separatelyBattery Connection Cable1Barn Door1PRECAUTIONS④ When you use the product make sure that the light is placed firmly to prevent it from falling and being damaged;③ The product is not anti-corrosion, please don't let the product come into contact with any corrosive liquid;⑤ When the light is not used for a long time, please turn off the power of it to save energy consumption;① When using DC/battery power supply, make sure the DC/battery power supply voltage is 24-36V/180W range to achieve maximum brightness;② The product is not waterproof, please use it in a rain-proof environment;

FacebookGVM Official websiteDownload APPWeb: www.gvmled.comB&H Email: [e-mail] Email: [e-mail] Email: [e-mail] Add: 4301 N Delaware ave, unit D. PHILADELPHIA, PA19137, USA
