GVM SD200D User manual

G V M-S D200D

Produc t introduc tion ------------------------------------------- Pa ge 1
Disc la ime rs -------------------------------------------------------- Pa ge 2
Use a nd preserva tion ------------------------------------------ Pa ge 2
Produc t pa ra me te r --------------------------------------------- Pa ge 3
Produc t struc ture a na lysis ------------------------------------ Pa ge 4
Insta lla tion me thod ----------------------------------------- Pa ge 5~7
De sc ription of produc t c ontrol ke ys ----------------------- Pa ge 8
Func tion introduc tion a nd instruc tion --------------- Pa ge 9~1 0
APP c ontrol ------------------------------------------------------ Pa ge 1 1
Simple fa ults a nd trouble shooting ----------------------- Pa ge 1 2
Prec a utions ------------------------------------------------------ Pa ge 1 2
Pa c king list ------------------------------------------------------- Pa ge 1 3
DAFTAR ISI

1
Welcome to ''GVM-SD200D”, this product is specially designed for senior
photography enthusiasts. The product is suitable for live streaming / outdoor /
studio photography, and also for YouTube video shooting.
PENGENALAN PRODUK
①
②
Stepless adjustable light brightness, dual color temperature3200k~5600. It
has a high color render index CRI 97+ COB lamp bead. It helps to restore
the color of objects and provides you with natural and vivid shooting effects.
App intelligent control system, which can be controlled by your intelligent
mobile device.
③It has LCD display and a stable system, which supports 360 ° rotation and
can effectively control light. It is also equipped with a standard lampshade.
After installation, it can avoid excess light and make the light more
concentrated. Custom control fills the light, allowing you to easily and
easily shoot the desired results.
We believe that once using our product correctly, you can make huge progress
when shooting. Before using the product, you are strongly recommended to
read the instructions below carefully.
The main features of the product are:

2
1.
CATATAN PENTING
Before using this product, please read the instructions carefully and make sure to
use the product correctly. If you don’t obey the instructions and warnings, you
maybe cause harm to yourself and the people around or even damage the product
and other things around.
2. Once you use this product, you are deemed to have read the disclaimer and warning
carefully, understand and acknowledge all the terms and contents of this statement,
and promise to take full responsibility for the use of this product and possible
consequences.
3. The design and specifications are subject to change without notice.
Do not put the light in a highly humid, strong electromagnetic field, direct
sunlight, high-temperature environment. If the light is not use for a long time,
please disconnect the power
Clean：Before cleaning,please unplug the power plug. And use wet cloth rather
than any detergent or soluble liquid, avoiding damaging the surface layer.
PERAWATAN
Repairing：If there is fault or performance degradation, do not unpack the
shell by yourself, avoiding damage to the machine and lose the right of
maintenance. When there is a fault, do not hesitate to contact us, and we will
do our best to deal with the problem.
Accessories：Please use the accessories provided by the manufacturer and
approved ones, in order to maximize the performance.
Guarantee：Do does not modify the product, or you will lose the right of
maintenance.
Power：Make sure the power is in the demanded range, not too high or too low.
Correctly load the battery, in order not the damage to the machine.

3
SPESIFIKASI PRODUK
Brand : GVM
Product model : GVM-SD200D
Product Name : Photography lights
Product Type : Photography Fill Light
Lamp beads quantity : COB*1
Color rendering index : ≥97
Color temperature : 3200K~5600K
Lumen : 35000lux/0.5m ; 10000lux/1m
Add standard lampshade:93000lux/0.5m ; 25000lux/1m
Light adjustment method : Stepless adjustment
Function / Feature : APP, master/slave mode control, High display,
LCD screen
Product Weight : 3.15KG
Product Size (mm) : 228x133x349
Power : 200W
Voltage : AC 100-240V
Power supply mode : DC input
Power supply : DC32V/7A
Cooling : Radiator & fan cooling
Product material : Aluminum alloy + plastic
Commodity origin : Huizhou, China

4
MODE
BRG
CCT
OFF
ON
DC
IN Compound knob
LCD screen Mode button
Switch on/off
Vents
Diffuser Mount
Light frame interface
U-shaped frame
COB lamp bead
Bowens Mount
Light frame interface
Snap
Angle fifixing handle
Fixing handle for
lamp holder
BAGIAN PRODUK
DC interface

5
1The lamp can be installed and fixed on the bracket by rotating the knob
clockwise, and unloaded by rotating in the counterclockwise direction.
CARA PEMASANGAN

6
Snap
2Insert the Bowens mount of the standard lampshade into the Bowens mount
of the light, and then turn it slightly clockwise.
3Push Bowens dismantling buckle back while rotate the Standard lampshade
counterclockwise to remove the Standard lampshade.

7
Adapter interface
MODE
BRG
CCT
OFF
ON
DC
IN
Loosen the angle fixing handle, adjust the angle of the spotlight that you
need, and then turn the angle fixing handle tightly.
4
Connect the power cord to charge.
5

1
2
3
4
8
MO DE
B R G
C C T
OF F
ON
DC
IN
2
1
3
4
5
5
CARA PENGGUNAAN TOMBOL
PADA PRODUK
Power input interface
Switch ON/OFF
LCD display: Can display data such as mode, brightness,
channel value, etc.
Compound knob: Press the knob button to switch the mode, rotate
the knob to adjust the lighting parameters
Mode button: switch the control mode.The modes include:
rotate, slave, master, APP

9
Data such as mode, brightness, color temperature, channel value can
be displayed.
① LCD screen：
② Mode types and functions：
CH:
Rotate
Slave
Master
APP
K
CCT :
Brightness
parameter
Channel value
Control mode
(Only the current
mode is displayed)
Color
temperature
parameter
Press the mode key to switch the control mode, which are:
Rotate, Master, Slave, APP
Rotate mode: The brightness and color temperature can be adjusted through
the compound knob.
Master mode: The brightness, color temperature and channel can be adjusted
through the composite knob and the slaves of the same channel will also be
controlled synchronously.
Slave mode: The hannel can only be adjusted by the compound knob.When the
channels of the slave and the master are the same, they can be synchronously
controlled by the master.
APP mode: The channel can only be adjusted through the compound knob, and
the light can be adjusted through the APP.
CARA PENGGUNAAN MENU

10
⑦Online control: ( joint c ont rol bet w een l amps and l amps)
⑥ APP control:
⑤Channel adjustment (CH): Range 1 ~1 2
③Adjust brightness (BRG): Range 0%~1 00%
④Adjust color temperature (CCT): R ange 3200K~5600K
Rotate mode or master mode: Switch to brightness adjustment by pressing
the composite knob, and turn the composite knob to adjust the brightness.
APP mode: Connect to the APP and adjust the brightness through the APP.
Rotate mode or master mode: Switch to color temperature adjustment by
pressing the composite knob, and turn the composite knob to adjust the
color temperature.
APP mode：connect to the APP and adjust the color temperature through
the APP
Rotate the compound knob in slave mode and APP mode to adjust the channel.
APP mode: connect to the APP and set the value of the channel through the
APP.
Set the mode to APP mode, turn on the phone APP GVM LED, in the Bluetooth
search interface, find the Bluetooth with the Bluetooth name BT_LED and
connect, and wait for the connection. After the connection is successful, the
camera light can be controlled through the APP.
Prepare two or more video lights, set one light to master mode, and the others
to slave mode, and then set the channel values of all video lights to be the same.
After that, you can control the brightness of the slave lights adjusting the
brightness of the master light, synchronize the master light and the slave lights.
You also can use the APP to connect to the master light and control the slave
light through the APP.

11

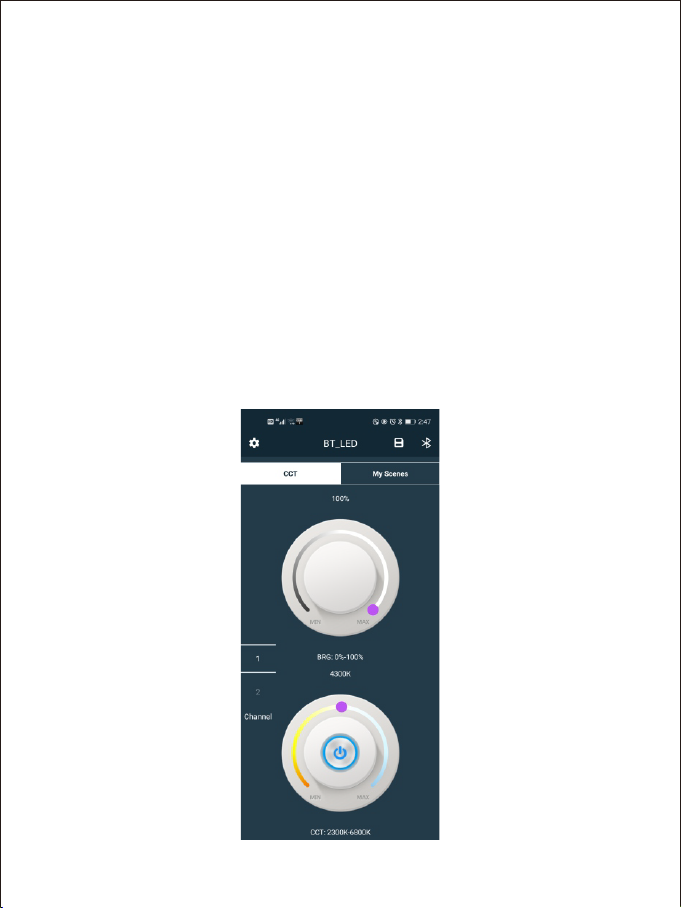

Color temperature control interface
Turn on the video light and set the mode to APP mode. Open the “GVM_LED”
application software on the phone ( The phone needs to turn on Bluetooth and
GPS), then enter the Bluetooth search interface Find the Bluetooth named
“BT_LED” and connect Wait for the connection After connecting success,
it will automatically enter the app’s control interface. At this time, the
connected video light can be controlled through the APP.
PENGGUNAAN APLIKASI
Sc a n the Q R c ode o n the b a c k of the m a nua l to d ow nloa d the A PP

12
CATATAN PENTING
The video light is not waterproof, please use it in a rain-proof environment.①
The video light is not anti-corrosion, please don’t let the light come into
contact with any corrosive liquid.
②
When you use the light, make sure that the light is placed firmly to prevent
the it from falling and being damaged.
③
When the light is not used for a long time, please turn off the power of it to
save energy consumption.
④
TROUBLESHOOTING
Phenomenon
Make sure the adapter is well
contacted with the power plug.
C heck the produc t S olution
The switch
indicator does
not light up
Whether the connection
between the lamp and the
power supply is normal.
APP can't
connect / can't
control
Check if the product is "turned
off" by the APP.
①Restart the product.
②Press the APP switch button
The product is in
the "ON" state,
the display and
lights are not on
Check whether the device is
in APP mode and whether
"BT_LED" is displayed on the
APP.
Normal steps:
①Switch to APP mode after booting;
②Turn on Bluetooth and GPS on the
phone
③Open the APP, search and connect
to Bluetooth BT_LED

13
N a m e
Photography light
Q u a n t i t y N o t e s
1
Power cord 1
1
1
1
Adapter
Condenser
Diffuser
ISI DALAM PAKET
1
Instruction

F a c e b o o kG V M O ffic i a l
we bs ite
D o w n lo a d A P P
We b : w w w .g vmle d .c o m
B&H Ema il: bh@gv mle d.c om
G VM Ema il: supp ort@g vmle d.c om
Ama zon Ema il: a ma zonsupp ort@g vmle d.c om
Wa re house A d d : 4301 N D e la w a re a ve , unit D. PHILADELPHIA, PA1 91 37, USA
