GYROZEN 1524 User manual

Micro Centrifuge, 1524 – Service manual
1
1. Model: Micro Centrifuge, 1524
2. Manufacturer: Gyrozen Co., Ltd.
3. Service: BMS Co., Ltd. Technical Service Team, 82-2-3471-8171
Gyrozen Co., Ltd Customer Service Team, 82-70-8620-5350
# C05DC00304-11

Micro Centrifuge, 1524 – Service manual
2
Table of Contents
1. Operating Instruction ...............................................................................................................4
1.1 About this manual ............................................................................................................4
1.2 Safety label and Safety precautions .............................................................................4
1.2.1 Safety label ............................................................................................................4
1.2.2 Safety precautions..................................................................................................4
2. Installation ..................................................................................................................................6
2.1 Unpacking ..........................................................................................................................6
2.2 Location ..............................................................................................................................6
2.3 Supply the power .............................................................................................................6
2.4 Power On and opening the door ..................................................................................7
3. Device Information ...................................................................................................................8
3.1 Special qualities ................................................................................................................8
3.2 Technical Specifications ...................................................................................................8
3.3 Outer Description .............................................................................................................9
3.4 Operating Function of Control Panel ...........................................................................9
3.5 Operating System .......................................................................................................... 11
3.6 Main Controller Board .................................................................................................. 12
3.7 Display Controller Board .............................................................................................. 13
4. Disassembling........................................................................................................................... 15

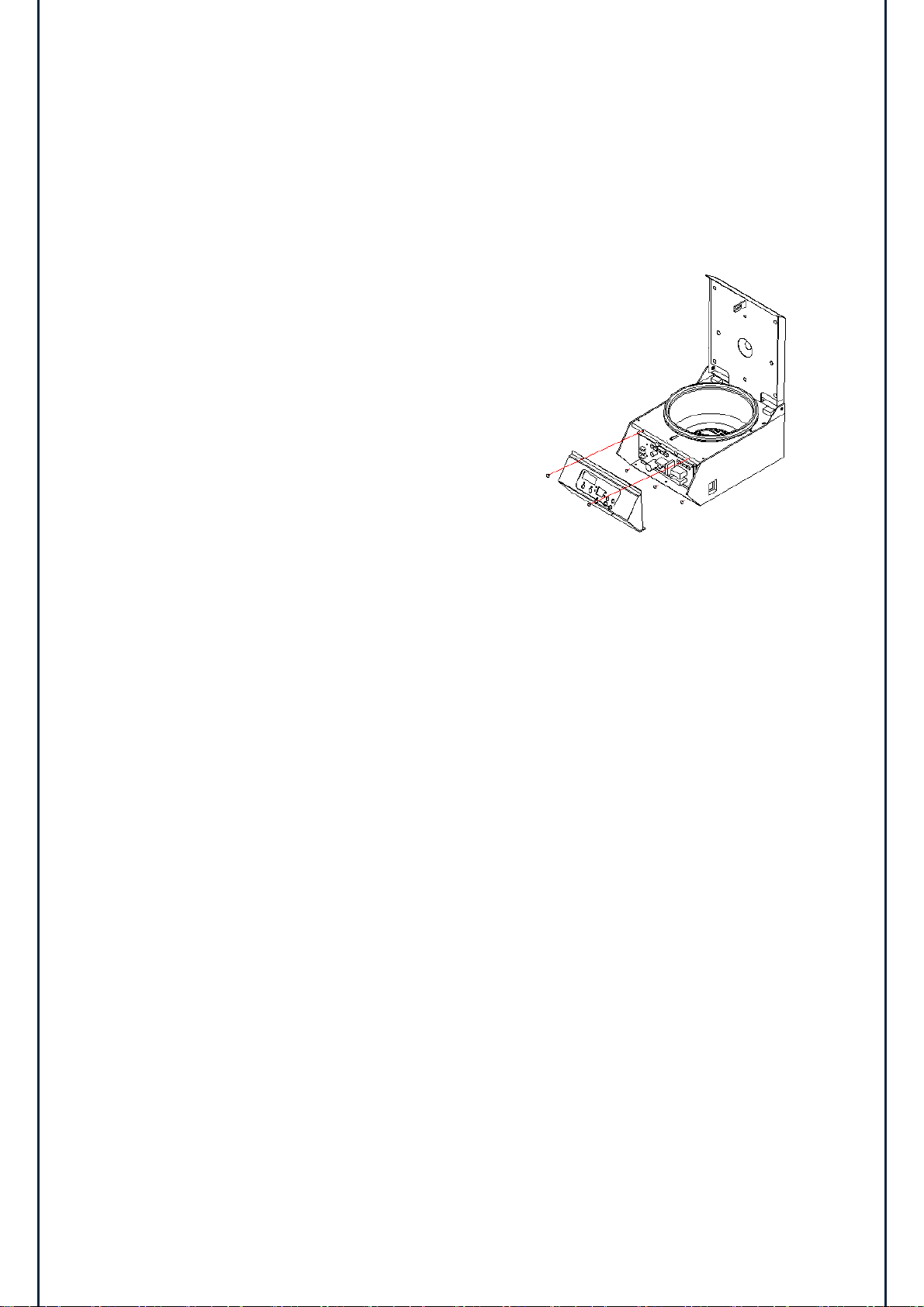

4.1 Front panel and controller board ............................................................................... 15
4.2 Door Assembly ............................................................................................................... 16
4.3 Motor cover & Chamber .............................................................................................. 17
4.4 Door Lock Assembly ..................................................................................................... 18
4.5 Motor assembly ............................................................................................................. 18
4.6 Anti-vibration rubber .................................................................................................... 19
4.7 Imbalance sensor assembly ......................................................................................... 19
4.8 RPM sensor assembly ..................................................................................................... 19

Micro Centrifuge, 1524 – Service manual
3
5. Service Mode and Adjustment ............................................................................................ 20
5.1 Transition into service mode <Ver 1>......................................................................... 20
5.2 Handling values <Ver 1> ............................................................................................... 20
5.1 Transition into service mode <Ver 2>......................................................................... 21
5.2 Handling values <Ver 2> ............................................................................................... 21
5.3 Procedure for Imbalance adjustment <Ver 1> .......................................................... 23
<Ver 2> ......................................................... 24
5.4 Door lock ass’y adjustment ......................................................................................... 25
6. Error code and Troubleshooting ......................................................................................... 26
6.1 Error code ........................................................................................................................ 26
6.2 Troubleshooting ............................................................................................................. 28
7. Maintenance ........................................................................................................................... 29
7.1 Cleaning and disinfection ............................................................................................ 29
7.2 Device test for centrifuge ............................................................................................ 30
7.2.1 Validation of actual RPM ................................................................................. 30
7.2.2 Validation of Motor performance .................................................................. 30
8. Parts Information..................................................................................................................... 31
8.1 Assembly Drawing........................................................................................................... 31
8.2 Part List.............................................................................................................................. 36

Micro Centrifuge, 1524 – Service manual
4
1. Operating Instruction
1.1 About this manual
This service manual should be used by specialized engineers authorized by Gyrozen
Co., Ltd.
Any repairing work operated by non-authorized personnel cannot be protected and
guaranteed.
This service manual aims to find possible errors quickly and fix them properly.
Refer to the user’s manual for detailed operation of Centrifuge.
Do not copy or reprint without approval
1.2 Safety label and safety precautions
1.2.1 Safety Label
The labels attached to the device give information for safety.
Label Information Label Information
Attention label to show
risk and warning
Attention label to warn
electric shock

Micro Centrifuge, 1524 – Service manual
5
1.2.2 Safety Precautions
•Supply proper voltage power according to device’s power requirement.
•Let all repairing works done by authorized or qualified personnel.
•Use rotors or accessories which are approved by Gyrozen.
•Not try to open the lid and or move the device while the rotor is running.
•Operate the centrifuge with a rotor properly attached and secured to the shaft.
•Not use flammable, hazardous, explosive, or corrosive materials.
NOTE: When it is required to use toxic, radioactive materials or pathogenic micro-
organisms, which belong to the Risk Group II of WHO: “Laboratory Bio-safety Manual,”
should follow the regulation guidelines from WHO.
http://www.who.int/csr/resources/publications/biosafety/Labbiosafety.pdf)
•Keep away hazardous materials farther than 30 cm (12 in) from the device during
centrifugation, as recommended in IEC standards 61010-2-020.
•Keep the rpm or rcf under its maximum speed in the case that the density of sample
materials is greater than 1.2 g/ml to avoid rotor failure.
•Load samples symmetrically in the rotor diagonally to make balance between the tubes.
•Balance the load on the rotor totally to prevent the damage to the device even by using
several water-filled tubes.
•Place device on a flat, level, rigid and stable surface.
•Disconnect power supply prior to maintenance and service work to avoid electrical shock.
•Use proper disinfection procedures when centrifuging bio hazardous compounds.
When a blackout takes place while the device is running, the door does not open. And the
rotor speed begins to decrease at natural level. Even if the power turns on before the rotor
stops completely, the rotor does not return to the original speed, but decreases more rapidly
with buzzer sound.
The door is closed/opened automatically by a door lock unit operated by a solenoid, and it
will not be opened while the rotor is running at all. Even if the door is opened accidentally,
a door limit switch senses it instantly to make the rotor speed decrease.
If the rotor loses balance while running by any reason, it invokes vibration on the device
itself. In this case the Imbalance sensor senses it and makes the rotor begin to decrease with
preset level issuing Imbalance Error warning. This safety function protects the device from
damage during operation.
In Blackout
M
a
ke sure to
Door opening
Device vibration

Micro Centrifuge, 1524 – Service manual
6
2. Installation
2.1 Unpacking
1) Check if the box contains such parts as;
① Power cable, 1ea
② Emergency door open tool, 1ea
③ User’s manual, 1ea
④ Rotor (Optional)
⑤ Rotor coupling device
2) Open the box and lift out the instrument carefully together with the safety
padding.
3) Remove the safety padding and vinyl wrap.
2.2 Location
1) Install the device at the solid and flat floor or table. If you place the centrifuge at
the slope, the axis of rotation is possibly changed because of the rotor weight.
2) Install the device keeping a distance of 30cm at least from the wall. The distance is
needed for the air circulation around the device.
3) Install the device at the place with appropriate temperature and humidity. These
conditions have to be maintained constantly as soon as possible.
4) Install the device at the place without any kinds of corrosive gases.
2.3 Supply the power
1) 416 model uses 110V or 220V. Check proper voltage of the device and connect to
adequate power outlet.
2) If the power input is more than +/- 10% of the recommended voltage or
fluctuating frequently, it may affect some functions of the device. In that case it is
recommended to use AVR (Automatic Voltage Regulator).
3) If you want to use the device under the other voltage range, please contact us for
safe usage.

Micro Centrifuge, 1524 – Service manual
7
2.4 Power On and opening the door
1) Turn on the device by the switch on the right side of the machine.
2) Press the ‘Door’ button to open the door.
If it does not work (door not open), use the emergency door open tool (as the
figure)

Micro Centrifuge, 1524 – Service manual
8
3. Device Information
3.1 Special qualities
High safety and low noise
Fixed angle rotor available
Simultaneous display of rpm and rcf speed
Automatic Alarm function for Imbalance, Door open, Speed trouble
High tech AC Induction Motor adopted
3.2 Technical Specifications
Max. RPM 15,000 rpm
Max. RCF(Fixed Angle) 21,206 xg
Max. capacity(Fixed Angle) 24 x 1.5/2.0 ㎖, 4 x 8-tube PCR strips
Run time ≤ 99 min 59 sec or continuous
Program memory 100
Power supply 220V, 50/60Hz
Power requirement 440 VA
Dimension (WxDxH) mm 249 x 368 x 240
Weight 18 Kg
CE Certification Yes

Micro Centrifuge, 1524 – Service manual
9
3.3 Outer Description
3.4 Operating Function of Control Panel
<Ver 1>
1) RPM/RCF, TIME display: to show the current RPM/RCF, TIME.
2) Up & Down button: Uses to change input data.
3) Pulse: to accelerate and decelerate within short period.
4) Door: to open the door.
5) RPM/RCF: to set the RPM/RCF data
6) TIME: to set test time up to 99 min 59 sec (00: continuous)
7) ACC: to set the step of acceleration
8) DEC: to set the step of deceleration
9) PROG: to save a set of setting values or call the saved setting values.
10) Enter: to complete the settings
11) START: to start running device.
12) STOP:: to stop running device.
If you press the arrow button longer than 3 seconds, the numbers change rapidly and
the set-up is achieved faster.

Micro Centrifuge, 1524 – Service manual
10
<Ver 2>
1) RPM/RCF, TIME display: to show the current RPM/RCF, TIME.
2) (up) & (down) button: Uses to change input data.
3) (pulse): to accelerate and decelerate within short period.
4) (start/stop): to start/stop running device
5) RPM/RCF: to set the RPM/RCF data
6) TIME: to set test time up to 99 min 59 sec (00: continuous)
7) ACC: to set the step of acceleration
8) DEC: to set the step of deceleration
9) PROG: to save a set of setting values or call the saved setting values.
10) (enter): to complete the settings
11) AT SET SPEED: to counts the run time once the actual run speed reaches to
the set speed value.
12) (door): to open the door.
* If you press the arrow button longer than 3 seconds, the numbers change rapidly and
the set-up is achieved faster.

Micro Centrifuge, 1524 – Service manual
11

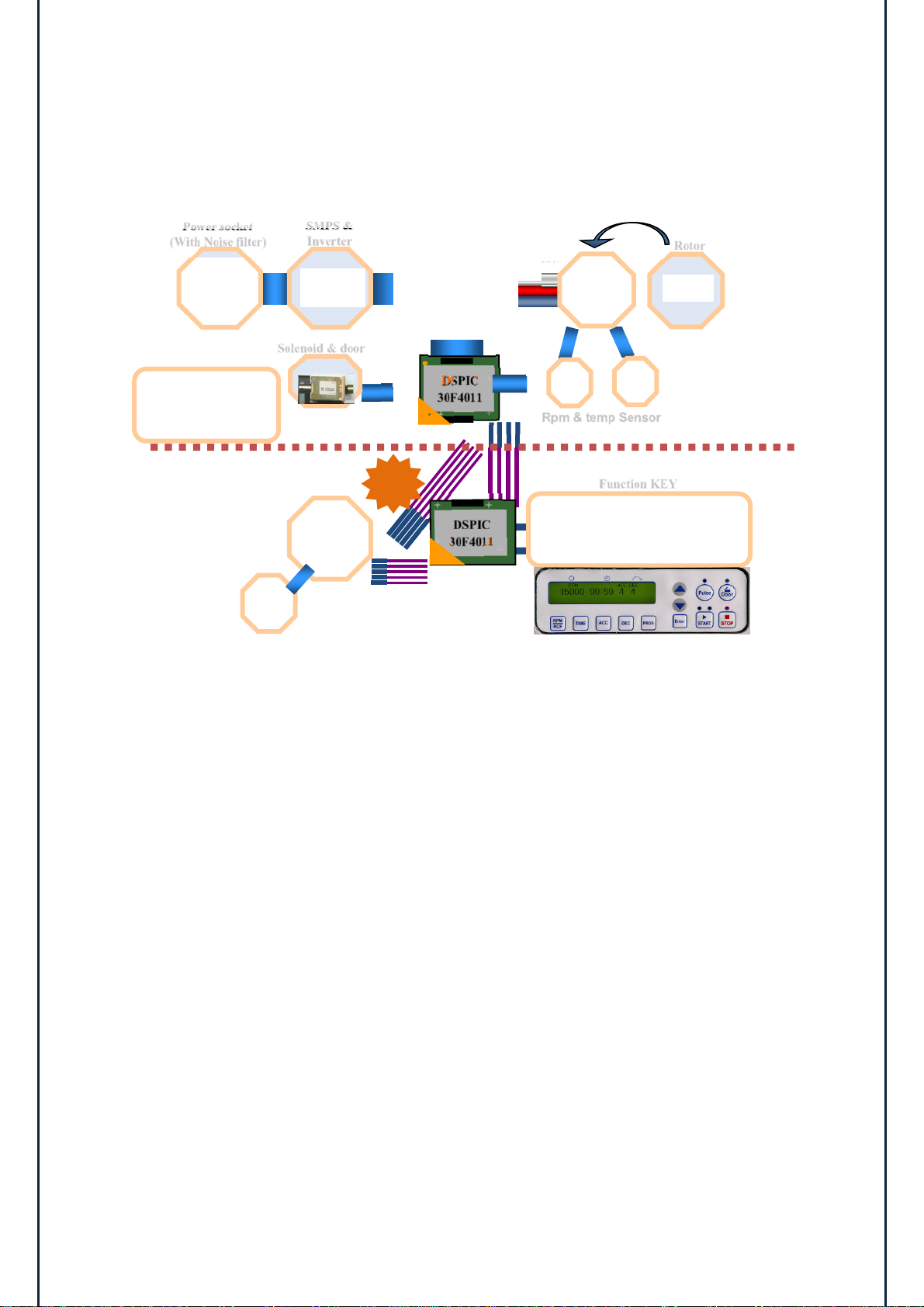

3.5 Operating System
1) DSPIC 30F4011, MICOM; It controls all devices.
2) SMPS; distributes inlet power to each part as appropriate form.
3) Inverter; transforms the single phase power to the 3 phase for running the AC
induction motor.
4) IPM FSBS5CH60; controls the AC induction motor.
5) Solenoid; open and close the door lid automatically.
6) Temp sensor; measure the temperature of motor at its surface and issue E3 error if
too high(above 110℃).
7) Firmware program; is used to update the firmware with notebook and interfacing
connector.
DSPIC
30F4011
+
++
+
Rotor
Solenoid & door
Function KEY
IPM
FSBS15CH60
DSPIC
30F4011
+
++
+
Motor
Power socket
(With Noise filter)
SMPS &
Inverter
Rpm & temp Sensor
Firmware
Program

12
3.6 Main Controller Board
<Ver 1>
<Ver 2>
Buzzer
Door(sol terminal)
Main power
Motor FAN Conn
Power LED
Motor power [U,V,W]
Main control[Micom]
dsPIC30F4011
Main ~ Display
connection cable
Firmware update terminal
Door on/off Sensor
Motor
RPM sensor
Geer Motor Sensor
Imbalance Sensor
+12V Power Conn
Temp sensor conn.
Motor temp sensor conn.
Temp sensor conn.
Braking resistance
conn.
110/220V set
Model Select

13
3.7 Display Controller Board and I/O Board
<Ver 1>
Main ~ Display connection cable
Firmware update terminal

14
<Ver 2>
I/O Board

15
4. Disassembling
4.1 Front panel and controller board
1) Open the door
2) Remove the screws(red circle).
3) Insert a tool(ex. Driver) into inside(blue circle)
4) Pull the tool to open the front panel.
5) Remove 7 screws that fix the controller board.
6) Remove 3 screws that fix the board bracket if needed.
7) Disassemble the Controller board and bracket.

16
4.2 Door Assembly
1) Remove the screws and detach the door bottom.
2) Disassemble the shaft and springs that couples the door and case top.
3) Disassembe the door assy.

17
4.3 Motor cover & Chamber
1) Remove the screws(red circle)
2) Disassemble the motor cover.
3) Disassemble the Chamber.

18
4.4 Door Lock Assembly
1) Remove the front panel.
2) Detach the connectors of solenoid and door sensor from the main board.
3) Remove the three screws(red circle) to detach the board bracket.
4) Remove the 4ea of M5x10 screws at the door lock assembly
5) If needed, door sensor or solenoid can be replaced.
6) Apply grease to the blue circled area for its durability.
4.5 Motor assembly
1) Remove the motor cover and chamber.
2) Remove the motor cable, Temp cable and RPM Sensor cable.
3) Remove 3 screws on the motor assy(red circle).
4) Disassemble the motor assy

19
4.6 Anti-vibration rubber
1) Remove 3 ea of nuts from the motor bracket.
2) Disassemble the motor bracket.
3) If needed, disassemble the anti-vibration rubber assy to replace them.
4.7 Imbalance sensor assembly
1) Remove the 2 screws.
2) Disassemble the imbalance sensor bracket assy.
3) Remove the 4 screws.
4) Disassemble the imbalance sensor (Hall sensor).
5) In the case of adjusting the imbalance sensor, refer to 5.3
4.8 RPM sensor assembly
1) Disassemble 2 screws at the bottom of the motor assy.
2) Disassemble the RPM sensor

20
5. Service Mode and Adjustment
<Ver 1>
5.1 Transition into service mode
On the Control panel
1) Power ON
2) Push the UP( ) key during 5 seconds.
3) When beep sounds push the DOWN( ) key
5.2 Handling values
1) Confirm the set values with left side Up/Down key.
The numeric value on the right FND varies by one. (refer to figure below)
2) Imbalance sensitivity can be adjusted by left side Up/Down key only when the left
numeric value is ‘9’. And it can be saved by pushing the Enter key.
3) Power off to return from service mode.
RPM(Current, set) Frequency, Voltage ratio
Motor input, output, Hall IC distance, Ampere
Temp(Chamber, Motor), DIP switch, Rotor ID
Switch status, Main & Display SW version
Temperature offset
Imbalance distance
Sum of motor running time
