GYROZEN 1580R User manual

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
1
1. Model: Refrigerated, Multi-purpose, High speed Centrifuge, 1580R
2. Manufacturer: Gyrozen Co., Ltd.
3. Service: BMS Co., Ltd. Technical Service Team, 82- 2-3471-8171
Gyrozen Co., Ltd Customer Service Team, 82-70-8620-5350

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
2
Table of contents
Page #
1. Operating Instruction ......................................................................................................................................................4
1.1 About this manual .........................................................................................................................................................4
1.2 Safety label and safety Precaution.........................................................................................................................4
1.2.1 Safety label ......................................................................................................................................................4
1.2.2 Safety precautions .......................................................................................................................................5
2. Installation ................................................................................................................................................................................6
2.1 Unpacking ................................................................................................................................................................6
2.2 Location.......................................................................................................................................................................7
2.3 Supply the Power .................................................................................................................................................7
2.4 Power On/Off and the Door Release ..........................................................................................................7
2.5 Emergency Door Open ......................................................................................................................................7
3 Device Information ................................................................................................................................................................8
3.1 Special qualities .....................................................................................................................................................8
3.2 Technical Specifications ...................................................................................................................................8
3.3 Outer Description .................................................................................................................................................9
3.4 Operating Function of Control Panel ....................................................................................................... 10
<Ver 1>.................................................................................................................................................................... 10
<Ver 2> ................................................................................................................................................................... 11
3.5 Operating System .............................................................................................................................................. 12
3.6 Main Controller Board<Ver 1><Ver 2 Smart> ...................................................................................... 13
3.7 Display Controller Board<Ver 1> ............................................................................................................ 14
<Ver 2> .......................................................................................................... 15
I/O Board ............................................................................................................................................................ 15

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
3
4. Disassembly ........................................................................................................................................................................ 16
4.1 Front panel, Main controller board and I/O board ................................................................................ 16
4.2 Door assembly ....................................................................................................................................................... 17
4.3 Motor cover and motor packing ................................................................................................................. 17
4.4 Motor assembly ................................................................................................................................................... 18
4.5 Anti-vibration rubber ........................................................................................................................................ 18
4.6 Motor fan ............................................................................................................................................................... 18
4.7 Imbalance sensor assembly ........................................................................................................................... 19
4.8 RPM sensor assembly ....................................................................................................................................... 19
5. Service Mode and adjustment ................................................................................................................................ 20
5.1 Transition into service mode ......................................................................................................................... 20
5.2 Handling values ................................................................................................................................................... 20
5.3 Procedure for imbalance adjustment ........................................................................................................ 23
6. Error code and troubleshooting ............................................................................................................................. 25
6.1 Error code ............................................................................................................................................................... 25
6.2 Troubleshooting ................................................................................................................................................... 27
7. Maintenance ..................................................................................................................................................................... 28
7.1 Cleaning and disinfection ............................................................................................................................... 28
7.2 Device tests for centrifuges ........................................................................................................................... 29
7.2.1 Validation of actual RPM ...................................................................................................................... 29
7.2.2 Validation of Motor performance .................................................................................................... 29
8. Parts Information ........................................................................................................................................................... 30
8.1 Assembly Drawing .............................................................................................................................................. 30
8.2 Parts List ..................................................................................................................................................................... 37

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
4
1. Operating instructions
1.1 About this manual
This service manual should be used by specialized engineers authorized by Gyrozen Co.,
Ltd.
Any repairing work operated by non-authorized personnel cannot be protected and
guaranteed.
This service manual aims to find possible errors quickly and fix them properly.
Refer to the user’s manual for detailed operation of Centrifuge.
Do not copy or reprint without approval
1.2 Safety label and Safety precaution
1.2.1 Safety label
The labels attached to the device give information for safety.
Label Information Label Information
Attention label to show
risk and warning
Attention label to warn
electric shock
Attention and warning
for rotor coupling.
Attention and warning
for door opening and
closing
Attention and warning
for correct way of sample
balancing in the rotor.
Attention and warning
for correct way of
buckets position.
The door should be
closed by gentle press-
down touching motion

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
5
1.2.2 Safety precautions
•Supply proper voltage power according to device’s power requirement.
•Let all repairing works done by authorized or qualified personnel.
•Use rotors or accessories which are approved by Gyrozen.
•Not try to open the door and or move the device while the rotor is running.
•Operate the centrifuge with a rotor properly attached and secured to the shaft.
•Not use flammable, hazardous, explosive, or corrosive materials.
NOTE: When it is required to use toxic, radioactive materials or pathogenic micro-organisms,
which belong to the Risk Group II of WHO: “Laboratory Bio-safety Manual,” should follow the
regulation guidelines from WHO.
(http://www.who.int/csr/resources/publications/biosafety/Labbiosafety.pdf)
•Keep away hazardous materials farther than 30 cm (12 in) from the device during
centrifugation, as recommended in IEC standards 61010-2-020.
•Keep the rpm or rcf under its maximum speed in the case that the density of sample materials
is greater than 1.2 g/ml to avoid rotor failure.
•Load samples symmetrically in the rotor diagonally to make balance between the tubes.
•Balance the load on the rotor totally to prevent the damage to the device even by using
several water-filled tubes.
•Place device on a flat, level, rigid and stable surface.
•Disconnect power supply prior to maintenance and service work to avoid electrical shock.
•Use proper disinfection procedures when centrifuging bio hazardous compounds.
When a blackout takes place while the device is running, the door does not open. And the rotor
speed begins to decrease at natural level. Even if the power turns on before the rotor stops
completely, the rotor does not return to the original speed, but decreases more rapidly with
buzzer sound.
The door is operated automatically by a door lock unit including a motor, and it does not open
while the rotor is running. If the door is opened accidentally, E2 error code appear and the rotor
speed decrease.
If the rotor loses balance while running by any reason, it invokes vibration on the device itself.
In this case the Imbalance sensor senses it and makes the rotor begin to decrease with preset
level issuing Imbalance Error warning. This safety function protects the device from damage during
operation.
In Blackout
M
a
ke sure to
Door opening
Device vibration

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
6
2. Installation
The 1580R is a rotor auto-recognized model. But an instrument is delivered without a rotor, so
when you turn on the machine, the system tries to recognize a rotor automatically, and ‘Error 9’ is
appeared because of absence of a rotor. Mount the rotor and turn off the machine, and turn on
again. Then the instrument recognizes the rotor properly.
2.1 Unpacking
1) Lift the carton upward and remove the safety padding.
2) Lift the instrument on the four sides of the machine with appropriate number of helpers.
3) Place it to the flat space.

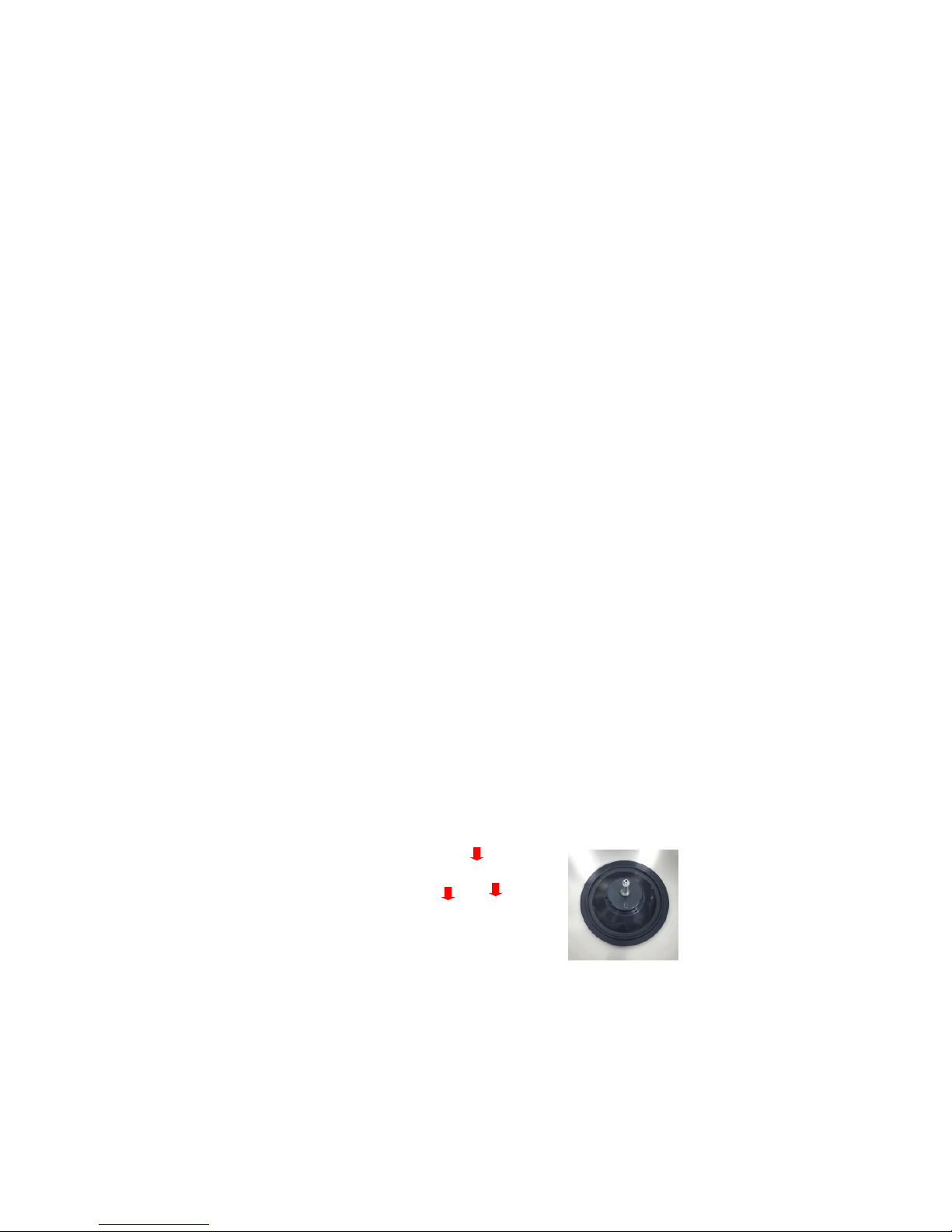

4) Remove motor fixing bolts 3ea of screw bolts are placed at the bottom of the unit for
prevention of damage to the imbalance sensor caused by any moving of the motor
during delivery. These bolts should be removed before the installation of the unit.
① Check if a long bolt came out from bottom of the unit.
As it is longer than the leg pieces, the unit cannot stand horizontally.
② Check two more bolts around the fan net.
③ Unscrew 3ea of bolts with a provided wrench.

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
7
2.2 Location
1) Install the device on the solid and flat floor or table. If you place the centrifuge at the
slope, the axis of rotation is possibly changed because of the rotor weight.
2) Install the device about 30cm departed from the wall for effective air circulation.
3) Install the device at the place with appropriate temperature and humidity. It also has to
be maintained with the proper temperature & humidity.
4) Install the device at the place without any kinds of corrosive gases.
2.3 Supply the Power
1) The 1580R model uses 110V or 220V. Check proper voltage of your instrument and
connect to adequate power outlet.
2) If the power input is more than +/- 10% of the recommended voltage or fluctuates
frequently, it may affect some functions of the instrument. It is advised to use AVR
(Automatic Voltage Regulator).
3) If you want to use the instrument at other voltage range, please contact us.
2.4 Power On/Off and Door Release
1) The power is provided via earth leakage breaker switch which is attached on the left
side of the device. Connect the power cord properly and turn on the earth leakage
breaker and the power is on, the latest setting value recalled with beeping sound.
2) Press the ‘Door’ button on the control screen to open the door.
3) Remove the protection materials inside the chamber.
4) Mount the rotor, close the door and turn off and on the instrument again for
proper operating.
Auto-Door Lock
The door should be closed only by gentle press-down motion
2.5 Emergency Door Open
1) Turn off(on) the instrument by pressing a switch off(on) the left side of the
machine.
2) Open the door using emergency door open function (with T-wrench).
3) Remove the (protection) materials inside the chamber.
4) Mount the rotor, close the door and turn on the instrument again for
proper operating.
* After mounting rotor, you can use ‘DOOR’ button to open the door.

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
8
3 Device Information
3.1 Special qualities
High safety and low noise
Tube capacity from 0.2㎖ to 15㎖
High speed refrigerating model controlled by 16bit microprocessor
Temperature controlled with preset target value
Chamber cooled fast from room temperature to the target with Fast Cool function
Fixed angle rotor(24 & 30) and Strip Rotor(32 & 64) available
Rotor ID recognition whenever operated in such mode as START, PULSE and FAST COOL.
Simultaneous display of rpm and rcf speed
Memory function available to 100 programs
Automatic Alarm function for Imbalance, Door open, Speed/Temperature trouble
High tech AC Induction Motor adopted
3.2 Technical Specifications
Max. RPM 15,000 rpm
Max. RCF 25,910 x g
Max. capacity 6 x (250 & 15ml)
Control Microprocessor controlled
Temp. set range - 20 ~ 40 °C
Run time ≤ 9 hours 59 min or continuous
Noise level ≤ 60 dB
Acceleration levels 9
Deceleration levels 10
Program memory 100
Rotor Recognition Automatic
Imbalance Recognition Automatic
Motor High torque AC induction motor
Safety Lid-lock
Power & Frequency 220V, 50/60Hz (110V Optional)
Dimension (WxDxH) mm 770 x 650 x 390
Weight 93 Kg (for main body only)
CE Certification Yes

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
9
3.3 Outer Description
Main Body Rotor, GRS-G-r750-4 Rotor, GRF-G-15-24
GRF-G-85-6 Rotor, GRF-G-m2.0-30
Special Tool AC Cord Rotor Coupling Tool &
Emergency Door Open Tool
1) Door
2) Chamber
3) Key Pad
4) Door Striker
5) Ventilating Hole & Center Window
6) Spring Hinge
7) Power Switch
8) Radiator Ventilation Hole

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
10
9) Shock absorber
3.4 Operating Function of Control Panel
<Ver 1>
1. Display LCD : shows the data of each setting(RPM, RCF, Time, Temp, Acc/Dec, Program)
2. Numeric keypad : used to change(increase/decrease) the input data
3. Fast Cool : used to refrigerate at high rate down to the setting temperature.
4. Pulse : used to accelerate to set RPM once and decelerate rapidly.
5. RPM/RCF: used for switching RPM/RCF
6. TIME: used to set test time up to 9 hour 59 min 59 sec (0:00:00, continuous)
7. TEMP: used to set test temperature
8. ACC/DEC: used to set the acceleration (deceleration ) level from 1(0) to 5 steps.
‘0’ step means natural dec level. The bigger the number, the higher the acc/dec speed.
9. PROG : used to save or call the preserved setting values.
10. Enter: used to fix and save a setting value.
11. Rotor : to show the radius of coupled rotor
12. Start : used to start device operation
13. Stop : used to stop device operation
14. Door : used to open the door
1
5 106 7 8 9
3
2
4
11
14
13
12

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
11
<Ver 2>
1. Display LCD : shows the data of each setting(RPM, RCF, Time, Temp, Acc/Dec, Program)
2. TEMP : used to set test temperature
3. Numeric keypad : used to change(increase/decrease) the input data
4. RPM/RCF : used for switching RPM/RCF
5. TIME : used to set test time up to 9 hour 59 min (0:00, continuous)
6. Fast Cool( ) : used to refrigerate at high rate down to the setting temperature.
just pushing for two seconds.
7. ACC/DEC : used to set the acceleration (deceleration ) level from 1(0) to 9 steps.
‘0’ step means natural dec level. The bigger the number, the higher the acc/dec speed.
8. PROG : used to save or call the preserved setting values.
9. KEY LOCK : used to lock the button.
10. AT SET SPEED : used to counts the run time once the actual run speed reaches to the set
speed value.
11. Enter( ): used to fix and save a setting value.
12. PULSE : used to accelerate to set RPM once and decelerate rapidly.
13/14. Start/Stop( ) : used to start/stop device operation.
15. Door( ) : used to open the door.
16. Beep( ) : used to set the beep sound.
13
6 124 5
2
7 8 11
13/14
15
109
16

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
12
3.5 Operating System
1) DSPIC 30F4011, MICOM; It controls all devices.
2) SMPS; distributes inlet power to each part as appropriate form.
3) Inverter; transforms the single phase power to the 3 phase for running the AC induction
motor.
4) IPM FSBS5CH60; controls the AC induction motor.
5) Solenoid; open and close the door lid automatically.
6) Temp sensor; measure the temperature of motor at its surface and issue E3 error if too
high(above 110℃).
7) Firmware program; is used to update the firmware with notebook and interfacing
connector.

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
13
3.6 Main Controller Board
<Ver 1>
<Ver 2__Smart>

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
14
3.7 Display Controller Board
<Ver 1>
Adjustment of LCD Contrast
LCD brightness can be adjusted. Rotate the circled part at the below picture with clockwise
direction using screw driver(+), LCD is getting brighter gradually. Counterclockwise is
opposite.
Main ~ Display connection
cable
Firmware update
teminal

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
15
<Ver 2>
I/O Board
Firmware Upgrade
Main~Display Connection
Door Striker Sensor
Hall Sensor
Firmware Upgrade
Door DC Motor Power
Main~I/O Connector
Door Close Sensor
Chamber Temp. Sensor
Door Open Sensor
Motor Temp. Sensor
Comp. Temp Sensor

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
16
4 Disassembling
4.1 Front panel, Main controller board and I/O board
<Ver 1> <Ver 1>
One Door Photo Sensor
<Ver 2> <Ver 2>
Two Door Photo Sensors
I/O Board
Main Board

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
17
1) Open the door and remove 9ea of screws as arrowed part on the right picture.
2) Remove display cable at the front panel.
3) Remove cables connected at the Main controller board and the I/O board.
4) Remove 10 ea of screws at the Main controller board.
5) At the new model, remove the 4 ea screws at the I/O Board.
4.2 Door assembly
1) Remove the 4 ea of M6x10 screws at the hinge part of the door assy.
2) Remove the E-Ring and the Door stopper pin.
2) Detach the door assy from the device.
3) If needed, the 2 hinges can be detached.
4.3 Motor cover and motor packing
→
[PIC 1] [PIC 2] [PIC 3] [PIC 4]
Remove the 3 ea screws.
1) Detach the motor cover. [PIC 2]
2) Detach the motor packing [PIC 3& 4]

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
18
4.4 Motor assembly
Pic1 Pic2
1) Remove the motor cable, temp sensor cable, rpm sensor cable and ground cable.
2) Remove 3ea of nuts at motor ass’y and detach the ass’y with upward direction. [Pic1&2]
4.5 Anti-vibration rubber
1) Remove 3 ea of nuts from the motor .
2) Detach the motor .
3) If needed, detach the anti-vibration rubber assy to replace them.
4.6 Motor fan
Pic1 Pic2
1) Remove the back case.[Pic1]
2) Remove 2ea of screws at motor FAN BKT.[Pic2]
3) Remove motor fan conn. at controller board.
4) Detach the motor fan bracket assy.

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
19
4.7 Imbalance sensor assembly
[Pic1] [Pic2] <Ver 1_Pcb_A2> [Pic3] <Ver 2_Pcb_A3>
1) Remove the 2ea of screws at the buttom of the instrument [Pic1].
2) Detach the imbalance sensor assy.
3) Remove the 4 ea of screws [Pic2 & 3].
4) Detach the imbalance sensor (Hall sensor).
5) In the case of adjusting the imbalance sensor, refer to 5.3
4.8 RPM sensor assembly
→ →
[PIC 1] [PIC 2] [PIC 3]
1) Remove 3 of screws at the motor assy [PIC1].
2) Detach the shaft Hub [PIC2].
3) Remove the RPM sensor assy [PIC3].

Refrigerated, Multi-purpose, High speed Centrifuge, 1580R – Service manual
20
5 Service Mode and adjustment
<Ver 1>
5.1 Transition into service mode
On the Control panel
1) Power ON
2) Push the ( ) key for 5 seconds until beep sound
3) When beep sounds push the ( ) key (beginning of Service mode).

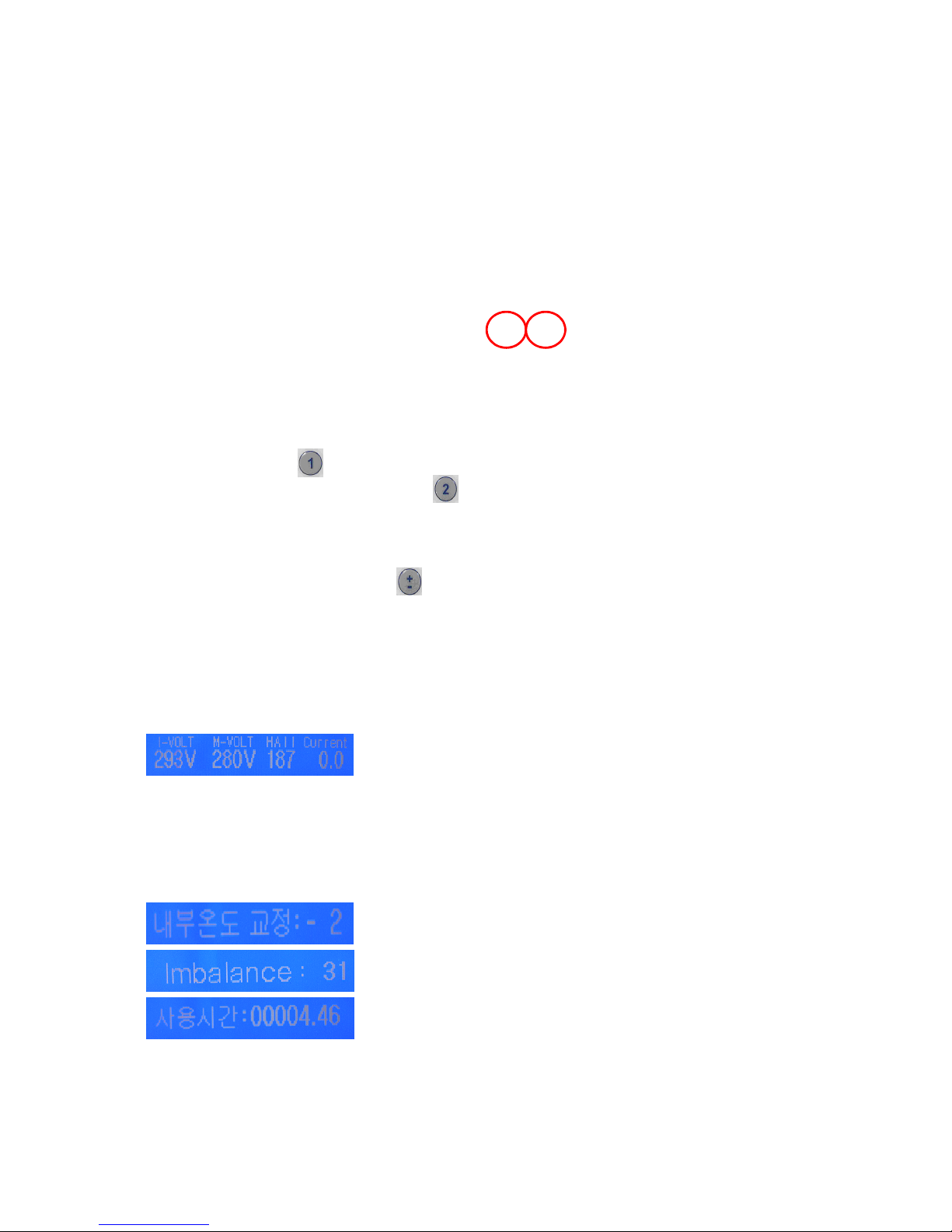

5.2 Handling values
1) Confirm the set values with ( ) key.
2) Imbalance sensitivity can be adjusted by Numeric keypad and push the Enter key
to save
3) Power off to return from service mode.
RPM(Set,Current),Frequency,Voltage ratio
Motor input/output voltage, Hall IC distance, Current
Temperature(Chamber, Motor,Cooling unit, Dip sw set value, Rotor
ID No
Status of switches(ON/OFF), MAIN / Display program version
Temperature adjust
Error range of imbalance
Motor running time total
