Hama DR7 User manual

Operating Instructions /Bedienungsanleitung /Mode d‘emploi /Instrucciones de uso /
Руководство по эксплуатации /Istruzioni per l‘uso /Gebruiksaanwijzing / Οδηγίες χρήσης /Instrukcja obsługi /
Használati útmutató /Návod kpoužití /Návod na použitie /Manual de instruções /Kullanma kılavuzu /
Manual de utilizare/Bruksanvisning /Käyttöohje / Работна инструкция /Betjeningsvejledning /Manuelt stasjonssøk
Digital Radio
00054869
(DR7)
Digital-Radio

A
B
2 4 6
13
7 8
11
12
1 3 10 95

Technical Data
Radio Receiver/
Radio Empfänger
DAB
ü
DAB+
ü
FM
ü
Internet
-
Spotify
-
Display/
Bildschirm 2.1" Liquid Crystal Display (LCD)
Speaker/
Lautsprecher 0.5 WRMS
Power input/
Stromeingang
DC 6V 500 mA,
4x AA Battery (not included)
Frequency range/
Frequenzbereich
DAB/DAB+:
174 ~240 MHz
FM:
87.5 ~108 MHz
Sensitivity/
Empndlichkeit
DAB/DAB+:
-97 ~-99 dBm
FM:
-105 ~-109dBm
Power Consumption/
Stromaufnahme
Operation/
Betrieb max. 3W Standby/
Bereitschaft <1W
Input &Output/
Anschlüsse DC Socket, 3.5 mm Earphone Jack
Presets/
Favoriten
DAB/DAB+:
30
FM:
30
Codec/
Formate
DAB:
MP2, AAC
UI Languages/
UI Sprachen CS, DA,DE, EN, ES, FIN, FR, IT,NL, NO, PL, PT,SK, SV,TR
Package Content/
Verpackungsinhalt
DR7, Quick Guide, AC/DC Adapter
DR7, Kurzanleitung, Netzteil
Dimension (WxHxD)/
Größe (BxHxT) 165 x95x44mm
Weight/
Gewicht 340 g

1
GOperating instructions

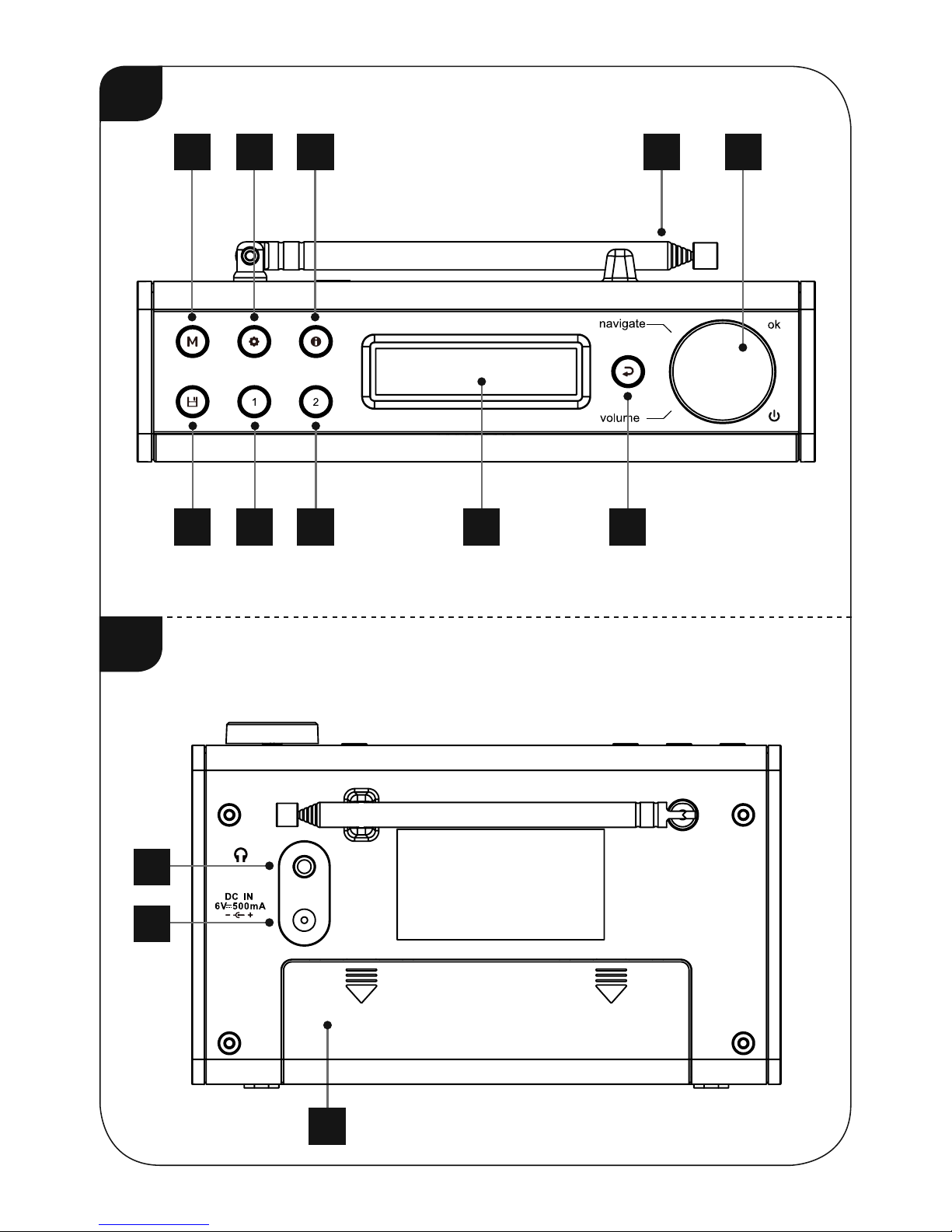

Controls and Displays
A: Radio Front
1[MODE]-Button
2[PRESET]-Button
3[SETTINGS]-Button
4[PRESET 1]-Button
5[INFO]-Button
6[PRESET 2]-Button
7Display
8[BACK]-Button
9[VOLUME/SELECT/
NAVIGATE]
10 Antenna
B: Back
11 Headphone socket
12 DC IN Mains power supply
13 Battery case
1. Explanation of Warning Symbols and Notes ..4
2. Package Contents .......................4
3. Safety notes ...........................4
4. Information and notes beforegetting started 5
5. Getting started ........................5
5.1 Battery operation ........................5
5.2 Mains operation . ........................5
5.3 General notes on use ......................5
5.4 Initial setup .............................6
5.5 Language ..............................6
6. DAB ..................................6
6.1 Search /Automatic search ..................6
6.2 Station list ..............................7
6.3 Edit station list ..........................7
6.4 Favourites ..............................7
6.4.1 Save favourites .......................7
6.4.2 Access favourites ......................7
6.5 DRC (Dynamic Range Control) ...............7
7. FM ...................................8
7.1 Scan setting ............................8
7.2 Automatic station search ...................8
7.3 Favourites ..............................8
7.3.1 Save favourites .......................8
7.3.2 Access favourites ......................8
7.4 Audio setting ...........................8
8. Additional settings ......................8
8.1 Sleep ..................................8
8.2 Alarm clock .............................9
8.3 Lighting ................................9
8.4 Factory Reset ...........................9
8.5 Info /Softwareversion .....................9
9. Careand Maintenance ..................10
10. Warranty Disclaimer ...................10
11. Service and Support....................10
12. Recycling Information .................10
13. Declaration of Conformity...............10
Content

2
DAB
Station list
Full scan
DRC
DRC high
DRC low
DRC high
Prune
Sleep
Sleep off
15 Minutes
30 Minutes
45 Minutes
60 Minutes
90 Minutes
120 Minutes
Alarm
Alarm 1Setup
Alarm 2Setup
Time
Set Time/Date
Set time
Set date
Auto update
No update
Update from Any
Update from DAB
Update from FM
Set 12/24 hour
Set 24 hour
Set 12 hour
Set date format
DD-MM-YYYY
MM-DD-YYYY
Backlight
On level
Dim level
Language
Factory Reset
SW version
Menu structure

3
FM
Scan setting
Strong stations only
All stations
Audio setting
Forced mono
Stereo allowed
Sleep
Sleep off
15 Minutes
30 Minutes
45 Minutes
60 Minutes
90 Minutes
120 Minutes
Alarm
Alarm 1Setup
Alarm 2Setup
Time
Set Time/Date
Set time
Set date
Auto update
No update
Update from Any
Update from DAB
Update from FM
Set 12/24 hour
Set 24 hour
Set 12 hour
Set date format
DD-MM-YYYY
MM-DD-YYYY
Backlight
On level
Dim level
Language
Factory Reset
SW version

4
Thank you for choosing aHama product.
Take your time and read the following instructions and
information completely.Please keep these instructions in a
safe place for futurereference. If you sellthe device, please
pass these operating instructions on to the new owner.
1. Explanation of Warning Symbols and Notes
Risk of electric shock
This symbol indicates product parts energized with a
dangerous voltage of sucient magnitude to constitute
arisk of electric shock.
Warning
This symbol is used to indicate safety instructions or to
draw your attention to specichazards and risks.
Note
This symbol is used to indicate additional information or
important notes.
2. Package Contents
•Digital radio DR7
•Power supply unit
•Quick guide
3. Safety notes
•The product is intended for private, non-commercial use
only.
•Protect the product from dirt, moistureand overheating
and use it in dry rooms only.
•As with all electrical devices, this device should be kept
out of the reach of children.
•Do not drop the product and do not expose it to any
major shocks.
•Do not operate the product outside the power limits
given in the specications.
•Keep the packaging material out of the reach of children
due to the risk of suffocation.
•Dispose of packaging material immediately according to
locally applicable regulations.
•Do not modify the device in any way.Doing so voids the
warranty.
Risk of electric shock
•Do not open the device or continue to operate it if it
becomes damaged.
•Do not use the product if den AC adapter,adapter
cable or power cable is damaged.
•Do not attempt to service or repair the product
yourself.Leave any and all service work to qualied
experts.
Warning -Batteries
•When inserting batteries, note the correct polarity
(+ and -markings) and insert the batteries
accordingly.Failuretodosocould result in the
batteries leaking or exploding.
•Do not allow children to change batteries without
supervision.
•Remove the batteries from products that arenot being
used for an extended period.
•Do not short-circuit batteries.
•Do not charge batteries.
•Do not throw batteries in a re.
•Keep batteries out of the reach of children.
•Do not mix old and new batteries or batteries of a
different type or make.

5
4. Information and notes before getting started
Note –Optimal reception
Please note:
•Extend the antenna always completely.
•Forbest reception it´s recommended to extend the
antenna vertical.
•Tryvarious different positions if necessary to get the
best reception.
5. Getting started
5.1 Battery operation
•Open the battery compartment cover.Itis located on the
rear of the radio.
•Slide the battery compartment cover in the direction
indicated.
•Insert the batteries paying attention to the match the
polarities correctly.The correct polarity is indicated by the
plus and minus symbols in the battery compartment.
•Replace the battery compartment cover.
5.2 Mains operation
Connect the network cable to aproperly installed and
easily accessible network socket.
The power supply unit is suitable for mains voltages
between 100 and 240 V, and is thus operable on almost
any AC power grid. Please note that acountry-specic
adapter may be necessary.
Youcan nd an appropriate selection of Hama products at
www.hama.com.
Note
•Only connect the product to asocket that has been
approved for the device.
•The electrical socket must always be easily accessible.
•When using amult-socket power strip, make sure
that the sum power draw of all the connected devices
does not exceed its maximum throughput rating.
•If you will not be usingthe product for aling period
of time, disconnect it from mains power.
5.3 General notes on use
Notes on use
•When aselection among menu items is to be made
(such as Yor N), the one currently selected ashes.
•In menus offering avariety of different options (such
as DRC, language and so on), the currently selected
option is marked with *.
Navigation and controls
[VOLUME/SELECT/NAVIGATE] (9) has two different
functions:
•Turn [VOLUME/SELECT/NAVIGATE] (9) to select among
menu items.
•Conrm the selection by pressing [VOLUME/SELECT/
NAVIGATE] (9).
Press [Back] (8) to return to the previous menu level.
Volume adjustment
Turn [VOLUME/SELECT/NAVIGATE] (9) to increase/reduce
the volume.

6
Additional Information
Press [Info]todisplay context-dependent additional
information. The information shown depends on the
operating mode as well as the current selection of radio
station.
•Description
Indicates the radio station, the current program,
contents, subjects, etc.
•Program genre/ country
Indicates the genre(music style) and the country or
region of the station.
•Bit-Rate
he currently received digital bit rate of the received
station is displayed.
•Codec
Species the encoding scheme used to digitise the data
or signal (such as MP3 or WMA).
•Sampling rate
Species the sampling rate, or the frequency with which
the audio signal is polled (Sampling-/Samplerate), in a
certain period of time.
•Signal strength
he signal strength of the received station is displayed via
abar and its length.
•Today´s date
•Time
•Signal error
•Service is not available
It´s displayed when thereiscurrently no DABreception.
Switching on /off
Press [VOLUME/SELECT/NAVIGATE] (9) to switch on the
radio.
Press and hold [VOLUME/SELECT/NAVIGATE] (9) for
approximately 3seconds to switch off the radio.
5.4 Initial setup
The station search in the operating mode DABstarts up
automatically when the radio is turned on for the rst time.
By default, the radio starts with the English menu
navigation. Set up your desired language as described in
5.5. Language.
5.5 Language
To change the menu language from that selected at rst-
time startup, proceed as follows:
•Press [Settings] (3) to access the settings menu.
•Turn [Volume/Select/Navigate] (9) to navigate to the
‘Language’ menu item.
•Conrm your selection by pressing [Volume/Select/
Navigate] (9).
•Turn [Volume/Select/Navigate] (9) to select your desired
system language.
•Conrm the selection by pressing [Volume/Select/
Navigate] (9).
6. DAB
The radio receives all established digital radio frequencies
in the range of 174 MHz (band III, channel 5A to 13F).
•Activate the DABmode on the radio by repeatedly
pressing [MODE] (1).
6.1 Search /Automatic search
The automatic DABchannel search scans the DABband III
for available stations. After the station search, all
interference-free stations aresaved in alphabetical order.
The automatic DABstation search starts automatically
when DABmode is started for the rst time; it is indicated
by Scanning… and astatus bar on the display.
If you would like to start the search again, proceed as
follows:
•Press [Settings] (3) to access the settings menu.
•Turn [Volume/Select/Navigate] (9) to navigate to the
‘Find all stations’ menu item.
•Conrm your selection by pressing [Volume/Select/
Navigate] (9).

7
6.2 Station list
Youcan access the station list in DABmode at any time via
two methods:
a)
•Press [Back] (8) and then turn [Volume/Select/Navigate]
(9) to navigate through the station list.
•Select the desired station and conrm your selection by
pressing [Volume/Select/Navigate] (9).
b)
•Press [Settings] (3) to access the settings menu.
•Turn [Volume/Select/Navigate] (9) to navigate to the
‘Station list’ menu item.
•Conrm your selection by pressing [Volume/Select/
Navigate] (9).
•Turn [Volume/Select/Navigate] (9) to select the desired
station.
•Conrm your selection by pressing [Volume/Select/
Navigate] (9).
6.3 Edit station list
To remove stations that arenot currently in the reception
area, from your station list, proceed as follows:
•Press [Settings] (3) to access the settings menu.
•Turn [Volume/Select/Navigate] (9) to navigate to the
‘Delete inactive stations’ menu item.
•Conrm your selection by pressing [Volume/Select/
Navigate] (9).
If you answer Yes,then all currently unavailable stations
will be removed from the station list.
6.4 Favourites
Youcan save up to 30 of your favourite stations for quick
and direct access.
6.4.1 Save favourites
•Set the station that you would like to save as afavourite
station preset.
•If the station is received, press and hold [Preset]onthe
front of the radio.
•Turn [Volume/Select/Navigate] (9) to switch between the
presets.
•Press [Volume/Select/Navigate] (9) to conrm your
selection and storethe station on the favourite station
preset.
6.4.2 Access favourites
Press [Preset]toopen the overview window with the list
of saved stations.
•Turn [Volume/Select/Navigate] (9) to navigate to the
desired preset.
•Turn and press [Volume/Select/Navigate] (9) to select a
favourite station.
Note
•Favourites cannot be deleted.
•If all 30 station memory slots are lled and you wish
to save anew station, choose one of the occupied
slots. The station in this slot will be overwritten with
the new station.
6.5 DRC (Dynamic Range Control)
Some radio stations in the DABnetwork support an audio
level control that is activated at varying volumes during
playback. If the audio level suddenly rises during playback,
DRC automaticall yreduces the volume. The same happens
if playback suddenly becomes quieter,with the radio then
increasing the volume.
This radio has three different settings for DRC:
DRC high:
total equalisation of different volumes. Strong compression
can audibly reduce the dynamics of amusic title.
DRC low:
partial equalisation of differen tvolumes. Moresubtle
compression,without too much loss of dynamics.
DRC off:
no equalisation.
Proceed as follows to do the settings:
•Press [Settings] (3) to access the settings menu.
•Turn [Volume/Select/Navigate] (9) to navigate to the
‘Volume adjustment’ menu item.
•Conrm your selection by pressing [Volume/Select/
Navigate] (9).
•Now make the desired setting.

8
7. FM
Press repeatedly [MODE](1) to activate the operating
mode FM:
7.1 Scan setting
The search run setting allows you to determine whether
stations with low signal strength areignored during the
automatic search run.
Proceed as follows:
•Press [Settings] (3) to access the settings menu.
•Turn [Volume/Select/Navigate] (9) to navigate to the
‘Station search setting’ menu item.
•Conrm your selection by pressing [Volume/Select/
Navigate] (9).
•Turn and press [Volume/Select/Navigate] (9) to select the
desired setting.
To have the search run stop only at stations with high
signal strength, select Strong stations only.Otherwise
(All stations), the search run willstop at every station for
which asignal is received.
7.2 Automatic station search
•Press [Volume/Select/Navigate] (9) to start the automatic
station search.
•The radio stops the search and starts playback when it
nds astation.
•Press [Volume/Select/Navigate] (9) again to continue the
search until the next station is found.
7.3 Favourites
Youcan save up to 30 of your favourite stations for quick
and direct access.
7.3.1 Save favourites
•Set the station that you would like to save as afavourite
station preset.
•If the station is received, press and hold [Preset]onthe
front of the radio.
•Turn [Volume/Select/Navigate] (9) to switch between the
presets.
•Press [Volume/Select/Navigate] (9) to conrm your
selection and storethe station on the favourite station
preset.
7.3.2 Access favourites
Press [Preset]toopen the overview window with the list
of saved stations.
•Turn [Volume/Select/Navigate] (9) to navigate to the
desired preset.
•Conrm your selection by pressing [Volume/Select/
Navigate] (9).
Note
•Favourites cannot be deleted.
•If all 30 station memory slots are lled and you wish
to save anew station, choose one of the occupied
slots. The station in this slot will be overwritten with
the new station.
7.4 Audio setting
Forsome stations with aweak signal, quality can be
slightly improved by playing them in mono quality.You can
enable this function in the menu (Forced mono), and the
radio will automatically switch to mono reception when
signal quality is poor.
To change the audio setting, proceed as follows:
•Press [Settings] (3) to access the settings menu.
•Turn [Volume/Select/Navigate] (9) to navigate to the
‘Audio setting’ menu item.
•Conrm your selection by pressing [Volume/Select/
Navigate] (9).
•Now select the desired setting.
8. Additional settings
8.1 Sleep
The radio has atimer function that switches the device
to standby mode after adened time
interval.
Proceed as follows:
•Press [Settings] (3) to access the settings menu.
•Turn [Volume/Select/Navigate] (9) to navigate to the
‘Sleep’ menu item.
•Conrm your selection by pressing [Volume/Select/
Navigate] (9).
•Turn and press [Volume/Select/Navigate] (9) to select the
desired setting.

9
8.2 Alarm clock
The radio allows you to set two different
alarm times.
•Conguration of alarm 1and alarm 2isidentical. They
allow two alarm times to be saved independently.
•Press [Settings] (3) to access the settings menu.
•Turn [Volume/Select/Navigate] (9) to navigate to the
‘Alarm clock’ menu item.
•Conrm your selection by pressing [Volume/Select/
Navigate] (9).
•Now select the desired setting and conrm your selection
by pressing [Volume/Select/Navigate] (9).
Time:
First choose the hour,then the minute at which the
alarm is to activate.
Duration:
Select the duration of the alarm.
Source:
Set whether you wish to be woken by an alarm tone
(buzzer), FM or DAB.
Mode:
Choose when the alarm is to activate:
Daily –Once –Onweekdays –Onweekends
Date:
First choose the day,then the month and year when the
alarm time begins.
Volume:
Select the volume for your alarm. With this setting, the
volume of the radio when you last operated it is irrelevant.
Mode:
Select whether you want to activate or deactivate the
alarm.
Note
•When using DABasanalarm tone, it is important to
have astable radio connection at the alarm time. If
this is not the case, the signal tone (buzzer) is used as
the alarm tone.
•It is recommended that you allow automatic time
updates. This ensures that the time is updated even
after disconnection of the power supply –for example,
in the case of apower failure.
8.3 Lighting
The backlight can be congured separately for each
operating mode (operation, standby).
•Press [Settings] (3) to access the settings menu.
•Turn [Volume/Select/Navigate] (9) to navigate to the
‘Lighting’ menu item. Conrm your selection by pressing
[Volume/Select/Navigate] (9).
•Now select the desired setting in the respective mode
and conrm your selection by pressing [Volume/Select/
Navigate] (9).
8.4 Factory Reset
•Press [Settings] (3) to access the settings menu.
•Turn [Volume/Select/Navigate] (9) to navigate to the
‘Factory settings’ menu item.
•Conrm your selection by pressing [Volume/Select/
Navigate] (9).
Conrm the following prompt with Yes to reset the radio
to the factory default settings. All settings made previously
aredeleted.
Note
•Resetting to the factory default settings can solve
some problems and malfunctions.
•However,all settings made previously,such as
favourites and station lists, arepermanently deleted.
8.5 Info /Software version
To have the radio display information about its software,
proceed as follows:
•Press [Settings] (3) to access the settings menu.
•Turn [Volume/Select/Navigate] (9) to navigate to the
‘SW version’ menu item.
•Conrm your selection by pressing [Volume/Select/
Navigate] (9).

10
9. Care and Maintenance
•Only clean this product with aslightly damp, lint-free
cloth and do not use aggressive cleaning agents.
•If you do not use the product for along time, turn off the
device and disconnect it from the power supply.Storeit
in aclean, dry place out of direct sunlight.
10. Warranty Disclaimer
Hama GmbH &CoKGassumes no liability and provides no
warranty for damage resulting from improper installation/
mounting, improper use of the product or from failureto
observe the operating instructions and/ or safety notes.
11. Service and Support
Please contact Hama Product Consulting if you have any
questions about this product
Hotline: [phone] (German/English)
Further support information can be found here:
www.hama.com
12. Recycling Information
Note on environmental protection:
After the implementation of the European Directive
2012/19/EU and 2006/66/EU in the national legal
system, the following applies: Electric and
electronic devices as well as batteries must not be
disposed of with household waste. Consumers areobliged
by law to return electrical and electronic devices as well as
batteries at the end of their service lives to the public
collecting points set up for this purpose or point of sale.
Details to this aredened by the national law of the
respective country.This symbol on the product, the
instruction manual or the package indicates that aproduct
is subject to these regulations. By recycling, reusing the
materials or other forms of utilising old devices/batteries,
you aremaking an important contribution to protecting our
environment.
13. Declaration of Conformity
Hereby,Hama GmbH &CoKGdeclares that the
radio equipment type [00054869] is in compliance
with Directive 2014/53/EU.The full text of the EU
declaration of conformity is available at the following
internet address:
www.hama.com ->00054869 ->Downloads.

Alllistedbrands are trademarks of thecorrespondingcompanies.Errorsand omissionsexcepted,
andsubjecttotechnical changes. Ourgeneralterms of deliveryand paymentare applied.
00054869 /05.18
Hama GmbH &CoKG
86652 Monheim/Germany
www.hama.com
