Handicare Eva400 User manual

Manual nr: 789 Rev 15
Eva400/Eva450/Eva600
Eva400EE: 60100001
Eva400EM: 60400011
Eva450EE: 60100002
Eva450EE, low legs: 60100006
Eva450EM, low legs: 60100007
Eva600EE: 60100003
Eva600EE, low legs: 60100010
SWL: 180 kg / 400 lbs
SWL: 205 kg / 450 Ibs
SWL: 270 kg / 600 lbs
Instructions for use – English
Bruksanvisning – Svenska
Brukermanual – Norsk
Brugsvejledning – Dansk
Käyttöohje – Suomi
Gebrauchsanweisung – Deutsch
Handleiding – Nederlands
Manuel utilisateur – Français
Manuale utente – Italiano
Manual de usuario – Español

2INSTRUCTIONS FOR USE
Table of contents
English............................................................................................... 3
Svenska ...........................................................................................15
Norsk.................................................................................................27
Dansk................................................................................................39
Suomi................................................................................................51
Deutsch............................................................................................63
Nederlands .....................................................................................75
Français...........................................................................................87
Italiano.............................................................................................99
Español..........................................................................................111
Dimensions Eva400/Eva450 ...............................................123
Dimensions Eva600.................................................................124
DimensionsEva450with low legs...........................................125
DimensionsEva600 with low legs..........................................126
Recycling instruction.............................................................127
Serial number............................................................................128
EMC tables...................................................................................128

3
INSTRUCTIONS FOR USE
1
2
3
4
5
6
7
8
9
10
11
12
13
Eva400/Eva450/Eva600
14
English
1. Lift arm
2. Mast
3. Handlebar
4. Battery pack
5. Emergency stop button on control box
6. Control box
7. Motor for base-width adjustment
8. Rear castors with brakes
9. SlingBar with safety latches
10. Front castors
11. Emergency lowering
12. Motor/actuator for lift arm
13. Mast height adjustment
14. Base-width adjustment pedal (model EM)Base-width adjustment pedal (model EM)
15. Hand control15. Hand control
Mobile lift Eva has been developed to meet most lifting needs in combination with the right accessories. It is a lift unit
that can lift user in a seated or supine position. The Eva is made largely of aluminium, which makes it relatively light,
considering the weight it can lift.
Visual inspection
Inspect lift functions regularly. Check to ensure that material is free from damage.
Before use
Make certain the lift is properly assembled.
Check sling bar connection and safety latch function.
Check lifting function and base-width adjustment.
Check to ensure that the quick-connecting locking pin for the actuator is correctly installed.
Safety information
English
Always read the user manuals for all assistive devices used during a transfer.
Keep the user manual where it is accessible to users of the product.
Always make sure that you have the right version of the user manual.
The most recent editions of user manuals are available for downloading from our website, www.handicare.com.
Under no circumstances may the lift be used by persons who have not received instruction in the operation of the lift.
It is strongly prohibited to modify the original product.
Always read the user manual
15

4INSTRUCTIONS FOR USE
HS M1 M2
Assembly
Check to ensure that all components are included
Mast with lift arm, lift motor, sling bar, control box and battery.
Undercarriage with base-width adjustment motor and locking handle.
Hand control and cord.
Instructions, charging cable and power supply cord for charging.
Insert the mast onto the base. There are three alternatives for adjusting the height of the
mast. Secure the mast with the locking handle.
Eva450/Eva600: Place the battery in the mount in the control box.
Mount handlebar with two wrenches. (13 mm)
Connect the cables: The cable for the hand control in outlet HS; the cable for the hoist
motor in outlet M1, and the cable for the base motor in outlet M2.
Release the emergency stop and perform a final inspection (see final inspection).

5
INSTRUCTIONS FOR USE 5
Eva450/Eva600
Eva400
EE
EM
Eva450/Eva600
Final inspection
Check to ensure that no parts have been left in the packaging.
Inspect the lift for signs of wear and damage.
Check all four castor wheels and castor wheel locks.
Check all connections and fixtures including screws and bolts.
Check the emergency stop function by activating the emergency stop button, and
then pressing either the up or down button. If nothing happens when the up or
down buttons are pressed, the emergency stop is functioning properly.
Grasp the hand control, press the up button and run the lift arm all the way up.
Then, press the down button and run the lift arm all the way down.
Test base-width adjustment function. Press the button for base-width adjustment
to widen the base fully, and then press the other button to narrow the base again.
Test lift function by lifting a person (not a user) using an approved sling. At the
same time, check the emergency lowering function with someone on the lift. See
section on Emergency lowering.
If the lift is functioning correctly, connect the charger and check to ensure that the
charging lamp on the control box lights up.
NOTE!
Before the lift is used for the first time:
• it must be charged for at least 4 hours. See section on charging batteries.
• the control box service counter needs to be reset. To reset the service counters
press both lift buttons on the hand control at the same time for 5 seconds.
An audio signal will indicate that the timer has been reset.
Keep the user manual where it is accessible to users of the product.
English

6INSTRUCTIONS FOR USE
• The lift must be assembled according to the instructions provided by Handicare.
• The lift may only be used indoors and on a level floor.
• When lifting from the floor the rear wheels must always be locked to prevent the lift from rolling and colliding with the
user. Otherwise, the wheels should not be locked, so that the lift can align itself with the user’s centre of gravity.
• Lifting accessories must be properly fitted and tested in relation to the user’s needs and functional ability.
• Do not leave the user unattended during a transfer situation.
• Under no circumstances may max. load be exceeded. See section on Safe working load.
• Never move the lift by pulling on the actuator!
• The lift must not be used or immersed in or under water including showering.
• The lift should not be left / stored in a high humidity environment.
• The lift must not be charged in a wet room.
• To ensure optimal function, the lift must be inspected regularly. See section on Maintenance.
• Warranty applies only if repairs or alterations are made to the product by personnel who are authorized by Handicare.
• Using lifting accessories other than those approved can entail a risk.
• Verify that all lifting accessories hang vertically and can move freely.
• Activate the brakes whenever the lift is not in use.
Important Information
Safe working load
Different products on the assembled lift system; ie. lift, sling bar, lifting sling and other accessories may have different
safe working loads. It is always the lowest maximum load alowed indicated for the respective products on the system
that applies for the entire system. Always check the markings on all products in the unit and contact Handicare with any
questions.
Using the product

7
INSTRUCTIONS FOR USE
Eva400
Eva450/Eva600 Charging batteries
A tone sounding when using the lift indicates that the battery need recharging.
Charge the lift after use to ensure that the battery is always fully charged.
Lock the castor wheels when charging the battery.
Eva450/Eva600
1. Connect the charging cable to a power outlet and in the connection for charger cable.
The symbol for charging is shown on the display.
2. Check to ensure that the lamps on the control box light up. The green LED lamp indicates that
the charger is receiving power and the yellow LED lamp indicates that the battery is charging.
3. Charging stops automatically when the battery is fully charged.
Wall-mounted charger
1. Remove the battery pack from the lift and place it in the wall-mounted charger.
2. Check to ensure that the LED lamp on the front of the charger lights up.
Eva400
1. Connect the charger to the charger cable leading from the underside of the control box.
2. Connect the charger to a power outlet (100-240 V AC).
3. When the charger is connected, the control box lamp indicates a yellow light.
NOTE!
Before the lift is used for the first time, it must be charged for at least 4 hours.
For maximum battery life, charge batteries regularly. We recommend daily charging when the lift is
used daily.
The emergency stop must be deactivated during charging.
Eva450/Eva600: Battery information on the display
The battery discharging will be shown in four stages:
Battery state 1: The battery is ok, no need for charging (100 - 50 %).
Battery state 2: Battery needs charging. (50 - 25 %)
Battery state 3: Battery needs charging. (Less than 25 %) A tone sounds when a button is pressed in
this battery state.
Battery state 4: The battery needs charging. (17V or lower) At this stage some of the functionality
of the lift is lost.At this battery stage it is only possible to drive the lift arm down. Furthermore an
audio signal will sound when a control button is activated. The symbol will switch between the two
pictures for 10 seconds.
The battery symbol is shown when the control box is active until power down (2 minutes after use).
It is not possible to use other batttery types than BAJ1/BAJ2.
The battery level is measured via voltage. This means that it is possible to experience e.g. that the
battery switches from state 1 to state 2 and back to state 1.
LED
indication of
charging
LED indica-
tion of hand
control
activation
Button for
electrical
emergency
lowering
Charger
English

8INSTRUCTIONS FOR USE
Eva450/Eva600
EM
EE
EE
EM

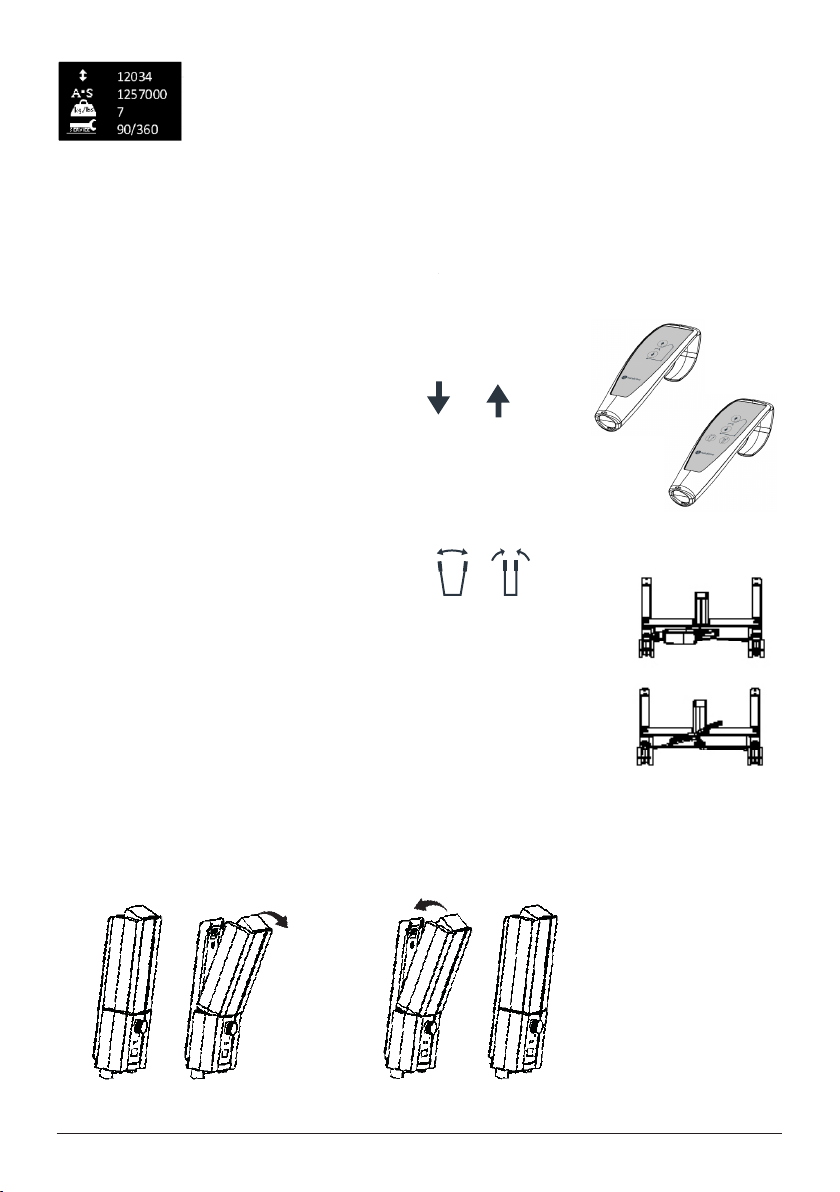

Service information read-out
Basic service information can be read out on the display. To get the service information on the
display please press the lifting arm up button for half a second. The information will be shown for
½ minute or until other buttons are activated.
• Total cycles done by the actuator
• Total work done by the actuator (ampere usage times seconds in use)
• Total number of overloads
• Days since last service/Days between services
Hand control
Raising/lowering the lift arm
Symbol indicate direction of travel.
Motion stops as soon as the button is released.
If the lift arm encounter an obstacle while lowering, the lift will immediately stop the motion.
In order to continue, the lift arm will need to be raised slightly by using the hand control
before further lowering.
Electrical base-width adjustment (EE)Electrical base-width adjustment (EE)
Markings on the buttons of the hand controll indicate function.Markings on the buttons of the hand controll indicate function.
Motion stops as soon as the buttons are released.Motion stops as soon as the buttons are released.
Manual base-width adjustment (EM)Manual base-width adjustment (EM)
Push down on the respective pedals at the back ofPush down on the respective pedals at the back of
the lift to widen and narrow the base.the lift to widen and narrow the base.
Changing the battery
”Click!”
12

9
INSTRUCTIONS FOR USE
Eva450/Eva600
Eva450/Eva600
Eva400
Eva400
Emergency stop
To activate the emergency stop
Press the red emergency stop button on the control box.
Resetting
Turn the button in the direction of the arrows until the button pops out.
To prevent battery discharge, we recommend that the emergency-stop button
is pressed in when the lift is not in use.
Emergency lowering
Manual emergency lowering
For manual emergency lowering, turn the round plastic knob on the actuator clockwise.
Electrical emergency lowering
For electrical emergency lowering, use the down button on the control box.
Use a narrow object such as a pen.
Brakes
Locking the wheels
Lock the rear wheels by pressing down on the brake pedals on both rear wheels with your
foot.
Wheels should not be locked during lifting, so that the lift can align itself with the user’s centre
of gravity.
The only time the wheels should be locked is during lifting from the floor; otherwise, there is a
risk of the lift rolling and colliding with the user’s head.
Locked wheels during lifting increase the risk of the lift tipping.
Unlocking the wheels
To release the wheel brakes, lift the brake pedals upwards with your foot.
English

10 INSTRUCTIONS FOR USE
Trouble shooting
If the lift or base-width adjustment cannot be activated, check the following:
- That the emergency stop button is not pressed in.
- That all cables are properly and securely connected. Pull out the contact and plug it in again firmly.
- That battery charging is not in progress.
- That the battery is charged.
If the lift is not working properly, contact your dealer.
If the lift makes unusual noises:
- Try to determine the source of the sound. Take the lift out of operation and contact your dealer.

11
INSTRUCTIONS FOR USE
Accessories
Lifting slings
Handicare’s SystemRoMedic™ line includes a wide range of functional and comfortable,
high-quality lifting slings that are adapted for all types of lifting and for users with different
needs. The lifting slings are available in several materials and in sizes ranging from XXS to
XXL. There are also special lifting sling models in XXXL and XXXXL for extremely large and
heavy users. All models are safe and very easy to use.
Sling bars
SlingBar is a two-point aluminium sling bar available in four variants with different width. All
variants of SlingBar have safety latches which prevent the sling straps from creeping out of
the sling bar and all variants are for users weighing up to 300 kg/660 lbs.
To get more room in a lifting sling when using SlingBar two-point sling bar, SlingBarSpreader
M side bars can be used as an accessory. SlingBarSpreader M open up the lifting sling and
provide for a more reclined position.
SlingBar XS article no.: 70200071
SlingBar S article no.: 70200001
SlingBar M article no.: 70200002
SlingBar L article no.: 70200003
SlingBarSpreader M article no.: 70200042
StretcherBar, article no.: 70200006, and StretcherSling, article no.: 46502007, for lifting in a
supine position.
Sling bar RFL X4, Article no.: 70200017, is a four-poinr sling bar designed to provide more
space in the sling, for example, for obese and/or pain-sensitive users.
Hand control
Hand control HB33-6, article no.: 70200089, with service, battery status and overload
indicator.
Scales
Charder MHS2500 is used together with a stationary or mobile lift for weighing of users.
Article no.: 70100002, SWL: 300kg/660lbs
Article no.: 70200003, SWL: 400kg/880lbs
Assistive devices for positioning
Handicare´s SystemRoMedic™ range includes a wide selection of functional, comfortable,
high-quality assistive devices for positioning that can be adapted for different types of lifting
and for users with different needs.
English

12 INSTRUCTIONS FOR USE
Maintenance
The lift must undergo thorough inspection at least once per year. Inspection must be performed by authorized personnel
and in accordance with Handicare’s service manual.
Repairs and maintenance may only be done by authorized personnel using original spare parts.
Used batteries are to be left at the nearest recycling station. Used batteries can also be returned to
Handicare or a Handicare dealer for recycling.
Cleaning/disinfection
If necessary, clean the lift with warm water or a soap solution and check that the castors are free from dirt and hair. Do
not use cleaning agents containing phenol or chlorine, as this could damage the aluminium and the plastic materials.
If disinfection is needed, 70 % ethanol, 45 % isopropanol or similar should be used. Let air dry. Disinfect the parts that
come in contact with a user before the lift is used for the next user.
Storage and transportation
If the lift is not to be used for some time or e.g., during transport, we recommend that the emergency stop button be
pressed in. The lift should be transported and stored in -10 ° C to + 50 ° C and in normal humidity, 30% -75 %. The air
pressure should be between 700 and 1060 hPa. Let the lift reach room temperature before the batteries are charged or
the lift is used.
Service agreements
Handicare offers the possibility of service agreements for maintenance and regular testing of your mobile lift. Contact
your local Handicare representative.
1060 hPa
700 hPa
+50 °C
-10 °C
75%
30%

13
INSTRUCTIONS FOR USE
Blue/white
Read user manual
May not be discarded in domestic waste
The product complies with the requirements of the Medical Devices Directive 93/42/EEC.
Type B, according to the degree of protection against electric shock.
The device is intended for indoor use.
Class lI equipment
This product is tested and approved in regards to safety
in the workplace according to the requirements of the US
Occupational Safety & Health Administration. ”US” stands for
compliance with the requirements of US authorities, ”C” for
compliance with Canadian requirements.
Yellow/Black
International general warning symbol
Red/ black
Do not push or pull the lift by the actuator
Eva400 Eva450/Eva600
Symbols
This equipment/system is intended for use by healthcare professionals only. This equipment/system may cause radio
interference or may disrupt the operation of nearby equipment. It may be necessary to take mitigation measures, such
as reorienting or relocating the equipment/system or shielding the location.
EMC
English

14 INSTRUCTIONS FOR USE
Medical Device Class I. The product complies with the requirements of the Medical Devices Directive 93/42/EEC.
Lifting speed 34 mm/s without load.
Batteries Two 12V, 2.9 Ah valve-regulated, sealed, lead accumulator (gel-type batteries)
Number of cycles when fully loaded: 300
Internal charger External: Linak CH01
(9000368) Mains voltage
100-240VAC (50-60 Hz). Max.
400mA
Internal: Included cable. Max. 400mA
Motor (mast) DC 24V, 5 A. IP X4.
Operationtime: 10% at maxi-
mum continous running of 2
minutes, maximum 5 switching
cycles per minute. Push:
6000N.
DC 24 V, 10 A. IP X4. Operationtime: 10% at
maximum continous operation of 2 minutes, maxi-
mum 5.5 cycles per minute. Push: 10 000N.
Motor (base) 24V, 5 A, IP X4. Operationtime:
10% at maximum continous
operation of 2 minutes,
maximum 5 cycles per minute.
Push: 3000N.
24 V, 3 A, IP X4. Operationtime: 10% at maximum
continous operation of 2 minutes, maximum 5.5
cycles per minute. Push: 3000N.
Sound level With load: upwards: 43 dB(A)
downwards: 44 dB(A).
With load: upwards: 74.7 dB(A) downwards: 52.6
dB(A).
Material Aluminum
Emergency lowering Manual and electrical
Castors Front 4”, 100 mm, back 4”, 100mm
Weight 74.9 lbs, 34 kg 77.1 lbs, 35 kg
IP class IP X4
Expected lifetime 10 years
Operating forces
buttons on hand control
4 N
Turning diameter 1340 mm/ 54 inch
Max. load 400 lbs, 180 kg 450 lbs, 205 kg 600 lbs, 270 kg
Eva450 Eva600
Eva400
Technical Information

15
INSTRUCTIONS FOR USE
Eva400/Eva450/Eva600
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Säkerhetskontroll
Läs alltid bruksanvisningen
1. Lyftarm
2. Mast
3. Körhandtag
4. Batteri
5. Nödstoppsknapp på kontrollbox
6. Kontrollbox
7. Motor för breddning
8. Bakre hjul med broms
9. Lyftbygel med urkrokningsskydd
10. Främre hjul
11. Nödsänkning (manuell)
12. Motor/ställdon för lyftarm
13. Höjdinställning av mast
14. Manuell benbreddning (EM)
15. Handkontroll
Den mobila lyften Eva är utvecklad för att täcka de flesta personlyftsbehov tillsammans med rätt lyfttillbehör. Det är en
personlyft som klarar både sittande och liggande lyft. Eva är tillverkad till stor del av aluminium vilket ger den en låg vikt i
förhållande till vad den klarar av att lyfta.
Visuell inspektion
Gör regelbundna funktionskontroller på lyften. Kontrollera att materialet är helt fritt från skador.
Innan användning
Kontrollera att lyften är rätt monterad.
Kontrollera att infästningen av lyftbygeln samt urkrokningsskyddens funktion är korrekt.
Kontrollera manövreringen av lyftrörelsen och breddningsrörelsen.
Kontrollera att ställdonet är korrekt monterat.
Läs alltid bruksanvisningarna för alla hjälpmedel som används vid en förflyttning.
Förvara bruksanvisningen tillgänglig för användare av produkten.
Se till att du alltid har rätt version av bruksanvisningen.
Den senaste versionen finns att ladda ned från vår hemsida www.handicare.com.
Lyften får bara användas av personer som fått utbildning i hanteringen av den.
Lyften får under inga omständigheter modifieras.
Svenska
15
SystemRoMedicTM
Svenska

16 INSTRUCTIONS FOR USE
Montering
Kontrollera att samtliga delar finns med
Mast och lyftarm, motor/ställdon för lyftarm samt lyftbygel.
Underrede med breddningsmotor och låsvred.
Kontrollbox med batteri och handkontroll
Bruksanvisning, laddningskabel.
Lås hjulen på underredet. Placera masten på underredet.
Masten har tre olika möjligheter för inställnining av lyfthöjd.
Säkra masten med låsvredet.
Eva450/Eva600: Placera batteriet i fästet på kontrollboxen.
Montera körhandtaget med två skiftnycklar. (13 mm)
Anslut kablarna: Kabel till handkontroll i HS, kabel till lyftmotorn på masten i uttag
M1 och kabel till benbreddningsmotorn till uttag M2.
Deaktivera nödstoppsfunktionen och genomför en slutlig inspektion (se slutlig
inspektion).
HS M1 M2

17
INSTRUCTIONS FOR USE
Eva450/Eva600
Eva450/Eva600
Eva400
EE
EM
Slutlig inspektion
Kontrollera att inga delar ligger kvar i emballaget.
Inspektera lyften för att upptäcka eventuella tecken på skador.
Kontrollera alla fyra hjulen samt bromsarna på bakhjulen.
Inspektera alla anslutningar, skruvar och bultar.
Kontrollera att nödstoppsfunktionen fungerar genom att trycka in nödstopps-
knappen och sedan trycka på upp- eller nedknappen. Om ingenting händer så
fungerar nödstoppsfunktionen.
Tag handkontrollen, tryck på uppknappen och kör lyftarmen hela vägen upp. Tryck
sedan på nedknappen och kör lyftarmen hela vägen ned.
Testa benbreddningen. Tryck på knappen för benbreddning, bredda benen maximalt
och tryck sedan på den andra knappen för att föra ihop benen igen.
Testa lyftens funktion genom att lyfta en person (ej brukaren) med godkänd lyftsele.
Kontrollera samtidigt att nödsänkningen fungerar med någon i lyften, se kapitlet
Nödsänkning.
Om lyften fungerar felfritt, anslut laddaren och kontrollera att laddningslampan lyser
på kontrollboxen.
OBS!
Innan lyften tas i bruk första gången måste:
• den laddas i 4 timmar. Se kapitlet Laddning av batteri.
• serviceindikatorn i kontrollboxen nollställas. Detta görs genom att samtidigt trycka
på både upp- och nedknappen på handkontrollen och hålla inne dem i 5 sekunder.
En ljudsignal indikerar att serviceindikatorn har nollställts.
Förvara bruksanvisningen tillgänglig för användare av produkten.
Svenska

18 INSTRUCTIONS FOR USE
Viktig information
• Lyften skall monteras i enlighet med monteringsanvisningar som följer med lyften.
• Lyften får endast användas inomhus och på plant golv.
• Vid lyft från golv skall bakhjulen alltid låsas för att lyften inte ska rulla på brukaren. I övriga fall bör hjulen lämnas olåsta
för att lyften skall kunna justera sig efter brukarens tyngdpunkt.
• Lyfttillbehören skall vara rätt utprovade i förhållande till brukarens behov och funktioner.
• Lämna inte brukaren under förflyttningsmomentet.
• Maxlasten får under inga omständigheter överskridas. Se vidare under avsnittet maxlast.
• Förflytta aldrig lyften genom att dra i ställdonet!
• Lyften får ej användas eller nedsänkas i vatten, gäller även dusch.
• Lyften skall inte lämnas eller förvaras i fuktiga miljöer.
• Lyften får ej laddas i våtutrymmen.
• För optimal funktion skall lyften inspekteras regelbundet. Se kapitlet Underhåll.
• Garantin gäller bara om reparationer eller ändringar utförs av auktoriserad personal.
• Att använda andra tillbehör än de som rekommenderas kan medföra risk.
• Kontrollera att alla lyfttillbehör hänger vertikalt och kan röra sig fritt.
• Lås bromsarna på bakhjulen så fort lyften inte används.
Att använda produkten
Maxlast
Olika produkter i den sammansatta lyftenheten (lyft, lyftbygel, lyftsele och andra eventuella lyfttillbehör) kan ha olika
tillåtna maxlaster. Det är alltid den lägsta tillåtna maxlasten på respektive produkt i den sammansatta lyftenheten som
styr. Kontrollera alltid tillåten maxlast på lyft och lyfttillbehör före användning och kontakta din återförsäljare vid frågor.

19
INSTRUCTIONS FOR USE
Eva400
Eva450/Eva600
LED -
indikerar
laddning
LED -
indikerar
aktivering av
handkontrollen
Knapp för
elektrisk
nödsänkning
Uttag för laddkabel
Laddning av batteri
En ton vid användning av lyften indikerar att batterierna behöver laddas.
Ladda lyften efter användning för att säkra att lyftens batteri är fulladdat.
Lås lyftens hjul vid laddning av batteriet.
Eva450/Eva600:
1. Koppla in laddningskabeln i eluttaget och i uttaget för laddningskabeln. Symbolen för laddning
visas i displayen.
2. Kontrollera att lamporna på kontrollboxen lyser. Den gröna LED-lampan bekräftar att laddaren
tar upp elström och den gula LED-lampan indikerar att batteriet laddas.
3. Laddningen avbryts automatiskt vid fulladdat batteri.
Väggmonterad laddare
1. Tag av batteriet från lyften och placera det i den väggmonterade laddaren.
2. Kontrollera att LED-lampan på laddarens framsida lyser.
Eva400
1. Anslut laddaren i laddkabeln som kommer ut från kontrollboxens undersida.
2. Anslut laddaren till eluttag (100-240 V AC).
3. Med laddaren ansluten indikerar kontrollboxens lampa gult sken
OBS!
Innan lyften tas i bruk första gången måste den laddas i 4 timmar.
Ladda batterierna regelbundet för maximal livslängd. Vi rekommenderar laddning varje dag lyften
används.
Nödstoppsfunktionen måste deaktiveras innan laddning.
Eva450/Eva600: Batteriinformation på displayen
Batteristatusen visas i fyra steg:
Batteristatus 1: Ok. Batteriet behövs inte laddas (100 - 50 %).
Batteristatus 2: Batteriet bör laddas. (50 - 25 %)
Batteristatus 3: Batteriet skall laddas. (Mindre än 25 %) En ton hörs vid knapptryckningar under
denna batteristatus.
Batteristatus 4: Batteriet måste laddas. (17 V eller lägre) I det här läget fungerar inte lyften, det
är endast möjligt att sänka lyftarmen. Ett ljud hörs dessutom om en knapp trycks in. Displayen
växlar mellan de två symbolerna under 10 sekunder.
Batterisymbolen visas när kontrollboxen är aktiv och till avstängning, (2 minuter efter användning).
Endast batterityp BAJ1/BAJ2 kan användas.
Batterinivån mäts i Volt. Det betyder att det är möjligt att symbolen ibland kan växla mellan Status
1 och 2 och tillbaka igen.
Svenska

20 INSTRUCTIONS FOR USE
Eva450/Eva600
Byte av batteri
”Click!”
12
EM
EE
EE
EM
Handkontroll
Höjning/sänkning av lyftarmen
Markeringar på knapparna anger riktning.
Rörelsen avstannar så snart man släpper knapparna.
Om lyftarmen stöter på ett hinder vid nedsänkning stannar lyften. För att fortsätta
nedsänkningen måste lyftarmen höjas något med hjälp av handkontrollen för att sedan
kunna sänkas vidare.
Elektrisk benbreddning (EE)Elektrisk benbreddning (EE)
Funktionen framgår av symbolerna på knapparna påFunktionen framgår av symbolerna på knapparna på
handkontrollen. Så fort knapparna släpps stannar lyftenshandkontrollen. Så fort knapparna släpps stannar lyftens
rörelse.rörelse.
Manuell benbreddning (EM)Manuell benbreddning (EM)
Tryck ner respektive pedal på baksidan av lyften för att bredda eller föra ihop benen.Tryck ner respektive pedal på baksidan av lyften för att bredda eller föra ihop benen.
Utläsning av serviceinformation
Grundläggande serviceinformation kan utläsas på displayen. För att se informationen på displayen
håll inne en av knapparna för lyftarmen i en halv sekund. Informationen visas i 30 sekunder eller till
andra knappar aktiveras.
• Antal genomförda lyftcykler
• Ställdonets driftpåkänning (använda ampere x sekunder under drift)
• Antal överbelastningar
• Antal dagar sedan senaste serviceomgång
