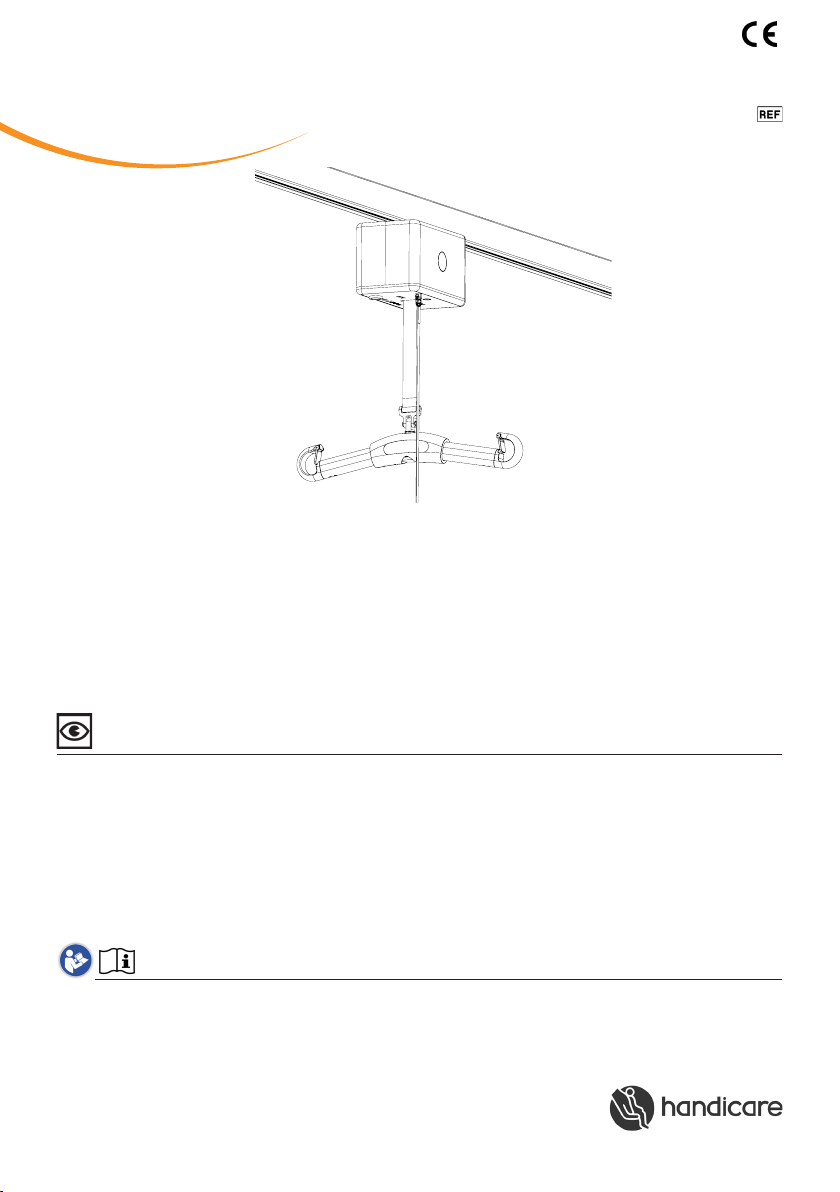

Handicare SystemRoMedic RiseAtlas450M... User manual

RiseAtlas450M with QuickTrolleySystem has been developed, for use in combination with the appropriate lifting acces-
sories, for transferring patients conveniently between two locations. The ceiling lift unit is installed on the appropriate rail
system to cover lifting needs in the given situation. The rail system may consist of a straight rail, with or without curves,
or a traverse system. It is also possible to transfer patients between two rooms using RiseAtlas. The QuickTrolley func-
tion facilitates mounting and dismounting of the lift unit on the rail.
Handicare’s SystemRoMedic product series includes a range of lifts, slings and other accessories. SystemRoMedic
adopts a holistic approach to patient transfers and is organized in four categories: transfer, positioning, support and
lifting.
Visual inspection
Inspect lift functions regularly. Check to ensure that product is free from damage.
Before use:
Ensure that the product is correctly assembled.
Check rail end stops.
Check slingbar connection and safety latch function.
Check lifting movement.
Always read the manuals for all assistive devices used during a transfer.
Keep the manual where it is accessible to users of the product.
The user/attendant shall be trained professional with thorough understanding of the equipment and lifting of disabled
persons.
Functional inspection
Always read the manual
Manual nr: 706-En Ver. 4 140820
Manual - English
SWL:
RiseAtlas450: 205 kg/450 lbs
RiseAtlas450M,
with QuickTrolleySystem
50100057 (RiseAtlas450M)
50100051 (RiseAtlas450M, high humidity)
SystemRoMedicTM

Table of contents
Installation...................................................................................3-12
- Unpacking and check............................................................................. 3
- Transport and storage ............................................................................ 3
- Installing the lift unit........................................................................... 3-6
- Charging the lift unit..........................................................................7-10
- Using QuickTrolleySystem .....................................................................11
- Different rail systems............................................................................12
- Final inspection....................................................................................12
Using the product ...................................................................13-18
- Important information ..........................................................................13
- Before use ...........................................................................................13
- Safe working load ................................................................................14
- Description of functions and symbols .....................................................14
- Hand control ........................................................................................15
- Information panel .................................................................................16
- Preventive service maintenance.............................................................16
- Emergency stop ...................................................................................17
- Electrical emergency lowering ...............................................................17
- Manual emergency lowering/raising.......................................................17
- Trouble-shooting ..................................................................................18
Accessories....................................................................................19
Maintenance ..................................................................................20
Technical information ..........................................................21-23
- Detailed description..............................................................................23
2MANUAL SystemRoMedicTM

Installation
Unpacking and check
With RiseAtlas, the following is included in the package:
1 RiseAtlas lift unit
1 Trolley
1 Hand control
2 Manuals - User manual, Assembly instructions for fuse
1 Charger station
1 Manual emergency lowering key
1 Safety pin H64
1 Safety pin H120 - 160
1 Label (QuickTrolleySystem)
1 Label (Parking for end point charging)
Check to ensure that no components are left in the packaging.
Inspect the lift unit for signs of damage.
Transport and storage
Before shipping, the fuse is removed to prevent battery discharge during transport or long-term storage.
Install the fuse in the lift unit according to the accompanying instructions.
Installing the lift unit
NOTE! The lift unit and carriage must be installed and inspected by authorized personnel according to instructions issued
by Handicare AB. Periodic inspection must be performed at least once yearly. Use only original spare parts. Service and
maintenance must be performed according to instructions in the manual.
The lift must be charged for at least 3 hours before it is used for the first time. The lift unit is shipped with the fuse
removed. Prior to installation the cover is removed and a 20A fuse is inserted. The fuse is packed in a bag. As standard,
the lift is factory pre-set for charging at a charger station. When installing the lift unit for in-rail charging on the rail system,
the system must be fitted with charger rails. Exercise caution when installing the lift unit, so that the charger wheels do
not come in contact with the rail, since this may cause short-circuiting. Incorrect installation may cause short-circuiting
and damage the charger.
Alteration of the charging method must be performed by authorized person-
nel according to instructions issued by Handicare AB.
3
MANUAL
SystemRoMedicTM

180 cm
Emergency Stop Strap
When the lift is correctly installed in the trolley system, the emergency
stop strap needs to be adjusted. The emergency stop strap is cut at a
height where the strap doesn´t interfere with a normal lifting situation but
at the same time is easily reached by all users.
The strap is cut with scissors and singed at the end as to prevent unravel.
Handicare recommends a height of 180 cm/70 inches above the floor.
Assembly of charger unit
The following is included in the charger station package:
• Holder
• Charger cup
Charger cable (EU, UK, US connectors included)
(fixtures between charger station and wall/freestanding rail not included)
Charger station
a) Secure holder to charger station on wall/freestanding rail system, fig 1. Recommended height is 110-120 cm from
floor.
b) Snap the cable connectors onto the lift unit’s charger cable, fig 2.
c) Mount the cable connectors with the charger cable on the underside of the charger cup, fig 3.
Use the accompanying screws.
d) Snap the charger cup in place in the holder for the charger station, fig 4.
e) Connect the accompanying hand control to the charger station and the hand control cable to the lift unit, Figure 5.
Check charger function.
1 2 34
4MANUAL SystemRoMedicTM

Clearence hole for safety pin

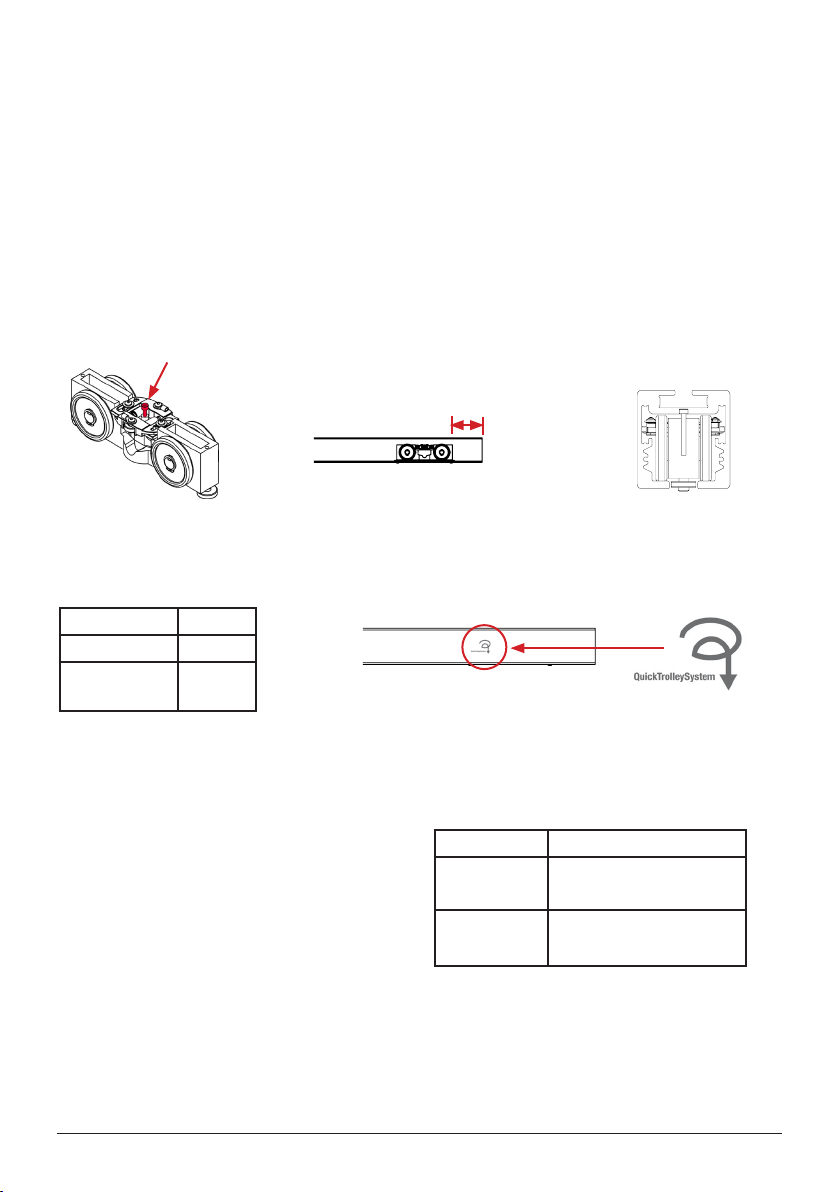

To be able to mount and dismount the lift unit from the rail with the QuickTrolleySystem, the saftey pin, marked red in
fig 1, needs a clearence hole in the rail that enables the saftey pin to slide up and down. Mounting and dismounting the
lift unit from the rail will only be possible at the position where the clearence hole has been made.
I. Decide where on the rail the lift unit can be mounted and dismounted. NOTE! Distance, D in fig 2, from end of rail to
trolley depends on which end stop that is used, Table 1.
II. Drill a hole, diameter 10-12 mm, in the rail where the safety pin should slide up and down, fig 3.
III. Remove metal chips from the rail.
VI. Put the accompanying label on the rail to show the user where the lift unit can be mounted and dismounted, fig 4.
Fig 1; Safety pin Fig 3; Trolley in rail
Trolley quick release
Trolley_new_design_2
WEIGHT: 3643.85
Material <not specified>
A3
SHEET 1 OF 1 SCALE:1:10
DWG NO.
TITLE:
REVISION
DO NOT SCALE DRAWING
MATERIAL:
DATE
SIGNATURE
NAME
DEBUR AND
BREAK SHARP
EDGES
FINISH:
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
Q.A
MFG
APPV'D
CHK'D
DRAWN
Fig 2; Trolley in position for mount-
ing / dismounting
Trolley quick release
Trolley_new_design_2
WEIGHT: 3643.85
Material <not specified>
A3
SHEET 1 OF 1 SCALE:1:5
DWG NO.
TITLE:
REVISION
DO NOT SCALE DRAWING
MATERIAL:
DATE
SIGNATURE
NAME
DEBUR AND
BREAK SHARP
EDGES
FINISH:
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
Q.A
MFG
APPV'D
CHK'D
DRAWN
Fig 4; Label on rail
Place the safety pin in the intended position in between the
charger plates, fig 1. The length of the safety pin chosen
depends on the height of the rail, Table 2.
Height of rail Safety pin
H64 Short safety pin
M3x15 mm
H120 – H160 Long safety pin
M3x25 mm
Table 2; Length of safety pin
End stop used Distance, D
Stop bult 50 mm
Adjustable end
stop
120 mm
Table 1; End stop
D
Skena med vagn
WEIGHT:
A3
SHEET 1 OF 1 SCALE:1:10
DWG NO.
TITLE:
REVISION
DO NOT SCALE DRAWING
MATERIAL:
DATE
SIGNATURE
NAME
DEBUR AND
BREAK SHARP
EDGES
FINISH:
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
Q.A
MFG
APPV'D
CHK'D
DRAWN
Safety pin
Assembly of the trolley
5
MANUAL
SystemRoMedicTM

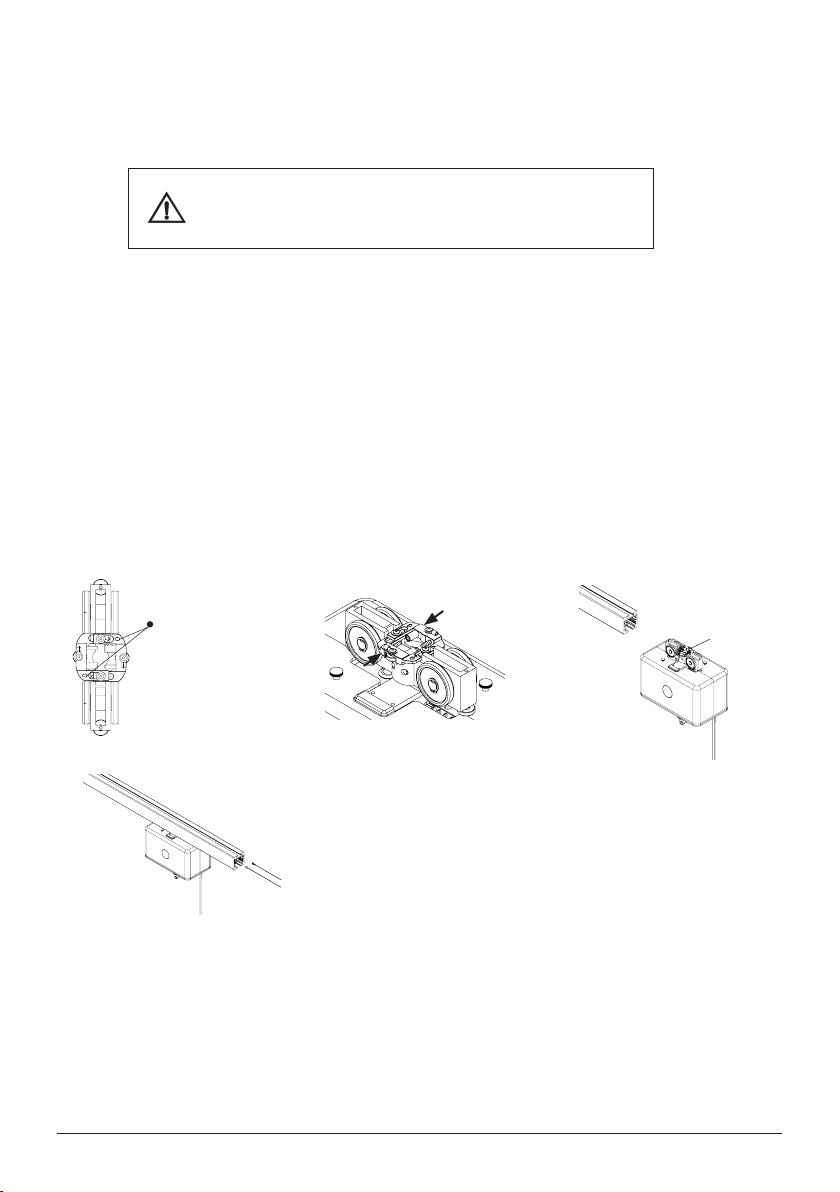

If the desired position for the lift unit is not parallell to the rail the quick trolley release bracket, marked red in fig 5, can be
adjusted by 45-degree angle intervals.
I. Open the cover by removing the two screws at the top. More detailed information can be find in the service
manual for RiseAtlas450.
II. Release the four screws that hold the top bracket in place. Rotate the quick trolley release bracket into the
desired angle, fig 6.
III. Mount the top bracket and the covers back to their original position.
CHASSIS ASSEMBLY MANUAL
90001449 CHASSIS ASSEMBLY MANUAL
WEIGHT:
SEE DETAILS
SEE DETAILS
A3
SHEET 1 OF 1 SCALE:1:10
DWG NO.
TITLE:
REVISION
DO NOT SCALE DRAWING
MATERIAL:
DATE
SIGNATURE
NAME
DEBUR AND
BREAK SHARP
EDGES
FINISH:
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
Q.A
MFG
APPV'D
CHK'D
DRAWN
CHASSIS ASSEMBLY MANUAL
90001449 CHASSIS ASSEMBLY MANUAL
WEIGHT:
SEE DETAILS
SEE DETAILS
A3
SHEET 1 OF 1 SCALE:1:10
DWG NO.
TITLE:
REVISION
DO NOT SCALE DRAWING
MATERIAL:
DATE
SIGNATURE
NAME
DEBUR AND
BREAK SHARP
EDGES
FINISH:
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
Q.A
MFG
APPV'D
CHK'D
DRAWN
Figure 5; Quick trolley release bracket
Figure 6; Adjusting the
QuickTrolleyReleaseBracket
6MANUAL SystemRoMedicTM

Charging the lift unit
RiseAtlas can be used with three different charging systems:
1. Charger station for charging via hand control (Standard version for 50100057)
2. In-rail charging (Accessory for 50100057)
3. End-point charging (Standard version for 50100051, accessory for 50100057)
RiseAtlas is charged with a charger unit that is connected to the charger cables via a DC outlet. The charger should be
kept in an appropriate location. Note that the charger is a separate unit and can be easily mistaken for another charger.
Ensure that the correct charger is used, see Technical information. For assembly instructions, see Assembly of charger
unit.
1) The lift unit is charged via a wall-mounted charger station. Place the hand
control in the charger station. The charging lamp on the lift unit indicates charging
for 15 minutes after being activated. Charging continues until the battery is fully
charged.
2) For in-rail charging, the lift unit is always kept charged, which means that it can
be left anywhere on the rail and will charge automatically.
3) For end-point charging, the lift unit is placed at the charger station at the end
of the rail. If the rail system is of the traverse type, the secondary rail is placed at
the end of the primary rail at which the charger station is located. Check to ensure
that the battery symbol on the lift unit lights up.
7
MANUAL
SystemRoMedicTM

Alternative 2: In-rail charging (Accessory for article number 50100057)
If the in-rail charging option is chosen, the lift unit must be fitted with a charger contact (70200062) and charger rails
before installation. The charger that is included with the lift unit is used. It is connected to the charger rails in the same
way as the charger station, see section Charger station for charging via hand control.
Alteration of the charging method must be performed by authorized
personnel according to instructions issued by Handicare AB.
1) Set the charging points for in-rail charging; the charger plate is not secured with the spring pins, see fig 1. To set the
charging points for in-rail charging, remove the spring pins that hold the charger plate in place. Then, the dip switch on
the circuit board is set for the desired charging function.
2) Check to ensure that the charger plate springs in and out when pressure is applied to the charger plate, see
fig 2.
3) Check to ensure that charger rails have been installed (installation of charger rails is described in the installation
manual for MilkyWay).
4) Guide the lift unit onto the rail so that the plus on the charging point is on the right side, according to fig 3.
5) Connect the red cable to the charger rail on the right side, the charger plate’s plus side (positive), and the black cable
on the left side (negative), according to fig 4.
6) Install the end-stop on the rail.
1 2
NOTE! No spring pin
3
+
4
+ Plus
+
8MANUAL SystemRoMedicTM

1 2
45
Alternative 3: End-point charging (Standard version for article number 50100051 and accessory for article number 50100057)
If the end-point charging option is chosen, the lift unit must be fitted with a charger contact (70200062). The charger
that is included with the lift unit is used. It is connected to the charger rails in the same way as the charger station, see
section Charger station for charging via hand control.
1) Check to ensure that the charging points are set for the charger station; the charger plate is secured with the spring
pins, see fig 1.
2) Check to ensure that the charger plate springs in and out when pressure is applied to the charger plate, see fig 2.
3) Guide the lift unit onto the rail so that the plus on the charging point is on the right side, according to fig 3.
4) Mount charger contacts according to fig 4. NOTE! Push the charger contact (A) in about 50 mm if only a stop bolt is
used. When an adjustable end-stop is used, the charger contact is pushed in about 90 mm.
5) Affix the accompanying screws for charger contacts, see fig 5 (B).
6) Connect the red cable to the charger contact on the right side, the charger plate’s plus side (positive), and the black
cable on the left side (negative), according to fig 6.
7) Install the end-stop on the rail.
Spring pin
3
+
+
+ Plus
6
J
K
L
M
9 1 2 3 4 5 6 7 8 10 11 12
K
G
F
H
J
SCALE:1:5
DWG. NO. REV.
NAME DATE
DRAWN
APPROVED BY
SHEET 1 OF 1 WEIGHT:
COMMENTS:
STATUS: TITLE
MATERIAL:
SIZE
hc-mabr
In work
End point charger
90001915 00A
Material <not specified>
3441.59 g
2012-01-12
A1
Unless otherwise stated, general
tolerances according to ISO 2768-m
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
A
J
K
L
M
9 1 2 3 4 5 6 7 8 10 11 12
K
G
F
H
J
SCALE:1:5
DWG. NO. REV.
NAME DATE
DRAWN
APPROVED BY
SHEET 1 OF 1 WEIGHT:
COMMENTS:
STATUS: TITLE
MATERIAL:
SIZE
hc-mabr
In work
End point charger
90001915 00A
Material <not specified>
3441.59 g
2012-01-12
A1
Unless otherwise stated, general
tolerances according to ISO 2768-m
This drawing and any information or descriptive matter set out hereon are the confidential and copyright property of Handicare
and must not be disclosed, loaned, copied or used for manufacturing, tendering or any other purpose without their written permission.
B
+
+
-
+
-
9
MANUAL
SystemRoMedicTM

Battery status, charger station
The battery symbol lights green when battery capacity exceeds 50%.
If the battery symbol blinks orange when the lift is started, the battery needs to be charged.
If the battery symbol lights orange and a beep is heard when the lift is run up, the battery needs
to be charged immediately.
When the lift unit is placed in the charging position the battery symbol lights green for 15 minutes.
The freestanding charger unit also indicates charging status via a coloured lamp. When the lift
unit is fully charged the charger unit lamp lights green.
When the lift unit is activated the battery symbol lights up for two seconds to indicate the current
battery status.
Battery status, in-rail charging
The battery symbol lights green when battery capacity exceeds 50%.
When the lift unit is activated the battery symbol lights green for 15 min.
If the battery symbol and the book symbol blink orange when the lift unit is started, the circuit for
the charging system has been broken and must be checked by a technician.
NOTE!
Use only the charger that is intended for the lift unit.
For maximum service life, charge batteries regularly. Do not allow the battery charge level to fall
below 25% (orange symbol on control panel).
Emergency stop must not be activated during charging.
Batteries may only be replaced by authorized personnel.
10 MANUAL SystemRoMedicTM

Picture 1-4; Mounting lift unit to the rail using quick trolley system Picture 5; Trolley cable
plugged in
Using QuickTrolleySystem
Ensure that the emergency stop is activated and place the lift unit in the rail by inserting the QuickTrolley T-bracket into
the trolley. Then rotate the lift unit 90 degrees to lock the QuickTrolleyReleaseBracket into the trolley, picture 1-4 below.
Ensure that the lift unit slides in place and that it can be moved along the rail.
Note! The ceiling lift unit can only be mounted in and out at the symbol for Quick Trolley (sticker on the rail).
Plug in the cabel from the trolley at the top of the lift, picture 5.
11
MANUAL
SystemRoMedicTM

Final inspection
•TheRiseAtlasliftingunitmustbeinstalledandfirst-timeinspectedbyauthorizedpersonnel(inspector)inaccordance
with the installation instructions provided by Handicare AB. Periodic inspection of the equipment should be undertaken
at least once a year. Original spare parts should be used and service/maintenance of the equipment should be in ac-
cordance with the manual.
•Checktoensurenopartsinpakage.
•Checkandenurethatthelifthasnosignsofdamageaftertransportation.
•Checktoensurethattheemergencystopisfunctioningbypullingitout,andthenpressingtheUPorDOWNbutton.
If nothing happens, the emergency stop is working properly.
•Checktheentirelengthofthestrapforsignsofdamageandinspectseamsforwear.Presstheupbuttonandrunthe
strap all the way up. Then, press the down button and run the strap all the way down.
•Testliftfunctionbyliftingaperson(notapatient)usinganapprovedsling.Atthesametime,checkboththemanual 
and electrical emergency lowering function with someone in the lift. See section on Emergency lowering.
•Checktoensurethattherailsystemisequippedwithendstops.
•Checkthehandcontrolcableforsignsofwear.
•Checktoensurethathandcontrolmarkingscoincidewithliftfunctions.
•Theuser/attendantshallalwayspayattentiontoandreportanyunusualnoisesorvibrationoftheequipment.
NOTE!
Before the lift is used for the first time it must be charged for at least 3 hours. See section on charging the lift.
RiseAtlas is shipped with the emergency stop activated to prevent battery discharge during transport or long-term
storage.
Always keep the key for the emergency lowering device close to the lift.
All personnel who use the lift must be informed of where the key is kept.
Different rail systems
The choice of rail system is determined by lifting needs.
H system Straight rail, curves, turntable Freestanding straight rail
12 MANUAL SystemRoMedicTM

Before use
•Inspecttheliftforsignsofwearanddamage.
•Checkthehandcontrolcableforsignsofwear.
•Checktoensurethathandcontrolmarkingscoincidewithliftfunctions.
•Checkbatterychargelevel.
•Inspecttheliftstrapforsignsofdamage.
Using the product
Important information
•Theuser/attendantshallbetrainedprofessionalwiththoroughunderstandingoftheequipmentandliftingofdisabled
persons. It is important that proper accessories and techniques are used by the user/attendant and it is also very
important that a patient never is left unattended in a lifting situation.
•Warrantydoesnotapplyifrepairsoralterationsaremadetotheliftbypersonnelwhoarenotauthorized.
•RiseAtlasmustnotcomeindirectcontactwithwater.
•RiseAtlasmustnotbechargedinawetroom(articleno.50100057).
•Toensureoptimalfunction,theliftmustbeinspectedregularly.SeesectiononMaintenance.
•Undernocircumstancesmaysafeworkingloadbeexceeded.Seesectionontechnicalinformationandtheproduct
label on the lift.
•Liftingaccessoriesmustbeproperlytrialfittedandtestedinrelationtothepatient’sneedsandfunctionalability.
•Particularcaremustbetakenwhenusingtheequipmentnearstrongsourcesofinterference,suchasdiathermyappa-
ratus, so that e.g., diathermy cables and similar equipment are not placed near the device. When in doubt, consult
your equipment technician or the supplier.
13
MANUAL
SystemRoMedicTM

Safe working load
SWL:
Different products on the same lift system (lift unit, sling and other lifting accessories) may have different allowable safe
working loads. The lowest allowable safe working load always determines the safe working load of the assembled
system. Always check the safe working loads for the lift and accessories before use. Contact your dealer if you have any
questions.
Description of functions and symbols
RiseAtlas has many built-in functions. Each function is described in the respective section in the manual, or in the
manual for the respective accessory. Below is a brief description of the functions that are available for caregivers
and patients.
Symbols on the product
Battery status Emergency stop
The lift requires service or
maintenance
Directional indication, transfer
motor
Overload Warning!
Read the manual
Read manual
Read manual May not be discarded in
domestic waste
The product fulfills the demands
stated in the MDD 93/42/EEC
Type B, according to the
degree of protection against
electric shock.
The device is intended for indoor use. Class lI equipment
Conforms to ISO 10535:2006 with
ANSI/AAMI ES 60601-1:2005 and
is certified to ISO 10535:2006 with
CSA-C22.2 No. 60601-1:08
Always Read The Manual
14 MANUAL SystemRoMedicTM

Hand control
Connection of hand control to lift unit:
The outlet for the hand control is under if the lift unit, fig 1. Press the
plug in securely.
Raising/lowering
The buttons with the black arrows raise and lower the lift strap.
Raising/lowering is interrupted as soon as pressure on the buttons is
released, fig 2.
ON/OFF via hand control
The green (ON) button is for activating the lift unit and a button for
switching it off (OFF), fig 3. The lift unit switches off automatically after
15 minutes of inactivity. Normally, the lift must be activated via the
green (ON) button before use.
Activate/start the lift unit
The lift is switched on via the green (ON) button on the hand control.
A battery symbol lights up for about 2 seconds to indicate battery status.
If the lamp does not light, check to ensure that the emergency stop is not
activated.
Active safety
RiseAtlas has a built-in strap guard which prevents the lift from being
manoeuvred up or down unless the lift is loaded with at least 2 kg. The
purpose of this safety feature is to prevent the strap from being run in
and out without load, which may lead to shorter drops when the lift is
subsequently used.
The built-in strap guard RiseAtlas stops automatically when the lift strap is
not loaded e.g., when the slingbar is lowered to a bed. If this happens, the
strap must be stretched in order to be run down or up.
If the lift strap becomes twisted during lifting, RiseAtlas switches off auto-
matically and can only be run down.
To save battery charge, the lift unit switches off automatically after about
15 minutes of inactivity.
15
MANUAL
SystemRoMedicTM
1
2
3
ON OFF

Information panel
On the control panel at the bottom of the lift unit there are several symbols. The symbols lights up
when a function is activated. More information on each function is given below, and under chapter
Trouble-shooting.
Battery status
Battery status is indicated for 2 seconds when a lift with end point charging is activated, and for 15
minutes if the in-rail charging option is used.
Service/maintenance
Information concerning service and maintenance. This symbol is activated once the lift unit has
been used for 12 months.
Overload protection
RiseAtlas is equipped with overload protection, which prevents the lift from lifting more than the
maximum rated load if this happen. A symbol for overload and a warning triangle light up and a
signal is heard. If this symbol is activated, the patient is too heavy.
Read manual
Often, the book symbol will light up at the same time as another symbol lights up, indicating that
the user should read the manual before using the lift again.
Night light
RiseAtlas is equipped with night lighting, which will be activated by pressing and holding the ON
button on the hand control for 3 seconds. The LED lamp lights for 15 minutes if it is not inactivated
via the OFF button on the hand control.
Emergency stop function
This light is only operational with kit 70200047, which is an auxiliary 9V battery back up, The light
indicates when the 9v battery is too low and the battery should be changed. The light will reset
when the new battery is installed. This symbol will also light up each time the lift unit is switched on
via the hand control.
Warning
The warning triangle is activated, prompting the user to read the manual. Often, the
warning triangle will light up at the same time as another symbol lights up, indicating that the user
should read the manual before using the lift again. Normally, a technician must be
contacted when this symbol is activated.
Preventative service/maintenance
The symbol for service/maintenance lights up automatically when the lift unit has been used for 12 months.
Contact an authorized Handicare service technician for maintenance and resetting.
16 MANUAL SystemRoMedicTM

Electrical emergency lowering
If the hand control is not functioning, electrical emergency lowering
can be activated by holding the emergency stop strap down, fig 1.
Lower the patient to a safe height and location.
Electrical emergency lowering may only be used if the hand
control is malfunctioning. The electrical emergency lowering device
feeds out the lift strap for as long as the emergency stop strap is
held down. Ensure that the lowering motion is activated. Otherwise,
electrical emergency lowering must be stopped. Always ensure that
emergency lowering is done in an appropriate location.
To reset: Press the plastic button that holds the red strap in place
upward until it clicks, see fig 2.
Manual emergency lowering/raising
Remove the plastic cover on the same side as the emergency stop
strap, fig 3. On the inside of the cover there is an Allen key. Remove
the Allen key and insert it into the hole as indicated, fig 4. Turn it
counter-clockwise to lower and clockwise to raise the slingbar.
Always ensure that emergency lowering is done in an appropriate
location.
NOTE! Lowering is very slow.
Re-setting manual emergency lowering/raising: Contact an authorized
Handicare service technician. Do not use the lift unit.
Emergency stop
To activate emergency stop: Pull the red emergency stop strap firmly, fig 1, and then release.
To reset: Push the plastic button that holds the red strap in place upward until it clicks,
see fig 2.
Allen key
If the emergency stop strap is held down constantly, electrical emergency lowering will be
activated. When the strap is released, the lift will.
When the emergency stop is activated, a red indication is visible, fig 1, above emergency
stop strap and its white plastic button.
17
MANUAL
SystemRoMedicTM
2
1
3
4
A

Trouble-shooting
If lifting motion cannot be activated, check to ensure:
- that the emergency stop is not activated; on certain models, the emergency stop symbol lights up;
- that the lift unit is switched on (ON) via the hand control (a signal is heard);
- that the hand control is properly connected and pressed in securely; disconnect, and then replace it and press it in
securely;
- that the lift unit is not in the charging position; the lift unit is blocked for use when it is in the charging position;
- that the battery is charged;
- that the charger has a power supply; the charging lamp on the charger unit should light up when the lift unit is placed
in the charging position;
- that load is applied to the lift strap.
If the lift unit is not working properly, contact your Handicare dealer.
If the lift cannot be run all the way up to stop, check to ensure:
- that the overload symbol is not activated;
- that the battery symbol does not indicate low battery charge level.
If the lift cannot be run down, check to ensure:
- that load is applied to the lift strap;
- that the battery symbol does not indicate low battery charge level;
- that the directional indicators on the buttons, arrow up and arrow down, are correct.
If unusual sounds are heard:
- try to locate the source of the sound. Take the lift unit out of service and contact your Handicare dealer.
Symbol indication:
The symbol indicates that the lift unit must be inspected. Contact your dealer.
The symbol lights up after 6-12 months.
Indicates battery charge status.
18 MANUAL SystemRoMedicTM

Accessories
SystemRoMedic
Slings
SystemRoMedic offers a wide variety of functional and comfortable high quality lifting slings
adapted to meet the different requirements of all kinds of lifting situations and users. The
lifting slings are available in four different materials and in sizes ranging from XXS to XXL. All
models are safe and very easy to use.
Sling bars
SlingBar is SystemRoMedic’s aluminium sling bar. It’s available in three different widths and is
therefore suitable in most lifting situations and for users of all sizes.
SlingBar S, (350 mm) article no.: 70200001
SlingBar M, (450 mm) article no.: 70200002
SlingBar L, (600 mm) article no.: 70200003
SlingBarSpreader M, article no.: 70200042
SwiftHook for sling bar, article no.: 70200008
StretcherBar, article no.: 70200006, and StretcherSling, article no.: 46502007, for lifting in a
supine position.
Scale
SystemRoMedic’s scales Charder MHS2500 are used together with stationary or mobile lifts
for weighing of users.
Article no.: 70100002 (300 kg/661 lbs)
Article no.: 70100003 (400 kg/881 lbs)
Assistive devices for positioning
SystemRoMedic includes a wide range of functional, comfortable, high-quality assistive
devices for positioning that can be adapted for different types of lifting and for patients with
different needs.
Other
QuickTrolley450, article no.: 70200046
QuickTrolley450 70 mm, article no.: 70200051
Cover to charger, article no.: 50400066
In-rail/end-point charging, article no.: 70200062 (Standard for 50100051)
IR remote controlling, article no.: 70200065 (for 50100057)
9V battery and cable, article no.: 70200047 (for 50100057)
Software for diagnostics, article no.: 70200048
Parking Placard, article no.: 50400048
Sling bar
The Ready for life four-point slingbar, Sling bar RFL X4, is designed to provide more space in
the sling, for example, for obese and/or pain-sensitive users. Article no.: 70200017
B
C
D
1 2
A
3 2 1 4
B
A
5 6
C
3
SCALE:2:1
DWG. NO. REV.
NAME DATE
DRAWN
APPROVEDBY
SHEET1 OF 1
WEIGHT:
COMMENTS:
STATUS: TITLE
MATERIAL:
SIZE
hc-mabr
-
-
- -
1023Carbon Steel Sheet (SS)
158.68g
2010-10-14
A4
Unless otherwise stated,
general tolerances
according to ISO 2768-m
19
MANUAL
SystemRoMedicTM

Maintenance
The lift must undergo thorough inspection at least once per year. Inspection must be performed by authorized personnel
and in accordance with Handicare’s service manual. Repairs and maintenance may only be done by authorized
personnel using original spare parts.
Spent batteries are to be left at the nearest recycling station. Spent batteries can also be returned to
Handicare or a Handicare dealer for recycling.
Cleaning/disinfection
Clean the lift with warm water or rubbing alcohol. Do not use cleaning agents containing phenol or chlorine, as this may
damage the material.
Storage
To ensure maximum battery life, charge regularly. We recommend that the charger is plugged into the lift unit when not
in use. Do not allow battery charge to fall below 25%. Store the lift at a temperature above freezing point, 10 ˚C to 40 ˚C,
not exceeding normal relative humidity 30 % to 75%. The air pressure shall be between 700 and 1060hPa.
Service agreements
Handicare offers the possibility of service agreements for maintenance and regular testing of your lift. Contact your local
Handicare representative.
20 MANUAL SystemRoMedicTM
