Hans Grohe Logis 190 71090007 Manual

ZH 用户手册/组装说明 2
EN Instructions for use / assembly instructions 3
Lesezeichen
中文 2
English 3
Logis 190
71090007
Novus 230
71123007

2
中文
安装 (参见第页4)
安全技巧
装配时为避免挤压和切割受伤，必须戴上手
套。
本产品只允许作为洗浴、卫生和洁身之用。
冷热水管间过大的压力差必须予以平衡。
安装提示
• 安装前必须检查产品是否受到运输损害。安装
后将不认可运输损害或表面损伤。
• 管道和阀门必须根据通用标准进行安装、冲洗
和检查。
• 请遵守当地国家现行的安装规定。
• 只能按规定使用溢流阀。禁止将半露柱及其他
部件固定到溢流阀上。
• 如果使用即热式热水器时出现问题，或要求更
大的水流量，可以把位于水波器后面的
EcoSmart®（流量限制器）拆除。
技术参数
本龙头配有EcoSmart®（流量限制器）
工作压强： 最大1MPa
推荐工作压强： 0,1-0,5MPa
测试压强： 1,6MPa
 (1MPa=10bar=147PSI)
热水温度： 最大70°C
推荐热水温度： 65°C
热力消毒: 最大70°C/4分钟
该产品专为饮用水设计！
符号说明
请勿使用含有乙酸的硅胶！
调节 (参见第页7)
热水温度调节。如果使用即热式喷头，则不建议
安装热水阀门。
大小 (参见第页8)
流量示意图 (参见第页8)
带有EcoSmart®
无EcoSmart®
备用零件 (参见第页9)
选装附件 (不在供货范围内)
• 专用工具#58085000(参见第页4)
• 水管胶泥(参见第页5)
清洗 (参见第页10)
操作 (参见第页12)
汉斯格雅建议，清晨或在水流长时间停滞后，前
半升水不作饮用水使用。

3
English
Assembly (see page 4)
Safety Notes
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The product may only be used for bathing, hygienic
and body cleaning purposes.
The hot and cold supplies must be of equal
pressures.
Installation Instructions
• Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
• The pipes and the fixture must be installed, flushed
and tested as per the applicable standards.
• The plumbing codes applicable in the respective
countries must be observed.
• The drain valve must only be used as intended. It is
not allowed to attach other objects to the drain
valve, for example a semi-pedestal.
• If the instantaneous water heater causes problems
or if you wish to increase the water flow, the
EcoSmart® (flow limiter) located behind the aerator
can be removed.
Technical Data
This mixer series-produced with EcoSmart®
(flow limiter)
Operating pressure: max. 1 MPa
Recommended operating pressure: 0,1 - 0,5 MPa
Test pressure: 1,6 MPa
(1 MPa = 10 bar = 147 PSI)
Hot water temperature: max. 70°C
Recommended hot water temp.: 65°C
Thermal disinfection: max. 70°C / 4 min
The product is exclusively designed for drinking water!
Symbol description
Do not use silicone containing acetic acid!
Adjustment (see page 7)
To adjust the hot water limiter. Using a hot water limiter
in combination with a continuous flow water heater is
not recommended.
Dimensions (see page 8)
Flow diagram (see page 8)
 with EcoSmart®
 without EcoSmart®
Spare parts (see page 9)
Special accessories (order as an extra)
• special tool #58085000 (see page 4)
• Installation putty (see page 5)
Cleaning (see page 10)
Operation (see page 12)
Hansgrohe recommends not to use as drinking water
the first half liter of water drawn in the morning or after
a prolonged period of non-use.

4
1
4
2
3
1.
2.
(3 Nm)
SW 23 mm
(4 Nm)
SW 9 mm
558085000
6
Montage

5
58085000
910
11
11 9
7 8
11
12
(50 Ncm)
MontageKitt

6
13
15
14
SW 22 mm > 2 min
SW 22 mm
(2 Nm)
Montage

0,3 MPa
0,3 МПа
0,3 ﻣﻴﺠﺎﺑﺴﻜﺎل
60 °C 10 °C
+
21 3
45
6 7
4.
3.
1.
2.
3.
1.
2.
6 x
36°C
38°C
43°C
50°C
55°C
60°C
17 x
SW 4 mm
SW 4 mm
(5 Nm)
SW 4 mm
SW 4 mm
7
Justierung

8
G 1/2
166
3 3
°
195
max. 40
266
32Ø
289
430
46
min. 38
55 max. 54
61Ø
193
Ø G 1 ¼
92168007
4,5
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
5,0
bar
0,45
0,00
0,05
0,10
0,15
0,20
0,25
0,30
0,35
0,40
0,50
036912151821242730
MPa
00,1 0,2 0,3 0,4 0,5
Q = l/min
Q = l/sec
Logis 190 71090007 Novus 230 71123007
Logis 190
71090007
Novus 230
71123007
325
47
291
33
°
180
225
max. 40
425
97
193
G1/2
Ø32
bar
4,5
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
5,0
0,45
0,00
0,05
0,10
0,15
0,20
0,25
0,30
0,35
0,40
0,50
5,50,55
6,00,60
036912151821242730
MPa
00,1 0,2 0,3 0,4 0,5
Q = l/min
Q = l/sec
EcoSmart®
1
EcoSmart®
21
EcoSmart
2
EcoSmart
94139007
Maße / Durchflussdiagramm

9
97443000
95140000
(M4x20)
SW 4 mm
97209000
(M37x1,5)
SW 30 mm
92730000
95008000
98750000
97406000
92604000
(35x2)
98193000
(32x2)
98186000
(30x2)
92224000
96338000
92168007
96657000
98749000
97548000
13961000
Logis 190
71090007
EcoSmart®
92372000
(M24x1 - 5 l/min)
SW 22 mm
96324000
(340 mm)
Novus 230
71123007
93192000
96338000
97406000
97209000
(M 37x1,5)
SW 30 mm
95140000
(M4x20)
SW 4 mm
92730000
96657000
92482000
(600 mm)
98193000
(32x2)
98186000
(30x2)
92604000
(35x2)
95008000
13961000
98749000
97548000
13185000
(M24x1-
5 l / min)
SW 22 mm
98750000
94139007
ServiceteileServiceteile

1010
Reinigung
重要说明
肥皂，洗发水、沐浴液、染发剂、香水、刮胡水、
指甲油的残留也会对产品造成损伤。
此处：使用后要小心地用清水将剩余物冲洗干净。
同样在产品下方不得存放洗涤剂和化学药品，例如
不可放在用于洗脸盆的梳洗柜中否则挥发气体将
损坏产品。
在已经损伤的表面继续使用清洁剂会给表面造成更
大的损伤。
表面损坏的部件必须更换，否则会有受伤
的危险。
不按规定进行清洁而造成的任何损坏不在本公司产
品保修范围之内。

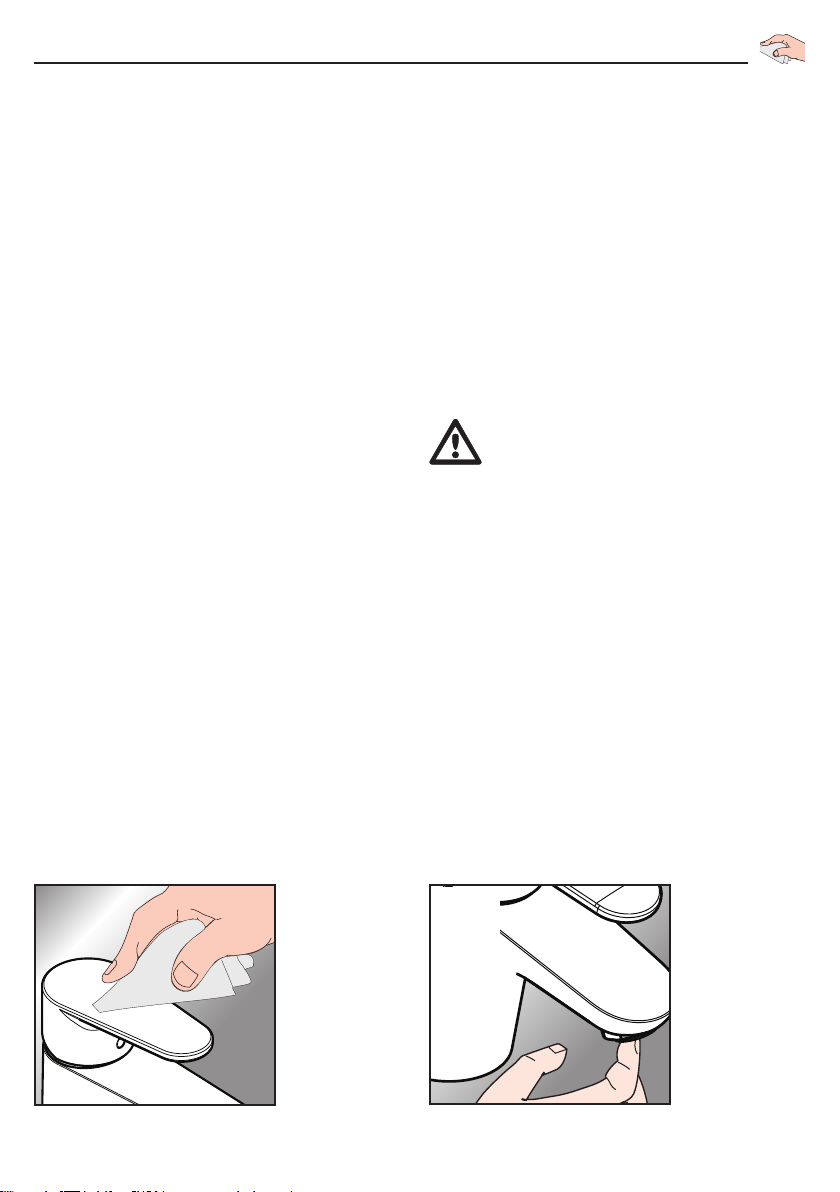

QuickClean
有了QuickClean，手工清洁功能，要去掉喷头上的
水垢，只需简单地搓除即可。
担保
Hansgrohe向用户保证，该产品无制
造缺陷。如果自购买之日起五年内出现缺
陷，Hansgrohe将免费排除。保证条件和详情见
www.hansgrohe-int.com⁄guarantee。在提出保修的权
利时请联系您的合同方。本保证不涉及有关国家
法律规定的消费权
汉斯格雅产品的清洁建议
现代的卫浴龙头、厨房龙头、花洒、配件、盥洗
台、浴盆和加热器采用的制造材料非常迥异，以适
应产品外形设计和使用功能的市场需求。
为了避免产品损坏和由此引发的投诉及争议，必须
在使用和清洁产品时遵循有关规程。
在保养汉斯格雅产品时，原则上必须注意：
• 只能使用那些有明确注明是适用于本产品的清
洁剂。
• 不允许使用含有盐酸、蚁酸、氯漂或醋酸的清
洁剂，因为这些清洁剂会给产品表面造成严重的
损伤。
• 含磷酸的清洁剂必须在特定条件下使用。
• 不允许将两种以上清洁剂混合使用。
• 不允许使用具有研磨作用的清洁工具和设备，如
不适合的清洁粉末、海绵垫或超细麦克布。
• 必须严格遵守清洁剂生产厂商的使用说明。
• 严格遵守清洁剂的用量和作用时间，决不允许清
洁剂的作用时间长于规定值。
• 定期的清洁以预防水垢。
• 不允许将清洁剂直接喷射到汉斯格雅产品上，因
为喷雾会进入汉斯格雅产品的开口部分和缝隙中
而造成损害。首先将清洁剂喷在软布上，再用软
布进行清洁。
• 清洁之后必须用足够的清水冲洗，以彻底去除残
留的吸附物（清洁剂）。
• 不允许使用蒸汽清洗机，高温会损害产品。
中文
QUICK
CLEAN
Reinigung

1111
• After cleaning rinse thoroughly with clean water to
remove any cleaner residue.
• The use of steam cleaners is not permitted. The high
temperatures can damage the products.
Important
Residues of toiletries such as liquid soaps, shampoos and
shower gels, hair dyes, perfumes, aftershave and nail
varnish can also cause damage.
Here too: Carefully rinse with water after use to remove residues.
Likewise, do not store any cleaning agents or chemicals
under the products, for example in a vanity unit, as the
vapours may damage the products.
The damage of already damaged surfaces will
deteriorate under the effect of the cleansers.
Components with damaged surfaces
must be exchanged, otherwise there
could be an injury danger.
Damage caused by improper treatment will not be
covered by our guarantee.
QuickClean
The QuickClean cleaning function only needs a small
manual rub over to remove the lime scale from the spray
channels.
Warranty
Hansgrohe guarantees to the consumer that this product is free
of production faults. If evertheless any defect is detected within
5 years from date of purchase, Hansgrohe will remedy this
defect free of charge. You will find the conditions and details
of this guarantee at www.hansgrohe-int.com⁄guarantee. Please
contact your contracting party to claim your rights under this
guarantee. This guarantee does not affect the customer‘s rights
under the respective national legislation.
Cleaning Recommendation for
Hansgrohe Products
Today, modern sanitary and kitchen tapware, showers,
accessories, washstands, tubs and radiators consist of
very different materials to comply with the needs of the
market with regard to design and functionality.
To avoid damage and reclamations, it is necessary to
consider certain criteria when cleaning.
With regard to caring for the
Hansgrohe products, the following
must in principle be heeded:
• Only use cleaning material which is explicitly provided
for this type of application.
• Never use cleaning materials, which contain
hydrochloric acid, formic acid, chlorine pale lye or
acetic acid, as they cause considerable damage.
• Phosphorus acidic cleaners are only conditionally applicable.
• Mixing cleaning agents is not permitted, generally.
• Never use cleaning materials or appliances with an
abrasive effect, such as unsuitable cleaning powders,
sponge pads or micro fibre cloths.
• The instructions of the cleaning agent manufacturers
have to be followed absolutely.
• Cleaning has to be carried out with a specified cleaner
dosage, contact time, object-related and adapted to the needs.
• The building up of calcifications has to be removed by
cleaning regulary.
• When using spray cleaners, spray the cleaning solution onto
a soft cloth or sponge, never directly onto the Hansgrohe
products, as the atomised spray could enter openings and
gaps in the Hansgrohe products and cause damage.
English
QUICK
CLEAN
Reinigung

12 Hansgrohe · Auestraße 5 - 9 · D-77761 Schiltach · Telefon [phone]⁄51-1282 · Telefax +49 (0) 7836⁄511440
E-Mail: [email protected] · Internet: www.hansgrohe.com
08/2019 9.02696.04
冷 ⁄ cold
开 ⁄ open 关 ⁄ close
热 ⁄ hot
BedienungBedienung
