Harbor Breeze CALERA CLRO52-II User manual

1
CALERA CEILING FAN
ITEM #0036261
MODEL #00879
Español p. 15
Serial Number Purchase Date
Harbor Breeze ® is a registered trademark of LF,
LLC. All Rights Reserved.
ATTACH YOUR RECEIPT HERE
Lowes.com/harborbreeze
UL MODEL #CLRO52-II
XXXXX
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.

32
TABLE OF CONTENTS
Lowes.com/harborbreeze
SAFETY INFORMATION
WARNING
CAUTION
WARNING
WARNING
WARNING
Lowes.com/harborbreeze
FIRE, ELECTRIC SHOCK OR PERSONAL INJURY HAZARD
ELECTRIC SHOCK HAZARD
ELECTRIC SHOCK HAZARD PERSONAL INJURY HAZARD
PERSONAL INJURY HAZARD
Safety Information ................................................................................................................3
Package Contents ................................................................................................................4
Hardware Contents ..............................................................................................................5
Preparation...........................................................................................................................5
Initial Installation...................................................................................................................6
Downrod Style Fan Mounting ...............................................................................................7
Closemount Style Fan Mounting ..........................................................................................8
Wiring .................................................................................................................................10
Final Installation .................................................................................................................10
Operating Instructions ........................................................................................................13
Care and Maintenance .......................................................................................................13
Troubleshooting..................................................................................................................13
Warranty.............................................................................................................................14
Replacement Parts List ......................................................................................................14
READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, operate, or install the
product.
• When using an existing outlet box, be sure the box is securely attached to the building structure
and can support the full weight fo the fan, so as to avoid potential serious injury or death.
• All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70-1999” and
local electrical codes. Electrical installation should be performed by a qualified licensed
electrician.
• Electrical diagrams are for reference only.
• Suitable for use in wet locations when installed in a GFCI protected branch circuit.
• The net weight of this fan is: 17.2 lbs.
To reduce the risk of electric shock, do not use this fan with any solid-state speed
control device.
To reduce the risk of electric
shock, make sure electricity
has been turned off at the
circuit breaker or fuse box
before beginning installation.
To reduce the risk of injury to persons, install
fan so that the blade is at least 7 ft. above the
floor.
Reduce the risk of personal injury, do not bend the blade brackets when installing the
brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in
between rotating fan blades.
To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked
“ACCEPTABLE FOR FAN SUPPORT OF 15.9 KG OR LESS” and use mounting
screws provided with the outlet box. Most outlet boxes commonly used for the support
of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.

54

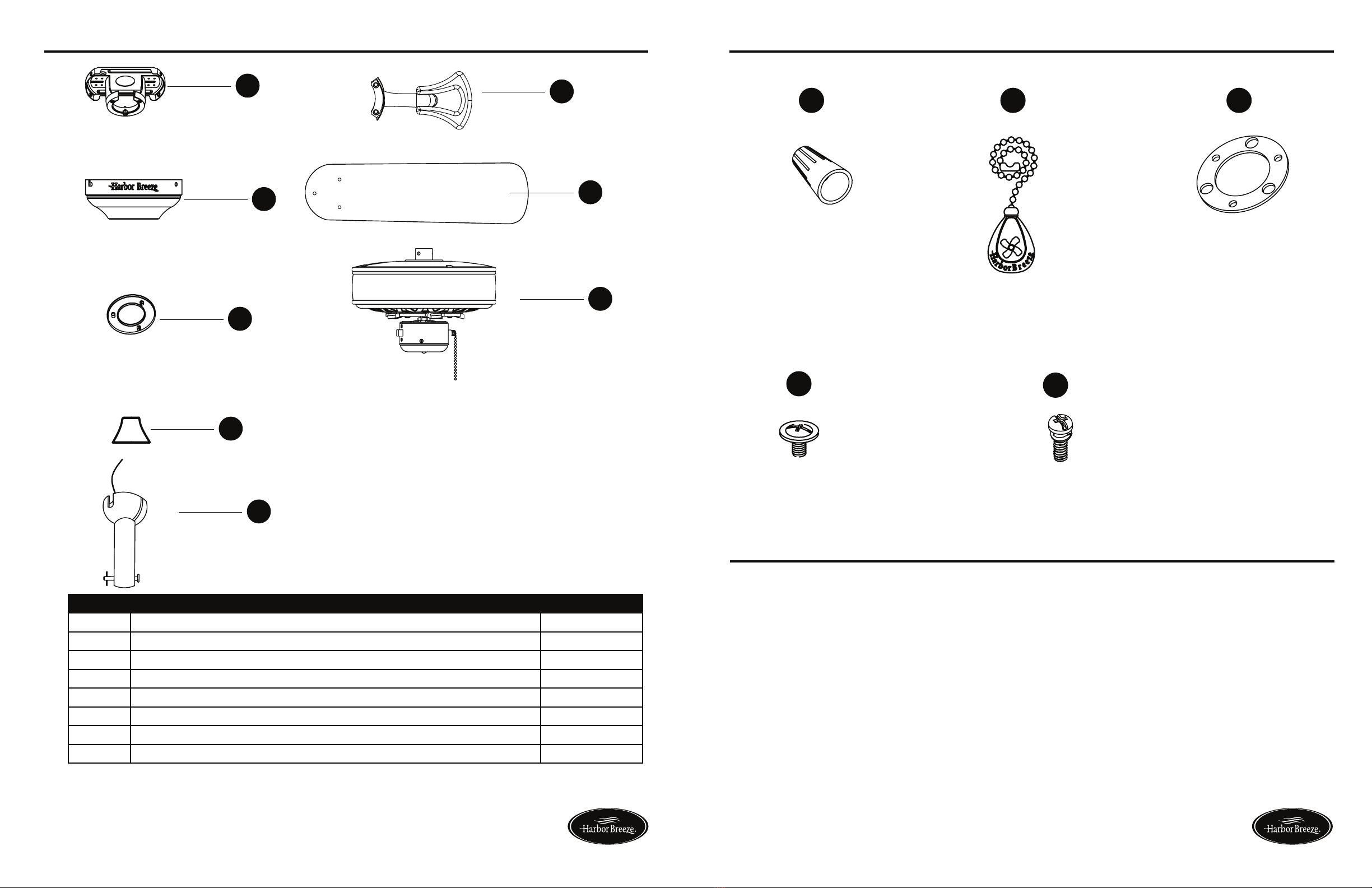

PACKAGE CONTENTS
Lowes.com/harborbreeze Lowes.com/harborbreeze
PART DESCRIPTION QUANTITY
A Mounting Bracket (preassembled to canopy (B)) 1
B Canopy 1
C Canopy Cover (preassembled to canopy (B)) 1
D Yoke Cover 1
E Downrod 1
F Blade Bracket 5
G Blade 5
H Motor Housing Assembly 1
HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 4
Fan Pull Chain
Extension
Qty. 1
(NOT TO SCALE)
Rubber Gasket
Qty. 1
(NOT TO SCALE)
Blade Screw
Qty. 16
(NOT TO SCALE)
Blade Bracket Screw
Qty. 10
(NOT TO SCALE)
A
B
C
D
H
G
F
E
AA BB CC
DD EE
PREPARATION
Estimated Assembly Time: 45 minutes
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product
Tools Required for Assembly (not included): Phillips screwdriver, step ladder, electrical tape, pliers,
wire cutters, wire strippers.

6 7

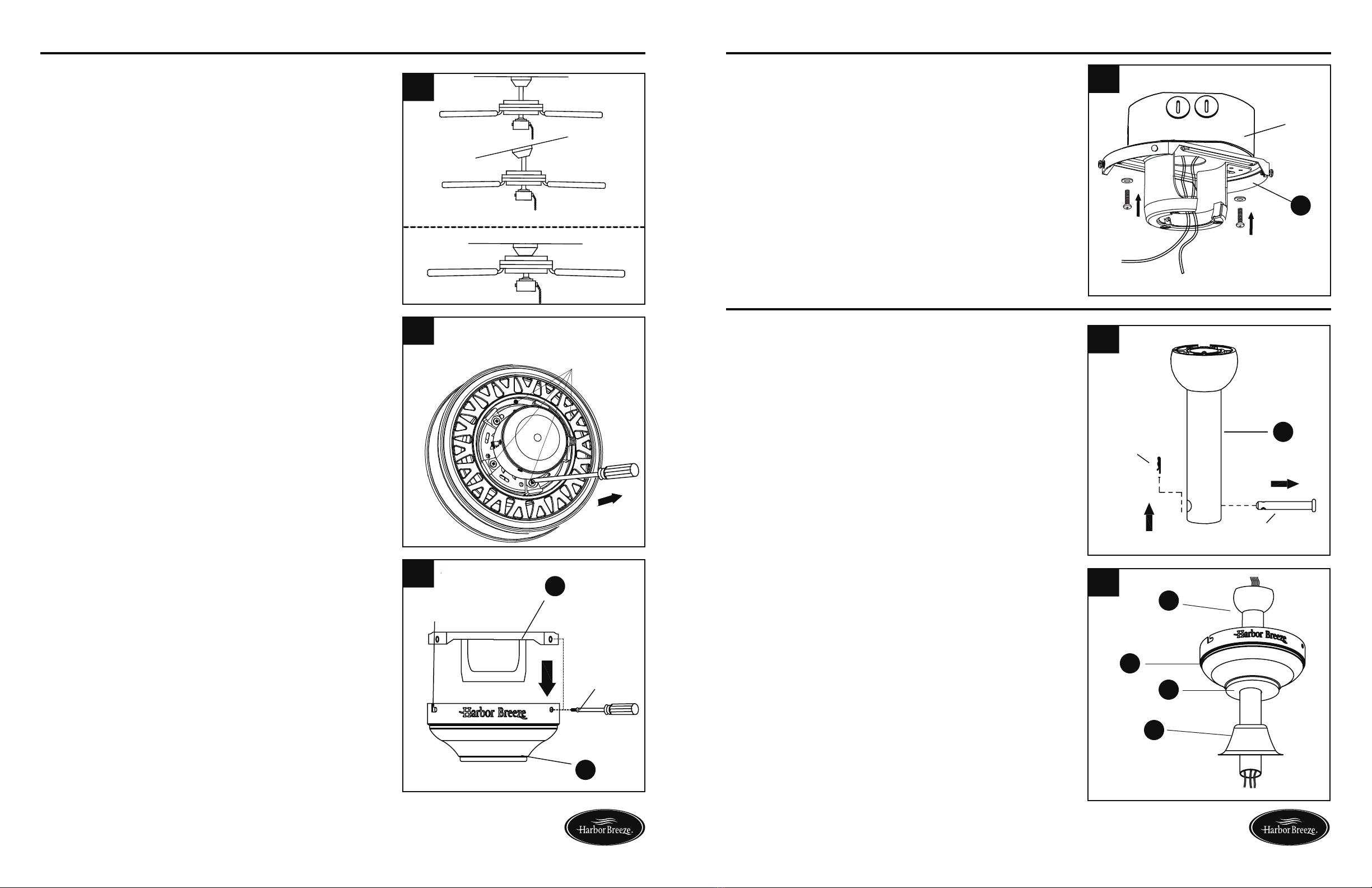

INITIAL INSTALLATION INITIAL INSTALLATION
DOWNROD STYLE FAN MOUNTING
14
1
32
Lowes.com/harborbreeze Lowes.com/harborbreeze
A
B
B
A
Remove
and save
Loosen but
Rubber
insert
and screw
do not remove
E
Clip
Pin
E
B
C
D
2
Outlet box
A
1. Determine mounting method.
A-Downrod Mount (normal or angled ceiling)
B-Closemount (normal ceiling only)
IMPORTANT: If angle mounting, check to make
sure the ceiling angle is not steeper than 20˚.
2. Remove and discard the four rubber inserts and
four mounting screws preassembled on the
underside of the motor housing assembly (H).
3. Remove the mounting bracket (A) from the
canopy (B) by loosening the four screws on the
top of the canopy (B). Remove the two
non-slotted screws and save.
4. Install the mounting bracket (A) to the outlet box (not
included) using the two screws provided with the outlet
box. Tighten securely.
Note: If using the angle mount, make sure the open end
of mounting bracket (A) is installed facing the ceiling.
Follow mounting instructions for Downrod Style Fan
Mounting on page 7 or Closemount Style Fan Mounting
on page 8, depending on mounting method (A or B)
chosen in Step 1 on page 6
1. Remove pin and clip from downrod (E).
2. Insert downrod (E) through canopy (B), canopy cover
(C) and yoke cover (D). Thread wires from the motor
housing assembly (H) through downrod (E).

9
DOWNROD STYLE FAN MOUNTING
CLOSEMOUNT STYLE FAN MOUNTING
CLOSEMOUNT STYLE FAN MOUNTING
3 2
3
4
Lowes.com/harborbreeze Lowes.com/harborbreeze Lowes.com/harborbreeze Lowes.com/harborbreeze
Clip
Pin
Yoke
Set screw
E
D
H
H
HB
Hardware Used
x 1
Rubber gasket
B
A
Hook
CC
CC
Tab
Slot
A
E
4
4
B
C
B
C
1
1
8
3. Loosen the two set screws from the yoke. Slip downrod
(E) into yoke, aligning holes in downrod (E) and yoke.
Insert the pin through yoke and downrod (E). Insert clip
into pin until it snaps into place. Tighten set screws.
Slide the yoke cover (D) down over the motor housing
assembly (H).
2. Remove every other screw from the top of the motor
housing assembly (H) -- for a total of 3 screws -- and
save.
3. Place the rubber gasket (CC) over the remaining screws
on motor housing assembly (H). Pull wires through hole
in canopy (B) and attach canopy (B) to motor housing
(H) using the three screws removed in previous step.
Tighten the screws securely.
4. Temporarily hang the canopy (B) onto the hook on the
mounting bracket (A) using one of the non-slotted holes
in the canopy (B). This will allow for hands-free wiring.
4. lnstall hanger ball on the top of downrod (E) into
mounting bracket (A) opening. Rotate fan until slot on
hanger ball engages the tab on the mounting bracket
(A).
DANGER: Be careful when aligning the tab to the slot!
If not fully engaged, there is a possibility of fan falling,
which may result in serious injury or death.
You may now proceed to the WIRING section on page 10.
1. Remove the canopy cover (C) from the bottom of the
canopy (B).

1110

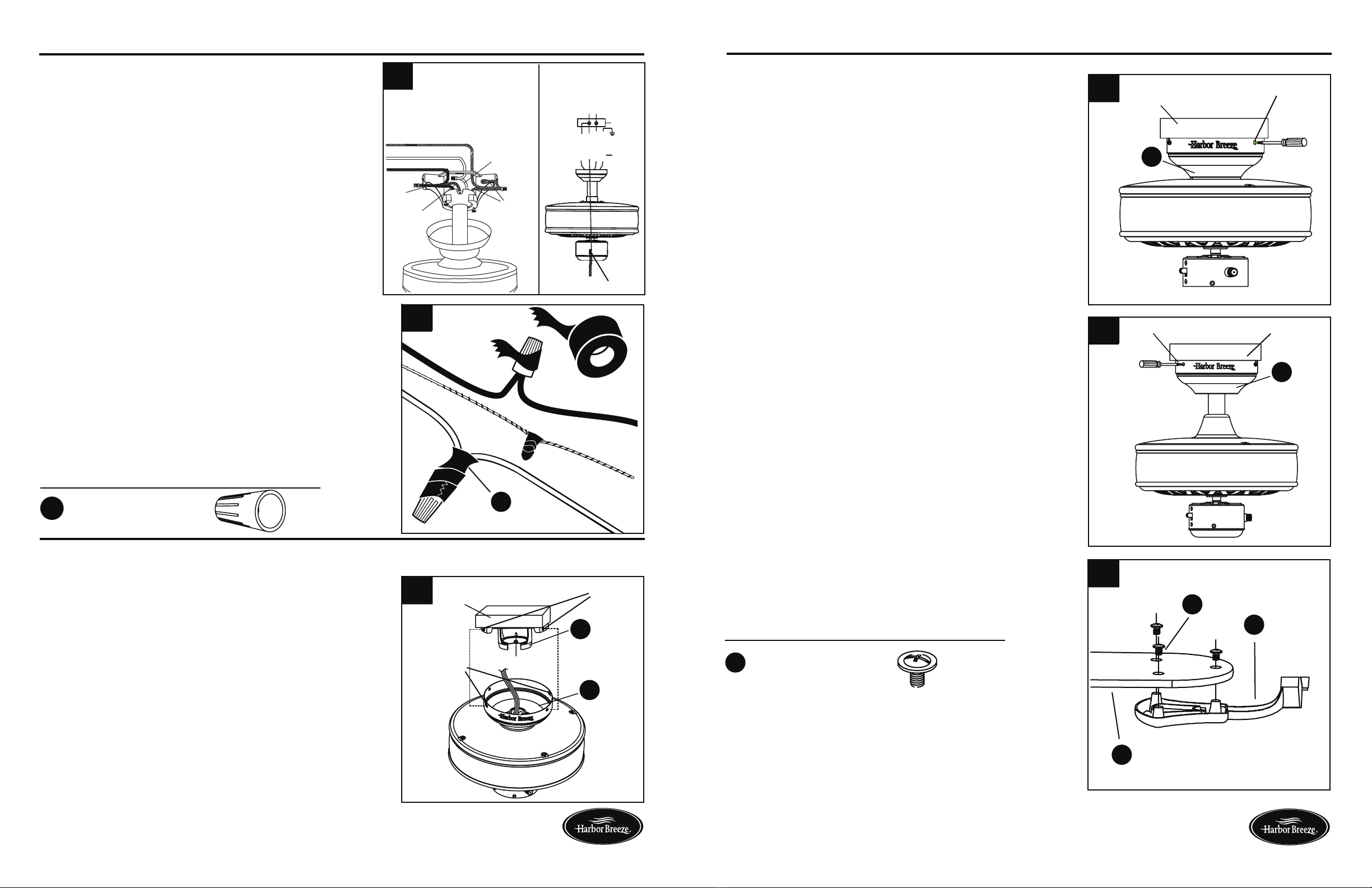

WIRING
FINAL INSTALLATION
FINAL INSTALLATION
2
1
Lowes.com/harborbreezeLowes.com/harborbreeze
2
3
Lowes.com/harborbreezeLowes.com/harborbreeze
1
Grounded/Green
Black
White
Grounded/
Green
Black
Blue
White
Black
Blue Black White Green White
Speed switch
Green/
Grounded
Supply circuit
AA
Hardware Used
Hardware Used
x 4
Wire connector
AA
Outlet box
Hook
Screws
Locking
slots
B
A
B
Outlet box Screw
B
outlet box
screw
4
F
G
DD
DD
DD Blade screw x 15
1. Connect BLACK and BLUE wires from fan to the
house BLACK wire. Connect WHITE wire from fan
to the house WHITE wire. Connect all GROUNDED
(GREEN) wires together from fan to the house
GREEN/ GROUNDED wire.
Note: BLACK wire is hot power for fan. BLUE wire
is hot power for light kit in case of future light kit
installation. WHITE wire is common for fan and light
kit. GREEN wire is grounded wire. If house wires
are different colors than referred to above, stop
immediately. Consult a licensed electrician to
determine proper wiring.
2. To connect wires, twist wire ends together and
screw wire connectors (AA) on in a clockwise
direction. Tape the wire connectors (AA) and wires
together with electrical tape (not included). Be sure
no bare wire or wire strands are visible after making
connection.
Place GREEN and WHITE connections on opposite
side of box from BLACK and BLUE connections.
The splices should be turned upward and pushed
carefully up into the outlet box.
If you installed the fan with “Closemount Style Fan Mounting”, continue to Steps 1 and 2. If
you installed the fan with “Downrod Style Fan Mounting”, skip to Step 3.
1. Remove the fan from the hook on the mounting bracket
(A). Align the locking slots of the canopy (B) with the two
screws previously loosened (step 3, page 6) in the
mounting bracket (A). Push up to engage the slots and
turn clockwise to lock in place. Immediately tighten the
two screws firmly.
2. Re-install the two screws that were previously removed
(step 3, page 6) to fully secure the canopy (B) to the
mounting bracket (A).
You may now proceed to the Step 4.
3. Directly align the locking slots of the canopy (B) with the
screws previously loosened (step 3, page 6) in the
mounting bracket (A). Push up to engage the slots and
turn clockwise to lock in place. Immediately tighten the
two screws firmly, then re-install the two screws that
were previously removed (step 3, page 6) to fully secure
the canopy (B) to the mounting bracket (A).
4. Attach a blade (G) to a blade bracket (F) using 3 blade
screws (DD). Repeat for remaining blade assemblies.

1312

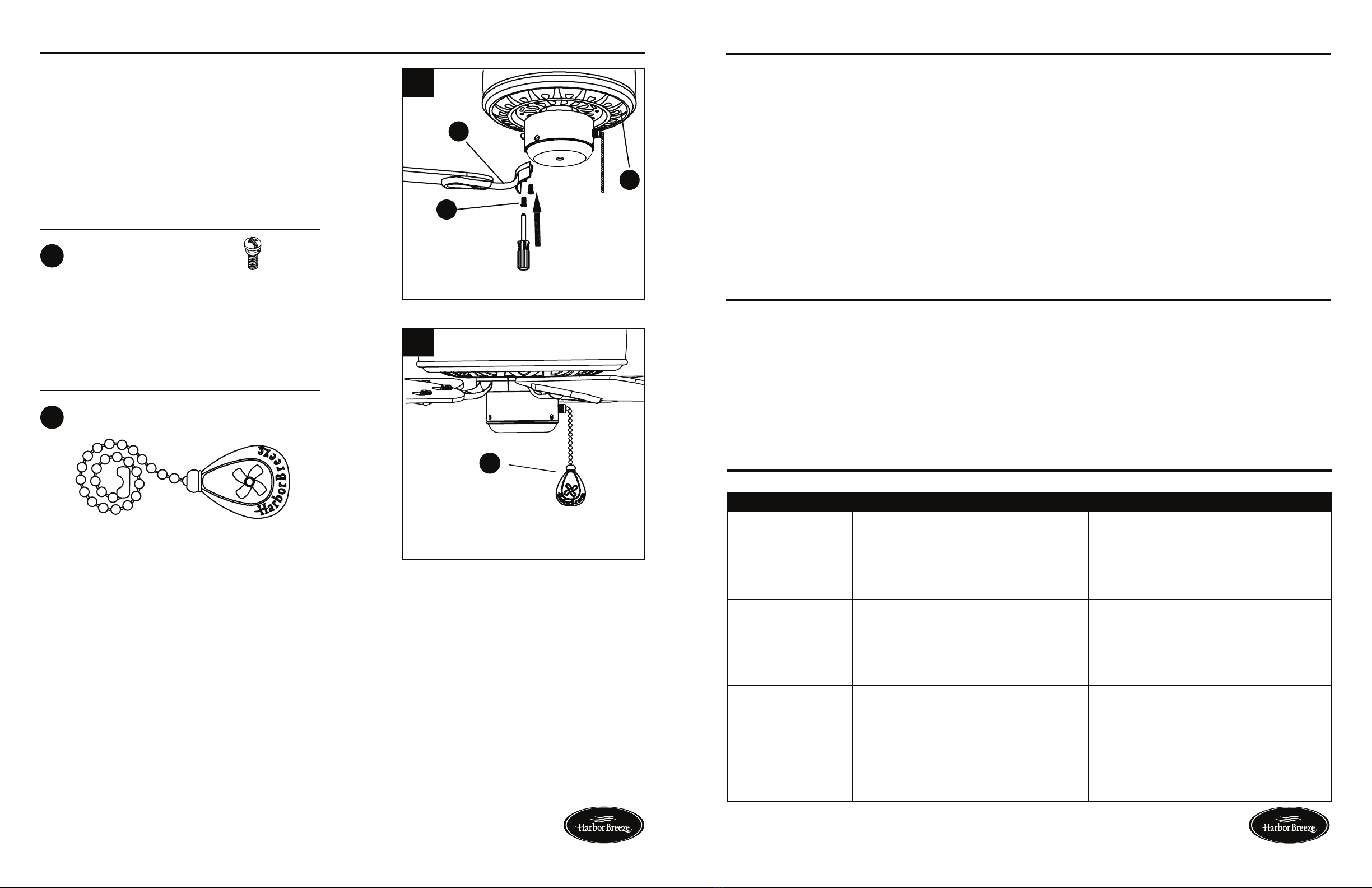

FINAL INSTALLATION
Lowes.com/harborbreeze Lowes.com/harborbreeze Lowes.com/harborbreeze Lowes.com/harborbreeze
OPERATING INSTRUCTIONS
CARE AND MAINTENANCE
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
BB
Hardware Used
x 1
Fan pull chain extension
BB
Hardware Used
x 10
Blade bracket screw
EE
5
F
H
EE
6
5. Attach blade bracket (F) to the underside of motor
housing assembly (H) using 2 blade bracket screws
(EE). Tighten securely.
Repeat this step for the remaining blade assemblies.
6. Attach the fan pull chain extension (BB).
• To reduce the risk of fire, electric shock or injury to persons, care and maintain this fan.
• IMPORTANT: Shut off main power supply before beginning any maintenance.
• DO NOT use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly
dampened cloth will be suitable for most cleaning.
• Clean fan housing with only a soft brush or lint-free cloth to avoid scratching the finish. Clean blades
with a lint-free cloth. You may occasionally apply a light coat of furniture polish to blades for added
protection.
• At least twice each year, tighten all screws and lower canopy to check mounting bracket screws and
downrod assembly.
PULL CHAIN: The fan pull chain is for motor speed control: High, Medium, Low and Off. Pull the
chain once for each position.
REVERSE SWITCH:
When the season changes, you may want to change to the direction your fan spins. To switch
between clockwise and counterclockwise rotation, flip the fan reverse switch.
Note: Wait for the fan to stop befor reversing the switch
A. In cooler weather, clockwise rotation creates an upward air flow, which moves hot air from
the ceiling into the room. Push the switch UP.
B. In warmer weather, counterclockwise rotation creates a downward air flow, which cools the
air. Push the switch DOWN.
Fan does not move.
Noisy operation.
Excessive wobbling.
1. Chain switch is “off”
2. Faulty wire connection.
3. Reverse switch not engaged.
1. Pull chain switch.
2. Turn power off. Loosen canopy,
check all connections.
3. Push switch firmly either way.
1. Blades are loose.
2. Cracked blade.
3. Unapproved speed control.
1. Tighten all blade screws.
2. Replace blades (call customer
service).
3. Replace with an approved speed
control device.
1. Blades are loose.
2. Blade brackets incorrectly attached.
3. Fan not securely mounted.
4. Fan too close to vaulted ceiling.
1. Tighten all blade screws.
2. Reinstall blade brackets.
3. Turn power off. Carefully loosen
canopy; remount securely.
4. Lower fan or move it to another
location.

14
Lowes.com/harborbreezeLowes.com/harborbreeze
WARRANTY
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m.,
EST, Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
PART DESCRIPTION PART#
F Blade Bracket 104000-0345
G Blade 108003-3046
Printed in China
Harbor Breeze®is a registered
trademark of LF, LLC. All rights
reserved.
G
F
The manufacturer warrants this fan motor to be free from defects in workmanship and material
present at time of shipment from the factory for a period of thirty years after the date of purchase by
the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass to
be free from defects in workmanship and material at the time of shipment from the factory for a period
of three years after the date of purchase by the original purchaser. The manufacturer agrees to
correct such defect at no charge or at our option replace the ceiling fan with a comparable or superior
model. To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost
of removal and reinstallation are the expressed responsibility of the purchaser. Any damage to the
ceiling fan by accident, misuse or improper installation, or by affixing accessories not produced by the
manufacturer of the fan, are at the purchaser’s own responsibility. The manufacturer assumes no
responsibility whatsoever for fan installation during the lifetime limited warranty. Any service
performed by an unauthorized person will render the warranty invalid.
Due to varying climate conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty. Any
replacement of defective parts for the ceiling fan must be reported within the first year from the date
of purchase. For the balance of the warranty, call our customer service department at
1-800-643-0067 for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is the sole responsibility of the
purchaser. There is no further expressed warranty. The manufacturer disclaims any and all implied
warranties.The duration of any implied warranty which can not be disclaimed is limited to the lifetime
limited period as specified in our warranty. The manufacturer shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you also have
other rights which vary from state to state. This warranty supersedes all prior warranties.
Note: A small amount of “wobble” is normal and should not be considered a defect.
