Harbor Breeze CANTLEY 41557 User manual

1
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST, Monday - Sunday.
ATTACH YOUR RECEIPT HERE
Purchase Date _________________________
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
AR19032
Français p. 21
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
ITEM #43105036, 1607179
CANTLEY CEILING FAN
MODEL #41557

2
TABLE OF CONTENTS
Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Hardware Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Preparation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Initial Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Standard or Angle Mounting Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Secondary Hanging System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Final Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Limited Lifetime Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Replacement Parts List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

33

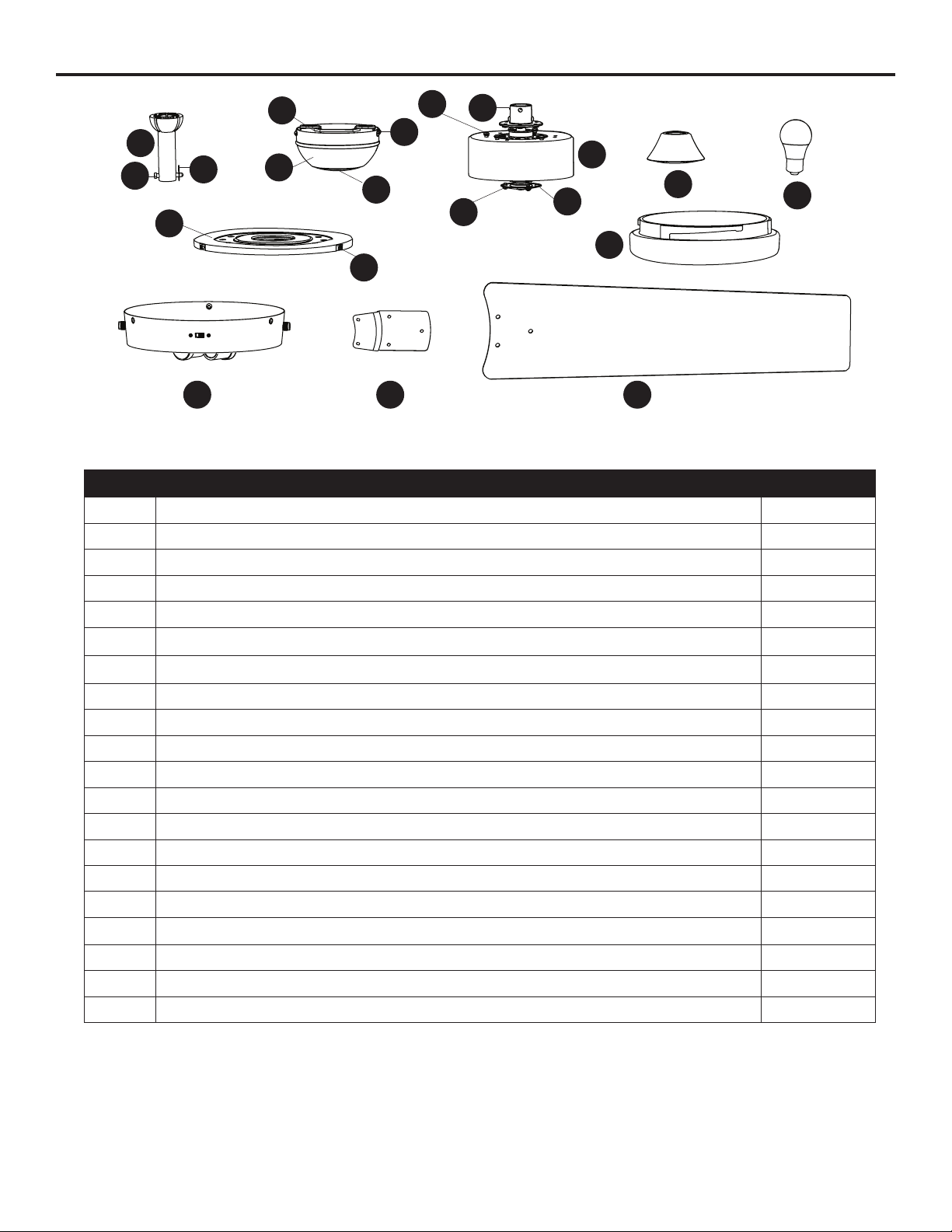

PACKAGE CONTENTS
PART DESCRIPTION QUANTITY
A Downrod 1
B Downrod Pin (preassembled to Downrod [A]) 1
C Downrod Clip (preassembled to Downrod [A]) 1
D Mounting Bracket 1
E Canopy (preassembled to Mounting Bracket [D]) 1
F Canopy Cover 1
G Motor Assembly 1
H Fitter Plate (preassembled to Motor Assembly [G]) 1
I Fitter Plate Screw (preassembled to Fitter Plate [H]) 3
J Motor Screw (preassembled to Motor Assembly [G]) 6
K Set Screw (preassembled to Motor Assembly [G]) 2
L Yoke Cover 1
M Light Kit 1
NBlade Arm 3
O Blade 3
P Mounting Bracket Screw (preassembled to Mounting Bracket [D]) 4
QBulb 2
R Glass Bowl 1
S Light Pan 1
T Light Pan Screw (preassembled to Light Pan [S]) 3
A
BC
D
E
F
K
J
H
G
I
L
M N O
Q
R
T
S
P

4
HARDWARE CONTENTS (shown actual size)
Wire Connector
Qty. 3
+ 1 extra
Blade Screw
Qty. 9
+ 1 extra
Blade Washer
Qty. 9
+ 1 extra
Pull Chain Extension
Qty. 2
Secondary Support
Screw
Qty. 1
Support Washer
Qty. 1
Screw Cap
Qty. 9
+1 extra
Secondary Spring
Washer
Qty. 1
Motor Screw
1 extra
AA
JJ KK LL MM XX
BB CC DD
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e

5
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the
product.
• Before you begin installing the fan, disconnect the power by removing fuses or turning o󰀨 the circuit
breakers.
• Make sure all electrical connections comply with local codes, ordinances, the National Electrical
Code and ANSI/NFPA 70-199. Hire a qualied electrician or consult a do-it-yourself wiring
handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 7 ft. from the blades to
the oor and at least 30 in. from the end of the blades to any obstruction.
• The net weight of this fan is: 15.72 lbs.
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
WARNING: To avoid personal injury, the use of gloves may be necessary while handling fan
parts with sharp edges.
WARNING: Using a full-range dimmer switch to control fan speed will cause a loud humming
noise from the fan. To reduce the risk of re or electric shock, do NOT use a full-range dimmer switch
to control the fan speed.
WARNING: To reduce the risk of re, electric shock or personal injury, mount the fan to an
outlet box marked “ACCEPTABLE FOR FAN SUPPORT” and use the mounting screws provided with
the outlet box. Most outlet boxes commonly used for the support of lighting xtures are not acceptable
for fan support and may need to be replaced. Consult a qualied electrician if in doubt. Secure the
outlet box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.).
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors
provided with this fan are designed to accept only one 12-gauge house wire and two lead wires from
the fan. If your house wire is larger than 12-gauge and there is more than one house wire to connect
to the two fan lead wires, consult an electrician for the proper size wire connectors to use.
WARNING: To reduce the risk of re, electric shock or personal injury, do not bend the blade
arms when installing them, balancing the blades or cleaning the fan. Do not insert objects between
the rotating fan blades.
WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use
of parts OTHER than those provided with this fan will void the warranty.

6
SAFETY INFORMATION
CAUTION: Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
CAUTION: Carefully check all screws, bolts and nuts on the fan motor assembly to ensure they are
secured.
CAN ICES-005 (B) / NMB-005 (B)
CAUTION: This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the
device.
PREPARATION
Before beginning the assembly of this product, ensure that all parts are present. Compare all parts
with the package contents list and hardware contents list. If any part is missing or damaged, do not
attempt to assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Step Ladder, Wire Cutters and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure and Wiring Handbook

7
INITIAL INSTALLATION
1. Turn o󰀨 the circuit breakers and the wall switch to the
fan supply line leads.
DANGER: Failure to disconnect the power
supply prior to installation may result in serious injury
or death.
2. Determine the mounting method to use.
Standard Mounting is best suited for ceilings 8 ft.
or higher. For taller ceilings you may want to use a
longer downrod (not included).
Angle Mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary to
ensure proper blade clearance.
Important: If using the angle mount, check to ensure
the ceiling angle is not steeper than 16°.
Flushmount installation is not available for this item.
Closemount installation is not available for this item.
3. Ensure the blades (O) will be at least 30 in. from any
obstructions. Also check the downrod (A) length to
ensure the blades (O) will be at least 7 ft. above the
oor.
1
2
Standard Mounting
Flushmount Closemount
Angle Mounting
7 ft.
Minimum
30 in.
Minimum
3
A
O

8
INITIAL INSTALLATION
4. Loosen all four mounting bracket screws (P) on
mounting bracket (D), then completely remove the two
mounting bracket screws (P) from the round holes of
canopy (E). Set aside for later use.
Detach mounting bracket (D) from canopy (E).
5. Secure the mounting bracket (D) to the outlet box
using screws and washers provided with the outlet
box.
CAUTION: It is very important you use the proper
hardware when installing the mounting bracket (D) as
this will support the fan.
6. Remove motor screws (J) from the top of the motor
(G) and save for blade arm (N) attachment.
5
D
D
J
G
D
P
E
Standard
Mount
Angle Mount
6
4

9
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
1. Remove the downrod pin (B) and downrod clip (C)
from the downrod (A). Then partially loosen the
set screws (K) in the yoke at the top of the motor
assembly (G).
2. Insert the downrod (A) -- or a longer downrod, if
required -- through the canopy (E) and yoke cover (L).
Thread the wires and braided cable from the fan up
through the downrod (A).
3. Slide the downrod (A) into the yoke of the motor
assembly (G), align the holes, then re-install the
downrod pin (B) and downrod clip (C). Secure with set
screws (K) and slide the yoke cover (L) down until it
rests on top of the motor assembly (G).
3
1
2
A
C
B
G
K
A
L
K
L
CB
A
G
E
Braided
Cable

10
STANDARD OR ANGLE MOUNTING INSTRUCTIONS
4. Depending on the length of downrod you use, you may
need to cut the lead wires back to simplify the wiring. If
you decide to cut back the lead wires, it is suggested
you do so in the following manner: Take the lead wires
and make sure you have pulled them all the way
through the top of the downrod. Measure 8 inches of
lead wire, then cut the excess wire o󰀨 with wire cutters
(not included).
CAUTION: Do not cut the braided cable.
5. If you decided to cut back the lead wire in Step 10, strip
1/2 in. of insulation from the end of the wires. Twist
the stripped ends of each strand of wire within the
insulation with pliers (not included).
Note: If you did not cut back the lead wires in Step 10,
Step 11 is not necessary and you may proceed to Step
12 instead.
6. Install the ball end of the downrod (A) into the opening
of the mounting bracket (D). Align the slot in the ball
with the tab in the mounting bracket (D). Note: The
downrod (A) should not rotate if installed correctly.
DANGER: Failure to align the slot in the ball with
the tab could cause the fan to fall, which may result in
serious injury or death.
5
A
D
6
4Braided Cable
Slot
Tab
8 in.

1
2
3
Braided Cable
Outlet Box
Open Loop
SECONDARY HANGING SYSTEM
1. Feed the loop of the braided cable, preassembled to the
motor assembly (G), up through the outlet box mounted
in the ceiling.
2. Install secondary support screw (JJ), secondary spring
washer (MM) and support washer (KK) partly into the
side of the brace installed in the ceiling. Then loop
the braided cable up and over the ceiling brace and
place the open loop of the braided cable around the
secondary support screw (JJ).
Note: The ceiling support brace may not be accessible
from below. If not, it must be accessed from above.
Important: The braided cable must make a complete
circle around the support brace to secure the fan.
Hardware Used
JJ Secondary Support
Screw x 1
Support Washer x 1
Secondary Spring
Washer x 1
3. Tighten the secondary support screw (JJ), securing the
braided cable.
Hardware Used
JJ Secondary Support
Screw x 1
WARNING: Secondary support is required for this
product. Failure to follow the steps below could result in
property damage and/or personal injury.
JJ
KK
MM
Brace
JJ
KK MM
11

12

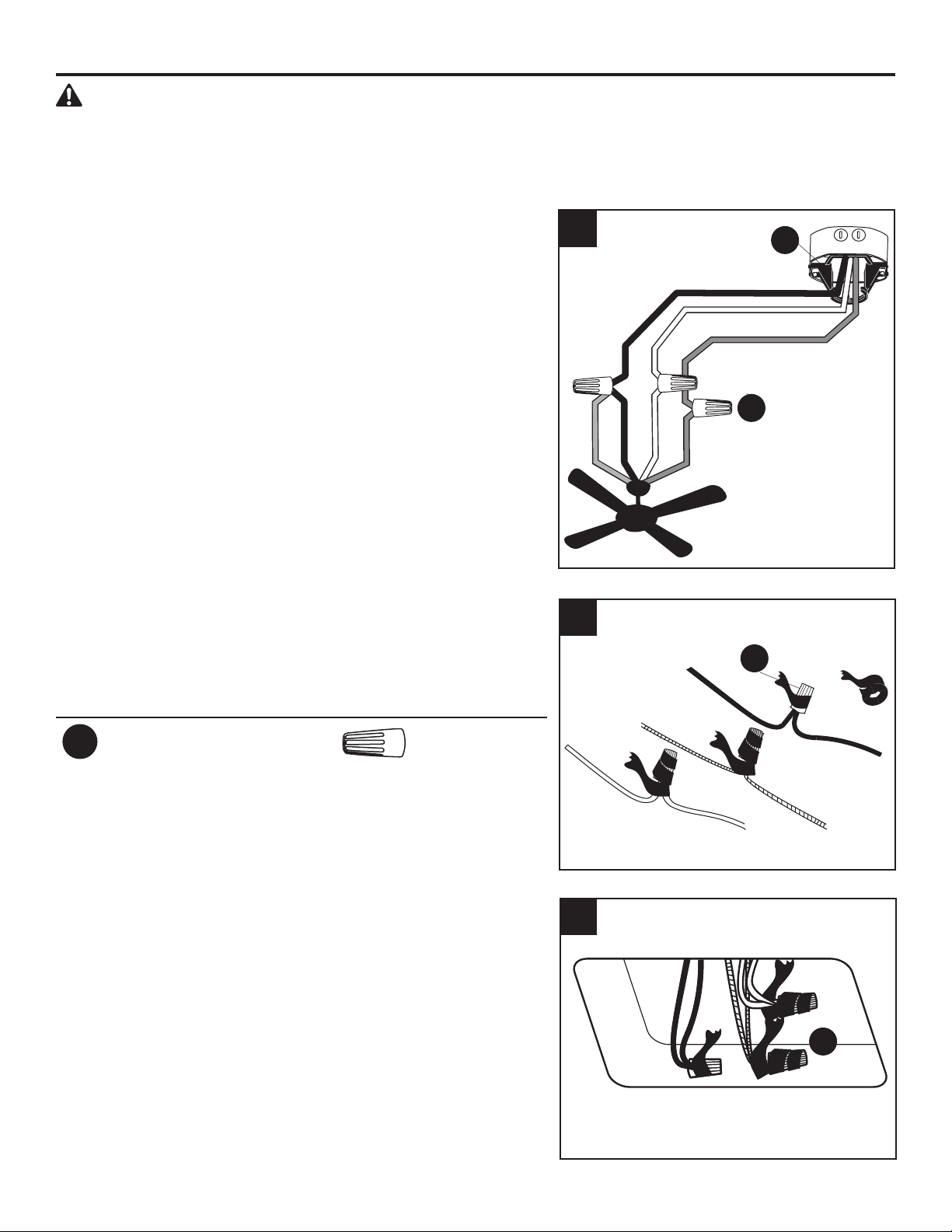

WIRING
WARNING: To reduce the risk of re, electrical shock or personal injury, wire connectors provided
with this fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If
your house wire is larger than 12-gauge and there is more than one house wire to connect to the two
fan lead wires, consult an electrician for the proper size wire connectors to use.
CAUTION: Be sure the outlet box is properly grounded or that a ground (green or bare) wire is present.
1. Connect supply and fan wires according to the diagram
and these steps:
• Connect the Green wires from the fan and the
mounting bracket (D) to the Bare/Green (ground)
supply wire.
• Connect the White wire from the fan to the White
(neutral) supply wire.
• Connect the Black and Blue wires from the fan to the
Black (hot) supply wire.
Secure all wiring connections together with wire
connectors (AA).
Note: If a second hot power wire is available from outlet
box, connect it to the blue (light power) wire from the
fan for separate light and fan control.
Note: The Blue wire is power for light. The Black
wire is power for the fan. The White wire is neutral/
common. The Green wire is the ground. If house
wires are di󰀨erent colors than referred to above, it is
recommended a professional electrician determines the
proper wiring.
Hardware Used
AA Wire Connector x 3
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black Blue White Green
2. Wrap electrical tape (not included) around each
individual wire connector (AA) down to the wire.
3. Turn the spliced/taped wires upward and gently push
the wires and wire connectors (AA) into the outlet box.
WARNING: Ensure no bare wire strands are visible
after making connections. Place Green and White wire
connections on opposite sides of outlet box from the
Black.
1D
AA
AA
AA
3
2

13
FINAL INSTALLATION
1. Align the canopy (E) over the loose mounting bracket
screws (P) preassembled on mounting bracket
(D). Place the keyholes of the canopy (E) onto the
mounting bracket screws (P) and rotate the canopy
(E) clockwise.
Secure the canopy (E) with the mounting bracket
screws (P) previously removed (Step 4, page 8).
Tighten all mounting bracket screws (P) securely.
2. Insert the blade screws (BB) along with the blade
washers (CC) through the blade (O) and into the
blade arm (N) and secure with a screw cap (LL).
Repeat this step for the remaining blades (O) and
blade arms (N).
Hardware Used
BB Blade Screw x 9
CC Blade Washer x 9
Screw Cap x 9
3. Align the two holes in the blade arm (N) with two
motor screw holes in the top of the motor assembly
(G). Secure the blade arm (N) to motor assembly
(G) using two motor screws (J). Completely secure
each blade arm (N) to the motor assembly (G) before
moving to next.
E
D
CC
N
LL
BB
O
P
1
2
3
LL
J
G
N

14
FINAL INSTALLATION
4. Remove one of the tter plate screws (I) from the tter
plate (H) and loosen (do not remove) the other two
screws. Then, insert the wires from the motor assembly
(G) through the hole in the light pan (S). Attach the light
pan (S) to the tter plate (H) by twisting the light pan
(S) until the loosened tter plate screws (I) engage the
key slots on light pan (S). Re-install the third tter plate
screw (I) into the open hole in light pan (S) and securely
tighten all three tter plate screws (I).
5. Remove the three light pan screws (T) from the light
pan (S). Connect the 9-pin connector from the fan to
the 9-pin connector from the light kit (M). Then, secure
the light kit (M) with the light pan screws (T).
6. Install bulbs (Q) into the sockets on the light kit (M).
Important: Make sure you allow the bulbs (Q) and light
kit to cool before you replace the bulbs.
4
6
5
M
Q
M
I
S
T
S
H
G
9-pin Connector

15
FINAL INSTALLATION
7. Attach the glass bowl (R) to the light kit (M) by twisting
the glass bowl (R) tightly in a clockwise direction until it
is secure.
8. Attach pull chain extensions (DD) to the pull chains.
Note: When facing the reverse switch on the light kit
(M), the fan pull chain is on the right and the light pull
chain is on the left.
Hardware Used
DD Pull Chain
Extension x 2
9. Turn on the circuit breakers and the wall switch to the
fan supply line leads.
Assembly is complete.
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
7
8
9
M
M
R
DD
Reverse Switch
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e

16
OPERATING INSTRUCTIONS
1. The pull chain has four positions to control the fan
speed. One pull is HIGH, two is MEDIUM, three is LOW,
and four turns the fan OFF. The light pull chain is used
to turn the lights ON or OFF.
2. Using a ceiling fan will allow you to raise your
thermostat setting in summer and lower your thermostat
setting in winter without feeling a di󰀨erence in your
comfort.
In warmer weather, push the reverse switch left to
display a sun icon, which will result in downward airow
creating a wind chill e󰀨ect (Fig. 2A).
In cooler weather, push the reverse switch right to
display a snowake icon, which will result in upward
airow that can help move hot air o󰀨 the ceiling area
(Fig. 2B).
Important:Wait for the fan to stop before moving the
reverse switch. The reverse switch must be set either
completely left or right in order for the fan to function
correctly. If the reverse switch is set in the middle
position, the fan will not operate (Fig. 2C).
H
a
r
b
o
r
B
r
e
e
z
e
H
a
r
b
o
r
B
r
e
e
z
e
Fig. 2A Fig. 2B
Fig. 2C
1
2
Light Pull Chain Fan Pull Chain
M

17
CARE AND MAINTENANCE
At least twice each year, tighten all screws on the fan. Clean the motor housing with only a soft brush
or lint-free cloth to avoid scratching the nish. Clean the blades with a lint-free cloth.
Bulb Replacement: Use 60-watt max. E26-base LED, CFL or incandescent bulbs. Halogen bulbs are
not recommended for this item.
Important: Shut o󰀨 the main power supply before you begin any maintenance tasks. Do not use
water or a damp cloth to clean the ceiling fan.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
The fan does not
move.
1. The power is o󰀨 or the fuse is
blown.
2. There is a faulty wire connection.
3. The plugs are not connected
properly.
4. The reverse switch is not
completely engaged.
1. Turn the power on or check the
fuse.
2. Turn the power o󰀨. Loosen the
canopy and check all connections.
3. Check that the connectors from
the light kit and fan are connected
properly.
4. Push the reverse switch
completely to the left or right.
The fan is noisy.
1. The blades are loose.
2. There is a cracked blade.
3. The wall control is not compatible
with the fan.
4. The outlet box is not secure.
5. The mounting bracket is not
secure.
1. Check and tighten all screws that
hold the fan blades to the blade
arms and the motor.
2. Replace the cracked blade.
3. Do NOT use a full range dimmer
switch to control the fan speed.
4. Ensure the outlet box is secured to
the building structure.
5. Ensure the mounting bracket is
secured to the outlet box and that
the screws are tight.

18
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
There is excessive
wobbling.
1. The blades and/or blade
arms are loose.
2. The blades are unbalanced.
3. The fan mounting is not
secure.
4. The fan is too close to the
vaulted ceiling.
5. The set screw on the motor
assembly yoke is loose.
1. Check and tighten all screws that hold
the fan blades to the blade arms and the
blade arms to the motor.
2. Switch one blade with a blade from the
opposite side. Or balance the fan using a
blade balancing kit (sold separately).
3. Turn o󰀨 the power. Loosen the canopy
and verify that the mounting bracket is
secure to the electrical outlet box. The
bracket must be ush without movement
against the outlet box.
4. Use a longer downrod (sold separately)
or move the fan to another location.
5. Lift up the yoke cover and tighten the set
screw to the yoke until secure.
The fan operates
correctly, but the
lights are not
working.
1. The light kit wire plugs are
not connected properly.
2. There is a faulty wire
connection.
3. The bulbs are not installed
correctly.
1. Ensure the 9-pin connectors in the light
kit are connected properly.
2. Turn the power o󰀨 and check all
connections at the ceiling outlet box.
3. Re-install the bulb(s).

19
LIMITED LIFETIME WARRANTY
The manufacturer warrants this fan to be free from defects in workmanship and materials present at
time of shipment from the factory for a lifetime from the date of purchase by the original purchaser.
The retailer also warrants that all other fan parts, excluding any glass or plastic blades, to be free
from defects in workmanship and material at the time of shipment from the factory for a period of one
year after the date of purchase by the original purchaser. The manufacturer agrees to correct such
defects without charge or at its option replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of the receipt as proof of purchase. All costs of removing
and reinstalling the product are your responsibility. Any damage to any part such as by accident or
misuse or improper installation or by a󰀩xing any accessories, is not covered by this warranty. The
manufacturer assumes no responsibility whatsoever for fan installation during the limited lifetime
warranty. Any service performed by an unauthorized person will render the warranty invalid.
Due to varying climate conditions, this warranty does not cover any changes in brass nish, including
rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give their longest useful life
when protected from varying weather conditions. Any glass provided with this fan is not covered by
the warranty.
Any replacement of defective parts from the ceiling fan must be reported within the rst year from the
date of purchase. For the balance of the warranty, call our customer service department for return
authorization and shipping instructions so that we may repair or replace the ceiling fan. Any fan or
parts returned improperly is the sole responsibility of the purchaser. There is no other expressed
warranty. The manufacturer disclaims any and all warranties. The duration of any implied warranty
which cannot be disclaimed is limited to the time period as specied in the expressed warranty. The
manufacturer shall not be liable for incidental, consequential, or special damages arising out of or
in connection with product use or performance except as may otherwise be accorded by law. This
warranty gives specic legal rights, and you may also have other rights which vary from state to state.
This warranty supersedes all prior warranties.
Note:A small amount of “wobble” is normal and should not be considered a defect.

20
Printed in China
REPLACEMENT PARTS LIST
For replacement parts, call the customer service department at 1-800-643-0067, 8 a.m. - 8 p.m., EST,
Monday - Sunday.
PART DESCRIPTION PART #
A Downrod 4L000010280
D Mounting Bracket 4L000004480
E Canopy 4L000006320
F Canopy Cover 4L000008290
L Yoke Cover 4A000003540
M Light Kit 4L000012090
N Blade Arm (x 3) 4A073750003
O Blade (x 3) 4L085350001
R Glass Bowl 4A166920001
HW Hardware Kit 4L000012100
9562PB ·122719
A D F
E
L HW
M N
R
O
