Harbor Breeze CE-JP13EB6RC User manual

E192641
For
Damp Location
BELCARRA CEILING FAN
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
ITEM #0428798
MODEL #CE-JP13EB6RC
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST, Monday - Thursday, 8 a.m. -
5 p.m., EST, Friday.
ATTACH YOUR RECEIPT HERE
Serial Number Purchase Date
EB12323
1Lowes.com/harborbreeze
Français p. 18

READ AND SAVE THESE INSTRUCTIONS
Please read and understand this entire manual before attempting to assemble, install or operate the
product.
Safety Information ................................................................................................................2
Package Contents ................................................................................................................4
Hardware Contents
........................................................................................................................... 5
Preparation ...........................................................................................................................5
Initial Installation ...................................................................................................................6
Fan Mounting .......................................................................................................................7
Wiring .................................................................................................................................10
Final Installation ..................................................................................................................12
Automated Learning Process/Activating Code ...................................................................12
Operating Instructions for Remote Control and Fan ...........................................................14
Care and Maintenance .......................................................................................................15
Troubleshooting...................................................................................................................15
Limited Lifetime Warranty ..................................................................................................16
Replacement Parts List ......................................................................................................17
TABLE OF CONTENTS
2
Lowes.com/harborbreeze
SAFETY INFORMATION
• Do not discard fan carton or foam inserts. Should this fan need to be returned to the factory for
repairs, it must be shipped in its original packaging to ensure proper protection against damage
that might exceed the initial cause for return.
• Make sure that all electrical connections comply with local codes, ordinances, the Canadian
Electrical Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself
wiring handbook if you are unfamiliar with installing electrical wiring.
• Make sure the installation site you choose allows a minimum clearance of 10 ft. from the blades to
the floor and at least 30 in. from the end of the blades to any obstruction.
• After you install the fan, make sure that all connections are secure to prevent the fan from falling.
• The net weight of this fan including the light kit is: 21.83 lbs. (9.9 kg).

SAFETY INFORMATION
To reduce the risk of fire, electrical shock, or personal injury, mount fan to outlet box
marked "ACCEPTABLE FOR FAN SUPPORT OF 35 LBS. (15.9 KG) OR LESS" and use
mounting screws provided with the outlet box. Most outlet boxes commonly used for the
support of lighting fixtures are not acceptable for fan support and may need to be replaced.
Consult a qualified electrician if in doubt.
When mounting fan to a ceiling outlet box, use a METAL octagonal outlet box. Secure the outlet
box directly to the building structure. The outlet box and its support must be able to support the
moving weight of the fan (at least 35 lbs.). Do NOT use a plastic outlet box.
To avoid personal injury, the use of gloves may be necessary while handling fan parts with
sharp edges.
To reduce the risk of fire, electrical shock, or personal injury, wire connectors provided with this
fan are designed to accept only one 12-gauge house wire and two lead wires from the fan. If your
house wire is larger than 12-gauge or there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician for the proper size wire connectors to use.
To reduce the risk of fire or electrical shock, do not use the fan with any solid state speed
control device or control fan speed with a full range dimmer switch.
To reduce the risk of fire, electrical shock, or personal injury, do not bend the blade arms when
installing them, balancing the blades, or cleaning the fan. Do not insert objects between the
rotating fan blades.
To reduce the risk of personal injury, use only parts provided with this fan. The use of parts
OTHER than those provided with this fan will void the warranty.
This fan MUST be installed with the safety cable provided with the fan. Failure to use the
safety cable provided may result in personal injury, damage to the fan or damage to other
property.
WARNINGS
CAUTIONS
Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
Read all instructions and safety information before installing your new fan. Review the
accompanying assembly diagrams.
3Lowes.com/harborbreeze
DANGER
If using this fan in a DAMP location, this fan must be connected to a supply circuit that is protected
by a Ground Fault Circuit Interrupter (GFCI) to reduce the risk of personal injury, electrical shock
or death.

IMPORTANT REMINDER: You must use the
parts provided with this fan for proper installation
and safety.
A Downrod 1
B Canopy 1
C Mounting Bracket 1
D Motor Assembly 1
E Pin (preassembled) 1
F Clip (preassembled) 1
G Canopy Mounting Screw 2
(preassembled)
H Canopy Cover 1
I
Remote Control 1
Transmitter
J Remote Control Receiver 1
K Battery 1
L Yoke Cover 1
M Safety Cable
1
( preassembled)
DESCRIPTIONPART QUANTITY
4Lowes.com/harborbreeze
PACKAGE CONTENTS
FE
A
D
B
C
G
HI
J
K
L
M

5
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 120 minutes
Tools Required for Assembly (not included): Electrical Tape, Phillips Screwdriver, Pliers, Safety
Glasses, Stepladder and Wire Strippers
Helpful Tools (not included): AC Tester Light, Tape Measure, Do-It-Yourself Wiring Handbook and
Wire Cutters
DANGER: When using an existing outlet box, make sure the outlet box is securely attached to
the building structure and can support the full weight of the fan. Failure to do this can result in serious
injury or death. The stability of the outlet box is essential in minimizing wobble and noise in the fan
after installation is complete.
CAUTION: Be sure outlet box is properly grounded and that a ground wire (green or bare) is
present.
After opening top of carton, remove mounting hardware package from foam inserts. Remove motor
from packing and place on carpet or on foam to avoid damage to finish.
CAUTION: Carefully check all screws, bolts and nuts on fan motor assembly to ensure that they
are secured.
PREPARATION
Lowes.com/harborbreeze
HARDWARE CONTENTS (shown actual size)
AA
E3 Wire
Connector
Qty. 10

Turn off circuit breakers and wall switch to the fan
supply line leads.
DANGER: Failure to disconnect power supply
prior to installation may result in serious injury or
death.
1.
Check to make sure outermost edge of small fans
will be at least 30 in. from any obstruction. Check
downrod (A) length to ensure blades will be at least
10 ft. above the floor when smaller fans are in fully
tilted position.
3.
6
Lowes.com/harborbreeze
ON
OFF
ON
OFF
3
1
This fan can only be mounted with the downrod in
the motor assembly (D).
NOTE: Angle mount or closemount configurations
are not available for this fan.
2.
10 ft
min.
30 in.
min.
INITIAL INSTALLATION
2

Remove pin (E) and clip (F) from yoke at top of
motor assembly (D) and partially loosen
preassembled set screws.
*Helpful Hint: Downrod-style mounting is best
suited for ceilings 8 ft. (2.44 m) high or higher. For
taller ceilings you may want to use a longer downrod
(not included). A longer downrod is sometimes
necessary to ensure proper blade clearance.
1.
Secure mounting bracket (C) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket
(C) as this will support the fan.
4. 4
INITIAL INSTALLATION
FAN MOUNTING
7
Lowes.com/harborbreeze
C
Set Screw
D
E
F
1

FAN MOUNTING
Depending on the length of downrod you use,
you may need to cut the lead wires back to
simplify the wiring. If you decide to cut back the
lead wires, it is suggested you do so in the
following manner:
Take the lead wires and make sure you have
pulled them all the way through the top of the
downrod (A). Start at the TOP of the downrod (A)
and measure 8 in. of lead wire, and then cut the
excess wire off with wire cutters (not included).
IMPORTANT: Do NOT cut safety cable (M).
NOTE: If you do not cut back the lead wires,
Steps 4 and 5 are not necessary and you may
proceed to Step 6 instead.
4.
2. Insert downrod (A) through canopy (B), canopy
cover (H) and yoke cover (L). [NOTE: Canopy
cover (H) must be turned with the shiny side
toward the motor assembly (D).] Thread wires
and safety cable (M) from motor assembly (D)
through downrod (A).
Tip: Apply a small piece of electrical tape (not
included) to the ends of the wires before
threading them through the downrod (A).
3.
4
A
8
Lowes.com/harborbreeze
Set
Screw
F
A
E
3
D
2
A
B
L
H
L
H
Slip downrod (A) into yoke at top of motor
assembly (D), align holes and re-install pin (E)
and clip (F). Tighten downrod (A) set screws
and then tighten nuts. Slide yoke cover (L) down
until it rests on top of motor assembly (D).
M
M

9
Lowes.com/harborbreeze
Slide downrod (A) through opening in mounting
bracket (C) and then turn the downrod (A) so the
straight edges at the top of the downrod (A) align
with the sides of the mounting bracket (C). Pull
down firmly on the downrod (A) until it sits securely
inside the mounting bracket (C).
DANGER: Failure to secure downrod (A) in
mounting bracket (C) may result in serious injury or
death.
IMPORTANT: Due to the size (width) of this fan, it
is advisable to seek the help of another person to
hold the stepladder in place and to then help lift the
fan up to you once you are set on the ladder.
6.
If you decided to cut back the lead wires in Step 4,
strip a 1/2 in. of insulation from end of white wire.
Twist stripped ends of each strand of wire within
the insulation with pliers (not included). Repeat
Step 5 for black, blue (if applicable) and green
wires.
5.
FAN MOUNTING
5
6
A
C
Find a secure attachment point (wood ceiling joist
recommended) and secure safety cable (M). Use a
heavy-duty wood screw, washer and lock washer
(all not included) to secure safety cable (M) loop.
Extra cable slack can be left in ceiling area.
7. 7
Loop
Wood Joist
Wood Screw
and Washer
M

CAUTION: Be sure outlet box is properly
grounded and that a ground (green or bare) wire is
present.
WARNING: If house wires are different colors than
referred to in the following steps, stop immediately. A
professional electrician is recommended to determine
wiring.
WIRING
DANGER: If using this fan in a DAMP location, this
fan must be connected to a supply circuit that is protected
by a Ground Fault Circuit Interrupter (GFCI) to reduce the
risk of personal injury, electrical shock or death.
10
Lowes.com/harborbreeze
WARNING: To reduce the risk of fire, electrical
shock, or personal injury, wire connectors provided
with this fan are designed to accept only one
12-gauge house wire and two lead wires from the
fan. If your house wire is larger than 12-gauge or
there is more than one house wire to connect to the
corresponding fan lead wires, consult an electrician
for the proper size wire connectors to use.
1. 1WHITE SUPPLY WIRE
BLACK SUPPLY WIRE
BLACK
BLACK
WHITE
BLUE
BLUE
WHITE
BLACK
AC IN L
AC IN N
WHITE
WHITE
GROUND (GREEN
OR BARE)
FROM FAN
FROM RECEIVER
ANTENNA
FROM
CEILING
BLACK
FROM RECEIVER
Make the necessary wiring connections for remote
control operation according to Fig. 1. For each wire
connection, use one of the wire connectors (AA)
provided, making sure to screw wire connector (AA)
on in a clockwise direction. [Make sure to connect
all GROUND (GREEN) wires together from fan (on
downrod (A) and mounting bracket C)) to
BARE/GREEN wire from ceiling.]
WIRING TIP: Wiring your fan's remote control
requires extreme patience. Take mandatory breaks
while wiring to allow your arms to rest.
NOTE: Black and blue wires are hot power for fan.
White wire is common for fan. Green or bare wire is
ground.
NOTE: Please refer to installation and operating
instructions for remote control.
J

WIRING
11
Lowes.com/harborbreeze
3
Gently slide remote control receiver (J) smooth side
up into mounting bracket (C). Turn spliced/taped
wires upward and gently push wires and wire
connectors (AA) into outlet box. Let antenna from
remote control receiver (J) hang to the side.
NOTE: The remote control included with this fan
meets the following requirements:
a. Not for use with solid state fans.
b. Electrical rating: 120V / 60 Hz;
motor amps:1.5 MAX.
Should you choose to use a different remote control
with this fan, it must also meet these same
requirements
3.
Wrap electrical tape around each individual wire
connector (AA) down to the wire.
WARNING: Make sure no bare wire or wire
strands are visible after making connections. Place
green and white connections on opposite side of
box from the black connections.
Turn spliced/taped wires upward and gently push
wires and wire connectors (AA) into outlet box.
2. 2
AA
AA AA
Hardware Used
E3 Wire Connector x4
AA
Antenna
Dimmer
Switch Speed Switch
For illustrative purposes only--not
intended to cover all types of controls
4
1
2
3
IMPORTANT: Using a full range dimmer (not
included) switch to control fan speed will cause a
loud humming noise from fan. To reduce the risk of
fire or electrical shock, do NOT use a full range
dimmer switch to control fan speed.
4.
A
J
C

12
Lowes.com/harborbreeze
AUTOMATED LEARNING PROCESS/ACTIVATING CODE
Remove battery cover from back side of remote
control transmitter (I).
Set the code on the remote control transmitter (I)
by sliding code switches 1 through 4 to your choice
of up or down position. (Factory setting is all up. Do
not use this position.) Use a small screwdriver or
ballpoint pen to slide firmly up or down.
Install the battery (K) and then replace battery
cover on remote control transmitter (I).
1.
(back side)
CAUTION: The remote control transmitter (I)
can be programmed to multiple receivers or fans. If
this is not desired, turn wall switch off to any other
programmable receiver or fan.
1
Code Switches
Battery
Cover
I
1.
FINAL INSTALLATION
Locate two canopy mounting screws (G) on
underside of mounting bracket (C) and remove
canopy mounting screw (G) closest to the open end
of the mounting bracket (C). Partially loosen the
other canopy mounting screw (G). Lift canopy (B)
to mounting bracket (C). Place rounded part of
slotted hole in canopy (B) over loosened canopy
mounting screw (G) in mounting bracket (C) and
push up. Twist canopy (B) to lock. Re-insert canopy
mounting screw (G) that was removed, and then
tighten both canopy mounting screws (G) securely.
Slide canopy cover (H) up to canopy (B), aligning
rounded part of slotted holes in canopy cover (H)
with screwheads in bottom of canopy (B). Turn
canopy cover (H) clockwise until it stops.
1
H
B
G
K

13
Lowes.com/harborbreeze
2. Restore electrical power. Within 30 seconds of
restoring electrical power, press the “ ” button
on the front of the remote control transmitter (I) for
5 seconds. Use the remote control to test the
oscillation and fan functions (see operating
instructions on page 14) to confirm the learning
process is complete.
IMPORTANT: To prevent damage to remote
control transmitter (I), remove the battery (K) if not
used for long periods. Store the remote control
transmitter (I) away from excess heat.
2
(front)
I
AUTOMATED LEARNING PROCESS/ACTIVATING CODE
Modifications not approved by the party responsible
for compliance could void the user's authority to
operate the equipment.
*NOTE: This equipment has been tested and
found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses and can radiate radio frequency energy and,
if not installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment
and receiver.
* Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.

14
Lowes.com/harborbreeze

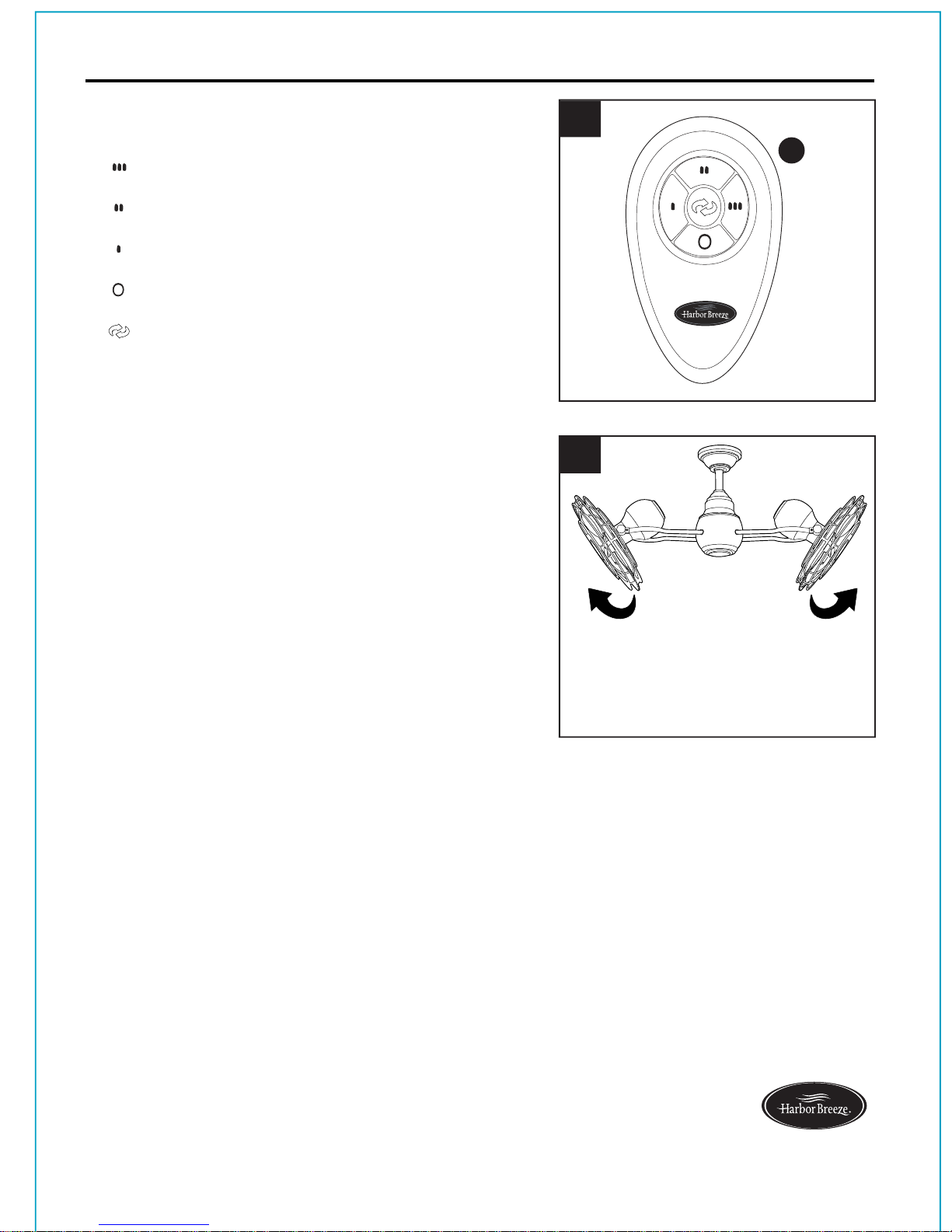

OPERATING INSTRUCTIONS FOR REMOTE CONTROL AND FAN
Operation buttons on the panel of the remote control
transmitter (I) :
Button turns the 2 smaller fans to HIGH speed
Button turns the 2 smaller fans to MEDIUM speed
Button turns the 2 smaller fans to LOW speed
Button turns the 2 smaller fans OFF
Button turns main fan ON/OFF when pressed
once (i.e., controls ROTATION of the
ENTIRE fan)
1. 1
I
The tilt angle of the smaller fans may be adjusted up or
down by simply manually moving them gently up or
down.
CAUTION: To avoid personal injury or damage to
the fan(s), both the main fan and the smaller fans
MUST BE OFF before adjusting the smaller fans up
or down.
2. 2
smaller fan smaller fan
main fan

15
IMPORTANT: Shut off main power supply before beginning any maintenance. Do not use water or a
damp cloth to clean the ceiling fan.
At least twice each year, lower canopy (B) to check downrod (A) assembly, and then tighten all
screws on the fan. Clean motor assembly (D) with only a soft brush or lint-free cloth to avoid
scratching the finish. Clean blades in smaller fans with a lint-free cloth.
CARE AND MAINTENANCE
Lowes.com/harborbreeze
WARNING: Before beginning work, shut off the power supply to avoid electrical shock.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Fan does not
move. 1. Power is off or fuse is blown.
2. Faulty wire connection.
3. Learning code process between fan
and remote control transmitter (I)
may not have been successful and
learning code was not activated.
1. Turn power on or check fuse or
breaker.
2. Turn power off. Loosen canopy (B)
and check all connections.
3. Turn off power and repeat
instructions in Step 2 on page 13.
Noisy operation. 1. Full range dimmer switch.
2. Fan is new.
1. Replace with an approved speed
control device.
2. Allow fan a “break in” period of a
few days, especially when running
the fan at Medium and High
speeds.
Excessive
wobbling. 1. Fan not securely mounted.
2. Set screw(s) on motor housing yoke
is (are) not tightened properly.
3. Set screw on hanging ball is not
tightened properly.
1. Turn power off. Carefully loosen
canopy (B) and verify that mounting
bracket (C) is secure.
2. Tighten yoke set screw(s) securely.
3. Carefully loosen and lower canopy
(B) and verify that set screw on
hanging ball is tightened securely.
NOTE: A small amount of "wobble" is normal and should not be considered a defect.

16
Lowes.com/harborbreeze
The distributor warrants this fan to be free from defects in workmanship and materials present at time
of shipment from the factory for Lifetime limited from the date of purchase. This warranty applies only
to the original purchaser. The distributor agrees to correct any defect at no charge or, at our option,
replace the ceiling fan with a comparable or superior model.
To obtain warranty service, present a copy of your sales receipt as proof of purchase. All cost of
removal and reinstallation are the express responsibility of the purchaser. Any damage to the ceiling
fan by accident, misuse or improper installation, or by using parts not produced by the manufacturer
of this fan or affixing accessories not produced by the manufacturer of this fan, are the purchaser's
own responsibility. The distributor assumes no responsibility whatsoever for fan installation during the
limited lifetime warranty. Any service performed by an unauthorized person will render the warranty
invalid.
Due to varying climatic conditions, this warranty does not cover changes in brass finish, rusting,
pitting, tarnishing, corroding or peeling. Brass finish fans maintain their beauty when protected from
varying weather conditions. Any glass provided with this fan is not covered by the warranty.
Any replacement of defective parts for the ceiling fan must be reported within the first year from the
date of purchase. For the balance of the warranty, call our customer service department (at
1-800-527-1292)for return authorization and shipping instructions so that we may repair or replace
the ceiling fan. Any fan or parts returned improperly packaged is/are the sole responsibility of the
purchaser. There is no further express warranty. The distributor disclaims any and all implied
warranties. The duration of any implied warranty which cannot be disclaimed is limited to the limited
lifetime period as specified in our warranty. The distributor shall not be liable for incidental,
consequential or special damages arising at or in connection with product use or performance except
as may otherwise be accorded by law. This warranty gives you specific legal rights and you may also
have other rights which vary from state to state. This warranty supersedes all prior warranties.
LIMITED LIFETIME WARRANTY

ABCE
FH
GI
L
PART DESCRIPTION
A Downrod
B Canopy
C Mounting Bracket
E Pin
F Clip
G Canopy Mounting Screw
H Canopy Cover
I Remote Control
Transmitter
J Remote Control
Receiver
L Yoke Cover
AA E3 Wire Connector
AA
J
REPLACEMENT PARTS LIST
For replacement parts, call our customer service department at 1-800-643-0067, 8 a.m. - 6 p.m., EST,
Monday - Thursday, 8 a.m. - 5 p.m., EST, Friday.
Printed in China
Harbor Breeze® is a registered trademark
of LF, LLC. All Rights Reserved.
17
Lowes.com/harborbreeze
LI1211
