Owner’s Manual
H2O Sensor - Model 201LS, 201LSHD
& 200DM
Large Square Baler Precision Moisture Sensing Kit
Forage Harvester

2
DECLARATION OF INCORPORATION
MANUFACTURER: Harvest Tec Inc.
2821 Harvey St.
P.O. Box 63
Hudson, WI 54016, U.S.A.
REPRESENTATIVE ESTABLISHED IN COMMUNITY: Profitable Farming Company
Middle Barlington, Roborough
Winkleigh, Devon, EX19 8AG
ENGLAND
The person above certifies and declares that:
VIRTUAL MACHINE: Equipment mounted on a farm press to monitor moisture.
MODEL: H2O Sensor-Owners-201LS, 201LSHD-19-Imp&Metric
BRAND: Harvest Tec
SERIAL NUMBER:
This Harvest Tec moisture system meets the Directive 2006/42/EC of the European Parliment and the
Council of 17 May 2006 and other applicable European Directives including Directive 2014/53/EU on
the Radio Equipment Directive and 2014/30/EU.
The Harvest Tec moisture system will be turned on after being installed on a farm press which has
been declard in conformity with the Machinery Directive.
Person in the community authorized to provide information on the partly completed machinery and
making this statement:
Richard Snell, President, Profitable Farming Company
Signed on May 21, 2011: Middle Barlington, Roborough
Winkleigh, Devon, EX19 8AG
ENGLAND

3
H2O Moisture Owner’s Manual Table of Contents
Page
Introduction
3
Installation of Star Wheels
4-7
AGCO Balers –Non-UHD Models
4
AGCO Balers –UHD Models
4
Claas Balers
5
CNH BB & LB Balers
5
John Deere L330-L341 Balers
6
Balers Not Listed
7
Alternative Star Wheel Mounting Location
7
Control Box Installation
8
End of Bale Sensor Installation - 200FCA (Optional)
8
Dye Marker Installation - 200DM (Optional)
9
Wiring Diagram
10
Downloading H2O App
11
Screen Definitions
11
Operation
12-13
Reading Moisture
12
Moisture Range
12
Dye Marker System
13
Dye Sprayer Override
13
H2O Firmware Update through App
14
Pin Outs
15
Parts Breakdown
16-18
Star Wheels
16
Control Box & Harnesses
17
Fixed Chamber End of Bale Sensor Kit
17
H2O Dye Marker
18
Warranty Statement
19
Introduction
Congratulations and thank you for purchasing a Harvest Tec H2O Moisture Sensing Kit Model 201LS system.
Please read this manual carefully to ensure correct steps are taken to attach the system to the baler. This
system is designed to read moisture at levels of 5-60%.
Requirements
The app will support operation of the current operating system and one previous version for both Apple and
Android devices.
**It is recommended for proper communication that the original phone/tablet power cable is used. Many lower cost power
cables do not meet requirements to properly charge and communicate to the Harvest Tec H2O module.
Tools Needed
SAE wrench set
Hammer
Drill bit set
Standard screw driver
Measuring tape
Center punch
Side cutter
SAE socket set

4
Installation of Star Wheels
AGCO Balers - Non-UHD Models
The star wheels are to be mounted on top of the baler, just
behind the knotters and under the walkway on both sides. The
notch and holes for the star wheel are precut. If the star
wheels are cutting the twine the sensors and notch must be
moved out an additional 1/2" (13mm).
Place the spacer plate (001-6707E) over the precut holes.
Attach with 5/16”x 1/2” Allen head bolts and internal star
washers from inside the bale chamber. Center the star wheels
over the top of the spacer plate, place the twine diverters on
top of the star wheel and attach with 5/16 x 2-1/4”hex bolt
and lock washers.
Remaining two holes per star wheel attach with 5/16”x 2 1/4”
hex bolt, lock washer, and one 5/16” thick flat washers per
bolt. Verify that star wheels align with bale chamber before tightening down all hardware. The twine guard
containing the bale rate sensors will be placed on the right side of the baler.
AGCO Balers - UHD Models
The star wheels are to be mounted on top of the baler, just
behind the knotters and under the walkway on both sides. The
holes for the star wheel are precut. Remove the plate on top
of the catwalk covering the triangle shaped access cutout.
Place star wheel over the predrilled holes on both sides of the
bale chamber, (right).
Secure the star wheels with 5/16”x 3-1/4” BHCS (x2 each
side) from the bottom side and are secured with 5/16” lock
washer and nuts. Blocks are dropped down on the bolts and
secured in place with the star wheel twine guards (001-
4645H, 001-4644H). The twine guard containing the bale rate
sensors will be placed on the right side of the baler.

5
Installation of Star Wheels (continued)
Claas Balers
Use the picture below as a guide for drilling the mounting holes
for the star wheels. The star wheels are to be mounted on the
side of the bale chamber, between the top and middle channel.
Measure 10” back from the hinge between the top and middle
channel. Cut 1” x 9” (25mm x 23cm) slot for the star wheel.
Make sure the wheel is square.
Mark the location of the two 5/16” (8mm) holes for the star
wheel base. After drilling the holes, insert the 5/16” x 3 1/4”
allen head bolts through the chute and use nuts to hold the
bolts in place. Place the star wheel block over the nuts and
install the prox sensor holder (001-4644H) on the star wheel
located on the right side of the baler. Note: Thicker side of
block goes to baler side.
CNH BB & LB Balers
Use the pictures above a guide to mounting the star wheels. Locate the two star wheel moisture sensors (030-
4641) and twine diverters (001-4644 & 001-4645). Directly behind the knotters, locate the four predrilled holes
per side shown at the arrows. This location is also beneath the lift points on top of the baler.
Install the eight (four per side) 5/16” x 3” Allen head cap screws. Make sure the
Allen heads are in the bale chamber. Secure using eight 5/16” hex nuts (right).
Install the star wheels below the lift points on the baler. Install the twine diverters
over the star wheel sensor. The twine diverter with two extra sensors will be
installed on the right star wheel.
Secure the star wheels and twine diverters with four 5/16” hex nuts, lock washers,
and two flat washers.

6
Installation of Star Wheels (continued)
John Deere L330-L341 Balers
Remove any material from the bale chute. The star wheels are to
be mounted on the transition bracket on both sides of the bale
chute located after knotters shown above. Holes have been
installed at the factory, however you need to remove bracket and
cut 3/4” (19mm) off the bracket as indicated below to allow proper
spacing for star wheel assembly.
Once complete, touch up with spray paint to prevent rusting and
place the carriage bolts that mount the transition bracket back in
original bracket mounting holes (A) before mounting star wheel
assembly (C). Insert the 5/16” x 3 1/4” Allen head bolts up
through the transition bracket and use nuts to hold the bolts in
place (B). Place the star wheel block over the nuts. Place twine
guard on top of star wheel (D), the guard containing bale rate
sensors will be placed on the right side.
Note: Thicker part of star wheel block should be on baler side.
Transition Bracket Location
A
B
D
C
Cut 3/4” Off Bracket
Star wheel assembly

7
Installation of Star Wheels (continued)
Balers Not Listed
The star wheels are mounted under the walkway on top of the
baler behind the knotters. Remove the bale from the chute
and tip the walkway up. Locate the star wheel template on the
outside corner angles of the bale chute on the left and right
side of the baler.
The center of the wheel shaft will be approximately 5-1/2”
(13cm) in front of the walkway support or about halfway
between the walkway support and the cross frame almost
directly in front of it. The notch will start just in front of the
walkway support.
Two parts of the baler frame will have to be trimmed off on
both sides to mount each star wheel. The first is the outside
corner angles of the chute. Use the template to mark the location of the star wheel notch as well as the location
of the four holes for the star wheel base. The notch will be 5/8” by 9” (16mm x 23cm) long and will help keep
the wheel away from the twine. Spray the ground off areas with touch up paint to prevent rusting.
The second portion of the baler to trim off is the end of the gusset that may interfere with the star wheel’s
plastic base support. Center the star wheel in the slots that was just notched and check for interference with
the gusset.
Drill 5/16” (8mm) holes for the star wheel block. Insert the 5/16” x 3” bolts up through the chute and use nuts to
hold the bolts in place. Place the star wheel block over the nuts and install the twine guards using the two inner
holes of the star wheel block. The twine guard containing the bale rate sensors will be placed on the right side
of the baler.
Alternative Star Wheel Mounting Location
If steam is being added to the bales
prior to the crop entering the chamber,
positioning the star wheels at the rear
of the bale chamber will allow the star
wheels to accurately read the moisture.
Two parts of the baler frame will have to be
trimmed off on both sides to mount each
star wheel. The first is the outside corner angles of the chute. Use the template to mark the location of the star
wheel notch as well as the location of the four holes for the star wheel base. The notch will be 5/8” by 9”
(16mm x 23cm) long and will help keep the wheel away from the twine. Spray the ground off areas with touch
up paint to prevent rusting.
The second portion of the baler to trim off is the end of the gusset that may interfere with the star wheel’s
plastic base support. Center the star wheel in the slots that was just notched and check for interference with
the gusset.
Drill 5/16” (8mm) holes for the star wheel block. Insert the 5/16” x 3” bolts up through the chute and use nuts to
hold the bolts in place. Place the star wheel block over the nuts and install the twine guards using the two inner
holes of the star wheel block. The twine guard containing the bale rate sensors will be placed on the right side
of the baler.

8
Control Box Installation
Locate a safe location in the cab of the tractor to place the
control box (006-2473SB). Recommended location is as close
to the tablet or phone being used to control the system.
Connect the Power Harness (006-2470P) and the Baler
Power Communication Harness (006-2470LS).
The control box (006-2473SB) is equipped with a green light
to indicated both power and connection.
Plug the tablet/phone cord into the
communication port (closest to light)
and indicated by:
Slow Blink –System has power but not connected to phone or tablet.
Solid Green –Device is connected.
**It is recommended for proper communication that the original phone/tablet power cable is used. Many lower
cost power cables do not meet requirements to properly charge and communicate to the Harvest Tec H2O
module.
End of Bale Sensor Installation –200FCA (Optional)
The end of bale sensor is used to determine when the baler needle arm moves. With this information the
system is able to show the average moisture of the previous bale. Part number for kit is 200FCA.
Mount the 006-7400 sensor to the mounting bracket 001-4648RB as shown below. Mount the assembly on the
right side of the baler chamber. The face of the sensor needs to be parallel to the arm attached to the needles.
*Note: The bracket may need to be slightly bent for the proper positioning.
Mark and drill two 3/8” (10mm) holes. Install the sensor using two 5/16” x 1“ allen head bolts, locks, and nuts.
The end of the sensor needs to be no greater than 1/4” (7mm) away from the needle arm. Tighten nuts on
sensor after adjustment.
The harness will need to be routed toward the harness at the tongue of the baler. Secure with cable ties and
take care to avoid pinch points. The harness extension (006-7400EXT) may need to be used.
006-4648RB
006-7400
006-2473SB

9
Dye Marker Installation –200DM (Optional)
Locate the dye marking kit tank and pump assembly (005-9015). Identify a
suitable mounting location for the tank away from moving parts and hydraulic
lines on the baler. Be sure to mount the tank within 10’ of the connection on the
Baler Pwr/Comm Harness (006-2470SS), wiring details in the wiring diagram.
Note: The mounting location will potentially be different for the tank on each
baler model. Due to various baler designs and modifications, Harvest Tec does
not offer a specific mounting location for each baler model.
Once a mounting location has been identified, mount the tank vertically as
shown (right) with the tank lid on the top using the included hardware.
Next locate the dye marking spray assemblies shown (below).
*Small square and Large square balers must us the brass tip (004-TX-5)
Nozzle straps should be placed directly below the star wheels so spray will be applied on the side of the bale.
Mount the second tip assembly on the left side of the baler in a similar position (below).
Alternative Dye Marking Nozzle Mounting Location
When using the alternative star wheel mounting location at the end
of the bale chamber, the dye marking nozzles can be located at the
rear of the bale chamber as shown (left).
Routing the Hose
Using the supplied 1/4” hose (002-9006) connect to the pump and
secure with the hose clamps (003-9002). Route the hose to each tip
assembly by using the 1/4" barbed tee (003-T1414) to go to each
side of the baler. Be sure to avoid moving parts.

10
Wiring Diagram
1. Connect the power harness (006-2470P) to the tractor convenience outlet keyed power switch using the
red wire with fuse to the positive side and the black wire to the negative.
a. Any modifications of the power harness will void the warranty. Contact Harvest Tec before
modifications are made.
2. The power harness (006-2470P) will mount on the tractor connected to the control box (006-2473SB) with
the 12 pin male deutsch connection and the opposite end down to the draw bar.
3. Connect the Baler Pwr/Comm Harness (006-2470SB) to the power harness (006-2470P).
4. Route the Pwr/Comm Harness (006-2470LS) on the baler to each moisture sensor on both sides of bale
chamber, sensors are pn 030-4641.
5. Connect the USB charging/comm cord for the phone or tablet being used, to that device and the 201
control box (006-2473SB).
6. When using a Dye Marker the End of Bale Sensor kit will need to be added to the system in order to see
when needle arm cycles. Part number (200FCA). Connect the sensor to the End of Bale (EOB) connection
on the Baler Pwr/Comm Harness (006-2470LS).
7. When using the optional Dye Marker (200DM) connect 4 pin round end of the H2O harness (006-2470C) to
the Dye Marker (DM) connection on the (006-2470LS) harness. Then connect the two straight spade
connections with only the white wire to the push switch (006-2850). The remaining two connections with 90
degree female spades will connect to the pump.
System wiring diagram
Power Terminals
(Connect to keyed
power source)
201 Control Box
006-2473SB
Baler Pwr/Comm Harness
006-2470LS
End of Bale Sensor
006-7400
(Complete Kit 200FCA)
Moisture Star Wheel
030-4641
*If needed an optional 8’ Pwr/Comm harness extension is available (not included), part number 006-2470BL.
*Required when using Dye Marker
Dye Marker
(200DM)
H2O Harness (10’)
006-2470C
H2O Wired Power Harness
006-2470P
Phone or Tablet
(not included)
Phone or Tablet USB
charging/comm cable
(not included)

11
Downloading H2O App
The H2O App is available on any Apple or Android device running with the current
operating system software and one previous version. Download the app by
searching for H2O Sensor. App icon shown right.
Screen Definitions
Main Screen
Settings Screen
Brightness Adjustment –
Tap to switch between day and
night time brightness
Current App Version
(example)
Current Moisture Reading –
Information will display once hay
enters the bale chamber
Settings Tab –Select to
switch to Settings Screen
Connection Signal - When
connection is made with the
control box light will turn Green
Red –Not Connected
Green - Connected
Home Tab –Select to
change to Home Screen
Dye Marker System
Serial Number of System
On / Off Slide –Slide to the right to turn
On Setting. The bar will turn red or
green (dependent on device)
App Version

12
Operation
After installation of the H2O app, turn the system on by turning the key in the tractor on. When the connection
is made the green light on the control box will illuminate.
Reading Moisture

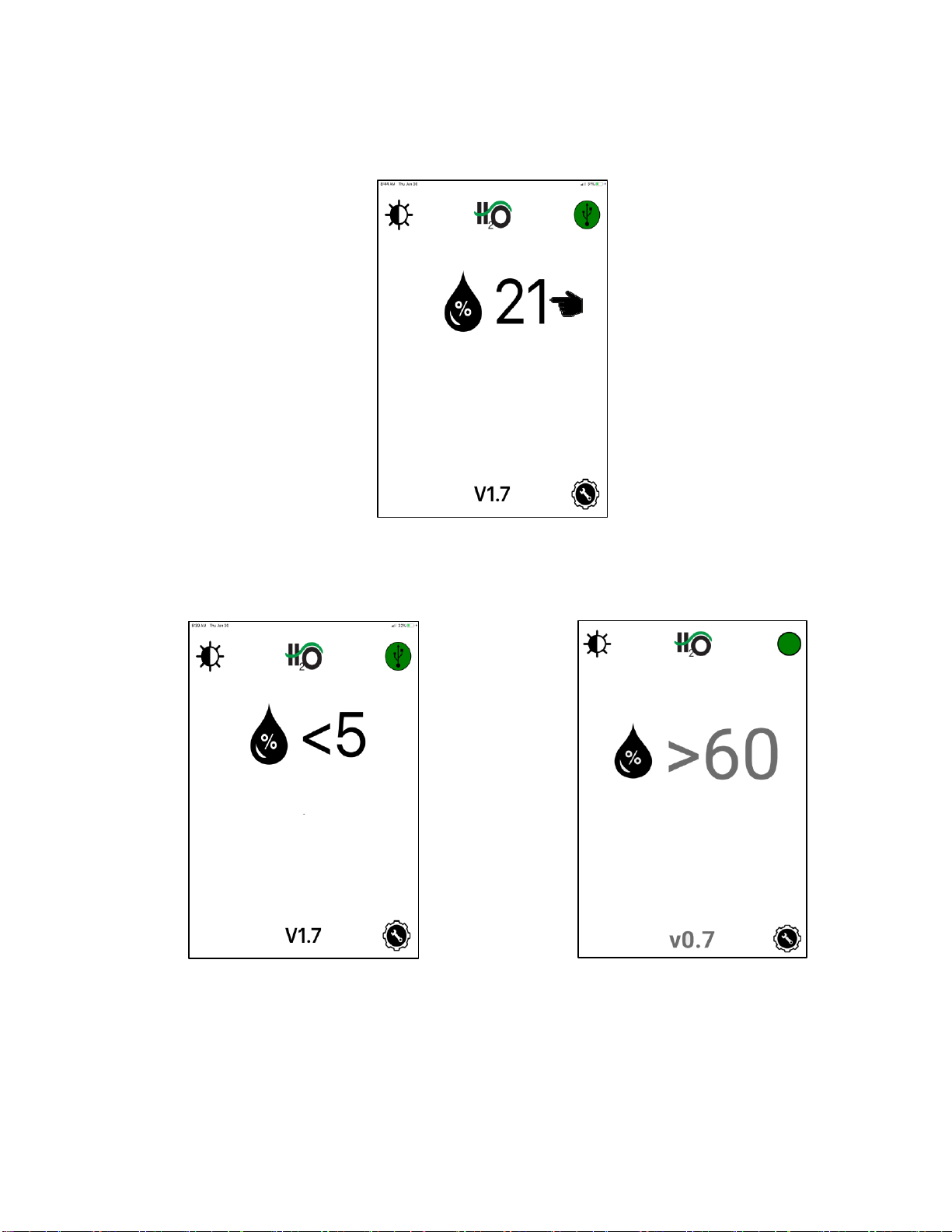

When hay begins to enter the bale chamber,
current moisture will be displayed
Moisture Range 5-60%
If the moisture being read is Less Than 5% the
reading will appear as shown above
If the moisture being read is Greater Than 60%
the reading will appear as shown above

13
Operation (continued)
Dye Marker System
When using the dye marker turn on the setting as
shown and select the desired moisture to mark a bale.
*Bales at or above this moisture level will be marked.
Dye Marker icon will now appear on the home screen.
The last bale moisture will be highlighted in red and
the bale will be marked at or above the set moisture.
Dye Marker Notes
•When the Dye Marker is activated by the moisture setting it will spray 3 seconds once per End of Bale (EOB)
cycle. After an EOB signal the dye marker is then reset to be able to spray again for 3 seconds once on the
next bale.
•A full tank of dye is estimated to mark 50-60 bales.
Dye Marker Override
If you want to mark a bale for any reason, press the bale icon to activate the sprayer. The icon will turn green.
*When the manual override is used, the last bale moisture will not highlight in red.
The manual spray function can be used on a bale as many times as preferred in 3 second intervals.

14
H2O Firmware Update through App
When there is an update available for the H2O system the following information will appear and the steps listed
will need to be followed.
Once an operator downloads the app update (internet connection
required) the “update available” symbol will appear along with the
version number of the available update once connected to the system.
At this point the system can run without updating if the operator
chooses. The icon will simply remain on thescreen.
Once the operator decides to perform the software update, they will
press the version number or upload arrow to begin.
Internet connection is not required to perform the update to the module
once the app is downloaded
Once the update is initiated, the system
will enter update mode
The status light will turn red
A green loading symbol will begin to
circulate on the screen
A status bar with then appear to
show the update progress
This can take 3-5 minutes to load software
Once the status bar load completely, the
system will boot back up
The status light will again turn green
The updated version number will be
shown at the bottom of the screen

15
Pin Outs
H2O Wired Moisture Control 006-2473SB
Pin 1 Red Module Power
Pin 2 Red/Black EOB +
Pin 3 Black EOB -
Pin 4 Grey Left Moisture Sensor
Pin 5 Brown Right Moisture Sensor
Pin 6 Purple EOB Signal
Pin 7 Yellow CAN +
Pin 8 Green CAN -
Pin 9 Red/White Dye Marker 12V +
Pin 10 Black/White Dye Marker 12V -
Pin 11 Blue Dye Marker Prime
Pin 12 Black Ground
H2O Wired Power Harness 006-2470P
Pin 1 Red Module Power
Pin 2 Red/Black EOB +
Pin 3 Black EOB -
Pin 4 Grey Left Moisture Sensor
Pin 5 Brown Right Moisture Sensor
Pin 6 Purple EOB Signal
Pin 7 Yellow Not Used
Pin 8 Green Not Used
Pin 9 Red/White Dye Marker 12V +
Pin 10 Black/White Dye Marker 12V -
Pin 11 Blue Dye Marker Prime
Pin 12 Black Ground
Baler Communication Harness 006-2470LS
Pin 1 Red/Black EOB +
Pin 2 Black EOB -
Pin 3 Purple Left Moisture Sensor
Pin 4 Grey Right Moisture Sensor
Pin 5 Brown EOB Signal
Pin 6 Red/White Dye Marker 12V +
Pin 7 Black/White Dye Marker 12V -
Pin 8 Blue Dye Marker Prime
End of Bale Sensor (EOB) 006-2471B
Pin 1 Brown EOB +
Pin 2 Blue EOB -
Pin 3 N/A Not Used
Pin 4 Black EOB Signal
Dye Marker H2O Harness 006-2470C
Pin 1 Red DS +
Pin 2 Black DS -
Pin 3 White DS Prime
Pin 4 N/A Not Used
5 6 7 8
1 2 3 4
1
1
2
2
3
3
4
4

16
Star Wheels
Large Square Balers
JD, Vicon, Kuhn, Krone, Claas 3200-3400
AGCO UHD Baler
Ref
Description
Part#
Qty
1
Star wheel sensor
030-4641C
1
2
Snap ring (per side)
006-4641K
2
3
Washer (per side)
w/006-4641K
2
4
Dust seal (per side)
w/006-4641K
2
5
Star wheel block
006-4641A
1
6
Star wheel spacer
001-6707E
1
7
Wiring grommet
008-0821A
1
8
Plug fitting
003-F38
2
9
Swivel insert
w/ Ref # 1
2
10
Electronic swivel
006-4642A
2
11
Block cover
006-4641B
2
*Optional Twine guard-left
001-4645
1
*Optional Twine guard-right
001-4644
1
Star wheel Assembly
030-4641
(Ref 1-11)
Ref
Description
Part#
Qty
1
Star wheel
006-4641E
1
2
Snap ring (per side)
w/006-4642K
2
3
Washer 1-1/4”
Hardware
1
4
Dust seal (per side)
w/006-4642K
1
5
Plug fitting
003-F38
1
6
Star wheel block
006-4641D
1
7
Wiring grommet
008-0821A
1
8
Washer 5/8”
w/006-4642K
2
9
Bearing
w/006-4642K
1
10
Insert w/ Ref #1
006-4642B
1
11
Swivel
006-4642A
1
12
Block Cover
006-4641B
1
*Optional Twine guard-left
001-4644
1
*Optional Twine guard-right
001-4645
1
Star Wheel Assembly
030-4642
(Ref 1-12)
Ref
Description
Part#
Qty
1
Univ Star Wheel
006-4641S
1
2
Dust Seal
006-4641DSL
2
3
Univ Star Block
006-4641Q
1
4
3/8” NPT Cable Grip
008-0821A
1
5
3/8” NPT Plug
003-F38
1
6
Thrust Washer
006-4641TA
2
7
Thrust Bearing
006-4641TB
1
8
Swivel Insert
006-4642B
1
9
3/4" Short Nut
006-4641U
1
10
Rotary Swivel
006-4642A
1
11
Cover Gasket
006-4641RG
1
12
Univ Block Cover
006-4641R
1
*Optional Twine guard-left
001-4644
1
*Optional Twine guard-right
001-4645
1
Star Wheel Assembly
030-4641U
(Ref 1-12)
4
3
2
5
2
6
7
8
11
12
9
10
1
2
3
6
7
4
8
10
4
5
9
11
2
1
1
2
3
4
5
8
7
4
3
2
9
10
11
6
12
*Can be added if twine excessively
makes contact with star wheels.

17
Control Box & Harnesses
Ref
Description
Part #
Qty
1
Baler Pwr/Comm Harness
006-2470LS
1
2
201 Series Control Box
006-2473SB
1
3
Tractor Power Harness
006-2470P
1
Optional 8’ power/comm
harness extension
006-2470BL2
Fixed Chamber End of Bale Sensor Kit
Ref
Description
Part #
Qty
Ref
Description
Part #
Qty
1
End of Bale Sensor
006-7400
1
3
EOB Extension
006-7400EXT
1
2
End of Bale Bracket
001-4648RB
1
Complete Kit
200FCA
1
2
3
2
3
1

18
H2O Dye Marker
Ref
Description
Part #
Qty
Ref
Description
Part #
Qty
1
H2O Harness (10’)
006-2470C
1
8
1/4" Street Elbow
003-SE14F
2
2
Tank & Pump
005-9015
1
9
Check Valve
007-1207VB
2
3
Nozzle Cap
004-4723
4
10
1/4" Straight Fitting
003-A1414VB
2
4
Tip - Brass
004-TX-5
2
11
Push Switch
006-2850
1
5
Tip Strainer (Green)
004-1203-100
2
12
1/4" All Barb Tee
003-T1414
1
6
Nozzle Body
004-4722
2
13
Mini Hose Clamp
003-9002
6
7
Nozzle Holder
001-4215
2
14
1/4" Hose
002-9006
40
NP
Red Dye
009-0800
1
NP
End of Bale Sensor Kit
200FCA
1
Complete Assembly
030-200DM
1
2
11
8
7
6
5
4
3
12
13
14
9
10
Assembly Example

19
Harvest Tec Inc. Warranty and Liability Agreement
Harvest Tec, Inc. will repair or replace components that are found to be defective within 12 months from the
date of manufacture. Under no circumstances does this warranty cover any components which in the opinion
of Harvest Tec, Inc. have been subjected to negligent use, misuse, alteration, accident, or if repairs have been
made with parts other than those manufactured and obtainable from Harvest Tec, Inc.
Our obligation under this warranty is limited to repairing or replacing free of charge to the original purchaser
any part that in our judgment shows evidence of defective or improper workmanship, provided the part is
returned to Harvest Tec, Inc. within 30 days of the failure. If it is determined that a non-Harvest Tec branded
hay preservative has been used inside the Harvest Tec applicator system where the failure occurred, then
Harvest Tec reserves the right to deny the warranty request at their discretion. Parts must be returned through
the selling dealer and distributor, transportation charges prepaid.
This warranty shall not be interpreted to render Harvest Tec, Inc. liable for injury or damages of any kind,
direct, consequential, or contingent, to persons or property. Furthermore, this warranty does not extend to loss
of crop, losses caused by delays or any expense prospective profits or for any other reason. Harvest Tec, Inc.
shall not be liable for any recovery greater in amount than the cost or repair of defects in workmanship.
There are no warranties, either expressed or implied, of merchantability or fitness for particular purpose
intended or fitness for any other reason.
This warranty cannot guarantee that existing conditions beyond the control of Harvest Tec, Inc. will not affect
our ability to obtain materials or manufacture necessary replacement parts.
Harvest Tec, Inc. reserves the right to make design changes, improve design, or change specifications, at any
time without any contingent obligation to purchasers of machines and parts previously sold.
Revised 4/17

20
HARVEST TEC, INC.
P.O. BOX 63
2821 HARVEY STREET
HUDSON, WI 54016 USA
PHONE: [phone]
FAX: [phone]
Email: [e-mail]
