OWNER’S MANUAL
Model 436
25 Gallon Preservative Applicators
Forage Harvester

2
HARVEST TEC 436 MANUAL INDEX
PAGE
INSTALLATION KIT REFERENCE CHART
3
TOOLS NEEDED
3
INSTALLATION OF THE APPLICATOR
4 –8
1. INSTALLATION OF MOUNTING BRACKETS, TANK AND DRAIN/FILL LINE
4-5
2. INSTALLATION OF SPRAY SHIELD ASSEMBLY
6
3. INSTALLATION OF HOSES AND GAUGE
6
4. INSTALLATION OF CONTROLS
7
APPLYING RATE DECAL
7
LOCATION OF CONTROL BOX
7
WIRING
7
OPERATION
7-10
MESSAGE LIGHT
7
CALIBRATION
8
DETERMINING TONS PER HOUR
8
DETERMINING RATE OF CHEMICAL
8
SELECTING TIPS AND SETTING PRESSURE
9
CALIBRATION REMINDERS
9
GENERAL CALIBRATION CHARTS
10
ROUTINE MAINTENANCE
11
WINTER STORAGE
11
TROUBLE SHOOTING CHECKS
12
PARTS BREAKDOWN
13-15
MODEL 436 BASE KIT
13
MODEL 436 DRAIN/FILL KIT, & CONTROL BOX
14
MODEL 436-SO INSTALLATION KIT
15
NOTES
16
WARRANTY AND LIABILITY
BACK PAGE
7

3
Congratulations on purchasing a Harvest Tec Model 436 applicator. This applicator is designed to
apply Harvest Tec buffered acid. The model 436 base kit includes the following parts: tank, frame,
pump, gauge, hose, electronic control box, and miscellaneous hardware. For your convenience we
have included a parts break down for the model 436 applicator. If something goes wrong bring this
manual into the dealer so they can order the correct parts for you. Ordering the correct part number
is very important. It will save you time, money, and your crop.
BALER MAKE
BALER MODEL
INSTALLATION KIT
Kuhn
VB 2160 & VB 2190
030-0436-SO
TOOLS NEEDED
For installation of this applicator, the following tools will be required:
REFERENCE CHART
-Standard wrench set
-Standard socket set
-Standard screw driver or 5/16” nut driver
-Side cutter
-Hose cutter
-Crescent wrench
-Hammer

4
INSTALLATION OF APPLICATOR
1. INSTALLATION OF MOUNTING BRACKETS, TANK, AND DRAIN/FILL LINE

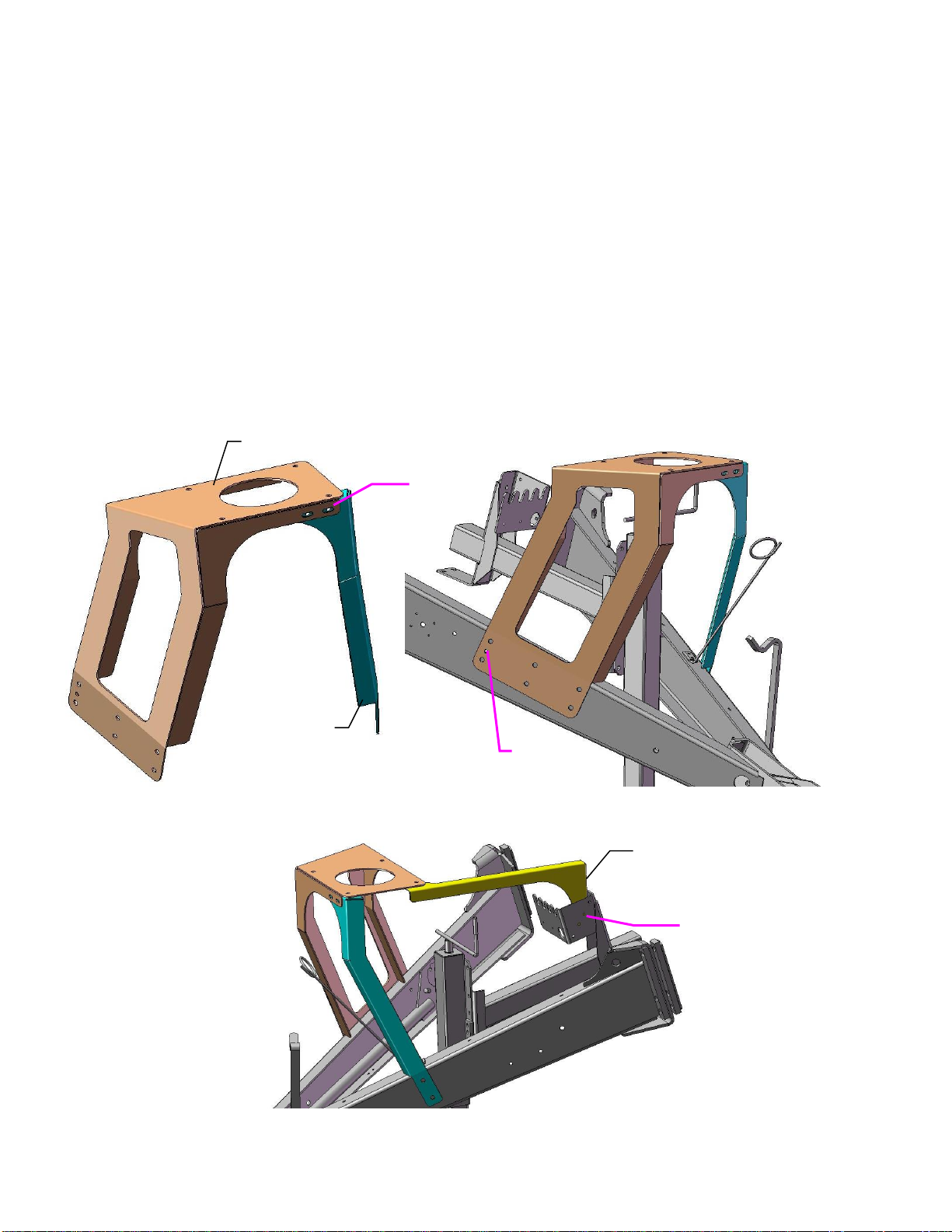

Locate tank saddle legs (001-4442K & 001-4442D) as shown in figure 1. Fasten leg 001-4442D to
001-4442K with two 3/8 x 1 1/4” bolts, locks, flats, and nuts at point A.
Secure 001-4442K to the baler using a 3/8 x 1 1/4” bolt, flat, and nut through the existing hole shown
at point B on figure 2. Allow the gusset flange lip to rest on top of the baler tongue. Clamp both legs
to secure bracket to baler and drill six 9/16” on 001-4442K and two 9/16” holes on 001-4442D, using
the bracket as a guide. Secure the legs to the baler frame with eight 1/2 X 1 1/4” bolts, locks, flats,
and nuts. Tighten all hardware.
Locate the legs support bracket (001-4442E). Fasten the support to the baler, in the existing holes,
as shown at point C in figure 3. Use two 5/16 x 1” bolts, flats, locks and nuts. Tighten all hardware.
A
Figure 1
001-4442KD
001-4442K
Figure 2
B
Figure 3
001-4442KE
C

5
INSTALLATION OF MOUNTING BRACKETS, TANK, AND DRAIN/FILL LINE

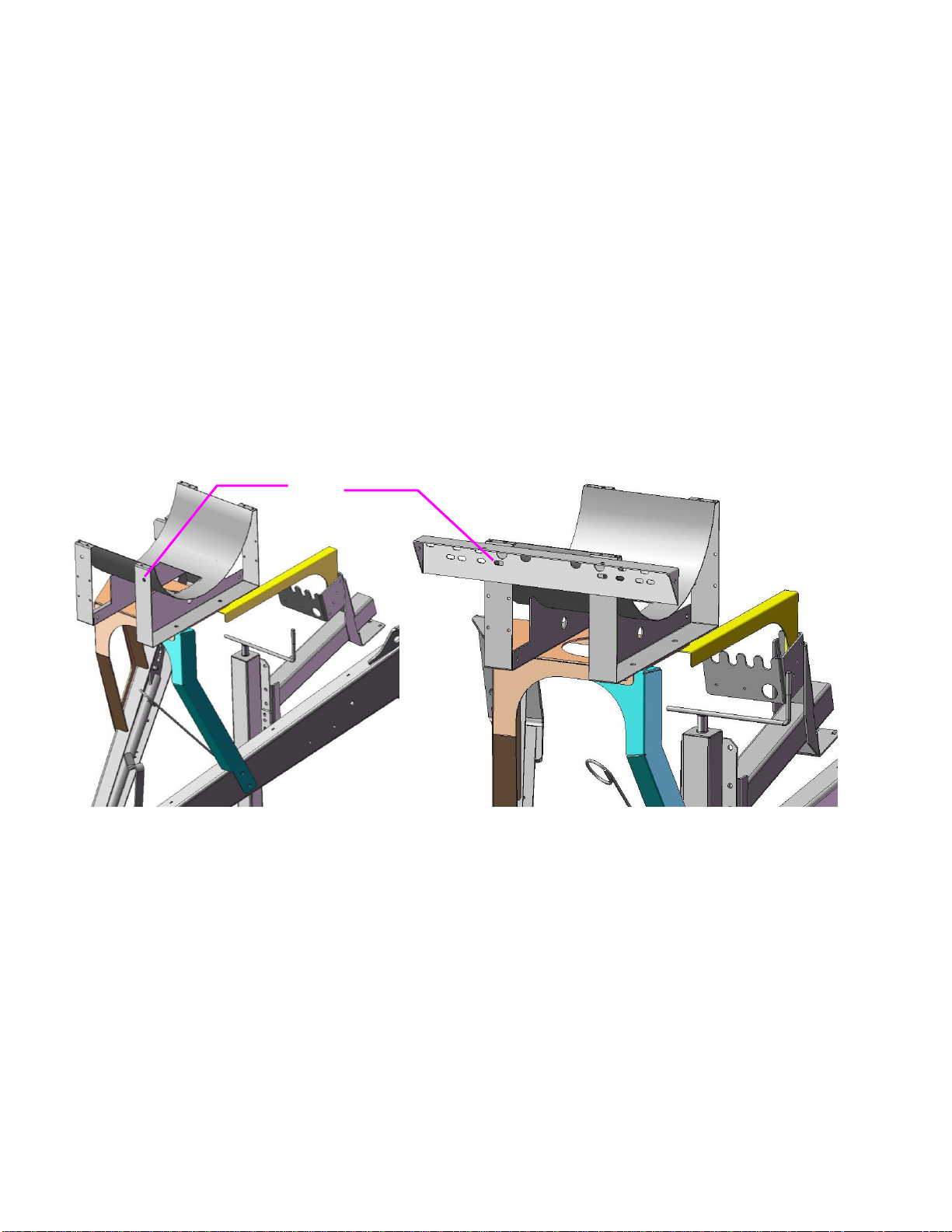

Locate the tank and saddle assembly. Position the tank and saddle so that the side tank fitting is
towards the right side of the baler. The additional two weld-nuts on the saddle will then be facing
forward as shown in point E on figure 4. Fasten the tank saddle to the frame using four 1/2 x 1 1/4”
bolts, locks, flats, and nuts. Tighten all hardware.
Locate the pump plate assembly. Remove the four flange bolts holding the two pieces of the pump
plate together. Mount the pump plate mounting bracket (001-4646C) as shown below point E in
figure 5. Attach the bracket to the saddle using two 3/8 x 1” bolts, locks, and flat washers. Tighten all
hardware. Attach the remaining half of the pump and secure with the four 3/8 x 3/4” flange bolts.
Locate the drain/fill 3/4” hose, 3/4” elbow, 3/4” straight fitting, valve, quick coupler and mounting
bracket. Thread 3/4" elbow fitting (#003-EL3434) into side tank fitting. Run 3/4" hose from the
elbow down the frame to the bottom of the baler. Drill 1/4" holes to accept the valve holder bracket
and use 5/16” x11/4” self-tapping screws. Connect valve assembly to other end of hose. Place hose
clamps on both ends.
Figure 4
Figure 5
E

6
2. PLACEMENT OF SPRAY NOZZLE ASSEMBLY
Locate the spray shield holder (001-4704E2) and spray shield (001-4703GK). Center the spray
shield holder over the rotor. Clamp the bracket and drill two 7/16” holes point F on figure 6. Secure
the bracket using two 3/8 x 1 1/4 bolts, locks, flats, and nuts. Tighten all hardware. Install the shield
and secure using the two lynch pins (008-4576).
3. INSTALLATION OF HOSES AND GAUGE
Mount the gauge to the tank frame or the frame of the baler. If you mount the gauge to the baler
make sure it does not interfere with any of the baler’s operation, or be in an area where it could be
tripped over when servicing the baler. Connect the hose between the pump and the gauge. Run the
plumbing from the gauge to the check valve on the spray shield. Connect the disconnect to the end of
the hose from the gauge and to the check valve. The line will be routed along the front sheeting of
the baler next to the bale size indicator. Secure to baler using the padded jiffy clips provided. They
will be secured with two of the carriage bolts used on the baler’s sheet metal. Use hose clamps on all
connections.
F
001-4704E2
001-4703GK
Figure 6

7
4. INSTALLATION OF CONTROLS
APPLY RATE DECAL
Apply the rate decal that came in the bag with this book and place it just to the right of the speed dial.
LOCATION OF CONTROL BOX
Locate the control where it can be easily reached from the tractor’s seat. Adjustments for baling
speed and windrow conditions can be made as the baler is operated.
WIRING
Route the wire to the starter solenoid on all 12v tractors. Connect the green lead marked +to the hot
terminal on the starter. Connect the black lead to a good ground. DO NOT REVERSE THE LEADS.
Be sure to use a voltmeter to verify that you do have 12 volts running to the box.
NOTE: For tractors with 24v starters, connect the power leads to the tractor’s right hand battery. Do
not connect the leads to the starter. Connect the lead marked + to the positive battery terminal and
the lead marked- to the negative on the battery. Wiring connections to the battery normally results in
corrosion; terminal coating is recommended.
CAUTION: Do not run a pump or use an electronic control box directly off a battery charger. For
stationary use, the applicator can be connected to a new battery and the battery connected to a
charger.
OPERATION
The 436 applicator is very simple to operate. After installing the applicator, fill the tank with 5 gallons
of water. With control box connected to the applicator and the power cord hooked to the 12-volt
battery we can start the test. First flip on the toggle switch. You might hear the buzzing of the motor.
Turn the dial on the control box until the gauge starts to climb. By turning the dial clockwise the
pressure will go up. By turning the dial counter clockwise the pressure will decrease. With the
applicator spraying at about 30 PSI, look for leaks at all the hose connections and fittings. Using
water in this step instead of chemical will save you from wasting chemical and making a mess if leaks
are found. When you are comfortable with the operation of the controls you can set the applicator to
the amount of chemical you would like it to put on.
Message Light
The LED under the speed dial will be steady on when the applicator is running under normal
situations. If the light blinks on and off use the below information for the message.
Slow steady on and off blink: The system is attached to hay indicators (474A) or a foot switch.
This message means that the pump is paused. The light will come on constant once the baler is back
in the windrow.
Two quick blinks: The pump motor or pump harness is shorted.
Three quick blinks: Pump motor is over the current limit (10 amps).
Four quick blinks: Power is under current from a bad connection.
The control box must have the on/off switch toggled to clear the message after the fault has been
fixed to clear.

8
CALIBRATION
There are three things that you need to know when calibrating your applicator. First you
need know how many tons per hour you bale. Second you need to know the rate, or how
many pounds of product to apply for a given ton per hour. Finally you need to know what
tips to use and at what pressure to set the gauge.
DETERMINING TONS PER HOUR
Round Balers
1. Time 3 bales and average the time it takes to make a bale. Don’t include tying
time.
2. Estimate the weight of the bale.

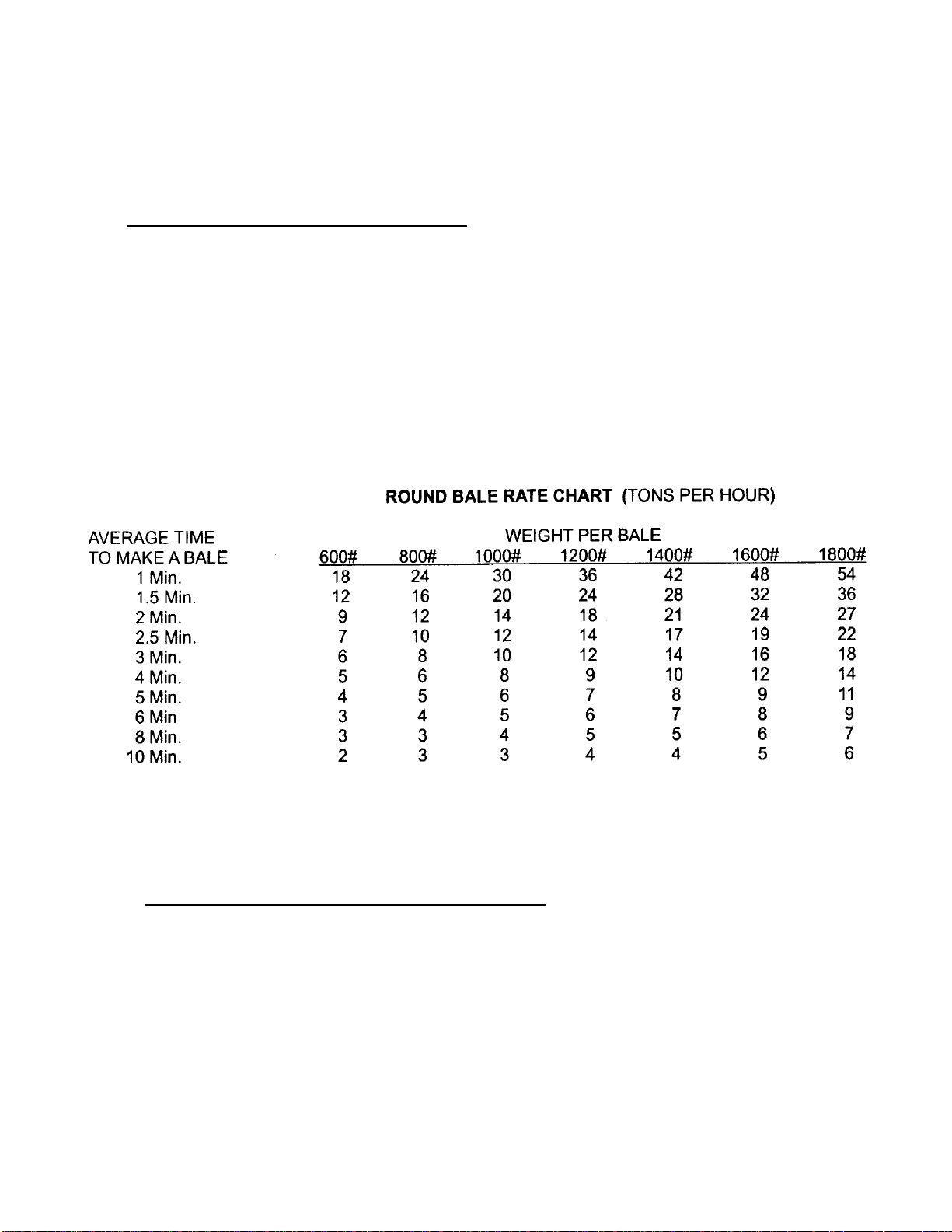

3. Use the bale rate chart below to determine the tons you are baling per hour.
Example: You made 3 round bales and it took you an average of 2 minutes a
piece to bale each of them. Your baler’s operator manual tells you that an average
bale made by your machine weighs 1000lb. (Remember if the hay is dry it will
weigh less and if the hay is wet it will weigh more.) Using the chart on the following
page, cross-reference 2 minutes with 1000lbs and you will come up with 14 ton per
hour.
DETERMINE THE RATE OF CHEMICAL
The number of pounds of chemical required to be applied to a given ton of hay,
depends on the moisture and the type of chemical used. The moisture of the hay is
important in determining how much chemical to use. The wetter the hay the more
product is needed, the dryer the hay the less product is needed. By knowing the
moisture, you can make sure you are treating the hay correctly. Under applying will
save money but spoilage most likely occurs. Over applying will waste money
however, the hay will be saved. Some chemicals require more or less to treat the
same amount of hay. To find the exact number of pounds required, for a given hay
moisture, refer to the label on the drum or contact the manufacture. Harvest Tec
applicators come with the red, green, and blue sets of tips. If your chemical
requires rates other than what these tips deliver you will need to purchase them
through your dealer.

9
CALIBRATION REMINDERS
*Watch the pressure gauge as the setting will vary with tractor’s electrical output,
temperature and other factors.
*Check your application rate by measuring product used against actual tons baled.
REMEMBER, ONLY YOU CAN CONTROL HOW MUCH PRODUCT IS APPLIED
AND THAT WILL DETERMINE IF YOUR HAY WILL KEEP!!!
SELECTING TIPS AND SETTING PRESSURE
Once you have determined your tons per hour and the amount of chemical
needed for the moisture you are applying at, you can select your tips and
determine your gauge settings.
1. Multiply the tons per hour by the amount of chemical required for
the moisture you are applying at. This sum will give you the
application rate.
2. Select the proper set of tips from the application rate chart and
install them.
3. For the tips you have selected, you will need to keep the gauge at
the recommended PSI to achieve the proper application rate.
4. Set the pressure by adjusting the dial on the control box and by
reading the pressure of the gauge to match the desired rates.
The numbers on the dial are for reference only. Rate is
determined by watching the pressure gauge.
Example: You are baling at 12.5 tons per hour with your round
baler. The moisture that you are baling at requires you to apply 8
pounds per ton. Multiply the 12.5 tons x 8lbs. = 100lbs per hour.
Using the chart (lbs/hr) on the following page, you will notice the red
set of tips at 35 PSI will give you that output.

10
GENERAL CALIBRATION CHART IN POUNDS PER HOUR
Use the following chart for all applications that require pounds measurements.
POUNDS PER HOUR WITH THREE NOZZLES
INCLUDED IN KIT
YELLOW
RED
GREEN
BLUE
BLACK
650067
XR11001
XR110015
XR11002
XR11004
CENTER
650033
650050
6501
6502
6503
OUTSIDE
PSI
15
53
64
112
192
320
20
63
76
133
228
380
25
70
84
147
252
420
30
77
92
161
276
460
35
84
100
175
300
N/A
40
89
106
186
318
N/A
45
94
112
196
336
N/A
50
97
116
203
348
N/A
55
102
122
214
366
N/A
60
107
128
224
384
N/A
GENERAL CALIBRATION CHART IN GALLONS PER HOUR
Use the following chart for all applications that require volume measurements.
GALLONS PER HOUR WITH THREE NOZZLES
INCLUDED IN KIT
YELLOW
RED
GREEN
BLUE
BLACK
650067
XR11001
XR110015
XR11002
XR11004
CENTER
650033
650050
6501
6502
6503
OUTSIDE
PSI
15
5.2
7.3
12.9
22.0
31.9
20
5.6
8.4
15.1
24.1
42.2
25
6.3
9.5
16.7
28.3
47.3
30
7.0
10.6
18.6
31.0
52.2
35
7.5
11.3
19.7
33.5
N/A
40
8.0
12.0
21.0
36.0
N/A
45
8.4
12.6
22.3
38.3
N/A
50
8.9
13.2
23.6
40.7
N/A
55
9.3
13.8
24.5
42.5
N/A
60
9.7
14.4
25.6
44.4
N/A

11
ROUTINE MAINTENANCE
1. Clean the tip strainers and main strainer every 10 hours of operation or more frequently if
required.
2. Depending on the product being used, the system may need to be flushed with water at a
regular interval (consult with manufacturer of the chemical.) If Harvest Tec product is being
used, flushing is not necessary.
3. Although the pump can run dry, extended operation of a dry pump will increase wear. Watch
the preservative level in the tank.
4. Cover the electronic cab control box on open station tractors if left outside.
5. Pump performance may start to decline after 400 hours of use. Rebuilding the pump is a
simple procedure if the motor is not damaged. Order pump rebuilding kit #007-4581.
6. If you are using bacterial inoculants, flush out system daily after each use.
7. Clean tank cap breather every 20 hrs or more frequently if required.
WINTER STORAGE
1. Thoroughly flush the system with water.
2. Remove the filter bowl and run dry until the water has cleared out of the intake side.
3. Remove the red plug from the bottom of the pump, drain, and run the pump for 30 seconds or
until it is dry.
4. Drain all lines on the outlet side.
5. Never use oils or alcohol based anti-freeze in the system.
6. For spring start-up, or anytime the pump is frozen, turn off the power immediately to avoid
burning the motor out. The pump head can be disassembled and freed or rebuilt in most
cases.

12
TROUBLE SHOOTING CHECKS
PROBLEM
POSSIBLE CAUSE
SOLUTION
Pump will not run.
1. Circuit breaker tripped
on electronic unit.
1. Check for short, low voltage,
and reset breaker.
2. Pump locked up.
2. Clean or rebuild pump if motor
is OK.
3. Damaged wire.
3. Repair damaged wire.
4. Vapor locked.
4. Loosen hose by check valve at
spray shield and bleed air.
Pump runs but will not prime.
1. Air leak in intake.
1. Tighten fittings on intake side.
2. Clogged intake.
2. Clean.
3. Restricted outlet.
3. Check and clean tips.
4. Check valve on outlet
stuck closed.
4. Clean or repair check valve.
5. Dirt inside pump.
5. Replace pump check valve.
Pump does not develop
enough output.
1. Air leaks or clogs on
inlet side.
1. Tighten or clean filter bowl
assembly.
2. Electronic box out of
adjustment.
2. Refer to box adjustment page.
3. Pump worn or dirty.
3. Rebuild pump.
4. Low supply voltage.
(Pump requires 12v
minimum)
4. Check voltage at connection
with voltmeter.
5. Bad gauge.
5. Gauge should read less than
10 PSI when not in use. Also tips
should lose spray pattern below
10 PSI. Check accuracy.
Pump output varies.
1. Clogged or restricted
inlet.
1. Clean
2. Worn pump parts.
2. Rebuild pump.
Message light blinks two
times
1. Pump or wire harness
shorted.
1. Check harness running to
pump and verify no shorts or
problems.
2. Check to see if pump motor is
locked up. Repair or replace.
Message light blinks three
times
1. Pump is drawing
greater than 10 amps.
1. Check to see if motor is
running correctly. Repair or
replace.
Message light blinks four
times
1. Undercurrent coming to
control box.
1. Check all battery connections
and connections running up to
control box.

13

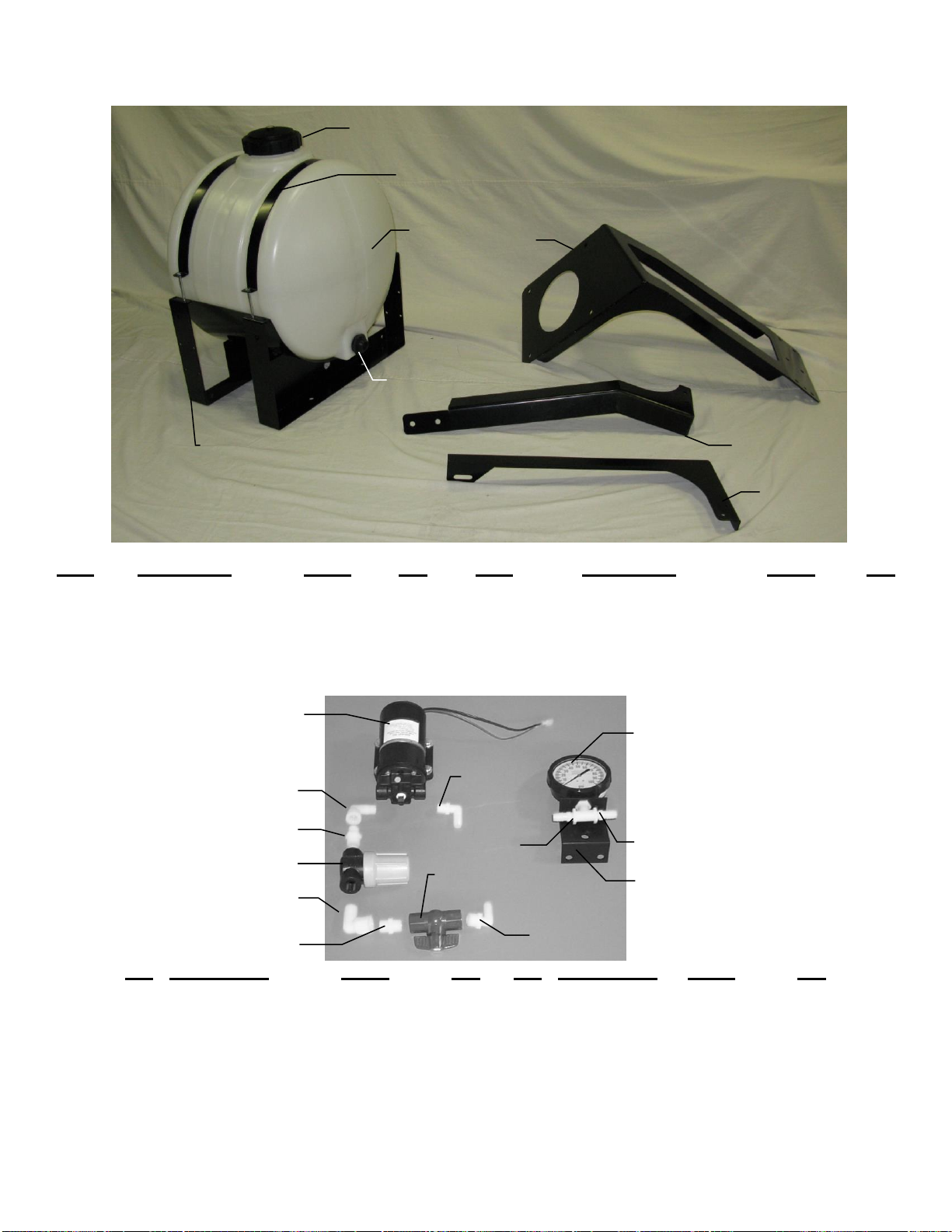

HARVEST TEC MODEL 436 BASE KIT
Ref#
Description
Part #
Qty
Ref#
Description
Part #
Qty
1
Tank Cap
005-9022C
1
5
Tank Fitting
005-9100
1
Tank Cap Gasket
005-9022CG
1
6
Tank mount bracket
001-4442K
1
2
Tank Strap
001-4402
2
7
Tank support
001-4442KD
1
3
Tank
005-9022
1
8
Mounting support
001-4442KE
1
4
Saddle
001-4442
1
Ref
Description
Part #
Qty
Ref
Description
Part #
Qty
1
Pump
007-4120S
1
8
Ball valve
002-2212
1
2
Elbow fitting
003-EL3812
1
9
Elbow fitting
003-EL1212
1
3
Street elbow
003-SE38
1
10
Gauge
002-2208Z
1
4
Nipple fitting
003-M1238
1
11
Gauge bracket
001-4717
1
5
Filter bowl assembly
002-4315
1
12
Tee
003-TT14
1
6
Street elbow
003-SE12
1
13
Straight fitting
003-A1412
2
7
Nipple fitting
003-M1212
1
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
4
5
6
7
8

14
MODEL 436 DRAIN/FILL KIT, & CONTROL BOX
Ref
Description
Part #
Qty
Ref
Description
Part #
Qty
1
Jiffy clip-large
008-9009
3
9
Female coupler
002-2204A
1
2
Jiffy clip-small
008-9010
3
10
Straight fitting
003-A3434
1
3
Ball valve
002-2200
1
11
Elbow fitting
003-EL3434
1
4
Valve bracket
001-6702H
1
12
Straight fitting
003-A1412
1
5
U-bolt –small
001-4714UBS
2
13
Washer
004-1207W
1
U-bolt –large
001-4714UBL
1
14
Female disconnect
004-1207H
1
6
Hose clamp
003-9003
8
15
Control box
030-0457
1
7
Hose clamp
003-9004
2
16
Power harness
006-4580C
1
8
Male shut-off
002-2205G
1
17
Pump harness
006-4583
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

15

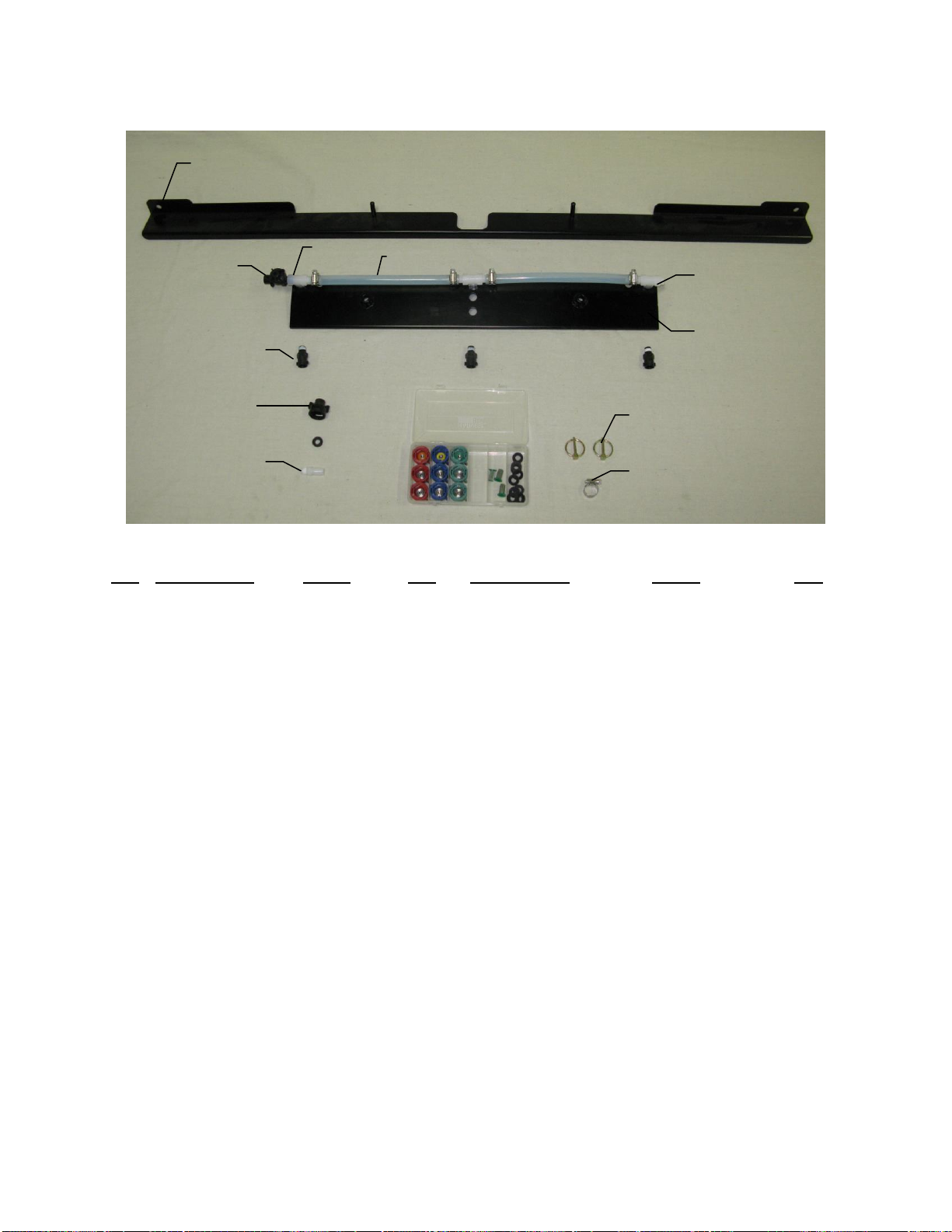

INSTALLATION KIT
Ref
Description
Part #
Qty
Description
Part #
Qty
1
Shield bracket
001-4704E2
1
Tip Kit (Complete)
030-9002
1
2
Spray shield
001-4703GK
1
Plastic Box
008-9000
1
3
Hose
002-9001
3
Red Cap
004-1207B
3
4
Tee
003-TT14
3
Outside Tip (Red Set)
004-650050-SS
2
5
Straight fitting
003-A1412
5
Inside Tip (Red Set)
004-XR11001VS
1
6
Plug
003-F14
1
Green Cap
004-1207A
3
7
Hose clamp
003-9003
5
Outside Tip (Green Set)
004-6501-SS
2
8
Male quick fitting
004-4710
3
Inside Tip (Green Set)
004-XR110015VS
1
9
Check valve
004-1207V
1
Blue Cap
004-1207C
3
10
Female disconnect
004-1207H
1
Outside Tip (Blue Set)
004-6502-SS
2
11
Lynch pin
008-4576
2
Inside Tip (Blue Set)
004-XR11002VS
1
Tip strainer
004-1203-100
3
Washer
004-1207W
9
1
2
3
4
5
6
7
8
9
10
11

16
Harvest Tec, LLC. Warranty and Liability Agreement.
Harvest Tec, LLC. will repair or replace components that are found to be defective within 12 months from the
date of manufacture. Under no circumstances does this warranty cover any components which in the opinion
of Harvest Tec, LLC. have been subjected to negligent use, misuse, alteration, accident, or if repairs have
been made with parts other than those manufactured and obtainable from Harvest Tec, LLC.
Our obligation under this warranty is limited to repairing or replacing free of charge to the original purchaser
any part that in our judgment shows evidence of defective or improper workmanship, provided the part is
returned to Harvest Tec, LLC. within 30 days of the failure. Parts must be returned through the selling dealer
and distributor, transportation charges prepaid.
This warranty shall not be interpreted to render Harvest Tec, LLC. liable for injury or damages of any kind,
direct, consequential, or contingent, to persons or property. Furthermore, this warranty does not extend to loss
of crop, losses caused by delays or any expense prospective profits or for any other reason. Harvest Tec,
LLC. shall not be liable for any recovery greater in amount than the cost or repair of defects in workmanship.
There are no warranties, either expressed or implied, of merchantability or fitness for particular purpose
intended or fitness for any other reason.
This warranty cannot guarantee that existing conditions beyond the control of Harvest Tec, LLC. will not affect
our ability to obtain materials or manufacture necessary replacement parts.
Harvest Tec, LLC. reserves the right to make design changes, improve design, or change specifications, at any
time without any contingent obligation to purchasers of machines and parts previously sold.
Note: The warranty registration card supplied with the installation manual must be filled out and returned to the
manufacturer within fifteen days of purchase. Without record of receipt of warranty registration at the
manufacturer, the warranty is not valid.
Revised 5/22
HARVEST TEC, LLC.
P.O. BOX 63
2821 HARVEY STREET
HUDSON, WI 54016
PHONE: [phone]
1-800-635-7468
FAX: [phone]
Email: [e-mail]
