Installation Manual
Model 795BBHD
115 Gallon Preservative Applicator
New Holland & Case IH BB High Density Baler
Forage Harvester

2
DECLARATION OF INCORPORATION
MANUFACTURER: Harvest Tec Inc.
2821 Harvey St.
P.O. Box 63
Hudson, WI 54016, U.S.A.
REPRESENTATIVE ESTABLISHED IN COMMUNITY: Profitable Farming Company
Middle Barlington, Roborough
Winkleigh, Devon, EX19 8AG
ENGLAND
The person above certifies and declares that:
VIRTUAL MACHINE: Equipment mounted on a farm press and for the application of innoculants onto forage crops.
MODEL: 795BBHD-21-INST (Imp&Metric)
BRAND: Harvest Tec
SERIAL NUMBER:
This application preservatives for hay Harvest Tec system meets the Directive 2006/42/EC of the European Parliment and
the Council of 17 May 2006 and other applicable European Directives including Directive 2004/108/EC on the
Electromagnetic compatability.
The application of preservatives for hay Harvest Tec system will be turned on after being installed on a farm press has been
declard in conformity with the Machinery Directive.
Person in the community authorized to provide information on the partly completed machinery and making this statement:
Richard Snell, President, Profitable Farming Company
Signed on May 21, 2011: Middle Barlington, Roborough
Winkleigh, Devon, EX19 8AG
ENGLAND

3
Table of Contents
Harvest Tec Model 795BBHD Installation
Introduction
4
Installation of Applicator
5-20
Installation of Tank
5-6
Installation of Pump Plate
6
Installation of Drain/Fill Line
7
Installation of Spray Shield
8
Wind Guard Installation
9
Mounting Solenoids and Hose Routing
10
Main Wire Harness and Baler Interface Harness Routing
11
Installation of Star Wheels
12
Installation End of Bale Sensor
13
Tractor Setup
14
Display Installations
15-19

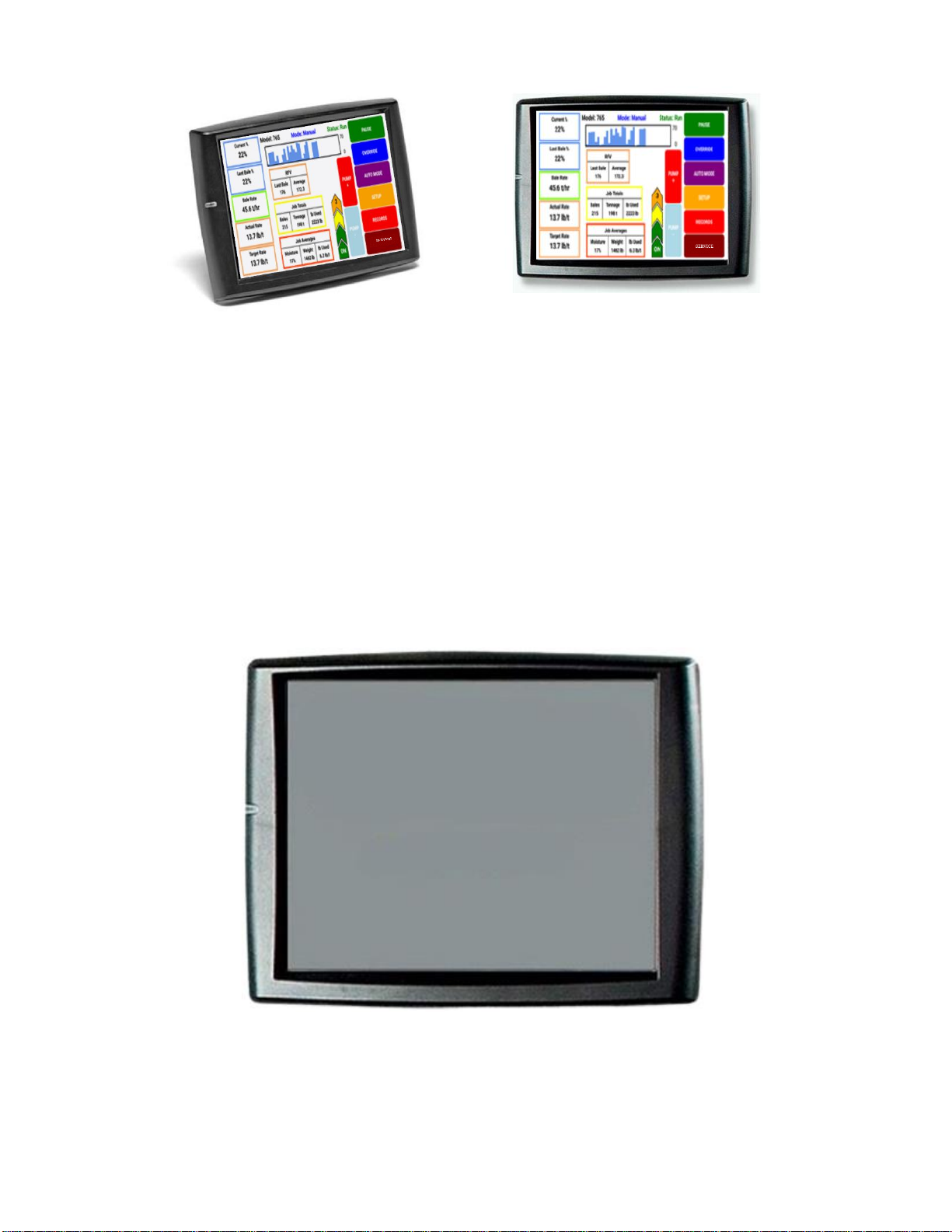

Harvest Tec Display
15
Tablet Display
15

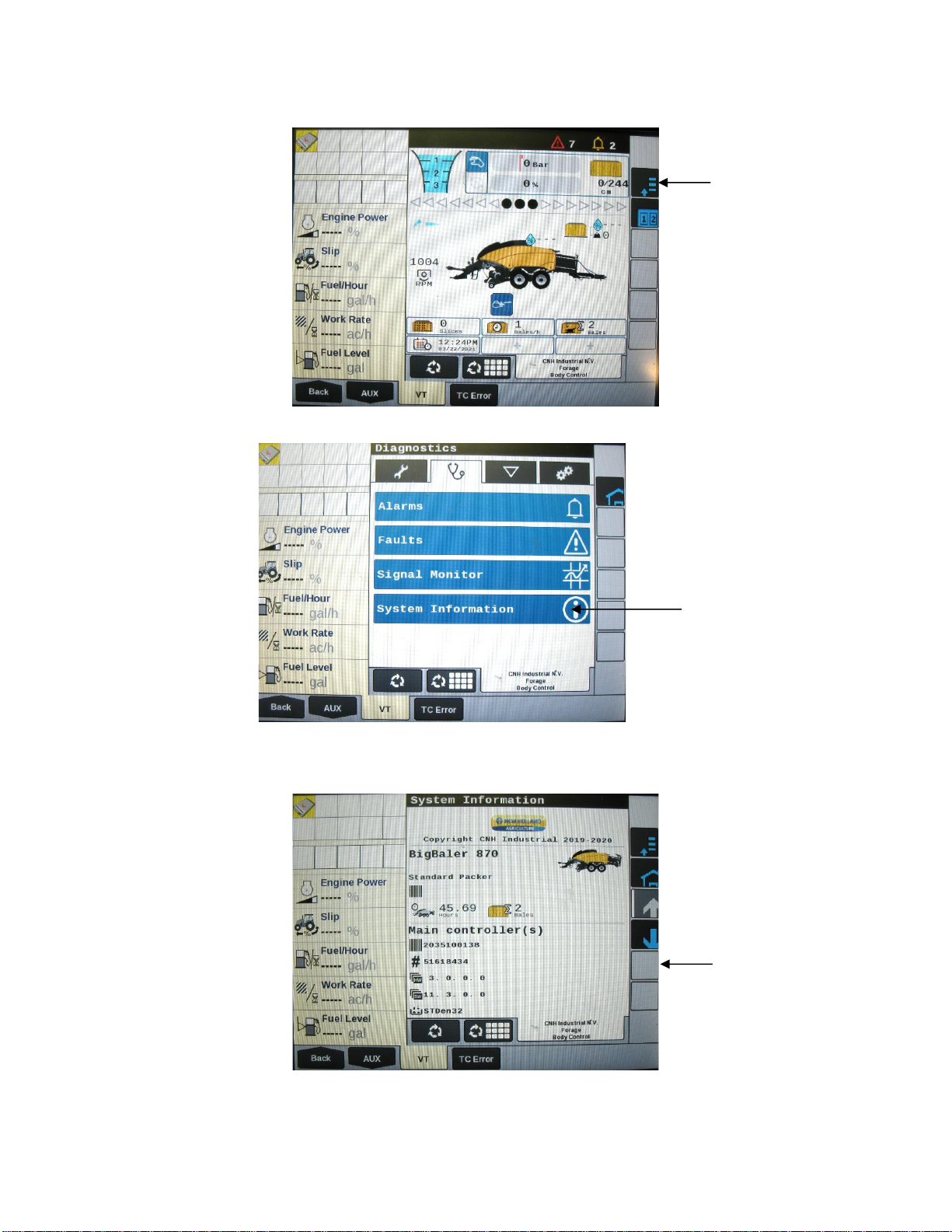

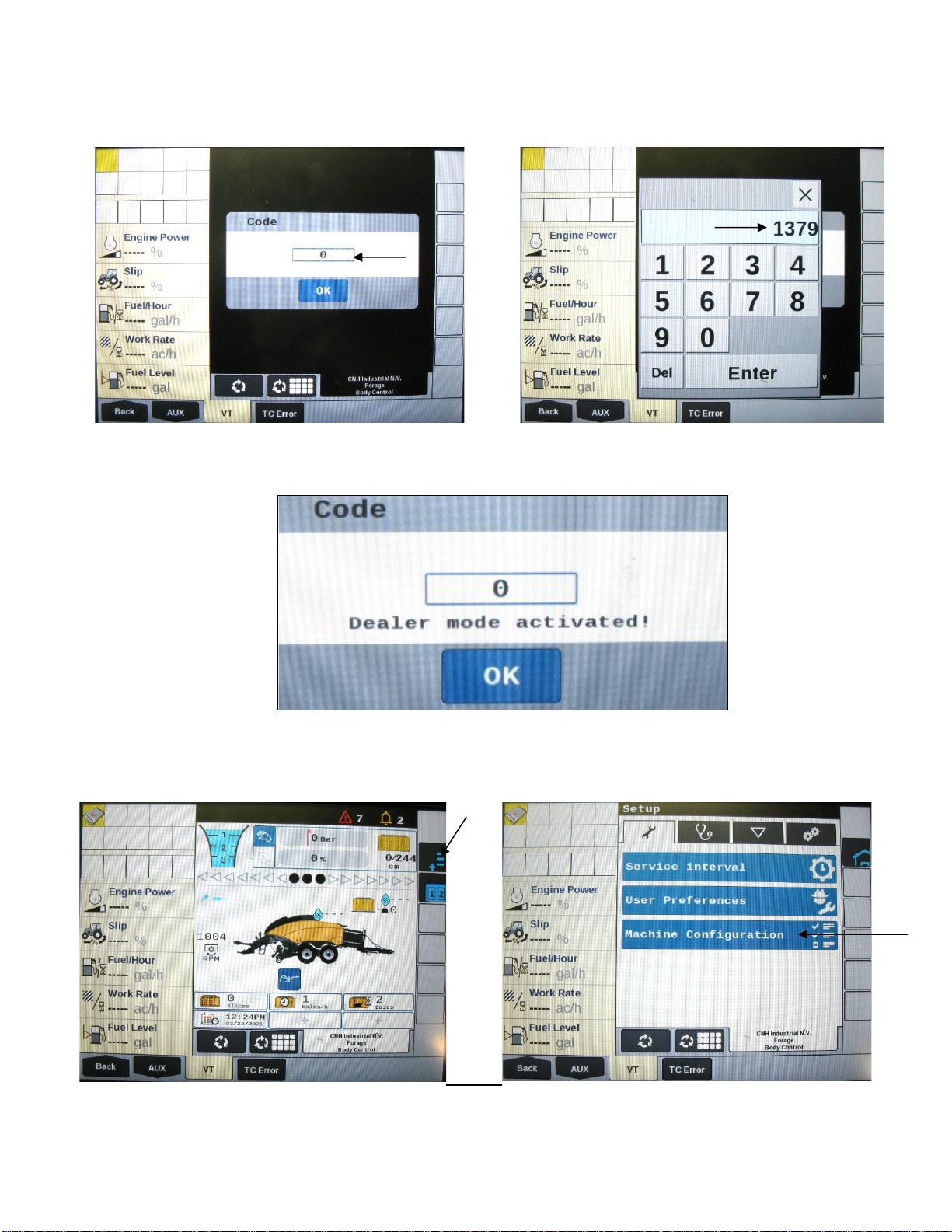

Baler Display
16-19
Wiring Diagram
20
Pin Outs
21-23
Parts Breakdown
24-34
Tank, Saddle and Saddle Legs
24
Pump Manifold
25
Star Wheel Moisture Sensor
26
Control Boxes and Wiring Harnesses
27
Solenoid Package
28
Hose and Drain / Fill Line
29
Optional iPad Mini Mounting Kit
30
Optional iPad Display Kit
31
Optional Harvest Tec Display Kit
32
4636C Install Kit
33
Wing Guard Assembly
34
Rear Light Camera Bracket
34
Warranty Statement
35

4
Introduction
Thank you for purchasing the 795BBHD Hay Preservative Applicator System. This applicator system has been
designed to plug directly into the baler’s ISOBUS and display on the New Holland Intelliview 3 or Intelliview 4,
Case Pro 300 or Pro 700. As well as the option of operation through an Apple iPad or Android Tablet (not
included) using the Precision Baling App. Found in iTunes store or Google Play Stores for free. The
Preservative Applicator System offers these advantages:
1. Operation coordinated with baler operation
2. Less cab clutter providing better visibility
3. Ease of use with all information on one screen
4. Records kept together
5. The system is ready for future updates
The 795BBHD Hay Preservative Applicator System is designed to apply buffered propionic acid to the forage
crop as it is baled. The 795BBHD Applicator will adjust the rate of application based on moisture and tonnage
of the crop being harvested. This manual will take you through the steps of installing the applicator. Please
read this manual carefully to learn how to install the equipment correctly. Failure to do this can result in
personal injury or equipment malfunction. If you are unsure about installing the system after consulting this
manual, contact your local authorized dealership for additional assistance or look for the contact information on
the back cover of this manual. If you are in need of parts for the system, please view the Parts Breakdown
toward the back of this manual and contact your local authorized dealer to order the parts. This applicator is
designed to apply Crop Saver and Thirty Plus buffered propionic acid.
Right and Left sides are determined by facing in the direction of forward travel.
*Made for iPad®(3rd through Pro 2nd generation), running the current iOS operating system
or one version previous required for iPad option
*iPad is a trademark of Apple Inc., registered in the U.S. and other countries.
*Hay App version must be at least 2.7.1 (or higher) to operate with the iPad Integration Module
System Requirements
CNH Baler Monitor must have version 4.2.0 or higher
*Made for Harvest Tec Display, Baler Integration, or Tablet*
For best performance ensure all displays are running the latest operating system.
Tools Needed:
- Standard wrench set - Electric drill and bits - Side cutter
- Crescent wrench - Standard screwdriver - Standard nut driver set
- Standard socket set - Hammer - Metal cutting tools
- Hose cutter - Center punch

5
Installation of Applicator
Installation of Tank
1. Install the two saddle legs (001-6707MHD1)
on to the rear of the bale support bracket.
Locate the pre-drilled holes and hardware
from parts bag 20 to mount the legs as
shown (right). Do not fully tighten until cross
beam is installed in next step.
2. Locate the cross beam (001-6707HD2) and
mount between the two tank legs (001-
6707HD1) using the pre-drilled holes on
each leg. Using the hardware in parts bag
20 secure the beam. The tank legs can now
be fully tightened.
3. Position the tank assembly (030-9218) and tank
straps (001-6707P). *Do not tighten tank straps
prior to installing the Rear Light Camera
Bracket in the next step.
001-6707MHD1
001-6707MHD2
001-6707PMZ

6
Installation of Tank (continued)
4. Rear Light Camera Brackets Installation
There is now an optional rear light extension bracket available for the
NH330+ & NH340+ and LB334XL & 434XL baler models. To reposition the
lights, camera, and beacon light to the back of the preservative tank.
Install the camera/light bracket (001-6707PM) as shown on the right by
lining up two holes in the arms of the bracket with the holes on the
tank straps. Using the supplied elevator bolts install the bolt with the
head on the tank side with threads pointing upward.
Install the camera mounting brackets (001-6707PMZ) to the camera
light bracket as shown on right. Move the lights and camera as
needed using the light extension harness
(006-7303LTX).
Note:
The straps will need to be loosened to allow room for placement of the bolts. Retighten after bolts are installed.
Installation of Pump Plate and Hand Rail
1. Attach handrail (001-6707HR) to tank with two 3/8” x 3/4” flange bolts.
2. Locate pump control (006-7671LS) and attached to pump plate with #10 x 3/4" flat head machine
screws. Choose fittings and install them into valve and pump discharge.
3. Attach pump plate holder (001-4648XB) to tank and just below handrail with two 3/8” x 3/4" flange bolts.
4. Attach pump plate to the pump holder with 3/8” hardware.
5. Connect 1/2" hose between elbow fitting on bottom of tank and valve on pump plate. Secure with
supplied hose clamps.
The Pump Controller and pump heads must be pointing down. Failure to mount the pump plate
assembly in this specified direction will void all warranty of the Pump Controller and pumps
001-6707PM
001-6707PMZ
Pump Assembly
PMP-7636P
Handrail
006-6707HR

7

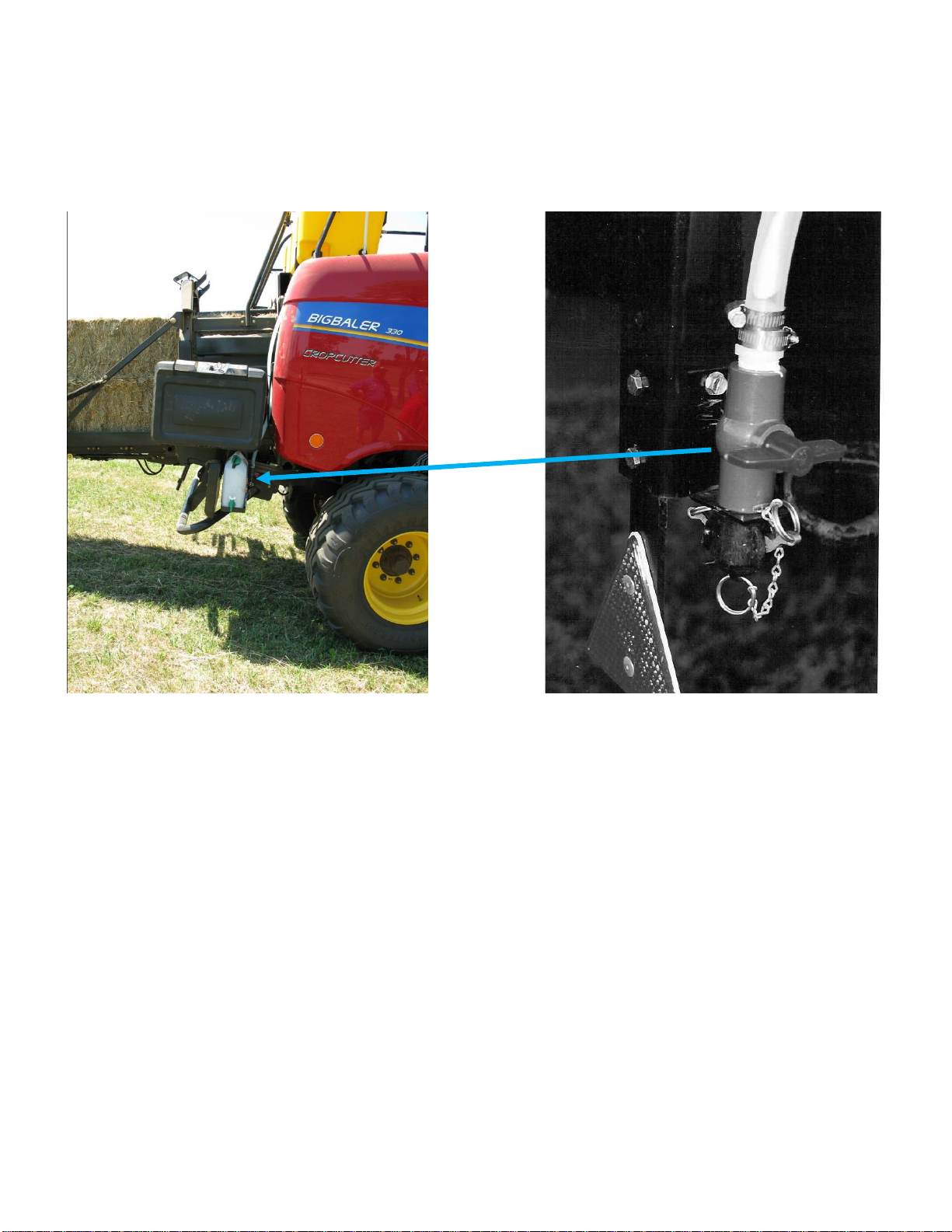

Installation of the Drain & Fill Line
1. Thread 3/4” elbow fitting into end of tank.
2. Run hose from the elbow down the frame to the bottom of the baler.
3. Drill 1/4” (7mm) holes to accept the valve holder bracket and use 5/16” x 1” self-tapping screws.
4. Connect valve assembly to other end of hose. Place hose clamps on both ends.
5. Secure hose to frame using cable locks.

8
Installation of Install Kit 4636C
1. Locate the baler cross member directly above the rotor (below point A).
2. Locate the four pre-drilled holes on the cross member (point B).
3. Install spray shield holder (001-4435NC) to baler using three 5/16” x 1” bolts, lock washers, hex nuts.
4. Install the spray shield (001-4435NSX) to the the shield holder (001-4435NC) and secure with supplied
lynch pins.
A
B
001-4435NC
001-4435NSX

9
Wind Guard Installation
3x4 Baler
Step 1: Locate the ledge near the spray shield (1) and with 001-
6707MA in hand, mark out drill locations for the two slots of the
6707MA bracket. Bracket should be as centered about the spray
shield. If you’re confident with drill locations, drill the two holes and
move to step 2. Also note the factory drilled holes on the tongue of
the baler (2), locate part 001-6707MC and ensure holes align on both
sides.
Step 2: Assemble the wind guard (030-6707WG4). Start by locating
all the materials listed above. Using the 1’’x 1/4’’ bolts and washers
place the guard material (001-6707GM4) on the top bracket. Guard
material should now be held in place with only the bolts. Locate part
(001-6707MB) and place over protruding bolts, secure with flat
washers and nuts. Note: Ensure the rubber guard material is placed
on the top side of the of the 6707MA bracket.
Step 3: Again, using the same hardware from step 2 fasten the guard
material to the bottom bracket (001-6707MC) utilizing the remaining
001-6707MB backing bracket to clamp down the material.
Step 4: Bring assembled wind guard to the baler, it is
recommended that you get another person to assist here.
Start by securing the top bracket to the ledge where holes
were previously drilled. Secure with 5/16 x 1’’ hardware. Now
locate the 5/16 x 1.5’’ bolts. Use the bolts, flat washers, and
nuts to secure the bottom bracket to the baler factory drilled
holes. Refer to finished install side view shown on the right.
Note: If installed correctly, the wind guard should not make
contact with the fly wheel or center feed roll when the pick-up
head is fully lifted.
1
2

10
Mounting Solenoids and Hose Routing to Spray Shield
A. Once spray shield is mounted, ensure solenoids 002-2203F are mounted using the solenoid mount plate
001-4648DSH as closely as possible (max distance 3ft) to the spray shield. This will ensure the most precise
application of the preservative.
B. Once solenoids are mounted, streamline solenoid harness 006-3650-S1 along baler back to connection on
main baler harness 006-765B2. Solenoid with white dot attaches to SOL 1 and Solenoid with blue dot attaches
to SOL 2. Connect harnesses and ensure they are secure.
C. Route hoses along the path or similar inside of the baler, as shown in picture above. Keep hoses away from
moving parts and hydraulic hoses. When all connections are made to the tank, solenoids, and spray shield
secure with existing cable clamps or use cable ties.
D. Connect hoses from spray shield to solenoids. Note: Make sure solenoid with white dot attaches to spray
shield with white dot. Follow same procedure for blue dots.
Tip Connections
Dot color
Tip
Hose color
Position on 765B2
wire
White Dot
8004 or 11004
White
Sol 1
Blue Dot
8008 or 11008
Blue tracer
Sol 2
Solenoids
002-2203F
Solenoid Harness
006-3650-S1
Solenoid Mount
001-4648DSH

11

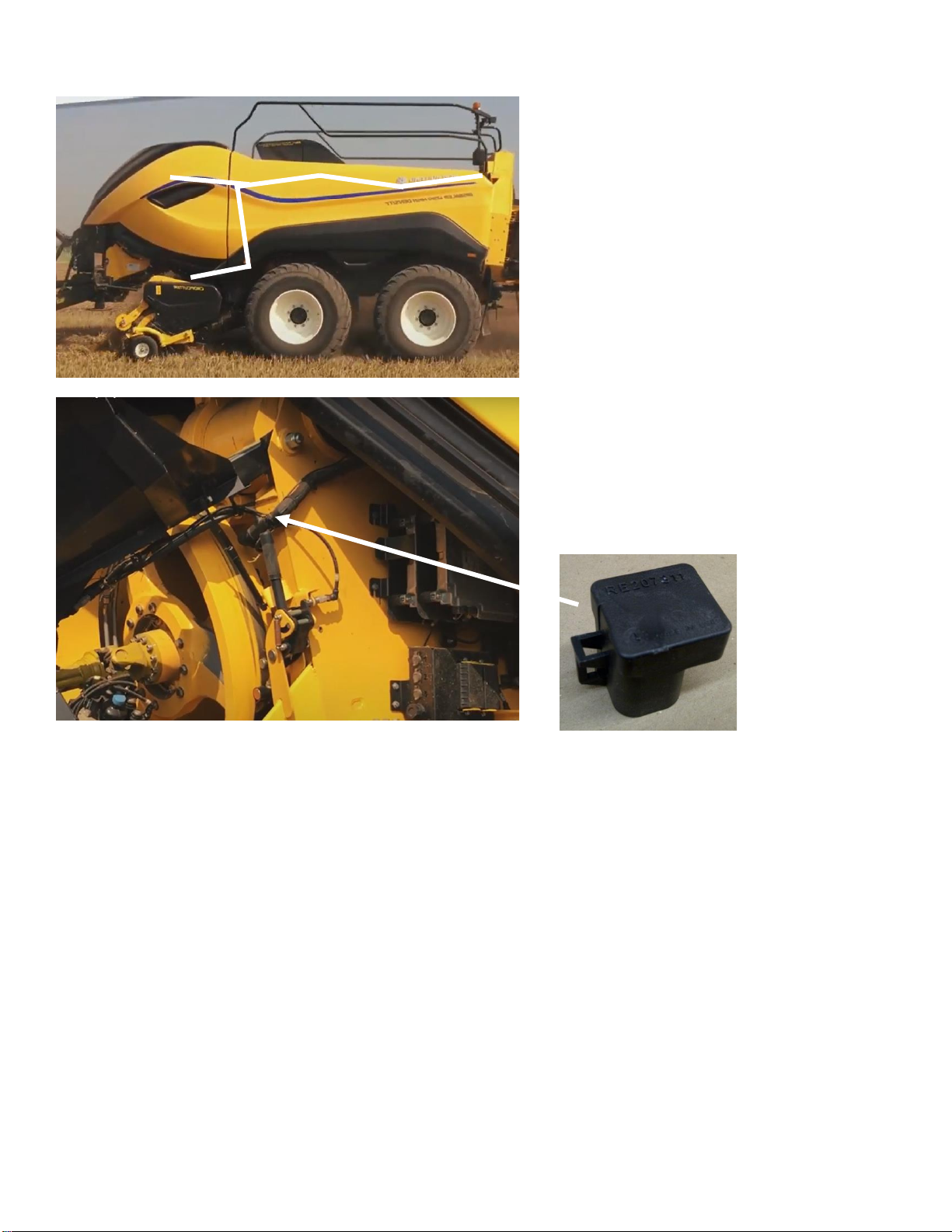

Installation and Routing Wire Harnesses and Baler Interface Harness
Route harnesses along inside of the
baler (left). Keep harnesses away from
moving parts and hydraulic hoses.
Secure with existing cable clamps or use
cable ties. When all connections are
made to the DCP secure wires.
Locate and remove the Active
Terminator of baler (below). Attach Baler
Interface Harness (006-6650VA) to that
location on baler.
Reconnect Active Terminator to open
port of that same harness (006-6650VA)

12

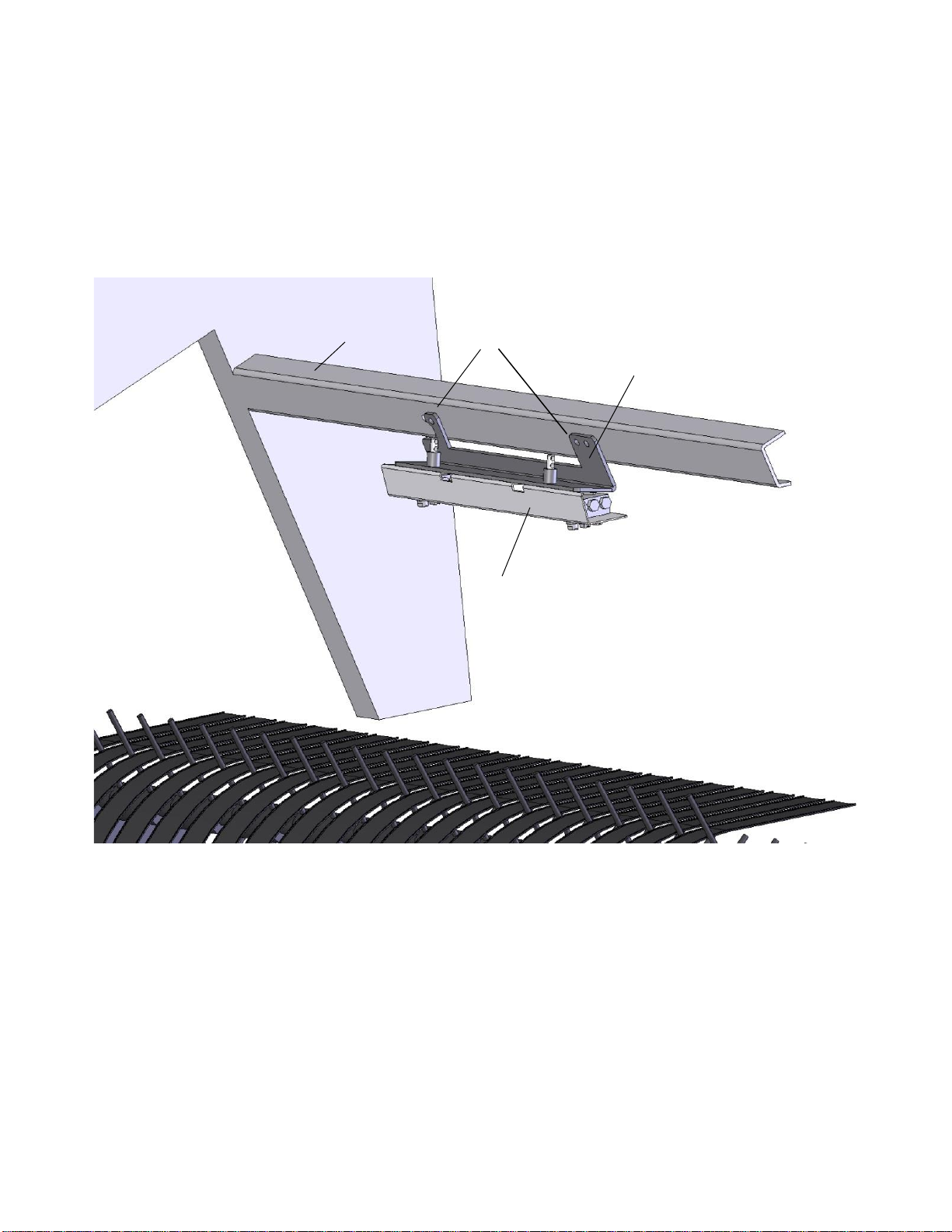

Installation of Star Wheel Moisture Sensors –700BBHD
1. Locate the two star wheel moisture sensors (030-4642U and 030-4642UE) and star wheel
reinforcement brackets (001-4644BBHD) show on the right and parts bag (E)
2. The two pre-drilled mounting holes for the star wheels are located past the knotters on the
side of the top support bar running the length of the bale chute (Figure 1).
3. Position the star wheel mounting holes and mark the width of the star wheel 4” (112mm).
As well as the depth of the star wheel of 2” (50mm). This piece will need to be removed
from the baler bracket in order for star wheel to fit flush with baler bracket (Figure 2). After
cutting touch up with paint to prevent rusting.
4. Mount star wheel with two position plug on right side of baler when looking at the back. Mount star wheel
with six position plug to left side or ladder side of baler. Use hardware from parts bag (E) to mount
5. Position reinforcement brackets (001-4644BHD) around the star wheel. Shown mounted in Figure 3.
Repeat mounting the star wheel and installation of the reinforcement bracket on the right side of baler.
Used suppled 3/8” x 3/4” Carriage bolts and flange nuts to secure
6. Attach harness (006-7307EM2) wires to star wheels and route to (IPM) module and connect to the square
plug on it.
Figure 3
001-4644BBHD
Figure 2
Figure 1

13
Installation of End of Bale Sensor
The end of bale sensor determines the position of the needles on the baler.
When the needles cycle the sensor communicates this information to the
ISO Communication Module (ICM). This information is used for job records
and will be used by the optional Bale Identification system.
Mount the end of bale sensor bracket (001-4648NA and 001-4648NB) as shown on the back right of the baler
(opposite of the ladder). This bracket will clamp to the diagonal support using the backing plate and supplied
hardware (5/16” x 1 ½” hex bolt with flat washer, lock washer, and nut). There is no exact placement, the
sensor just needs to see the needle arm when in the home position. Adjust sensor in or out so that it is about
¼” away from the needle arm and tighten both nuts. Be sure it is not making contact, causing damage, or not
too far away from the needle arm, preventing it from reading.
Run the sensor cable (006-7401) and extension (006-7401BBEXT) up to main harness (006-765B2) and
attach to EOB plug.

14
Tractor Setup
The general tractor setup of the 700 Series applicator can be seen above. The main harness of interest is the
tractor power/communication harness (006-765IC). This harness will connect at the tractor battery, to the ISO
Communication Module (ICM) mounted in the cab, a keyed power connection point, and connect at the hitch
area to the baler power/communication harness (006-765B2). View below to see highlighted installation
instruction:
12V Battery Connection
ISO Communication Module
Key Power Connection
Harness Connection to Baler
The 12V battery connection must be at the tractor battery. Connection to
alternative locations such as an accessory port can cause problems with
applicator system.
*MUST BE CONNECTED DIRECT TO TRACTOR BATTERY TERMINALS*
The ISO communication module is to be mounted inside the cab. Other
mounting locations can lead to issues with weathering and operation.
Once installed and the system is powered, a green light will turn on with
the ICM module.
Ensure a solid keyed connection is found inside the cab and wired into.
Poor keyed power connection can result in applicator system issues.
The tractor harness connects at the hitch to baler power/communication
harness (006-765B2). This will allow the system components to
communicate with one another. Ensure connections are debris and
corrosion free.

15
Display Options
Optional Harvest Tec Display
Optional Tablet Display
The iOS or Android Tablet displays offer the ability to communicate with the 700 series applicator system via
hard-wired connection to the ISO Communication Module (ICM). Through the free Precision Baling App, the
operator can set real time baling parameters to ensure the most precise application to every bale. This
provides a multi-use option while utilizing the improved app to select objects, enter data, and easily switch
through operational screens. The Tablet Display offers easy integration by connecting a charging cable to the
USB port on the ICM module. Once connected the Harvest Tec applicator will display upon opening the app
and powering up the applicator system. Tablets can be used in addition to integrated baler VT display.
*Made for iPad®(3rd generation minimum) or Android Tablet (Does not work with Amazon Fire).
Required to be running the most current operating system or one version previous.
*iPad is a trademark of Apple Inc., registered in the U.S. and other countries.
The 700 series Harvest Tec Display will allow you to set your real time baling parameters to ensure the most
precise application to every bale. This is done by utilizing the improved touch technology to select objects,
enter data, and swipe through operational screens.
The Harvest Tec Display offers easy integration by connecting to the additional CAN plug on the 006-765IC
harness. Once, connected the Harvest Tec display will power up with applicator system.
Note: The Harvest Tec Display must be used as a standalone display, the baler cannot run both
integrated and on the Harvest Tec Display. Must be one or the other. Removal of the 006-765VA or
integration harness is required when equipped.
Precision Baling App

16
Optional Baler VT Integration
Baler Display Integration
The ISOBUS Monitor utilizes touch screen options to make selections. Selections are made by finding the
desired selection and pressing the touch screen icon. All buttons are labeled and color coded.
The 700 series integration to the Baler VT allows for the ability to set your real time baling though the baler
VT and monitor both baler settings and Harvest Tec system parameters on one screen to ensure the most
precise application to every bale.
The 700 series offers easy integration by connecting to the additional CAN plug on the 006-765B2 harness.
Once connected the Harvest Tec system will display with power up of the baler and applicator system.

17
Follow the steps below to setup the integration of the 700 Series into the Pro 1200 Series Monitor.
1. Select the baler Setup tab in the top right corner of the baler run screen.
2. Open the Diagnostics tab by pressing the (stethoscope icon) and select the System Information tab.
3. On the System Information page press and hold the first blank square box under the down arrow on the right side of
the screen for 10 Seconds.

18
700BBHD Integration Instructions (continued)
4. After 10 seconds the first screen below will appear prompting you for a code. Press the ‘0’ and enter the Code 1379
when the numbers appear.
The screen below will appear alerting you ‘Dealer Mode Activated’. Press OK and go back to the balers home
screen.
5. Select the baler Setup tab in the top right corner of the baler run screen. Then press Machine Configuration from the
baler setup page (wench icon at top).

19
700BBHD Integration Instructions (continued)
6. Select the Moisture Sensor line on the Machine Configuration screen. On the next screen that appears select DCP
from the drop down
The moisture sensor selection will now read DCP on the Machine Configuration page.
The current bale moisture content will now display above
the baler next to the water droplet and the previous bale
moisture will display next to the bale in above the are
above the bale chute (below).
Use the (+) signs to add any other Harvest Tec Options
that you would like to have show on your baler run
screen.
Refer to the operation manual for the
700 Series Large Square Baler
Models to view the operation details.
Previous Bale Moisture
Current Bale Moisture

20
Wiring Diagram –700 Series
1. Connect the power harness (006-765IC) to the tractor battery (12 volt) using the red wire with fuse to the positive
side and the black wire to the negative.
A. The power harness must be connected to the battery!
CONTACT HARVEST TEC BEFORE MODIFICATIONS.
*The unit will draw more amps than convenience outlets can handle. Any modifications of the power
harness will void systems warranty*
B. This unit will not function on positive ground tractors.
C. If the unit loses power while operating it will not keep track of accumulated pounds of product
used.
2. The power harness on the tractor (006-765IC) will run from the tractor battery to the hitch. The power harness on
the baler (006-765B2) will connect to the tractor power harness (006-765IC) at the hitch.
3. Connect the keyed power wire (006-765CPH) to a keyed power source on the tractor.
The keyed power wire must connect to a keyed source or the unit will not power up correctly.
4. Attached the ISO Communication Module (006-7671) to the tractor power harness (006-765IC).
5. Attach the End of Bale (EOB) connection on baler harness (006-765B2) to the EOB Sensor (006-7400).
6. Attach the Flowmeter (006-4724A) to ISO Pump Module connection on pump plate assembly.
7. Attach the rubber molded connector on pump plate to the Pump (007-4120DE).
8. Attach star wheel (030-4642 U/UE) connection to ISO Pump Module on pump plate assembly.
System Wiring Diagram
Hay Indicators
006-7502(E / R)
Solenoids
002-2203F
Flow Meter
006-4724A
ISO Communication Module (ICM)
030-6673
Power Harness on Tractor
006-765IC
700 ISO Pump Module
006-7671LS
Power Harness on Tractor
006-765B2
End of Bale Sensor
006-7400
Moisture Harness
006-7303EM2
Key Power Harness
006-765CPH
Optional Harvest Tec
Display Harness
006-765GH
Baler Integration Harness
006-765VA
Active Terminator from Baler
Optional
Hay Indicator Harness
006-7503H
Solenoid Harness
006-3650-S1
Star Wheels
030-4642 (U/UE)
