Installation Manual
Model 600BB
Moisture Sensor Kit for Large Square Balers
For New Holland BigBaler and Case IH LB 4
Forage Harvester

2
DECLARATION OF INCORPORATION
MANUFACTURER: Harvest Tec Inc.
2821 Harvey St.
P.O. Box 63
Hudson, WI 54016, U.S.A.
REPRESENTATIVE ESTABLISHED IN COMMUNITY: Profitable Farming Company
Middle Barlington, Roborough
Winkleigh, Devon, EX19 8AG
ENGLAND
The person above certifies and declares that:
VIRTUAL MACHINE: Equipment mounted on a farm press and for the application of innoculants onto
forage crops.
MODEL: 600BB-INST-17-Imp&Metric
BRAND: Harvest Tec
SERIAL NUMBER:
This application preservatives for hay Harvest Tec system meets the Directive 2006/42/EC of the
European Parliment and the Council of 17 May 2006 and other applicable European Directives
including Directive 2004/108/EC on the Electromagnetic compatability.
The application of preservatives for hay Harvest Tec system will be turned on after being installed on
a farm press has been declard in conformity with the Machinery Directive.
Person in the community authorized to provide information on the partly completed machinery and
making this statement:
Richard Snell, President, Profitable Farming Company
Signed on May 21, 2011: Middle Barlington, Roborough
Winkleigh, Devon, EX19 8AG
ENGLAND

3
Harvest Tec Model 600BB Installation Table of Contents
PAGE
Introduction
4
System Requirements
4
Tools Needed
4
Installation of the 600BB Moisture Sensor Kit
5-8
Mounting the 600BB Dual Channel Processor (DCP)
5
Installation and Routing Wire Harnesses and Baler Interface Harness
6
Installation of Bluetooth Receiver
6
Installation of the Star Wheels
7
Connecting the Star Wheels to the DCP
7
Installation of Star Wheel and Bale Rate Harness
Installation of End of Bale Sensor
8
8
Wiring Diagram
9
Pin Outs
10-11
Common Questions
12
Troubleshooting
13
Parts Breakdown
14-17
Controls and Harnesses
14
Star Wheel Sensors
15

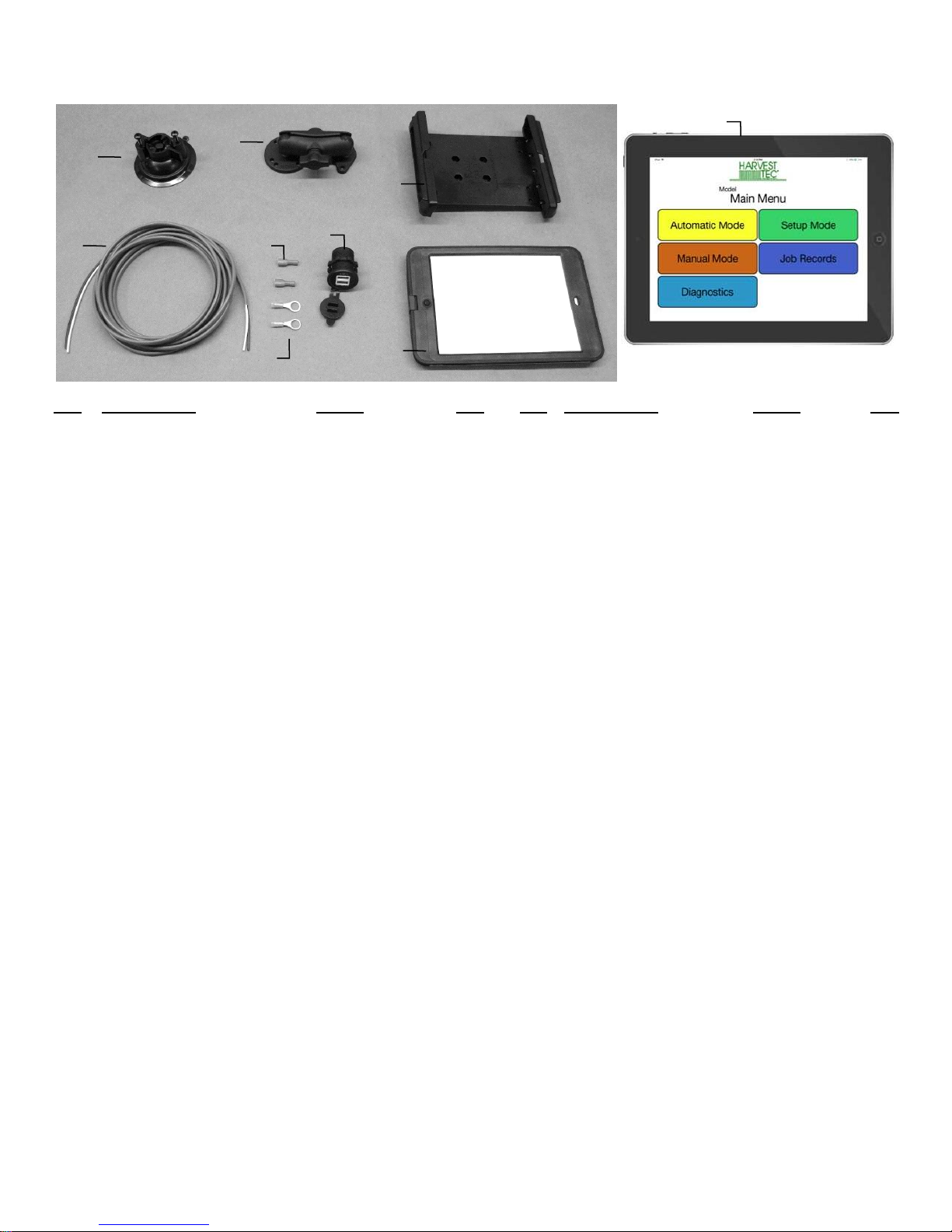

Optional iPad Mini Mounting Kit (030-2014MK)
16

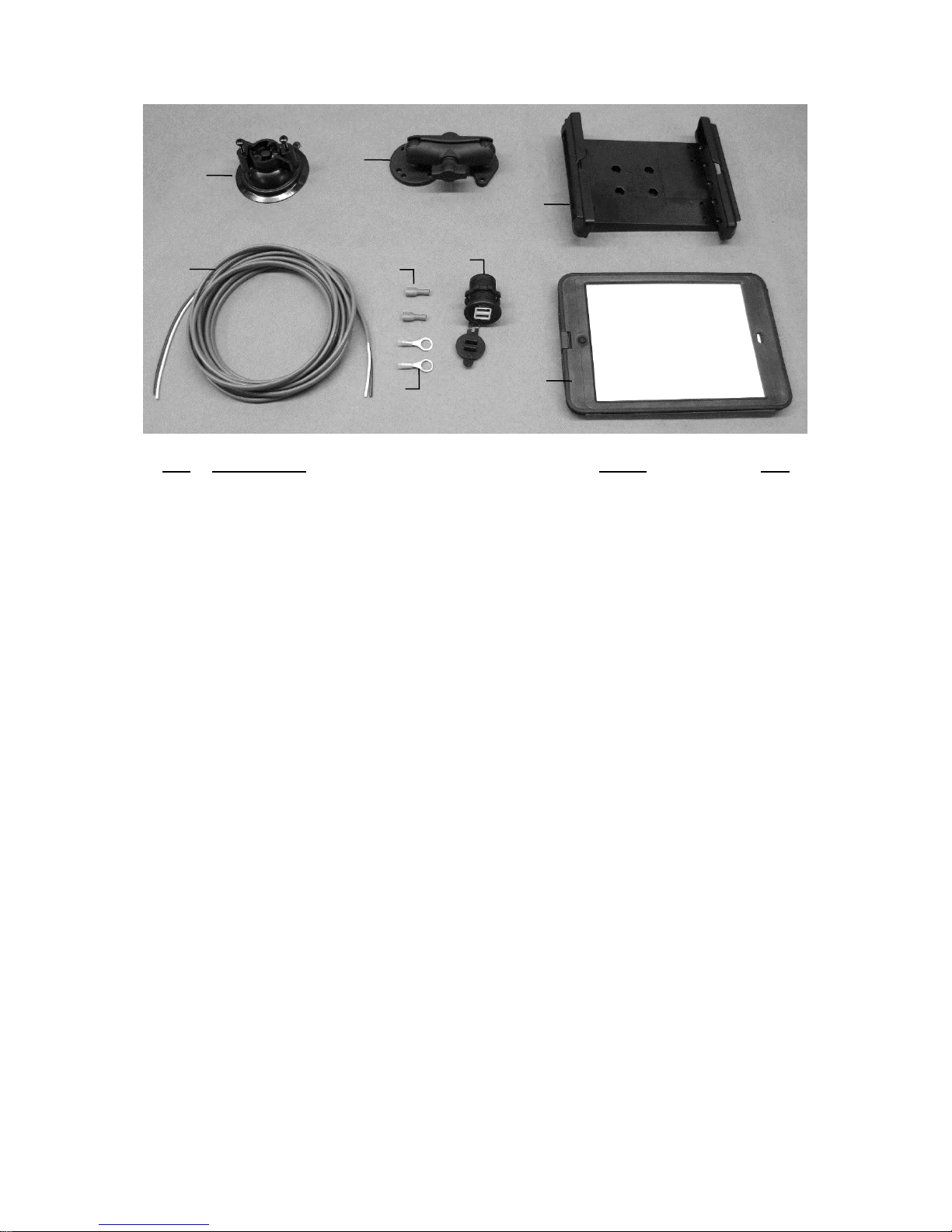

Optional iPad Display Kit (030-4670DK)
17
Notes
18
Warranty
19

4
Introduction
Thank you for purchasing this 600BB Moisture Sensor Kit. The 600BB Moisture Sensor Kit is designed to
operator through the baler’s ISOBUS system and/or an Apple iPad (not included) using the Hay App. The
600BB Moisture Sensor offers these advantages:
1. Operation coordinated with baler operation
2. Less cab clutter providing better visibility
3. Ease of use with all information on one screen
4. Records kept together
5. The system is ready for future updates
This manual will take you through the steps of installing the moisture sensor. Please read this manual carefully
to learn how to install the equipment correctly. Failure to do this can result in personal injury or equipment
malfunction. If you are unsure about installing the system after consulting this manual, contact your local
authorized dealership for additional assistance or look for the contact information on the back cover of this
manual. If you are in need of parts for the system please view the Parts Breakdowns in the back of this manual
and contact your local authorized dealer to order the parts.
Right and Left sides are determined by facing in the direction of forward travel.
System Requirements
The Baler Control Module (BCM)
must have Version 4.2.0.0 or higher.
*iPad Mini or iPad 3rd Generation (2012) or newer, running the current iOS operating system
or one version previous required for iPad option
In order for the CNH Baler to receive the ThirtyPlus or CropSaver System messages regarding Status,
Moisture and preservative, and display this information on the Baler Work Screen, the software in the Baler
Control Module (BCM) needs to be updated to version 4.2.0.0 or higher. Dealers can log an ASIST incident
and request the BCM software from CNH Technical Support Services if they need the software prior to those
release dates.
Tools Needed
Standard Wrench set
Electric drill and bits
Side cutter
Standard Socket Set
Hammer
Center punch

5
Installation of the 600BB Dual Channel Processor (DCP)
1. Locate the Dual Channel Processor (DCP) 006-6671LS.
2. Lock the baler flywheel brake and lift open the front hood.
3. Locate the four holes by the fly wheel brake (Figure 1).
4. Use four 5/16” x 3” hex bolts with four flat washers (positioning bolt heads on the inside of the baler
frame) and secure to the baler with four 1 1/8” threaded standoffs that will be on the outside of the baler
frame, Position four fender washers between the DCP and standoffs (Figure 2).
5. Mount the DCP with the display cable pointed down to the baler (Figure 3).
6. Attach lock washers and hex nuts to mount the DCP to the baler. Do not tighten down yet.
7. Before tightening hardware install the DCP shield (001-5650X) over the top two 5/16” bolts between the
fender washers and the mounting plate of the DCP. Tighten all hex nuts (Figure 4).
Figure 1
Figure 2
Figure 3
Figure 4

6
Installation and Routing Wire Harnesses and Baler Interface Harness
Installation of Bluetooth Receiver
Locate a safe location in the cab of the tractor to place the Bluetooth Receiver (030-6672B). Recommended
location is as close to the iPad being used as possible.
Connect the Power / Communication harness (006-6650TM) to the
bottom of the receiver (right).
*New for production year 2018. All Bluetooth receivers (030-6672B) are
now equipped with lights to indicated both power and iPad connection.
Blinking Lights –System is waiting for the processor to connect, which
could take up to 35 seconds.
Red Light –The Bluetooth receiver has power
Green Light –When the proper active connection is selected in the Hay App menu, the green light will indicate
connection with the iPad.
Route harnesses along inside of the
baler (Left). Keep harnesses away from
moving parts and hydraulic hoses.
Secure with existing cable clamps or use
cable ties. When all connections are
made to the DCP secure wires as shown
above to allow for water to be shed away
from the DCP.
Locate and remove the Active
Terminator (below left) of baler. Attach
Baler Interface Harness (006-6650VA) to
that location. Reconnect Active
Terminator (below) to open port of that
same harness (006-6650VA)

7
Installation of Star Wheel Moisture Sensors
1. Locate the two star wheel moisture sensors (030-4641) and twine diverters (001-4644 & 001-4645).
2. Directly behind the knotters, locate the four predrilled holes per side shown at the arrows. This location
is also beneath the lift points on top of the baler (Figure 5).
3. Install the eight (four per side)5/16” X 3” Allen head cap screws. Make sure the Allen heads are in the
bale chamber. Secure using 5/16” hex nuts (Figure 6).
4. Install the star wheels below the lift points on the baler.
5. Install the twine diverters over the star wheel sensor. The twine diverter with two extra holes will be
installed on the right star wheel when looking from the rear of the baler toward the tractor.
6. Secure the star wheels and twine diverters with four M8 hex nuts, lock washers, and two flat washers
(Figure 6).
Connecting Star Wheels to the DCP
Locate the moisture harness (006-7303HL).
Remove the four pan head screws on each star
wheel and loosen the grommet. Insert the eye loop of
the wire into the star wheel block and install on the
end of the swivel. Leave a loop in the wire to allow
the star wheel cover space to be reinstalled.
Tighten the swivel nut, followed by the grommet, and
finally install and tighten the four screws. The picture
to the left shows the star wheel block open with the
wire looped and attached to the swivel. Once both
wheels are complete route the harness towards the
DCP.Secure loose wires with cable ties.
Figure 5
Figure 6

8
Installation of Star Wheel and Bale Rate Harness
First, remove the cover from the star wheel block and use a 1/4” nut driver to remove the nut from the
electronic swivel. Next, run the star wheel sensor wire through the black grommet and place the eye terminal
on the star wheel sensor. Tighten the eye loop with the nut on the sensor and put the star wheel cover back on
the base. Next, tighten the grommet to form a tight seal around the wire. The bale rate sensors will be factory
installed on the right side twine guard in the correct position. The sensor with the longer sensor wire should say
“FRONT” which indicates it should be placed in the front sensor hole. The sensor wire with the shorter wire
should say “BACK.” The tip of the sensor should be placed no more than 1/4”(7mm) away from the star wheel
teeth and no less than 1/8” (3mm) from the star wheel teeth. Each sensor will have an LED light located on the
sensor by the diverter. Once the unit is powered up spin the wheel and make sure that both led lights turn on
and off. If they don’t turn on and off, adjustments may need to be made.
Once the star wheel connection is complete, run the harness along the left side baler frame to the Dual
Channel Processor (DCP). The Dual Channel Processor is located next to the flywheel brake.
Installation of End of Bale Sensor
The end of bale sensor determines the position of the needles on the baler. When the needles cycle the
sensor communicates this information to the Dual Channel Processor. This information is used for job records
and will be used by the optional Bale Identification system.
Mount the end of bale sensor bracket (001-4648) as shown (above) on the ladder side of the baler (and same
side as the main controller). Mark and drill two 3/8” (10mm) holes and attach the bracket using two 5/16” x 1”
self-tapping screws, and 5/16” flange nuts. Keep the sensor 1/4" (7mm) from the needle and tighten both nuts.
New BB Balers have been installing the End of Bale Sensor in the second position and trimming off the excess
steel. Run the sensor cable (006-7400) and extension (006-7400BBEXT) up to the Dual Channel Processor
(DCP) down the ladder side of the baler and secure it properly out of the way of any moving parts and
hydraulics.
A
B
C
2-7/9”
(75mm)
4-3/8”
(10.5cm)
5/8”
(16mm)
New Big Balers utilize the
second position for the End of
Bale Sensor.

9
Wiring Diagram
A. The Baler Power/Communication Harness (006-6650LS(E)) will attach to the open port of the Tractor
Harness (006-6650TM(E)) and run back to the Dual Channel Processor (006-6671LS(E)).
B. Connect the large plug of the Baler Power/Communication Harness (006-6650LS) to the bottom (shorter
side) of the DCP. Attach the Baler Interface Harness (006-6650VA) in between the short whip cable
hardwired to the DCP and the Power/Communication Harness (006-6650LS(E)).
C. Make sure Active Terminator removed from the top of the baler processor is attached to the Baler Interface
Harness (006-6650VA).
D. Attach moisture and bale rate harness (006-7303HL(E)) and also end of bale harness (006-7400BBEXT) to
the DCP (006-6671LS).
E. Connect Keyed Power Extension harness (006-5650K) to a keyed power source.
F. Connect the Bluetooth Receiver (030-6672B) to the Communication Harness (006-6650TM).
G. Note: The Optional Port and the Data Transfer Port are not used in this application.
Keyed Power Extension
006-5650K
Dual Channel
Processor (DCP)
006-6671LS
Moisture/Bale Rate Harness
006-7303HL(E)
Proximity Sensor (2X)
006-7303S
Star Wheel
Assembly (2X)
006-4641
End of Bale Sensor
006-7400
Optional Port
Terminating Connector
006-5650Z
Active Terminator
from Baler Harness
Baler Interface Harness
006-6650VA
Bluetooth Receiver
030-6672B
Orange Wire to
Keyed Power
Power/Comm Harness on Baler
006-6650LS(E)
Power/Comm Harness on Tractor
006-6650TM(E)
Data
Transfer
Baler
Connection
BB Extension for Bale Sensor
006-7400BBEXT
*Note: (E) indication is
used for International
Dealers

10
Pin Outs
Power/Comm Harness 006-6650TM(E) at Hitch
Pin 1 Red +12V Power to TSD
Pin 2 Red +12V Power to DCP
Pin 3 Orange Keyed Power
Pin 4 Gray Shield
Pin 5 Green HT Can Low
Pin 6 Yellow HT Can Hi
Pin 7 Orange Can1 Hi
Pin 8 Black Ground from TSD
Pin 9 Black Ground from DCP
Pin 10 Blue Can1 Low
Power/Comm Harness 006-6650LS(E) at Hitch
Pin 1 Red +12V Power to TSD
Pin 2 Red +12V Power to DCP
Pin 3 Orange Keyed Power
Pin 4 Gray Shield
Pin 5 Green HT Can Low
Pin 6 Yellow HT Can Hi
Pin 7 Orange Can1 Hi
Pin 8 Black Ground from TSD
Pin 9 Black Ground from DCP
Pin 10 Blue Can1 Low
Bluetooth Receiver on Harness 006-6650TM(E)
Pin 1 Red +12V Power from DCP
Pin 2 Black Ground from TSD
Pin 3 Yellow HT Can Low
Pin 4 Gray Shield
Pin 5 Green HT Can Hi
Pin 6 Orange Can1 Hi
Pin 7 Blue Can1 Low
006-6650VA to DCP Whip
Pin 1 Red Can Power
Pin 2 Black Can Ground
Pin 3 Yellow HT Can Hi
Pin 4 Gray Shield
Pin 5 Green HT Can Low
Pin 6 Orange Can1 Hi
Pin 7 Blue Can1 Low

11
Pin Outs (continued)
006-6650VA to 006-6650LS(E)
Pin 1 Red Can Power
Pin 2 Black Can Ground
Pin 3 Yellow HT Can Hi
Pin 4 Gray Shield
Pin 5 Green HT Can Low
Pin 6 N/A
Pin 7 N/A
006-6650VA Harness to Baler Plug
Pin A N/A
Pin B Red TBC Power
Pin C N/A
Pin D Gray TBC Ground
Pin E Orange Can1 Hi
Pin F Blue Can1 Low
Main Power Connector on DCP
Pin 1 Red +12V Power from tractor
Pin 2 Black Ground from tractor
Pin 3 Orange Keyed power
Star Wheel and Bale Rate Sensor Connector on DCP
Pin 1 Blue +12V Power
Pin 2 Orange Ground
Pin 3 Black Signal for sensor 1
Pin 4 White Signal for sensor 2
Pin 5 N/A
Pin 6 N/A
Pin 7 N/A
Pin 8 Violet Star wheel input 1
Pin 9 Brown Star wheel input 2
End of Bale Sensor on DCP
Pin 1 Brown Sensor Power
Pin 2 Blue Sensor Ground
Pin 3 N/A
Pin 4 Black Signal from Sensor
D
F
A
F

12
Common Questions
1. How do I turn the system on/off?
To turn the system ON open the Hay App, then select the active system for the baler you are using. Press the
Wake Up tab if the system was put into Standby mode when last used. If not in Standby mode, select
Automatic or Manual mode to begin.
To turn the system OFF click the Standby tab on the Main Menu screen. To close the app double click the
home button on the iPad and swipe the app that you would like closed, toward the top of the screen until it is
no longer visible. See SHUTTING DOWN THE HAY APP for more details.
2. How to get in the LBS/TON, MC%, and TONS/HR screens?
In the Main Menu press the SETUP MODE key. From this screen you can change your application rates and
how much product is applied. See SETTING UP FOR INITIAL USE for a detailed explanation of this process.
4. The moisture content displays “LO” or “HI” all the time.
When the moisture content display does not change frequently while baling, there is likely a faulty star wheel
connection. Initially check inside the white star wheel block, to see if the electronic swivel is in the star wheel
shaft and that the star wheel shaft is not coming out of the block. Also, check all star wheel wires and
connectors to see if there is a continuity of grounding problem.
5. Should the battery connections be removed before jump starting or charging a battery?
Yes. Anytime the tractor will have voltage going up rapidly the connections should be removed.
6. What is the expected battery life of the iPad when baling?
3.5 hours is the expected amount of time the battery when continuously baling. Shut off all other applications,
wireless internet, and Wi-Fi signal to reduce the amount of programs iPad is running.
*It is recommended to use an accessory outlet charger when operating (not included with iPad).
7. What is the max distance for connection between the iPad and the Bluetooth Receiver?
The range for the connection will depend on the amount of equipment (tractor, baler, ect.) between the two
devices. The max distance will range between 10’ – 20’.
8. What do the lights on the 030-6672B indicate?
Blinking Lights –System is waiting for the processor to connect, which could take up to 35 seconds.
Red Light –The Bluetooth receiver has power. Green Light –When the proper active connection is selected in
the Hay App menu, the green light will indicate connection with the iPad.

13
Troubleshooting
PROBLEM
POSSIBLE CAUSE
SOLUTION
Moisture reading errors (high or low)
1. Wire disconnected or bad
connection between star wheels
and DCP
1. Reconnect wire.
2. Low power supply to DCP
2. Check voltage at box. (Min of 12
volts required.) See Diagnostics
section of manual.
3. Dry hay lower than 8%
moisture or wet hay over 75%.
3. System reads 8-70% moisture.
4. Ground contact with one or
both star wheels and baler
mounted processor.
4. Reconnect.
5. Short in wire between star
wheels and DCP.
5. Replace wire.
6. Check hay with hand tester
to verify.
6. Contact Harvest Tec if conditions
persist.
Moisture readings erratic.
1. Test bales with hand tester
to verify that DCP has more
variation than hand tester.
2. Check all wiring connections
for corrosion or poor contact.
2. Apply dielectric grease to all
connections.
3. Check power supply at
tractor. Voltage should be
constant between 12 and 14
volts.
3. Install voltage surge protection on
tractors alternator.
Terminal reads under or over power.
1. Verify with multi-meter actual
voltage. Voltage range should
be between 12-14 volts.
1. Clean connections and make sure
applicator is hooked to battery. See
Diagnostics section of manual.
Bale rate displays zero.
1. Bale rate sensors are
reversed.
2. Short in cable.
3. Damaged sensor.
4. Sensor too far from
starwheel.
1. Switch the sensors next to the
star wheel.
2. Replace cable.
3. Replace sensor.
4. Adjust gap between prox sensor
and star wheel so it is 1/8-1/4” away.
Bluetooth Receiver lights will not
illuminate
1. Bluetooth receiver not
connected
2. Harness disconnected
3. Low power
1. Check connections and voltage.
Minimum 12.5V needed.
Blinking Lights –System is waiting for the processor to connect, which
could take up to 35 seconds.
Red Light –The Bluetooth receiver has power
Green Light –When the proper active connection is selected in the Hay
App menu, the green light will indicate connection with the iPad.

14
Parts Breakdown
600BB Series Controls and Harnesses
Dual Channel Processor (DCP)
Ref
Description
Part Number
Qty
1
End of Bale Sensor 600 Series
006-7400
1
2
End of Bale Sensor Bracket
001-4648
1
3
Terminating Connector 600 Series w/green cap
006-5650Z
1
4
DCP Shield/Cover
001-5650X
1
5
DCP Main Control LS 600 AUTO
006-6671LS
1
6
DCP Baler Harness 15 FT
006-6650LS(E)
1
7
DCP Tractor Harness
006-6650TM(E)
1
8
Dust Plugs
006-5651PLUGS
1
9
DCP Baler ISO/VT Harness
006-6650VA
1
10
EOB Extension for CNH BB Series
006-7400BBEXT
1
11
Key Switch Wire
006-5650K
1
12
Bluetooth Receiver
030-6672B
1
\
1
4
5
6
7
8
9
2
3
10
11
12
*Note: (E) indication is
used for International
Dealers

15
Star Wheel Moisture Sensor and Bale Rate Sensors
Ref
Description
Part Number
Qty
Ref
Description
Part Number
Qty
1.
Block cover
006-4641B
2
9.
Star wheel block
006-4641A
2
2.
Electronic swivel
006-4642A
2
10.
Star wheel sensor
030-4641C
2
3.
Swivel insert
w/ Ref # 10
2
11.
Twine guard-left
001-4645
1
4.
Snap ring (per side)
006-4641K
2
Twine guard-right (prox)
001-4644
1
5.
Washer (per side)
w/006-4641K
2
And with bale rate sensor
6.
Dust seal (per side)
w/006-4641K
2
holes in it
7.
Plug fitting
003-F38
2
1-10
Star wheel assembly
030-4641
2
8.
Wiring grommet
008-0821A
2
Ref
Description
Part Number
Qty
12
Bale rate sensor
006-7303S
2
13
Moisture and bale
rate harness
006-7303HL(E)
1
4
1
5
2
6
7
8
9
13
10
12
11
3
*Note: (E) indication is
used for International
Dealers

16
Optional iPad Mini Mounting Kit (030-2014MK)
Ref
Description
Part #
Qty
1
Suction cup mount
001-2012SCM
1
2
Ram mount
001-2012H
1
3
iPad Mini spring load cradle (Mini 1,2,3)
001-2012SLC
1
4
16 gauge power wire
006-4723P
1
5
Female spade connector
Hardware
2
6
Eye loop connector
Hardware
2
7
iPad Mini Charger 12V
001-2012P
1
8
iPad Mini 4 case
001-2012C4
1
NP
4 amp fuse
Hardware
1
Mounting Kit Assembly
030-2014MK
(Includes All Parts)
Installation Instructions
1. Identify 12V power source for wires to connect.
a. Eye loops included if wiring directly to the battery is desired.
b. Test for key power source if preferred to have power to the USB shut off with the key.
2. Once power source is identified, cut wires to desired length.
3. Crimp the two supplied quick connectors onto each the white and black wire.
4. Remove the round locking plastic nut from USB plug before connecting the wires. Black (+) White (-).
5. The wires will then be hooked to the designated terminals on the bottom of the USB plug
6. Drill a 1 1/8” hole in the preferred mounting location. Be sure to clean any sharp edges after drilling.
7. Feed the wires through the mounting hole.
8. If using the round plastic nut to secure plug in place, slide the nut back over the wiring before
connecting the wires to powered source.
9. Connect the wires to the identified power source if easier to do so before tightening the plug into place.
10. Tighten plug using either the round plastic nut or mounting plate and two screws, both options supplied.
11. Once connected, hook a USB charging cord into the plug and connect a mobile device/tablet to ensure
the plug is operating as you wish (key power working properly if necessary).
NOTE: This plug is not designed to charge two iPads. System damage could occur if this is
attempted. System will charge a mobile phone and iPad simultaneously without problem.
1
2
3
4
5
8
7
6

17
Optional iPad Display Kit (030-4670DK)
Ref
Description
Part #
Qty
Ref
Description
Part #
Qty
1
Suction cup mount
001-2012SCM
1
7
iPad Mini Charger 12V
001-2012P
1
2
Ram mount
001-2012H
1
8
iPad Mini 4 case
001-2012C4
1
3
iPad Mini spring load
cradle (Mini 1,2,3)
001-2012SLC
1
9
iPad Mini 4
006-4670IP
1
4
16 gauge power wire
006-4723P
1
NP
4 amp fuse
Hardware
1
5
Female spade connector
Hardware
2
6
Eye loop connector
Hardware
2
Mounting Kit Assembly
030-4670DK
(Includes All Parts)
Installation Instructions
1. Identify 12V power source for wires to connect.
a. Eye loops included if wiring directly to the battery is desired.
b. Test for key power source if preferred to have power to the USB shut off with the key.
2. Once power source is identified, cut wires to desired length.
3. Crimp the two supplied quick connectors onto the white and black wire.
4. Remove the round locking plastic nut from USB plug before connecting the wires. Black (+) White (-).
5. The wires will then be hooked to the designated terminals on the bottom of the USB plug
6. Drill a 1 1/8” hole in the preferred mounting location. Be sure to clean any sharp edges after drilling.
7. Feed the wires through the mounting hole.
8. If using the round plastic nut to secure plug in place, slide the nut back over the wiring before connecting
the wires to powered source.
9. Connect the wires to the identified power source if easier to do so before tightening the plug into place.
10. Tighten plug using either the round plastic nut or mounting plate and two screws, both options supplied.
11. Once connected, hook a USB charging cord into the plug and connect a mobile device/tablet to ensure the
plug is operating as you wish (key power working properly if necessary).
NOTE: This plug is not designed to charge two iPads. System damage could occur if this is
attempted. System will charge a mobile phone and iPad simultaneously without problem.
7
1
2
3
4
5
8
6
9

18
Notes

19
Harvest Tec Inc. Warranty and Liability Agreement
Harvest Tec, Inc. will repair or replace components that are found to be defective within 12 months from the
date of manufacture. Under no circumstances does this warranty cover any components which in the opinion
of Harvest Tec, Inc. have been subjected to negligent use, misuse, alteration, accident, or if repairs have been
made with parts other than those manufactured and obtainable from Harvest Tec, Inc.
Our obligation under this warranty is limited to repairing or replacing free of charge to the original purchaser
any part that in our judgment shows evidence of defective or improper workmanship, provided the part is
returned to Harvest Tec, Inc. within 30 days of the failure. If it is determined that a non-Harvest Tec branded
hay preservative has been used inside the Harvest Tec applicator system where the failure occurred, then
Harvest Tec reserves the right to deny the warranty request at their discretion. Parts must be returned through
the selling dealer and distributor, transportation charges prepaid.
This warranty shall not be interpreted to render Harvest Tec, Inc. liable for injury or damages of any kind,
direct, consequential, or contingent, to persons or property. Furthermore, this warranty does not extend to loss
of crop, losses caused by delays or any expense prospective profits or for any other reason. Harvest Tec, Inc.
shall not be liable for any recovery greater in amount than the cost or repair of defects in workmanship.
There are no warranties, either expressed or implied, of merchantability or fitness for particular purpose
intended or fitness for any other reason.
This warranty cannot guarantee that existing conditions beyond the control of Harvest Tec, Inc. will not affect
our ability to obtain materials or manufacture necessary replacement parts.
Harvest Tec, Inc. reserves the right to make design changes, improve design, or change specifications, at any
time without any contingent obligation to purchasers of machines and parts previously sold.
Revised 4/17

20
HARVEST TEC, INC.
P.O. BOX 63
2821 HARVEY STREET
HUDSON, WI 54016
PHONE: [phone]
1-800-635-7468
FAX: [phone]
Email: [e-mail]
