Haverland ECO-RADS Parts list manual

ECO-RADS
ECO-RADS_V02_April2022_ESUKFP2022
Instructions & installation manual
IF YOU HAVE ANY DIFFICULTY WITH
THIS PRODUCT, INSTEAD OF TAKING
IT BACK TO THE RETAILER, TRY:
1. The instruction booklet
2. Refer to [email protected]
3. Or call our helpline:
UK: 0330 3651940

3 1. CAUTION
52. INSTRUCTIONS FOR INSTALLATION
10 3. OPERATION
10 3.1 CONTROL PANEL
10 3.2 SCREEN DESCRIPTION
11 3.3 START - FIRST CONNECTION
12 3.4 OPERATING MODES
12 3.4.1 AUTO MODE (PROGRAMMING)
13 3.4.2 OFF MODE
13 3.4.3 ANTI-FREEZE MODE
14 3.4.4 MANUAL MODE
15 3.5 USER MENU
36 3.6 ADVANCED MENU
42 3.7 “KEYBOARD LOCK” FUNCTION
42 3.8 ERROR MESSAGE “ERR”
42 4. MAINTENANCE
43 5. GUARANTEE
44 6. CHART
INDEX
PAGE

ECO-RADS 3
1. CAUTION
• Please read these instructions carefully.
• To disconnect mains power from the radiator remove the plug
from the wall socket, but never pull on the cable.
• Do not leave the mains cable in contact with the radiator when it
is switched on.
• During operation, the radiator must be kept well away from
combustible materials, such as curtains, carpets and furniture etc.
• The warranty for the radiator does not cover any damage
caused by not reading these instructions.
WARNING: In order to avoid overheating, do not
cover the heater.
• WARNING: If the mains power cable is damaged, it must be
replaced by the manufacturer, with their after-sales service or
similar qualied persons, in order to prevent any danger.
• WARNING: If the heater is to be installed in a bathroom, it
must be positioned so that it cannot be touched by anybody in
the bath or shower.
• The installation should be carried out with consideration to the
manufacturer’s instructions and in accordance to the relevant
National Wiring Regulations BS7671.
• It is very important that radiator has a good Electric Earth
connection.
• The radiator shall be installed so that its mains plug is always
accessible.
• The radiator must not be installed below or in front of a mains
socket.
• This radiator cannot be surface-mounted with a wall. Safety
distances shall always be respected.
• The radiator has a keyboard blockage option to prevent
children from changing the programming.
• This unit is not designed to be handled by persons (including
children) with physical, sensorial or mental handicaps, with little

4 ECO-RADS
1. CAUTION
experience or knowledge unless they are under the supervision
of an adult responsible for their safety with the instructions on its
use. Children shall always be supervised to ensure they do not
play with the unit.
• Children under three shall be kept well away from the heater
unless they are continually supervised.
• Children between three and eight shall only switch the unit o
or on providing it is positioned or installed in its nal operating
location and be supervised or have received instructions on how
to use the unit in a safe manner and understand the risks involved.
• Children between three and eight shall not plug in, adjust or
clean the heater or carry out any maintenance operations.
• This unit may be used by children older than eight and by
persons with physical, sensorial or mental handicaps, with little
experience or knowledge, provided they have been duly trained
and are supervised by an adult that understands the risks
involved.
• Cleaning and maintenance shall be performed by adults not
children. Children must not play with the unit.
• WARNING: Certain parts of this product can become very
hot and cause burns. Special attention shall be paid when
children and other vulnerable persons are present.
• Do not touch the external parts of the radiator when it is
operating.
• It is quite normal that, with the rst switch-on, the unit produces
a “new” smell. Allow your heater to operate in a well-ventilated
place for two or three hours.
• Before the rst switch on for the coming winter or when the
heater has not been used for several days, the unit should be
cleaned (follow the steps given in the “maintenance section”.This
cleaning operation will avoid burning the accumulated dust and
other remains.
• This radiator CAN’T OPERATE with external programmable
controllers or any other exterior control device.

ECO-RADS 5

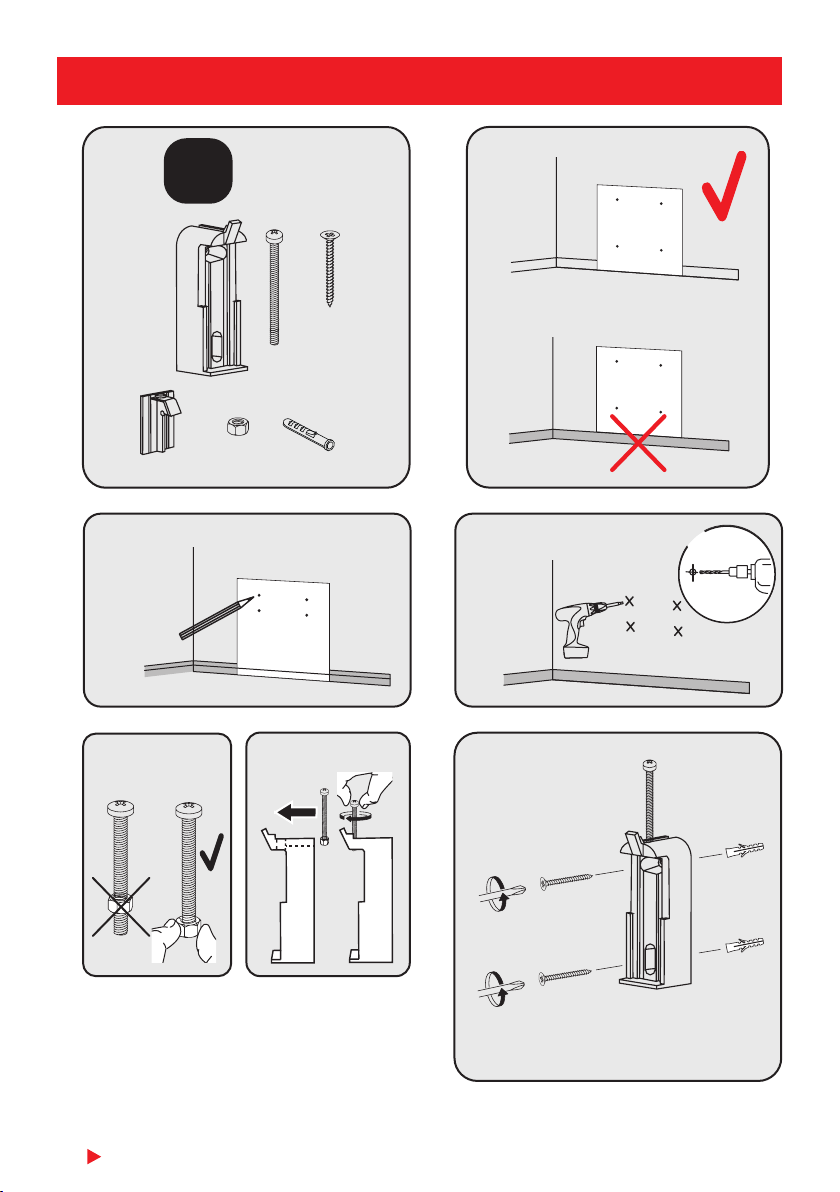

2. INSTRUCTIONS FOR INSTALLATION
• CAUTION: Keep bags and other accessories well out of the reach
of children.
• The convection eect, together with other ambient factors, can
cause discolouring to metal surfaces and to plastics.
• Temperature dierences can cause crackling and other noises in
the unit. This does not indicate any failure in the radiator.
• When the radiator is disposed of, the requirements established
by current legislation on waste processing and recycling shall be
taken into account.

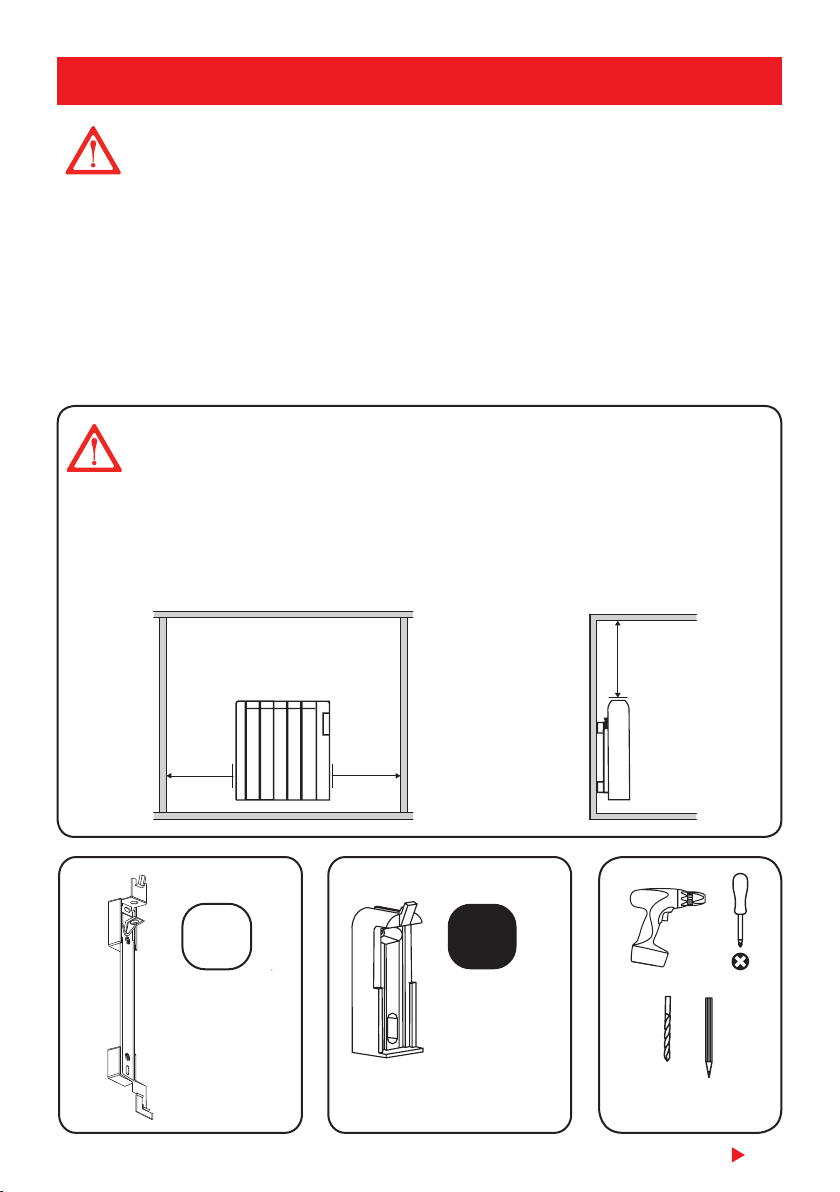

• It is important that the radiator IS FIXED FIRMLY TO A SOLID AND LEVELLED WALL.
• Make sure that there is a socket near the area where you are going to place it.
• Take out the wall pattern from the box to see the exact positions of the necessary drill
holes.
• You must keep a minimum distance of 15 cm between the radiator and any object, wall
or combustible material.
IMPORTANT
Mín.
15 cm
Mín.
15 cm
Mín.
15 cm
(Ø 5/16")
8 mm
* Not included
A
VERSION VERSION
B

6 ECO-RADS
4x
2x
4x
2x
A1.1
1.2 1.3 4x
Ø 8
1.4
2x
1.5
2x
VERSION
2. INSTRUCTIONS FOR INSTALLATION
FLOOR

ECO-RADS 7
2. INSTRUCTIONS FOR INSTALLATION
1.6
1
1.7
2
3
4
1.8
2x
Plug in
3 pin 13 amp
plug
1.9
1.10
(W) “A” (mm) “B” (mm) “C” (mm)
500 420 246 79
750 420 246 238
1000 420 246 319
1200 420 246 319
1500 420 246 557
1800 420 246 557

8 ECO-RADS
2. INSTRUCTIONS FOR INSTALLATION
4x
4x
2x
2x
2x
2x
VERSION
B
2.2
2.3 4x
Ø 8
2.4 2.5 2.6
2x
FLOOR
2.1

ECO-RADS 9
2. INSTRUCTIONS FOR INSTALLATION
2.7
CLICK!
CLICK!
2.8
1
2
Plug in
3 pin 13 amp
plug
(W) “A” (mm) “B” (mm) “C” (mm)
500 420 246 79
750 420 246 238
1000 420 246 319
1200 420 246 319
1500 420 246 557
1800 420 246 557
2.10
2.11
2.9
2x

10 ECO-RADS
3. OPERATION

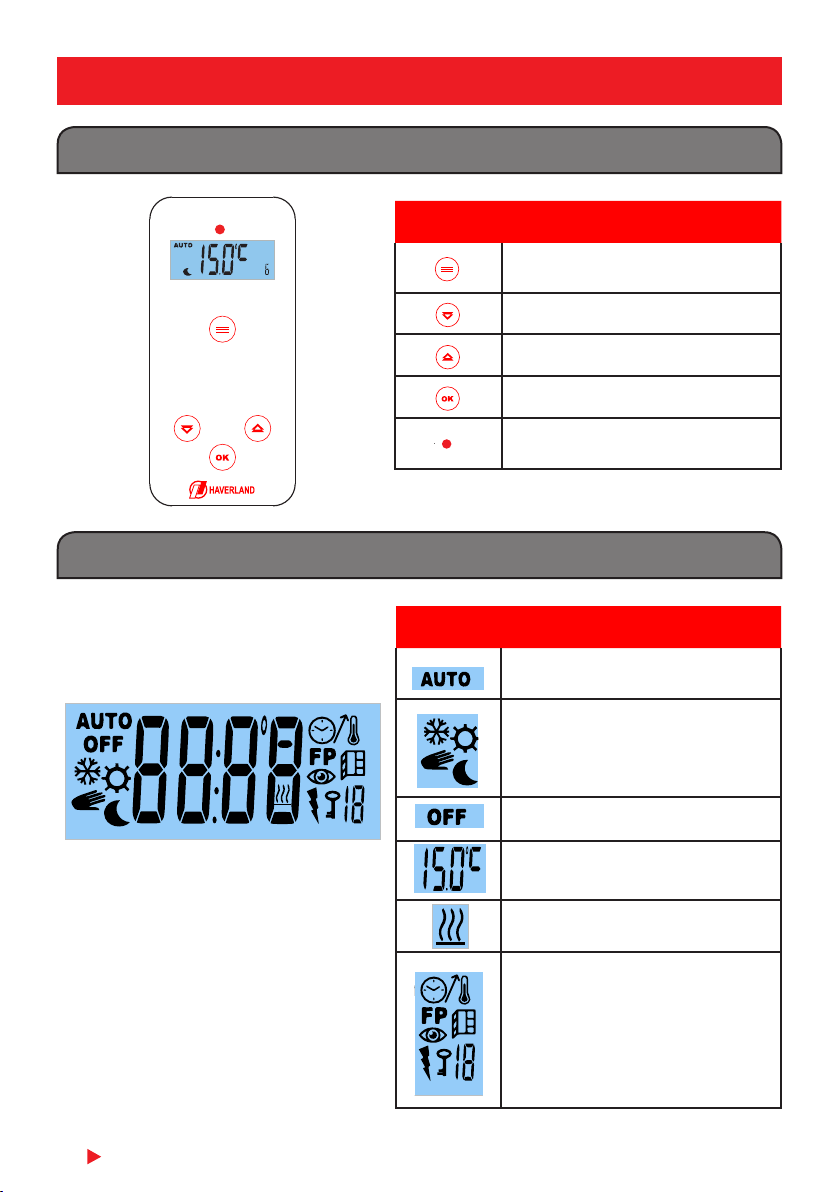

BUTTON DESCRIPTION
AUTOMATIC mode indicator
ANTI-FREEZE / COMFORT /
MANUAL / ECONOMY mode
indicator
OFF
Temperature / Timer
The radiator is heating up (the
resistance is working)
Advanced Features
3.1 CONTROL PANEL
Button Description
AUTO / OFF / ANTI-FREEZE /
MANUAL modes
Decrease
Increase
Accept
Colour indicator of the selected
temperature
3.2 SCREEN DESCRIPTION

ECO-RADS 11
AUTO / OFF / ANTI-FREEZE /
MANUAL modes
Decrease
Increase
Accept
Colour indicator of the selected
temperature

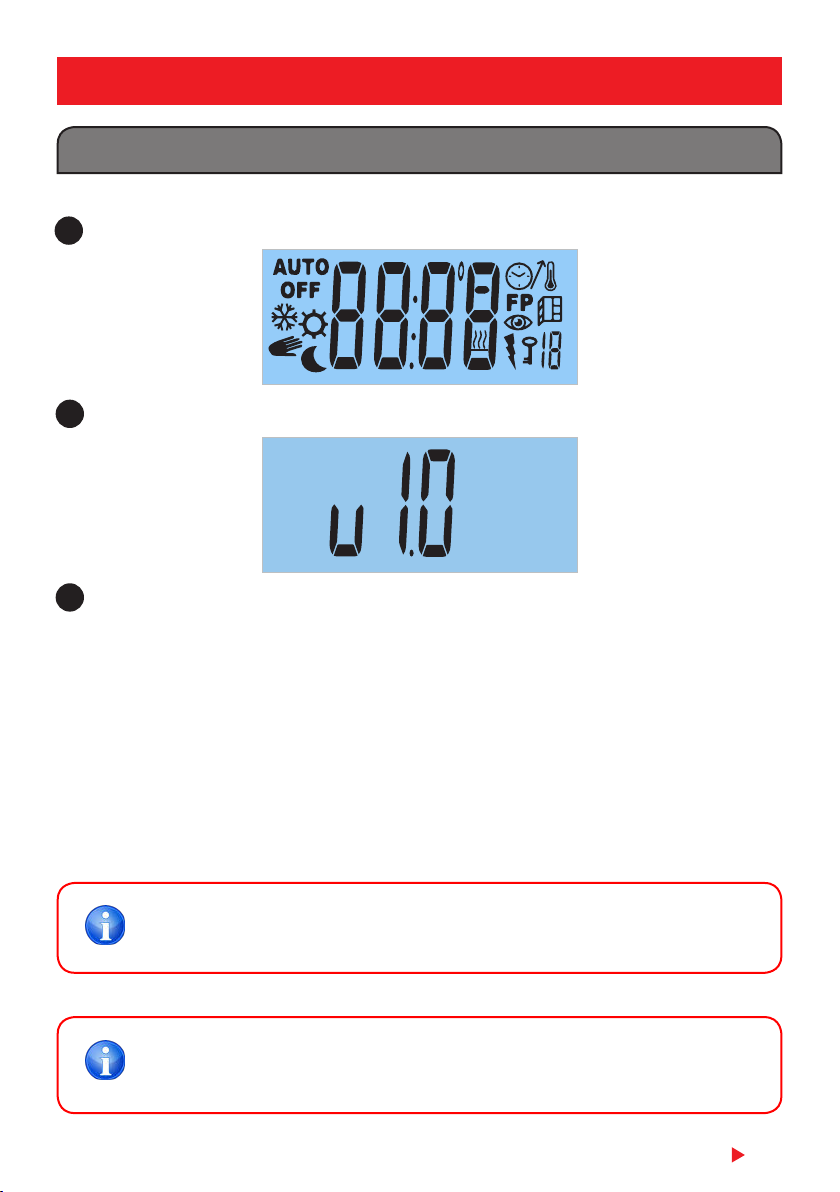

As soon as the radiator is connected to electricity, press the switch located on the right side:
All icons are shown on the screen:
Then, a second screen appears with the software version:
On the third screen:
• The radiator was in AUTO mode before the disconnection:
- If it is turned on of for the rst time or if the radiator has been disconnected from the mains
for more than 6 hours, the radiator will ask you to set the current time and day.
- If it is not the rst time or if the radiator has not been disconnected for more than 6 hours,
the main screen is displayed.
• If the radiator was in MANUAL / ANTI-FREEZE / OFF mode:
- The main screen is displayed in MANUAL / ANTI-FREEZE / OFF mode. If you use the
radiator in manual mode or in anti-frost mode, it is not necessary to set the current
time and day.
If the electrical disconnection is less than 6 hours, the current time and day of the week
are stored in memory; it even remembers the last operating mode.
The settings and selected temperatures are always stored in memory.
3. OPERATION
3.3 START - FIRST CONNECTION
1
2
3

12 ECO-RADS
3. OPERATION
3.4.1 AUTO MODE (PROGRAMMING)
The radiator follows the settings made according to your needs and according to the temperatures
selected in any operating mode.
Step 1: To select AUTO mode, press the button repeatedly until appears on the
screen.
Step 2: Press the button to conrm.
The radiator has 4 operating modes: AUTO / OFF / ANTI-FREEZE / MANUAL. To select the operating
mode, press the button repeatedly.
Auto mode OFF mode
Anti-freeze mode Manual mode
After selecting the operating mode, press the button to conrm.
The “ame” symbol will indicate that the radiator is heating; the room
temperature is lower than the selected temperature. As soon as the selected
temperature is reached, the symbol will disappear from the screen.
3.4 OPERATING MODES
IMPORTANT: While choosing AUTO mode, the current time and day are not
correctly set, the radiator will ask you for the current time and day (see page 20,
step 3).
Press the button if you want to know the room temperature.

ECO-RADS 13

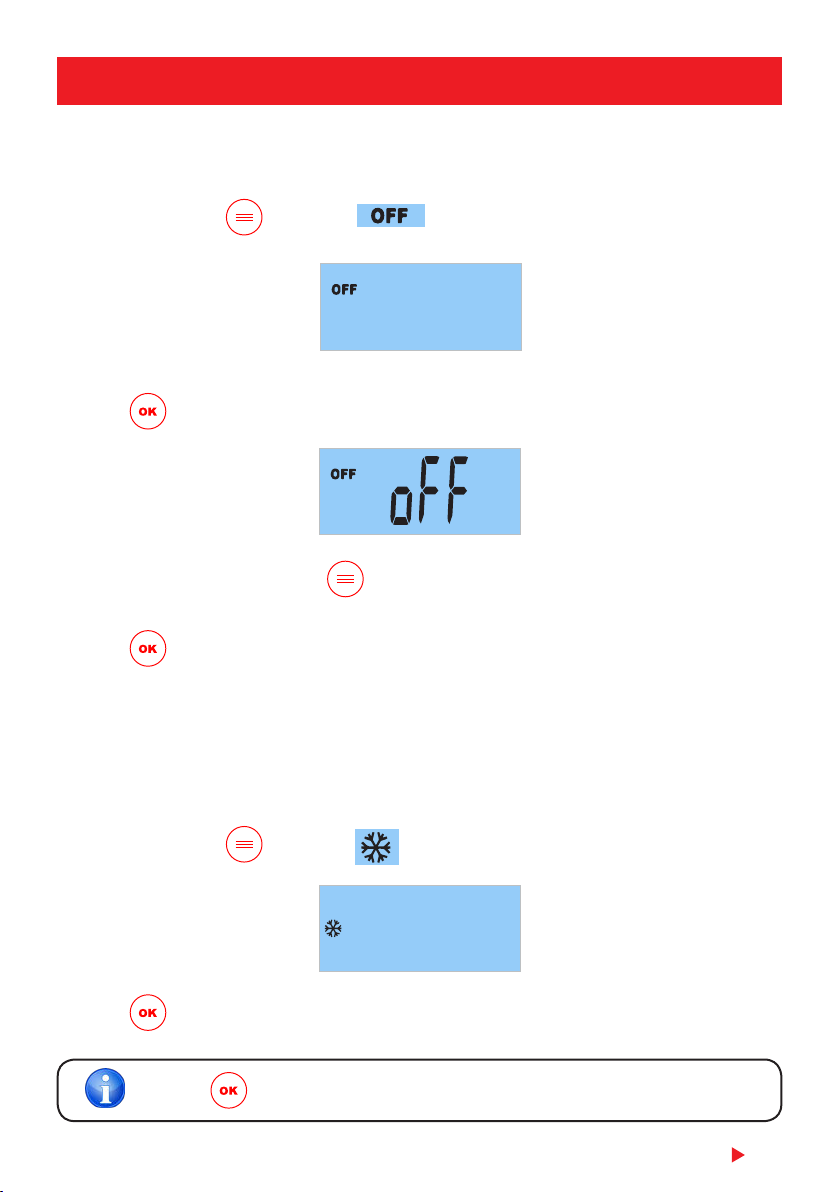

3.4.2 OFF MODE
Step 1:
Successively press the button until appears on the screen.
Step 2:
Press the button to conrm. The radiator remains o.
To switch on the radiator, press the button successively and choose the preferred operating
mode, AUTO, ANTI-FREEZE or MANUAL.
Press the button to conrm.
3.4.3 ANTI-FREEZE MODE
The default temperature is set to 7 ºC. This mode is used for long periods of absence in which you
want to prevent the pipes from freezing.
Step 1:
Successively press the button until appears on the screen.
Step 2:
Press the button to conrm.
Press the button if you want to know the room temperature.
3. OPERATION

14 ECO-RADS
3. OPERATION

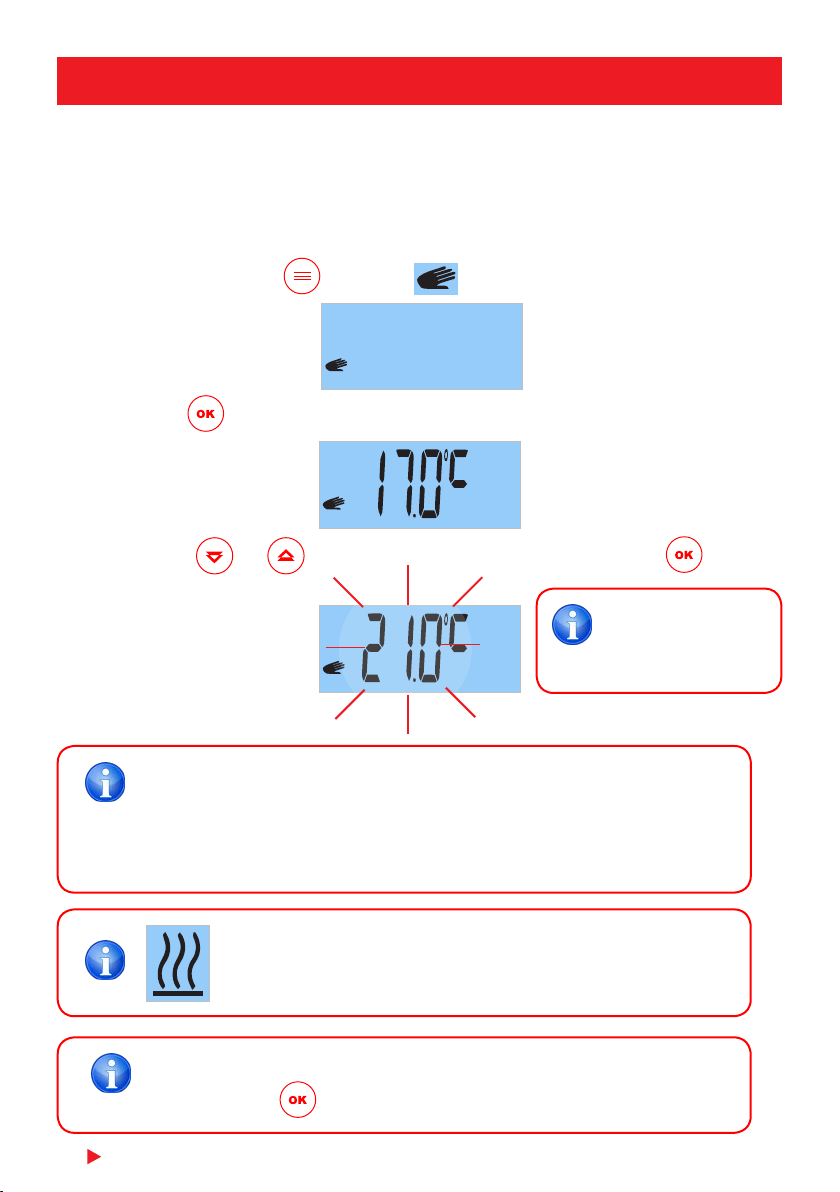

3.4.4 MANUAL MODE
If you do not want to set your radiator, we recommend you choose the MANUAL mode, where you can
select the required temperature between 12 and 30 ºC.
We recommend choosing a temperature between 20 - 21 ºC.
Step 1: Successively press the button until appears on the screen.
Step 2: Press the button to conrm. The pre-set temperature is displayed in manual mode.
Paso 3: Press the or buttons to set the target temperature. Press the button to
conrm.
• We recommend selecting a temperature between 20 and 21 ºC.
• Press the button if you want to know the room temperature.
During the selection of the requested temperature, a pilot light above the display
will change colour according to the selected setpoint temperature.
• Red if the chosen temperature is equal to or greater than 24 ºC.
• Orange if the chosen temperature is between 19.5 and 23.5 ºC.
• Green if it is less than 19.5ºC.
The setting can be
made between a
minimum of 12 ºC and
a maximum of 30 ºC.
This symbol means that the radiator is heating up; the room
temperature is lower than the selected temperature. As soon as the
setpoint temperature is reached, the symbol will disappear from the
display.

ECO-RADS 15

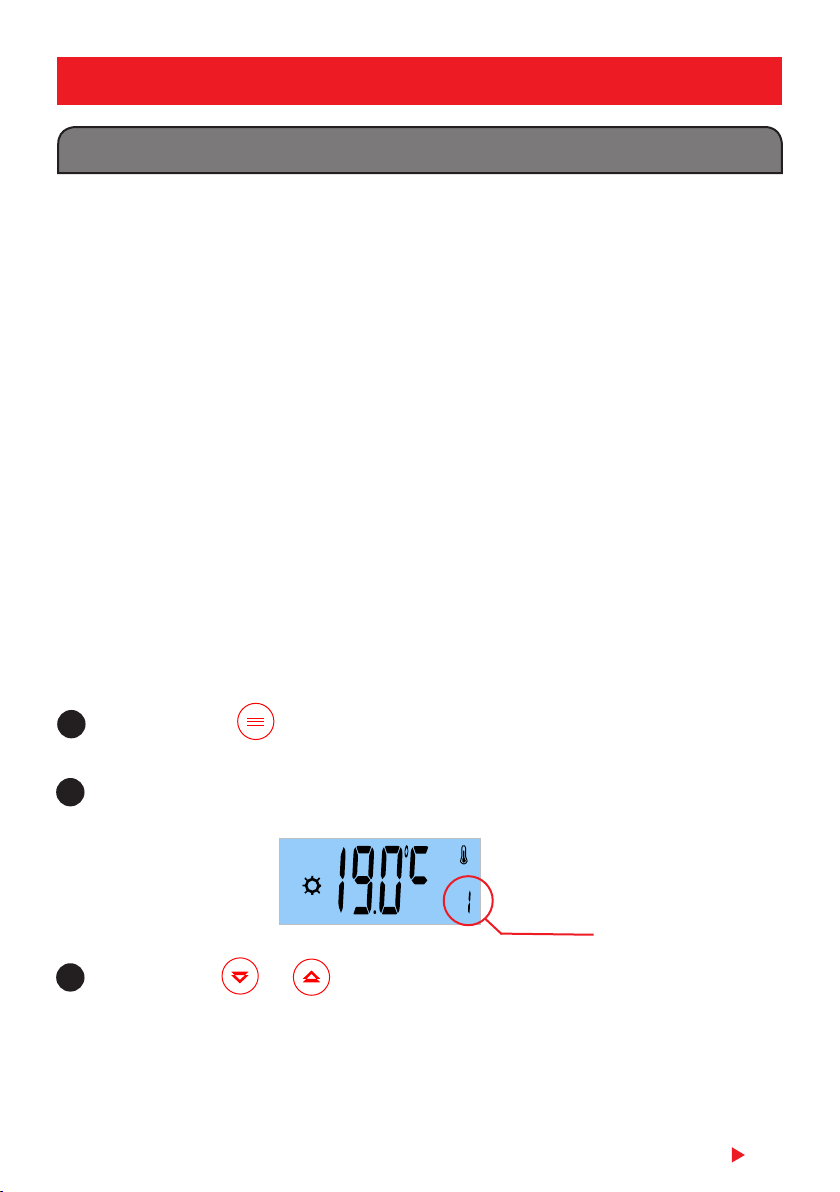

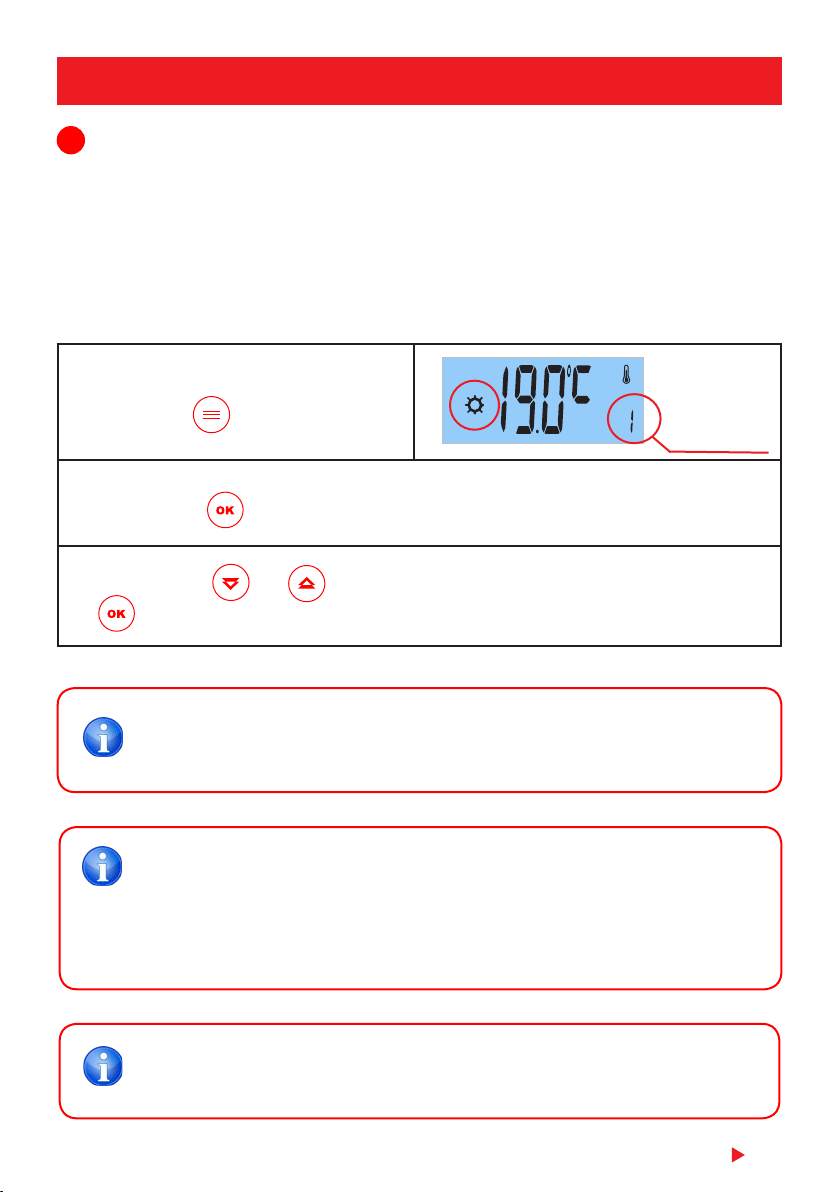

3.5.1 HOW TO ACCESS THE USER MENU?
Press and hold the button.
Horizontal stripes will appear on the screen. Next, parameter 1, “Comfort Temperature
Selection” will be displayed.
By pressing the or buttons you will be able to choose, from the 10 available
parameters.
On this menu you can access and adjust the following parameters:
• 1: CHOOSE THE COMFORT TEMPERATURE.
• 2: CHOOSE THE ECONOMY TEMPERATURE.

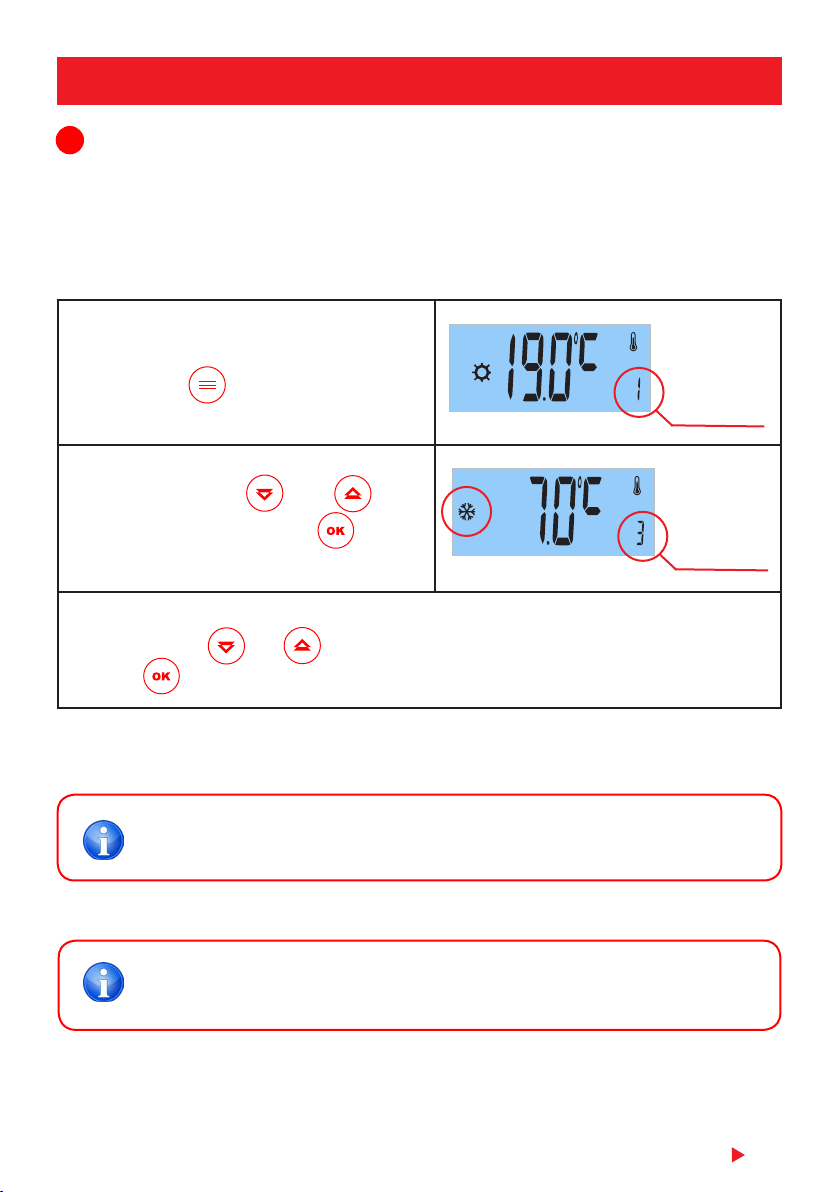

• 3: CHOOSE THE ANTI-FREEZE TEMPERATURE.

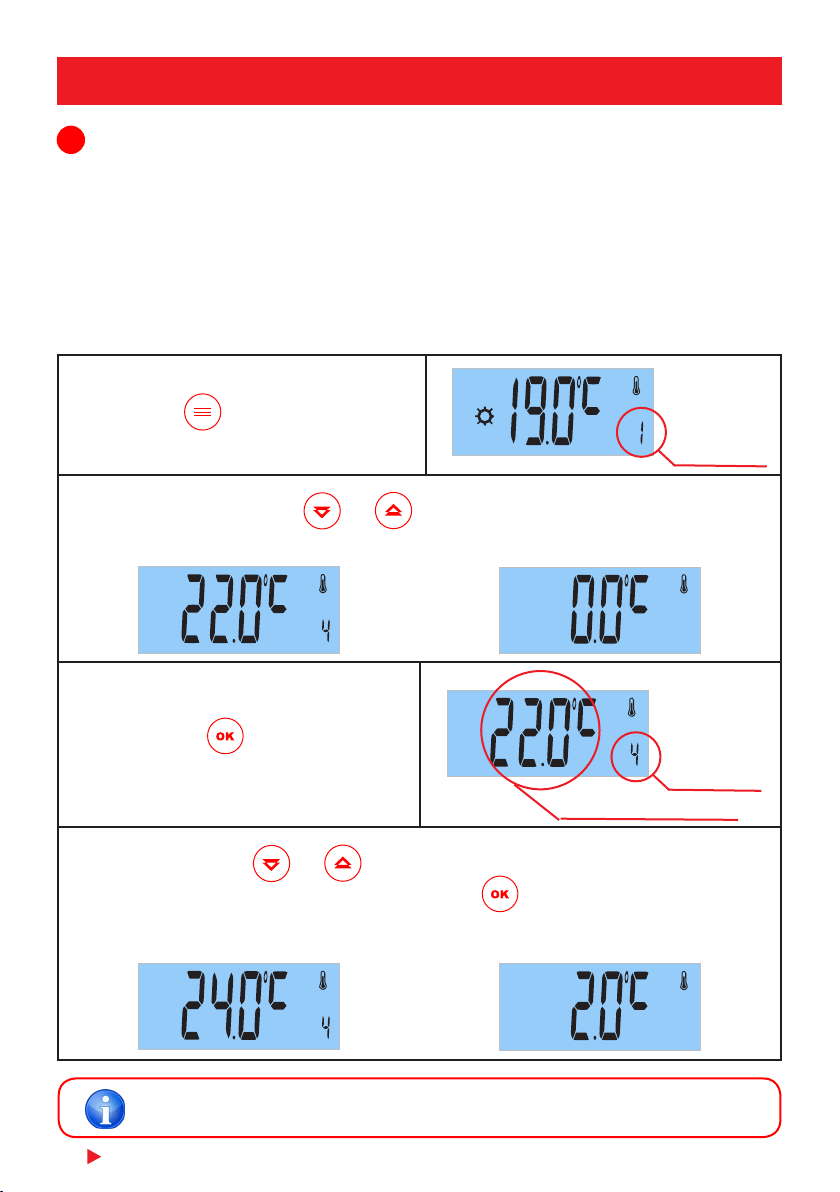

• 4: CALIBRATE THE AMBIENT TEMPERATURE.
• 5: SET THE DAY OF THE WEEK (The radiator must be in AUTO mode).
• 6: SET THE CLOCK (The radiator must be in AUTO mode).
• 7: MAKE A DAILY OR WEEKLY SCHEDULE.
• 8: ACTIVATE OR DEACTIVATE THE “OPEN WINDOWS” FUNCTION.
• 9: ACTIVATE OR DEACTIVATE THE “ITCS” INTELLIGENT FUNCTION.
• 10: KNOW YOUR DAILY, WEEKLY OR MONTHLY ELECTRICITY CONSUMPTION.
3.5 USER MENU
Parameter 1
1
2
3
3. OPERATION

16 ECO-RADS
PARAMETER 4
TEMPERATURE SETTING
PARAMETER 3
ANTI-FREEZE
TEMPERATURE SELECTION
PARAMETER 1
TEMPERATURE SELECTION
COMFORT
PARAMETER 2
SELECTION
TEMPERATURE ECONOMY
PARAMETER 5
DAY WEEK SETTING (only in AUTO)
Press
Press
Press
Press
Press
PARAMETER 6
TIME SETTING (only in AUTO)
PARAMETER 7
PROGRAMMATION
Press
PARAMETER 8
OPEN WINDOWS
SELECTION
Press
PARAMETER 9
“ITCS” FUNCTION
SELECTION
Press
PARAMETER 10
CONSUMPTION
INDICATOR
Pres
Press
3. OPERATION

ECO-RADS 17
1PARAMETER 1: SELECT COMFORT TEMPERATURE
• The comfort temperature setting can be set between 16 and 30 ºC.
• We recommend choosing a comfort temperature between 20 and 21 ºC.
The radiator allows programming day by day, hour by hour. Each day of the week you can choose
Comfort, Economy, Anti-freeze or O.
The comfort temperature is the desired temperature during the hours the room is in use.
Parameter 1 allows you to adjust the pre-set comfort temperature:
The temperatures in each operating mode are preset by default. These are the
recommended temperatures for comfort, for rational electricity consumption, it
is not recommended to exceed these temperatures.
Step 1: Access the user menu by pressing
and holding the button. Parameter 1 is
displayed.
Step 2: Press the button to conrm.
Step 3: Press the or buttons to choose the required comfort temperature. Press
the button to conrm.
Parameter 1
During the selection of the required temperature, the pilot light above the display will
change colour according to the selected setpoint temperature.
• Red if the chosen temperature is equal to or greater than 24 ºC.
• Orange if the chosen temperature is between 19.5 and 23.5 ºC.
• Green if it is less than 19.5ºC.
3. OPERATION

18 ECO-RADS
2PARAMETER 2: SELECTING THE ECONOMY TEMPERATURE
Parameter 1
• The setting of the economy temperature can be made between 12 and 18.5 ºC.
• We recommend choosing an economy temperature between 15 and 17 ºC.
During the choice of the economy temperature, the pilot light above the screen will
be green.
The economy temperature is the temperature that is required during the night or in
the short periods of absence. Avoid excessively lowering the room temperature.
To modify the pre-set economy temperature:
Step 1: Access the user menu by pressing
continuously the button. Parameter 1 is
displayed.
Step 2: Successively press the or
buttons until parameter 2 is selected. Press the
buttons to conrm.
Step 3: Press the or buttons to select the required economy temperature. Press
the buttons to conrm.
Parameter 2
3. OPERATION

ECO-RADS 19
Step 1: Access the user menu by pressing
and holding the button. Parameter 1 is
displayed.
Step 2: Press the or until
parameter 3 is select. Pres the button to
conrm.
Step 3: Press the or buttons to choose the required anti-freeze temperature.
Press the button to conrm.
3PARAMETER 3: SELECT ANTI-FREEZE TEMPERATURE
• The anti-freeze temperature can be set between 5 and 10 ºC.
• We recommend choosing an anti-freeze temperature between 5 and 7 ºC.
During the setting of the anti-freeze temperature, the pilot light located above the
screen will be green.
Parameter 3
The anti-freeze temperature is the temperature that is used for long periods of absence,
preventing the pipes in your home from freezing.
To modify the pre-set anti-freeze temperature:
Parameter 1
3. OPERATION

20 ECO-RADS
Step 1: Access the user menu by pressing
the holding the button. Parameter 1 is
displayed.
Step 2: Successively press the or buttons until parameter 4 is selected. The display
alternately shows the ambient temperature in the room and the compensation value.
Step 3: Press the button to conrm.
Step 4: By pressing the or buttons, enter the previously noted temperature value.
Once the temperature value has been entered, press the buttons to conrm. The display
alternately shows the new temperature and the resulting compensation value (e.g., 22 to 24 ºC).
4PARAMETER 4: TEMPERATURE SETTING
Parameter 1
Parameter 4
Ambient temperature
Parameter 4 allows you to adjust the ambient temperature measured by the radiator. This
calibration compensates for a possible dierence between the temperature obtained in the
room by an external thermostat and the temperature programmed in the radiator.
Calibration should be done after 1 day of operation and if there is a large dierence between the
room temperature and the ambient temperature measured by the radiator.
1. Place a precision thermometer in the room away from the radiator.
2. After one hour of heating, record the measured temperature on the thermometer.
The compensation range is + 5 ºC / - 5 ºC.
3. OPERATION
