EN INDEX
26 1. CAUTION
28 2. INSTRUCTIONS FOR INSTALLATION
31 3. OPERATION
31 3.1 CONTROL PANEL
31 3.2 START - FIRST CONNECTION
32 3.3 ANTI-FREEZE MODE
32 3.4 HEATING MODES
33 3.5 MANUAL MODE
34 3.6 SETTING THE THERMOSTAT
36 3.7 SETTING THE CLOCK
36 3.8 SETTING THE DAY OF THE WEEK
37 3.9 SETTING THE COMFORT TEMPERATURE
37 3.10 SETTING THE ECONOMY TEMPERATURE
38 3.11 TIME SCHEDULES
42 3.12 CONSUMPTION INDICATOR FUNCTION
42 3.13 “OPEN WINDOWS” FUNCTION
43 3.14 INTELLIGENT ITCS FUNCTION
44 3.15 SWITCH OFF THE DISPLAY
45 3.16 KEYBOARD LOCK
45 3.17 2 HOUR BOOST FEATURE
46 3.18 CHANGING THE LANGUAGE
46 3.19 DISCONNECTION FROM THE MAINS / POWER CUT
46 4. MAINTENANCE

26 RCM
RCMS
EN
•Please read these instructions carefully.
• To disconnect mains power from the radiator remove the plug from the wall
socket, but never pull on the cable.
• Do not leave the mains cable in contact with the radiator when it is switched
on.
• During operation, the radiator must be kept well away from combustible
materials, such as curtains, carpets and furniture etc.
• The warranty for the radiator does not cover any damage caused by
not reading these instructions.
WARNING: In order to avoid overheating, do not cover the
heater.
• WARNING: If the mains power cable is damaged, it must be replaced
persons, in order to prevent any danger.
• WARNING: If the radiator is to be installed in a bathroom, it must be
positioned so that switches and other controls cannot touched by a
person in bath or shower.
• The installation should be carried out with consideration to the
manufacturer’s instructions and in accordance to the relevant National
Wiring Regulations BS7671.
• It is very important that radiator has a good Electric Earth connection.
• The radiator shall be installed so that its mains plug is always accessible.
• The radiator must not be located immediately below or in front of a
socketoutlet.
•
This radiator cannot be surface-mounted with a wall. Safety distances
shall always be respected.
•The radiator has a keyboard blockage option to prevent children from
changing the programming.
• This unit is not designed to be handled by persons (including children) with
physical, sensorial or mental handicaps, with little experience or knowledge
unless they are under the supervision of an adult responsible for their safety
with the instructions on its use. Children shall always be supervised to
ensure they do not play with the unit.
• Children under three shall be kept well away from the heater unless they
are continually supervised.
supervised or have received instructions on how to use the unit in a safe
1. CAUTION
•

RCM 27
RCMS
EN
manner and understand the risks involved.
• Children between three and eight shall not plug in, adjust or clean the
heater or carry out any maintenance operations.
• This unit may be used by children older than eight and by persons with
physical, sensorial or mental handicaps, with little experience or knowledge,
provided they have been duly trained and are supervised by an adult that
understands the risks involved.
• Cleaning and maintenance shall be performed by adults not children.
Children must not play with the unit.
• WARNING: Certain parts of this product can become very hot and
cause burns. Special attention shall be paid when children and other
vulnerable persons are present.
• Do not touch the external parts of the radiator when it is operating.
smell. Allow your heater to operate in a well-ventilated place for two or three
hours.
not been used for several days, the unit should be cleaned (follow the steps
given in the “maintenance section”). This cleaning operation will avoid
burning the accumulated dust and other remains.
• This radiator CAN’T OPERATE with external programmable controllers or
any other exterior control device.
• CAUTION: Keep bags and other accessories well out of the reach of
children.
discolouring to metal surfaces and to plastics.
This does not indicate any failure in the radiator.
• When scrapping the radiator, follow the regulations concerning the disposal
of oil.
• When the radiator is disposed of, the requirements established by current
legislation on waste processing and recycling shall be taken into account.
1. CAUTION
This radiator is filled with a precise quantity of specal oil. Repairs requiring
opening of the oil container are only to be made by the manufacurer or his
service agent who should be contacted if there is an oil leak.
EN

28 RCM
RCMS
EN
• It is important that the radiatorIS FIXED FIRMLY TO A SOLID AND LEVELLED WALL.
• Make sure that there is a socket near the area where you are going to place it.
• Take out the wall pattern from the box to see the exact positions of the necessary drill
holes.

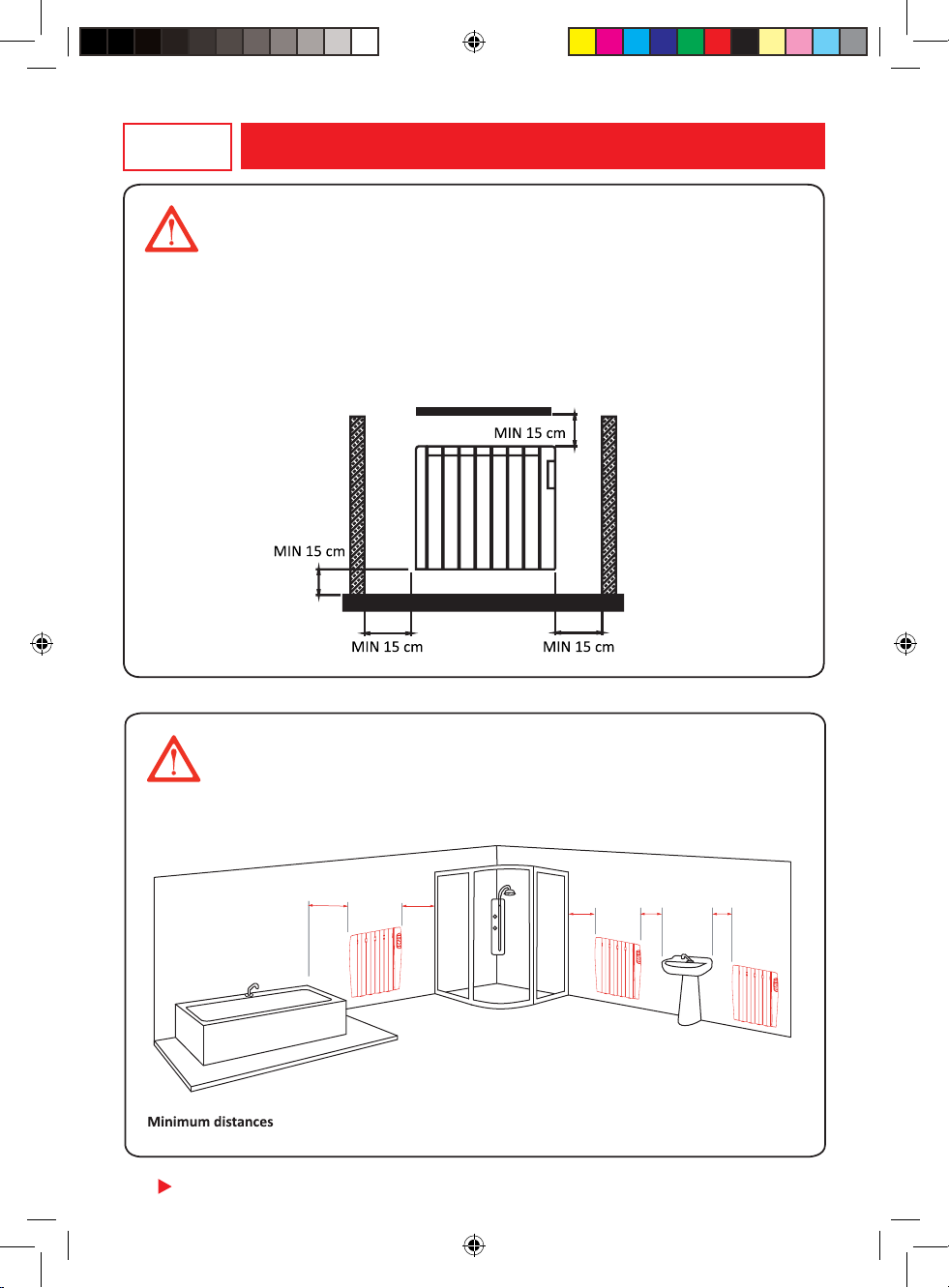

•You must keep a minimum distance of 15 cm between the radiator and any object, wall
or combustible material.
IMPORTANT
2. INSTRUCTIONS FOR INSTALLATION
You must keep a minimum distance
IMPORTANT
MIN 60 cm
MIN 60 cm
MIN 60 cm MIN 60 cm MIN 60 cm

EN
RCM 29
1
3
5
1
3
2
4
2
2. INSTRUCTIONS FOR INSTALLATION
Cardboard template
4 Screws
5.5 x 50 mm
Place the screw
but don’t
screw it fully.
(M. 6 x 40 mm)
Slide the
radiator up,
Place over top
tang and lower
gently into
position
Place
the radiator
RCMS
EN

EN
30 RCM
7
6
Press ON /
OFF switch
located at the
right rear part
of the unit.
8
2. INSTRUCTIONS FOR INSTALLATION
Screw down
FULLY to lock
the radiator
INFORMATION
IMPORTANT:
RCMS
1800*
(W)
500
900*
1000
1250
“A” (mm)
420
420
420
420
420
“B” (mm)
246
246
246
246
246
“C” (mm)
159
319
478
638
638
420 246
638
600* 159
478
420
420
420
420
246
246
246
246
319
638
750
1200*
1500*
1500 EN

EN
RCM 31
3.1 CONTROL PANEL
1. Anti-freeze mode button
2.
3. Programming menu button
4. Comfort LED
(programming mode)
5. Screen
6. Manual mode LED
7. Economy LED
(programming mode)
8. Selection of temperatures
and other parameters
9. Manual mode button
When the radiator is connected to the mains, press the switch on the position ON:
2. Press OK button . The room temperature will then be displayed.
3.2 START - FIRST CONNECTION
3. OPERATION
P
1
2
3
4
5
9
8
7
6
RCMS
EN

EN
32 RCM
By pressing the button, the radiator changes from “anti-freeze mode” to “heating
mode” and vice versa.
The room temperature will be displayed
indicate “anti-freeze mode”.
Heating
Mode
Anti-Freeze
Mode
3.4 HEATING MODES
In heating mode, the radiator has two modes of operation, PROGRAMMING mode or
MANUAL mode.
Choose the mode of operation by pressing MANUAL button.
3.3 ANTI-FREEZE MODE
Remember that you can switch to “anti-freeze mode” by pressing the
button .
Thanks to this “anti-freeze mode”, extreme temperatures will be avoided
in your home, keeping the room temperature at 7ºC.
Hand LED
Programming
Mode
Hand LED
switched on
Manual
Mode
Flashes every
5 seconds
3. OPERATION
PRO
PRO
RCMS

EN
RCM 33

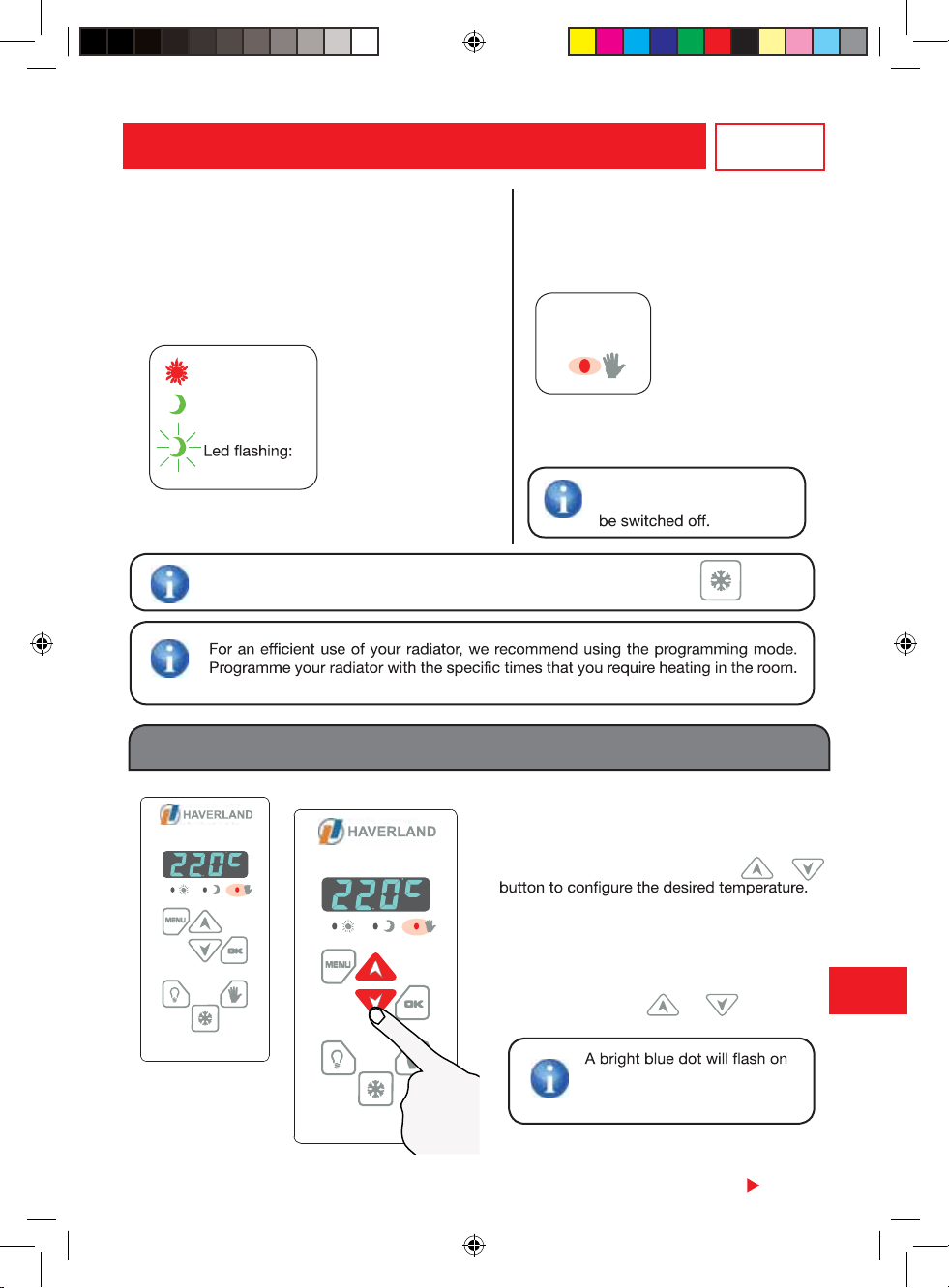

In manual mode, the radiator operates as an
ambient thermostat.
Once the manual mode has been chosen
(hand LED switched on), press the or
After a few seconds, you will return to the
home screen where the room temperature of
the room will be displayed.
You can view the chosen temperature at any
time by pressing the or button.
Manual
Mode
Programming
Mode
Hand LED
switched on
In programming mode,
the radiator can be in
a comfort, economy or
anti-freeze cycle.
Confort Led
Economy Led
Economy
antifreeze
Remember that you can switch to “anti-freeze mode” by pressing the button.
3.5 MANUAL MODE
the right side of the screen
when the radiator is heating.
The comfort (sun) and
economy (moon) LEDs will
3. OPERATION
P
RCMS
EN

EN
34 RCM
3.6 SETTING THE THERMOSTAT
To access the set-up menu, press the button for 2 seconds. This will open up the options
menu.
With the button, you can access the sub-menus you want to adjust. The options of the set-
up menu are shown in the following diagram:
Press the button
successively
3. OPERATION
2 seg.
PRO
P
P
RCMS

EN
RCM 35
To exit the set-up menu, press the button.
3. OPERATION
PRO
RCMS
EN

EN
36 RCM
3.7 SETTING THE CLOCK
In the “Hour” sub-menu, you can set the
current hour and minutes.
the current hour by pressing the and
buttons.
the same procedure by using the arrows to
adjust them.
Finish by pressing the button. It will
take you to the next set-up sub-menu.
3.8 SETTING THE DAY OF THE WEEK
Press . The day of the week will
With the and buttons, set the
current day of the week (Mo for Monday,
Tu for Tuesday and so on).
Finish by pressing the button.
It will take you to the next set-up sub-
menu.
To exit from the set-up menu,
press .
3. OPERATION
P
P
PRO
P
P
PRO
RCMS

EN
RCM 37
3.9 SETTING THE COMFORT TEMPERATURE
In this sub-menu you can set the desired
comfort temperature for the comfort cycles.
The minimum comfort temperature you can
set is 5ºC and the maximum 32ºC. Taking
in count that this temperature can not
be lower than the economy temperature
selected below.
This temperature is adjusted by using the
and buttons
Finish by pressing the button. It will
take you to the next set-up sub-menu.
The recommended comfort
temperature is 21ºC.
3.10 SETTING THE ECONOMY TEMPERATURE
In this sub-menu you can set the desired
economy temperature for the economy
cycles.
The minimum economy temperature you
can set is 5ºC and the maximum 32ºC.
Taking in count that this temperature
can not be higher than the comfort
temperature .
Finish by pressing the button. It will
take you to the next set-up sub-menu.
The recommended economy
temperature is 17ºC.
3. OPERATION
P
P
PRO
P
P
PRO
RCMS
EN

EN
38 RCM

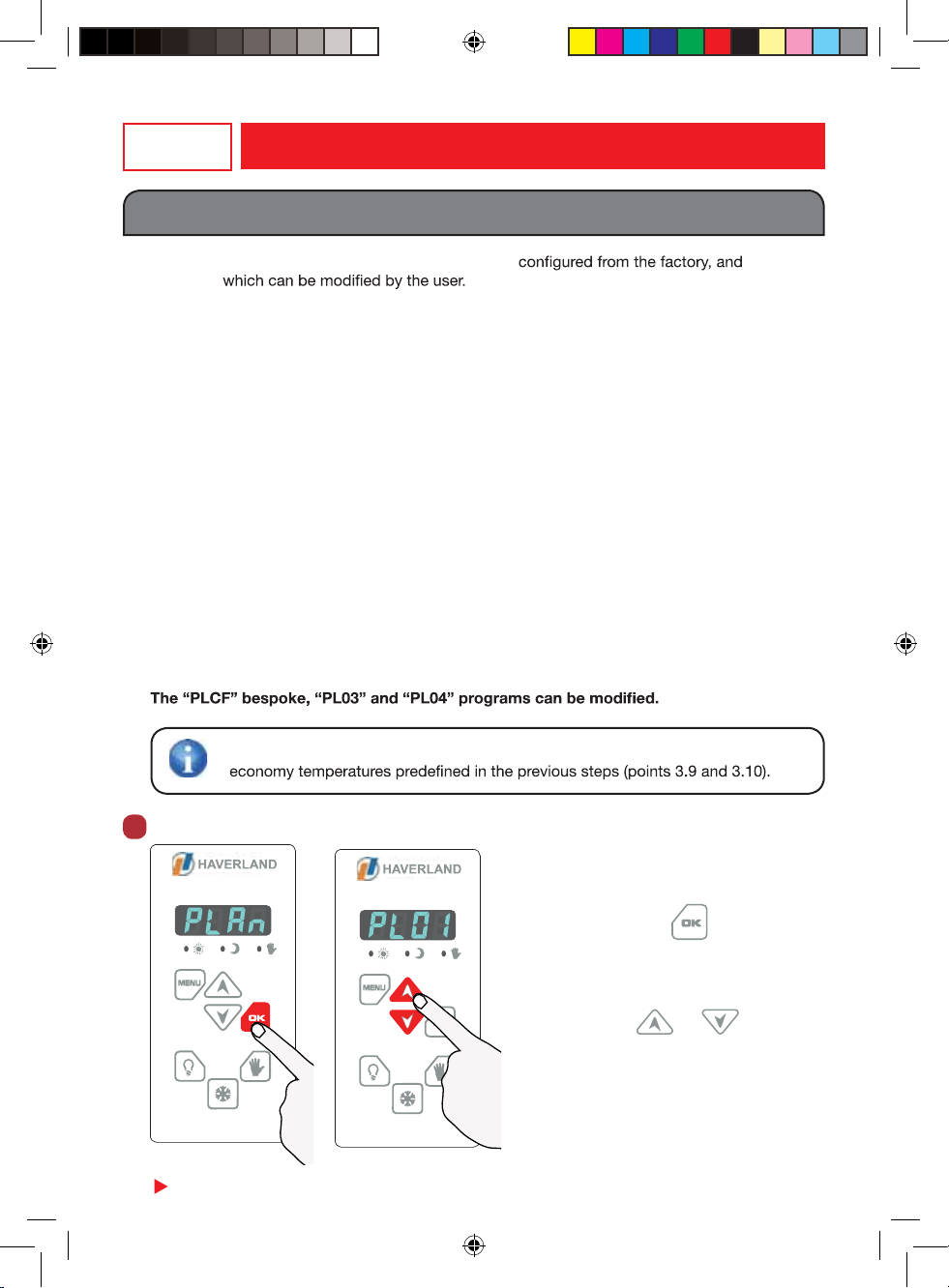

Once the word “PLAn” is displayed on
the sub-menu, press to enter the
time schedules into the sub-menu.
The “PL01” plan will be displayed on
screen.
Then, press the or buttons
to choose the desired programming
schedule.
Choose one of the four preset time
schedules, for example “PL02”.
3.11 TIME SCHEDULES
The radiator has 4 preset programmes schedules, a bespoke
program,
These four preset programs are suited for the majority of heating situations you may need.
In this sub-menu you can choose one of the 4 time schedules or the bespoke plan
PL01: - Comfort on Monday to Sunday from 10am to 12am. Remaining hours, economy.
PL02: - Comfort on Monday to Friday from 7am to 9am, 12pm to 4pm and 6pm to 12am.
Remaining hours, economy.
- Comfort on Saturday and Sunday from 10am to 12am. Remaining hours, economy.
PL03: - Comfort on Monday to Friday from 6am to 9am and 4pm to 12am. Remaining hours,
economy.
- Comfort on Saturday and Sunday from 10am to 12am. Remaining hours, economy.
PL04: - Comfort on Monday to Friday from 6am to 9am and 7pm to 12am. Remaining hours,
economy.
- Comfort on Saturday and Sunday from 9am to 11am, 2pm to 4pm and 8pm to 12am.
Remaining hours, economy.
PLCF: - Comfort on Monday through Friday from 7am to 2pm and 3pm to 7pm. Remaining
hours, economy. On Saturday and Sunday, economy.
The comfort and economy cycles will take into account the comfort and
PL01, PL02, PL03 and PL04 preset programme schedules:
3. OPERATION
P
RCMS

EN
RCM 39
the chosen time schedule (this will
appear on the “ddMo” screen).
To validate the chosen plan and
complete the setting process, press the
button.
If you wish, you can then
check the chosen time
schedule by successively
pressing the button.
The radiator follows the chosen time schedule in accordance with the comfort
and economy temperatures chosen in points 3.9 and 3.10 of this manual.
With the bespoke “PLCF” plan you can create a program that suits your needs, day by day and
hour by hour.
Choose “PLAn” “PLCF” ,nalp
press . “ddMo” will be displayed. Then, press to continue.
the right side of the screen
when the radiator is heating.
3. OPERATION
P
PRO
P
P
P
RCMS
EN

EN
40 RCM
Comfort Cycle = Sun Red LED switched on
Economy Cycle = Moon Green LED switched on
Then 00:00 will be displayed. With the or buttons, choose the operating cycle: comfort,
Once you have set the time schedule for the
entire week, the radiator will follow this chosen
plan. Please make sure that the radiator is on the
PROGRAMMING mode
Press to switch to the next time slot (from 1am to 2am) and repeat the above process to choose
the desired operating cycle (comfort, economy or anti-freeze). Repeat the process hour by hour y day
by day.
The anti-freeze temperature is set at 7ºC.
This temperature can not be changed.
In the “PLCF” plan, the radiator follows
user, according to their needs and in
accordance with the indicated comfort,
economy or anti-freeze cycles.
side of the screen when the radiator is
heating.
3. OPERATION
search for that time slot by pressing the button. Once you have made the
changes, in order to exit the menu please press the button repeatedly until
you exit of the sub-menu and the room temperature is displayed again.
PRO
P
RCMS

EN
RCM 41
3. OPERATION
You only need to programme Monday (dd01). The programme will be
automatically repeated.

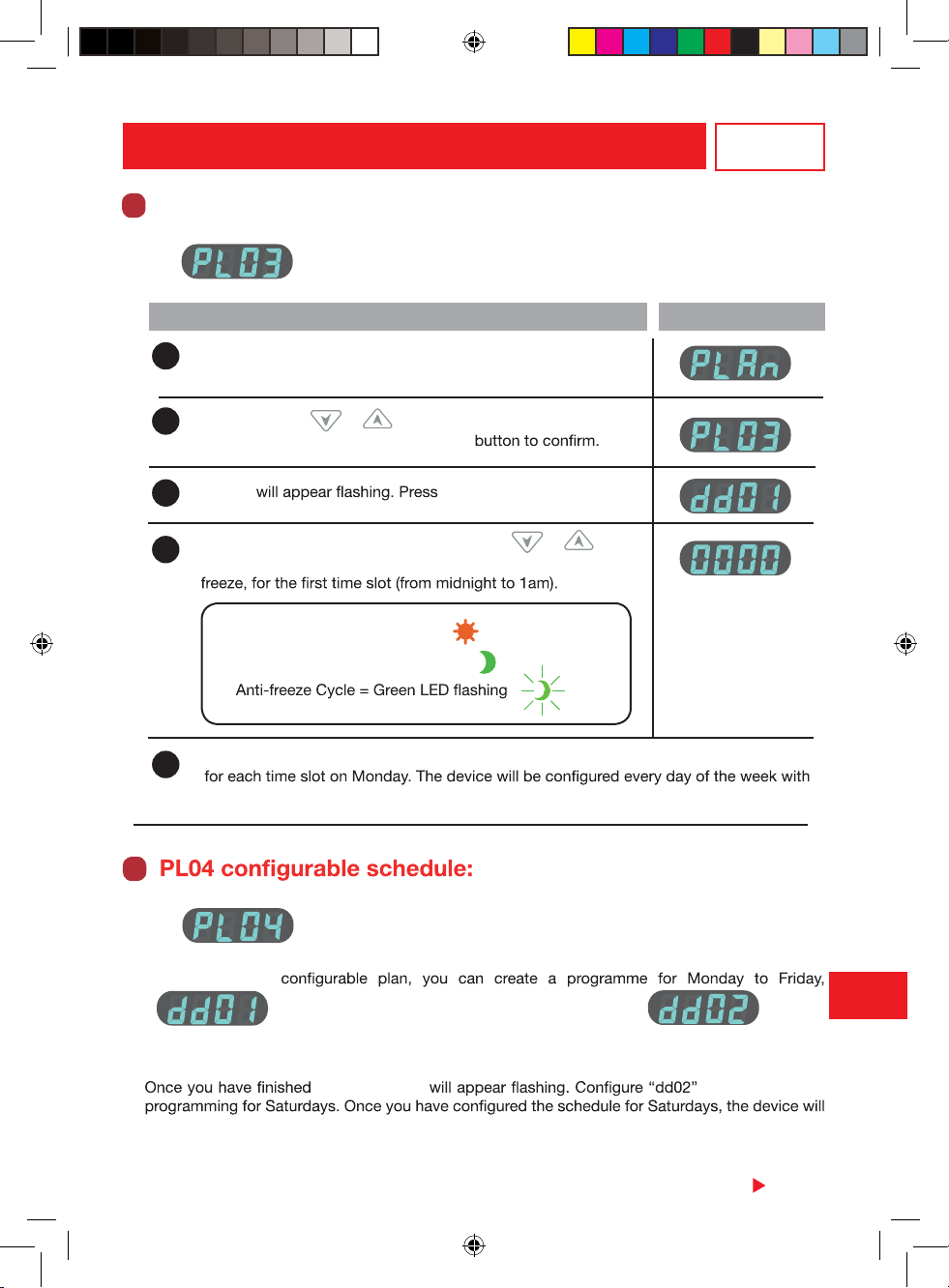

PL03 Bespoke programme:
Once the word “PLAn” appears in the sub-menu, press “OK”
to enter. The “PL01” plan will appear on screen.
1
The screen will indicate “00:00”. Using the or keys,
choose the operating cycle, either comfort, economy or anti-
2
ACTION SCREEN
3
Then, press the or buttons to choose the PL03
bespoke programme. Press the “OK”
“dd01” “OK” to continue
4
Comfort Cycle = Sun LED on
Economy Cycle = Moon LED on
Press “OK” to go to the next time slot (from 1am to 2am) and repeat the above process
the same programming made for Monday.
5
With the “PL04”
and another programme for Saturday and Sunday .
Repeat the steps described in the “PL03 Bespoke programme” point to set Mondays (the
programming created will be repeated from Monday to Friday).
step 5, “dd02” with your desired
also repeat this programming on Sundays.
You only need to programme Monday (dd01) and Saturday (dd02). The
programme will be repeated from Monday to Friday and from Saturday to
Sunday.
RCMS
EN

EN
42 RCM
3. OPERATION
3.12 CONSUMPTION INDICATOR FUNCTION
its electricity consumption. Once positioned on the “WAT” sub-menu, press to access this
function.
The energy meter will tell you the sum of the accumulated KWh every 24 hours up to the latest restart.
This meter is restarted every 30 calendar days. It can also be restarted at any time by pressing the
button for 2 seconds.
2 seconds
3.13 ”OPEN WINDOWS” FUNCTION
This function is activated when there is a sudden drop in temperature in the room.
When the window is closed, the radiator will detect a rise in temperature and this function will
deactivate. The radiator will switch on again, returning to the state it was in before it was disconnected.
When this function activates, the
“Win”
The radiator will switch to Antifreeze
mode, avoiding an unnecessary energy
consumption.
RCMS

EN
RCM 43
This function can be activated or deactivated by the user. Once positioned in the
“ItcS” sub-menu, press to access this function.
Next, press the or buttons to choose “ON” or “OFF” which activates
or deactivates this function.
Then press to validate. Press to exit from the menu.
3.14 INTELLIGENT ITCS FUNCTION
The radiator incorporates an innovative intelligent ITCS temperature control system.
This system activates the start-up of the radiator prior to the programmed time (2 hours maximum),
to ensure that the desired temperature is achieved at the indicated time and following the established
weekly programme.
This intelligent function is factory set. It can be deactivated by the user.
Choose “ON” or “OFF”
This function can be activated or deactivated by the user. Once positioned in the
“Win” sub-menu, press to access this function.
Next, press the or buttons to choose “ON” or “OFF” which activates
or deactivates this function.
Then press to validate. Press to exit from the menu.
3. OPERATION
PRO
RCMS
EN
