Havis-Shields C-SM-1200 User manual

Fully Adjustable Monitor
Mounting Brackets ensure
easy viewing for driver or
passenger via tilt-swivel
features (C-SM-MMP)
Independent Keyboard and
Monitor Brackets allow install-
er to customize positioning
Swing Arm Feature provides
easy and comfortable posi-
tioning of keyboard or laptop
(C-SM-SA-1)
Two-Piece Housing Design
allows the Stout Mount to
have the versatility of
adjustable height
(C-SM-830)
Low Profile Design allows
driver a fast and safe exit
via the passenger side
Modular Design Options:
• Slide out printer mount (C-PMS)
• Low profile console extension
• Cup holder (C-CUP2 Series)
• Arm rest (C-ARM-3-TM)
• Strongest and safest mounting solution for your mobile office
• Versatile design for laptop or modular computers
• Low-profile mount system
• Compact design effectively utilizes crucial space
• Highly durable interlocking “U” steel supports the heaviest rugged
computers and docking stations
STOUT MOUNT CONSOLES
Unique double angle shape provides excellent visibility and superior comfort
Stout Mount Mobile Workstation in use
For more information on any of these products,
call 1.800.524.9900 or visit www.havis.com

Equipment Brackets
and Filler Plates Console Accessories Trak-Mounts Computer Mounts Radio Trays

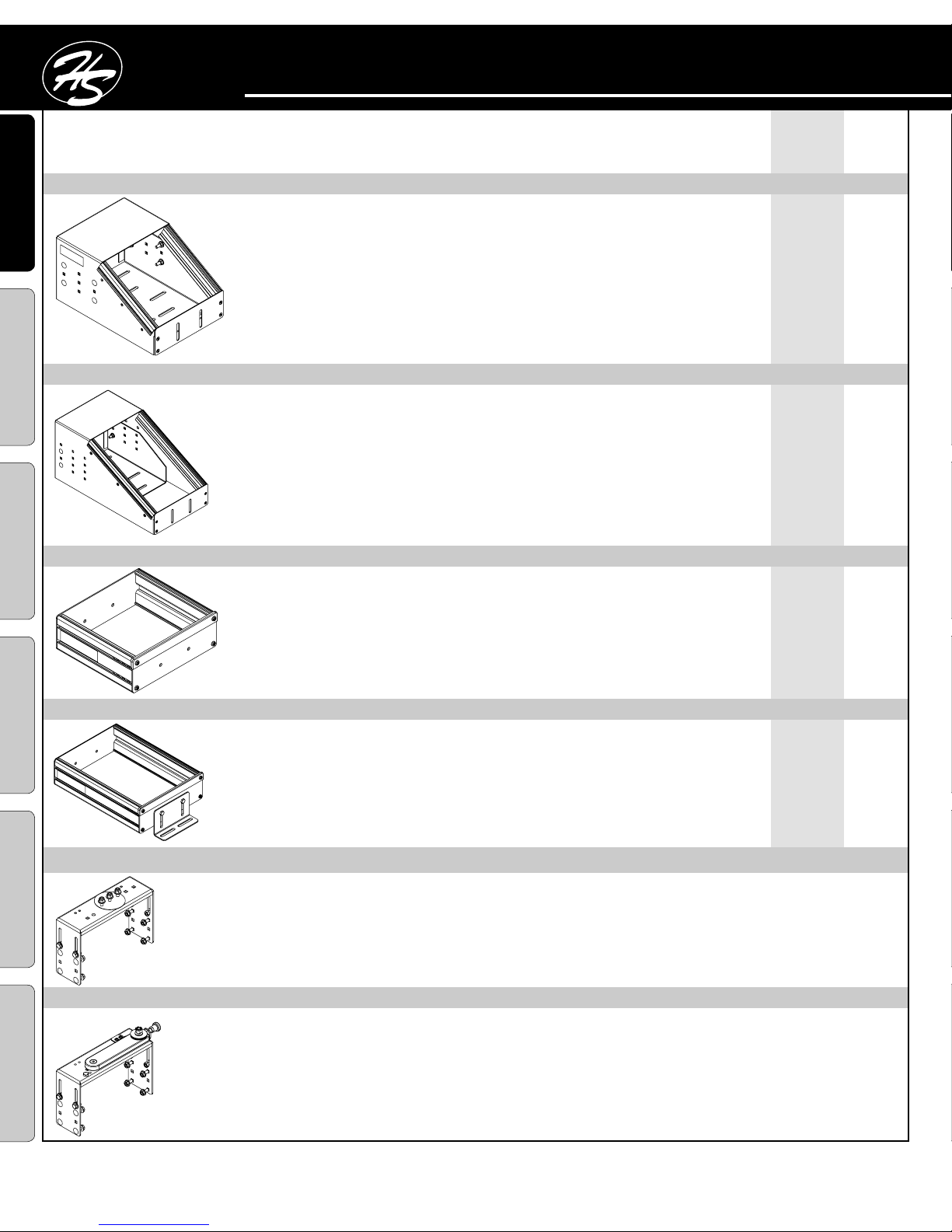

STOUT MOUNT CONSOLES
Part Number
Maximum
Equipment
Mounting
Area Weight
C-SM-830
8" Enclosed 30° Angle Stout Mount Series Console
7.25" high, 9" wide, 13" length, 7.75" max. depth, min. depth 3.5"
2 piece housing design allows for adjustable height (Expands 1" or
2" to provide additional internal mounting depth)
Mounts to vehicle hump bracket, ordered separately (Trak-
Mount recommended)
Includes filler plates (FP) and/or equipment brackets (EB) to
completely enclose mounting area less internal mount options
Works with most Havis-Shields Consolidator® accessories &
control head equipment brackets
•
•
•
•
•
8" 12 lbs.
C-SM-SA
Universal Mounting Bracket for Stout Mount & Standard 9" Wide Consoles
9" wide; 12 gauge steel with welded corners
Mounts to C-SM Series Console Platform
Accepts all tilt/swivel or hat brackets (ordered separately)
•
•
•
C-SM-SA-1
Mounting Bracket Complete with Swing Arm Adapter for Stout Mount & Standard 9"
Wide Consoles
9" wide; 12 gauge steel with welded corners
Solid ½" machined aluminum swing arm
Spring lock
Mounts to C-SM Series Console Platform
Accepts all tilt/swivel or hat brackets (ordered separately) (shown with optional C-3082-1 hat bracket)
•
•
•
•
•
STOUT MOUNT SERIES ACCESSORIES

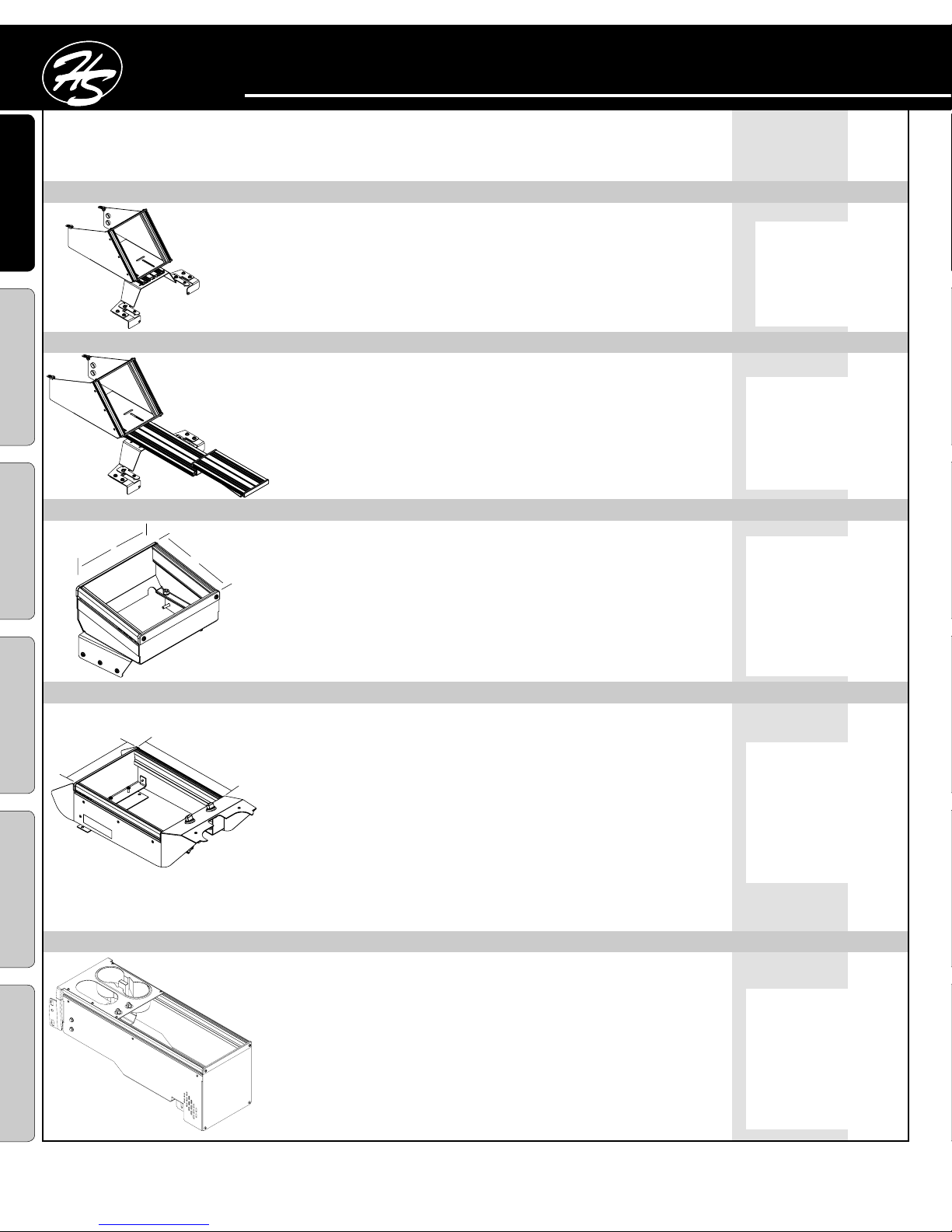

C-SM-1200
12" Enclosed Low Profile Console
3.125” High, 9” Wide, 12” Length
C-S-12 storage tray option cannot be used on low profile console.
Includes C-B41 “L” bracket
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area
less internal mount options
•
•
•
•
12" 5 lbs.
Consoles
C-SM-800
8" Enclosed Low Profile Stout Mount Series Console
3.125" high, 9" wide, 8" length
C-S-12 storage tray option cannot be used on low profile console
Includes C-B41 "L" bracket
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area
less internal mount options
•
•
•
•
8" 3 lbs.
C-SM-1225
12” Enclosed 25º Angle Stout Mount Series Console
8.375” high, 9” wide, 16.75” length, 9.25” max depth, min. depth 3.5”
2 piece housing design allows for adjustable height (Expands 1” or 2” to provide additional
internal mounting depth)
Mounts to vehicle hump bracket, ordered separately (with Track mount recommended)
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting area
less internal mount options
Works with most Havis-Shields Consolidator® accessories & control head equipment brackets
See console appendix (page C82) for mounting depth allowed for control heads and/or options
•
•
•
•
•
•
12" 13 lbs.
By: Havis-Shields
STOUT MOUNT CONSOLES
C2
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com

Equipment Brackets
and Filler Plates
Console AccessoriesTrak-MountsComputer MountsRadio Trays
C-SM-MMP
Monitor Mounting Bracket for Stout Mount & Standard 9" Wide Consoles
9" wide; 12 gauge steel with welded corners
Mounts to C-SM Series Console Platform
Accepts all tilt/swivel or hat brackets (ordered separately)
Specifically designed for monitor mount brackets (C-3522 Series) (ordered separately)
•
•
•
•
C-PMS
Slide-out Printer Mount
Designed for use with all Pentax 2" roll feed Pocketjet II series mobile
printers (shown with optional printer)
Order C-3610 printer mount housing separately
Bolts to Stout Mount series console or any flat surface
22" max. open position, 13" min. closed position
Mounting hardware included
3 piece design allows for tension adjustability.
•
•
•
•
•
•
STOUT MOUNT SERIES ACCESSORIES
Low Profile Tilt/Swivel Adapters
Used to mount laptop mounting plate to telescoping computer base (TCB) or Stout Mount Series
360º swivel & 45º or 85° tilt
Models Available:
Height and Tilt
Fixed 1.375" height
45° tilt
Our lowest tilt/swivel
Fixed 2.5" height
85° tilt
Low profile tilt/swivel
Adjustable 4" - 6.5" height
85° tilt with locking knob
Low profile tilt/swivel
No Handle
C-3065-3
2 lbs
C-3075-3
2 lbs
C-3075-4
3 lbs
Short Locking Handle
C-3065-3S
2 lbs C-3075-3S
3 lbs
C-3075-4S
4 lbs
Long Locking Handle
C-3065-3SL
2 lbs
C-3075-3SL
3 lbs
C-3075-4SL
5 lbs
•
•
•
LOW PROFILE TILT/SWIVEL ADAPTERS
Consoles
By: Havis-Shields
STOUT MOUNT CONSOLES
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com C3

Monitor Mounting Platforms
include fully adjustable mounting
brackets making monitors easily
viewable for driver or passenger
(C-AS-MMP shown) (see page 10)
Conveniently Angled toward
driver making vital equipment
easier to see and reach (C-AS-1725
shown)
12V Power Outlets provide addi-
tional 12V power outlets attached
to the storage box
Trak-Mount Extension Plates
provide a strong and stable platform
for mounting accessories includ-
ing cup holder and armrest (C-TM-CV
shown)
Storage Box/Arm Rest can be
configured as a mini console for
mounting less critical and over-
flow control heads. Provide handy
storage space for ticket books,
handheld radios and other equip-
ment. Optional lock mechanism
available (C-CB-1 shown)
Vehicle Specific Heavy-Duty
steel hump mount brackets pro-
vide stability, a clean “trouble-free
fit” and easy installation because
they bolt to existing seat-mount-
ing holes and require no drilling
• Ergonomically designed to make equipment easy to see, reach and operate
• Sloped design creates additional space between seats
• Provides maximum comfort and room for extra accessories
• Models in 25, 40 and 60 degree angles
• Ideal for light and medium weight computers and docking stations
Wire Cover Panels provide a nice
flush fit to your dash creating the
perfect finishing touch and pro-
tecting console wiring (C-AS-WP-CV
shown)
ANGLED CONSOLES
Sloped design maximizes comfort and room
Angled Console (C-AS-1725)
For more information on any of these products,
call 1.800.524.9900 or visit www.havis.com

Equipment Brackets
and Filler Plates
Console AccessoriesTrak-MountsComputer MountsRadio Trays

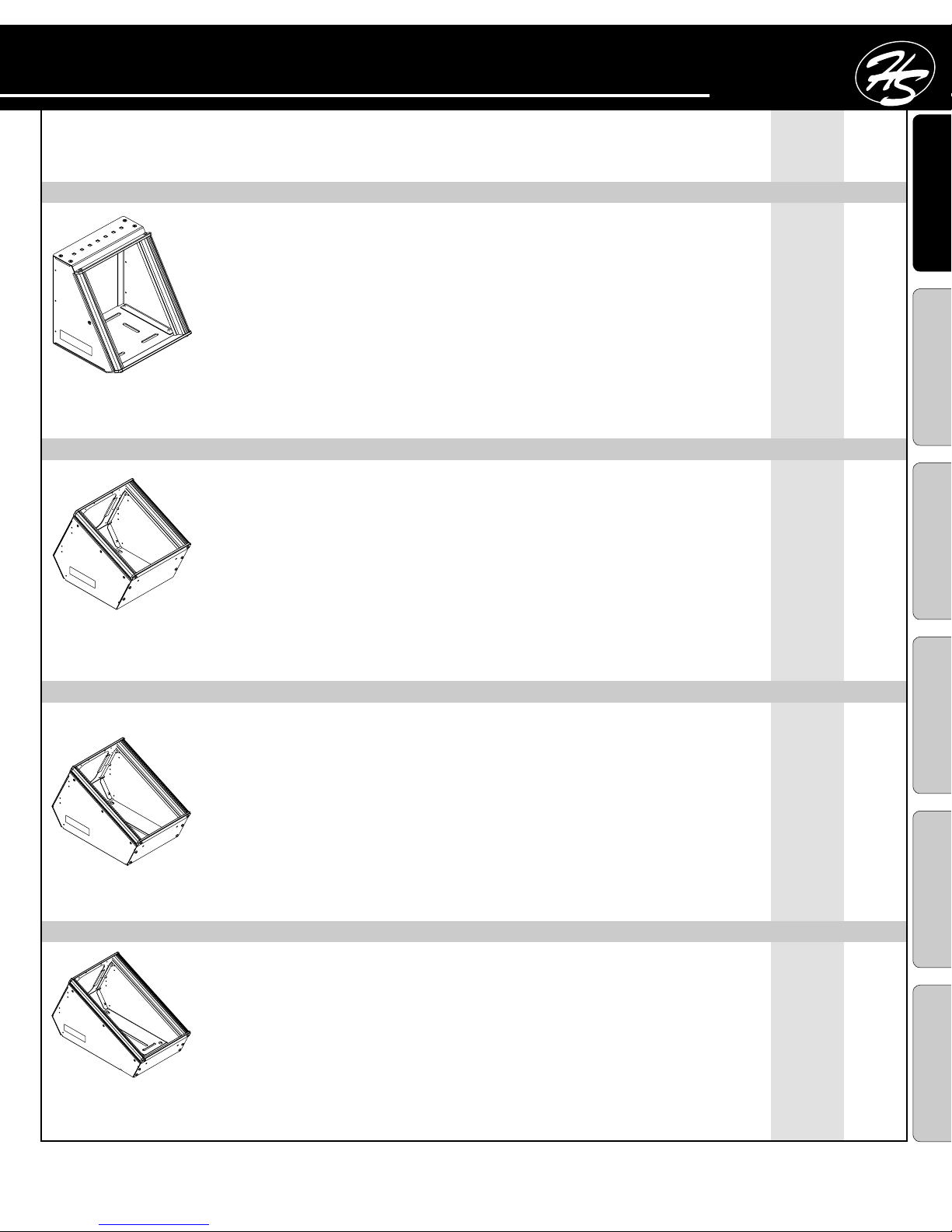

ANGLED SERIES CONSOLES
Part Number
Maximum
Equipment
Mounting
Area Weight
C-AS-1060
10" Enclosed 60° Angled Series Console
Horizontal top surface allows for monitor mounting (order monitor
mount see pgs C63-68)
10.25" high, 9" wide, max. depth 9.5", min. depth 4.25"
Mounts to C-B series hump brackets ordered separately (pgs C46-50)
or any Trak-Mount Base ordered separately (pgs C39-41)
Includes filler plates (FP) and/or equipment brackets (EB) to completely
enclose mounting area less internal mount options
See pgs C29-37 for optional console accessories
See pgs C21-27 for control head equipment brackets
•
•
•
•
•
•
10" 6 lbs.
C-AS-1025
10" Enclosed 25° Angled Series Console
10.5" high, 9" wide, 12" length, max. depth 10", min. depth 6.5".
Mounts to C-B series hump brackets ordered separately (pgs C46-
50) or any Trak-Mount Base ordered separately (pgs C39-41)
Includes filler plates (FP) and/or equipment brackets (EB) to completely
enclose mounting area less internal mount options
See pgs C29-37 for optional console accessories
See pgs C21-27 for control head equipment brackets
•
•
•
•
•
10" 6 lbs.
C-AS-1325
13" Enclosed 25° Angled Series Console
10.5" high, 9" wide, 15" length, max. depth 10", min. depth 5".
Mounts to C-B series hump brackets ordered separately (pgs C46-
50) or any Trak-Mount Base ordered separately (pgs C39-41)
Includes filler plates (FP) and/or equipment brackets (EB) to
completely enclose mounting area less internal mount options
See pgs C29-37 for optional console accessories
See pgs C21-27 for control head equipment brackets
•
•
•
•
•
13" 8 lbs.
C-AS-1525
15" Enclosed 25° Angled Series Console
10.5" high, 9" wide, 17" length, max. depth 10", min. depth 4.25".
Mounts to C-B series hump brackets ordered separately (pgs
C46-50) or any Trak-Mount Base ordered separately (pgs C39-41)
Includes filler plates (FP) and/or equipment brackets (EB) to
completely enclose mounting area less internal mount options
See pgs C29-37 for optional console accessories
See pgs C21-27 for control head equipment brackets
•
•
•
•
•
15" 9 lbs.
Consoles
By: Havis-Shields
ANGLED SERIES CONSOLES (AS SERIES)
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com C5

Equipment Brackets
and Filler Plates Console Accessories Trak-Mounts Computer Mounts Radio Trays
ANGLED SERIES CONSOLES
Part Number
Maximum
Equipment
Mounting
Area Weight
17" Enclosed 25° Angled Series Console
10.5" high, 9" wide, 19" length, max. depth 10", min. depth
3.25"
Mounts to C-B series hump brackets ordered separately
(pgs C46-50) or any Trak-Mount Base ordered separately
(pgs C69-41)
Includes filler plates (FP) and/or equipment brackets (EB) to
completely enclose mounting area less internal mount options
See pgs C29-37 for optional console accessories
See pgs C21-27 for control head equipment brackets
•
•
•
•
•
17" 9 lbs.
C-AS-1725
(Replaces P/N C-800-8D)
8" enclosed console for sedans
8" deep
Fits under the dash & in front of bench seats
Mounts directly to the vehicle floor or C-TM Trak-Mount Base
Includes filler plates (FP) and/or equipment brackets (EB) to completely
enclose mounting area less internal mount options
See pgs C21-27 for control head equipment brackets
•
•
•
•
•
•
8" 4 lbs.
C-AS-840-8
(Replaces P/N C-800-11D)
8" enclosed console for light trucks & SUV’s.
11" deep
Fits under the dash for bench seats
Mounts directly to the vehicle floor or C-TM Trak-Mount Base
Includes filler plates (FP) and/or equipment brackets (EB) to
completely enclose mounting area less internal mount options
See pgs C21-27 for control head equipment brackets
•
•
•
•
•
•
8" 5 lbs.
C-AS-840-11
Consoles
ANGLED SERIES CONSOLES (AS SERIES)
By: Havis-Shields
C6
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com

Equipment Brackets
and Filler Plates
Console AccessoriesTrak-MountsComputer MountsRadio Trays Consoles
By: Havis-Shields
ANGLED SERIES CONSOLES (AS SERIES)
Part Number Weight

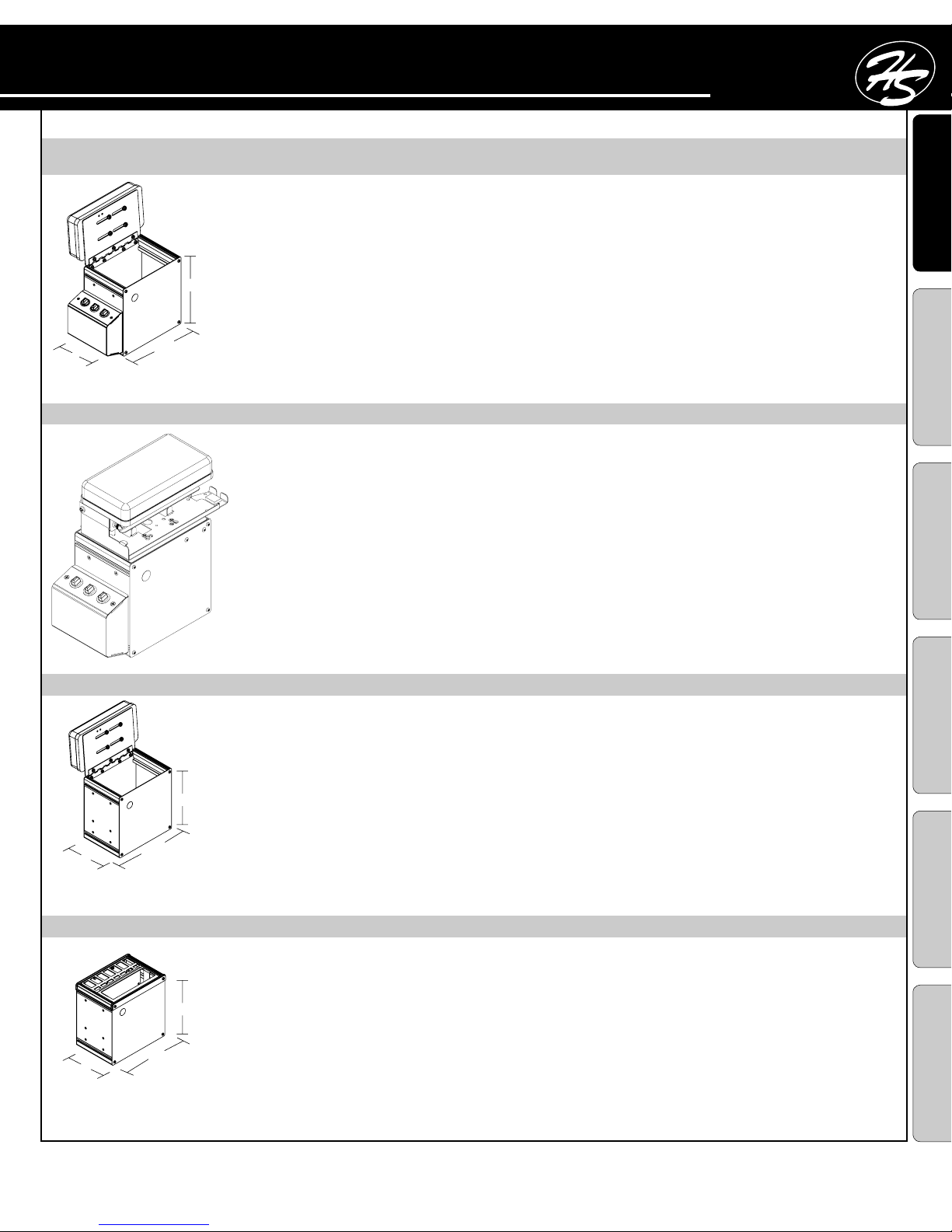

Combination Box w/ Hinged Armrest and (3) Lighter Plug Outlets
6" wide, 11.25" long (including lighter outlet box) x 9" deep, 2" thick molded rubber
armrest pad for comfort
The new design includes a modular (3) lighter outlet box with 15 amp in-
line fuse and wire harness included
16 gauge formed steel housing with extruded aluminum top frame
Designed to mount behind AS console to Trak-Mount base or to any flat
surface
No vehicle mounting kit required
Recommended for Trak-Mount mounting
Not recommended for weapon storage
•
•
•
•
•
•
•
7 lbs.
C-CB-1 COMBINATION BOXES
C-CB-2
Combination Box/Removable Hinged Armrest
6" wide, 9" long x 9" high, 2" thick molded rubber armrest pad for comfort
No lighter outlets
16 gauge formed steel housing with extruded aluminum top frame
Designed to mount behind AS console to Trak-Mount base or to any flat
surface
No vehicle mounting kit required
Recommended for Trak-Mount mounting
Not recommended for weapon storage
•
•
•
•
•
•
•
7 lbs.
C-CB-690
6" Console Combination Box Complete w/EB & FP
Designed to hold control heads that are too deep for AS series console
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
mounting area less internal mount options
16 gauge formed steel housing with extruded aluminum top frame
9" long, 9" high, 6" wide
Designed to mount behind AS console to Trak-Mount base or to any flat
surface
No vehicle mounting kit required
See pgs C29-37 for optional console accessories
•
•
•
•
•
•
•
6 lbs.
6”
9”
6”
9”
9”
6”
9”
9”
2" thick
molded pad
Optional C-SP-3"
Switch plate shown
C-CB-1-3610-ARM
Combination Box with Removable Hinged Arm Rest, Printer Mount,
and (3) Three Lighter Plug Outlets
6" wide x 9" deep x 13.5" high
Lighter outlets include 15 amp in-line fuse and wire harness
16 gauge formed steel housing with extruded aluminum top frame
Designed to mount behind AS console to Trak-Mount base or any flat
surface
No vehicle mounting kit required
Recommended for Trak-Mount mounting
•
•
•
•
•
•
7 lbs.
9”
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com C7

Equipment Brackets
and Filler Plates Console Accessories Trak-Mounts Computer Mounts Radio Trays
Cam style lock and key to secure equipment in combination boxes
Must be ordered separately
Not recommended for weapon storage
•
•
Consoles
ANGLED SERIES CONSOLES (AS SERIES)
By: Havis-Shields
C-CB-690-LP3
6" Console Combination Box & (3) 12 volt Lighter Outlets Complete w/EB & FP
Designed to hold control heads that are too deep for AS series console
Includes filler plates (FP) and/or equipment brackets (EB) to completely
enclose mounting area less internal mount options
Design includes a modular (3) lighter outlet box with 15 amp in-line fuse
and wire harness included
16 gauge formed steel housing with extruded aluminum top frame
11.25" long, 9" high, 6" wide
Designed to mount behind AS console to Trak-Mount base or to any flat
surface
No vehicle mounting kit required
See pgs C29-37 for optional console accessories
•
•
•
•
•
•
•
•
6 lbs.
Part Number Weight
6”
11.25”
9”
Optional C-SP-3"
Switch plate shown
C-CB-LOCK
Climate Control Mounting Platform & Radio Relocation Equipment Bracket for
1995-2008 Crown Victoria
Allows permanent computer monitor mounting on Crown Vic dash
without permanent modification of Ford OEM components
Provides a mounting surface for relocating the air conditioner system &
radio controls
Relocates the radio to all the AS Series 25° Consoles (ordered
separately)
Includes wire cover panels (pair) to conceal all wiring
C-WH-RCV 4’ Radio Extension Wire Harness available (see page C76)
•
•
•
•
•
3 lbs.
C-AS-CCP-RAD-CV CLIMATE CONTROL MOUNTING PLATFORM
Accessory box with (3) lighter plug outlets
6" wide x 2-5/8" deep x 5-7/16" high
Lighter outlets include 15 amp in-line fuse and wire harness
Manufactured from 16 gauge formed steel
Designed to mount on console or any flat surface
•
•
•
•
4 lbs.
C-AB-LP3 ACCESSORY BOX OPTIONS
Accessory box with (4) switches
6" wide x 2-5/8" deep x 5-7/16" high
On/Off black paddle type rocker switches with red pilot light
Manufactured from 16 gauge formed steel
Designed to mount on console or any flat surface
•
•
•
•
4 lbs.
C-AB-SW4
Accessory box with (3) lighter plug outlets and (4) switches
6" wide x 2-5/8" deep x 5-7/16" high
Lighter outlets include 15 amp in-line fuse and wire harness
On/Off black paddle type rocker switches with red pilot light
Manufactured from 16 gauge formed steel
Designed to mount on console or any flat surface
•
•
•
•
•
4 lbs.
C-AB-LP3-SW4
C8
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com

Equipment Brackets
and Filler Plates
Console AccessoriesTrak-MountsComputer MountsRadio Trays Consoles
By: Havis-Shields
ANGLED SERIES CONSOLES (AS SERIES)
CUP HOLDERS
Part Number Weight
Monitor Mounting Platform For 25° Angled Series Console
Horizontal top mounting surface for adding a monitor
Includes hardware for mounting to existing holes in top end of AS
Series console
16 gauge formed steel
Order monitor mount separately (see pgs C63-68)
Weight distributing bottom plate for added strength
•
•
•
•
•
3 lbs.
C-AS-MMP MONITOR MOUNTS & WIRE COVER PANELS
C-AS-MMP-CV
Monitor Mounting Platform & Wiring Cover Panel (Pair) for Crown Vic
Contoured wiring panels for 1995-2008 Ford Crown Vic
Horizontal top mounting surface for adding a monitor
Includes hardware for mounting to existing holes in top end of AS Series
console
16 gauge formed steel
Order monitor mount separately (see pgs C63-68)
Weight distributing bottom plate for added strength
•
•
•
•
•
•
3 lbs.
C-AS-MMP-IMP
Monitor Mounting Platform & Wiring Cover Panel (Pair) for Impala
Contoured wiring panels for 2000-2005 Chevrolet Impala
Horizontal top mounting surface for adding a monitor
Includes hardware for mounting to existing holes in top end of AS
Series console
16 gauge formed steel
Order monitor mount separately (see pgs C63-68)
Weight distributing bottom plate for added strength
•
•
•
•
•
•
3 lbs.
Dual External Cup Holder 25° Bend AS Series
Mounts externally flush to the rear of all 25º AS Series console
4” Long x 8.625” Wide x 3” Deep
Accepts cups up to 3.375” dia.
Replaces multiple cup holders, including the C-CHNY-2
•
•
•
•
3 lbs.
C-CUP2-E-AS
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com C9

Equipment Brackets
and Filler Plates Console Accessories Trak-Mounts Computer Mounts Radio Trays
Consoles
By: Havis-Shields
Part Number Weight
Wiring Cover Panel (Pair) for Crown Vic C-AS-1060
Panels contour to dashboard for custom appearance
Easily removed for wiring access and service
Modular design allows for transfer of console to different style vehicle
Mounts to existing holes in C-AS-1060 console only
Fits 1995-2008 Ford Crown Vic
•
•
•
•
•
3 lbs.
C-AS-WP-CV-1060 WIRE COVER PANELS
C-AS-WP-IMP-1060
Wiring Cover Panel (Pair) for Impala C-AS-1060
Panels contour to dashboard for custom appearance
Easily removed for wiring access and service
Modular design allows for transfer of console to different style vehicle
Mounts to existing holes in C-AS-1060 console only
Fits 2000-2005 Chevrolet Impala
•
•
•
•
•
3 lbs.
C-AS-WP-CV
Wiring Cover Panel (Pair) for Crown Vic 25° Angled Series Console
Panels contour to dashboard for custom appearance
Easily removed for wiring access and service
Modular design allows for transfer of console to different style vehicle
Mounts to existing holes in C-AS-1025, 1325, 1525 & 1725 consoles
Fits 1995-2008 Ford Crown Vic
•
•
•
•
•
3 lbs.
C-AS-WP-IMP
Wiring Cover Panel (Pair) for Impala 25° Angled Series Console
Panels contour to dashboard for custom appearance
Easily removed for wiring access and service
Modular design allows for transfer of console to different style vehicle
Mounts to existing holes in C-AS-1025, 1325, 1525 & 1725 consoles only
Fits 2000-2005 Chevrolet Impala
•
•
•
•
•
3 lbs.
ANGLED SERIES CONSOLES (AS SERIES)
C10
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com

Maplights with high-output hal-
ogen bulb and sliding red lens
shown with side mount option
(C-ML-MCB shown)
Laptop Computer Mounts
TM Series computer mounting
bracket for laptops and dock-
ing stations. Swivels 85° (C-3090-2
shown)
12V Power Outlets and Switch
Panels (C-LP-2 shown)
Unique “Slide Track” design
with extruded side rails makes
adding and positioning options
and accessories simple and
allows them to remain adjustable
Trak-Mount Base can be used
alone to mount equipment or
with a console to extend equip-
ment mounting area and mount
a mobile computer (C-TM-12 shown)
Wide-Diameter Internal and
External Cup Holders
(C-CHNY shown)
Vehicle Specific Heavy-Duty
Steel Hump Mount Brackets pro-
vide stability, a clean “trouble-free
fit” and easy installation because
they bolt to existing seat-mount-
ing holes and require no drilling
(C-B7 shown)
• Enclosed Series Consoles are the original Consolidator Consoles
• Over 100,000 units sold since 1993
• High-strength extruded aluminum frame
• Easy height adjustment and installation
• Simple, modular mounting kits
ENCLOSED CONSOLES
The original Consolidator — a proven benchmark
Enclosed Console (C-3011)
For more information on any of these products,
call 1.800.524.9900 or visit www.havis.com

Equipment Brackets
and Filler Plates Console Accessories Trak-Mounts Computer Mounts Radio Trays
9”
24”
10”
13”
9”
24”
10”
9”
30”
10”
13”
9”
30”
10”
Consoles
14"
32"
10"
ENCLOSED SERIES CONSOLES (C SERIES)
By: Havis-Shields
ENCLOSED SERIES CONSOLES
ENCLOSED SERIES CONSOLES FOR APPLICATIONS
WITH LIMITED SPACE
Vehicle mounting brackets are included and are vehicle specific. See our
vehicle application chart (pages 7-10)
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
mounting area less internal mount options
See pgs. C20-28 for control head equipment brackets
Available in the following lengths: 8", 10", 12", 14" and 18"
*C-1200, C-1400, and C-1800 models are available in a low-profile design
(3.125" high x 9" wide). Add "-LP" at the end of the part number.
•
•
•
•
•
8”
9”
6.375”
6.375”
10”
9”
6.375”
12”
9”
6.375”
14”
9”
6.375”
18”
9”
Part
Number
Console
Length
Max. Equipment
Mounting Area Weight
C-800 8" 8" 5 lbs
C-1000 10" 10" 5 lbs.
C-1200 12" 12" 5 lbs.
C-1200LP 12" 12" 5 lbs.
C-1400 14" 14" 6 lbs.
C-1400LP 14" 14" 6 lbs.
C-1800 18" 18" 7 lbs.
C-1800LP 18" 18" 7 lbs.
ENCLOSED SERIES CONSOLES FOR CHEVROLET IMPALA
Vehicle mounting brackets are included and are vehicle specific. See our
vehicle application chart (pages 7-10)
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
mounting area less internal mount options
See pgs. C20-28 for control head equipment brackets
Available in the following lengths: 10", 12", 14" and 18"
•
•
•
•
Part Number Console
Length
Max. Equipment
Mounting Area Weight
C-1000-IMP 10" 10" 5 lbs.
C-1200-IMP 12" 12" 5 lbs.
C-1400-IMP 14" 14" 6 lbs.
C-1800-IMP 18" 18" 7 lbs.
C-800 C-1000 C-1200* C-1400* C-1800*
6.375”
12”
9”
8.375”
8.375”
6.375”
14”
9”
8.375”
6.375”
18”
9”
6.375”
1”
9”
8.375”
0
C-1000-IMP C-1200-IMP C-1400-IMP C-1800-IMP
Part
Number
Console
Length
Max. Equipment
Mounting Area Weight
C-2410 24" 24" 18 lbs.
C-3010 30" 30" 18 lbs.
C-3201 32" 19" (includes 13" x 9"
carpeted storage box) 18 lbs.
LIGHT AND MEDIUM TRUCK CONSOLES (SUV & FULL SIZE ONLY)
Vehicle mounting brackets are included and are vehicle specific. See our
vehicle application chart (pages 7-10)
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
mounting area less internal mount options
See pgs. C20-28 for control head equipment brackets
See pg. 36 for accessory pockets to add to consoles
•
•
•
•
C-2410 C-2410
C-AP-1395
C-3010 C-3011
C-AP-1395
C-3201
C12
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com

Equipment Brackets
and Filler Plates
Console AccessoriesTrak-MountsComputer MountsRadio Trays Consoles
By: Havis-Shields
ENCLOSED SERIES CONSOLES (C SERIES)

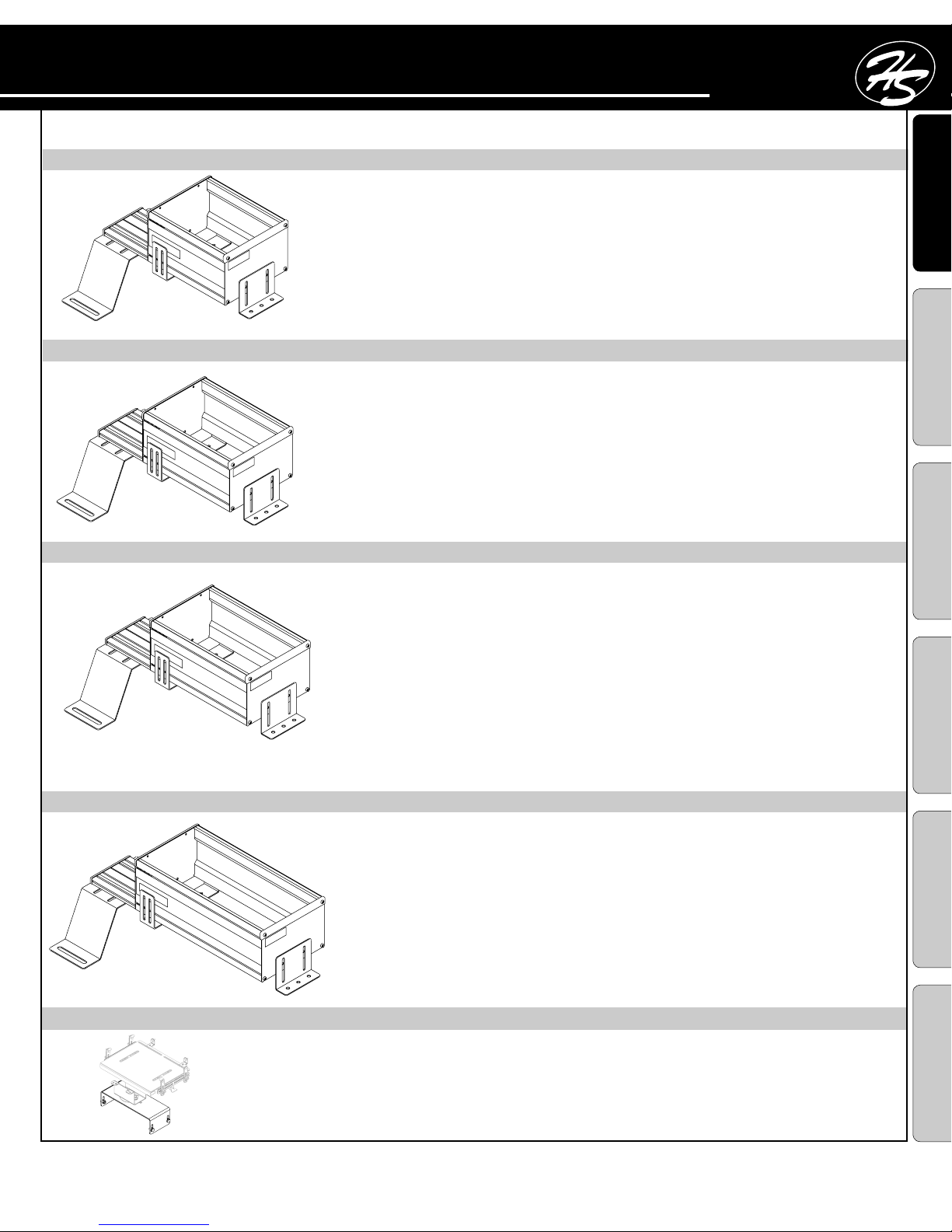

CONSOLES TRAK-MOUNT COMBO
Part Number Weight
C-1000TM, 10" Console with 12" Trak Mount Extrusion & Mounting Brackets.
C-1000TM-IMP, 10" Console with 12" Trak Mount Extrusion & Mounting Brackets for
Impala. "-IMP" model housing is 8.375" wide at bottom to fit between bucket seats.
See enclosed console page C12 for dimensions and specs
•
•
•8 lbs.
C-1000TM, C-1000TM-IMP
C-1200TM, 12" Console with 12" Trak Mount Extrusion & Mounting Brackets.
C-1200TM-IMP, 12" Console with 12" Trak Mount Extrusion & Mounting Brackets for
Impala. "-IMP" model housing is 8.375" wide at bottom to fit between bucket seats.
See enclosed console page C12 for dimensions and specs
•
•
•8 lbs.
C-1200TM, C-1200TM-IMP
C-1000TM Shown
C-1200TM Shown
C-1400TM, 14" Console with 12" Trak Mount Extrusion.
C-1400TM-IMP, 14" Console with 12" Trak Mount Extrusion & Mounting Brackets for
Impala. "-IMP" model housing is 8.375" wide at bottom to fit between bucket seats.
See enclosed console page C12 for dimensions & specs.
•
•
•
9 lbs.
C-1400TM, C-1400TM-IMP
C-1800TM, 18" Console with 12" Trak Mount Extrusion.
C-1800TM-IMP, 18" Console with 12" Trak Mount Extrusion & Mounting Brackets for
Impala. "-IMP" model housing is 8.375" wide at bottom to fit between bucket seats.
C-1800TM-LP, 18" Low Profile Console with 12" Trak Mount Extrusion & Mounting
Brackets. "-LP" model housing is 4" high to sit flush with top of seats. Great for mounting
two-piece, remote style control heads.
See enclosed console pages C12 for dimensions & specs.
•
•
•
•
C-1800TM, C-1800TM-IMP, C-1800TM-LP
10 lbs.
C-1800TM Shown
C-1400TM Shown
9" Bracket Slide Rail
Allows computer mounts to be mounted over top of all 9" consoles
See computer mounts on pages C67-68
•
•1 lb.
C-3083-1 9" BRACKET SLIDE RAIL
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com C13

Console Installed in Chevrolet Tahoe (C-VS-1200-GM)
• Precision laser-cut steel fits every contour of your OEM interior
• Attaches directly to or replaces existing OEM console mounts for
easy installation
• No modification to vehicle is required, which helps maintain resale value
• Over 500 control head specific mounting brackets to choose from
• Supports covert look for undercover professionals and chief vehicles
Ford E-Series Van Dodge Durango Chevrolet Tahoe Ford Expedition Dodge Charger
VEHICLE-SPECIFIC APPLICATIONS
VEHICLE-SPECIFIC CONSOLES
Custom look for half the cost
2006-2007 Ford Explorer (C-VS-1600-EXPL)
• Easy Installation— attaches
directly to OEM console
• Ideal for Limited Amount of
control heads or equipment
• Perfect Unit to complete
the undercover and covert
operations vehicle
• Custom Fit and Appearance
• No Permanent vehicle
modification required
2006-2007 Chevrolet Impala
(C-VS-1000-IMP-1)
For more information on any of these products,
call 1.800.524.9900 or visit www.havis.com

Equipment Brackets
and Filler Plates
Console AccessoriesTrak-MountsComputer MountsRadio Trays Consoles
By: Havis-Shields
VEHICLE SPECIFIC CONSOLES (VS SERIES)
Part Number
C-VS-WP-DUR
Wiring Cover Panel for Durango C-VS-3011-DUR & C-TM-DUR
(optional w/ C-VS-3011-DUR, standard w/ C-TM-DUR)
Panels contour to dashboard for custom appearance
Covers under dash area after OEM console is removed
Easily removed for wiring access and service
Modular design allows for transfer of console to newer vehicle
Fits 2004 -2008 Dodge Durango
•
•
•
•
•
3 lbs.
8" Under Dash Console For 1995-2008 Ford Crown Victoria
Uses existing side tray brakcets from ashtray
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting
area less internal mount options
Used to mount remote type control heads (limited depth)
Must be ordered separately: HVAC control relocation bracket (P/N C-EB40-ACV-1P),
AM/FM relocation bracket (P/N C-EB40-RCV-1P)
Relocates lighter plug and trunk release to the side
No vehicle mounting kit required
See console appendix (page C82) for mounting depth allowed for control heads and/or
options.
•
•
•
•
•
•
•
C-VS-800-CV
7" Console for 2004-2008 Dodge Durango
Mounts over top of factory OEM console without modification
Approx. 6" of depth for control heads
No vehicle mounting kit required
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
mounting area less internal mount options
See pgs C20-28 for control head equipment brackets
•
•
•
•
•
C-VS-700-DUR
7" 3 lbs.
12" console for 2004-2008 Dodge Durango
Replaces top of factory OEM console without permanent modification
7" maximum depth near the front of the console and maximum 5" depth near the
rear with varying equipment restrictions on the sides
No vehicle mounting kit required
12" maximum equipment mounting area
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
mounting area less internal mount options
Includes a C-EB15-DUR-1P face plate for the OEM switch and 12 volt socket
See pgs C20-28 for control head equipment brackets
•
•
•
•
•
•
•
C-VS-1200-DUR
For 2004-2008 Dodge Durango
Includes 30" console with 13" x 9" carpeted storage compartment and
armrest mount assembly
OEM armrest pad is removed and mounted over storage compartment
Includes C-M-5 Vehicle Mounting Kit (2 C-B1 Bail Brackets)
Includes filler plates (FP) and/or equipment brackets (EB) to completely
enclose mounting area less internal mount options
Must order C-TM-DUR Trak-Mount assembly separately (see page C39)
See pgs C20-28 for control head equipment brackets
•
•
•
•
•
•
C-VS-3011-DUR
Shown without OEM
armrest installed
Maximum Equipment
Mounting Area
7" 3 lbs.
12" 5 lbs.
17" 19 lbs.
Weight
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com C15

Equipment Brackets
and Filler Plates Console Accessories Trak-Mounts Computer Mounts Radio TraysConsoles
VEHICLE SPECIFIC CONSOLES (VS SERIES)
By: Havis-Shields
Part Number
7" Console for 2002-2005 Ford Explorer
Mounts over top of factory OEM console without modification
Approx. 7" of depth for control heads
No vehicle mounting kit required
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
mounting area less internal mount options
See pgs C20-28 for control head equipment brackets
See below for 2006 Ford Explorer
•
•
•
•
•
•
C-VS-700-EXPL
12" Console for 2002-2005 Ford Explorer
2005 Explorer requires that removal of OEM Traction Control Switch and relocate it
into console equipment bracket included with console (p/n C-EB-15-EXP-1P)
HVAC block off plate included prevents warm/cold air from blowing into the bottom
of installed radios
Replaces top of factory OEM console without permanent modification
Includes two lighter plug outlets
6.75" maximum depth near the front of the console
No vehicle mounting kit required
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
mounting area less internal mount options
See pgs C20-28 for control head equipment brackets
See below for 2006 Ford Explorer
•
•
•
•
•
•
•
•
•
C-VS-1200-EXPL
7”
9”
9" 12"
16" Console for 2006-2008 Ford Explorer and 2007-2008 Ford Sport Trac
Replaces top of factory OEM console without permanent modification
Includes gear shift cover plate with (2) lighter plug outlets & cup holder
10" maximum depth near the front of console 5" minimum (see side view)
No vehicle mounting kit required
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
mounting area less internal mount options
C-TCB-7 Telescoping computer base recommended, C-TCB-26 also fits
See console appendix (page C82) for mounting depth allowed for control heads
and/or options
•
•
•
•
•
•
•
C-VS-1600-EXPL
10” Under Dash Console 2006-2008 Chevrolet Impala
Easy to install
No permanent modification required
C-B43 hump mount bracket (no holes drilled) included
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
mounting area less internal mount options
•
•
•
•
C-VS-1000-IMP-1
10" 5 lbs.
Maximum Equipment
Mounting Area
7" 3 lbs.
16" 16 lbs.
12" 5 lbs.
C-VS-1000-IMP-1-TM
10” Under Dash Console with 30” Trak Mount Extrusion for 2006-2008
Chevrolet Impala
Easy to install
No permanent modification required
C-B43 hump mount bracket and C-B42 rear support bracket included
30” long two-tier Trak-Mount (18”L front x 12”L rear x 2”H rise)
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
the console mounting area less internal mount options
•
•
•
•
•
10" 8 lbs.
Weight
C16
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com

Equipment Brackets
and Filler Plates
Console AccessoriesTrak-MountsComputer MountsRadio Trays
24" Console for 2006-2008 Dodge Charger and 2005-2007 Magnum
Replaces factory OEM console without permanent modification
8" maximum depth at rear and 4.75" minimum at the front of the console
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
mounting area less internal mount options
Provides more space for long one piece control heads
See console appendix (page C82) for mounting depth allowed for control heads
and/or options
•
•
•
•
•
C-VS-2400-CHGR
Consoles
10” Console for 2007-2008 Yukon/Tahoe and Suburban/Yukon XL and
Sierra/Silverado Pickup New Body Style
Replaces top of factory OEM console without permanent modification
7” of depth at front, 6.25” depth at rear for control heads
Does not work with 40/20/40 bench seat
No vehicle mounting kit required
Includes two (2) 12 volt sockets (one each side)
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
the console mounting area less internal mount options.
OEM lower dash switches to be re-used and adapted to side of console
See pgs C20-28 for control head equipment brackets
•
•
•
•
•
•
•
•
By: Havis-Shields
VEHICLE SPECIFIC CONSOLES (VS SERIES)
Part Number Weight
Fits 2004-2007 Ford F-150 Series Pick-Up with optional bucket
seats and OEM console only
Mounts in accessory pocket under OEM arm rest
Easy to install
No permanent modification required
No vehicle mounting kit required
7.5" maximum depth
Includes filler plates (FP) and/or equipment brackets (EB) to completely
enclose mounting area less internal mount options
See pgs C20-28 for control head equipment brackets
•
•
•
•
•
•
•
11" 5 lbs.
C-VS-1100-F150
Fits 2003-2006 Ford Expedition with OEM console only
Easy to install
Includes 2" change tray at back end of cover plate
No permanent modification required
No vehicle mounting kit required
7.5" maximum depth
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
mounting area less internal mount options
See pgs C20-28 for control head equipment brackets
•
•
•
•
•
•
•
C-VS-1200-EXPD
12" Console for 2003-2007 Sierra/Silverado Classic Body Style P/U’s, 2003-
2006 Yukon/Tahoe, and Yukon XL/Suburban SUV’s with bucket seats and
OEM floor console
Replaces top of factory OEM console without permanent modification
Does not work with 40/20/40 bench seat
No vehicle mounting kit required
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose
mounting area less internal mount options
See pgs C20-28 for control head equipment brackets
•
•
•
•
•
C-VS-1200-GM
12”
9”
Maximum Equipment
Mounting Area
12" 5 lbs.
12" 5 lbs.
24" 14 lbs.
C-VS-1000-TAH
10" 4 lbs.
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com C17

Equipment Brackets
and Filler Plates Console Accessories Trak-Mounts Computer Mounts Radio Trays

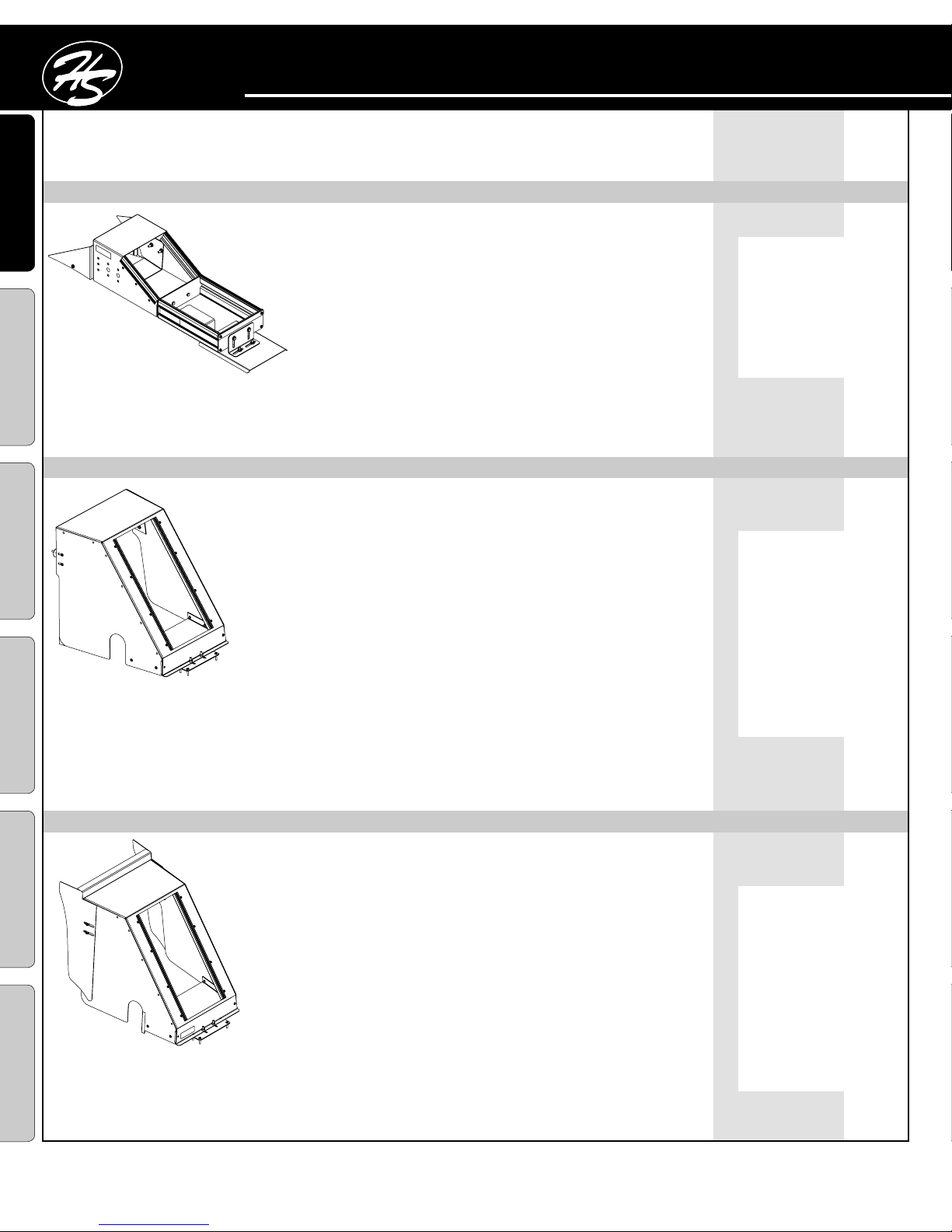

C-VS-1800-SAV
18" Vehicle Specific Console for ‘02 - 08 Chevy Savanna Van Model
Easy to install
No permanent modification required
Vehicle mounting kit included
16 gauge formed steel housing with extruded aluminum top frame
Includes filler plates (FP) and/or equipment brackets (EB) to completely
enclose mounting area less internal mount options
See pages C20-28 for control head equipment brackets
Measurements:
Height = 19"
Width at Engine Cover = 17"
Width at Face (controls) = 13.5"
Depth for controls top = 9" middle = 12" bottom = 4"
Console Top Platform = 8.5" x 13.5" wide (tapers out to 17")
Extends out from Engine cover at floor = 20"
55° Angle
Ships motor freight when ordering 2 or more
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
18" 28 lbs.
20" Console for 2006-2008 Dodge Charger and 2005-2007 Magnum
Replaces factory OEM console without permanent modification
8" high x 9" wide x 20" long
8" L equipment bracket space-front model (C-SM-830), 12" L equipment
bracket space-rear model (C-SM-1200). See Stout Mount section on page
C2 for console dimensions (C-SM-830 and C-SM-1200)
Reduces height between seats
Designed to accept SM Series computer mount options and most standard
accessories such as armrests (C-AP accessory pocket does not fit)
Includes filler plates (FP) and/or equipment brackets (EB) to completely
enclose mounting area less internal mount options
See console appendix (page C82) for mounting depth allowed for control
heads and/or options
•
•
•
•
•
•
•
C-VS-0812-CHGR
Consoles
VEHICLE SPECIFIC CONSOLES (VS SERIES)
By: Havis-Shields
Part Number Weight
18" Vehicle Specific Console for ‘04-’08 Ford Econoline Van Model E-250/E-350
Easy to install
No permanent modification required
Designed to mount to vehicle floor surface
No vehicle mounting kit required
14 gauge formed steel housing with extruded aluminum top frame
Includes filler plates (FP) and/or equipment brackets (EB) to completely enclose mounting
area less internal mount options
See pgs C20-28 for control head equipment brackets
Measurements:
Height = 19"
Width at Engine Cover = 17"
Width at Face (controls) = 13.5"
Depth for controls top = 9" middle = 12" bottom = 4"
Console Top Platform = 8.5" x 13.5" wide (tapers out to 17")
Extends out from Engine cover at floor = 20"
55° Angle
Ships motor freight when ordering 2 or more
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
C-VS-1800-ECO
18" 28 lbs.
20" 14 lbs.
Maximum Equipment
Mounting Area
C18
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com

Equipment Brackets
and Filler Plates
Console AccessoriesTrak-MountsComputer MountsRadio Trays
CONSOLIDATOR®: OEM DOUBLE CONSOLES (C-D SERIES)
CONSOLIDATOR®: OEM DOUBLE CONSOLES (C-D SERIES) OPTIONS & ACCESSORIES
Consoles
By: Havis-Shields
Part Number
Maximum
Equipment
Mounting
Area Weight
Double 23" Console with Mounting
Total 46" enclosed console
Includes vehicle mounting brackets, includes filler plates (FP)
and/or equipment brackets (EB) to completely enclose mounting
area less internal mount options
17.8" wide x 23" long
Specify Vehicle: (example: C-D2300-FL1)
FL1 = 2004-2006 Freightliner Model M-2
ST1 = 2004-2006 Sterling Model new Advanced Acterra
IN1 = 2004-2006 International DuraStar models 4100, 4300 &
4400 and WorkStar models 7300, 7400, 7500, 7600 & 7700
See page C58 for heavy-duty computer mounts
•
•
•
•
•
•
•
•
Double 23"
(Total 46")
32 lbs.
C-D2300-_ _ _
OEM DOUBLE CONSOLES (C-D SERIES)
Double 23" Console with Mounting and V-Mux Control Panel Bracket
Total 30" enclosed console with V-Mux control panel bracket top mounted
Includes vehicle mounting brackets, includes filler plates (FP) and/or
equipment brackets (EB) to completely enclose mounting area less internal
mount options
17.8" wide x 23" long
Specify Vehicle: (example: C-D1510-FL1)
FL1 = 2004-2006 Freightliner Model M-2
ST1 = 2004-2006 Sterling Model new Advanced Acterra
IN1 = 2004-2006 International DuraStar models 4100, 4300 &
4400 and WorkStar models 7300, 7400, 7500, 7600 & 7700
See page C58 for heavy-duty computer mounts
•
•
•
•
•
•
•
•
Double 15"
(Total 30")
32 lbs.
C-D1510-_ _ _
Double Series Accessory Pocket Rear External Mount for C-D Series
10" high x 17.8" wide x 10" deep•
C-D-AP
13 lbs.
Double Series Accessory Pocket File Storage External Mount for C-D Series
10" high x 17.8" wide x 10" deep•
C-D-AP-FS
15 lbs.
Double Series Accessory Pocket with Pivoting Latching Lid Rear External Mount for
C-D Series
Protects equipment
10" high x 17.8" wide x 10" deep
•
•
C-D-AP-L
15 lbs.
Double Series Accessory Pocket File Storage with Pivoting Latching Lid External Mount for
C-D Series
Protects equipment
10" high x 17.8" wide x 10" deep
•
•
C-D-AP-FS-L
17 lbs.
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com C19

Consoles Console Accessories Trak-Mounts Computer Mounts Radio Trays
Equipment Brackets
and Filler Plates

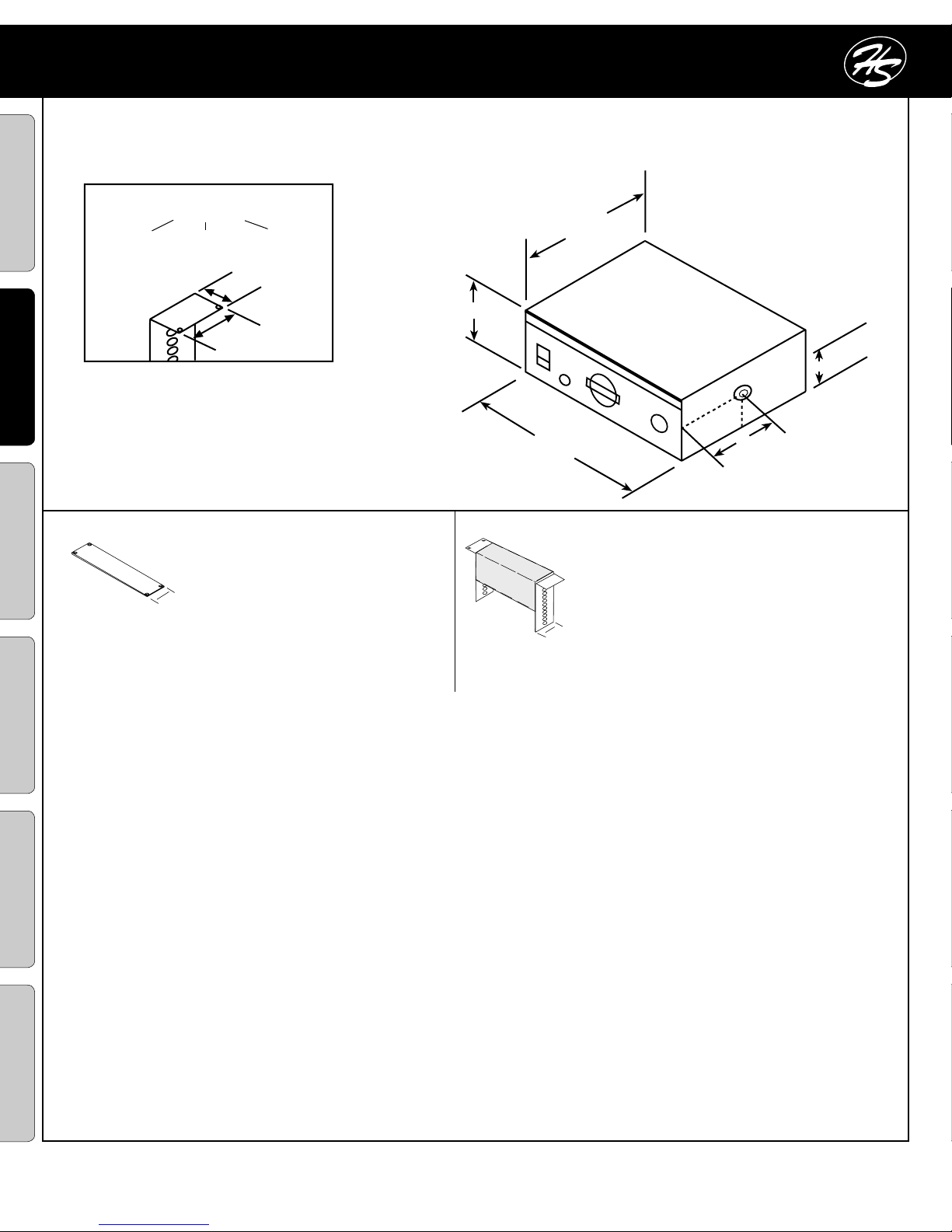

C-Series Two-Piece Equipment Brackets
Bracket Legend
EB - 20 - 150
"Equipment
Bracket"
2" High 1-1/2" Bend
1-1/2"
2"
Measuring for Equipment Brackets
If the equipment bracket that you need is not
listed in this section, provide the width, height,
depth, and measurements "A" & "B" from the
illustration at right.
width
height
depth
"A"
"B"
EQUIPMENT MOUNTING BRACKETS
Replacement Filler Plates and Equipment Brackets
C-FP-05 1/2" Filler Plate
C-FP-1 1" Filler Plate
C-FP-15 1-1/2" Filler Plate
C-FP-2 2" Filler Plate
C-FP-25 2-1/2" Filler Plate
C-FP-3 3" Filler Plate
C-FP-35 3-1/2" Filler Plate
C-FP-4 4" Filler Plate
C-FP-5 5" Filler Plate
C-FP-6 6" Filler Plate
C-FP-8 8" Filler Plate
C-FP-10 10" Filler Plate
C-FP-25 shown
2-1/2"
Two Piece Equipment Brackets
C-EB15-_ _ _ 1-1/2" Equipment Bracket
C-EB20-_ _ _ 2" Equipment Bracket
C-EB25-_ _ _ 2-1/2" Equipment Bracket
C-EB30-_ _ _ 3" Equipment Bracket
C-EB35-_ _ _ 3-1/2" Equipment Bracket
C-EB40-_ _ _ 4" Equipment Bracket
C-EB45-_ _ _ 4-1/2" Equipment Bracket
2-1/2"
Pair of 2-1/2" Equipment
Brackets shown
C20
Contact us at:
Ph: 800.524.9900 or 215.957.0720 Fax: [phone]
E-mail: [email protected] Web: www.havis.com
