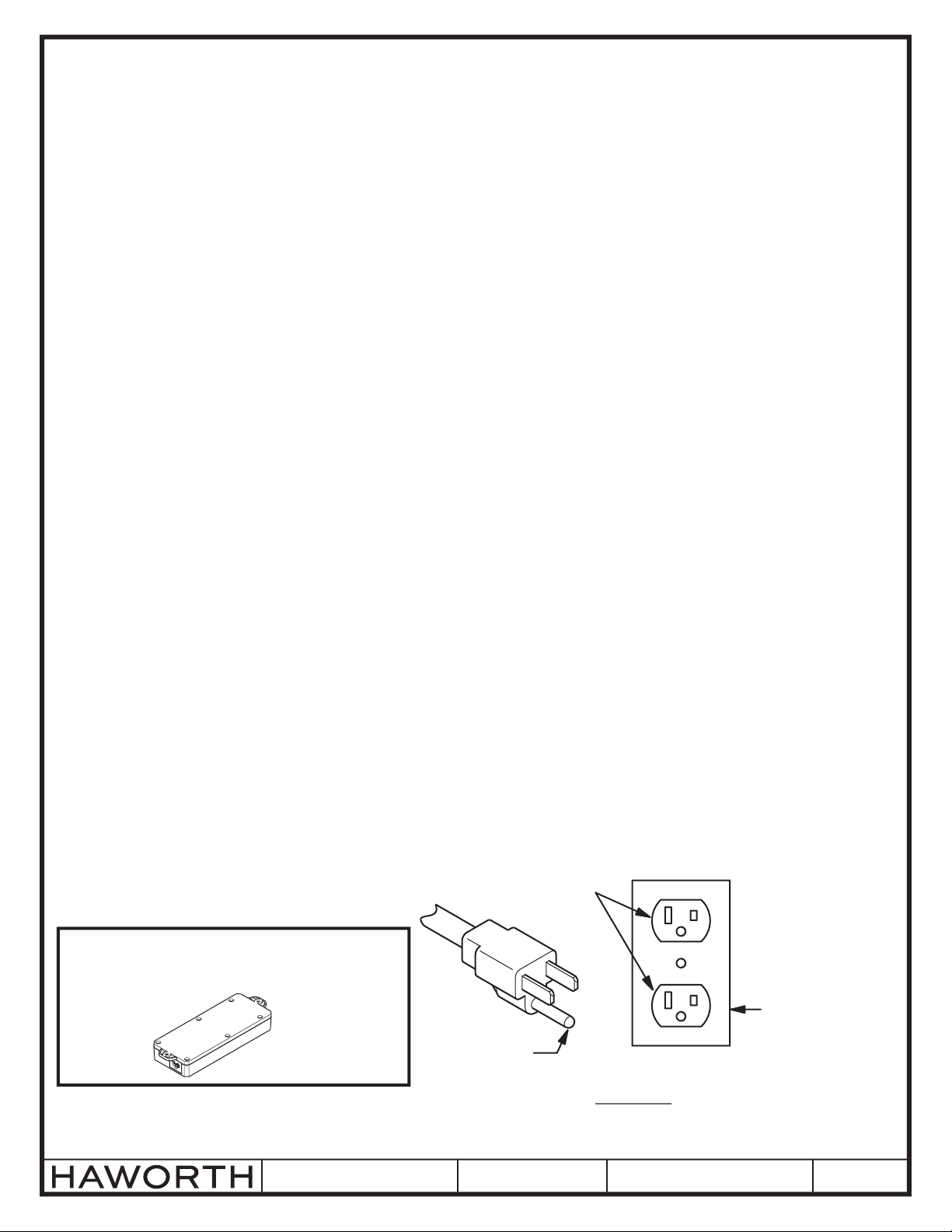

Haworth UPSIDE Series User manual

GROUNDED
OUTLET
GROUNDED
OUTLET BOX
GROUNDED
FIGURE 1
PIN
Max Static Load: 250 lbs (includes weight of worksurface)
IMPORTANT SAFETY INSTRUCTIONS
For use with UPSIDE Electric Height Adjustable Tables, 2 Leg
For Commercial Use Only
This product conforms to UL962 and is certied to CAN/CSA C22.2 No. 68.
When using an electrical furnishing, basic precautions should always be followed, including the following:
Read all instructions before using this table.
DANGER- To reduce the risk of electric shock:
1. Always unplug this furnishing from the electrical outlet before cleaning or servicing
WARNING- TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
1. Unplug from outlet before putting on or taking o parts.
2. Close supervision is necessary when this furnishing is used by, or near children, invalids, or disabled persons.
3. Use this furnishing only for its intended use as described in these instructions. Do not use attachments not recom-
mended by the manufacturer.
4. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water. Return the furnishing to a service center for examination and repair.
5. Keep the cord away from heated surfaces.
6. Do not use outdoors.
7. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
8. To disconnect, turn all controls to the o position, then remove plug from outlet.
9. WARNING: RISK OF ELECTRIC SHOCK - CONNECT THIS FURNISHING TO A PROPERLY GROUNDED
OUTLET ONLY. SEE GROUNDING INSTRUCTIONS.
SAVE THESE INSTRUCTIONS
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for
electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
DANGER- Improper connection of the equipment-grounding conductor can result in a risk of electric shock.
Check with a qualied electrician or serviceman if you are in doubt as to whether the product is properly grounded.
Do not modify the plug provided with the product - if it will not t the outlet, have a proper outlet installed by a
qualied electrician.
This product is for use on a nominal 120-volt circuit and has a grounding plug that looks like the plug illustrated in Figure 1.
Make sure that the product is connected to an outlet having the same conguration as the plug. No adapter should be used
with this product.
Electrical Rating:
120V, 60Hz, 6.25A for Upside Standard 2 leg tables
120V, 60Hz, 6A for Upside Value 2 leg tables
Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 1 of 26 6100-0110

S201
2 of 26
Tools Required
Height Adjustable Tables, 2 Leg
Installation Instructions
UPSIDE®
#2
Scale 1 : 1
011/2
1/4 1/4
3mm
4mm
#2
13mm
A
S200
S209
S202
S201
S206
S200
B
B
H
H1 C
D
F
G
J
D
E
E.C.O. No: Rev:
Part No:
Page:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
(S-90) 3mm
M6 X 8mm Set Screw
M6 X 10mm Button Head
(S200) 4mm
M4 - 30mm Pan Head Screw
(S206)
(S209)
M6 X 14mm Button Head
4mm
(S201)
M5 X 20mm Pan Head Screw
(S202)
M5 X 16mm Pan Head Screw
H1

S200
3 of 26
A
D
D
B
H
1
2
Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
3
3
2
1
2
1
A
IMPORTANT!
INSTALL CHANNEL (H1)
AS SHOWN! - SLOT
FACING IN AND NOTE
POSITION OF LONG
TAB!
IMPORTANT!
INSTALL SCREWS (S200)
LOOSELY!
M6 X 10mm Button Head
(S200) 4mm
M6 X 10mm Button Head
(S200) 4mm
LONG TAB
H1
S200
1
3
3
TIGHTLOOSE
IMPORTANT!
TIGHTEN ALL 12
SCREWS (S200)!
TIGHT
2
S200
S200
H1

4 of 26
3A
3B
S201
Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
OR
OR
(S201)
M5 X 20mm Pan Head Screw
FOR T-LEG BASE (2 SCREWS)FOR C-LEG BASE (3 SCREWS)
Y
DD
X
C-Style
576
42
70 -
305 MAX.
WORKSURFACE (mm)
D
Y
X
C-Style
728
88
70 -
305 MAX.
T-Style
576
51
70 -
305 MAX.
T-Style
728
127
70 -
305 MAX.
C-Style
22-11/16
1-5/8
2-3/4 -
12 MAX.
WORKSURFACE (inches)
D
Y
X
C-Style
28-11/16
3-7/16
2-3/4 -
12 MAX.
T-Style
22-11/16
2
2-3/4 -
12 MAX.
T-Style
28-11/16
5
2-3/4 -
12 MAX.
Y
X
NOTE: Use bracket (B)
as template and predrill
holes.
1/4”
1/8”
Drill

5 of 26
5
Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110

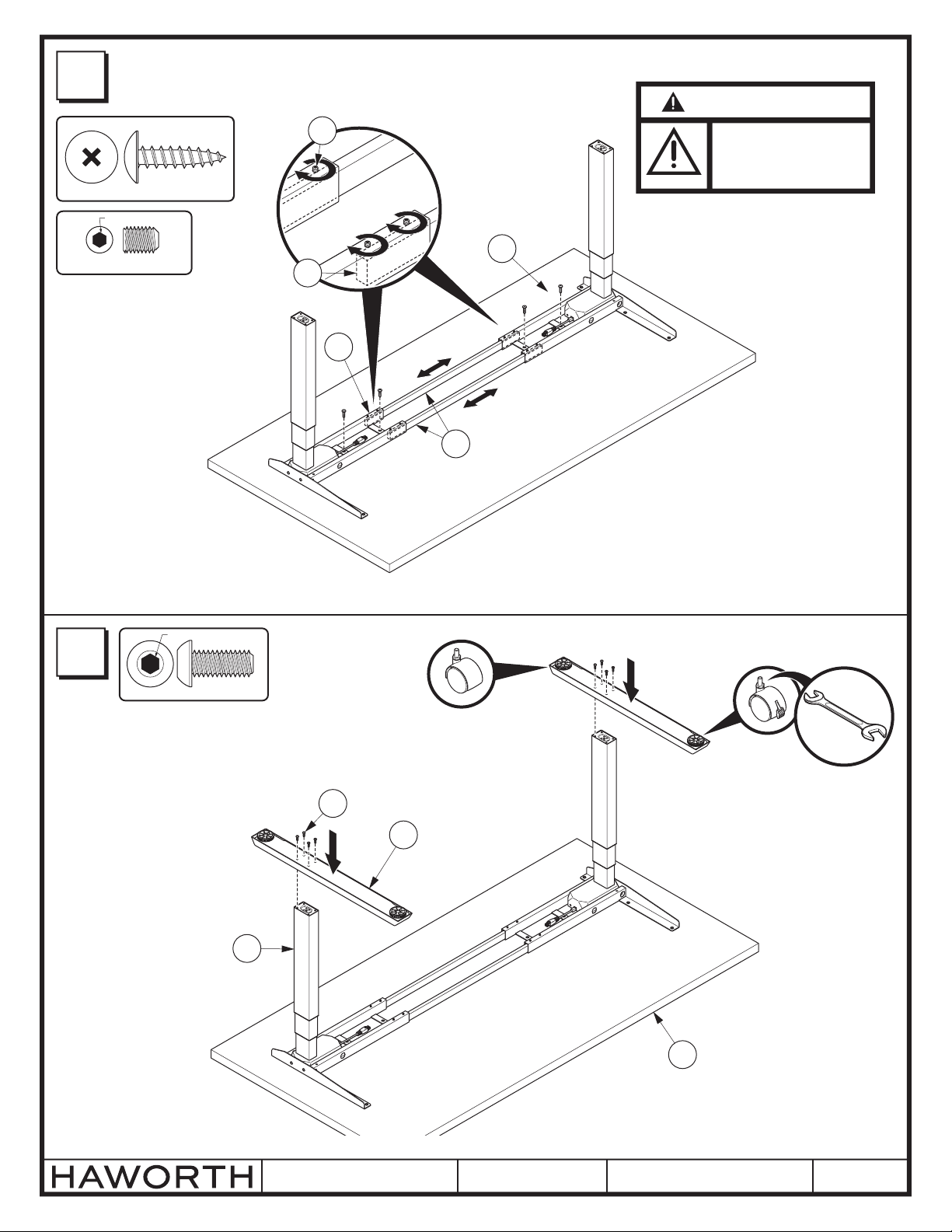

D
A
E
S209
(S-90) 3mm
M6 X 8mm Set Screw
(S209)
M6 X 14mm Button Head
4mm
S-90
4
S201
IMPORTANT!
MAKE SURE
SETSCREWS (S-90)
ENGAGE RAILS (H1)
H
H1
H1
(S201)
M5 X 20mm Pan Head Screw
NON-LOCKING CASTER
LOCKING CASTER
NOTE: Casters are Optional
and ordered separately.

6 of 26 Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
IMPORTANT!
MAKE SURE CONTROL BOX (F)
IS FIRMLY ATTACHED TO THE
WORKSURFACE!
A
F
F
6
S202
S202
F
F
G
G
J
D
OR
NOTE: For frame (H) less than 46 inches wide
mount control module (F) outside of frame
(H) as shown.
H
IMPORTANT!
PLUG IN CABLE (D)
INSTALL SCREWS (S202)
INSTALL CABLE (J)
1
2
3
1
2
3
J
(S202)
M5 X 16mm Pan Head Screw
(S202)
M5 X 16mm Pan Head Screw
46” AND SMALLER

7 of 26 Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110

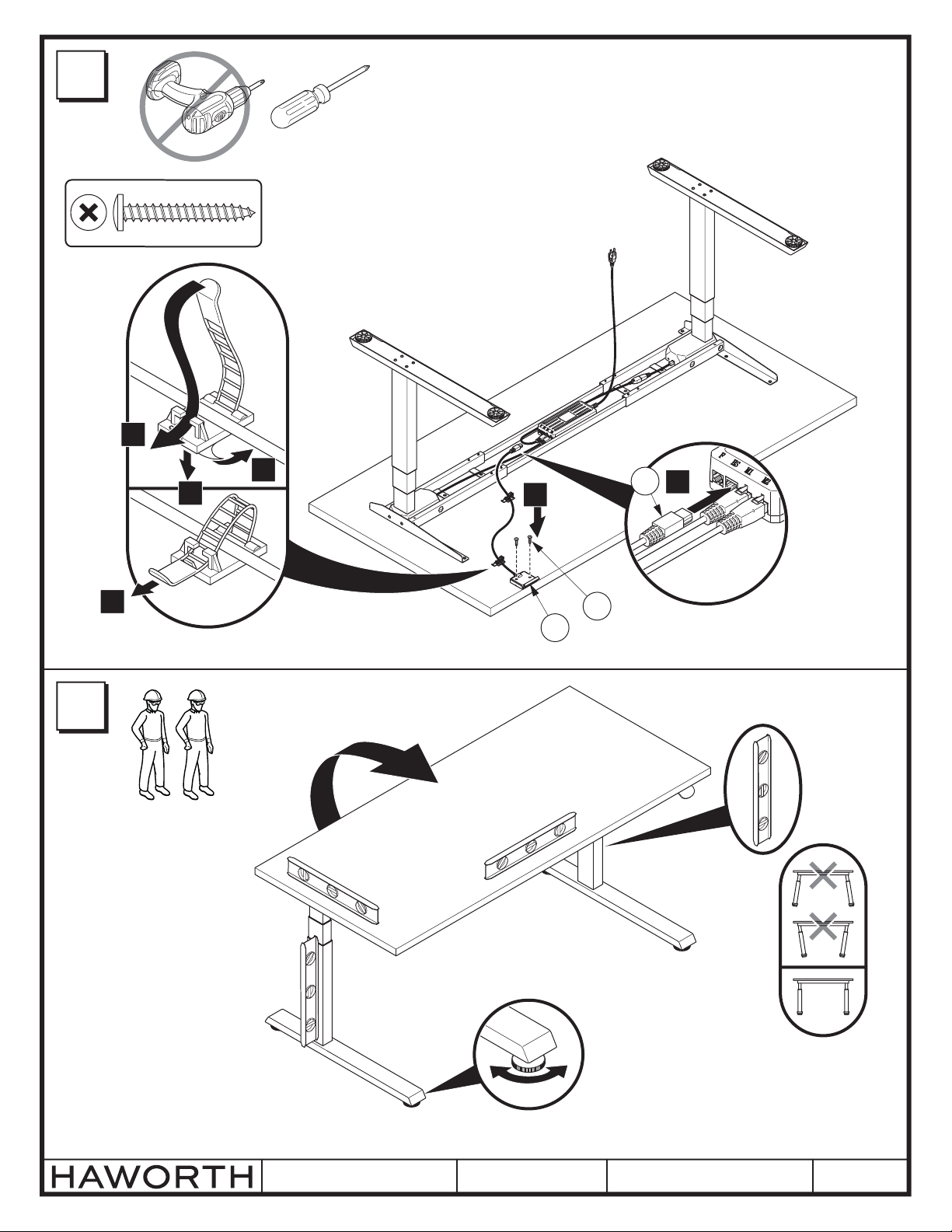

7
S206
C
C1
2
3
4
5
6
M4 - 30mm Pan Head Screw
(S206)
8
FLIP TABLE OVER

Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
1
8 of 26

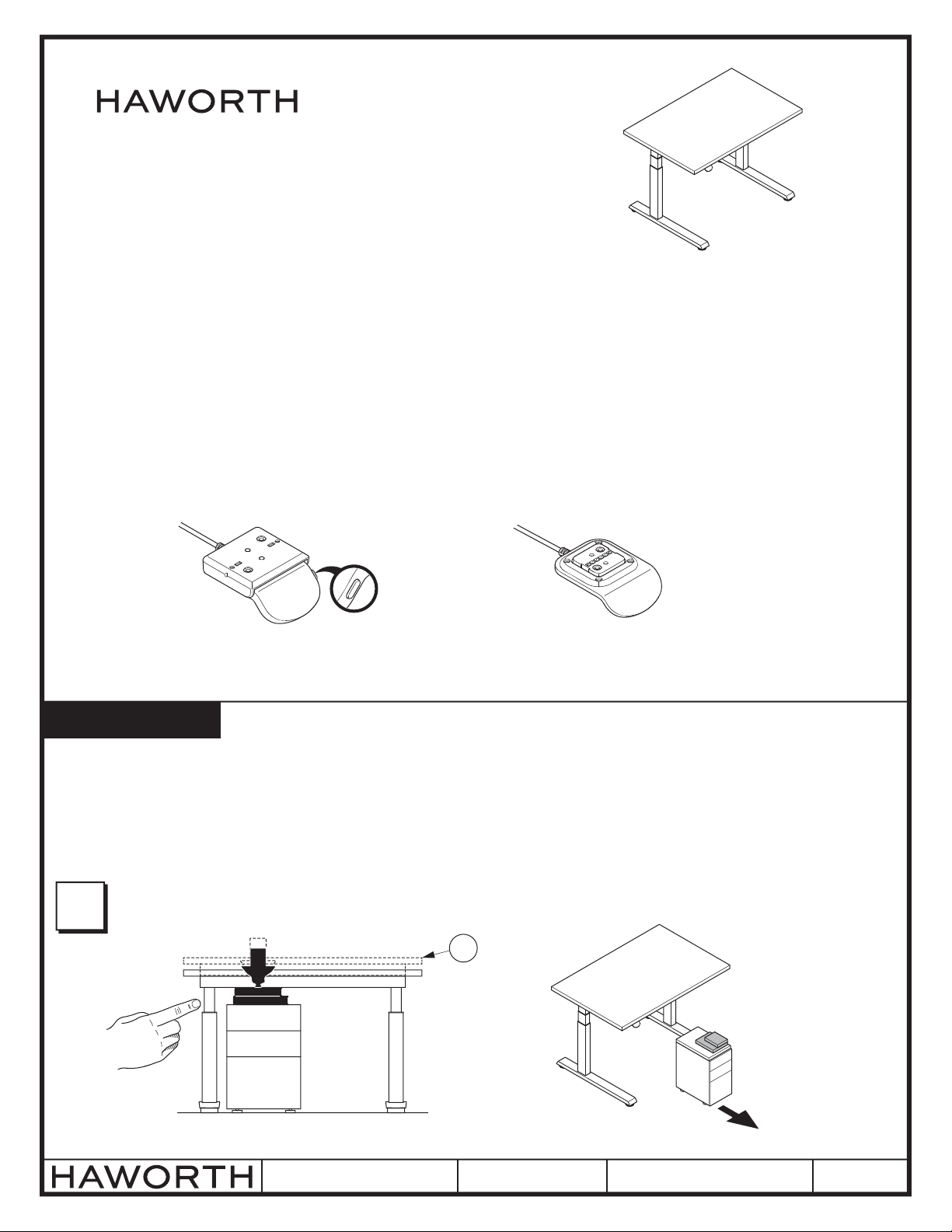

Operating Your Upside
Height-Adjustable Table
Note: Avoid risk of injury with your height-adjustable table through proper training. For safe
operation, ensure that there is at least 1”between the height-adjustable worksurface and any
adjacent objects such as storage or xed worksurfaces.
Synchronizes motors by returning the table to lowest position. Resetting
resolves most mechanism issues. This procedure can be done with either a
standard or programmable paddle.
Perform this step once a month, and when legs are uneven or not raising.
Paddle Type
PROGRAMMABLE PADDLE STANDARD
PADDLE
*Paddle and table examples are for illustration purposes only—yours may look dierent
depending on table type.
Your table is equipped with one of two paddle types (programmable or standard).
*Press the paddle down or up and follow the instructions regardless of the paddle type.
IMPORTANT! Remove all contents from under table!
COLLISION = REMOVE OBSTRUCTION
A
DEFAULT RESET

NOTE: Typically the table will move up slightly
but if a lower storage stop is set, it will raise up
all the way to the lower storage stop.
NOTE: This step only applies to
programmable paddle.
Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
9 of 26

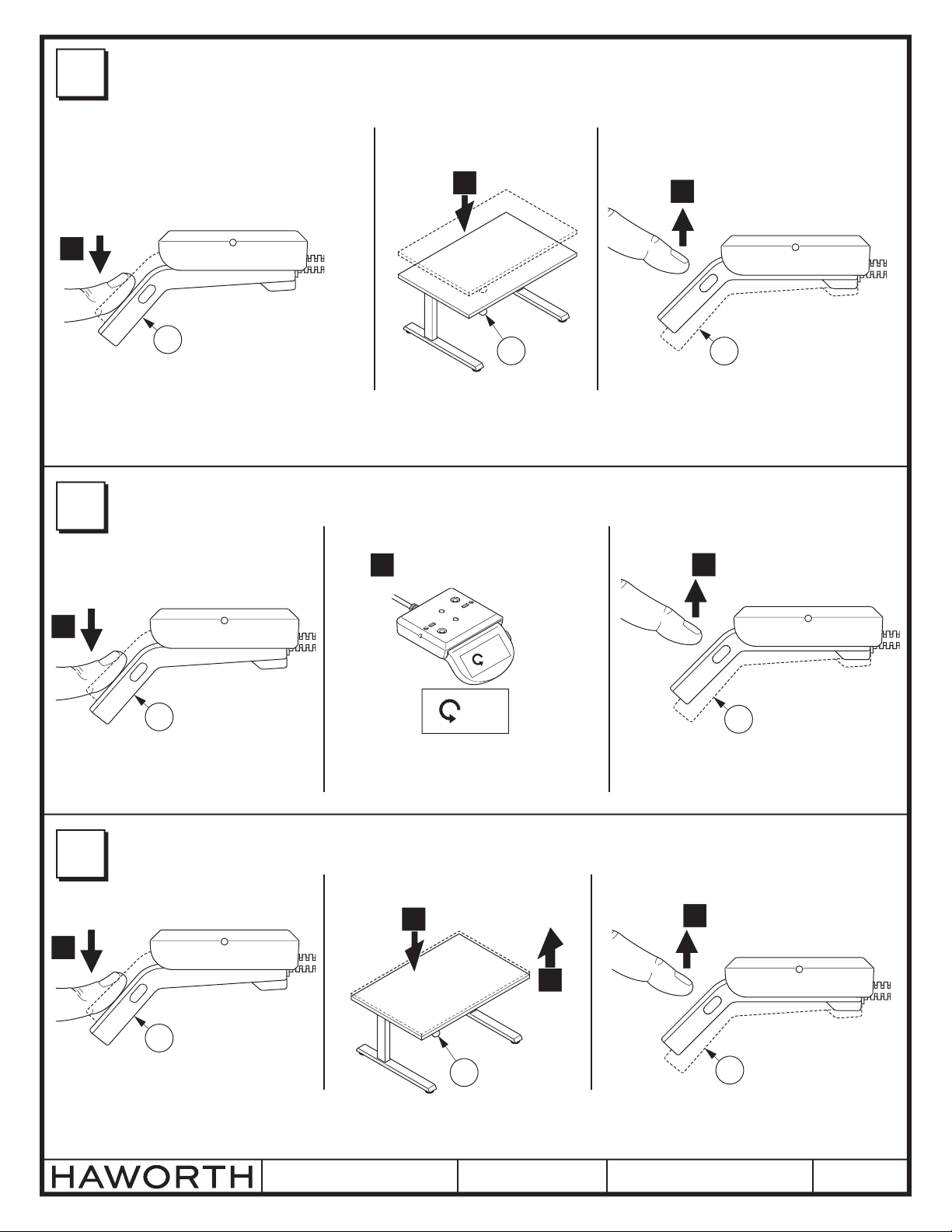

Hold down paddle (C) for 10 seconds and release
3
3
1
THEN UP
2
C
CC
C
1
“HOLD FOR 10 SECONDS”
C
1
C
C
Press and hold down paddle (C) until table moves down and continue to hold until table stops moving up
4
Lower table all the way down
Press paddle (C) down
Lower table all the
way down
3Release paddle (C)
2
3Release paddle (C)
C
4Release paddle (C)
MOVES
DOWN SLIGHTLY
2
2
RESET
RESET

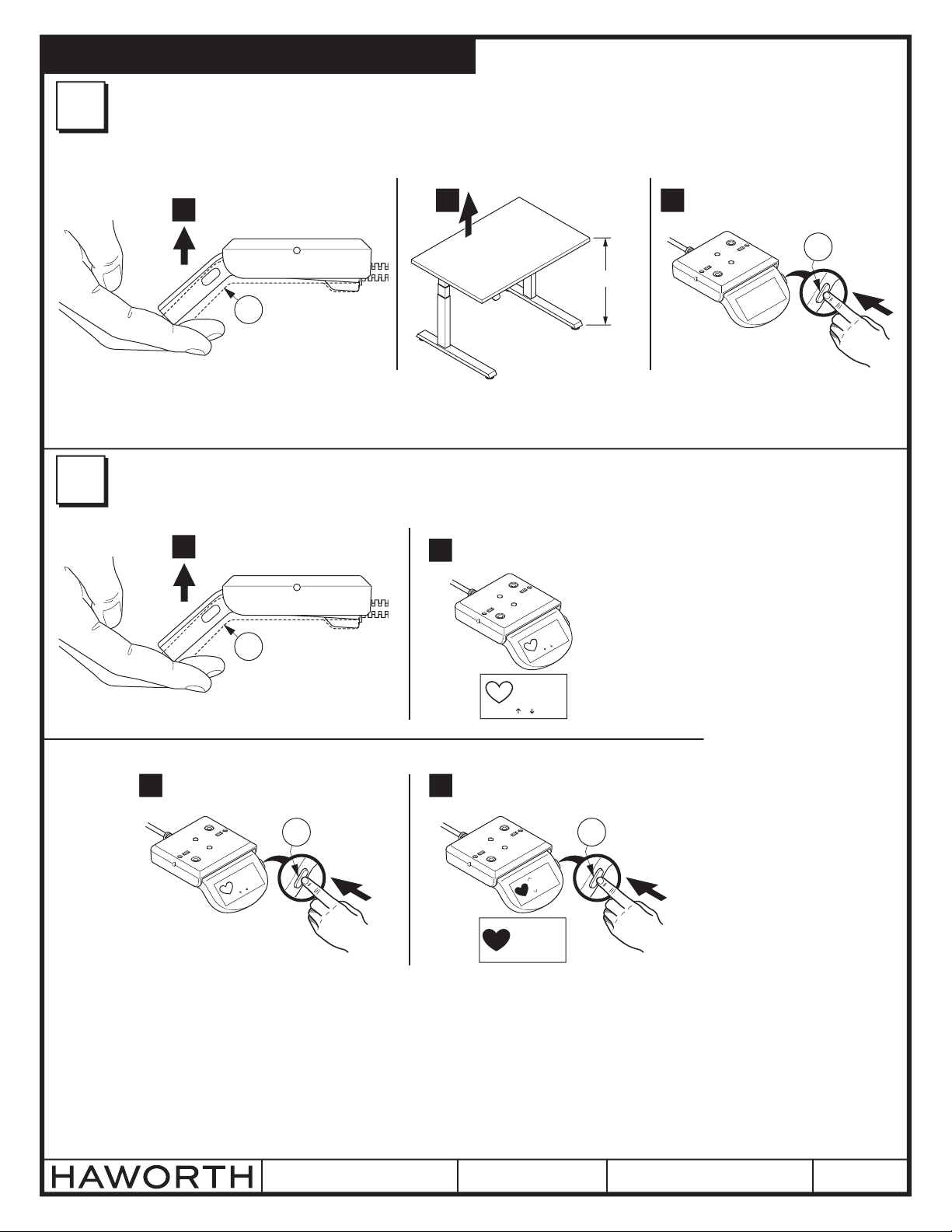

Saving the rst preset height position
Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
10 of 26
PROGRAMMABLE
PADDLE
STANDARD
PADDLE
1Raise table to desired standing height (above 35.5 inches)
2Tap paddle (C) up until “Favorite” menu is displayed
C
C2
1Lift paddle (C) 2 3 Press button (C2)
PROGRAMMABLE PADDLE FEATURES
42.0
C2
3
2
Press button (C2)
C
1Tap paddle (C) up
FAVORITE
2/7
FAVORITE
2/7
FAVORITE
2/7
C2
4Press button (C2) again to set “Preset Height 1”
42.0
1
42.0
1
35.5” - ABOVE
NOTE: Heart lls in.

Saving the second preset height position
Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
11 of 26
1Raise or lower table to desired seated height (below 35.5 inches)
2Tap paddle (C) up until “Favorite” menu is displayed
C
C2
1Lift paddle (C) 2 3 Press button (C2)
25.0
35.5” - BELOW
C2
3
2
Press button (C2)
C
1Tap paddle (C) up
FAVORITE
2/7
FAVORITE
2/7
FAVORITE
2/7
C2
4Press button (C2) again to set “Preset Height 2”
25.0
2
25.0
2
NOTE: Heart lls in.

Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
12 of 26
C
2
Moving to a preset height
1Lower to Preset Height 1 (42”)
Lower to Preset Height 2 (25”)
48”
42” (PRESET HEIGHT 1)
Tap paddle (C) down
2 times rapidly
1
C
2
42”
25” (PRESET HEIGHT 2)
C
2
Tap paddle (C) down
2 times rapidly
1
Raise back to Preset Height 1 (42”)
2
42” (PRESET HEIGHT 1)
25”
3
Tap paddle (C) up
2 times rapidly
1

Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
13 of 26
C2
5Press button (C2)
50
MIN
C
4Tap paddle (C) up until the
desired reminder is displayed
30 MIN 40 MIN 50 MIN
50 MIN
50
45.0
50
45.0

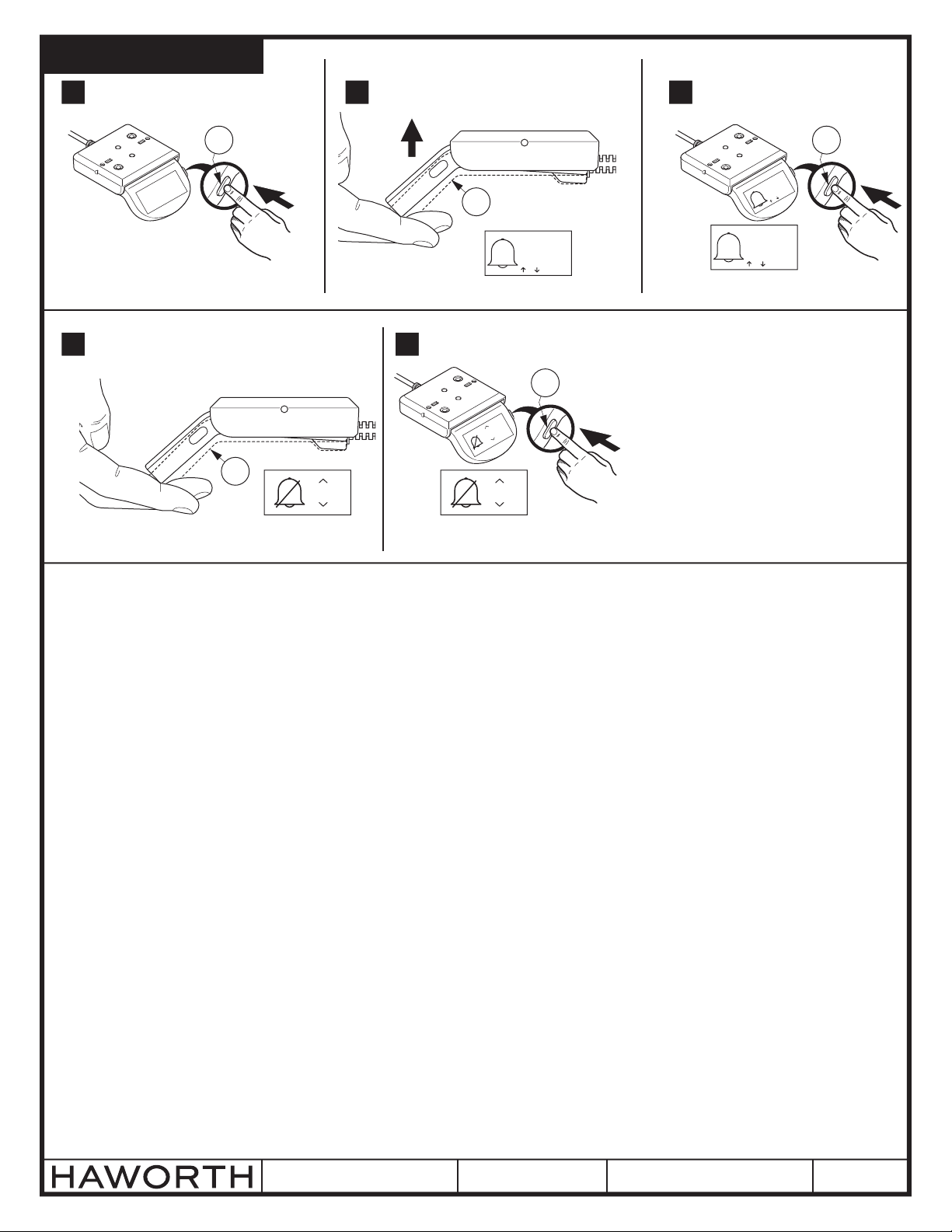

Set move reminder
How move reminder bar works Resetting move reminder
1Finding and setting the“REMINDER” setting
2
C
Tap paddle (C) up until the
“REMINDER” menu is displayed
C2
1Press button (C2)
1 2
3
Raise table above 40” to reset
the move reminder
C2
3Press button (C2)
REMINDER
3/7
REMINDER
3/7
REMINDER
3/7
OROR
50
38.0
50
38.0
NOTE: If table height is
ABOVE 40”, the bar will
not ll and the paddle
WILL NOT vibrate.
NOTE: When the time
on the reminder bar is
full the paddle will
vibrate and display the
above image.
50
45.0
50
45.0
NOTE: If table height
is BELOW 40”, the bar
begins to ll as each
minute passes. when
bar is full it will
vibrate.
Lower table height BELOW 40”,
and the bar begins lling again.
42”
40”
40”
25”
40”
25”

Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
14 of 26
C2
5Press button (C2)
OFF
4
C
Tap paddle (C) up until the
“turn o reminder” is displayed
Turn o reminder
C
2Tap paddle (C) up until the
“REMINDER” menu is displayed
C2
1Press button (C2)
C2
3Press button (C2)
REMINDER
3/7
REMINDER
3/7
REMINDER
3/7
OFF OFF

Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
15 of 26

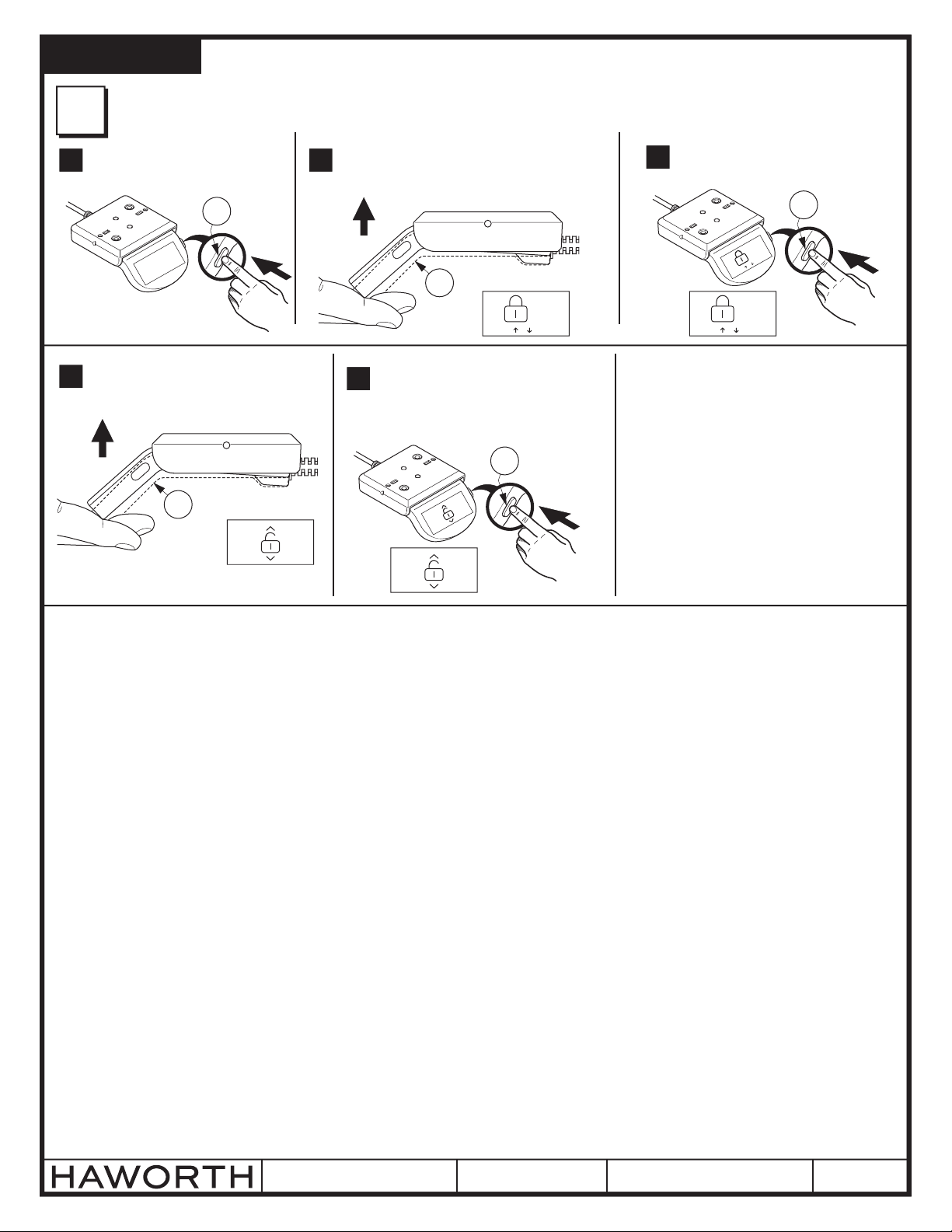

1Set upper storage stop
C
C2
1Raise table to desired upper
storage stop height 2 3 Press button (C2)
36.0
Set Upper and Lower Storage Stop
4Tap paddle (C) up until
“Limits” is displayed
C
C
C2
5Press button (C2)
LIMITS
4/7
LIMITS
4/7
LIMITS
4/7
6Tap paddle (C) up until the
“UPPER STORAGE STOP” page
is displayed
C2
7Press button (C2) to set upper storage stop height
MAX
MAX MAX

2Set lower storage stop
Set Upper and Lower Storage Stop
Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
16 of 26
C2
3Press button (C2)
25.0
4Tap paddle (C) up until the
“LIMITS” menu is displayed
1
C
Press paddle (C) down
2Lower table to desired lower
storage stop height
C2
5Press button (C2)
LIMITS
4/7
LIMITS
4/7
LIMITS
4/7
6Tap paddle (C) up until the
“LOWER STORAGE STOP” page
is displayed
C2
7Press button (C2) to set lower
storage stop height
MIN
MIN
MIN
C
C
NOTE: Performing a reset with lower
storage stop enabled will stop the
table at lower storage stop. User will
have to release paddle and then
press again to reach lowest position
to complete reset.
Once reset is complete, the table
will rise to lower stop storage
height.

C2
1Press button (C2)
C2
3Press button (C2)
LIMITS
4/7
LIMITS
4/7
2Tap paddle (C) up until the
“LIMITS” menu is displayed
LIMITS
4/7
C
3
Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
17 of 26
Clear Upper and Lower Storage Stop
4
C
Press paddle (C) down until the
“CLEAR UPPER AND LOWER STORAGE
STOP” page is displayed
C2
5Press button (C2) to clear upper and lower
storage stop height
OFF
OFF OFF

1
2
Follow steps to set “Lock Mode”
Set Lock Mode
Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
18 of 26
C2
1Press button (C2)
25.0
2Tap paddle (C) up until “LOCK”
menu is displayed
LOCK
5/7
The Lock Mode
C2
3Press button (C2)
LOCK
5/7
LOCK
5/7
4Tap paddle (C) up until “LOCK”
is displayed
C2
5Press button (C2) to set lock
on paddle automatically after
10 seconds of inactivity
C
C
NOTE: Once 10 seconds of
inactivity has elapsed, the
paddle (C) will automatically
lock, preventing any change
to the table height or user
settings.
50
45.0
50
45.0
NOTE: A lock icon will
be displayed on the
home screen when the
lock mode is active.
LIFT FOR3 SECONDS
LIFT FOR 3 SECONDS
NOTE: Lifting for 3
seconds will unlock
paddle (C).

3
Turn o Lock
Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
19 of 26
1Press button (C2) 2Tap paddle (C) up until “LOCK”
menu is displayed
LOCK
5/7
C2
3Press button (C2)
LOCK
5/7
LOCK
5/7
4
C2
5Press button (C2)
C
C2
Tap paddle (C) up until
“UNLOCK” is displayed
C

1Follow steps to set “Vibration Pattern”
Set Vibration Pattern
Rev:
Part No:
Page:
E.C.O. No:
CUSTOMER SERVICE PHONE: [phone]
1245-650 6100-0110
20 of 26
C2
1Press button (C2)
25.0
C2
3Press button (C2)
6/7
VIBRATION
Clear Vibration Pattern
4Tap paddle (C) up until the
“TURN OFF VIBRATION PATTERN”
page is displayed C2
5Press button (C2)
OFF
VIBRATION
6/7
VIBRATION
6/7
4
C2
5Press button (C2)
OFF
OFF
OR
MORE
VIBRATION
LESS
VIBRATION
2Tap paddle (C) up until
“VIBRATION” menu is displayed
C
C2
1Press button (C2)
25.0
C2
3Press button (C2)
6/7
VIBRATION
VIBRATION
6/7
VIBRATION
6/7
2Tap paddle (C) up until
“VIBRATION” menu is displayed
C
C
Tap paddle (C) up until desired
“VIBRATION PATTERN” is displayed
C
